Takeuchi Mini Excavator TB235 (Serial No.123500001~). Parts Manual - page 4
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

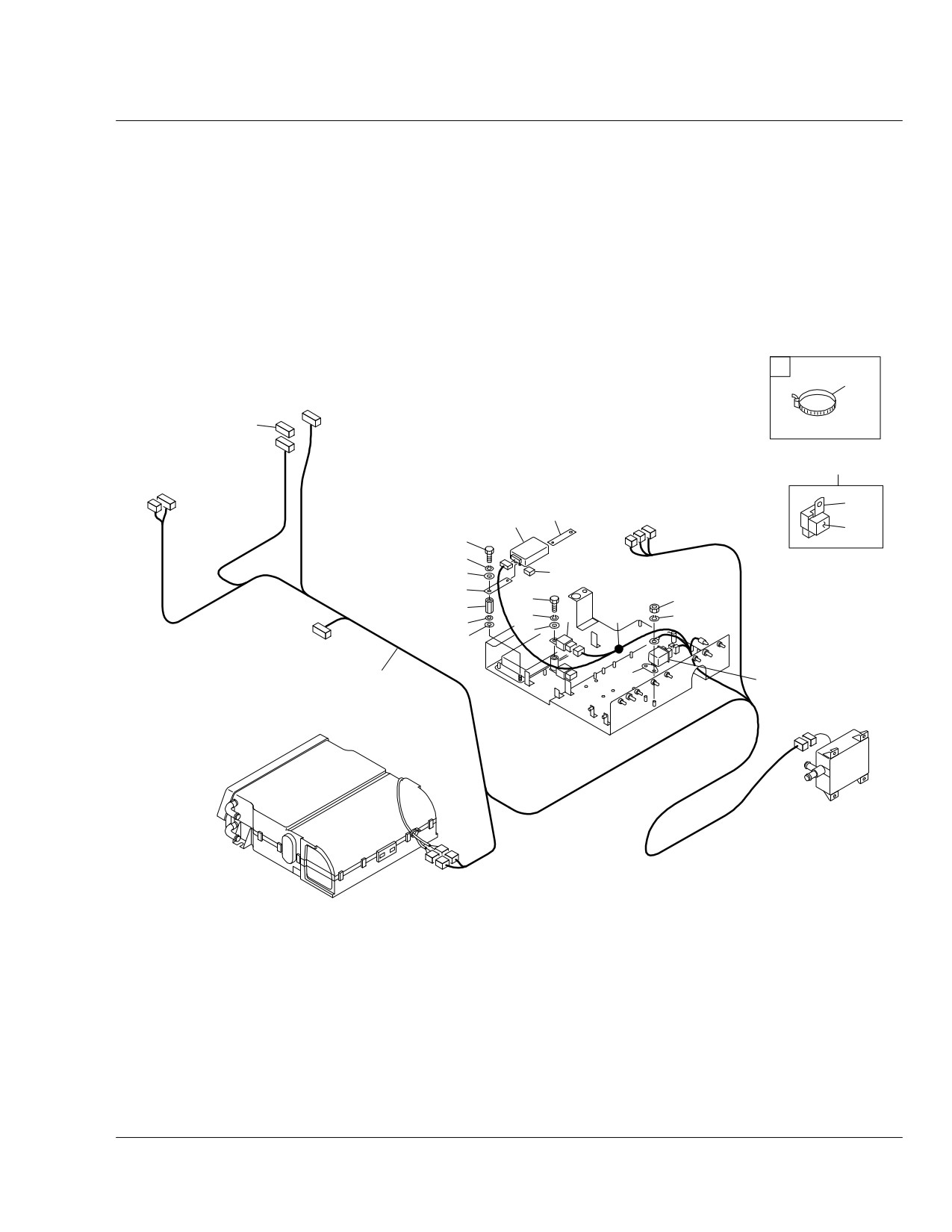

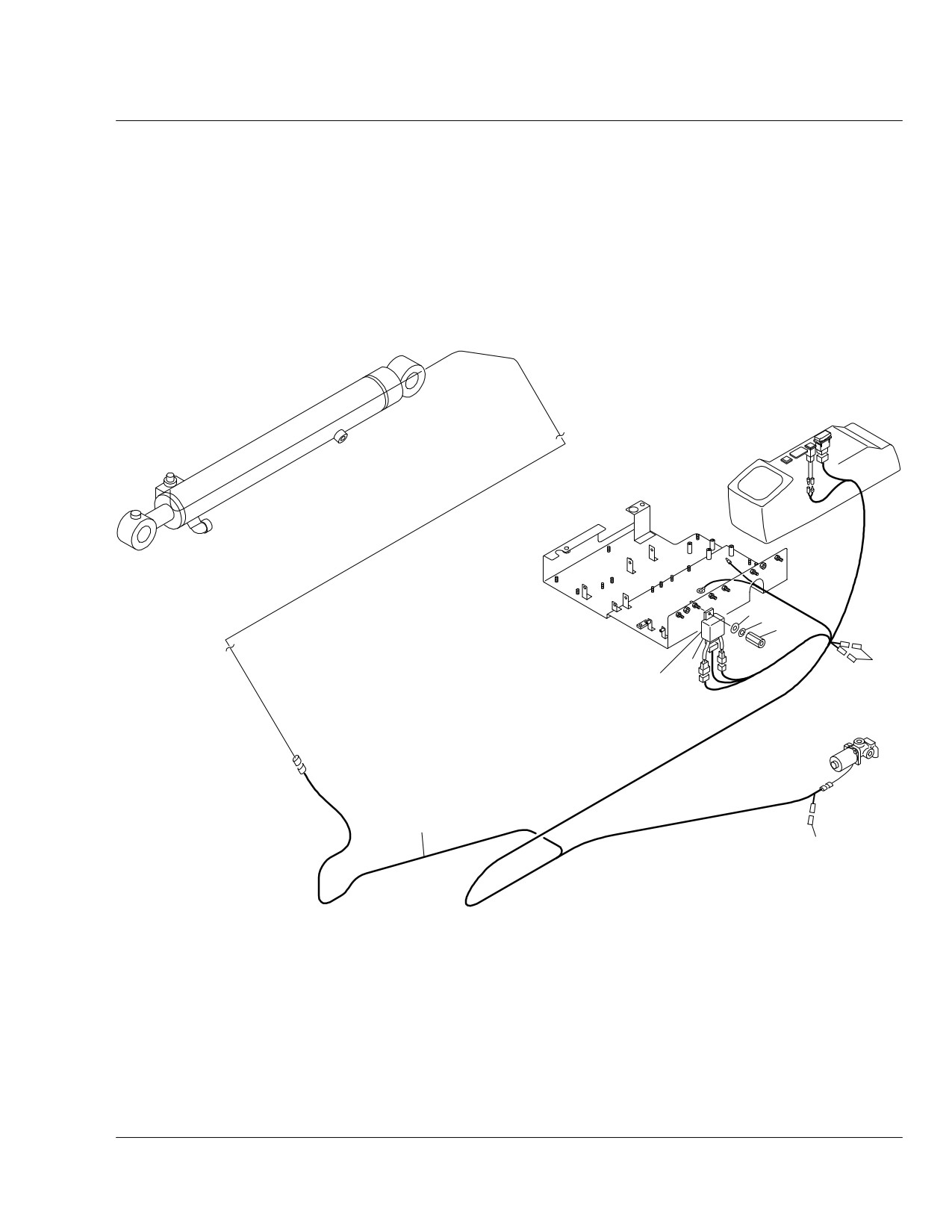

CONTROL UNIT (arm-in restriction)
4
3
2
5-1
1
Relay for ARM-IN Restriction System
5
5-1
G7C311
S=1/10
Ref. G7C311
Page
3-29
CONTROL UNIT (arm-in restriction)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
0374219000
CONTROL UNIT ASSY
1
1
1711900162
RELAY
1
M
2
1134830625
NUT
1
3
1140020006
WASHER, spring
3
4
1141110006
WASHER
1
5
0376015590
HARNESS ASSY, wiring
1
5-1
1730500008
DIODE (3A, yellow)
3
G7c311
Reference:G7C311
Page:3-29
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

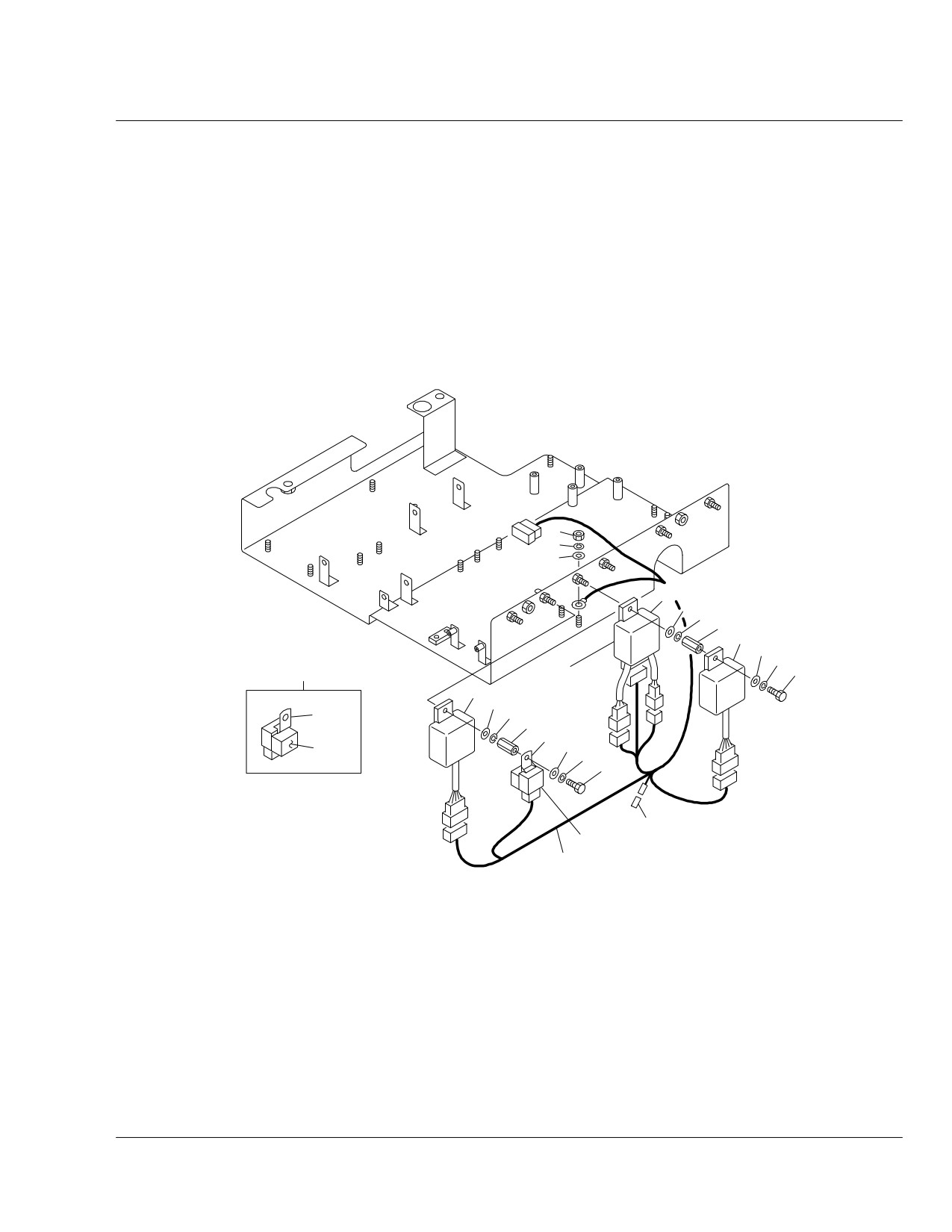

CONTROL UNIT (auto decel.)
4
5
6
2
6
5
7
3
6
5
10
Relay
8
for Auto Decel
9
6
10-1
5
7
10
6
10-2
5
8
1-1
Relay for Auto Decel
G7C321
1
S=1/5
Ref. G7C321
Page
3-30
CONTROL UNIT (auto decel.)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
0374219100
CONTROL UNIT ASSY
1
1
0374217710
HARNESS ASSY, wiring
1
1-1
1730500008
DIODE (3A, yellow)
2
2
1711900162
RELAY ASSY
1
M
3
1711900139
TIMER UNIT
1
4
1130040006
NUT
1
5
1140020006
WASHER, spring
5
6
1141110006
WASHER
5
7
1134830625
NUT
2
8
1100040616
BOLT
2
9
1711900138
FLIP FLOP UNIT
1
10
0334242540
RELAY ASSY
1
10-1
1711900042
RELAY
1
10-2
1654301003
SPONGE
1
sold by the meter
G7c321
Reference:G7C321
Page:3-30
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
CONTROL UNIT (cold latitudes heater)
a
11
12-1
9
9-1
2
1
9-2
3
6
7
10
2
3
4
5
6
9
a
6
6
7
7
8
12
Main Relay for Heater
G7C331
S=1/10
Ref. G7C331
Page
3-31
CONTROL UNIT (cold latitudes heater)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
0374218800
CONTROL UNIT ASSY
1
1
1911511052
AMP, control
1
2
0374604370
STAY
2
3
1100040610
BOLT
3
4
1130040006
NUT
2
5
1134830635
NUT
2
6
1140020006
WASHER, spring
7
7
1141110006
WASHER
5
8
1711900099
RELAY
1
9
0334230130
RELAY ASSY
1
9-1
1711900042
RELAY
1
9-2
1654302003
SPONGE
1
sold by the meter
10
1654351015
SPONGE
1
sold by the meter
11
1652231250
BAND
1
12
0374508250
HARNESS, wiring
1
12-1
0374604929
CONNECTOR, short
1
G7c330
Reference:G7C331
Page:3-31
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

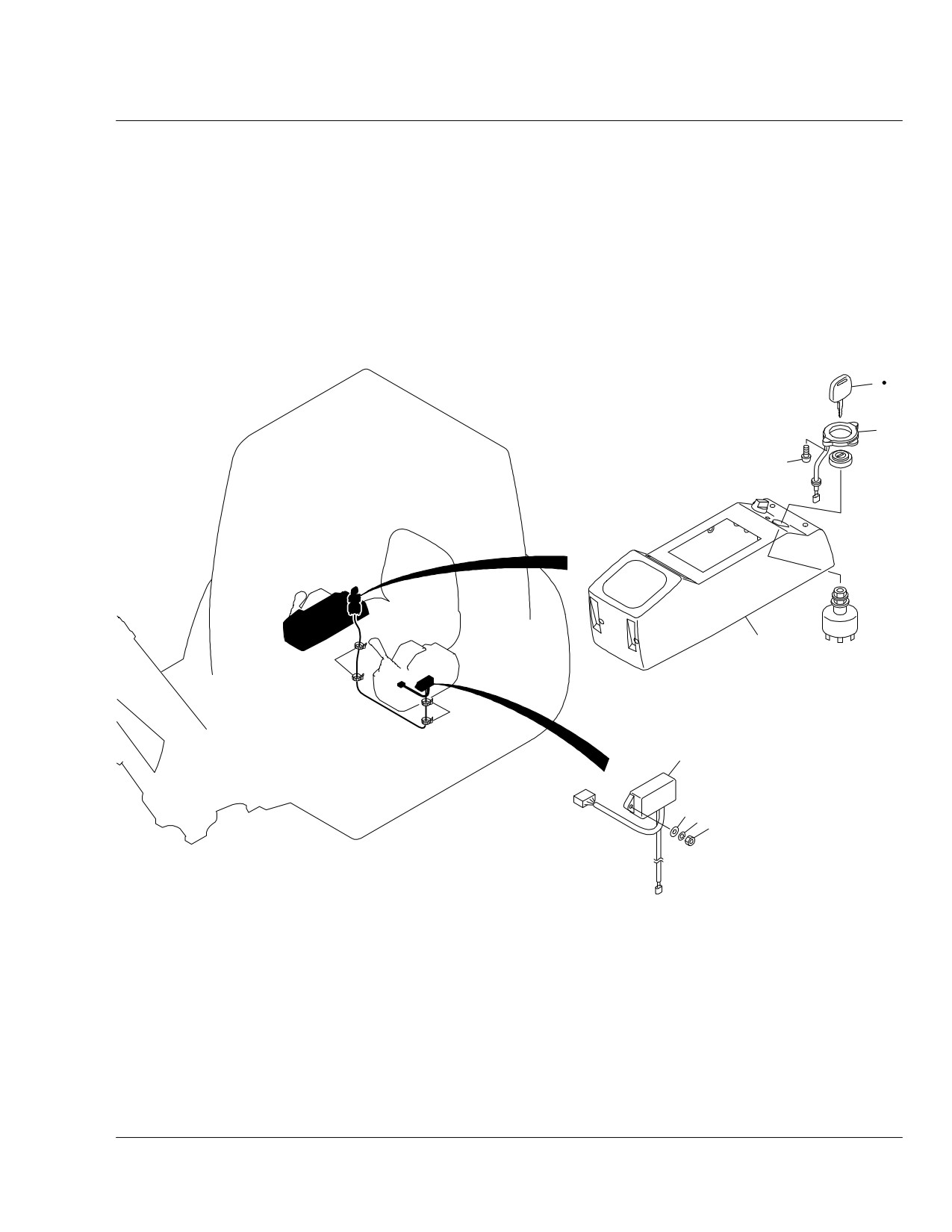

SECURITY SYSTEM
1-3
1-4
1-2
1-5
6
7
7
1-1
345
G7C130
S=1/7, 1/20
Ref. G7C130
Page
3-32
SECURITY SYSTEM
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
SYSTEM ASSY, security
1
1730147800
SYSTEM KIT, security
1
1-1
X
**********
CONTROLLER
1
1-2
X
**********
COIL, antenna
1
1-3
X
**********
KEY
2
black
1-4
X
**********
KEY
1
gray
1-5
X
**********
SCREW
2
3
1141110006
WASHER
2
4
1140020006
WASHER, spring
2
5
1130040006
NUT
2
6
0374216830
COVER (R.H.)
1
7
1652231250
BAND
4
G7c130
Reference:G7C130
Page:3-32
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
TRAVEL ALARM
8
5
6
2
10
9
11
14
13
a
a
11
10
a
9
8
a
2
18
9
123500001~123500972
a
123500001~
123500228
7
5
7
12
17
5
12
19
20
21
a
15
16
2322
7
G7C142
5
S=1/6, 1/25
Ref. G7C142
Page
3-33
TRAVEL ALARM
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
TRAVEL ALARM ASSY
2
0374216920
BRACKET
1
5
1140020006
WASHER, spring
8
6
1141110006
WASHER
2
7
1100040616
BOLT
6
8
1130040008
NUT
1
123500001~123500972
1100040610
BOLT
2
123500973~
9
1140020008
WASHER, spring
1
10
1141110008
WASHER
1
11
1100240835
BOLT
1
123500001~123500972
1100040816
BOLT
1
123500973~
12
0003606202
WASHER
4
123500229~
13
1703700013
BUZZER
1
14
0872433150
TUBE
2
15
1652231250
BAND
10
16
0564230820
PLATE (L.H.)
1
123500001~1235#
0374217940
PLATE (L.H.)
1
(H)
1235#~
17
0564230810
PLATE (R.H.)
1
123500001~1235#
0374217930
PLATE (R.H.)
1
(H)
1235#~
18
1100040814
BOLT
4
123500001~123500228
19
1700009010
SWITCH, proximity
1
20
0374217920
COVER
1
21
1120530314
SCREW
2
22
1130030003
NUT
2
23
1140020003
WASHER, spring
2
G7c142
Reference:G7C142
Page:3-33
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

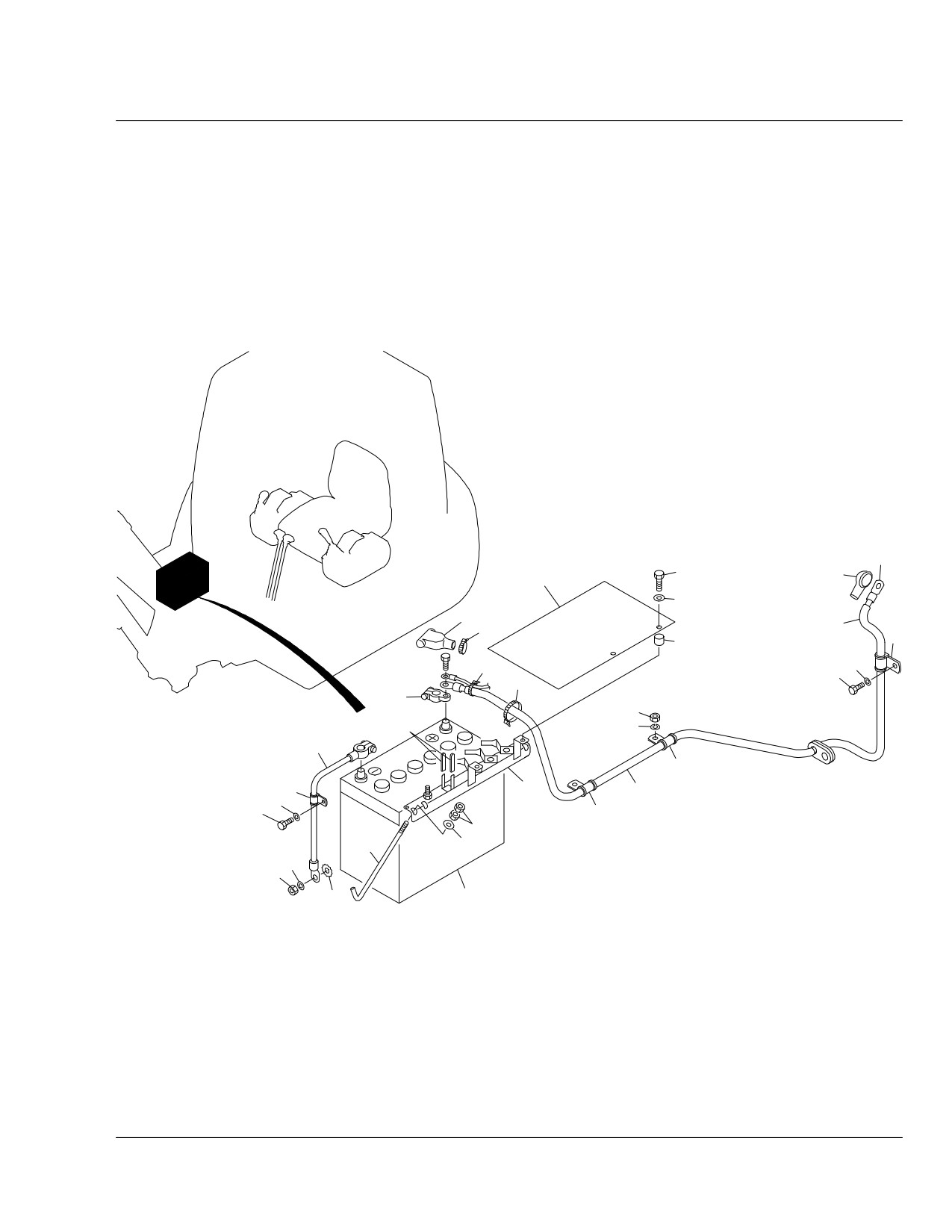

BATTERY
2
17
2-3
4
24
7
23
16
14
38
11
15
9
16
6
10
37
11
25
14
21
3
19
20
17
14
18
5
24
11
10
12
1
G7C152
S=1/8, 1/25
Ref. G7C152
Page
3-34
BATTERY
Item
Part number
Description
Q'ty
Chan. Serial No.
Serv.
Remarks
BATTERY ASSY
1
1702069531
BATTERY
1
2
0374407020
CABLE, battery
1
2-3
1910007119
COVER
1
3
0374407530
CLAMP
1
4
0374407540
SHEET
1
5
1702108285
BOLT
2
6
1702330000
TERMINAL
1
7
1702920060
COVER
1
9
1100041016
BOLT
1
10
1130040010
NUT
2
11
1140020010
WASHER, spring
3
12
1140330010
WASHER
1
14
1711900072
CLAMP
3
15
1652231140
BAND
1
16
1652201005
BAND
2
17
1100040816
BOLT
3
18
1130040008
NUT
4
19
1531325110
PROTECTOR
1
sold by the meter
20
1140020008
WASHER, spring
1
21
1652900006
CLAMP
1
23
1531325045
PROTECTOR
1
sold by the meter
24
1141110008
WASHER
4
25
1702230025
CABLE, earth
1
37
0872433150
TUBE
2
38
1531320003
PROTECTOR
1
123500907~
M
sold by the meter
G7c152
Reference:G7C152
Page:3-34
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

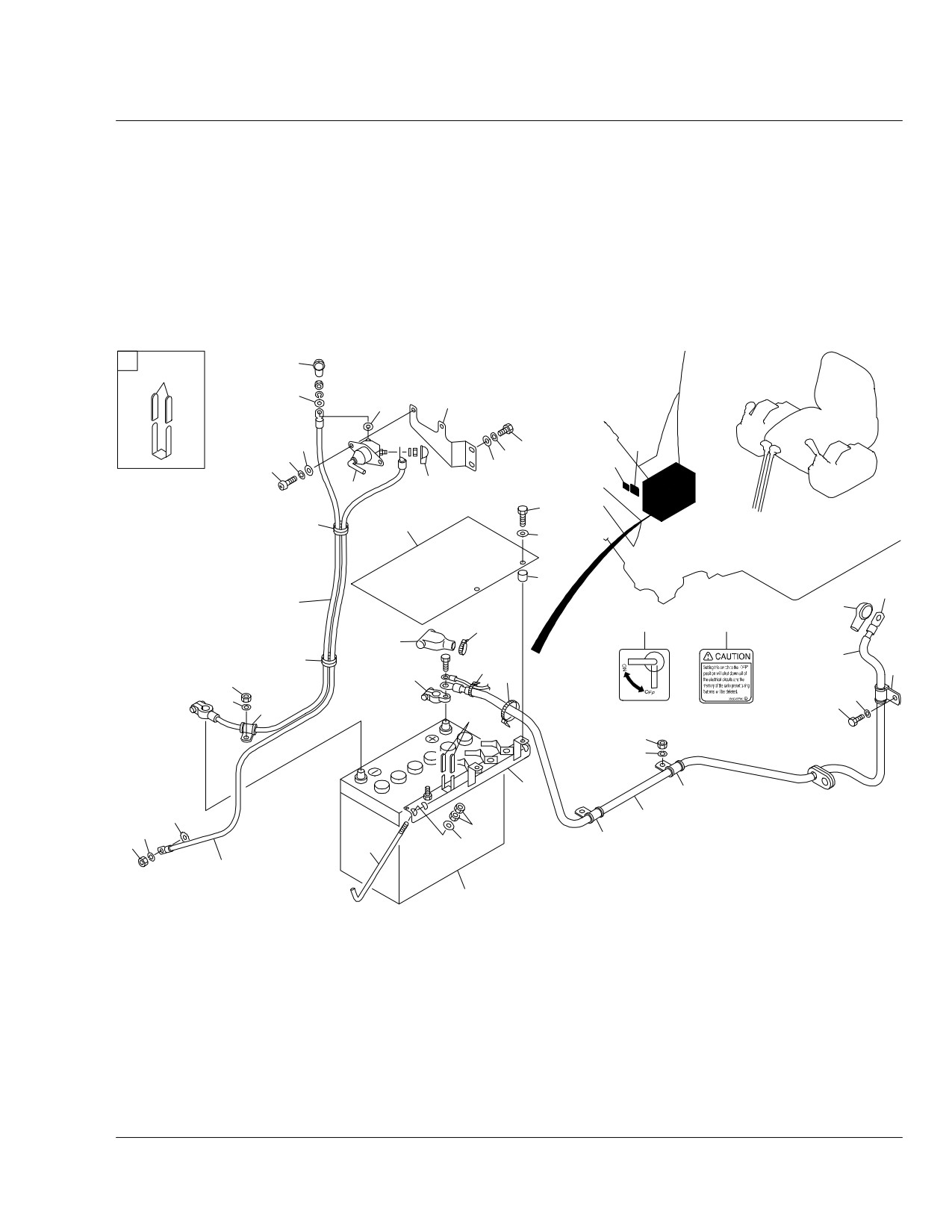

BATTERY (with battery switch)
a
36
37
24
24
35
33
30
32
2022
29
31
24
36
28
17
a
4
24
38
2
26
2-3
16
29
30
7
a
23
15
14
6
16
18
11
20
34
9
37
10
11
3
14
12
19
11
18
10
14
5
24
27
G7C261
1
S=1/8, 1/25
Ref. G7C261
Page
3-35
BATTERY (with battery switch)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
BATTERY ASSY
1
1702069531
BATTERY
1
2
0374407020
CABLE, battery
1
3
0374407530
CLAMP
1
4
0374407540
SHEET
1
5
1702108285
BOLT
2
6
1702330000
TERMINAL
1
7
1702920060
COVER
1
9
1100041016
BOLT
1
10
1130040010
NUT
2
11
1140020010
WASHER, spring
3
12
1140330010
WASHER
1
14
1711900072
CLAMP
3
15
1652231140
BAND
1
16
1652201005
BAND
2
17
1100040816
BOLT
2
18
1130040008
NUT
5
19
1531325110
PROTECTOR
1
sold by the meter
20
1140020008
WASHER, conical
4
22
1100040820
BOLT
2
23
1531325045
PROTECTOR
1
sold by the meter
24
1141110008
WASHER
6
26
0374407620
CABLE, battery
1
27
0374407630
CABLE, earth
1
28
1700100051
SWITCH, battery
1
29
0399351210
DECAL
1
30
0569353810
DECAL
1
31
1100040616
BOLT
2
32
1140020006
WASHER, conical
2
33
1141110006
WASHER
2
34
1652900008
CLAMP
1
35
0374407610
BRACKET
1
36
1702901281
CAP
2
37
0872433150
TUBE
6
38
1531320003
PROTECTOR
1
123500907~
M
sold by the meter
G7c261
Reference:G7C261
Page:3-35
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
CANOPY LIGHT & SOCKET
18
a
8
10
9
19
1
without socket
2
7
6
10
5
12
4-1
4
10
20
12
20
11
a
b
16
15
3
b
17
K7C190
S=1/5, 1/8, 1/12
Ref. K7C190
Page
3-36
CANOPY LIGHT & SOCKET
Item
Part number
Description
Q'ty Chan. Serial No.
Serv.
Remarks
LIGHT & SOCKET ASSY, canopy
LIGHT ASSY, canopy
SOCKET ASSY, canopy
1
0378407080
HARNESS, wiring
1
2
0378407020
HARNESS, wiring
1
with light
3
0378407090
HARNESS, wiring
1
4
1703006600
LAMP ASSY
2
with light
4-1
1703006605
BULB
1
5
1100041020
BOLT
2
with light
6
1140020010
WASHER, spring
2
with light
7
1141110010
WASHER
2
with light
8
0378407110
BRACKET
1
9
1711900066
SOCKET
1
ƒ\ƒPƒbƒg•twith socket
10
1150410512
SCREW
8
11
0378407060
COVER
1
with light
12
1652241200
BAND
2
with light
15
1652261410
BAND
1
16
1150410520
SCREW
1
17
0872433150
TUBE
4
18
1653916003
TRIM
1
sold by the meter
19
1652060019
BUSHING
1
except for socket
20
0008500038
DECAL
1
M
with light
K7c190
Reference:K7C190
Page:3-36
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

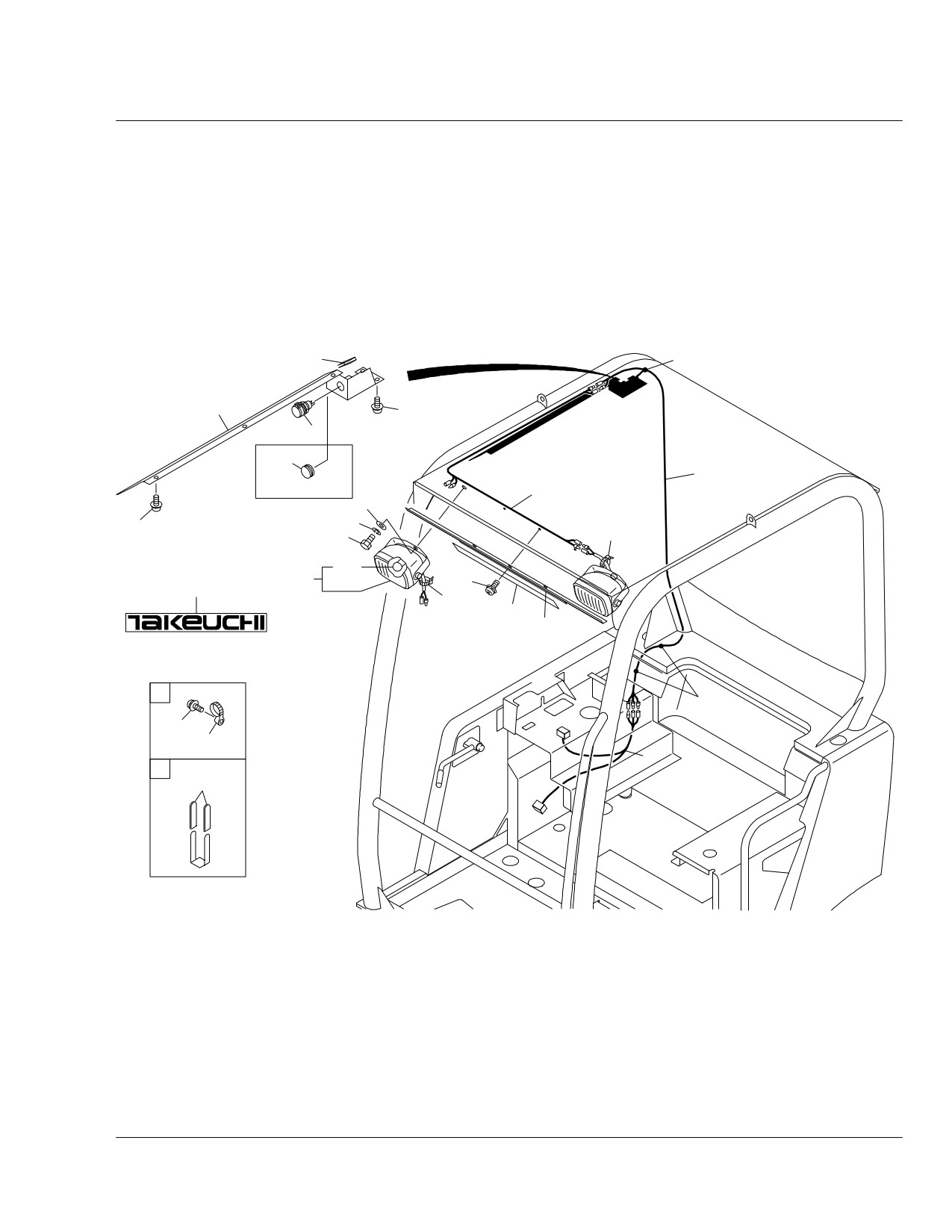

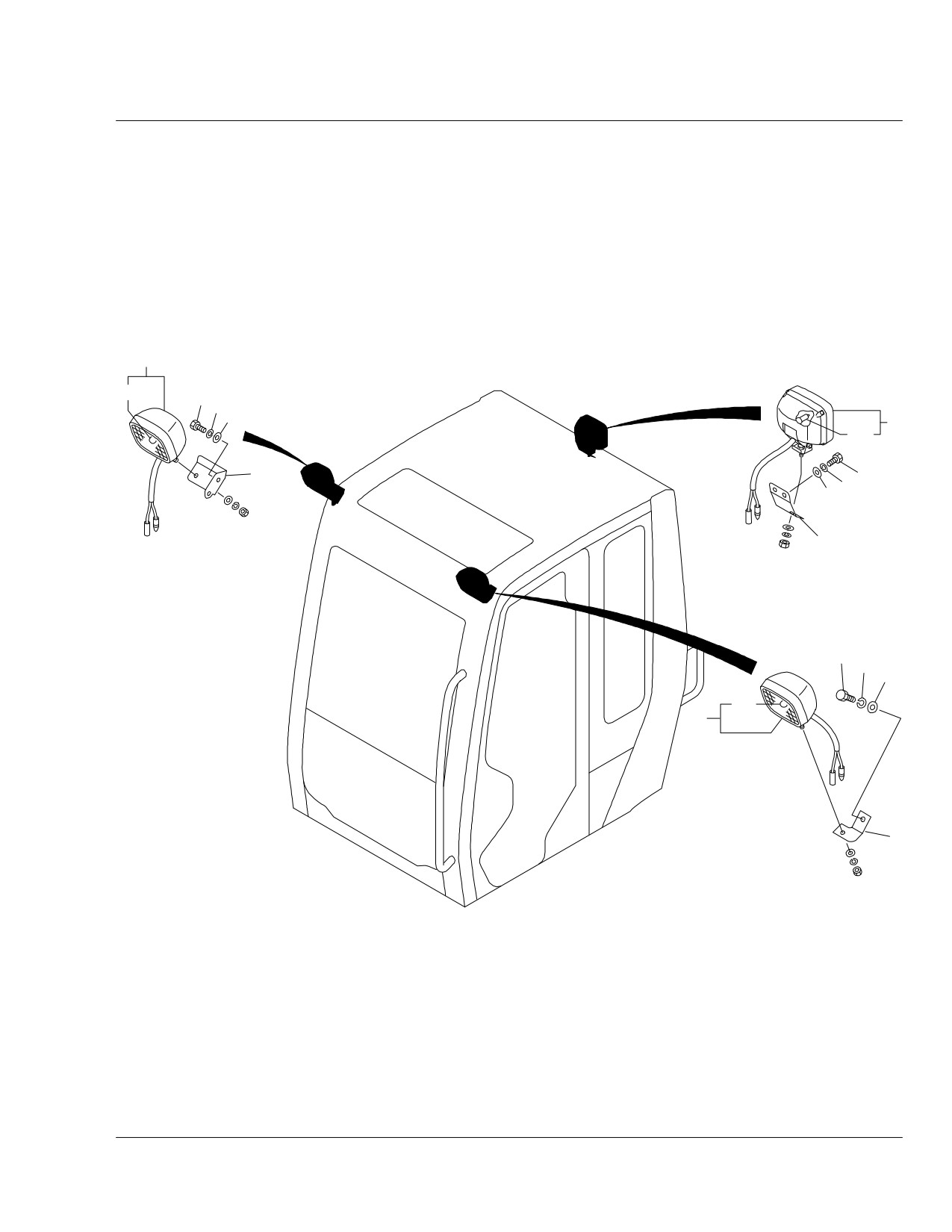

CAB LIGHT
4
4-1
6
8
10
4
4-1
2
6
8
10
3
5
7
9
4-1
4
1
G7C270
S=1/10, 1/17
Ref. G7C270
Page
3-37
CAB LIGHT
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
LIGHT ASSY, cab
LIGHT ASSY, cab
LIGHT ASSY, cab
1
0378608010
BRACKET
1
2
0378608110
BRACKET
1
3
0378608210
BRACKET
1
4
1703006600
LAMP ASSY
1
4-1
1703006605
BULB
1
5
1100031020
BOLT
1
6
1100030820
BOLT
2
7
1140020010
WASHER, spring
1
8
1140020008
WASHER, spring
2
9
1141110010
WASHER
1
10
1141110008
WASHER
2
G7c270
Reference:G7C270
Page:3-37
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

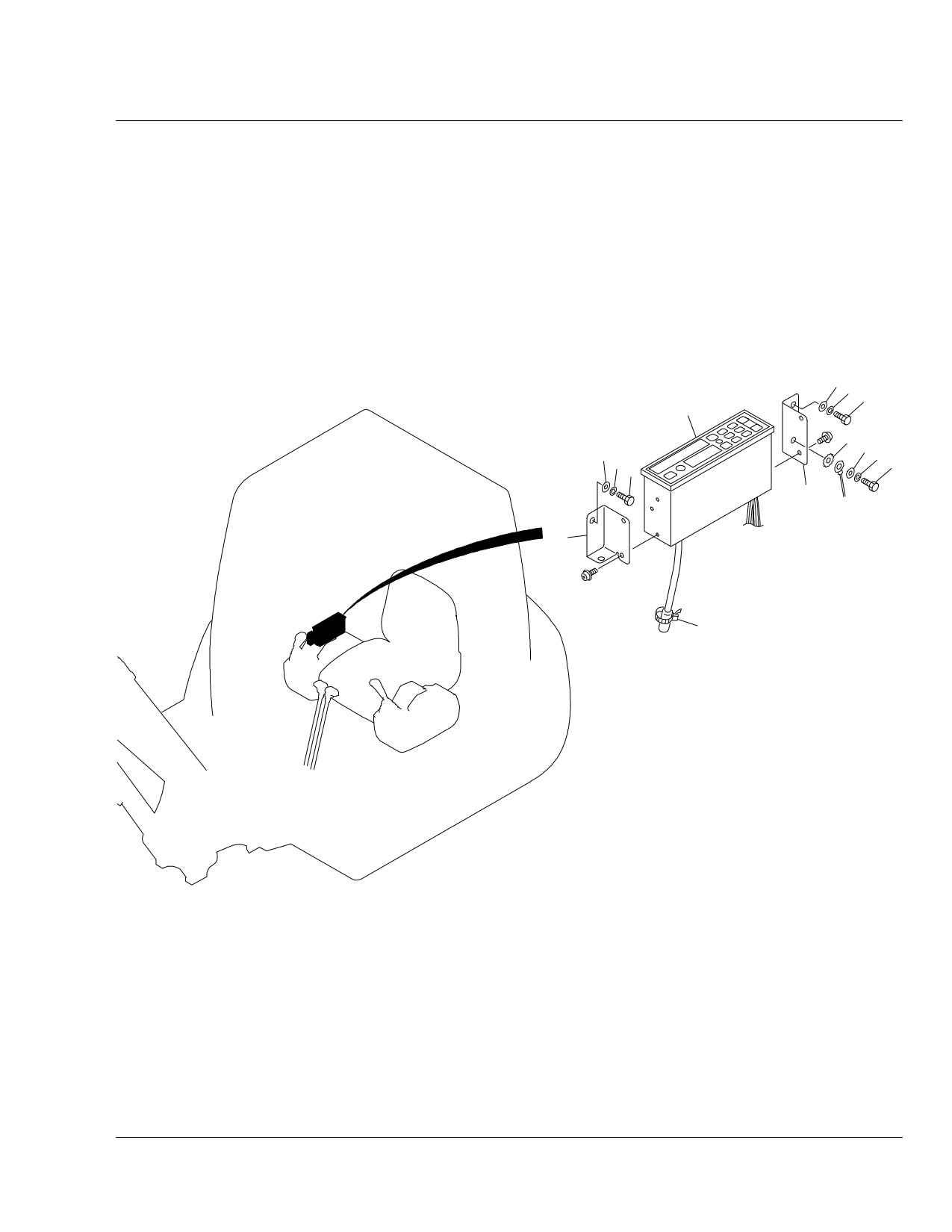

RADIO
5
6
4
1
8
5
5
6
6
4
4
2
3
7
G7C170
S=1/5, 1/20
Ref. G7C170
Page
3-38
RADIO
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks

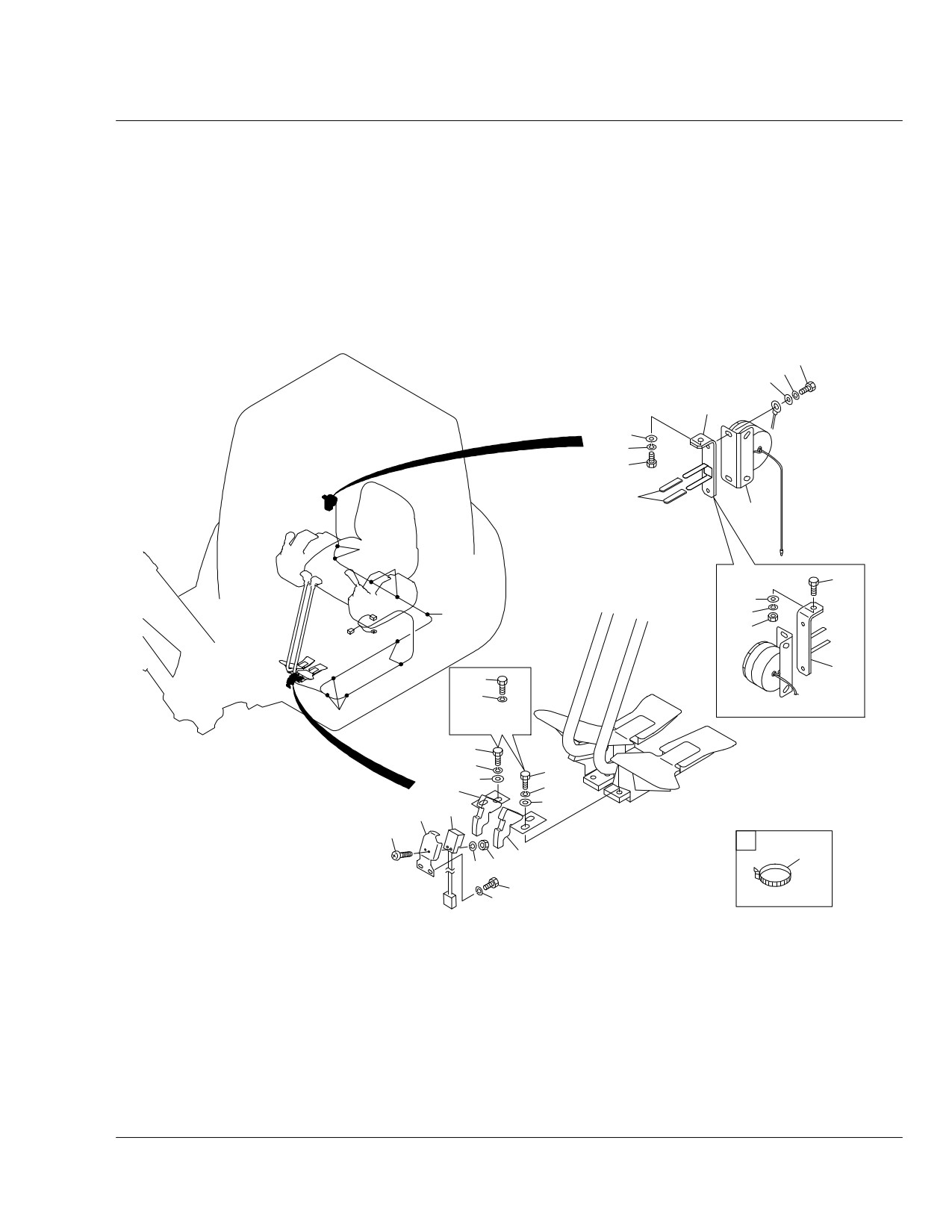

RADIO ASSY (for Europe, Asia, Oceania)
RADIO ASSY (for America)
RADIO ASSY (for JAPAN)
1
1705004660
RADIO (for Europe, Asia, Oceania)
1
1705004670
RADIO (for America)
1
1705004680
RADIO (for Japan)
1
2
0374706010
BRACKET (R.H.)
1
3
0374706020
BRACKET (L.H.)
1
4
1100040612
BOLT
4
5
1141110006
WASHER
4
6
1140020006
WASHER, spring
4
7
1652231100
BAND
1
8
1140330006
WASHER
1
E7c170
Reference:G7C170
Page:3-38
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

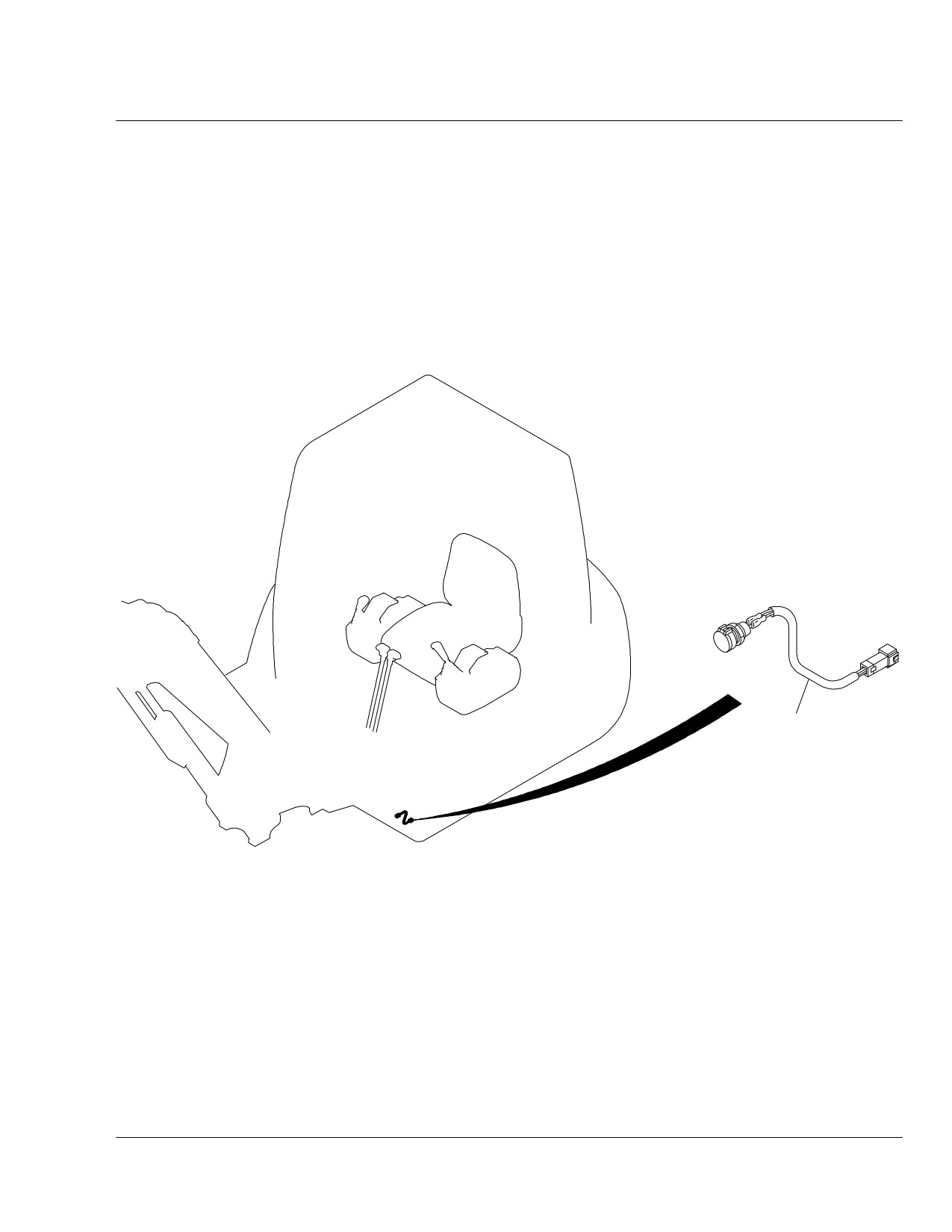

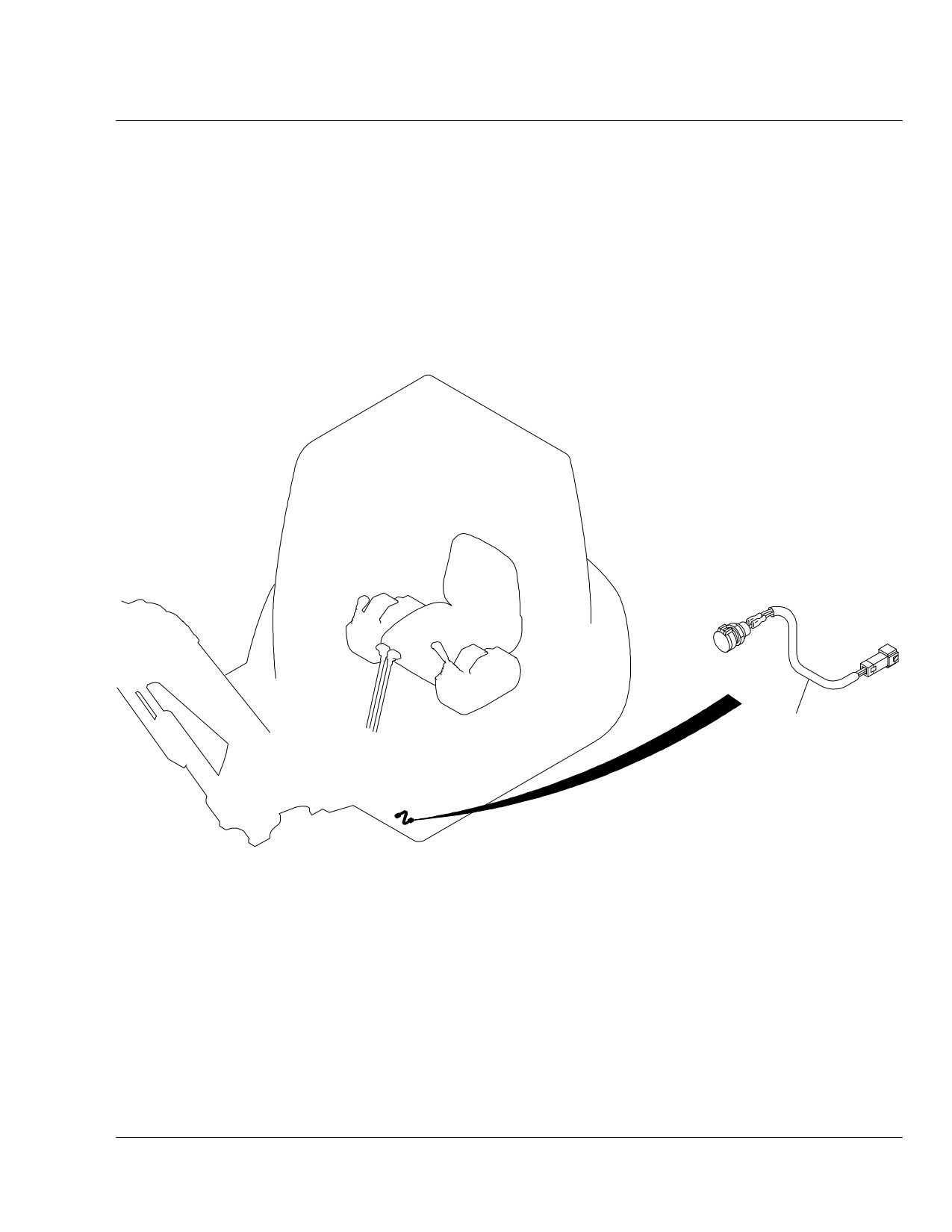

MAINTENANCE LIGHT SOCKET
1
G7C180
S=1/20
Ref. G7C180
Page
3-39
MAINTENANCE LIGHT SOCKET
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
SOCKET ASSY, maintenance light
1
0394203100
SOCKET ASSY
1
G4c120
Reference:G7C180
Page:3-39
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

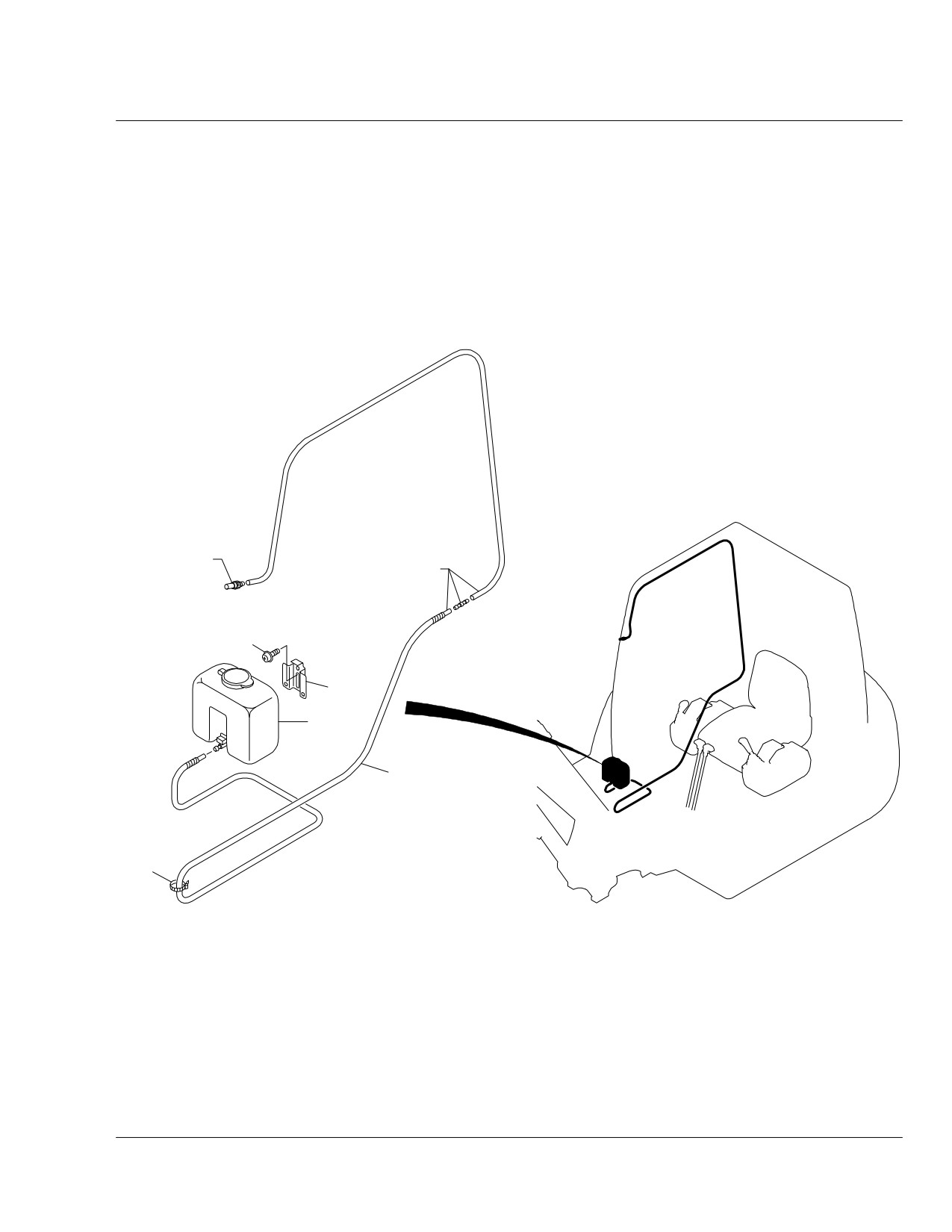

WINDOW WASHER
See "CAB"
See "CAB"
3
1-1
1
6
4
G7C191
S=1/8, 1/25
Ref. G7C191
Page
3-40
WINDOW WASHER
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
WASHER ASSY, window
1
1711910290
TANK
1
1-1
1711910291
BRACKET
1
3
1150410612
BOLT, sems
2
4
1652231140
BAND
1
6
1703230700
PROTECTOR
1
sold by the meter
G7c191
Reference:G7C191
Page:3-40
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

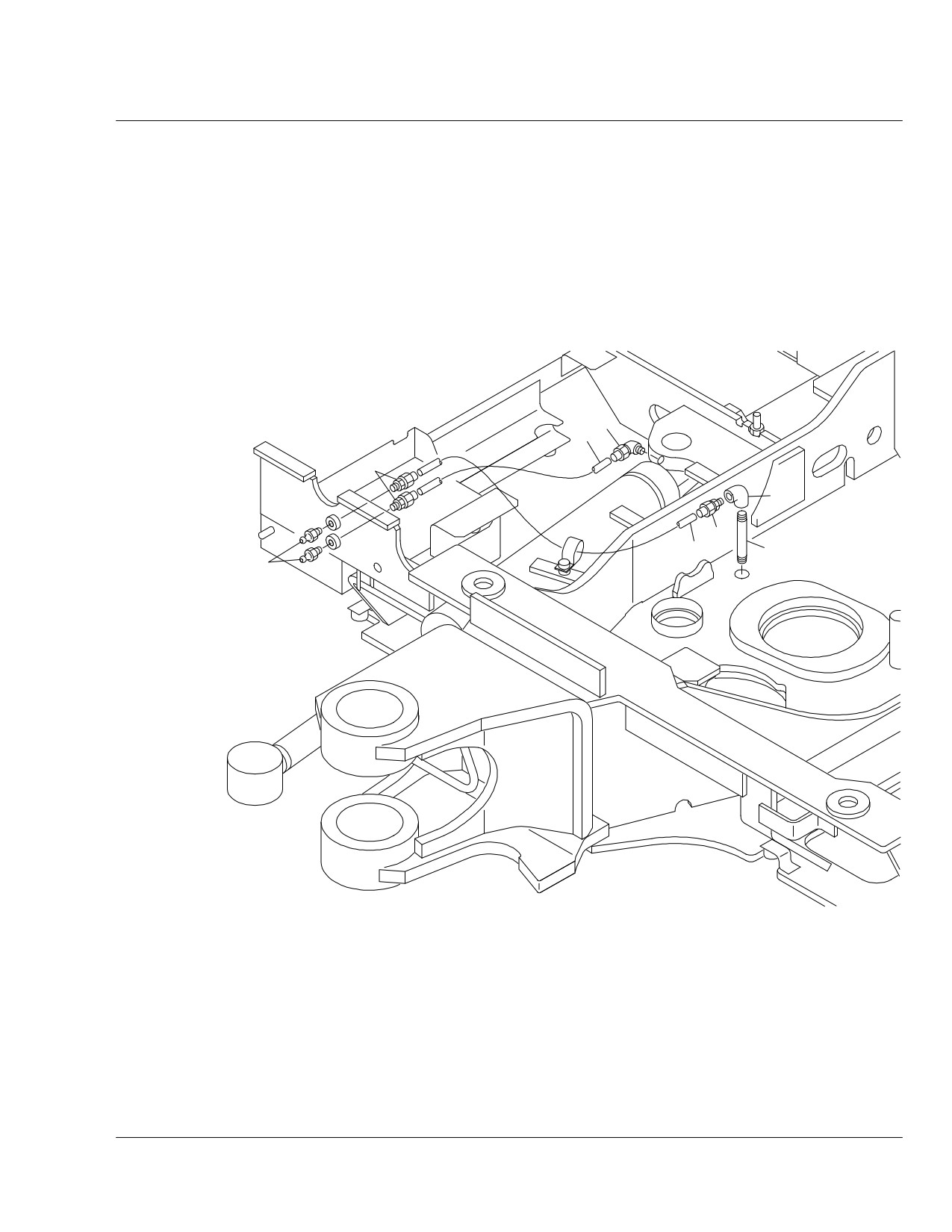

GREASE PIPING
4
6
3
7
3
5
1
2
G7D010
S=1/6
Ref. G7D010
Page
4-1
GREASE PIPING
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
PIPIG ASSY, grease
1
0009101060
NIPPLE
1
2
1560001000
FITTING, grease
2
3
1532520601
CONNECTOR
3
4
1532620601
ELBOW
1
5
1532020680
TUBE
1
sold by the meter
6
1532020665
TUBE
1
sold by the meter
7
1508010001
ELBOW
1
G7d010
Reference:G7D010
Page:4-1
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

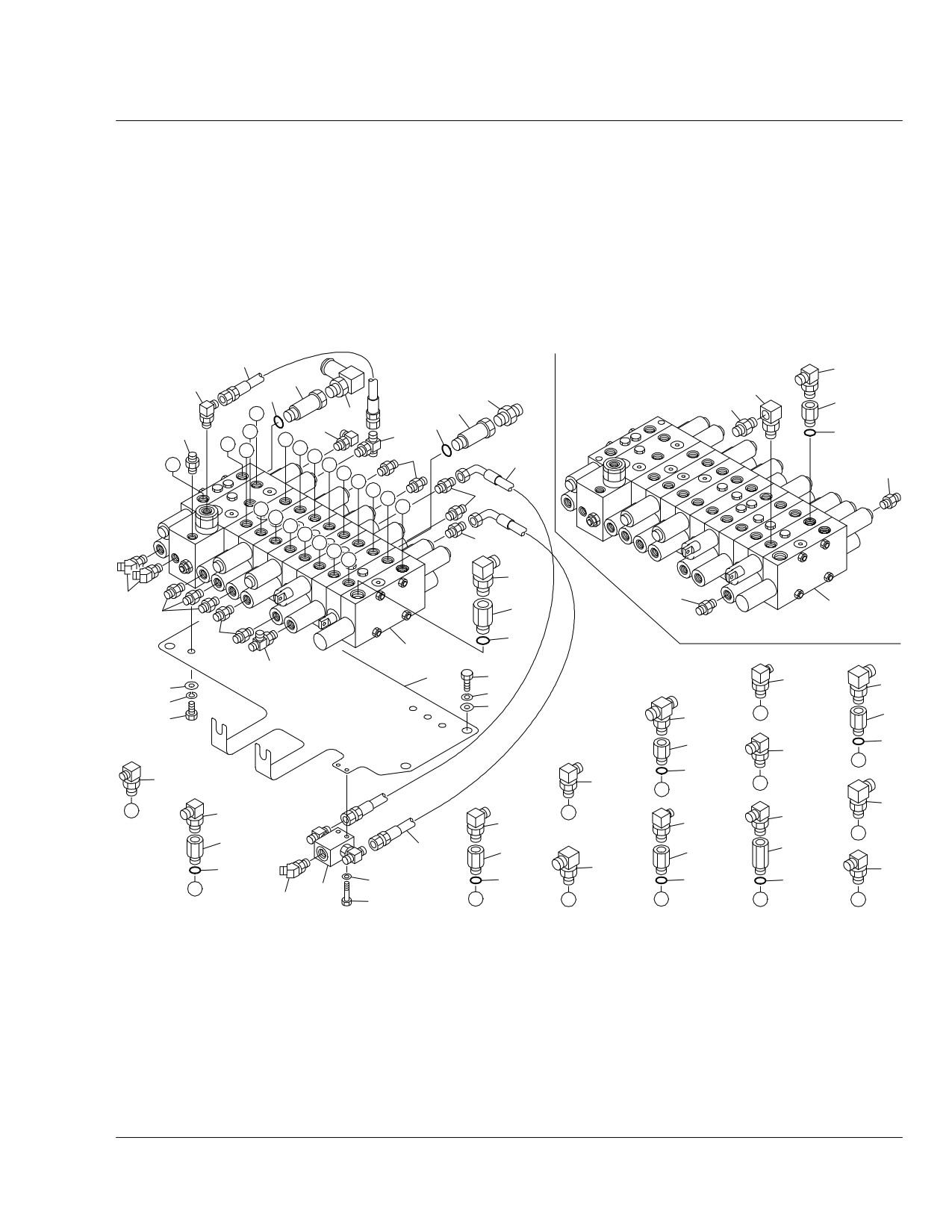

VALVE & ACCESSORIES
27
20
5
19
35
11
24
34
33
5
b
14
11
23
r
19
10
12
b
r
q
r
n
23
32
r
n
23
h
f
d
23
b
p
q
k
k
g
e
23
c
a
16
23
22
2
25
23
23
11
with 2nd auxiliary line
25
15
1
7
18
17
9
8
8
9
h
3
6
13
4
10
21
p
10
18
20
k
f
17
a
20
d
21
20
18
q
3
26
31
3
3
10
17
20
30
10
10
10
b
28
c
e
g
n
r
G7D021
22
29
S=1/6
Ref. G7D021
Page
4-2
VALVE & ACCESSORIES
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
VALVE ASSY, control
VALVE ASSY, control (with 2nd aux. line)
1
0375022010
BRACKET
1
2
0007213011
BUSHING
1
3
0007213016
BUSHING
6
4
0007213064
BUSHING
1
5
0007213073
BUSHING
2
6
1100041020
BOLT
3
7
1100041025
BOLT
4
8
1140020010
WASHER, spring
7
9
1141550010
WASHER
7
10
1420010140
O-RING
9
1420010140
O-RING
10
with 2nd aux. line
11
1420010180
O-RING
3
12
1512370010
TEE
1
1420010110
O-RING
1
13
1512374002
TEE
1
1420010180
O-RING
1
14
1513350006
ELBOW
1
1420010180
O-RING
1
15
1512370011
TEE
1
1420010110
O-RING
1
16
1515010042
ELBOW
1
1420010180
O-RING
1
17
1515010131
ELBOW
4
1420010140
O-RING
1
18
1515010050
ELBOW
3
1420010140
O-RING
1
19
1515012040
ELBOW
2
1420010110
O-RING
1
20
1515010041
ELBOW
9
M
1515010041
ELBOW
10
with 2nd aux. line
1420010140
O-RING
1
21
1515013041
ELBOW
4
22
1515102110
ELBOW
3
1420010110
O-RING
1
23
1515600200
ADAPTOR
11
1515600200
ADAPTOR
13
with 2nd aux. line
1420010110
O-RING
1
24
1515600202
ADAPTOR
1
1420010180
O-RING
1
25
1901045600
VALVE, control
1
1901045700
VALVE, control
1
with 2nd aux. line
26
0007213008
BUSHING
2
0007213008
BUSHING
3
with 2nd aux. line
27
0375022020
HOSE ASSY
1
19347-22030
28
1901754200
VALVE, shuttle
1
29
1100040640
BOLT
2
30
1140020006
WASHER, spring
2
31
0375022030
HOSE ASSY
1
19348-52040
32
0375022040
HOSE ASSY
1
19348-52042
33
0007213015
CONNECTOR
1
with 2nd aux. line
1420010140
O-RING
1
34
1515600201
ADAPTOR
1
with 2nd aux. line
1420010140
O-RING
1
35
1513300017
ELBOW
1
with 2nd aux. line
1420010140
O-RING
1
G7d022
Reference:G7D021
Page:4-2
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

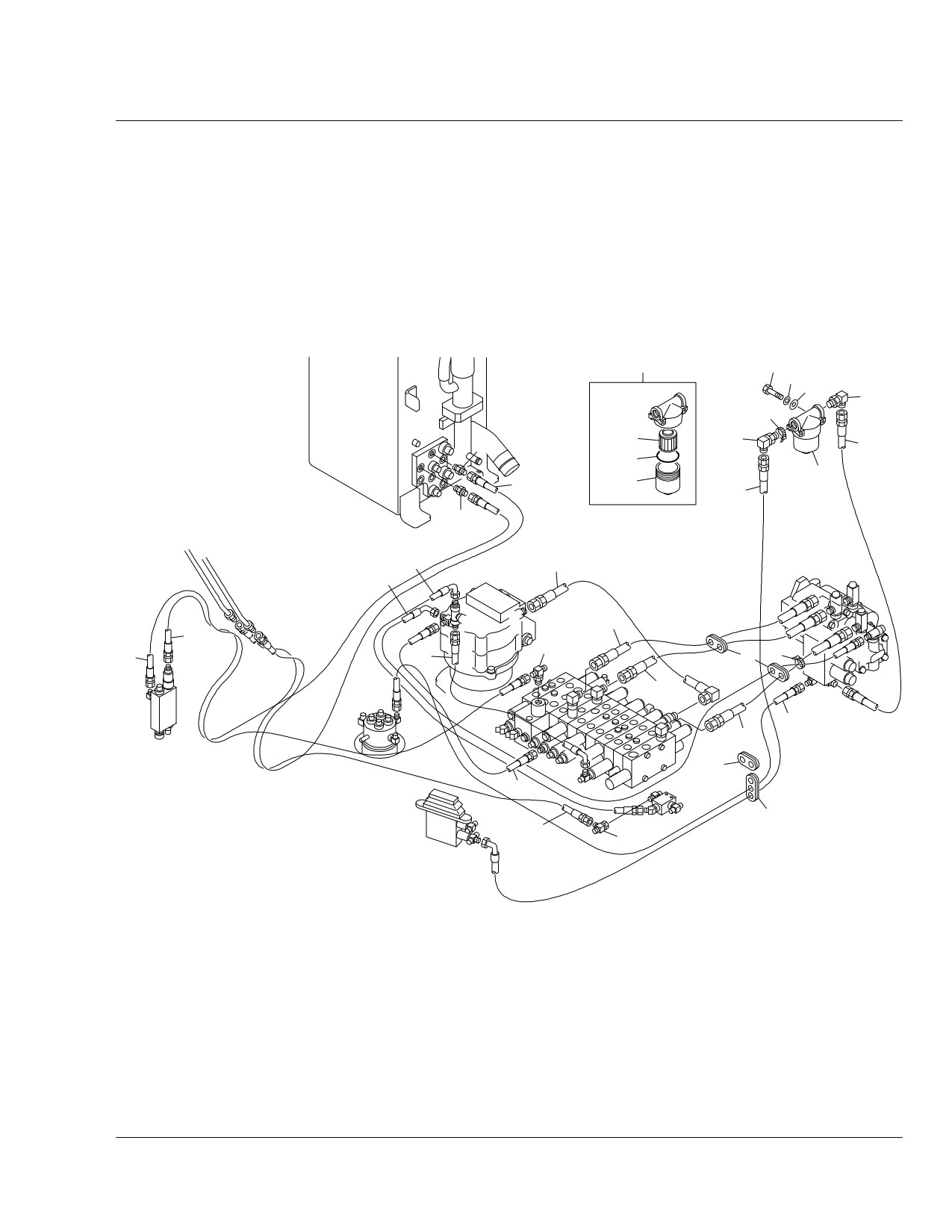

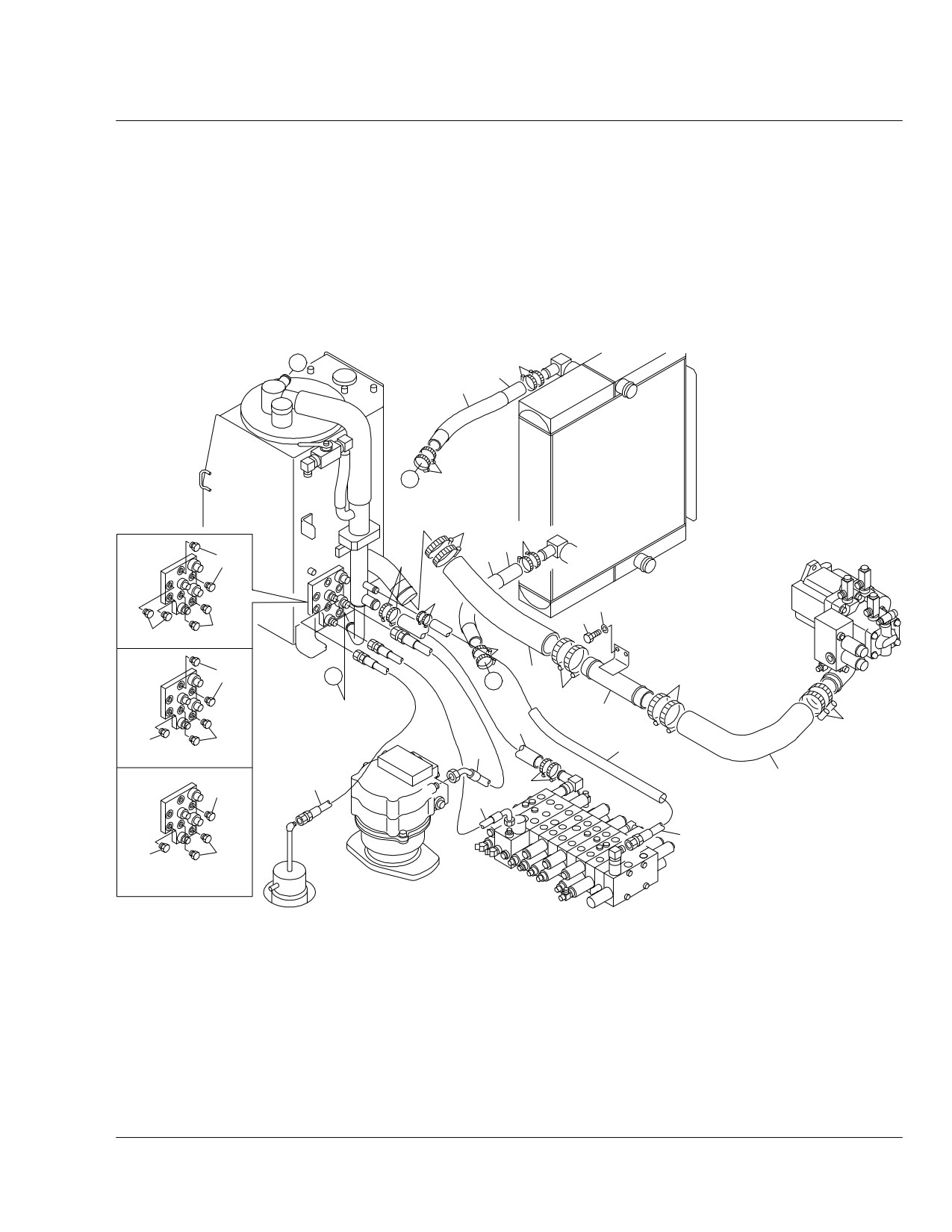

PIPING; UPPER (1/3)
60
X
43
62
X
60
61
624260
63
60
59
4546
63
T3
63
60
T8
63
T6
40
Y
61
Y
61
S1
3
35
61
63
63
38-2
39
with boom shut-off valve
Dr
T3
4
41
60
63
37Dr
H
38
63
63
T2
with boom & arm
shut-off valve
G7D031
S=1/10
Ref. G7D031
Page
4-3
PIPING; UPPER (1/3)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PIPING ASSY, upper
PIPING ASSY, upper (with boom shut-off valve)
PIPING ASSY, upper (with boom+arm shut-off valve)
3
0377018030
PIPE
1
4
0377018040
HOSE
1
35
1530525045
HOSE
1
sold by the meter
37
0377018370
HOSE ASSY
1
18010-52100
38
0377018380
HOSE ASSY
1
38-2
1531325050
PROTECTOR
1
sold by the meter
39
0377018390
HOSE ASSY
1
18010-89048
40
1530747048
HOSE
1
sold by the meter
41
0377018410
HOSE ASSY
1
18010-22065
42
1530525050
HOSE
1
sold by the meter
43
1530525046
HOSE
1
sold by the meter
45
1100041020
BOLT
2
46
1140020010
WASHER, spring
2
59
1533700025
BAND
2
60
1533700041
BAND
12
61
1533700070
BAND
8
62
1531335020
PROTECTOR
2
sold by the meter
63
1501750002
PLUG
6
1501750002
PLUG
5
with boom shut-off v
1501750002
PLUG
4
with boom+arm shut
1420010110
O-RING
1
G7d031
Reference:G7D031
Page:4-3
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

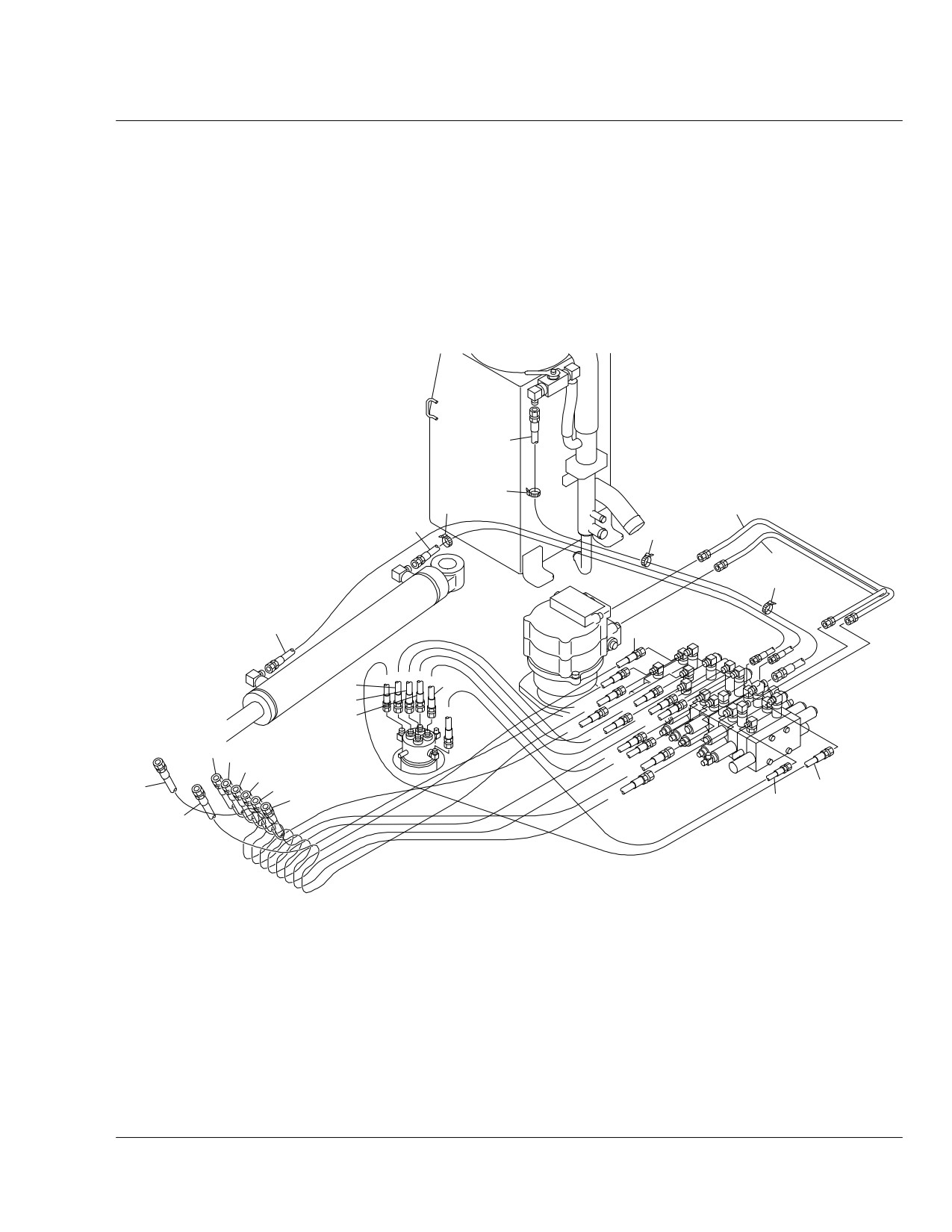

PIPING; UPPER (2/3)
5-2
44
47
48
5-1
IN
5-4
5-2-3
5-1
65
15
OUT
T5
5-2-4
5-2
56
5-2-5
T9
49
65
AHV P
AHV T
52
34
14
SH
M
P1
11
PG
P3
54
64
P2
50
P4
53
51
SH
6
T
Pi3
P1
P2
PIL
12
PA
T4
PB1
G
16
P3
13
Pi1
6
Pb8
36
OUT
7
P
55
A
57
G7D041
S=1/10
Ref. G7D041
Page
4-4
PIPING; UPPER (2/3)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PIPING ASSY, upper
PIPING ASSY, upper (with boom shut-off valve)
PIPING ASSY, upper (with boom+arm shut-off valve)
5
0377018050
FILTER ASSY
1
5-1
1515010051
ELBOW
2
1420010180
O-RING
1
5-2
1551200700
FILTER
1
5-2-3
1551200703
ELEMENT
1
5-2-4
1551200704
O-RING
1
5-2-5
1551200705
CASE
1
5-4
1652201004
BAND
1
6
0097210300
GUARD
3
7
0097022400
GUARD
1
11
0377018110
HOSE ASSY
1
18015-40062
12
0377018120
HOSE ASSY
1
18015-40062
13
0377018130
HOSE ASSY
1
18015-40056
14
0377018140
HOSE ASSY
1
18010-52120
15
0377018150
HOSE ASSY
1
18010-23048
16
0377018160
HOSE ASSY
1
18010-22125
34
0377018340
HOSE ASSY
1
36
0377018360
HOSE ASSY
1
18010-22068
44
1100040660
BOLT
2
47
1140020006
WASHER, spring
2
48
1141110006
WASHER
2
49
0377018490
HOSE ASSY
1
50
1652231140
BAND
1
51
0377020510
HOSE ASSY
1
18010-52100
52
0377020520
HOSE ASSY
1
18010-52085
53
0377018530
HOSE ASSY (with shut-off valve)
1
18010-22305
54
0377018540
HOSE ASSY (with shut-off valve)
1
18010-22320
55
0377018550
HOSE ASSY (with boom+arm shut-off valve)
1
18010-22230
56
0377018560
HOSE ASSY (with boom+arm shut-off valve)
1
18010-22265
57
1513390015
TEE (with boom+arm shut-off valve)
1
64
1512370010
TEE (with shut-off valve)
1
1420010110
O-RING
1
65
1515600200
ADAPTOR
2
1420010110
O-RING
1
G7d041
Reference:G7D041
Page:4-4
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
PIPING; UPPER (3/3)
IN
20
50
50
1
23
50
H
2
50
A
B8
22
A8
B32
A1
B6
A6
A7
R
B1
E
C
D
B
F
27
29
28
A2
A3
A
26
A4A5
B2
B3
19 24
B9
A9
B4B5
3332
A7
31
25
17
21
B7
18
30
G7D050
S=1/10
Ref. G7D050
Page
4-5
PIPING; UPPER (3/3)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PIPING ASSY, upper
PIPING ASSY, upper (with boom shut-off valve)
PIPING ASSY, upper (with boom+arm shut-off valve)
1
0377020010
PIPE
1
2
0377020020
PIPE
1
17
0377018170
HOSE ASSY
1
18015-20085
18
0377018180
HOSE ASSY
1
18015-00069
19
0377018190
HOSE ASSY
1
18019-40230
20
0377018200
HOSE ASSY
1
18015-40126
21
0377018210
HOSE ASSY
1
18019-40223
22
0377018220
HOSE ASSY
1
18015-00186
23
0377018230
HOSE ASSY
1
18015-00135
24
0377020240
HOSE ASSY
1
18019-10225
25
0377020250
HOSE ASSY
1
18019-10223
26
0377018260
HOSE ASSY
1
18015-20068
27
0377018270
HOSE ASSY
1
18015-20053
28
0377018280
HOSE ASSY
1
18015-20056
29
0377018290
HOSE ASSY
1
18015-20052
30
0377018300
HOSE ASSY
1
18019-20215
31
0377018310
HOSE ASSY
1
18019-20215
32
0377018320
HOSE ASSY
1
18019-20220
33
0377018330
HOSE ASSY
1
18019-20215
50
1652231140
BAND
4
G7d051
Reference:G7D050
Page:4-5
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

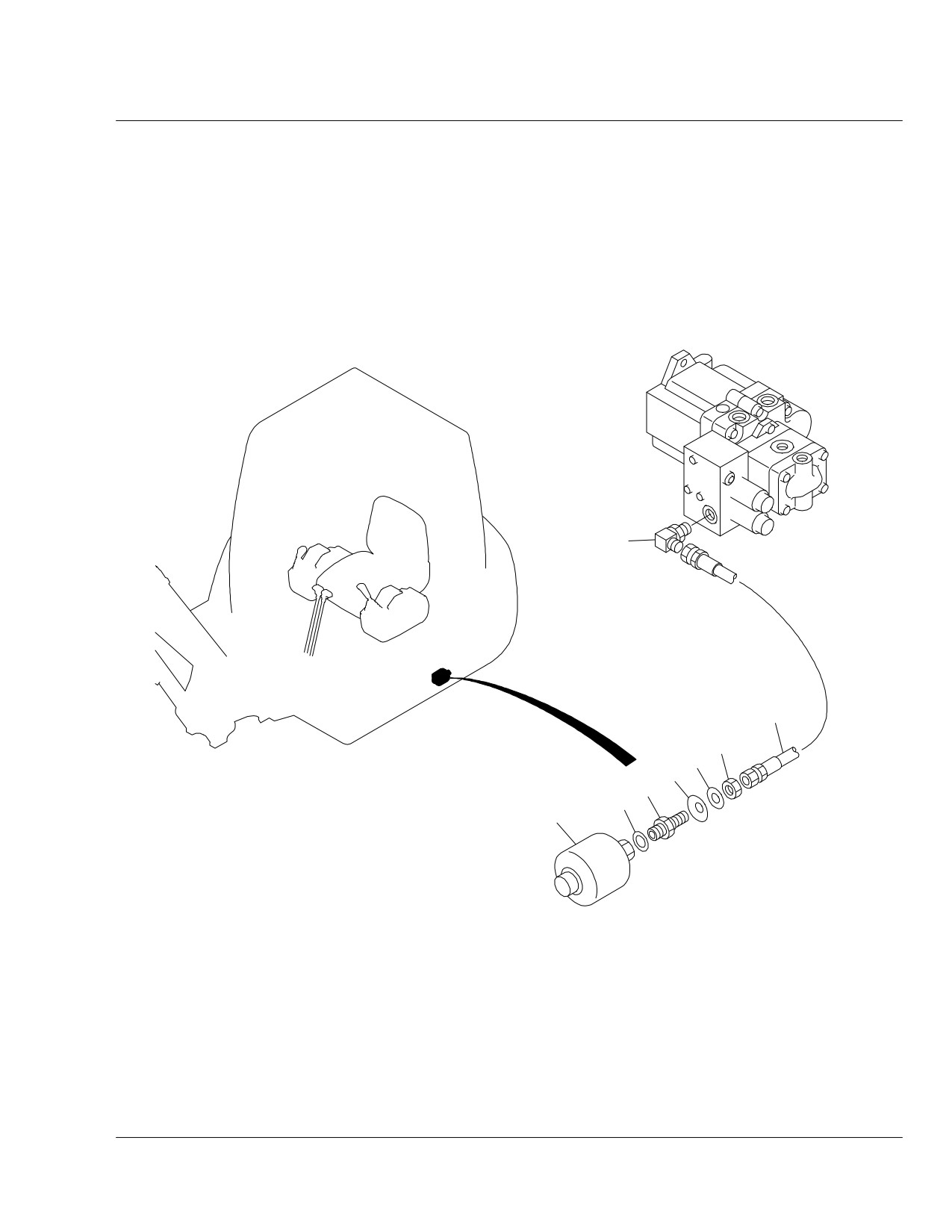

ACCUMULATOR
PD
8
1
7
5
6
3
ACC
4
2
G7D060
S=1/6, 1/25
Ref. G7D060
Page
4-6
ACCUMULATOR
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
ACCUMULATOR ASSY
1
0375017510
HOSE ASSY
1
18010-23035
2
1552200020
ACCUMULATOR
1
3
0007200222
ADAPTOR
1
4
1432160004
WASHER
1
5
1141110016
WASHER
1
6
1140020020
WASHER, spring
1
7
0007200154
NUT
1
8
1515010041
ELBOW
1
1420010140
O-RING
1
G7d060
Reference:G7D060
Page:4-6
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
PUMP DRIVE
6-5
6-4
1
16
6-2
13
11
11
7
6-1
11
7
6-3
10
11
20
1512
5
18
8
9
11
17
14
2

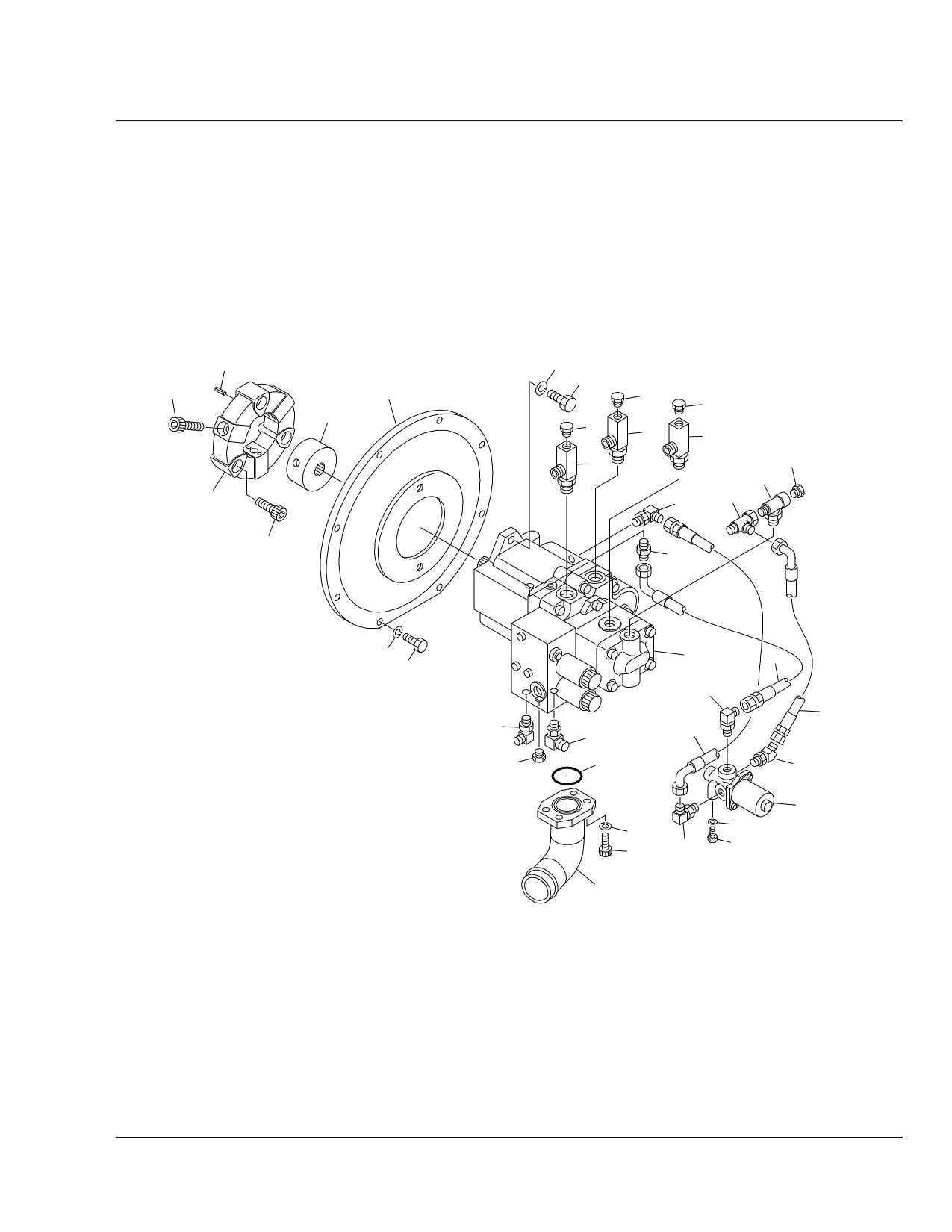

G7D071
S=1/6
Ref. G7D071
Page
4-7
PUMP DRIVE
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PUMP ASSY, drive
1
0375202100
HOUSING
1
2
0375203100
FLANGE
1
5
1902025400
PUMP, hydraulic
1
6
0355211020
COUPLING ASSY
1
6-1
1602000160
COUPLING
1
6-2
0355211022
BOSS
1
6-3
1602031235
SCREW, cap
3
6-4
1602031240
SCREW, cap
3
6-5
1213000525
PIN, spring
3
7
1512340004
ELBOW
2
1420010180
O-RING
1
8
1515010130
ELBOW
1
1420010110
O-RING
1
9
1420100400
O-RING
1
10
1512340007
ELBOW
1
1420010140
O-RING
1
11
1501750002
PLUG
5
1420010110
O-RING
1
12
1100041030
BOLT
8
13
1101041230
BOLT
2
14
1110041025
SCREW, cap
4
15
1140020010
WASHER, spring
8
16
1140020012
WASHER, spring
2
17
1140420010
WASHER, spring
4
18
1515012040
ELBOW
1
1420010110
O-RING
1
20
1513390046
ELBOW
1
1420010140
O-RING
1
G7d071
Reference:G7D071
Page:4-7
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
PUMP DRIVE (with air conditioner)
6-5
16
13
6-4
1
11
11
6-2
11
7
10
11
7
20
22
6-1
18
6-3
21
5
24
1512
18
23
18
25
8
11
9
27
26
4
17
18
3
14
2

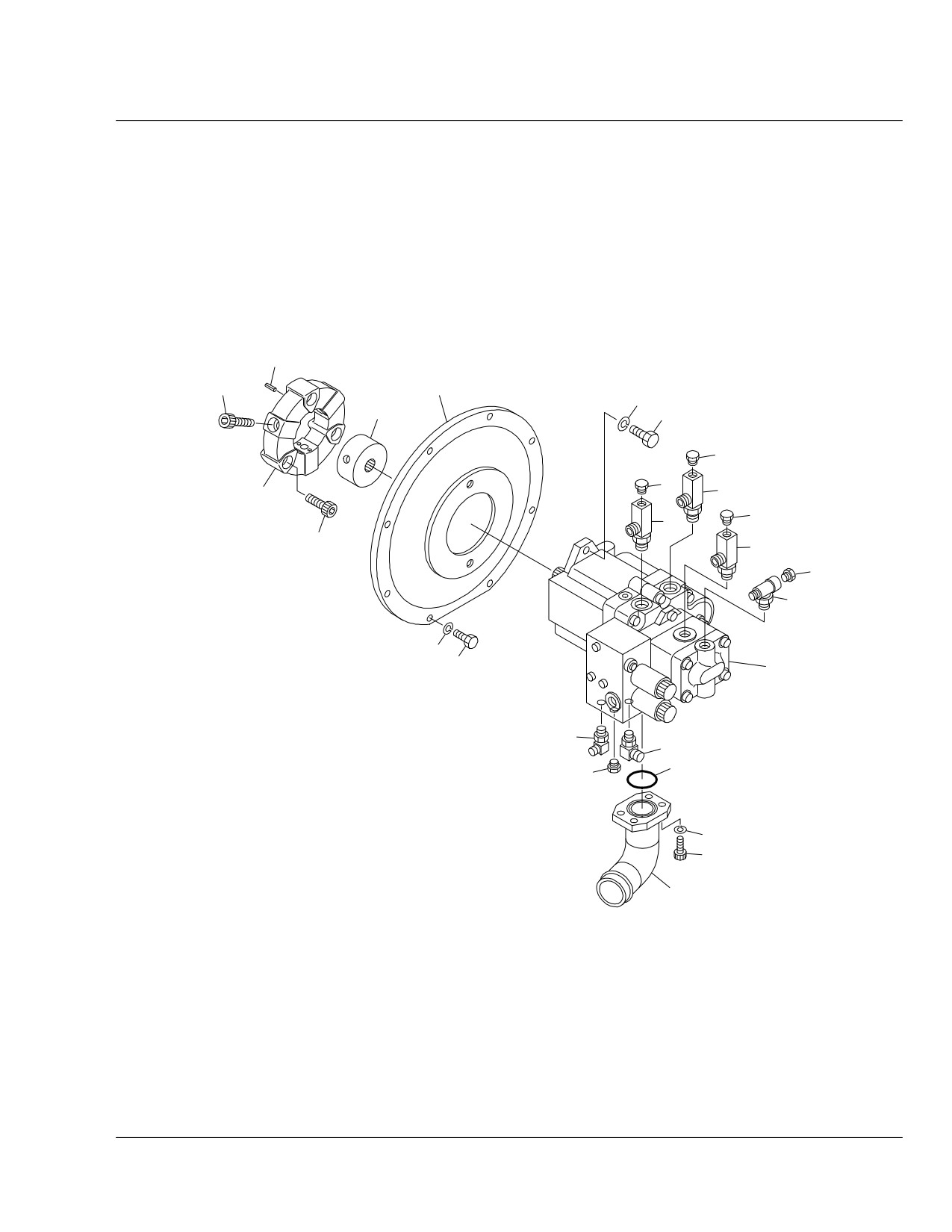

G7D081
S=1/6
Ref. G7D081
Page
4-8
PUMP DRIVE (with air conditioner)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PUMP ASSY, drive
1
0375202100
HOUSING
1
2
0375203100
FLANGE
1
3
1100040620
BOLT
2
4
1140020006
WASHER, spring
2
5
1902025500
PUMP, hydraulic
1
6
0355211020
COUPLING ASSY
1
6-1
1602000160
COUPLING
1
6-2
0355211022
BOSS
1
6-3
1602031235
SCREW, cap
3
6-4
1602031240
SCREW, cap
3
6-5
1213000525
PIN, spring
3
7
1512340004
ELBOW
2
1420010180
O-RING
1
8
1515010130
ELBOW
1
1420010110
O-RING
1
9
1420100400
O-RING
1
10
1512340007
ELBOW
1
1420010140
O-RING
1
11
1501750002
PLUG
5
1420010110
O-RING
1
12
1100041030
BOLT
8
13
1101041230
BOLT
2
14
1110041025
SCREW, cap
4
15
1140020010
WASHER, spring
8
16
1140020012
WASHER, spring
2
17
1140420010
WASHER, spring
4
18
1515012040
ELBOW
4
1420010110
O-RING
1
20
1513390046
ELBOW
1
1420010140
O-RING
1
21
1515600200
ADAPTOR
1
1420010110
O-RING
1
22
1513390015
TEE
1
1420010110
O-RING
1
23
0375206210
HOSE ASSY
1
18010-52040
24
0375206220
HOSE ASSY
1
18010-52034
25
0375206230
HOSE ASSY
1
18010-52040
26
1901746600
VALVE, solenoid
1
27
1515100110
ELBOW
1
1420010110
O-RING
1
G7d081
Reference:G7D081
Page:4-8
