Takeuchi Mini Excavator TB235 (Serial No.123500001~). Parts Manual - page 2

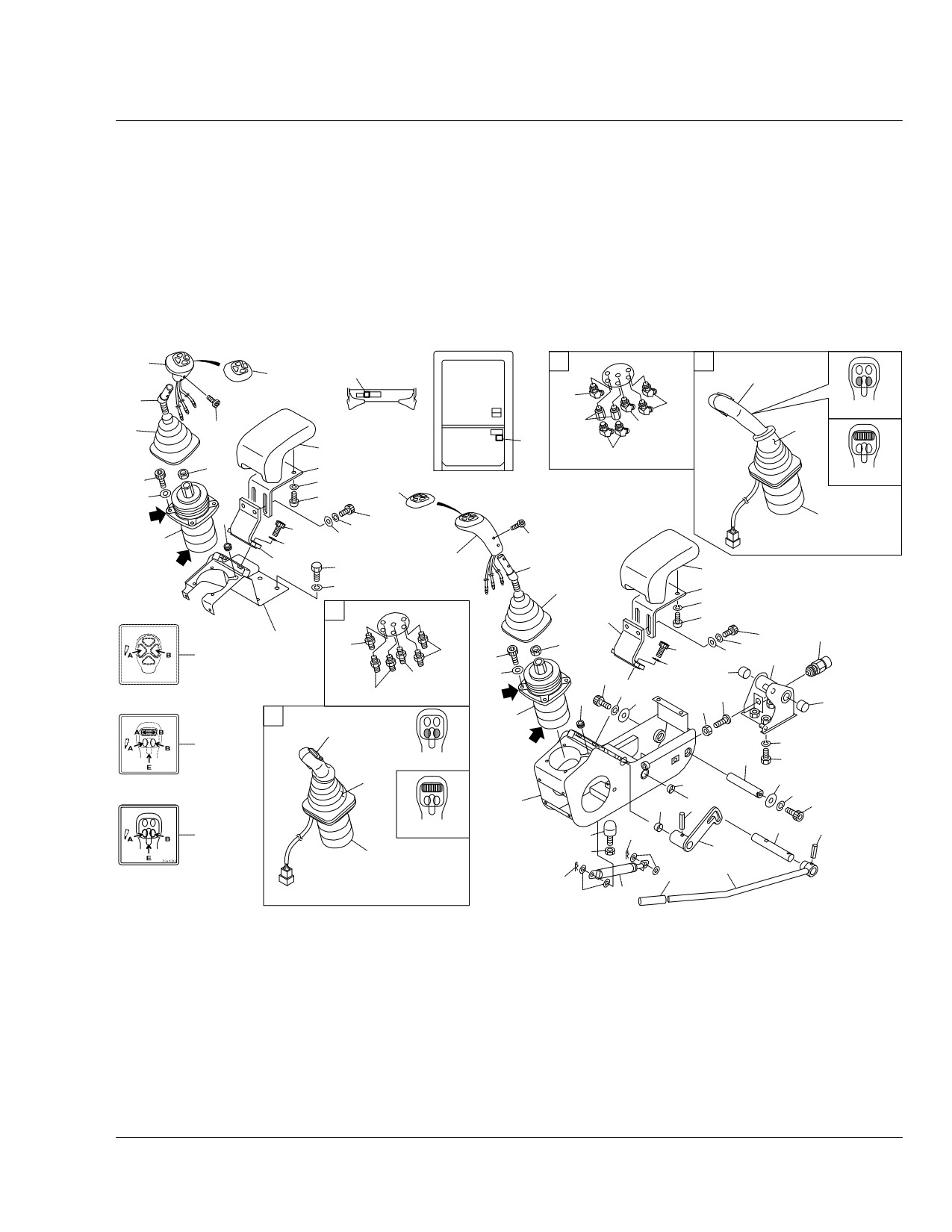

CONTROL LEVER & PEDAL (1st aux. only ON-OFF type; 123500517-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
LEVER ASSY, control
1
0373208610
PEDAL ASSY (L.H.)
1
‚l
1-1
0373208720
PEDAL (L.H.)
1
‚l
1-2
0373208630
PEDAL (L.H.)
1
‚l
1-3
1110040655
SCREW, cap
1
1-4
1130040006
NUT
2
1-5
1225110006
WASHER, conical
2
2
0373208640
PEDAL ASSY (R.H.)
1
‚l
2-1
0373208750
PEDAL (R.H.)
1
‚l
2-2
0373208660
PEDAL (R.H.)
1
‚l
2-3
1110040655
SCREW, cap
1
2-4
1130040006
NUT
2
2-5
1225110006
WASHER, conical
2
3
0373208670
LEVER (L.H.)
1
‚l
4
0373208680
LEVER (R.H.)
1
‚l
8
0373208690
PEDAL ASSY, swing
1
‚l
8-1
0003600034
WASHER
1
8-2
0093208300
WASHER
2
8-3
0333234260
COVER
1
‚l
8-4
0333241250
SHEET
1
‚l
8-5
0373200550
PEDAL ASSY
1
‚l
8-5-5
1333002020
BUSHING
2
‚l
8-6
0373201650
LEVER ASSY
1
‚l
8-6-5
1333002015
BUSHING
2
‚l
8-7
0373208090
BRACKET
1
‚l
8-8
1100040625
BOLT
2
8-9
1100040680
BOLT
1
8-10
1100040820
BOLT
2
8-11
1121040832
SET-SCREW
1
8-12
1225110006
WASHER, conical
2
8-13
1130040006
NUT
4
8-14
1130040008
NUT
3
8-15
1140020008
WASHER, spring
4
8-16
1141110006
WASHER
1
8-17
1220000020
RING, retaining
1
8-18
1225000008
WASHER
1
8-19
1340010080
END, rod
2
‚l
8-20
1560011006
FITTING, grease
1
‚l
8-21
1560012006
FITTING, grease
1
‚l
8-22
0373201730
SHAFT
1
‚l
12
0004005117
PIN
1
‚l
13
0005500007
YOKE
1
‚l
14
0004006017
PIN
1
‚l
15
0005506024
YOKE
1
‚l
20
1100040816
BOLT
2
21
1100040820
BOLT
10
23
1110041016
BOLT
4
25
1131040012
NUT
2
26
1140020008
WASHER, spring
16
28
1141110008
WASHER
6
29
1214000005
PIN, snap
2
30
1225000005
WASHER
2
32
1515600200
ADAPTOR
4
‚l
1420010110
O-RING
1
‚l
33
1630771095
CABLE, control
1
‚l
34
1650202610
GRIP
1
‚l
35
1650203210
GRIP
1
‚l
36
0563218500
COVER
1
‚l
37
0563219700
REST, foot
1
‚l
38
1513370046
ADAPTOR (with filter)
1
‚l
Reference:G7B160
Page:2-7
CONTROL LEVER & PEDAL (1st aux. only ON-OFF type; 123500517-)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
38
1420010110
O-RING
1
‚l
39
1513250202
BUSHING
1
‚l
1420010110
O-RING
1
‚l
40
1512370010
TEE
1
‚l
1420010110
O-RING
1
‚l
41
1513390027
CROSS
1
‚l
1420010110
O-RING
1
‚l
47
1901750500
VALVE, remote control
1
‚l
48
1140420010
WASHER, spring
6
49
1120990814
SCREW
4
51
0373208910
PLATE
1
M
52
0373208920
VALVE ASSY, solenoid
1
M
52-1
1512370010
TEE
1
M
1420010110
O-RING
1
M
52-2
0373208922
BUSHING (with filter)
1
M
1420010110
O-RING
1
M
52-3
1513390027
CROSS
1
M
1420010110
O-RING
1
M
52-4
1515600200
ADAPTOR
2
M
1420010110
O-RING
1
M
52-5
1901751000
VALVE, solenoid
1
M
53
1110041025
SCREW, cap
2
G7b160
Reference:G7B160
Page:2-7

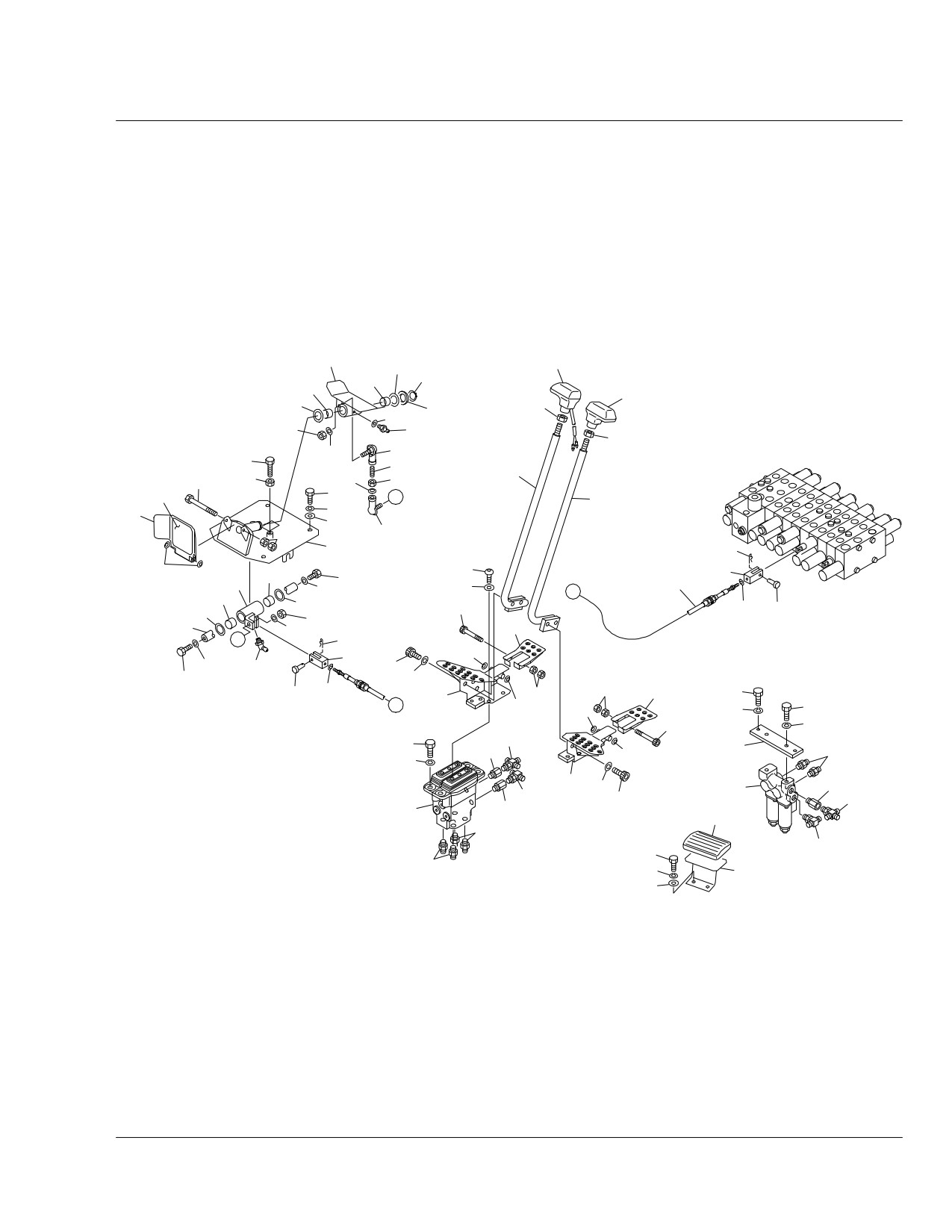

TB235 (P-TB235BAC) BG7Z002S/N 123500001-
CONTROL LEVER & PEDAL (1st aux. ON-OFF type, with foot switch;
123500841-)
8-5
35
8-2
34
8-17
8-5-5
8-5-5
25
8-2
8-1
25
8-16
8-14
8-20
4
8-19
8-15
8-8
8-11
3
8-13
8-18
8-9
8-14
29
8-4
21
X
26
15
8-3
33
28
Z
8-13
8-19
49
30
14
8-7
28
8-12
20
8-10
2-3
8-68-6-5
53
8-15
26
8-6-5
2-2
48
8-2
8-2
8-14
2-5
8-22
51
52-4
8-15
X
29
2348
1-4
13
1-2
2-4
52-5
8-15
8-21
2-1
2-5
1-5
52-2
8-10
1-3
52-3
30
12
Z
41
1-5
21
52-1
39
54-11
26
1-1
54-2
48
23
54-10
54-5
54-17
54-14
54-3
47
3840
54-7
54-23
54-21
32
54-22
54-20
54-6
54-5
50
54-12
32
54-1
55
54-19
48
54-18
53
54-13
G7B130
S=1/10
Ref. G7B130
Page
2-8
CONTROL LEVER & PEDAL (1st aux. ON-OFF type, with foot switch; 123500841-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
LEVER ASSY, control
1
0373208610
PEDAL ASSY (L.H.)
1
M
1-1
0373208720
PEDAL (L.H.)
1
M
1-2
0373208630
PEDAL (L.H.)
1
M
1-3
1110040655
SCREW, cap
1
1-4
1130040006
NUT
2
1-5
1225110006
WASHER, conical
2
2
0373208640
PEDAL ASSY (R.H.)
1
M
2-1
0373208750
PEDAL (R.H.)
1
M
2-2
0373208660
PEDAL (R.H.)
1
M
2-3
1110040655
SCREW, cap
1
2-4
1130040006
NUT
2
2-5
1225110006
WASHER, conical
2
3
0373208670
LEVER (L.H.)
1
M
4
0373208680
LEVER (R.H.)
1
M
8
0373208690
PEDAL ASSY, swing
1
M
8-1
0003600034
WASHER
1
8-2
0093208300
WASHER
2
8-3
0333234260
COVER
1
8-4
0333241250
SHEET
1
8-5
0373200550
PEDAL ASSY
1
M
8-5-5
1333002020
BUSHING
2
M
8-6
0373201650
LEVER ASSY
1
M
8-6-5
1333002015
BUSHING
2
M
8-7
0373208090
BRACKET
1
M
8-8
1100040625
BOLT
2
8-9
1100040680
BOLT
1
8-10
1100040820
BOLT
2
8-11
1121040832
SET-SCREW
1
8-12
1225110006
WASHER, conical
2
8-13
1130040006
NUT
4
8-14
1130040008
NUT
3
8-15
1140020008
WASHER, spring
4
8-16
1141110006
WASHER
1
8-17
1220000020
RING, retaining
1
8-18
1225000008
WASHER
1
8-19
1340010080
END, rod
2
M
8-20
1560011006
FITTING, grease
1
M
8-21
1560012006
FITTING, grease
1
M
8-22
0373201730
SHAFT
1
M
12
0004005117
PIN
1
M
13
0005500007
YOKE
1
M
14
0004006017
PIN
1
M
15
0005506024
YOKE
1
M
20
1100040816
BOLT
2
21
1100040820
BOLT
8
23
1110041016
BOLT
4
25
1131040012
NUT
2
26
1140020008
WASHER, spring
14
28
1141110008
WASHER
4
29
1214000005
PIN, snap
2
30
1225000005
WASHER
2
32
1515600200
ADAPTOR
4
M
1420010110
O-RING
1
M
33
1630771095
CABLE, control
1
M
34
1650202610
GRIP
1
M
35
1650203210
GRIP
1
M
38
1513370046
ADAPTOR (with filter)
1
M
1420010110
O-RING
1
M
39
1513250202
BUSHING
1
M
Reference:G7B130
Page:2-8
CONTROL LEVER & PEDAL (1st aux. ON-OFF type, with foot switch; 123500841-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
39
1420010110
O-RING
1
M
40
1512370010
TEE
1
M
1420010110
O-RING
1
M
41
1513390027
CROSS
1
M
1420010110
O-RING
1
M
47
1901750500
VALVE, remote control
1
M
48
1140420010
WASHER, spring
8
49
1120990814
SCREW
4
50
0349336913
DECAL
1
M
51
0373208910
PLATE
1
M
52
0373208920
VALVE ASSY, solenoid
1
M
52-1
1512370010
TEE
1
M
1420010110
O-RING
1
M
52-2
0373208922
BUSHING (with filter)
1
M
1420010110
O-RING
1
M
52-3
1513390027
CROSS
1
M
1420010110
O-RING
1
M
52-4
1515600200
ADAPTOR
2
M
1420010110
O-RING
1
M
52-5
1901751000
VALVE, solenoid
1
M
53
1110041025
SCREW, cap
4
54
0373209010
PEDAL ASSY, service
1
M
54-1
0373209020
BRACKET
1
M
54-2
0373209030
PEDAL ASSY
1
M
54-3
0373209050
SPRING, torsion
1
M
54-5
0003600034
WASHER
2
M
54-6
0333234260
COVER
1
M
54-7
0333241250
SHEET
1
M
54-10
1100040620
BOLT
1
54-11
1100040635
BOLT
1
54-12
1100040680
BOLT
1
54-13
1150410316
SCREW
2
54-14
1130040006
NUT
4
54-17
1220000020
RING, snap
1
54-18
1225110006
WASHER, conical
2
54-19
1700009010
SWITCH
1
M
54-20
1560011006
FITTING, grease
1
M
54-21
1141110006
WASHER
1
54-22
1141110003
WASHER
2
54-23
1130030003
NUT
2
55
1141110010
WASHER
2
G7b130
Reference:G7B130
Page:2-8
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
CONTROL LEVER & PEDAL (1st aux. proportional cont. type)
8-5
35
8-2
8-17
8-5-5
8-5-5
34
8-2
25
8-16
8-1
8-14
8-20
25
8-19
8-15
8-8
8-11
4
8-13
8-18
8-9
8-14
8-4
21
X
3
8-3
26
28
8-13
8-19
8-7
29
8-12
49
15
8-68-6-5
8-10
33
28
8-6-5
8-15
Z
8-2
2-3
8-2
30
14
8-22
8-14
2-2
8-15
X
29
2-5
13
8-15
8-21
8-10
2348
30
1-4
1-2
20
12
2-1
Z
2-52-4
21
1-5
26
1-3
26
41
21
39
9
10-4
26
1-5
1-1
10-2
10-5
4823
10-3
47
3840
36
32
21
10-1
32
26
37
28
G7B052
S=1/10
Ref. G7B052
Page
2-9
CONTROL LEVER & PEDAL (1st aux. proportional cont. type)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
LEVER ASSY, control
1
0373208610
PEDAL ASSY (L.H.)
1
1-1
0373208620
PEDAL (L.H.)
1
123500001~123500228
0373208720
PEDAL (L.H.)
1
(H)
123500229~
1-2
0373208630
PEDAL (L.H.)
1
1-3
1110040655
SCREW, cap
1
1-4
1130040006
NUT
2
1-5
1225110006
WASHER, conical
2
2
0373208640
PEDAL ASSY (R.H.)
1
2-1
0373208650
PEDAL (R.H.)
1
123500001~123500228
0373208750
PEDAL (R.H.)
1
(H)
123500229~
2-2
0373208660
PEDAL (R.H.)
1
2-3
1110040655
SCREW, cap
1
2-4
1130040006
NUT
2
2-5
1225110006
WASHER, conical
2
3
0373208670
LEVER (L.H.)
1
4
0373208680
LEVER (R.H.)
1
8
0373208690
PEDAL ASSY, swing
1
8-1
0003600034
WASHER
1
8-2
0093208300
WASHER
2
8-3
0333234260
COVER
1
8-4
0333241250
SHEET
1
8-5
0373200550
PEDAL ASSY
1
8-5-5
1333002020
BUSHING
2
8-6
0373201650
LEVER ASSY
1
8-6-5
1333002015
BUSHING
2
8-7
0373208090
BRACKET
1
8-8
1100040625
BOLT
2
8-9
1100040680
BOLT
1
8-10
1100040820
BOLT
2
8-11
1121040832
SET-SCREW
1
8-12
1225110006
WASHER, conical
2
8-13
1130040006
NUT
4
8-14
1130040008
NUT
3
8-15
1140020008
WASHER, spring
4
8-16
1141110006
WASHER
1
8-17
1220000020
RING, retaining
1
8-18
1225000008
WASHER
1
8-19
1340010080
END, rod
2
8-20
1560011006
FITTING, grease
1
8-21
1560012006
FITTING, grease
1
8-22
0373201730
SHAFT
1
9
0373208110
PLATE
1
10
0373208120
VALVE ASSY, solenoid
1
10-1
1512370010
TEE
1
1420010110
O-RING
1
10-2
1513370046
ADAPTOR (with filter)
1
1420010110
O-RING
1
10-3
1513390027
CROSS
1
1420010110
O-RING
1
10-4
1515600200
ADAPTOR
2
1420010110
O-RING
1
10-5
1901752100
VALVE, solenoid
1
12
0004005117
PIN
1
13
0005500007
YOKE
1
14
0004006017
PIN
1
15
0005506024
YOKE
1
20
1100040816
BOLT
2
21
1100040820
BOLT
12
23
1110041016
BOLT
4
Reference:G7B052
Page:2-9
CONTROL LEVER & PEDAL (1st aux. proportional cont. type)
Item
Part number
Description
Q'ty Chan.
Serial No.
Serv.
Remarks
25
1131040012
NUT
2
26
1140020008
WASHER, spring
18
28
1141110008
WASHER
10
29
1214000005
PIN, snap
2
30
1225000005
WASHER
2
32
1515600200
ADAPTOR
4
1420010110
O-RING
1
33
1630771095
CABLE, control
1
34
1650202610
GRIP
1
35
1650203210
GRIP
1
36
0563218500
COVER
1
37
0563219700
REST, foot
1
38
1513370046
ADAPTOR (with filter)
1
1420010110
O-RING
1
39
1513250202
BUSHING
1
1420010110
O-RING
1
40
1512370010
TEE
1
1420010110
O-RING
1
41
1513390027
CROSS
1
1420010110
O-RING
1
47
1901750500
VALVE, remote control
1
48
1140420010
WASHER, spring
4
49
1120990814
SCREW
4
G7b052
Reference:G7B052
Page:2-9
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
CONTROL LEVER & PEDAL (1st aux. proportional cont. type, with foot
switch; 123500841-)
8-5
35
8-2
34
8-17
8-5-5
8-5-5
25
8-2
8-1
25
8-16
8-14
8-20
4
8-19
8-15
8-8
8-11
3
8-13
8-18
8-9
8-14
29
8-4
21
X
26
15
8-3
33
28
Z
8-13
8-19
49
30
14
8-7
28
8-12
8-6-5
8-10
2-3
20
8-6
8-15
21
8-6-5
2-2
26
8-2
8-2
26
8-14
2-5
8-22
8-15
9
X
29
10-4
2348
1-4
13
1-2
2-4
8-15
8-21
2-1
2-5
1-5
10-5
10-2
8-10
1-3
10-3
12
30
Z
41
1-5
21
10-1
39
54-11
26
1-1
54-2
48
23
54-10
54-5
54-17
54-14
54-3
47
3840
54-7
54-23
54-21
32
54-22
54-20
54-6
54-5
32
50
54-12
54-1
55
54-19
48
54-18
53
54-13
G7B120
S=1/10
Ref. G7B120
Page
2-10
CONTROL LEVER & PEDAL (1st aux. proportional cont. type, with foot switch; 123500841-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
LEVER ASSY, control
1
0373208610
PEDAL ASSY (L.H.)
1
M
1-1
0373208720
PEDAL (L.H.)
1
M
1-2
0373208630
PEDAL (L.H.)
1
M
1-3
1110040655
SCREW, cap
1
1-4
1130040006
NUT
2
1-5
1225110006
WASHER, conical
2
2
0373208640
PEDAL ASSY (R.H.)
1
M
2-1
0373208750
PEDAL (R.H.)
1
M
2-2
0373208660
PEDAL (R.H.)
1
M
2-3
1110040655
SCREW, cap
1
2-4
1130040006
NUT
2
2-5
1225110006
WASHER, conical
2
3
0373208670
LEVER (L.H.)
1
M
4
0373208680
LEVER (R.H.)
1
M
8
0373208690
PEDAL ASSY, swing
1
M
8-1
0003600034
WASHER
1
8-2
0093208300
WASHER
2
8-3
0333234260
COVER
1
M
8-4
0333241250
SHEET
1
M
8-5
0373200550
PEDAL ASSY
1
M
8-5-5
1333002020
BUSHING
2
M
8-6
0373201650
LEVER ASSY
1
M
8-6-5
1333002015
BUSHING
2
M
8-7
0373208090
BRACKET
1
M
8-8
1100040625
BOLT
2
8-9
1100040680
BOLT
1
8-10
1100040820
BOLT
2
8-11
1121040832
SET-SCREW
1
8-12
1225110006
WASHER, conical
2
8-13
1130040006
NUT
4
8-14
1130040008
NUT
3
8-15
1140020008
WASHER, spring
4
8-16
1141110006
WASHER
1
8-17
1220000020
RING, retaining
1
8-18
1225000008
WASHER
1
8-19
1340010080
END, rod
2
M
8-20
1560011006
FITTING, grease
1
M
8-21
1560012006
FITTING, grease
1
M
8-22
0373201730
SHAFT
1
M
9
0373208110
PLATE
1
M
10
0373208120
VALVE ASSY, solenoid
1
M
10-1
1512370010
TEE
1
M
1420010110
O-RING
1
M
10-2
1513370046
ADAPTOR (with filter)
1
M
1420010110
O-RING
1
M
10-3
1513390027
CROSS
1
M
1420010110
O-RING
1
M
10-4
1515600200
ADAPTOR
2
M
1420010110
O-RING
1
M
10-5
1901752100
VALVE, solenoid
1
M
12
0004005117
PIN
1
M
13
0005500007
YOKE
1
M
14
0004006017
PIN
1
M
15
0005506024
YOKE
1
M
20
1100040816
BOLT
2
21
1100040820
BOLT
10
23
1110041016
BOLT
4
25
1131040012
NUT
2
26
1140020008
WASHER, spring
16
Reference:G7B120
Page:2-10
CONTROL LEVER & PEDAL (1st aux. proportional cont. type, with foot switch; 123500841-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
28
1141110008
WASHER
4
29
1214000005
PIN, snap
2
30
1225000005
WASHER
2
32
1515600200
ADAPTOR
4
M
1420010110
O-RING
1
M
33
1630771095
CABLE, control
1
M
34
1650202610
GRIP
1
M
35
1650203210
GRIP
1
M
38
1513370046
ADAPTOR (with filter)
1
M
1420010110
O-RING
1
M
39
1513250202
BUSHING
1
M
1420010110
O-RING
1
M
40
1512370010
TEE
1
M
1420010110
O-RING
1
M
41
1513390027
CROSS
1
M
1420010110
O-RING
1
M
47
1901750500
VALVE, remote control
1
M
48
1140420010
WASHER, spring
6
49
1120990814
SCREW
4
50
0349336913
DECAL
1
M
53
1110041025
SCREW, cap
2
54
0373209010
PEDAL ASSY, service
1
M
54-1
0373209020
BRACKET
1
M
54-2
0373209030
PEDAL ASSY
1
M
54-3
0373209050
SPRING, torsion
1
M
54-5
0003600034
WASHER
2
M
54-6
0333234260
COVER
1
M
54-7
0333241250
SHEET
1
M
54-10
1100040620
BOLT
1
54-11
1100040635
BOLT
1
54-12
1100040680
BOLT
1
54-13
1150410316
SCREW
2
54-14
1130040006
NUT
4
54-17
1220000020
RING, snap
1
54-18
1225110006
WASHER, conical
2
54-19
1700009010
SWITCH
1
M
54-20
1560011006
FITTING, grease
1
M
54-21
1141110006
WASHER
1
54-22
1141110003
WASHER
2
54-23
1130030003
NUT
2
55
1141110010
WASHER
2
G7b120
Reference:G7B120
Page:2-10
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

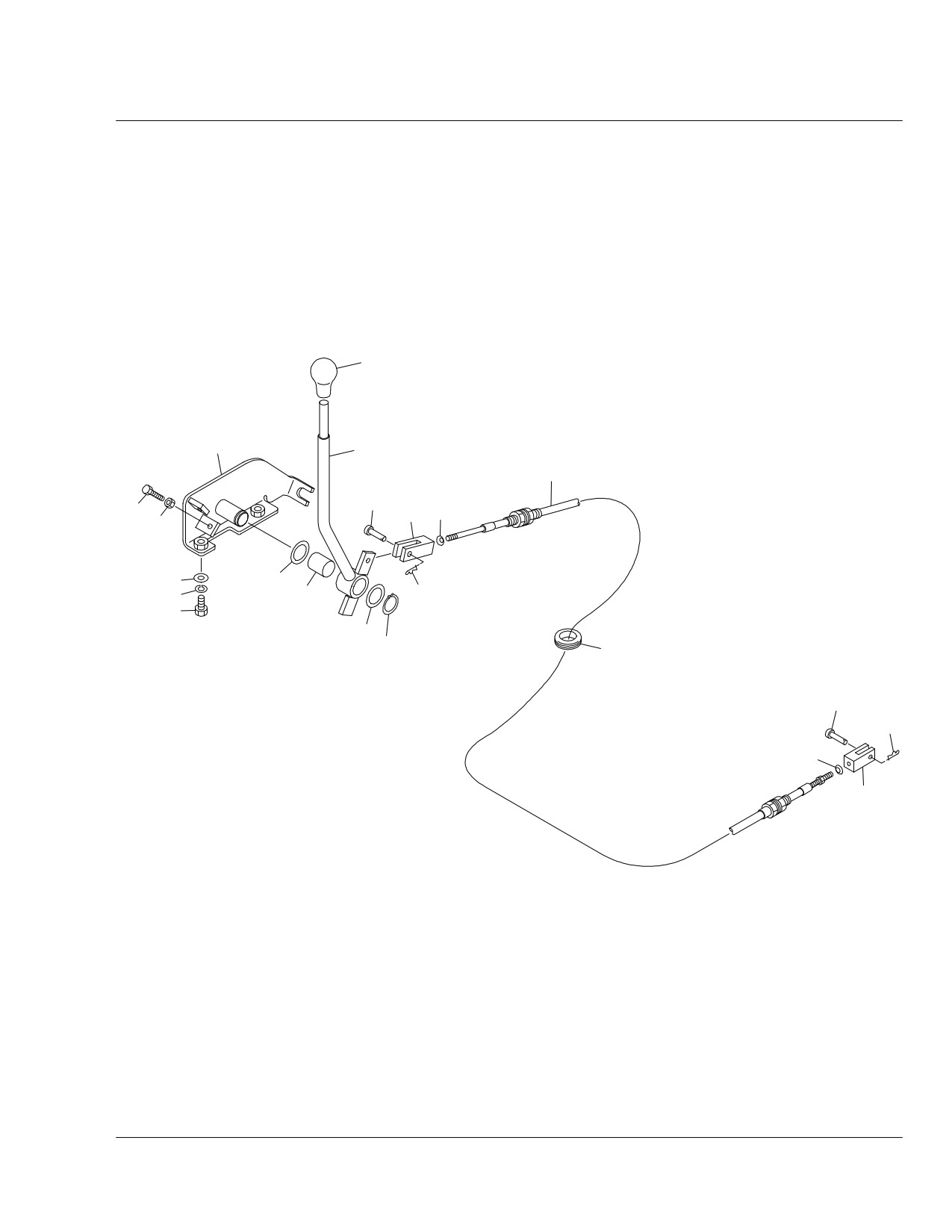

DOZER BLADE LEVER
21
1
2
4
6
16
5
17
15
20
12
19
2-5
9
18
12
11
23
6
9
17
5
G7B070
S=1/5
Ref. G7B070
Page
2-11
DOZER BLADE LEVER
Item Part number
Description
Q'ty Chan.
Serial No.
Serv. Remarks
LEVER ASSY, blade
1
0373302300
PLATE
1
2
0373302200
LEVER
1
2-5
1333002025
BUSHING
2
4
1630771230
CABLE, control
1
123500001~123500372
1630777215
CABLE, control
1
(H)
123500373~
5
0005506024
YOKE
2
6
0004006017
PIN
2
9
1214010006
PIN, snap
2
11
1220000020
RING, retaining
1
12
0093208300
WASHER
2
15
1130040006
NUT
2
16
1100040625
BOLT
2
17
1225000005
WASHER
2
18
1100041020
BOLT
2
19
1140020010
WASHER, spring
2
20
1141110010
WASHER
2
21
1650153655
GRIP
1
23
1652060035
BUSHING
1
G7b071
Reference:G7B070
Page:2-11
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
OPERATION LEVER & STAND
41
Y
B
14
41-1
See "HANDLE"
38
6
38
3 switch
CANOPY
37
12
11
22
36
14
8-1
38
25
8-2
slide switch
19
8-4
CAB
42-1
28
8-3
A
50
48
21
46
492718
22
27
proportional control
42
13
17
6
X
8-1
27
11
8-2
8-4
X
13
8-3
45
9
25
39
14
39
21
19
492718
5
27
28
5-10
35
20
ON-OFF
26
39
B
50
1
232
5-10
A
46
See "HANDLE"
14
27
Y
3 switch
4
17
12
1
L; slide-SW.
10-14
26
10
10-13 31
20
slide switch
3
32
14
33
43
29
15
24
47
7
L; 3-SW.
40
33
proportional control
44
G7B081
29
S=1/10
Ref. G7B081
Page
2-12
OPERATION LEVER & STAND
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
VALVE ASSY (standard)
VALVE ASSY (ON-OFF)
VALVE ASSY (L; slide-SW) (R; 3-SW)
VALVE ASSY (L; 3-SW) (R; slide-SW)
VALVE ASSY (L; slide-SW) (R; slide-SW)
VALVE ASSY (L; 3-SW) (L; 3-SW)
1
0003609003
WASHER
2
2
0335120970
BOLT
1
3
0335124700
SHAFT
1
4
0335124750
SHAFT
1
5
0375109160
BRACKET (L.H.)
1
5-10
1333002015
BUSHING
2
6
0375105100
LEVER
2
standard, ON-OFF
7
0375109180
LEVER (L.H.)
1
8
0375109120
REST ASSY, arm
2
8-1
0375109130
URETHANE
1
8-2
0375109140
PLATE
1
8-3
1120530812
SCREW
4
8-4
1140020008
WASHER, spring
4
9
0375109190
BRACKET
1
10
0375109020
BOX ASSY, control (L.H.)
1
10-13
1333002010
BUSHING
1
10-14
1333002015
BUSHING
1
11
0375109030
BOOT
2
standard, ON-OFF
12
0375109110
BOOT
2
proportional cont.
13
0375109150
BRACKET
2
14
0379366090
DECAL
1
ON-OFF
0569353036
DECAL
1
L; slide-SW
0399352600
DECAL
1
L; 3-SW
15
0395113450
PLATE (L.H.)
1
17
1100041020
BOLT
8
18
1110041020
SCREW, cap
4
19
1110040625
SCREW, cap
6
20
1110040816
SCREW, cap
2
21
1110041030
SCREW, cap
4
22
1111850610
SCREW, cap
4
standard, ON-OFF
23
1130040010
NUT
1
24
1130040012
NUT
1
25
1130140014
NUT
2
standard, ON-OFF
26
1140020008
WASHER, spring
2
27
1140020010
WASHER, spring
16
28
1141110006
WASHER
6
29
1141110008
WASHER
4
31
1213000832
PIN, spring
1
32
1213000836
PIN, spring
1
33
1214000008
PIN, snap
2
35
1512370008
ADAPTOR (with filter)
1
1420010110
O-RING
1
36
1512370012
ADAPTOR (with filter)
1
1420010110
O-RING
1
37
1513250202
BUSHING
2
1420010110
O-RING
1
38
1515100110
ELBOW
5
1420010110
O-RING
1
39
1515600200
ADAPTOR
5
1420010110
O-RING
1
40
1650202300
CAP
1
41
1650204600
GRIP (R.H.)
1
standard, ON-OFF
41-1
1650204601
COVER
1
horn, decel.
42
1650204700
GRIP (L.H.)
1
ON-OFF
Reference:G7B081
Page:2-12
OPERATION LEVER & STAND
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
42-1
1650204701
COVER
1
A-B
42
1650205800
GRIP (L.H.)
1
standard, ON-OFF
42-1
1650205801
COVER
1
no printing
43
1651101224
STOPPER
1
44
1653900057
SPRING, gas
1
45
1700000033
SWITCH, limit
1
46
1901751100
VALVE, pilot
2
standard, ON-OFF
47
1901751200
VALVE ASSY (R.H.) (3 switch)
1
3-SW
1901751400
VALVE ASSY (R.H.) (slide switch)
1
slide-SW
48
1901751300
VALVE ASSY (L.H.) (3 switch)
1
3-SW
1901751500
VALVE ASSY (L.H.) (slide switch)
1
slide-SW
49
0003600025
WASHER
4
50
1700100092
GROMMET
2
G7b082
Reference:G7B081
Page:2-12
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

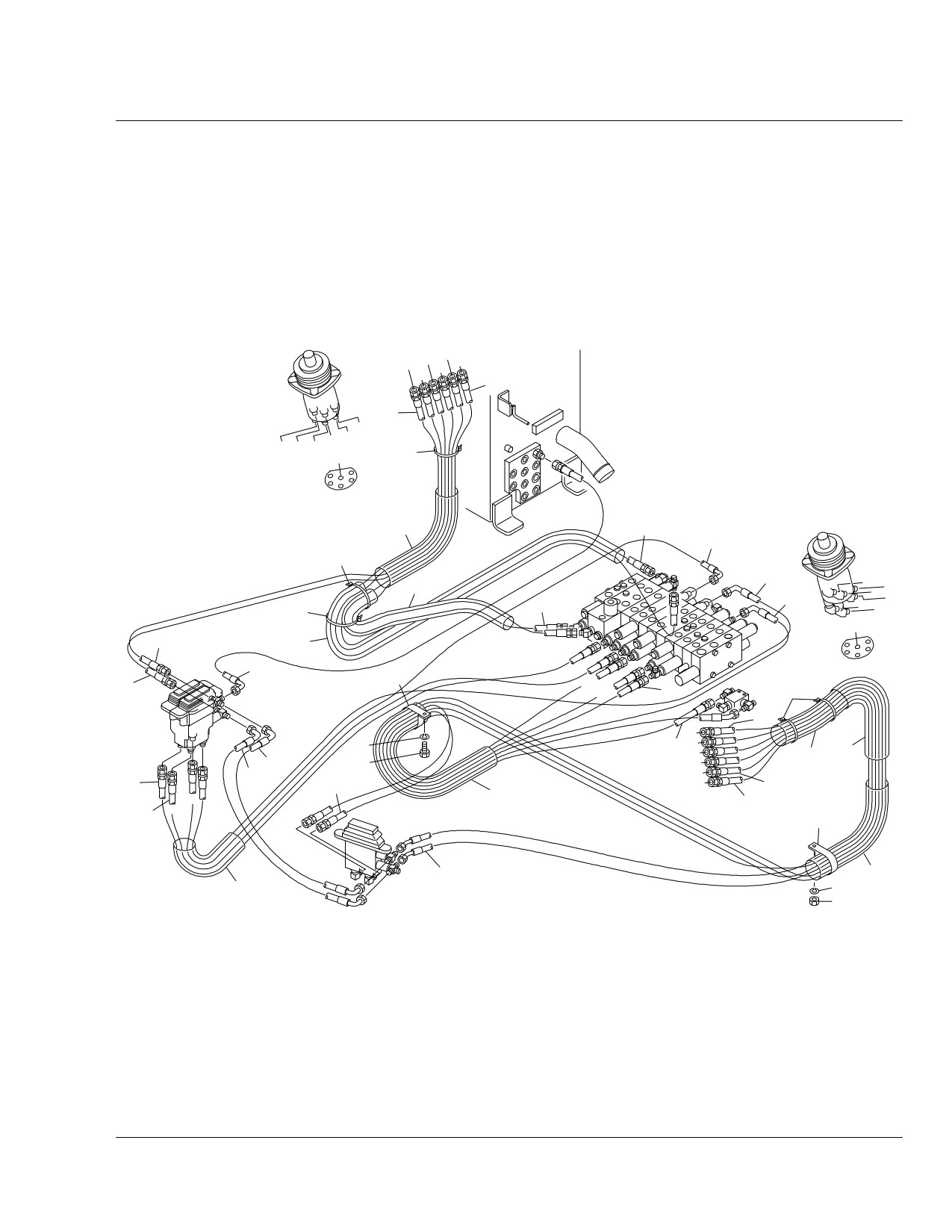

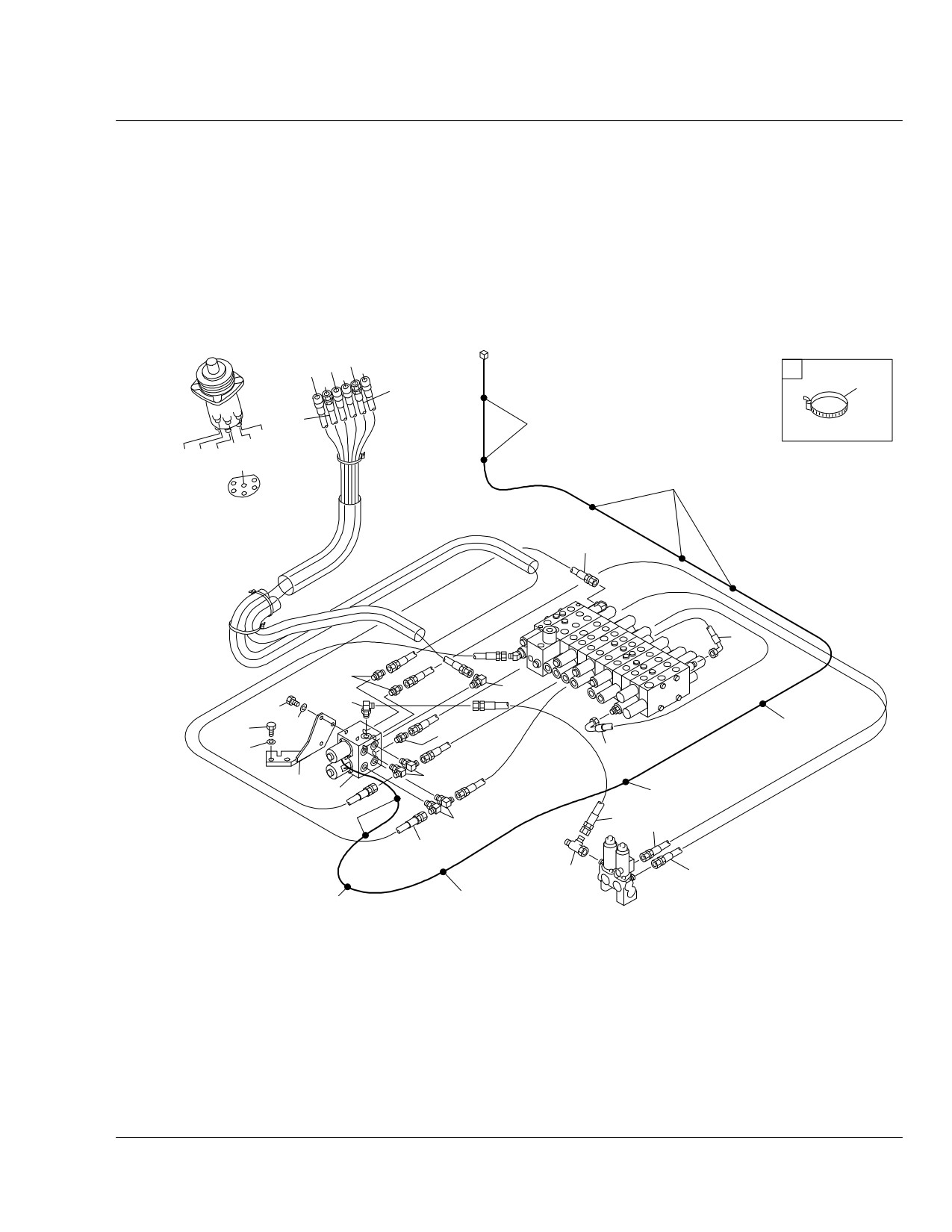

PIPING; OPERATION LEVER
R1
RT
R4
R2
RP
R3
4
2
R4
R1
RP
T1
R2 R3 RT
26
RP
R4
R3
R1
R2
RT
24
3
15
26
Pa1
Pa3
Pa4
13
L3
22
Pa2
L4
21
LP L1
1
Pa7
L2
26
LT
Pb1
LP
L4
6
23
Pb2
L3
L1
Pb3
L2
TRT
19
Pb4
LT
27
Pb5
5
TRP
TRT
Pb7
7
B
26
Pb8
A
9
TRT
TRP
L3
L4
29
10
LP
25
24
18
30
L1
L2
17
16
20
LT
8
TR4
TR3
24
TR1
R
12
TR2
14
27
L
1SST
1SSP
1SST
11
24
29
24
G7B091
1SSP
28
S=1/10
Ref. G7B091
Page
2-13
PIPING; OPERATION LEVER
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PIPING ASSY
1
0377121010
HOSE ASSY
1
19348-22128
2
0377121020
HOSE ASSY
1
19348-22168
3
0377121030
HOSE ASSY
1
19348-22165
4
0377121040
HOSE ASSY
1
19348-22132
5
0377121050
HOSE ASSY
1
19348-22106
6
0377121060
HOSE ASSY
1
19348-22102
7
0377121070
HOSE ASSY
1
19348-22212
8
0377121080
HOSE ASSY
1
19348-22215
9
0377121090
HOSE ASSY
1
19348-72218
10
0377121100
HOSE ASSY
1
19348-22215
11
0377121110
HOSE ASSY
1
19348-72160
12
0377121120
HOSE ASSY
1
19348-72160
13
0377121130
HOSE ASSY
1
19347-52108
14
0377121140
HOSE ASSY
1
19347-22058
15
0377121150
HOSE ASSY
1
19347-52108
16
0377121160
HOSE ASSY
1
19347-22058
17
0377121170
HOSE ASSY
1
18
0377121180
HOSE ASSY
1
19
0377121190
HOSE ASSY
1
20
0377121200
HOSE ASSY
1
19347-22080
21
0377121210
HOSE ASSY
1
19347-52115
22
1531625050
PROTECTOR
1
sold by the meter
23
1531625085
PROTECTOR
1
sold by the meter
24
1531645030
PROTECTOR
5
sold by the meter
25
1567315030
PROTECTOR
1
sold by the meter
26
1652201007
BAND
5
27
0007300030
CLAMP
2
28
1130040008
NUT
1
29
1140020008
WASHER, spring
2
30
1100040816
BOLT
1
G7b091
Reference:G7B091
Page:2-13
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

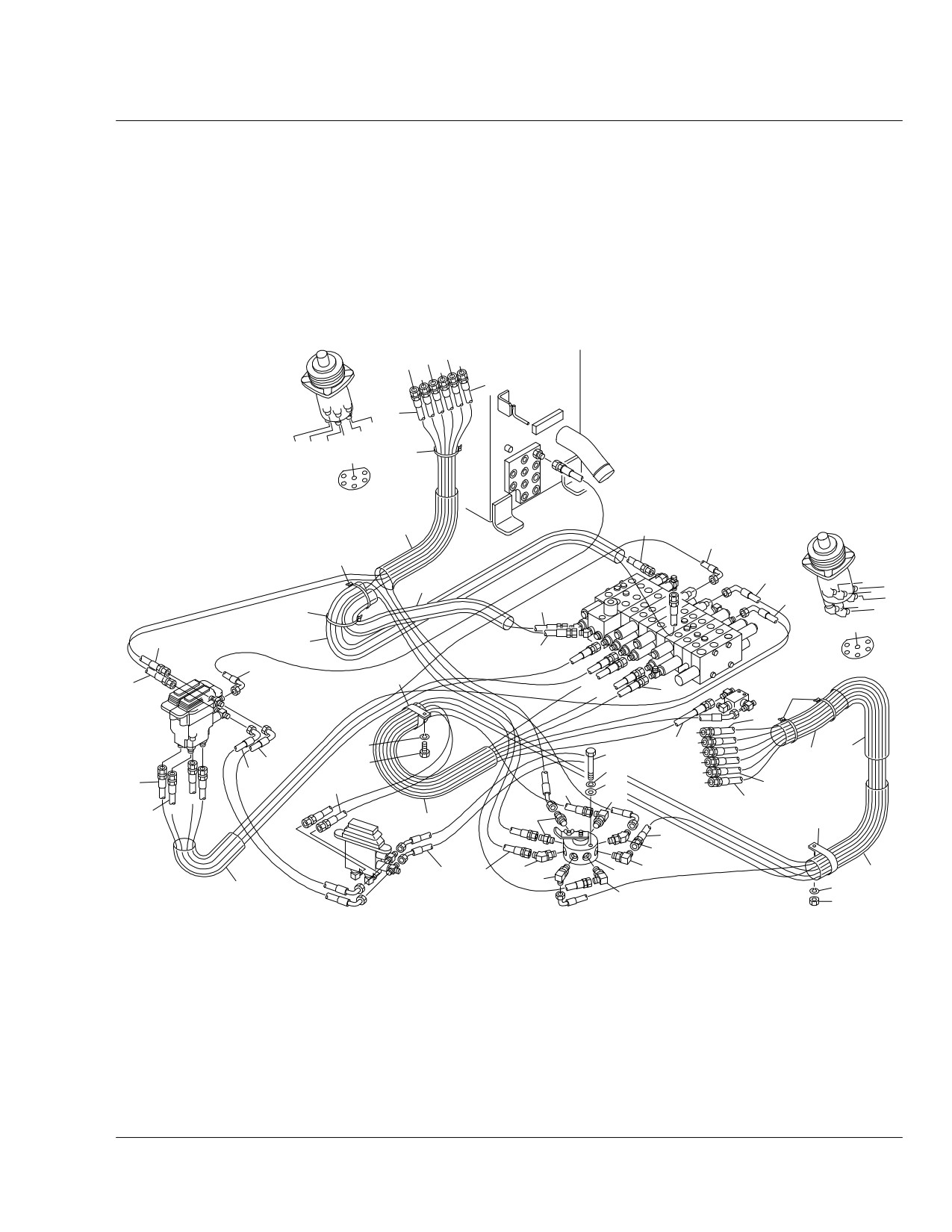

PIPING; OPERATION LEVER (ISO-JCB pattern)
R1
RT
R4
R2
RP
R3
32
31
R4
RP
R1
T1
R2 R3 RT
26
RP
R4
R3
R1
R2
RT
24
3
15
26
Pa1
Pa3
Pa4
13
L3
22
Pa2
L4
21
LP L1
1
Pa7
L2
26
LT
Pb1
LP
L4
6
23
Pb2
L3
36
L1
Pb3
L2
TRT
19
Pb4
LT
27
Pb5
5
TRP
TRT
Pb7
7
B
26
Pb8
A
9
TRT
TRP
L3
29
38
L4
43
LP
25
24
18
30
45
L1
L2
17
16
44
LT
20
37
33
TR4
TR3
41
TR1
R
12
TR2
14
40
27
24
2
B
C
L
1SST
34
1
42
A
4
1SSP
3
D
1SST
11
35
42
4641
24
41
29
24
G7B101
1SSP
41
28
S=1/10
Ref. G7B101
Page
2-14
PIPING; OPERATION LEVER (ISO-JCB pattern)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PIPING ASSY
1
0377121010
HOSE ASSY
1
19348-22128
3
0377121030
HOSE ASSY
1
19348-22165
5
0377121050
HOSE ASSY
1
19348-22106
6
0377121060
HOSE ASSY
1
19348-22102
7
0377121070
HOSE ASSY
1
19348-22212
9
0377121090
HOSE ASSY
1
19348-72218
11
0377121110
HOSE ASSY
1
19348-72160
12
0377121120
HOSE ASSY
1
19348-72160
13
0377121130
HOSE ASSY
1
19347-52108
14
0377121140
HOSE ASSY
1
19347-22058
15
0377121150
HOSE ASSY
1
19347-52108
16
0377121160
HOSE ASSY
1
19347-22058
17
0377121170
HOSE ASSY
1
18
0377121180
HOSE ASSY
1
19
0377121190
HOSE ASSY
1
20
0377121200
HOSE ASSY
1
19347-22080
21
0377121210
HOSE ASSY
1
19347-52115
22
1531625050
PROTECTOR
1
sold by the meter
23
1531625085
PROTECTOR
1
sold by the meter
24
1531645030
PROTECTOR
5
sold by the meter
25
1567315030
PROTECTOR
1
sold by the meter
26
1652201007
BAND
5
27
0007300030
CLAMP
2
28
1130040008
NUT
1
29
1140020008
WASHER, spring
2
30
1100040816
BOLT
1
31
0377122310
HOSE ASSY
1
19348-52135
32
0377122320
HOSE ASSY
1
19348-22133
33
0377122330
HOSE ASSY
1
19348-52145
34
0377122340
HOSE ASSY
1
19348-22135
35
0377122350
HOSE ASSY
1
19348-22182
36
0377122360
HOSE ASSY
1
19348-22154
37
0377122370
HOSE ASSY
1
19348-22082
38
0377122380
HOSE ASSY
1
19348-22092
40
1515600200
ADAPTOR
2
1420010110
O-RING
1
41
1515012040
ELBOW
4
1420010110
O-RING
1
42
1515100110
ELBOW
2
1420010110
O-RING
1
43
1100040650
BOLT
2
44
1141110006
WASHER
2
45
1140020006
WASHER, spring
2
46
1901730500
VALVE, selector
1
G7b101
Reference:G7B101
Page:2-14
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

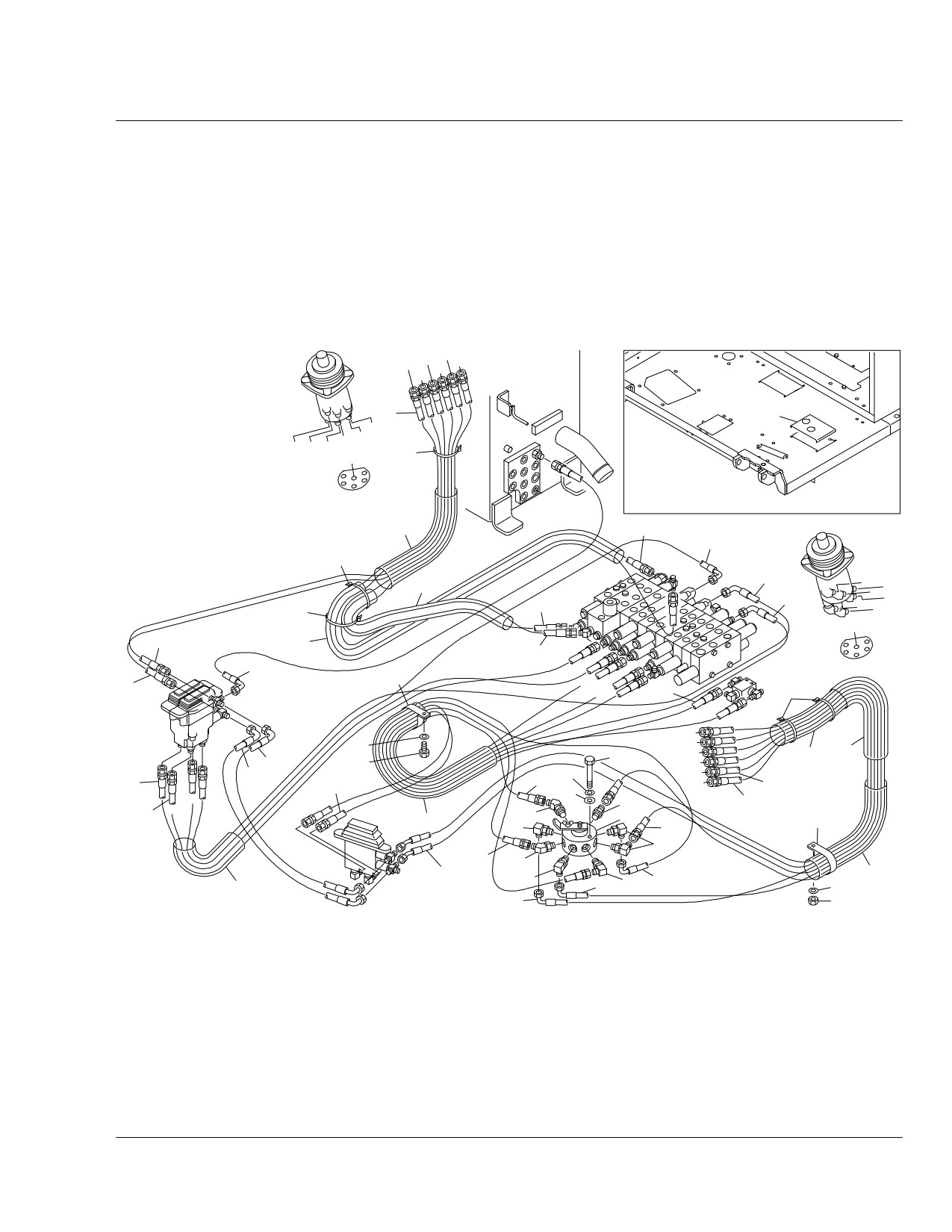

PIPING; OPERATION LEVER (A-B pattern)
R1
RT
R4
R2
RP
R3
2
47
R4
RP
R1
T1
R2 R3 RT
26
RP
R4
R3
R1
R2
RT
123500001~123500906
24
3
15
26
Pa1
Pa3
Pa4
13
22
Pa2
L3
L4
LP
21
L1
1
Pa7
L2
26
LT
Pb1
LP
L4
6
23
Pb2
L3
4
L1
Pb3
L2
TRT
19
Pb4
LT
27
Pb5
5
TRP
TRT
Pb7
37
26
Pb8
B
A
TRT
TRP
L3
L4
29
LP
25
43
24
18
30
L1
L2
17
3845
16
LT
20
32
TR4
44
TR3
40
TR1
R
12
TR2
42
14
D
46
24
1
4
27
41
33
L
1SST
B
A
2
41
35
3
C
42
1SSP
1SST
11
24
41
36
34
41
29
24
G7B140
1SSP
31
28
S=1/10
Ref. G7B140
Page
2-15
PIPING; OPERATION LEVER (A-B pattern)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PIPING ASSY
1
0377121010
HOSE ASSY
1
M
19348-22128
2
0377121020
HOSE ASSY
1
M
19348-22168
3
0377121030
HOSE ASSY
1
M
19348-22165
4
0377121040
HOSE ASSY
1
M
19348-22132
5
0377121050
HOSE ASSY
1
M
19348-22106
6
0377121060
HOSE ASSY
1
M
19348-22102
11
0377121110
HOSE ASSY
1
M
19348-72160
12
0377121120
HOSE ASSY
1
M
19348-72160
13
0377121130
HOSE ASSY
1
M
19347-52108
14
0377121140
HOSE ASSY
1
M
19347-22058
15
0377121150
HOSE ASSY
1
M
19347-52108
16
0377121160
HOSE ASSY
1
M
19347-22058
17
0377121170
HOSE ASSY
1
M
18
0377121180
HOSE ASSY
1
M
19
0377121190
HOSE ASSY
1
M
20
0377121200
HOSE ASSY
1
M
19347-22080
21
0377121210
HOSE ASSY
1
M
19347-52115
22
1531625050
PROTECTOR
1
M
sold by the meter
23
1531625085
PROTECTOR
1
M
sold by the meter
24
1531645030
PROTECTOR
5
M
sold by the meter
25
1567315030
PROTECTOR
1
M
sold by the meter
26
1652201007
BAND
5
M
27
0007300030
CLAMP
2
M
28
1130040008
NUT
1
29
1140020008
WASHER, spring
2
30
1100040816
BOLT
1
31
0377123610
HOSE ASSY
1
M
19348-52142
32
0377123620
HOSE ASSY
1
M
19348-22135
33
0377123630
HOSE ASSY
1
M
19348-22135
34
0377123640
HOSE ASSY
1
M
19348-52140
35
0377123650
HOSE ASSY
1
M
19348-22076
36
0377123660
HOSE ASSY
1
M
19348-52092
37
0377123670
HOSE ASSY
1
M
19348-22090
38
0377123680
HOSE ASSY
1
M
19348-22074
40
1515600200
ADAPTOR
1
M
1420010110
O-RING
1
M
41
1515012040
ELBOW
5
M
1420010110
O-RING
1
M
42
1515100110
ELBOW
2
M
1420010110
O-RING
1
M
43
1100040650
BOLT
2
44
1141110006
WASHER
2
45
1140020006
WASHER, spring
2
46
1901731400
VALVE, selector
1
M
47
0377123690
COVER
1
123500001~123500906
M
G7b140
Reference:G7B140
Page:2-15
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
PIPING; OPERATION LEVER (change 2nd aux. - bucket)
R1
RT
R4
R2
a
RP
R3
14
1
2
a
R4
R1
RP
R2 R3 RT
RP
R4
R3
a
R1
R2
RT
4
Pa1
5
Pb1
E
Pa10
10-5
A
10-4
G
10-4
10-2
Pb10
T
10-3
a
11
10-5
C
12
6
F
10-1
10-4
H
a
10-6
B
a
9
D
10-4
T
7
3
A1
13
A2
8
a
G7B150
a
S=1/10
Ref. G7B150
Page
2-16
PIPING; OPERATION LEVER (change 2nd aux. - bucket)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
PIPING ASSY
1
0377123710
HOSE ASSY
1
M
19348-22128
2
0377123720
HOSE ASSY
1
M
19348-22165
3
0397117430
HOSE ASSY
1
M
18010-22080
4
0397117440
HOSE ASSY
1
M
18010-22115
5
0397117450
HOSE ASSY
1
M
18010-52082
6
0397117460
HOSE ASSY
1
M
18010-52126
7
0397117470
HOSE ASSY
1
M
18010-22135
8
0397117480
HOSE ASSY
1
M
18010-22135
9
0397117490
HOSE ASSY
1
M
18010-22062
10
0377123750
VALVE ASSY, solenoid
1
M
10-1
0377123760
STOPPER
1
M
10-2
1100040816
BOLT
3
10-3
1140020008
WASHER, spring
3
10-4
1515012040
ELBOW
6
M
1420010110
O-RING
1
M
10-5
1515600200
ADAPTOR
3
M
1420010110
O-RING
1
M
10-6
1901755200
VALVE, solenoid
1
M
11
1101041230
BOLT
2
12
1140020012
WASHER, spring
2
13
1513390015
TEE
1
M
14
1652231250
BAND
11
M
G7b150
Reference:G7B150
Page:2-16
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

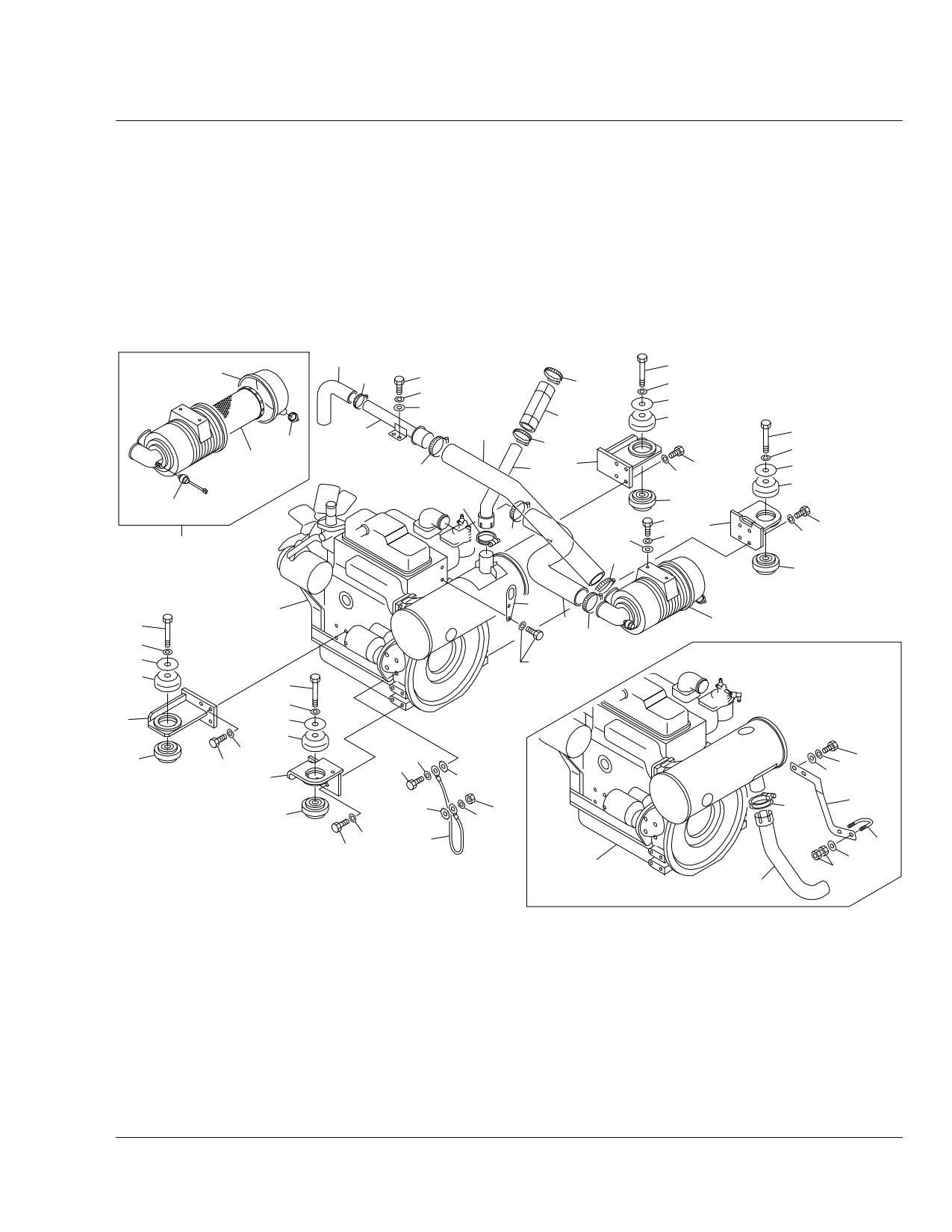

ENGINE & ACCESSORIES (1/3) (123500001-123500324)
84
66
88-2
17
58
18
75
73
76
77
94
20
87
86
66
88-3
18
75
88-1
1
76
16
40
7462
21
41
20
88-4
59
3
16
77
73
7462
88
16
21
90
25
66
88
8516
75
76
See engine parts list
20
66
75
2
76
21
74
74
59
20
62
61
4
44
8073
81
44
41
69
21
74
74
43
82
64
25
6877
83
CANOPY
G7C011
S=1/12
Ref. G7C011
Page
3-1
ENGINE & ACCESSORIES (1/3) (123500001-123500324)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ENGINE ASSY (cab)
ENGINE ASSY (canopy)
ENGINE ASSY (with air conditioner)
1
0374019100
FOOT, engine (F.R.)
1
2
0374019150
FOOT, engine (F.L.)
1
3
0374019200
FOOT, engine (R.R.)
1
4
0374019250
FOOT, engine (R.L.)
1
16
1533700066
BAND
4
17
1533700045
BAND
1
18
1533700052
BAND
2
123500175~
cab
20
1651030014
RUBBER, cushion
4
21
1651030016
RUBBER, cushion
4
25
1910238001
ENGINE (cab)
1
3TNV88-BPTB2
1910239001
ENGINE (canopy)
1
3TNV88-BPTB1
40
0374019390
PIPE
1
123500001~123500174
cab
0374025150
PIPE
1
123500175~
cab
41
1910120023
CLAMP
1
Y121120-13590
43
1702430300
CABLE, earth
1
44
1140330010
WASHER
2
58
1100040820
BOLT
2
59
1100040825
BOLT
2
cab
1100040825
BOLT
4
canopy
61
1100041016
BOLT
1
62
1100041025
BOLT
12
64
1100041035
BOLT
4
66
1101141210
BOLT
4
68
1130040008
NUT
4
canopy
69
1130040010
NUT
1
73
1140020008
WASHER, spring
6
canopy
74
1140020010
WASHER, spring
18
75
1140020012
WASHER, spring
4
76
0394021028
WASHER
4
77
1141110008
WASHER
4
cab
1141110008
WASHER
6
canopy
80
0003608252
WASHER
2
canopy
81
0374019396
SUPPORT
1
canopy
82
1533201012
U-BOLT
1
canopy
83
0374019395
PIPE
1
canopy
84
0374025070
HOSE
1
85
0374019710
HOSE
1
86
0374019720
HOSE
1
87
0374019730
PIPE
1
88
1910238007
CLEANER, air
1
88-1
X
**********
ELEMENT
1
Y129004-12520
88-2
X
**********
COVER
1
Y119866-12541
88-3
X
**********
VALVE
1
Y119808-12540
88-4
X
**********
INDICATOR
1
Y129259-12570
90
0374011140
HOOK
1
94
0394035020
INSULATOR
1
123500175~
cab
G7c011
Reference:G7C011
Page:3-1
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

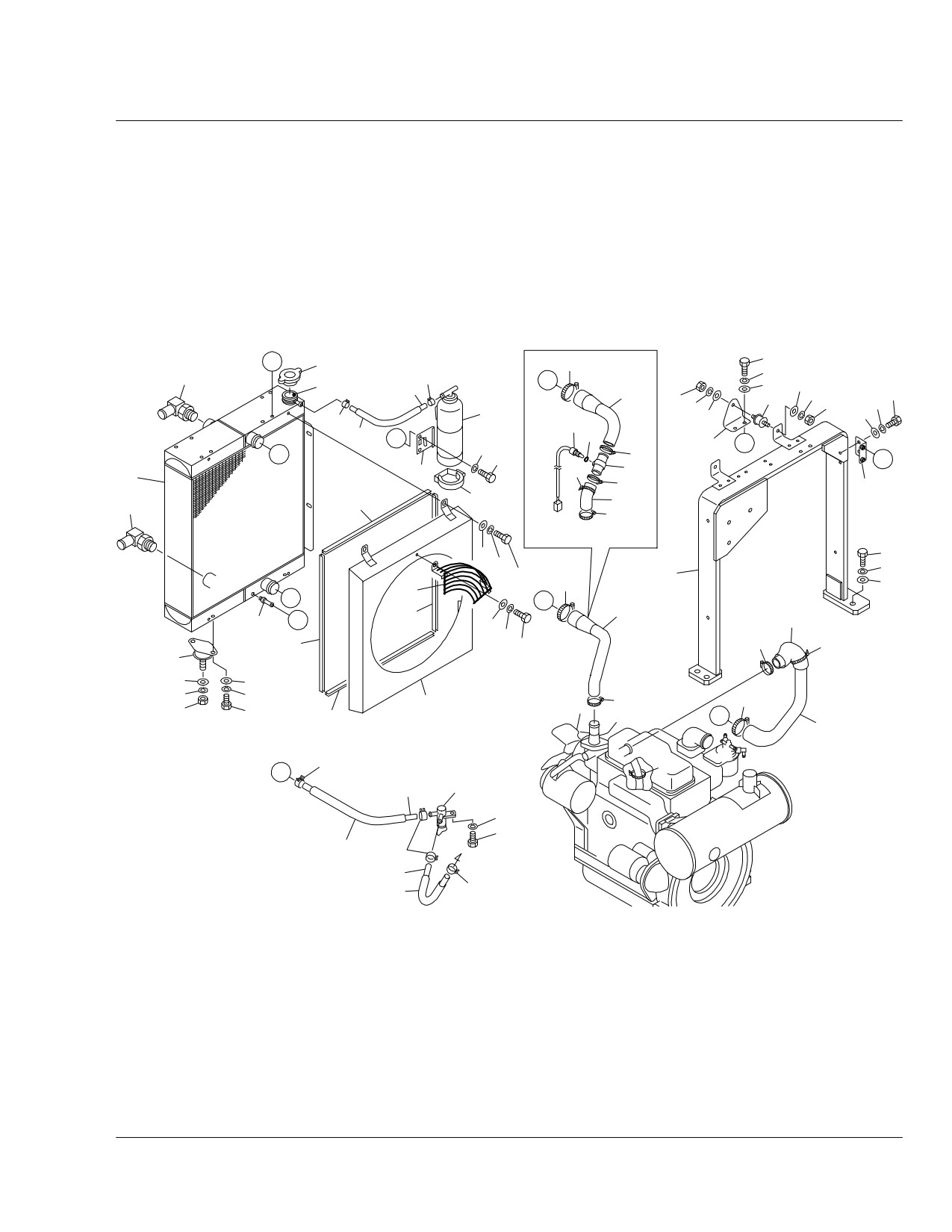

ENGINE & ACCESSORIES (2/3) (123500001-123500324)
57
Z
26-8
16
73
13
37
26-6
V
77
80
38
28
73
68
23
68
91
73
777358
80
48
37 39
49
Y
73
50
Z
V
57
17
Y
92
45
47
26
17
30
15-2
93
27
13
17
123500001~123500036
65
7773
75
57
51
16
79
14
W
V
27
X
15-4
46
26-7
77
73
17
15-3
57
45
22
89
78
75
74
16
15-1
17
70
61
15-2
W
29
32
45
X
31
35
73
58
36
32
T o Engine
33
34
32
G7C021
S=1/12
Ref. G7C021
Page
3-2
ENGINE & ACCESSORIES (2/3) (123500001-123500324)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ENGINE ASSY (cab)
ENGINE ASSY (canopy)
ENGINE ASSY (with air conditioner)
13
1513350027
ELBOW
2
1420010290
O-RING
1
14
0374019370
GUARD
1
without air con.
15
0374019600
SHROUD ASSY
1
15-1
0374020100
SHROUD
1
15-2
1654606046
SEAL
2
sold by the meter
15-3
1654606050
SEAL
1
sold by the meter
15-4
1654605054
H-RUBBER
1
sold by the meter
16
1533700066
BAND
2
17
1533700045
BAND
2
22
1651024009
RUBBER, cushion
2
23
1651014003
RUBBER, cushion
2
26
1911300290
RADIATOR & OIL COOLER
1
AKG
26-6
1911300076
FITTING, hose
1
26-7
1911300077
NIPPLE
1
26-8
1911300078
CAP, radiator
1
27
0374019800
HOSE
1
123500001~123500036
0374019850
HOSE
1
123500037~
28
0374019810
HOSE
1
123500001~123500036
29
0374019840
HOSE
1
30
0374025060
BRACKET
1
31
1910078037
VALVE
1
Y129150-49100
32
1533120512
BAND
4
33
1530808027
HOSE
1
34
1531115020
PROTECTOR
1
sold by the meter
35
1530808050
HOSE
1
36
1531115045
PROTECTOR
1
sold by the meter
37
1533120012
BAND
2
38
1531115035
HOSE
1
sold by the meter
39
1531407030
PROTECTOR
1
sold by the meter
45
1652231250
BAND
2
46
1531345010
PROTECTOR
1
sold by the meter
47
0394021700
JOINT
1
123500001~123500036
48
1700100046
SENSOR
1
123500001~123500036
49
1420000100
O-RING
1
123500001~123500036
50
0374025050
BRACKET
2
51
0374025080
BRACKET
1
57
1100040816
BOLT
10
58
1100040820
BOLT
3
61
1100041016
BOLT
4
65
1101141235
BOLT
4
68
1130040008
NUT
4
70
1130040012
NUT
2
73
1140020008
WASHER, spring
19
74
1140020010
WASHER, spring
4
75
1140020012
WASHER, spring
6
77
1141110008
WASHER
12
78
1141110010
WASHER
4
79
1141110012
WASHER
4
80
0003608252
WASHER
4
89
0003600123
WASHER
2
91
1910047040
TANK
1
Y171064-44510
92
1910047052
BRACKET
1
Y121256-44600
93
1910047047
BAND
1
Y124450-44550
G7c021
Reference:G7C021
Page:3-2
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
ENGINE & ACCESSORIES (3/3) (123500001-123500324)
57
9-3
73
9-1
8-1
77
8-2
9-4
8-3
52-4
807368
77
59
5
6
52-2
7
78
52-1
6274
53-3
52-3
7478
62
53-2
53-1
G7C031
S=1/12
Ref. G7C031
Page
3-3
ENGINE & ACCESSORIES (3/3) (123500001-123500324)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ENGINE ASSY (cab)
ENGINE ASSY (canopy)
ENGINE ASSY (with air conditioner)
5
0374019300
SPONGE
1
6
0374019310
SPONGE
1
7
0374019320
SPONGE
1
8
0374025010
PLATE ASSY
1
8-1
0374025011
PLATE
1
8-2
1654601034
TRIM
1
sold by the meter
8-3
1654351043
SPONGE
1
sold by the meter
9
0374025020
PLATE ASSY
1
9-1
0374025021
PLATE
1
9-3
1654601069
TRIM
1
sold by the meter
9-4
1654351054
SPONGE
1
sold by the meter
52
0374025030
PLATE ASSY
1
52-1
0374025031
PLATE
1
52-2
0374025032
SPONGE
1
52-3
0374025033
SPONGE
1
52-4
1654606065
TRIM
1
sold by the meter
53
0374025100
PLATE ASSY
1
53-1
0374025110
PLATE
1
53-2
0374025120
INSULATOR
1
53-3
1654606091
RUBBER
1
sold by the meter
57
1100040816
BOLT
2
59
1100040825
BOLT
2
62
1100041025
BOLT
5
68
1130040008
NUT
2
73
1140020008
WASHER, spring
4
74
1140020010
WASHER, spring
5
77
1141110008
WASHER
6
78
1141110010
WASHER
5
80
0003608252
WASHER
2
G7c031
Reference:G7C031
Page:3-3
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
ENGINE & ACCESSORIES (1/3) (123500325-)
66
88-2
40
75
84
58
76
17
86
73
20
1
41
77
66
88-3
75
88-1
87
76
7462
21
20
16
16
88-4
59
3
62
73
77
74
88
16
21
85
90
66
25
88
75
16
76
20
See engine parts list
66
75
2
76
21
74
20
74
59
62
61
4
8073
44
81
44
41
21
69
74
74
43
82
64
25
6877
83
CANOPY
G7C341
S=1/12
Ref. G7C341
Page
3-4
ENGINE & ACCESSORIES (1/3) (123500325-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ENGINE ASSY (cab)
ENGINE ASSY (canopy)
ENGINE ASSY (with air conditioner)
1
0374019100
FOOT, engine (F.R.)
1
123500325~123500972
0374029300
FOOT, engine (F.R.)
1
123500973~
M
2
0374019150
FOOT, engine (F.L.)
1
123500325~123500972
0374029350
FOOT, engine (F.L.)
1
123500973~
M
3
0374019200
FOOT, engine (R.R.)
1
123500325~123500972
0374029400
FOOT, engine (R.R.)
1
123500973~
M
4
0374019250
FOOT, engine (R.L.)
1
123500325~123500972
0374029450
FOOT, engine (R.L.)
1
123500973~
M
16
1533700066
BAND
4
17
1533700045
BAND
1
20
1651030014
RUBBER, cushion
4
123500325~123500972
1651030002
RUBBER, cushion
4
123500973~
M
21
1651030016
RUBBER, cushion
4
123500325~123500972
1651030003
RUBBER, cushion
4
123500973~
M
25
1910238001
ENGINE (cab)
1
3TNV88-BPTB2
1910239001
ENGINE (canopy)
1
3TNV88-BPTB1
40
0374025150
PIPE
1
cab
41
1910120023
CLAMP
1
Y121120-13590
43
1702430300
CABLE, earth
1
44
1140330010
WASHER
2
58
1100040820
BOLT
2
59
1100040825
BOLT
2
cab
1100040825
BOLT
4
canopy
61
1100041016
BOLT
1
62
1100041025
BOLT
12
64
1100041035
BOLT
4
66
1101141210
BOLT
4
123500325~123500972
1101141200
BOLT
4
123500973~
M
68
1130040008
NUT
4
canopy
69
1130040010
NUT
1
73
1140020008
WASHER, spring
6
canopy
74
1140020010
WASHER, spring
18
75
1140020012
WASHER, spring
4
76
0394021028
WASHER
4
123500325~123500972
0003600085
WASHER
4
123500973~
M
77
1141110008
WASHER
4
cab
1141110008
WASHER
6
canopy
80
0003608252
WASHER
2
canopy
81
0374019398
SUPPORT
1
canopy
82
1533201012
U-BOLT
1
canopy
83
0374019397
PIPE
1
canopy
84
0374025070
HOSE
1
85
0374025071
HOSE
1
86
0374025072
HOSE
1
87
0374019730
PIPE
1
88
1910238007
CLEANER, air
1
88-1
X
**********
ELEMENT
1
Y129619-12520
88-2
X
**********
COVER
1
Y119866-12530
88-3
X
**********
VALVE
1
Y119808-12540
88-4
X
**********
INDICATOR
1
Y129953-12620
90
0374011140
HOOK
1
123500613~
M
with air conditioner
G7c341
Reference:G7C341
Page:3-4
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

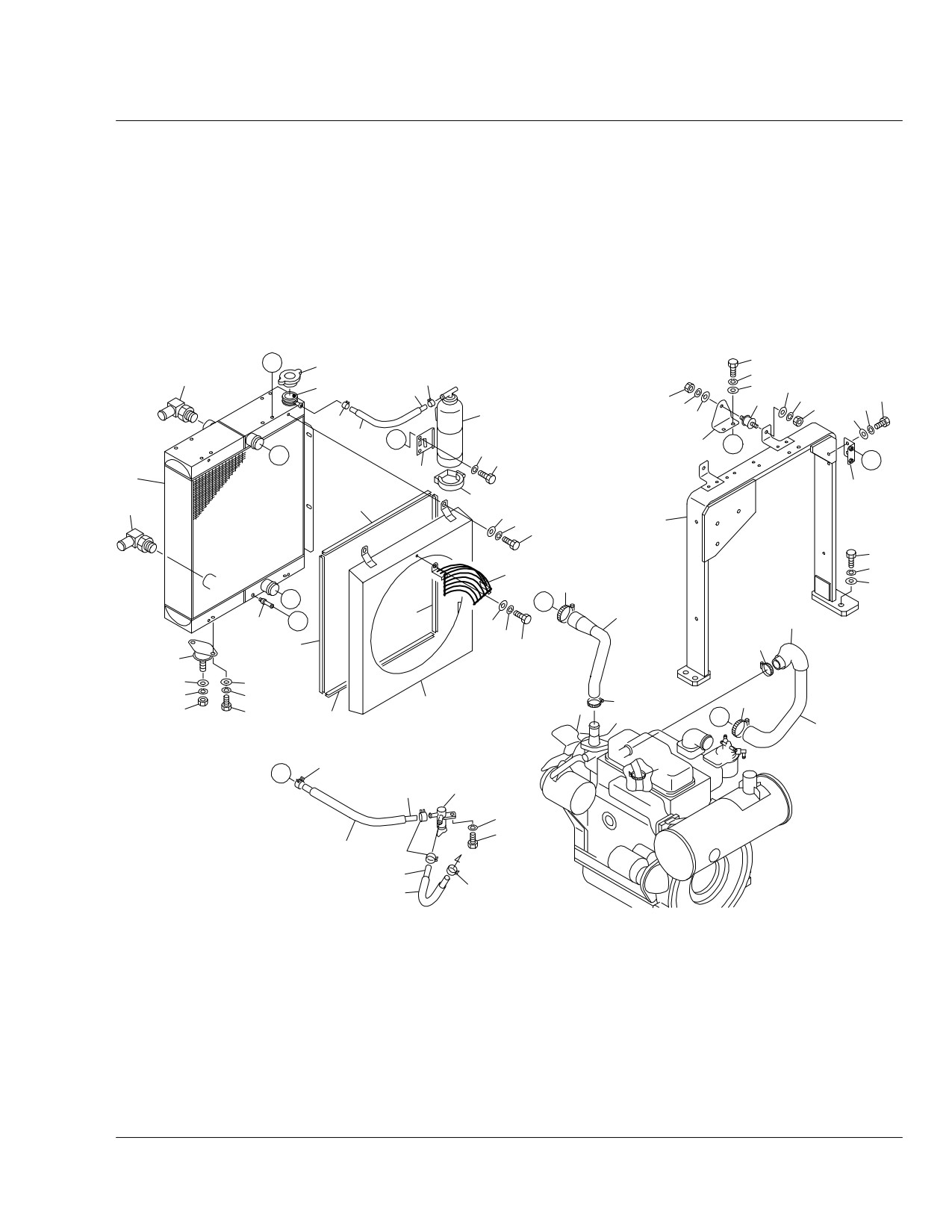

ENGINE & ACCESSORIES (2/3) (123500325-)
57
Z
26-8
73
13
37
26-6
38
77
80
73
68
23
68
91
73
777358
80
37
39
Y
73
50
Z
V
57
Y
26
92
30
15-2
93
13
7773
51
57
65
14
75
16
79
W
V
27
X
15-4
46
26-7
77
17
15-3
7357
22
89
78
75
74
16
15-1
17
70
61
15-2
W
29
32
45
X
31
35
73
58
36
32
T o Engine
33
34
32
G7C211
S=1/12
Ref. G7C211
Page
3-5
ENGINE & ACCESSORIES (2/3) (123500325-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ENGINE ASSY (cab)
ENGINE ASSY (canopy)
ENGINE ASSY (with air conditioner)
13
1513350027
ELBOW
2
1420010290
O-RING
1
14
0374019370
GUARD
1
without air con.
15
0374019600
SHROUD ASSY
1
15-1
0374020100
SHROUD
1
15-2
1654606046
SEAL
2
sold by the meter
15-3
1654606050
SEAL
1
sold by the meter
15-4
1654605054
H-RUBBER
1
sold by the meter
16
1533700066
BAND
2
17
1533700045
BAND
2
22
1651024009
RUBBER, cushion
2
23
1651014003
RUBBER, cushion
2
26
1911300290
RADIATOR & OIL COOLER
1
AKG
26-6
1911300076
FITTING, hose
1
26-7
1911300077
NIPPLE
1
26-8
1911300078
CAP, radiator
1
27
0374019850
HOSE
1
29
0374019840
HOSE
1
30
0374025060
BRACKET
1
31
1910078037
VALVE
1
Y129150-49100
32
1533120512
BAND
4
33
1530808027
HOSE
1
34
1531115020
PROTECTOR
1
sold by the meter
35
1530808050
HOSE
1
36
1531115045
PROTECTOR
1
sold by the meter
37
1533120012
BAND
2
38
1531115035
HOSE
1
sold by the meter
39
1531407030
PROTECTOR
1
sold by the meter
45
1652231250
BAND
1
46
1531345010
PROTECTOR
1
sold by the meter
50
0374025050
BRACKET
2
51
0374025080
BRACKET
1
57
1100040816
BOLT
10
58
1100040820
BOLT
3
61
1100041016
BOLT
4
65
1101041235
BOLT
4
68
1130040008
NUT
4
70
1130040012
NUT
2
73
1140020008
WASHER, spring
19
74
1140020010
WASHER, spring
4
75
1140020012
WASHER, spring
6
77
1141110008
WASHER
12
78
1141110010
WASHER
4
79
1141110012
WASHER
4
80
0003608252
WASHER
4
89
0003600123
WASHER
2
91
1910047040
TANK
1
Y171064-44510
92
1910047052
BRACKET
1
Y121256-44600
93
1910047047
BAND
1
Y124450-44550
G7c211
Reference:G7C211
Page:3-5
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

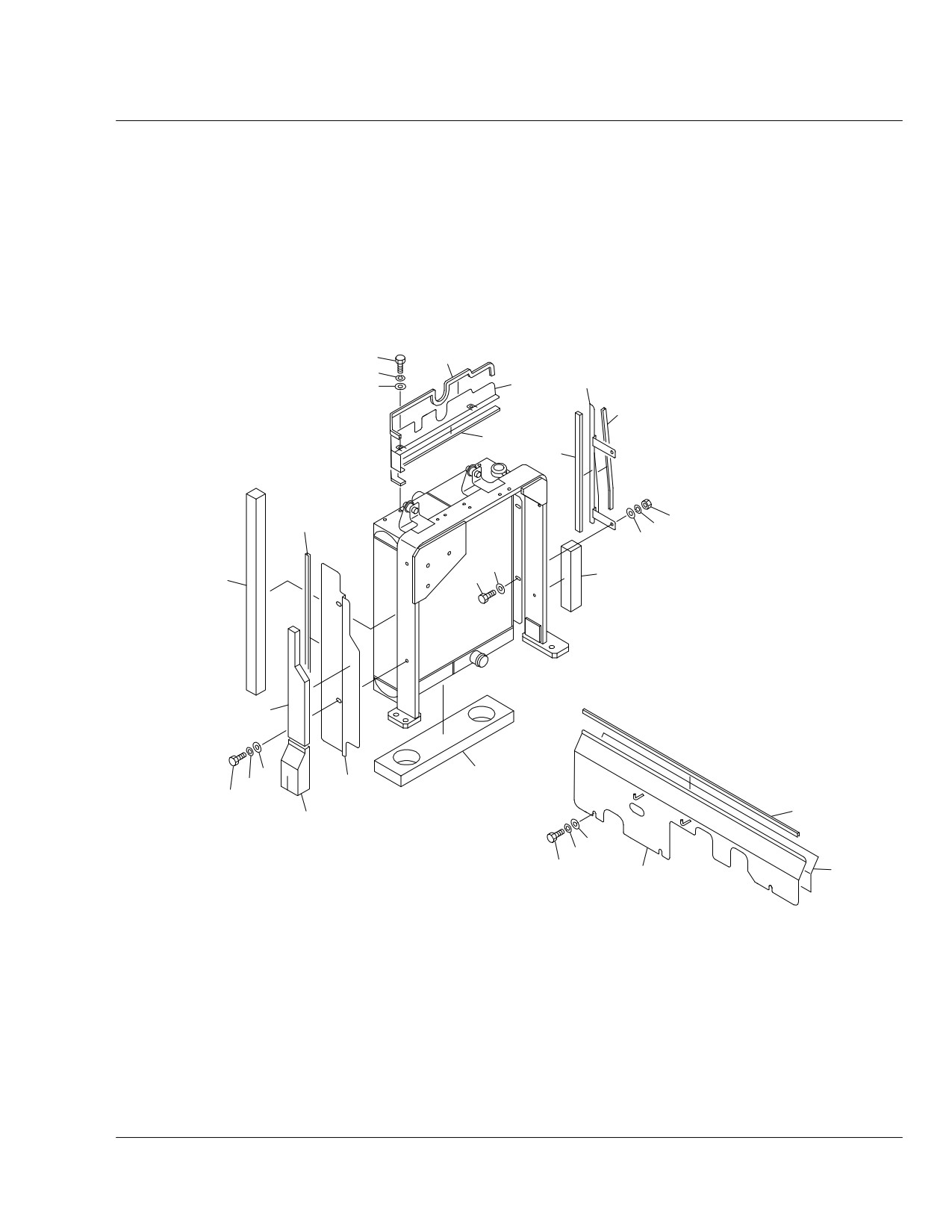

ENGINE & ACCESSORIES (3/3) (123500325-)
57
9-3
73
9-1
8-1
77
8-2
9-4
8-3
52-4
807368
77
59
5
6
52-2
7
78
52-1
6274
53-3
52-3
7478
62
53-2
53-1
G7C031
S=1/12
Ref. G7C031A
Page
3-6
ENGINE & ACCESSORIES (3/3) (123500325-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ENGINE ASSY (cab)
ENGINE ASSY (canopy)
ENGINE ASSY (with air conditioner)
5
0374019300
SPONGE
1
6
0374019310
SPONGE
1
7
0374019320
SPONGE
1
8
0374025010
PLATE ASSY
1
8-1
0374025011
PLATE
1
8-2
1654601034
TRIM
1
sold by the meter
8-3
1654351043
SPONGE
1
sold by the meter
9
0374025020
PLATE ASSY
1
9-1
0374025021
PLATE
1
9-3
1654601069
TRIM
1
sold by the meter
9-4
1654351054
SPONGE
1
sold by the meter
52
0374025030
PLATE ASSY
1
52-1
0374025031
PLATE
1
52-2
0374025032
SPONGE
1
52-3
0374025033
SPONGE
1
52-4
1654606065
TRIM
1
sold by the meter
53
0374025100
PLATE ASSY
1
53-1
0374025110
PLATE
1
53-2
0374025120
INSULATOR
1
53-3
1654606090
RUBBER
1
M
sold by the meter
57
1100040816
BOLT
2
59
1100040825
BOLT
2
62
1100041025
BOLT
5
68
1130040008
NUT
2
73
1140020008
WASHER, spring
4
74
1140020010
WASHER, spring
5
77
1141110008
WASHER
6
78
1141110010
WASHER
5
80
0003608252
WASHER
2
G7c221
Reference:G7C031A
Page:3-6
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

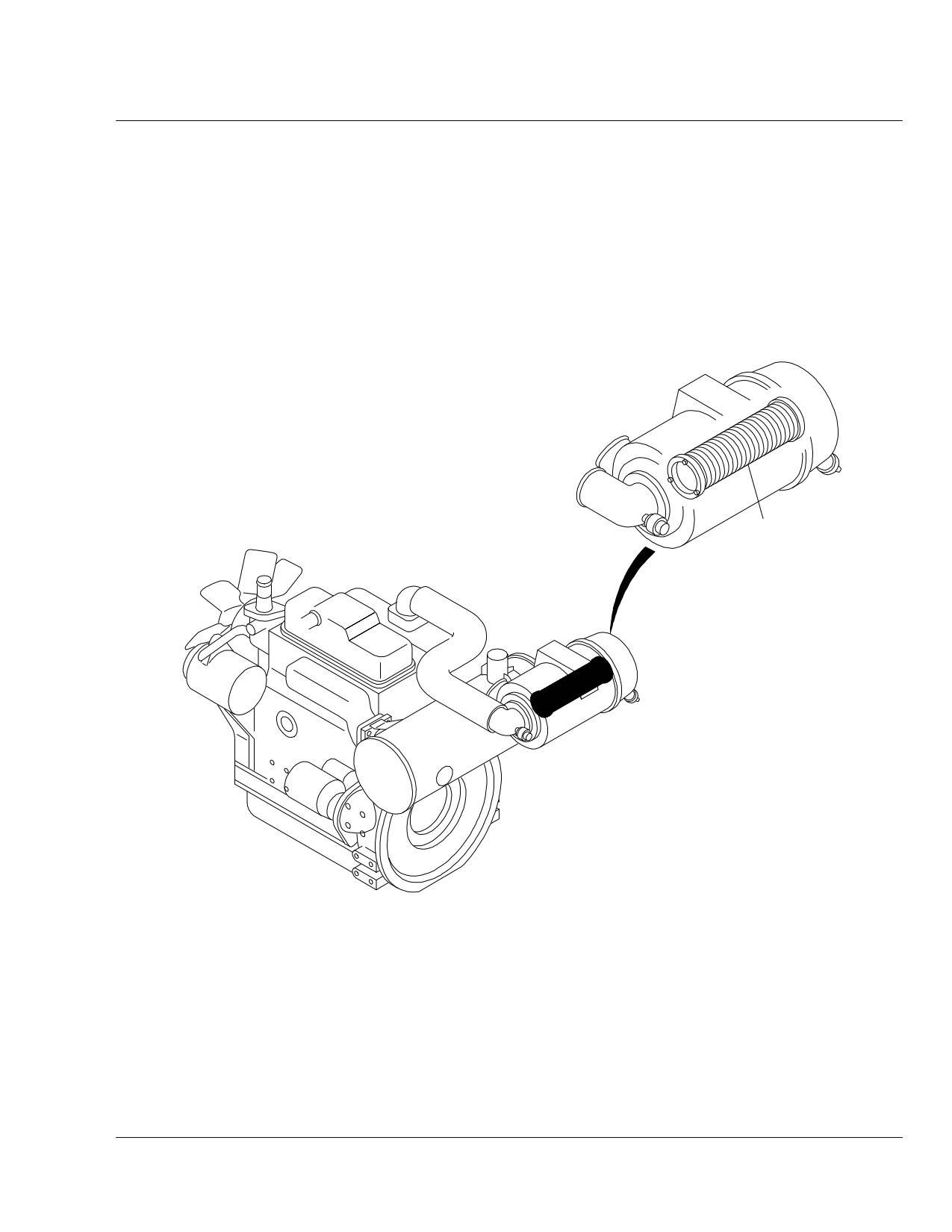

AIR CLEANER (for double element)
1
G7C250
S=1/5, 1/8
Ref. G7C250
Page
3-7
AIR CLEANER (for double element)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
CLEANER ASSY, air
1
1911102772
ELEMENT
1
G4c150
Reference:G7C250
Page:3-7
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

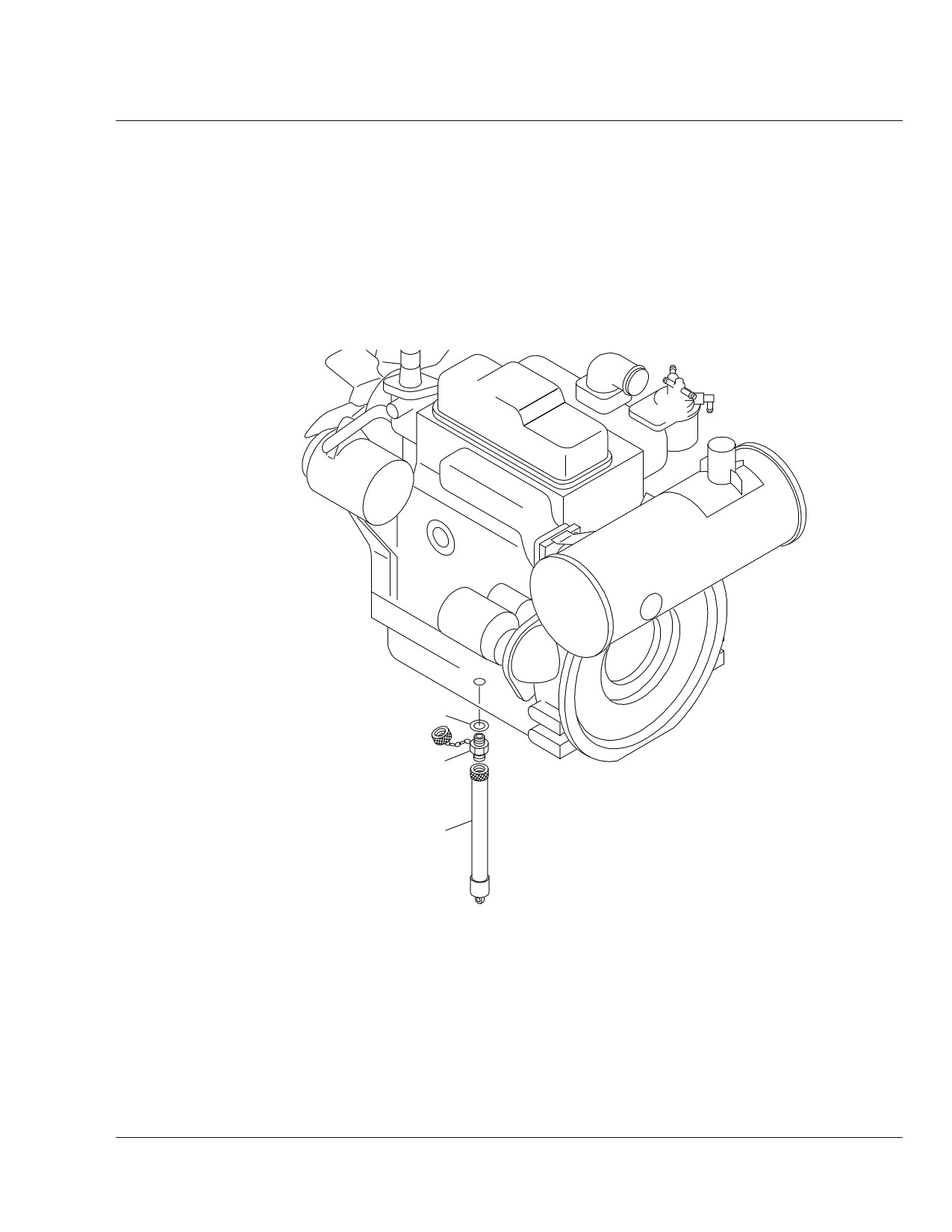

DRAIN PLUG
2
1
3
G7C040
S=1/6
Ref. G7C040
Page
3-8
DRAIN PLUG
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
PLUG ASSY, drain
1
1554502250
PLUG
1
2
1432122302
WASHER
1
3
1554512600
TUBE
1
G4c031
Reference:G7C040
Page:3-8
