OPERATION

OPERATING THE MACHINE

Traveling in 2nd (High) speed

When the dozer blade is in front of the

operator’s seat:

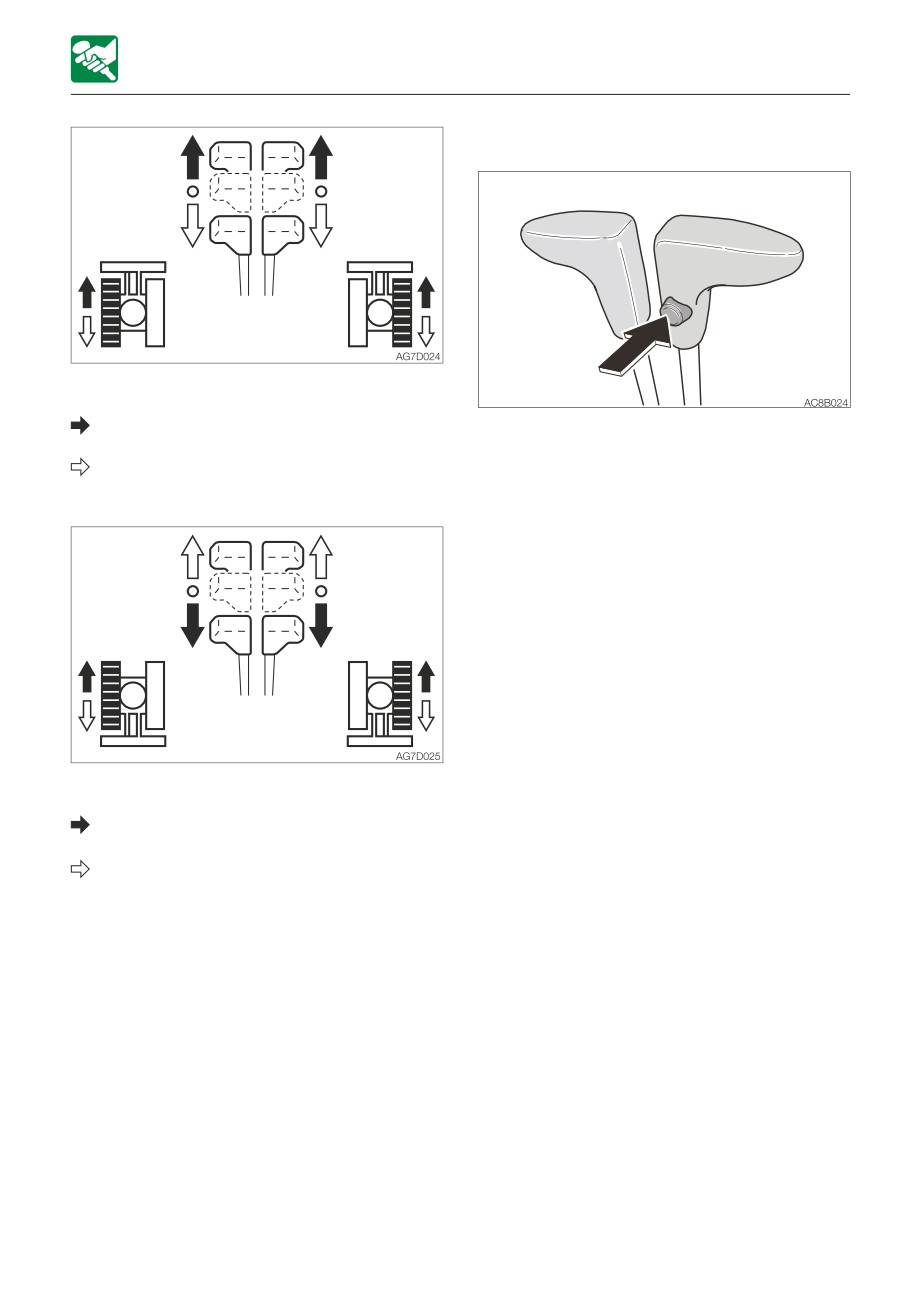

To move forward:

Press the travel speed switch on the right

Tilt the levers forward.

travel lever to switch to 2nd (high) speed,

To move backward:

and press it again to return to 1st (low)

Tilt the levers backward.

speed.

When the dozer blade is behind the

operator’s seat:

To move forward:

Tilt the levers backward.

To move backward:

Tilt the levers forward.

3-13

OPERATION

OPERATING THE MACHINE

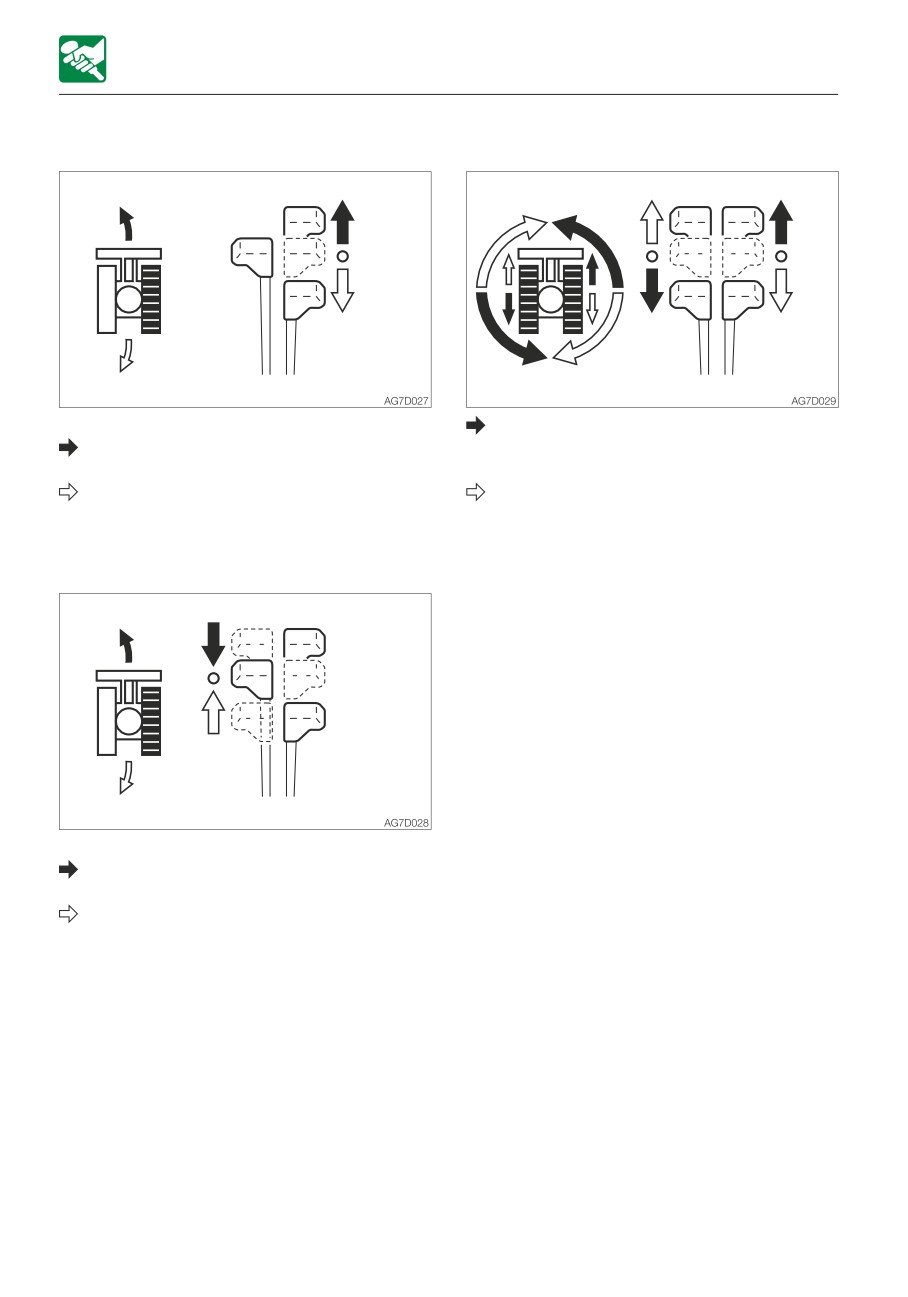

Pivot turn

Spin turn

Turning to the left when stopped:

To spin left:

To turn forward to the left:

Tilt the left lever backward and the right

Tilt the right lever forward.

lever forward.

To turn backward to the left:

To spin right:

Tilt the right lever backward.

Tilt the right lever backward and the left

To turn to the right, operate the left lever in

lever forward.

the same way as for the right lever.

Turning to the left while traveling:

To turn left while traveling forward:

Set the left lever to neutral.

To turn left while traveling backward:

Set the left lever to neutral.

To turn to the right while traveling, operate

the right lever in the same way as for the left

lever.

3-14

OPERATION

OPERATING THE MACHINE

STOPPING TRAVEL

• Park the machine on a flat, rigid and

safe ground. Set the parking brake. If

you must park on a slope, chock the

tracks to block the machine.

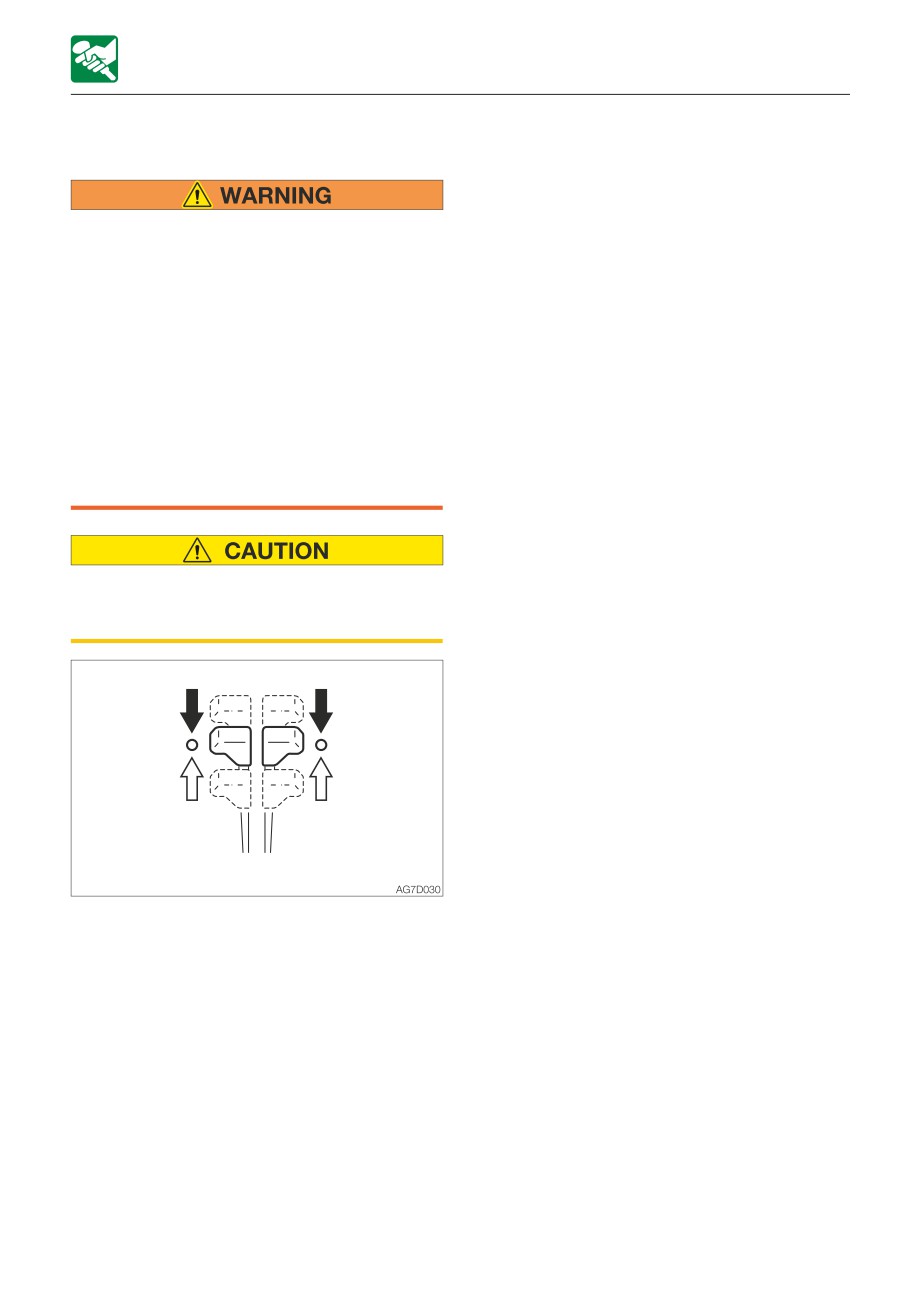

• If any control is accidentally touched

when the safety lock lever is not locked,

the machine may suddenly move and

cause serious injury or death.

• Note that the dozer blade, boom swing

and auxiliary hydraulic controls cannot

be locked, even when the safety lock

lever is set to the locked position.

Do not carelessly touch these controls.

Never stop running the machine suddenly

except in emergency. Stop in good time,

if possible.

1. Set the left and right travel levers slowly to

the neutral position. The machine stops.

3-15

OPERATION

OPERATING THE MACHINE

OPERATING THE WORKING EQUIPMENT

Slewing

• Before starting operation, carefully

Check the surrounding area for safety

check which lever pattern you are going

before slewing.

to use.

• It is described using the ISO pattern in

this manual.

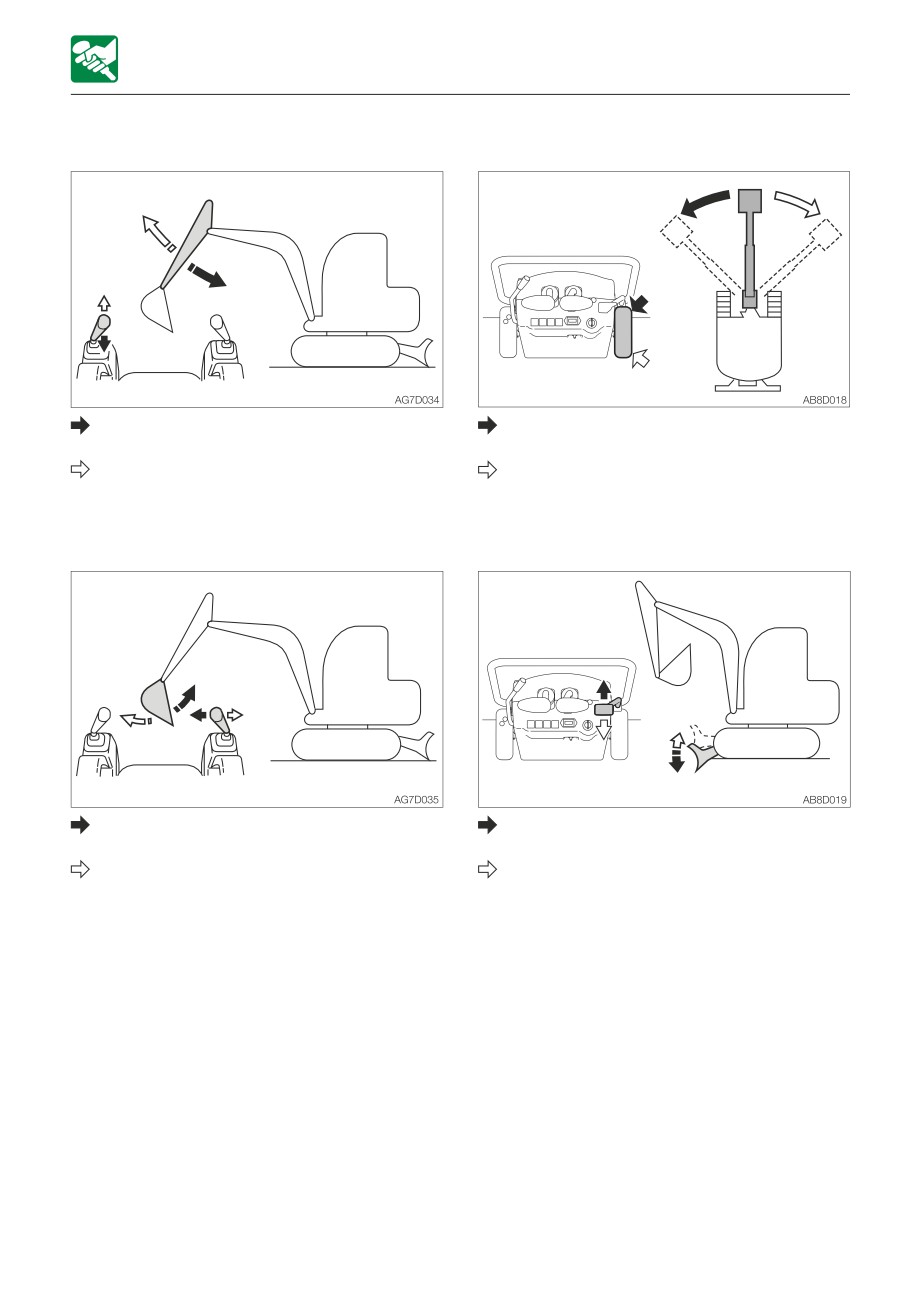

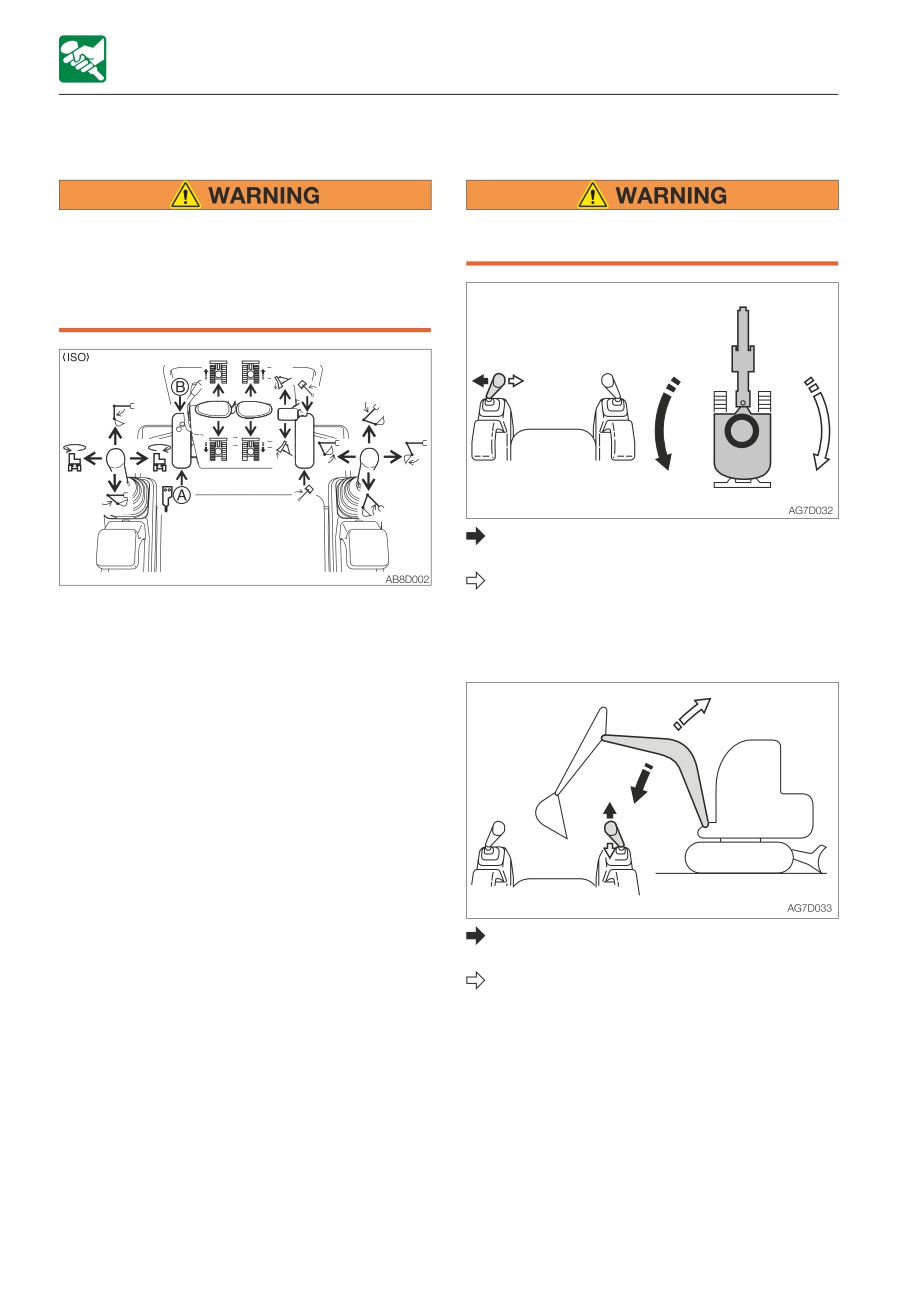

Upperstructure slew left:

Tilt the left operating lever to the left.

Upperstructure slew right:

Use the right operating lever to operate the

Tilt the left operating lever to the right.

boom and bucket.

Use the left operating lever to operate the

Operating the boom

arm and slewing.

Return the operating levers to the neutral

position to stop the hoe attachments.

1. Lower the safety lock lever to the

unlocked position.

2. Set the slew lock lever to the released

position.

3. Set the swing pedal to the level position.

Boom lower:

Tilt the right operating lever forward.

Boom raise:

Tilt the right operating lever backward.

3-16

OPERATION

OPERATING THE MACHINE

Operating the arm

Operating the boom swing

Arm in:

Boom swing left:

Tilt the left operating lever backward.

Step on the toe side of the pedal.

Arm out:

Boom swing right:

Tilt the left operating lever forward.

Step on the heel side of the pedal.

Operating the bucket

Operating the dozer blade

Bucket load:

Dozer blade lower:

Tilt the right operating lever to the left.

Tilt the lever forward.

Bucket dump:

Dozer blade raise:

Tilt the right operating lever to the right.

Tilt the lever backward.

3-17

OPERATION

OPERATING PROCEDURES

Be gentle when using the hydraulic

OPERATING PROCEDURES

cylinder

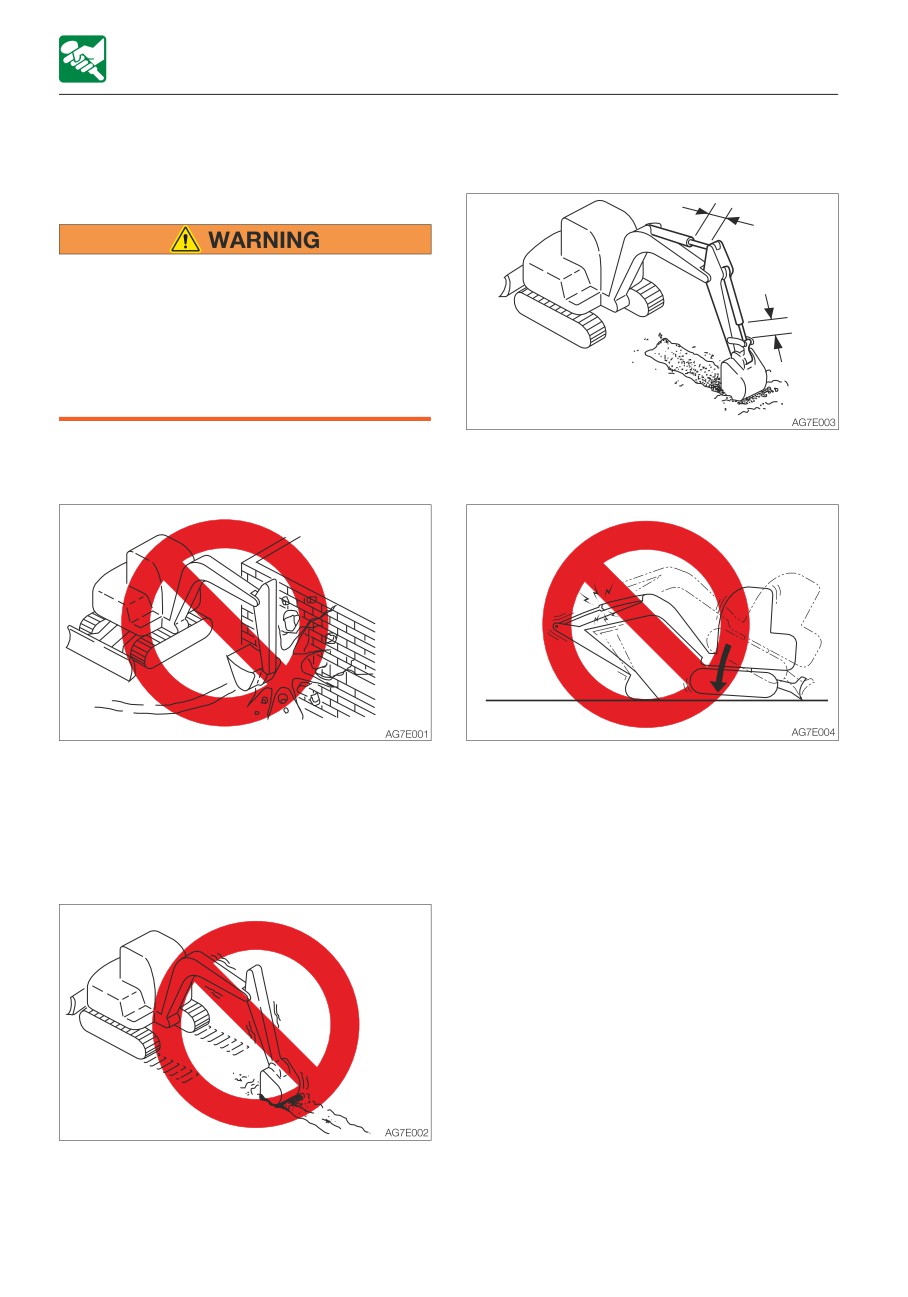

PROHIBITED OPERATIONS

• Do not operate on bedrock (hard or

soft).

• Do not slew/swing while traveling. If you

must operate the hoe attachment while

traveling, operate at speeds slow

enough so you have complete control at

all times.

Do not perform demolition or leveling

Do not extend the hydraulic cylinders to the

using slew force

stroke ends. Operate them with leeway.

Do not demolish walls or level ground using

Do not support the machine body with the

slew force. Also, do not dig the bucket teeth

hoe attachment when the body is lowering

into the ground during slewing. Doing so will

with the arm cylinder fully extended. Doing

damage the hoe attachment.

so concentrates the load on the arm cylinder

and could damage the arm cylinder.

Do not dig while traveling

Do not dig the bucket into the ground and

use the traveling force to dig.

3-18

OPERATION

OPERATING PROCEDURES

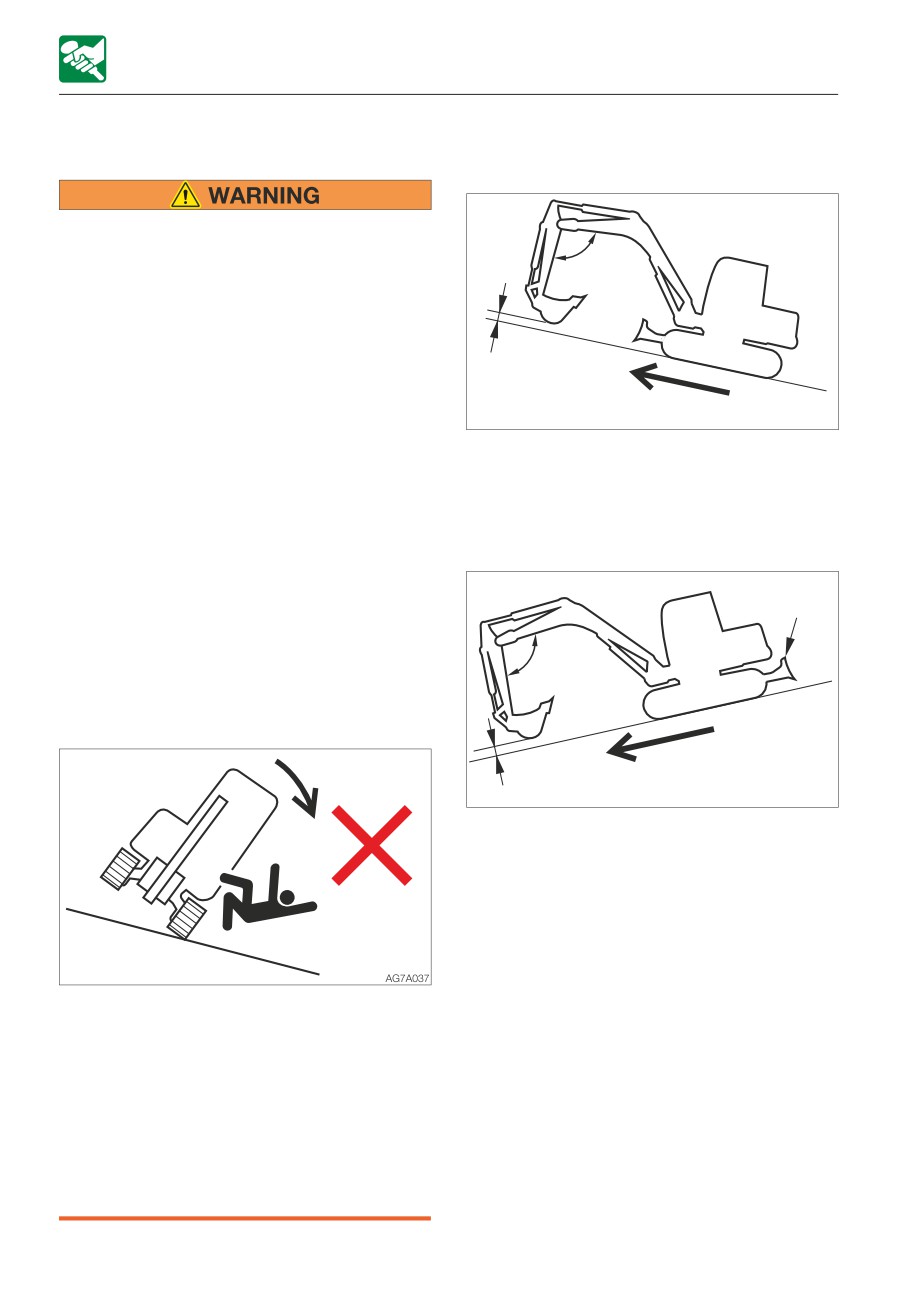

CAUTIONS ON TRAVELING ON SLOPES

Traveling posture on slopes

Climbing slopes

• Never travel on slopes that are too

steep for the machine to maintain its

stability. Note that in reality, the

90°~110°

machine’s performance decreases on

slopes due to its poor working

condition.

• When traveling on slopes, lower the

20~30cm

bucket to a height of 20 to 30 cm (8 to

(8 to 12in)

12 in.) above the ground. When climbing

(de 8 a 12 pulg.)

a steep slope, extend the hoe

AG7A036

attachment to the front. In emergencies,

When climbing slopes of 15° or more,

lower the bucket to the ground and stop

maintain the machine posture as shown in

the machine.

the figure above.

• When traveling on slopes or grades,

drive slowly in 1st (low) speed.

Descending slopes

• When climbing a hill, keep the

operator’s seat facing the hillside. When

descending a hill, keep the operator’s

Dozer blade

seat facing the downhill direction. In

either case, travel must be done while

paying attention to the ground in front

90°~110°

of the machine.

• Do not descend slopes in reverse.

Descending

20~30cm (8 to 12in)

AG7A035PE

When descending slopes of 15° or more,

slow down the engine speed and maintain

the machine posture as shown in the figure

above.

• Do not change directions on slopes or

traverse slopes. First return to a flat

surface, and then take an alternative

path.

• The machine may slip sideways even on

a slight slope if they are covered with

grass or dead leaves, or when traveling

on a wet metal plate or frozen surfaces.

Do not allow the machine to position

sideways to slopes.

3-22

OPERATION

OPERATING PROCEDURES

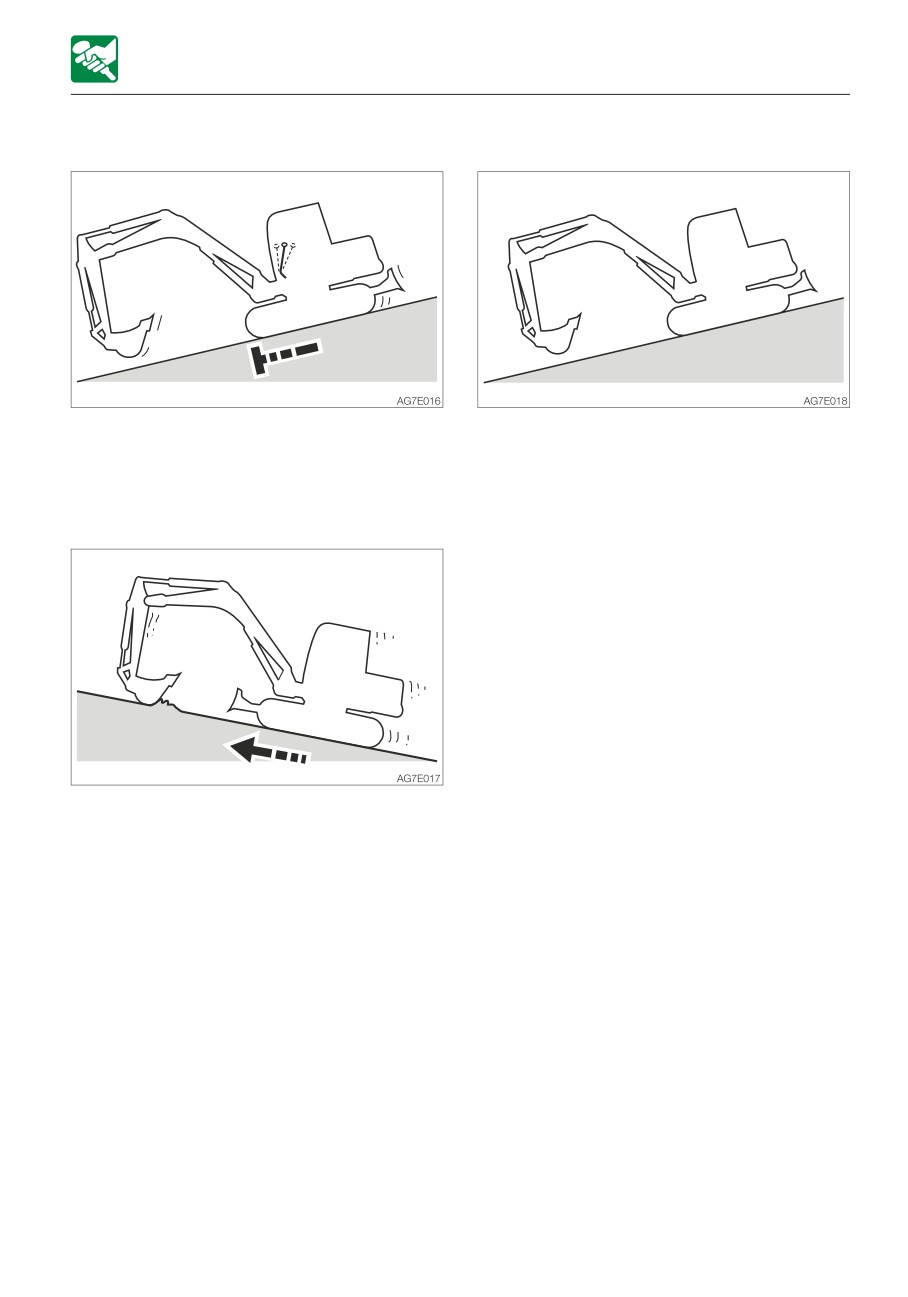

Braking when descending slopes

If the engine stops

When descending slopes, the brakes are

If the engine stops when descending a

applied automatically once the travel levers

slope, set the travel levers to the neutral

are returned to the neutral position.

position, stop the machine, then start the

engine.

If the crawler slips

If the crawler slips while climbing a slope and

impossible to travel, use the pulling force of

the arm to climb the slope.

3-23

OPERATION

OPERATING PROCEDURES

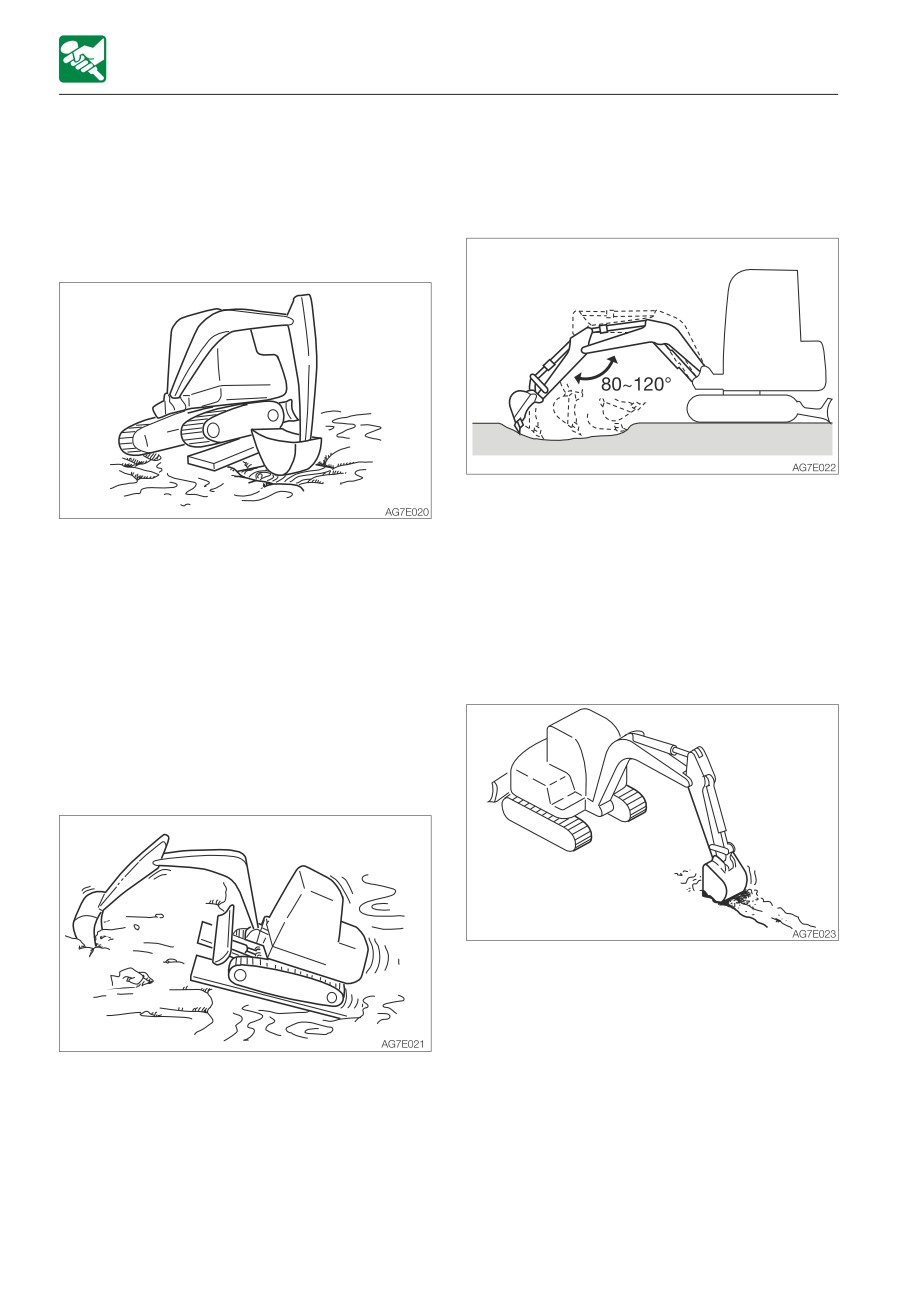

GETTING OUT OF MUD

OPERATIONS POSSIBLE WITH THIS

MACHINE

If the machine gets stuck in mud, use the

procedure below to get it out.

Excavating

If one crawler is stuck

1. Set the dozer blade on the side opposite

to the side you want to dig on.

1. Swing the bucket to the side of the

2. Use the arm and bucket and dig with

crawler being stuck.

shallow, long strokes. The maximum

2. Set the arm and boom to an angle of 90

digging force can be obtained when the

to 110°.

boom and arm angle is 80 to 120°. Use

3. Press the bottom of the bucket (not the

this angle for effective digging.

teeth) against the ground.

4. Place a plank or the like under the lifted

Digging ditches

crawler.

5. Lift the bucket and slowly move the

machine out of the mud.

If both crawlers are stuck

Install a bucket suited for digging ditches

and set the crawlers parallel to the ditch to

be dug for greater efficiency.

When digging wide ditches, dig the sides

first, and then dig the center.

1. Perform the steps 1 to 4 above for both

crawlers.

2. Dig the bucket into the ground in front of

the machine.

3. Pull with the arm while traveling forward to

slowly move the machine out.

3-24

OPERATION

OPERATING PROCEDURES

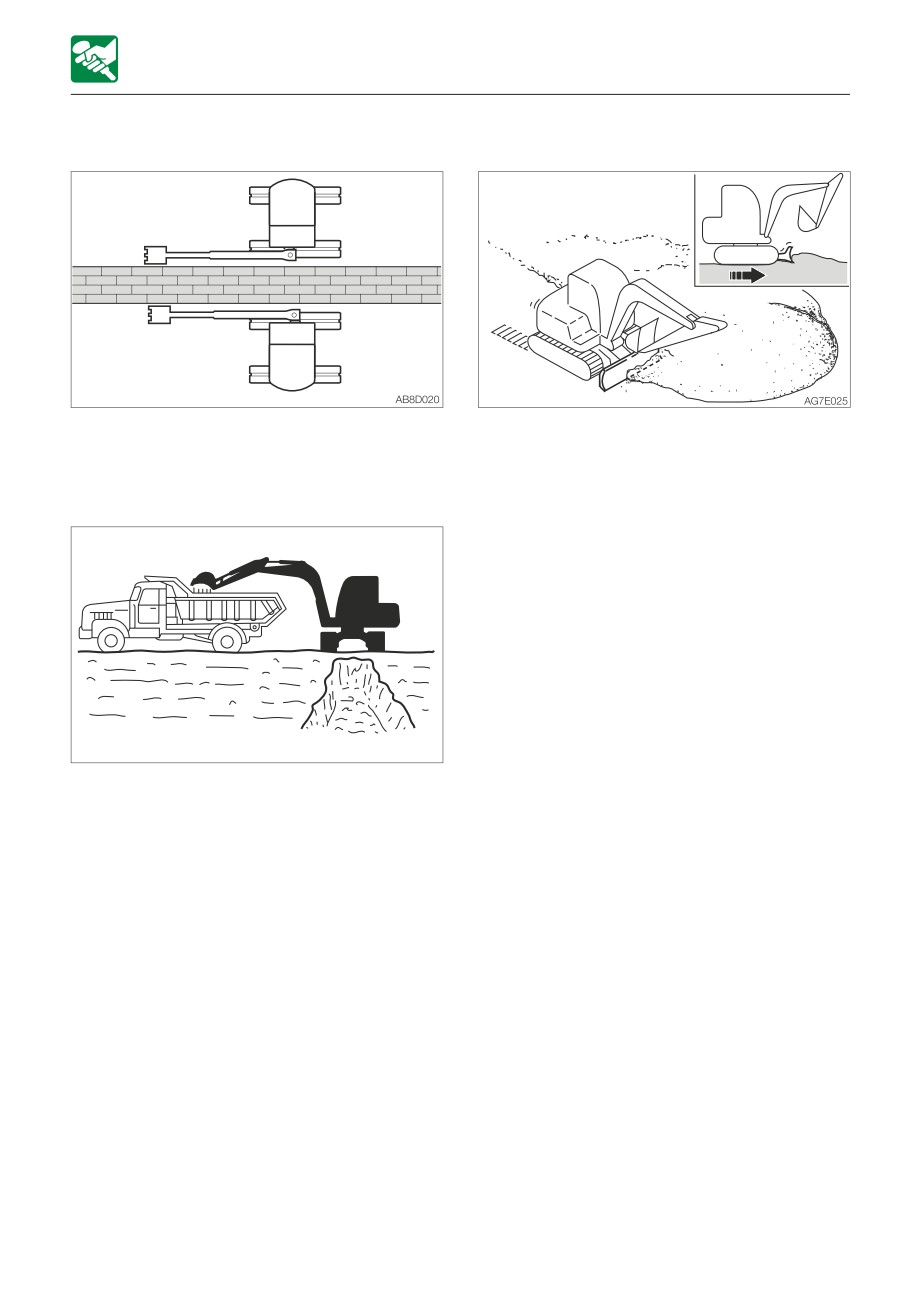

Digging side drains

Leveling

Use the boom swing function to dig side

1. Bring the hoe attachment close to the

ditches as shown in the figure.

body.

2. Gradually remove the dirt from the side of

Loading

the mound.

3. Once the mound is low, remove the dirt

from the top. If the load becomes too

heavy for the machine body, adjust by

raising or lowering the dozer blade.

AG7A040

When loading dirt onto a truck bed, load

from the back of the truck, as it is easier and

able to load more load than doing it from the

front.

Also, use a small slewing angle for greater

efficiency.

3-25

OPERATION

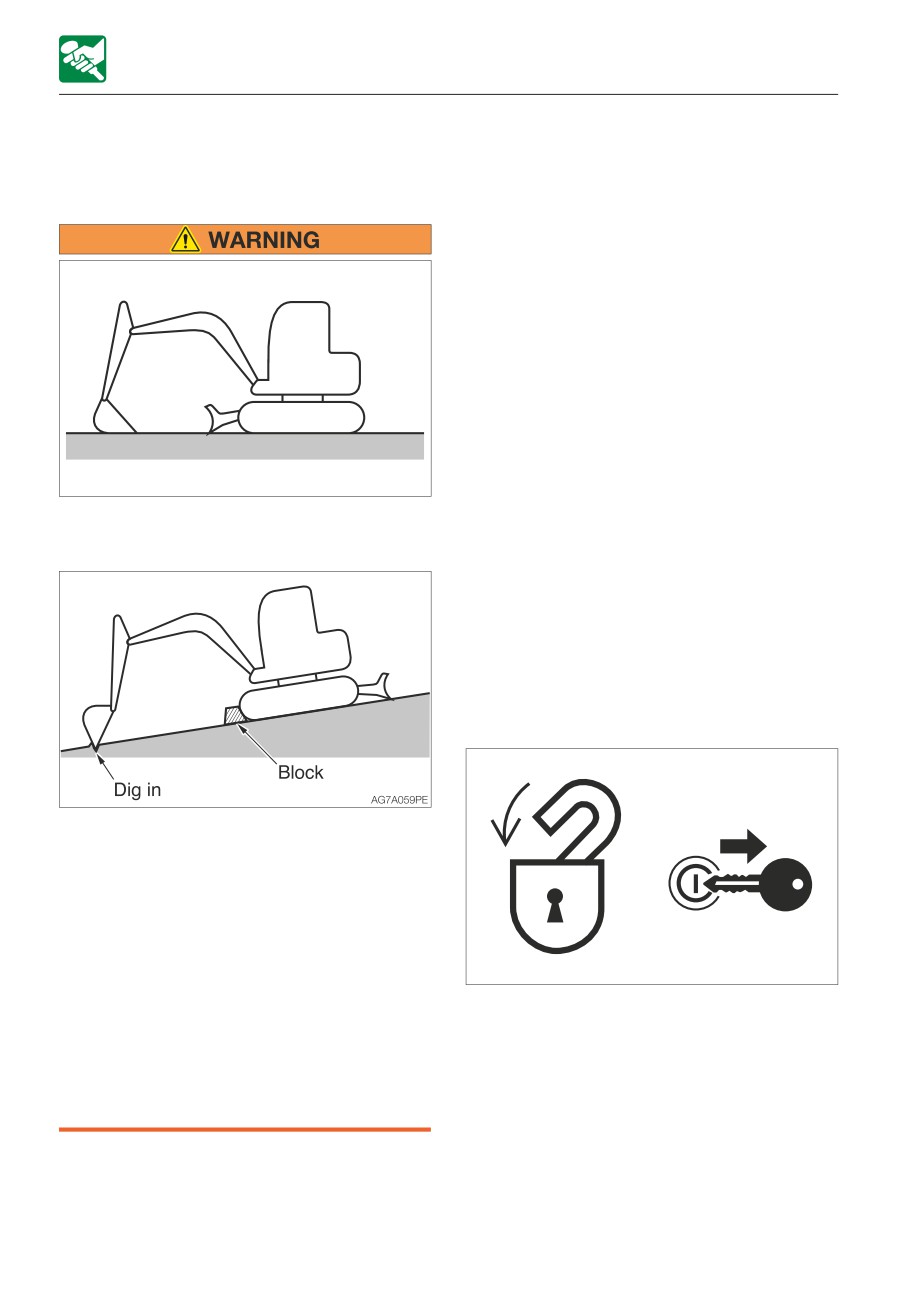

PARKING THE MACHINE

3. Set the slew lock lever to the locked

PARKING THE MACHINE

position.

PARKING

4. Lower the bucket and the dozer blade to

the ground.

5. Raise the safety lock lever to the locked

position.

6. Stop the engine and remove the key.

Refer to “Stopping the engine” on page

3-5.

INSPECTION AND CHECKS AFTER

STOPPING THE ENGINE

1. Check for oil or water leak and inspect the

working equipment, covers and

AG7A058

undercarriage. If any irregularities are

• Park the machine on a flat, rigid and

found, repair.

safe ground. Set the parking brake.

2. Fill up the fuel tank.

Refer to “Inspecting the fuel level” on page

5-18.

3. Remove any paper scraps or dirt from the

engine room.

4. Remove any mud from the undercarriage.

Locking

Be sure to lock the following places:

If you must park on a slope or incline,

park the machine securely and block

the movement of the machine.

• When parking on a street, use barriers,

caution signs, lights, etc., so that the

machine can easily be seen even at

night to avoid collision with other

AG7A009

vehicles.

• Before leaving the operator’s seat, raise

• Fuel lid

the safety lock lever to engage the lock

• Manual storage compartment

and stop the engine. Also, be sure to

• Engine hood

remove the key, lock the door and

• Maintenance cover

covers, take it with you and store it in a

specified place.

1. Set the left and right travel levers to the

neutral position.

2. Return the throttle lever to idle the engine

at low speed.

3-26

OPERATION

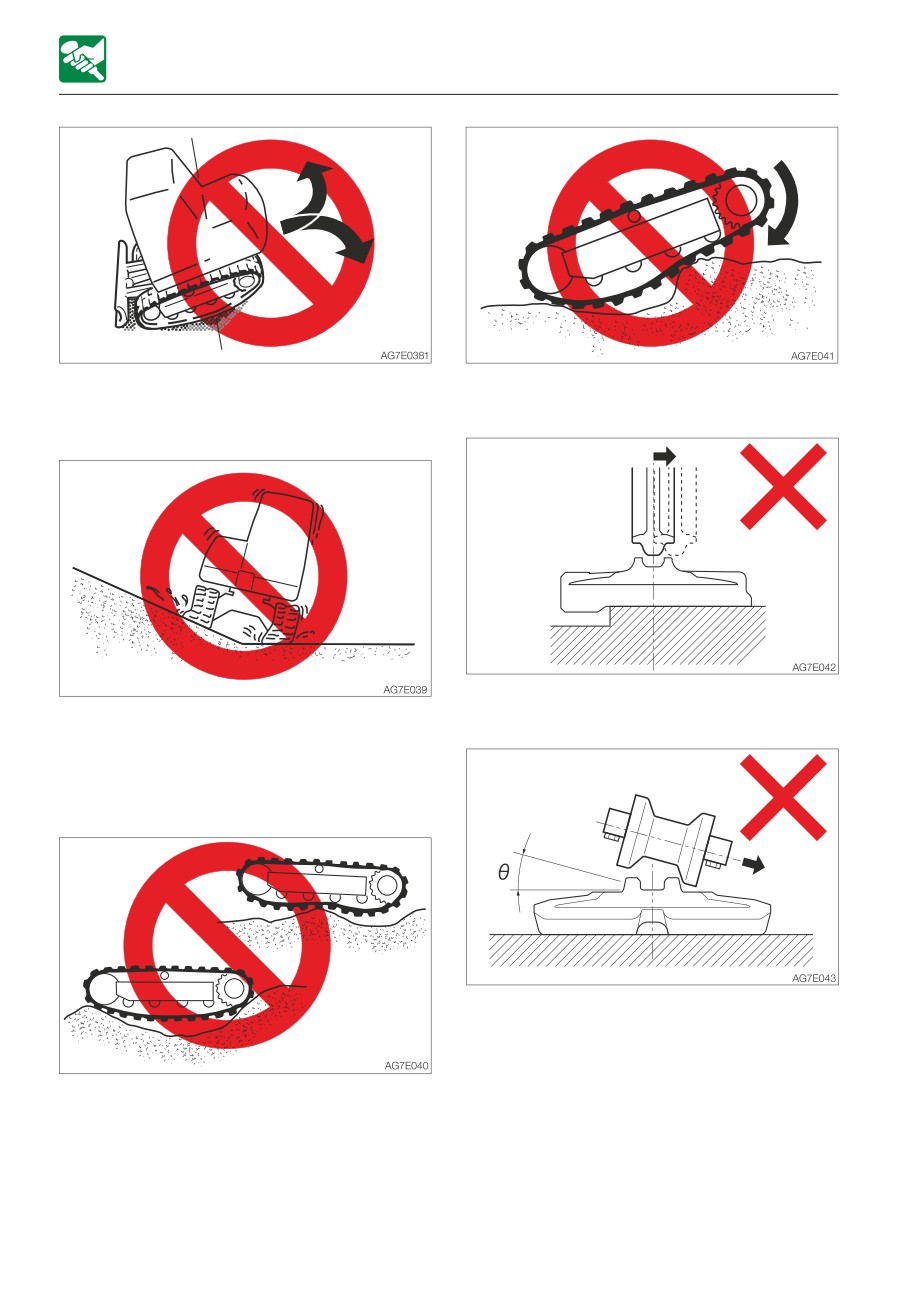

HANDLING RUBBER CRAWLERS

• When climbing in reverse, do not change

• Do not change directions when the crawler

directions at the point where the slope

belts are slack as shown in the figure.

starts.

• The rubber crawler belts will come off if the

• Avoid traveling by setting one crawler on a

machine travels backward in this condition.

slope or projecting portion and the other

crawler on a flat surface (with the machine

at a tilt of 10° or more). Travel with both

crawlers set on flat surfaces.

• The rubber crawler belts will come off if the

machine turns in this condition.

3-30

TRANSPORT

LOADING AND UNLOADING

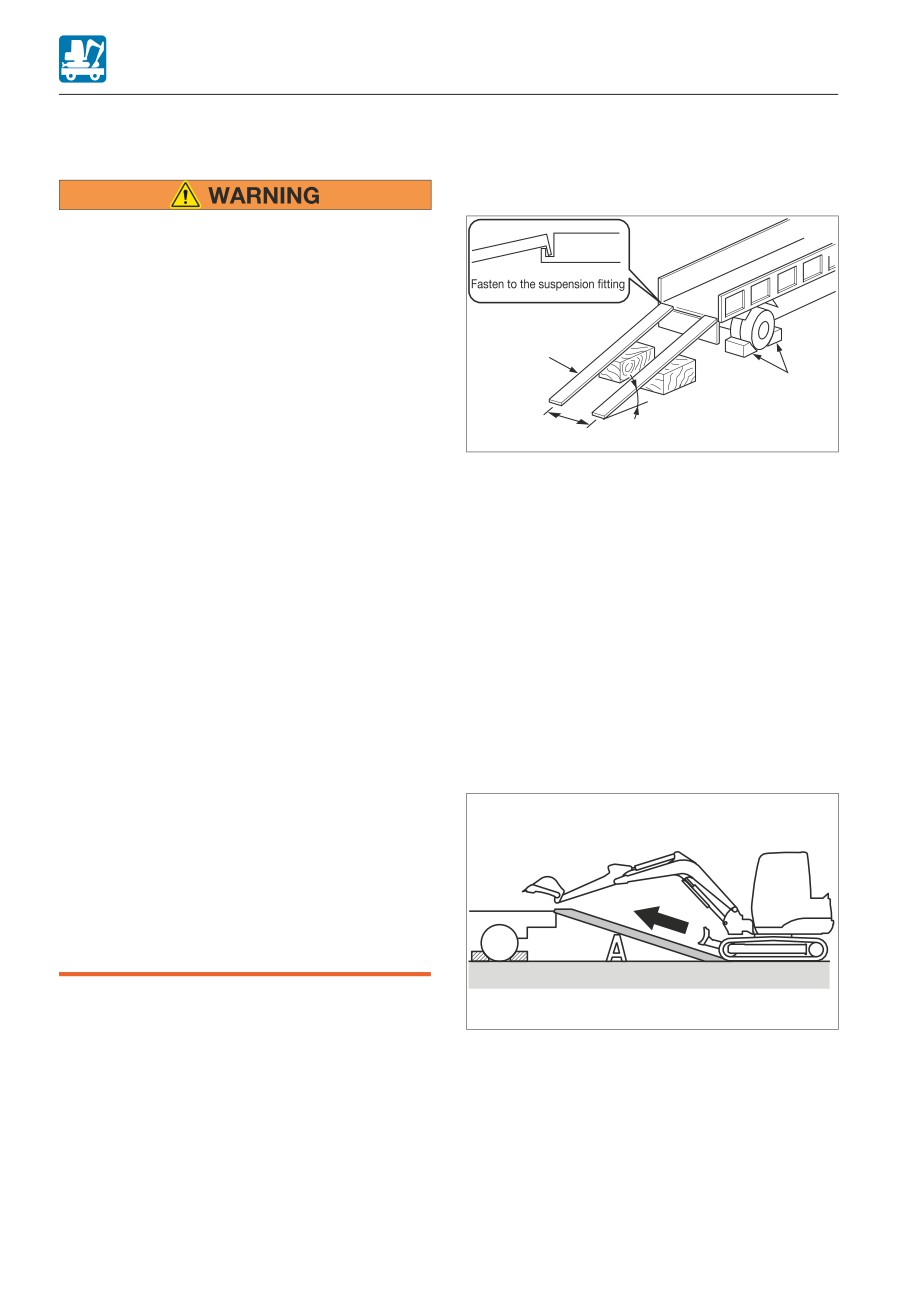

When loading or unloading the machine, be

LOADING AND UNLOADING

sure to use ramps or a platform and follow

the procedure below.

The machine may roll or tip over or fall

while being loaded or unloaded. Take the

following precautions:

• Select a firm, level surface and keep

sufficient distance from road shoulders.

• Secure the ramps of adequate strength

Ramp

and size to the truck bed. The slope of

the ramps must not exceed 15°. If the

Stopper

rumps are bowed down too low,

support them with poles or blocks.

15º or less

Distance between ramps

• Never use the working equipment to

AG7F001PE

load or unload the machine. Doing so

1. Set the parking brake on the transporter

may result in tipping over or falling

and chock the wheels.

down of the machine.

2. Fix the ramps securely to the truck bed.

• Keep the truck bed and loading ramps

The slope of the ramps must not exceed

clean of oil, soil, ice, snow, and other

15°.

materials to prevent the machine from

3. Align the center of the truck bed with the

sliding sideways. Clean the crawlers.

center of the machine, and of the ramp

• Chock the transporter wheels to prevent

with the center of the crawler.

movement.

4. Make sure the dozer blade does not hit

• When being loaded or unloaded, travel

the ramps.

slowly in 1st (low) gear by following the

5. Lower the hoe attachment as far as

signal from the signal person.

possible without letting it touch the

• Never change courses on the ramp.

transporter.

• Do not slew/swing on the ramp. The

6. Decrease the engine speed.

machine may tip over.

• When slewing/swinging on the truck

bed, do it slowly as the footing should

be unstable.

• Lock the slewing operation after

loading.

• Chock the tracks and secure the

machine to the truck bed with wire rope

or chain.

AG7F002

4-2

TRANSPORT

LOADING AND UNLOADING

AG7F003

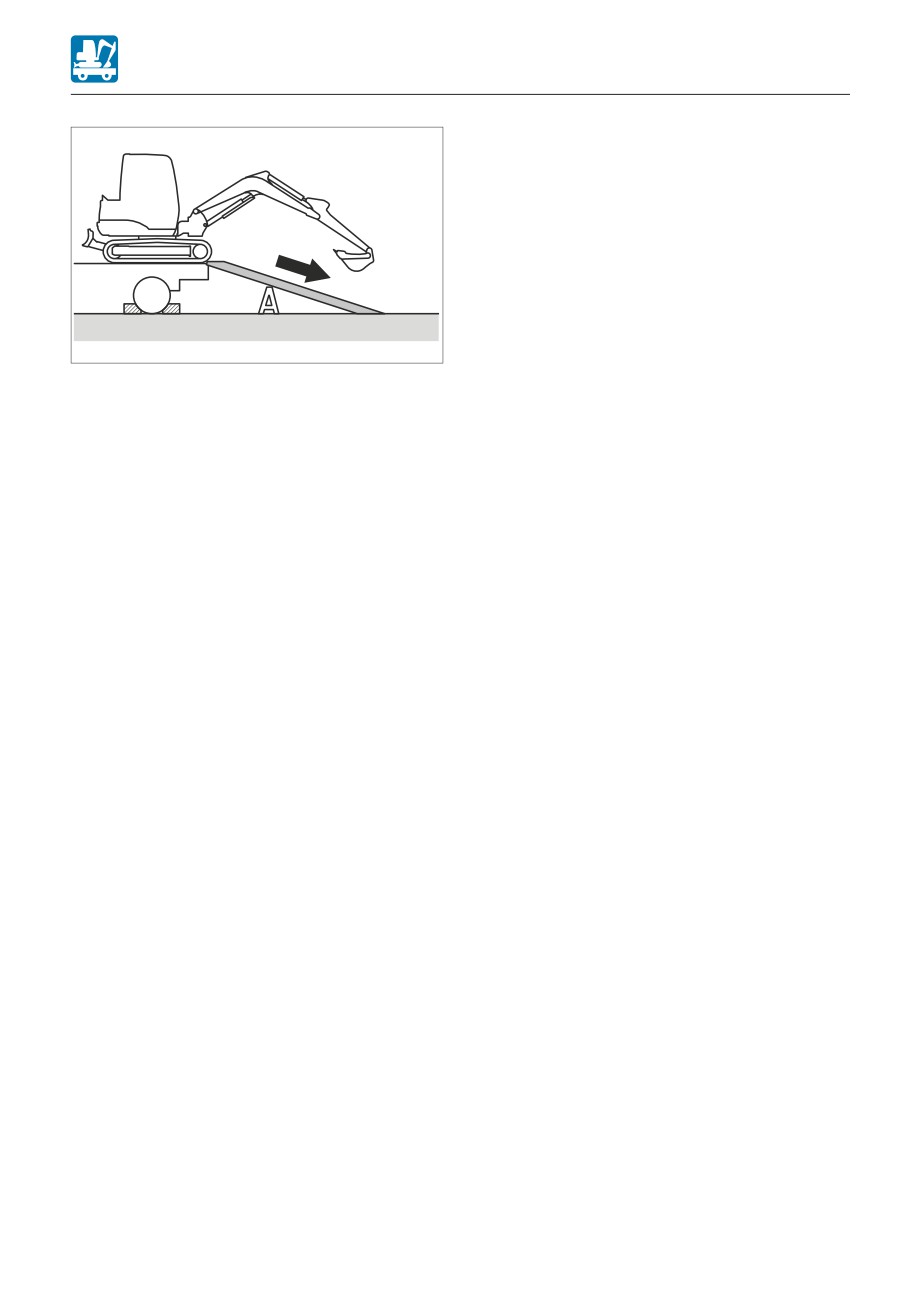

7. Drive the machine straight toward the

ramps and travel up or down the ramps at

1st (low) speed, by following the signal

from the signal person.

8. Load the machine at the specified position

on the transporter.

Refer to “Transporting posture” on page

4-5.

4-3

TRANSPORT

HOISTING THE MACHINE

Hoisting

HOISTING THE MACHINE

1. Slew the upperstructure so that the dozer

blade is at the rear of the machine (set the

upperstructure parallel to the track frame).

• Know and use the correct crane signals.

2. Lock the slewing operation.

• Check the hoisting equipment for

3. Raise the dozer blade fully.

damaged or missing parts on a daily

4. Extend the bucket cylinder and arm

basis and replace as necessary.

cylinder fully to raise the boom to its

• When hoisting, use a wire rope capable

uppermost position.

of lifting the machine mass.

5. If the boom is swung to either the left or

• Hoist the machine in only as manner

right side, set it in the neutral position.

described in the procedure below. Do

6. Raise the safety lock lever to the locked

not do it in any other manner. Doing so

position.

is dangerous as it may result in the

7. Stop the engine, remove the starter key

machine losing its balance.

and get off the machine.

• Do not hoist the machine with an

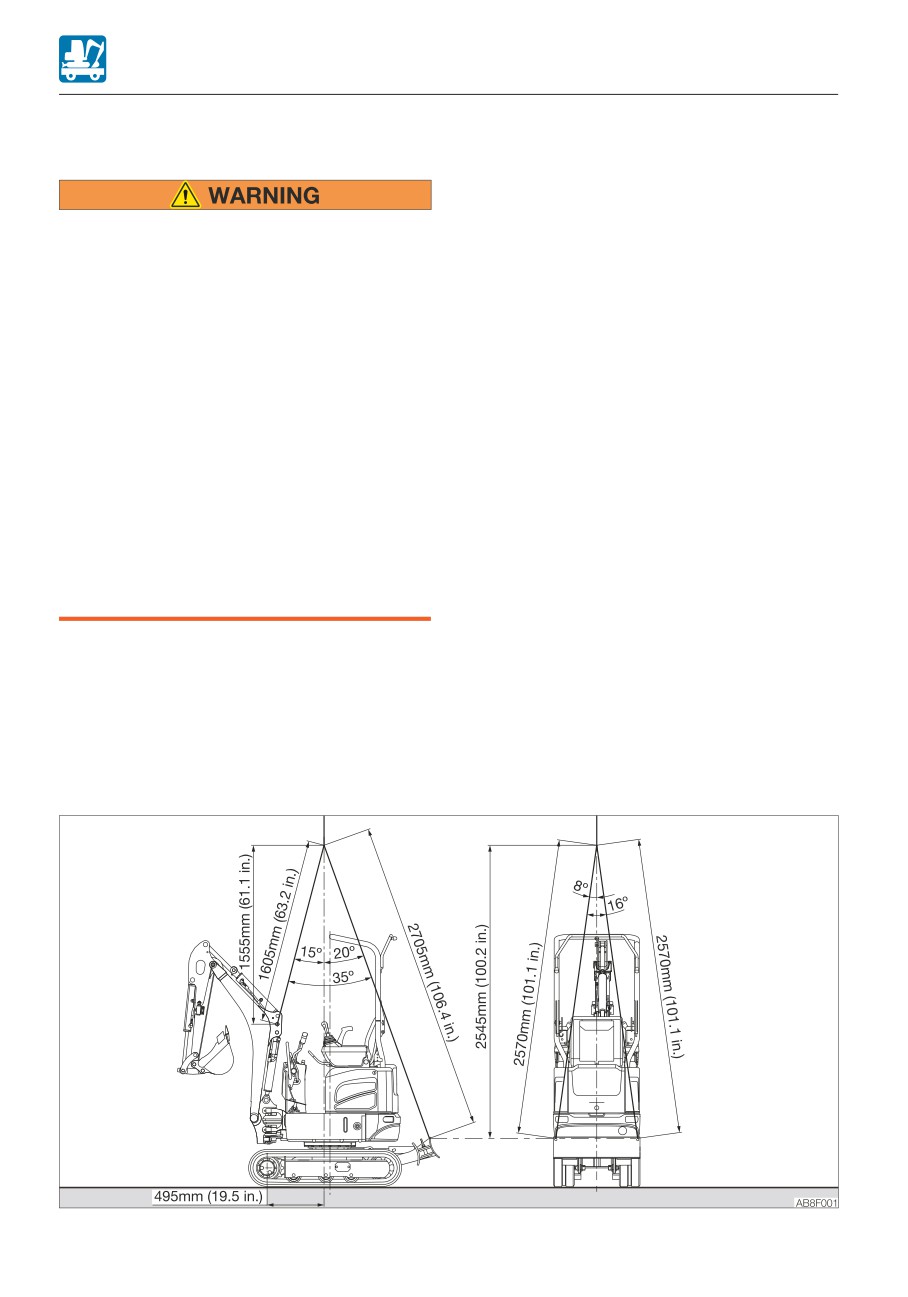

8. Install the wire ropes as shown on the

operator on it.

figure below.

• When hoisting, hoist slowly so that the

9. Hoist the machine slowly until it leaves the

machine does not tip.

ground.

• Keep everyone out of the area when

10. Stop hoisting until the machine becomes

hoisting. Do not move the machine over

stable, and then start hoisting the

the heads of the persons.

machine slowly again.

IMPORTANT: This hoisting method

applies to machines with standard

specifications. The center of gravity

differs according to the attachments and

optional equipment installed.

Contact your Takeuchi service agent for

details.

4-4

TRANSPORT

SECURING THE MACHINE

SECURING THE MACHINE

After loading the machine at the specified position, secure it as described below.

Transporting posture

1. Lower the dozer blade.

Precautions to be taken during

2. Lock the slewing operation.

transportation

3. Extend the bucket cylinder and arm

cylinder fully, and then lower the boom.

4. Raise the safety lock lever to the locked

• Know and follow the applicable safety

position.

rules, vehicle code and traffic laws

5. Stop the engine, remove the starter key

when transporting the machine.

and lock all locks.

• Select the best transport route by

6. Place the stoppers (chocks) in front and

considering the length, width, height

behind the crawlers.

and weight of the truck with the

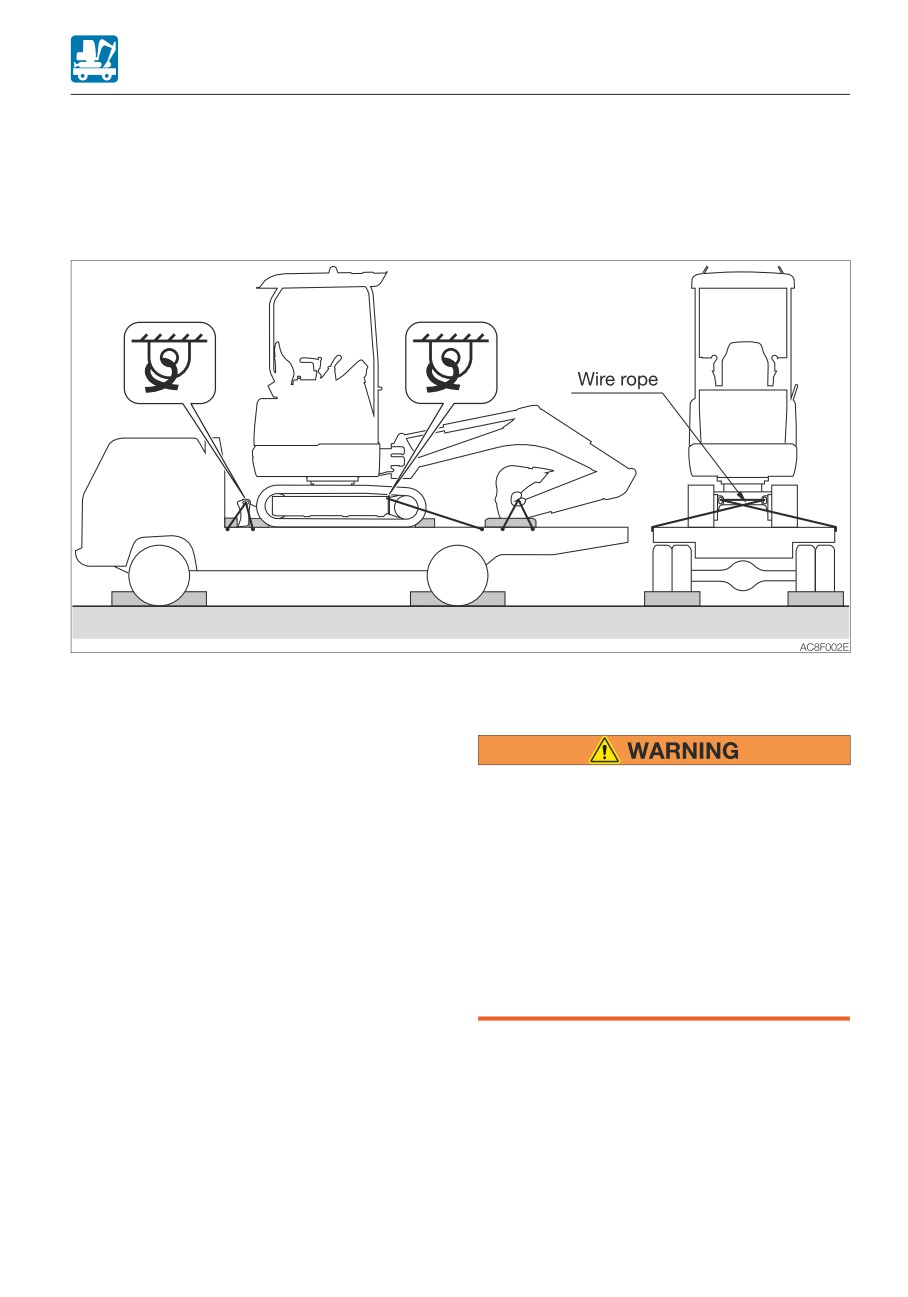

7. Install a chain or wire rope over the lower

machine loaded on it.

frame of the machine and fasten it

• Never abruptly start or stop or run at a

securely to prevent the machine from

high speed at the sharp curves during

slipping sideways.

transport. Doing so will move or lose the

8. Secure the bucket with a chain or wire

balance of the loaded machine.

rope.

IMPORTANT: Place a wooden block under

the bucket to protect the floor from

damage caused by the bucket.

4-5

MAINTENANCE

GENERAL

Clean the installation surfaces

Cautions on handling of battery wiring

When installing and removing parts, be sure

• Disconnect the wiring from the both

that the surfaces of contact of the parts are

terminals (+ and -) on the battery before

clean. If the sealing grooves of the surface of

working on the electrical system or doing

contact are damaged, consult your sales or

electric welding.

service dealer for repair or release.

Always disconnect it from the earth side

(-). When connecting, connect the earth

Seals and split pins

side last.

• Be sure to replace all seals and cotter pins

• Do not disconnect the battery wiring while

with new ones.

the engine is moving. Otherwise, the

• When installing, be careful not to damage

electric circuits of the rotary converter or

or twist the seal.

others may be damaged.

Sealing tape

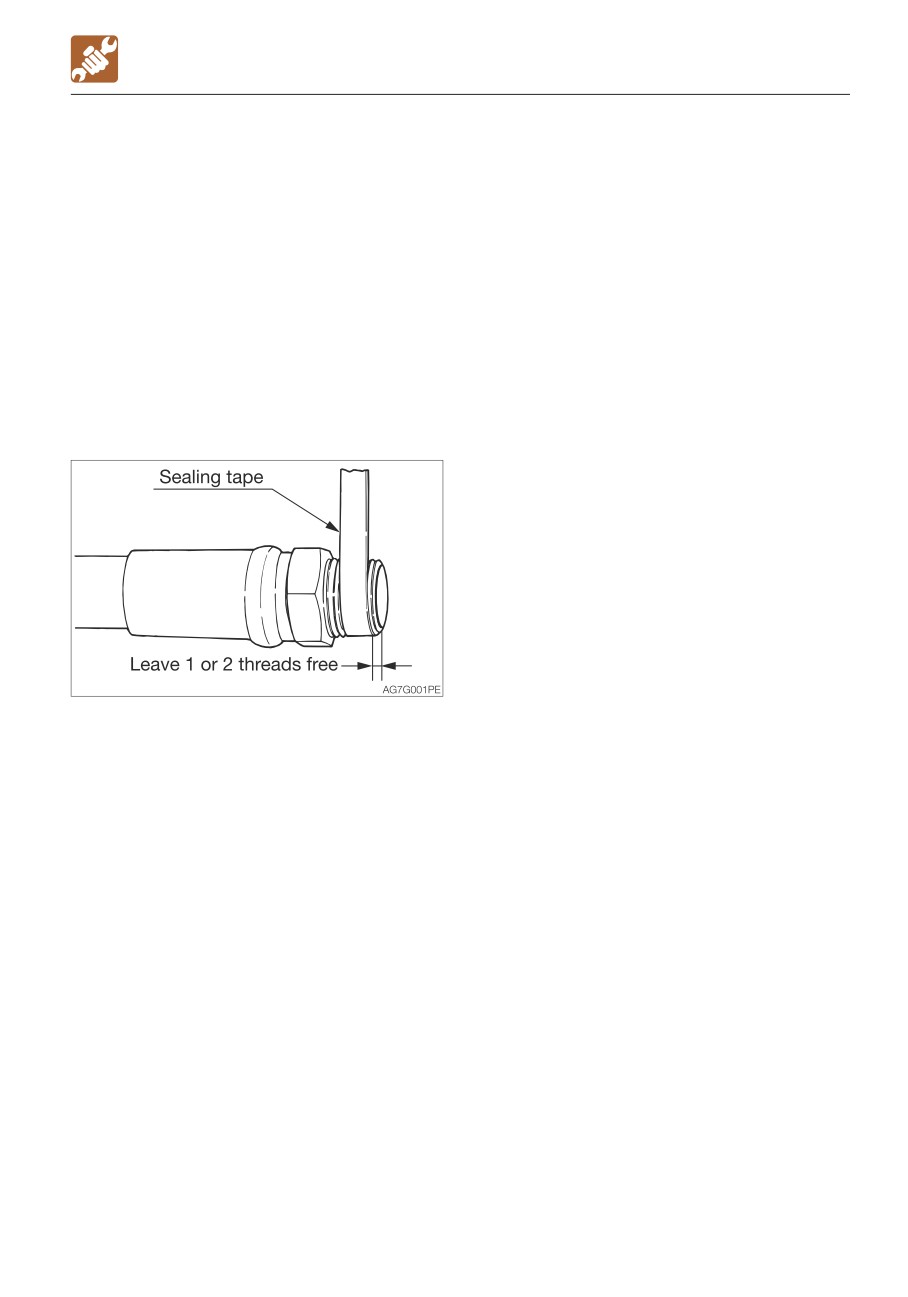

• When wrapping the plug with sealing tape,

remove any old sealing tape from the

threads and clean the threads.

• Wrap the thread tight with seal tape

starting 1 or 2 threads away from the

thread end.

Disposing of wastes

• Always collect oil that is drained from the

machine in containers. Improperly

disposed waste oil can cause

environmental harm.

• Follow appropriate laws and regulations

when disposing of harmful objects such as

oil, fuel, cooling water, coolant, filters and

batteries.

Check after maintenance

• Gradually increase the engine speed from a

low idle to maximum speed and check that

there is no oil or water leaking from

serviced parts.

• Operate each control lever and check that

the machine is operating properly.

5-3

MAINTENANCE

SERVICE DATA

SERVICE DATA

FUEL AND LUBRICANT TABLE

Select the appropriate fuel, lubricant and grease according to the temperature by referring to

the table below.

• Regardless of the specified time, change the oil if it becomes too dirty or degraded.

• When refilling, never mix oils of different brands. If a brand is to be changed, replace the

whole fuel/oil.

Fuel

Diesel fuel specifications

Diesel fuel should comply with the following specifications. The table lists several worldwide

specifications for diesel fuels.

Diesel fuel specification

Area

Diesel fuel specification

Area

ASTM D975

USA

No.1D S15

EN590: 2009

European union

Canada

No.2D S15

ISO 8217DMX

International

BS2869-A1 or A2

United kingdom

To maintain the performance and service life of the engine,

always use clean and high-quality fuel.

• To avoid freezing in cold climates, use a diesel fuel that still

functions when the temperature is at least 12°C (21.6°F) below

the lowest expected ambient temperature.

• Use a diesel fuel that has a cetane number of 45 or higher.

When operating at a very low temperature or at a high altitude,

a higher cetane number fuel will be required.

• Use fuel with sulfur content of less than 0.1% by volume.

Fuel tank

Diesel fuel

Especially in the U.S.A. and Canada, ultra-low sulfur fuel

should be used.

A higher sulfur content fuel may cause sulfuric acid corrosion

in the cylinders of the engines.

• Never mix kerosene, used engine oil, or residual fuel with the

diesel fuel. Use of kerosene is prohibited.

• Poor quality fuel can reduce engine performance and / or

cause engine damage.

• Fuel additives are not recommended. Some fuel additives may

cause poor engine performance.

5-4

MAINTENANCE

SERVICE DATA

Lubricant

Type by air temperature

When to

Location

Type

-4

14

32

50

68

86 104°F

replace

-20 -10

0

10

20

30 40°C

Diesel engine oil

Every 250 hrs.

SAE 10W-30

Engine oil pan

API: CF, CF-4, CG-4,

after the initial

SAE 15W-40

CH-4 or CI-4 class

50 hrs.

ISO VG32

Hydraulic oil

Anti-wear hydraulic oil

ISO VG46

Every 2000 hrs.

tank

ISO VG68

Cooling water (water +

Engine cooling

Mixture of 50% coolant

coolant)**

Every 1000 hrs.

system

Mixture of 30% coolant

SAE: J814C or J1034

Every 1000 hrs

Travel reduction

Gear oil

SAE 90

after the initial

gear

API: GL-4

250 hrs*.

Slew motor

Every 50 hrs.

pinion

Lithium based grease

Slew bearing

Every 50 hrs.

EP-2

—

Working

Daily or every

NLGI No.2

equipment

10 hrs.

Levers

When required

* : If the ratio of traveling time to total operating time is high, replace the gear oil earlier than

the specified time.

** : For water, use tap water (soft). Do not use well or river water. When the ambient

temperature drops below 0°C (32°F), add coolant (antifreeze). Follow the coolant

manufacturer’s instructions to determine the mixture ratio.

API standard: American Petroleum Institute

ACEA standard: Association des Constructeurs Européens d’Automobiles

SAE standard: Society of Automotive Engineers

5-5

MAINTENANCE

SERVICE DATA

Volume

Engine cooling

Hydraulic oil

Travel reduction

Engine oil pan

Fuel tank

system

tank

gear

Upper limit

4.0 L (4.2 US qt.)

System

Level capacity

0.33 L X 2

2.8 L (3.0 US qt.)

15 L (4.0 US gal.)

12 L (3.3 US gal.)

(0.35 US qt.) X 2

Lower limit

Tank

1.8 L (1.9 US qt.)

9 L (2.3 US gal.)

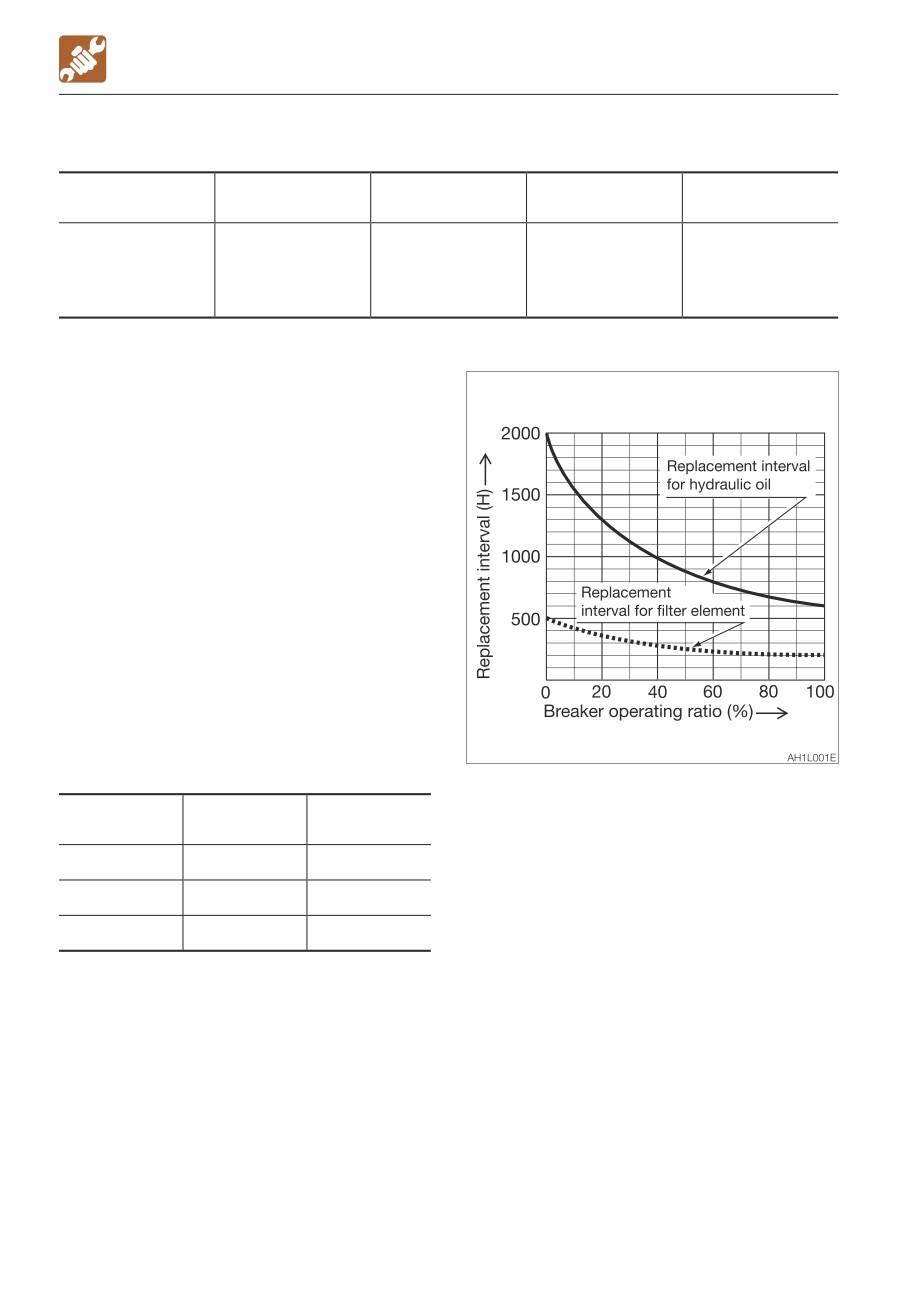

REGULARLY REPLACE THE HYDRAULIC

OIL

When a hydraulic breaker is used, the oil

deteriorates more quickly than that used for

a usual excavation operation. Be sure to

replace the hydraulic oil and the return filter

elements.

• Failure to replace these in time can lead to

damage to the machine and the breaker

hydraulic system. To prolong the service life

of the hydraulic devices, properly replace

the hydraulic oil and the return filter

elements according to the table below.

• When replacing the hydraulic oil, clean the

suction strainer.

Replacement interval (hours)

Filter

Item

Hydraulic oil

element

1st time

—

25

2nd time

—

100

Periodically

600

200

When the breaker operating ratio is 100%.

Refer to “Hydraulic breaker” on page 8-6.

5-6

MAINTENANCE

SERVICE DATA

LIST OF CONSUMABLES

Periodically replace consumables such as filters and elements according to the table below.

System

Item

Part name

Part No.

When to replace

Hydraulic oil

Every 500 hrs after

Cartridge

15510-20310

return filter

the initial 50 hrs.

Hydraulic system

Air breather (if equipped)

Applicable machine models:

15520-03000

Every 1000 hrs.

211000997 or later

Engine lubrication

Every 250 hrs after

Engine oil filter

Cartridge

K15841-32432

system

the initial 50 hrs.

Fuel filter

Element

KRA211-51280

Fuel system

Pre-fuel filter (if equipped)

Every 500 hrs.

Applicable machine models:

K12581-43012

211001351 or later

Every 1000 hrs. or

Primary (Outer)

after 6 cleanings

K1G659-11220

element

(whichever comes

Air cleaner system

Air cleaner

first)

When the primary

Secondary

19111-01342

element is

(Inner) element

replaced.

5-7

MAINTENANCE

SERVICE DATA

LIST OF TOOLS (IF EQUIPPED)

Code

Part name

Part No.

Remarks

1

Spanner

19102-12081

10 - 12

2

Spanner

19102-12082

12 - 14

3

Spanner

19102-12083

13 - 17

4

Spanner (Box)

19102-12084

19 - 22

5

Spanner

16901-00013

13

6

Spanner

16900-01922

19 - 22

7

Spanner

16909-00026

26

8

Screwdriver

19102-12085

(+) (-) replaceable shank

9

Filter wrench

03392-22610

10

Monkey wrench

16904-00250

250 mm

11

Pliers

16905-00200

200 mm

12

Tool case

16914-00005

13

Grease gun

16910-60600

600 cc

14

Drain connector

15545-12201

5-8

MAINTENANCE

SERVICE DATA

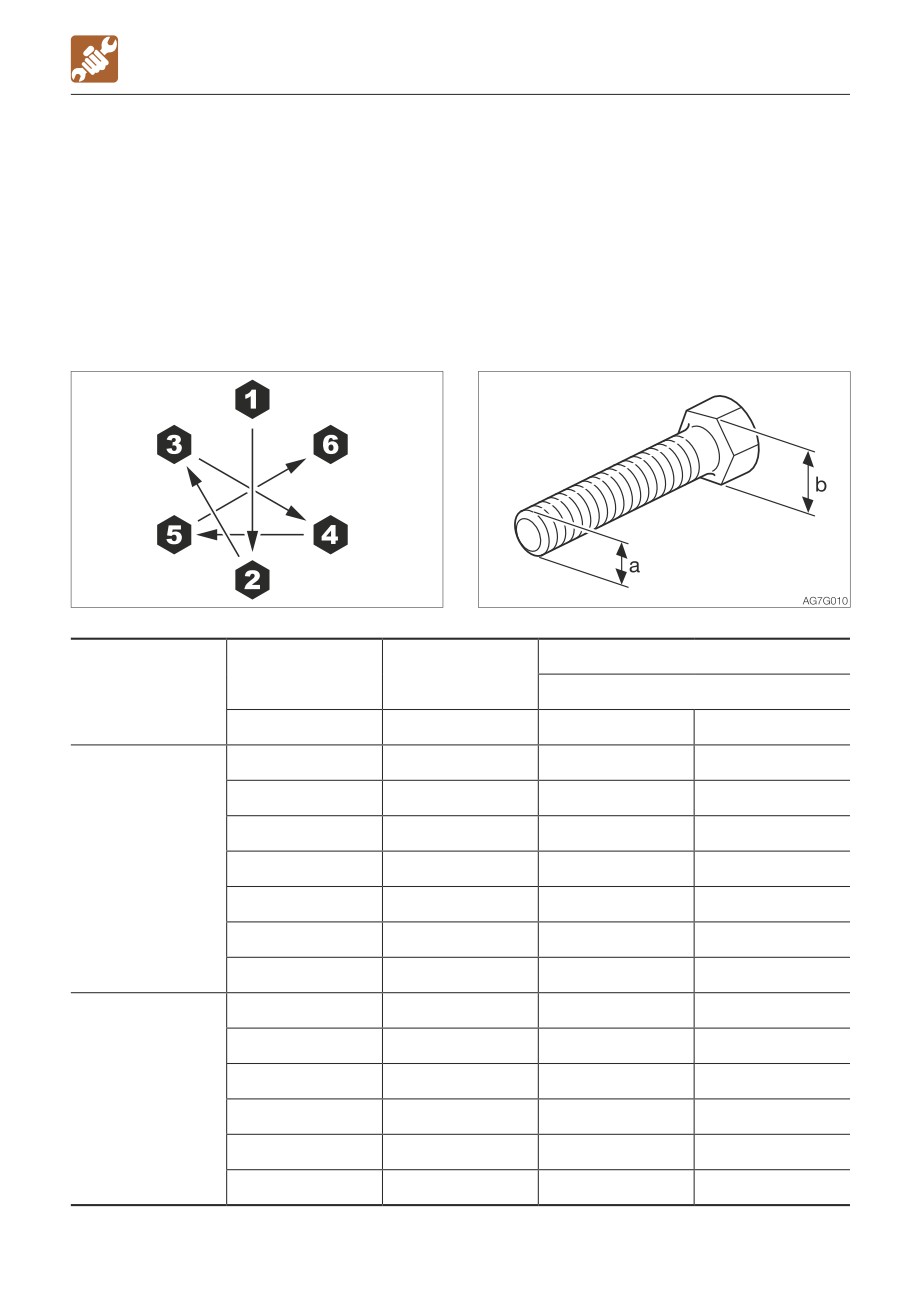

LIST OF TIGHTENING TORQUES

Nuts and Bolts (for ISO strength category 10.9)

Tighten nuts and bolts at the torques shown on the table below, unless otherwise specified.

• The tightening torques used for the mounted plastic covers are not listed in the table below.

Consult your sales or service dealer for details. They will be damaged if over tightened.

• When replacing nuts and bolts, replace them with nuts and bolts of the same size and

standards.

• Tighten nuts and bolts alternately (top, bottom, left then right) or in 2 or 3 times so that they

are evenly tightened.

AG7G009

Tightening torque

Head width (b)

Size (a) x pitch

Classification

General connection points

mm

mm

N·m

ft-lb.

10

M6 x 1.0

9.8±0.5

7.2±0.4

12, 13

M8 x 1.25

22.6±1.1

16.6±0.8

14, 17

M10 x 1.5

47.1±2.4

34.7±1.7

Coarse

17, 19

M12 x 1.75

83.4±4.1

61.5±3.0

19, 22

M14 x 2.0

134.4±6.7

99.1±4.9

22, 24

M16 x 2.0

207.9±10.4

153.3±7.7

27, 30

M20 x 2.5

410.9±20.5

303.1±15.1

12, 13

M8 x 1.0

24.5±1.2

18.1±0.9

14, 17

M10 x 1.25

50±2.5

36.9±1.8

17, 19

M12 x 1.5

87.3±4.3

64.4±3.2

Fine

19, 22

M14 x 1.5

135.3±6.8

99.8±5.0

22, 24

M16 x 1.5

220.6±11

162.7±8.1

27, 30

M20 x 1.5

452.1±22.6

333.4±16.6

5-9

MAINTENANCE

SAFETY-CRITICAL PARTS

SAFETY-CRITICAL PARTS

To use the machine safely, periodically perform inspection and maintenance. The safety-critical

parts listed below must be periodically replaced for an increased safety.

Serious injury or a fire could result if they are worn or damaged.

List of safety-critical parts

Safety-critical parts to be replaced

Unit

When to replace

periodically

Fuel hoses

Fuel system

Packing on fuel filler cap

Cooling system

Rubber hoses

Air-intake system

Air cleaner hose and breather hose

Hydraulic hoses (pump - delivery)

Hydraulic hoses (pump - suction)

Main body

Hydraulic hoses (slew motor)

Hydraulic hoses (travel motor)

Every 2 years

Hydraulic hoses (boom cylinder piping)

Hydraulic hoses (arm cylinder piping)

Hydraulic

system

Hydraulic hoses (bucket cylinder piping)

Hydraulic hoses (swing cylinder)

Working

equipment

Hydraulic hoses (blade cylinder)

Hydraulic hoses (span cylinder)

Hydraulic hoses (pilot valve)

Hydraulic hoses (auxiliary piping)

Seat belt

Every 3 years

Non-slip sheet

5-10

MAINTENANCE

SAFETY-CRITICAL PARTS

The material of the safety-critical part listed above tends to change over time and cause wear

or deterioration. It is difficult to determine the degree of deterioration at the periodic inspection,

and thus they need to be replaced with new ones after a certain time to maintain their proper

performance even if they appear in good condition. Note that regardless of the replacement

schedule, replacement must be performed immediately if a symptom of wear is found. If a

hose clamp is deformed or cracked, replace it together with the hose immediately. When

replacing the safety-critical parts, ask your sales or service dealer.

In addition to the safety-critical parts, inspect the hydraulic hoses and retighten or replace as

necessary. When replacing the hydraulic hoses, replace the O-rings and seals at the same

time.

Check the fuel and hydraulic hoses according to the periodic schedule described below.

Refer to “Maintenance”.

Type of inspection

Inspection item

Leakage from the connecting parts of hydraulic or fuel hoses

Daily inspection

Damage to canopy - replace*

Leakage from the connecting parts of hydraulic or fuel hoses

Monthly inspection

Damaged hydraulic or fuel hoses (cracks, wear and tear)

Leakage from the connecting parts of hydraulic or fuel hoses

Annual inspection

Deteriorated, twisted, damaged hydraulic or fuel hoses (cracks, wear

and tear) or hoses in contact with other parts of the machine

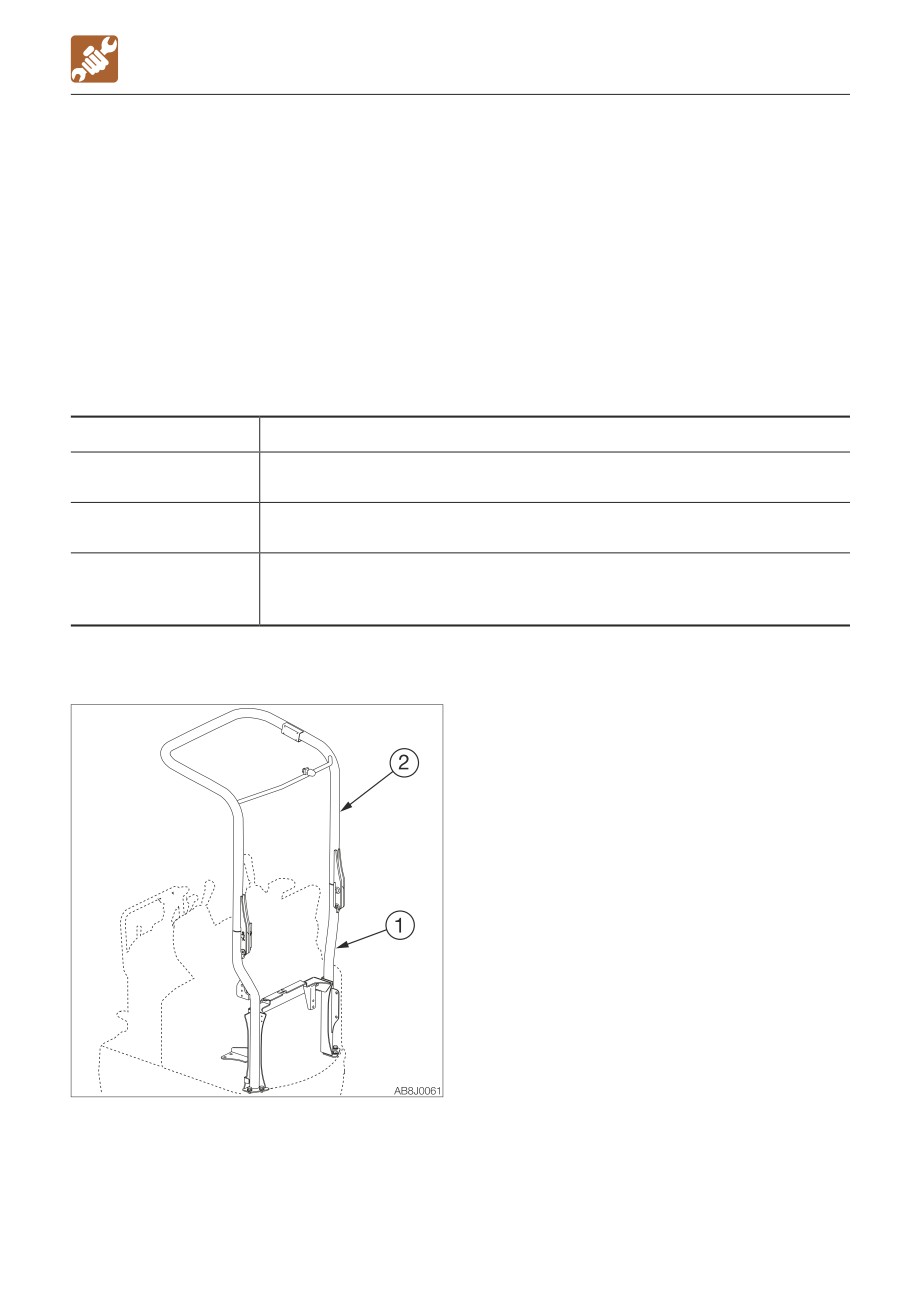

*: Canopy parts No.(1) 03284-00035

*: Canopy parts No.(2) 03284-00010

5-11

MAINTENANCE

MAINTENANCE LIST

MAINTENANCE LIST

Inspection and maintenance item

Page

Walk-around inspection

Inspecting by opening the engine hood and covers

5-14

Inspecting by walking around the machine

5-15

Inspecting while sitting in the operator’s seat

5-15

Daily inspection (every 10 hours)

Inspecting and replenishing the coolant

5-16

Inspecting and replenishing the engine oil

5-17

Inspecting the fuel filter (water separator)

5-18

Inspecting the fuel level

5-18

Inspecting the hydraulic oil tank level and replenishing

5-19

Lubricating the working equipment

5-21

After the initial 50 hours (only for new machines)

Replacing the engine oil and the oil filter

5-22

Inspecting and adjusting the fan belt

5-24

Replacing the hydraulic oil return filter

5-25

Every 50 hours

Inspecting and adjusting the crawler tension

5-26

Lubricating the slew bearing

5-28

Lubricating the slew motor pinion

5-28

Draining the water from the fuel tank

5-29

Inspecting the battery fluid level and replenishing

5-30

Every 100 hours

Cleaning the fuel filter

5-32

After the initial 250 hours (only for new machines)

Replacing the travel motor gear oil*

5-33

Every 250 hours

Replacing the engine oil and the oil filter

5-34

Inspecting and adjusting the fan belt

5-34

Cleaning the air cleaner

5-34

Cleaning the radiator fins

5-36

*: If the percentage of the traveling time within the total operating time is high, replace the gear

oil earlier than the specified time.

5-12

MAINTENANCE

MAINTENANCE LIST

Inspection and maintenance item

Page

Every 500 hours

Replacing the hydraulic oil return filter

5-37

Replacing the fuel filters

5-37

Every 1000 hours

Replacing the travel motor gear oil*

5-38

Cleaning the engine cooling system

5-38

Replacing the air cleaner element

5-40

Replacing the air breather (If equipped)

5-41

Inspecting and adjusting the engine valve clearance

5-41

Every 1500 hours

Inspecting and cleaning the engine fuel injection nozzle

5-42

Every 2000 hours

Replacing the hydraulic oil and cleaning the suction strainer

5-43

Every 3000 hours

Inspecting the fuel injection pump

5-45

When required

Replacing the bucket

5-46

Lubricating the levers

5-48

Inspecting the rubber crawlers

5-49

Replacing the rubber crawlers

5-50

*: If the percentage of the traveling time within the total operating time is high, replace the gear

oil earlier than the specified time.

5-13

MAINTENANCE

WALK-AROUND INSPECTION

WALK-AROUND INSPECTION

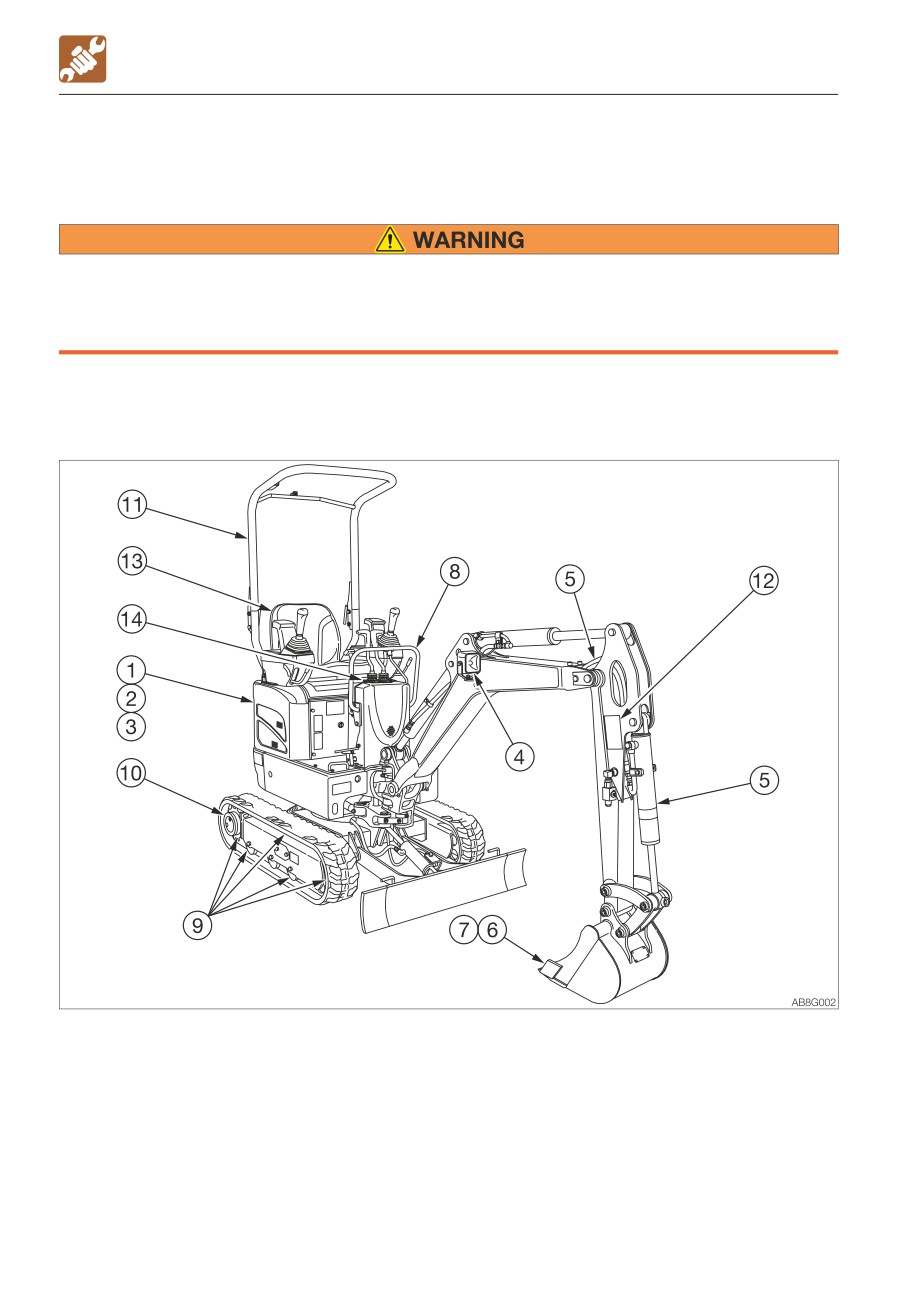

Perform the following inspections every day before starting the engine for the first time.

• Before operating, perform the walk-around inspections and make repairs immediately

where necessary.

• Be sure to secure the engine hood or cover before working the inside. Do not keep the

hood or cover open on a windy day or if the machine is parked on a slope.

Before starting the engine, look around the machine and clean any combustibles from the

surroundings of the engine. Also, inspect if oil or water is leaking and any nuts, bolts or electric

wiring are loosened or damaged.

INSPECTING BY OPENING THE ENGINE

3. Check for oil leakage from the hydraulic oil

HOOD AND COVERS

tank, hydraulic devices, hoses or

connections.

1. Check for any twigs, leaves, oil or other

combustible materials around the engine

and battery.

2. Check for oil or engine coolant water

leakage around the engine.

5-14

MAINTENANCE

DAILY INSPECTION (EVERY 10 HOURS)

Inspection

DAILY INSPECTION

(EVERY 10 HOURS)

Perform the following inspections every day

before starting the engine for the first time.

• Before operating, perform the daily

inspections and make repairs

immediately where necessary.

• Be sure to secure the engine hood or

cover before working the inside. Do not

keep the hood or cover open on a windy

1. Open the engine hood.

day or if the machine is parked on a

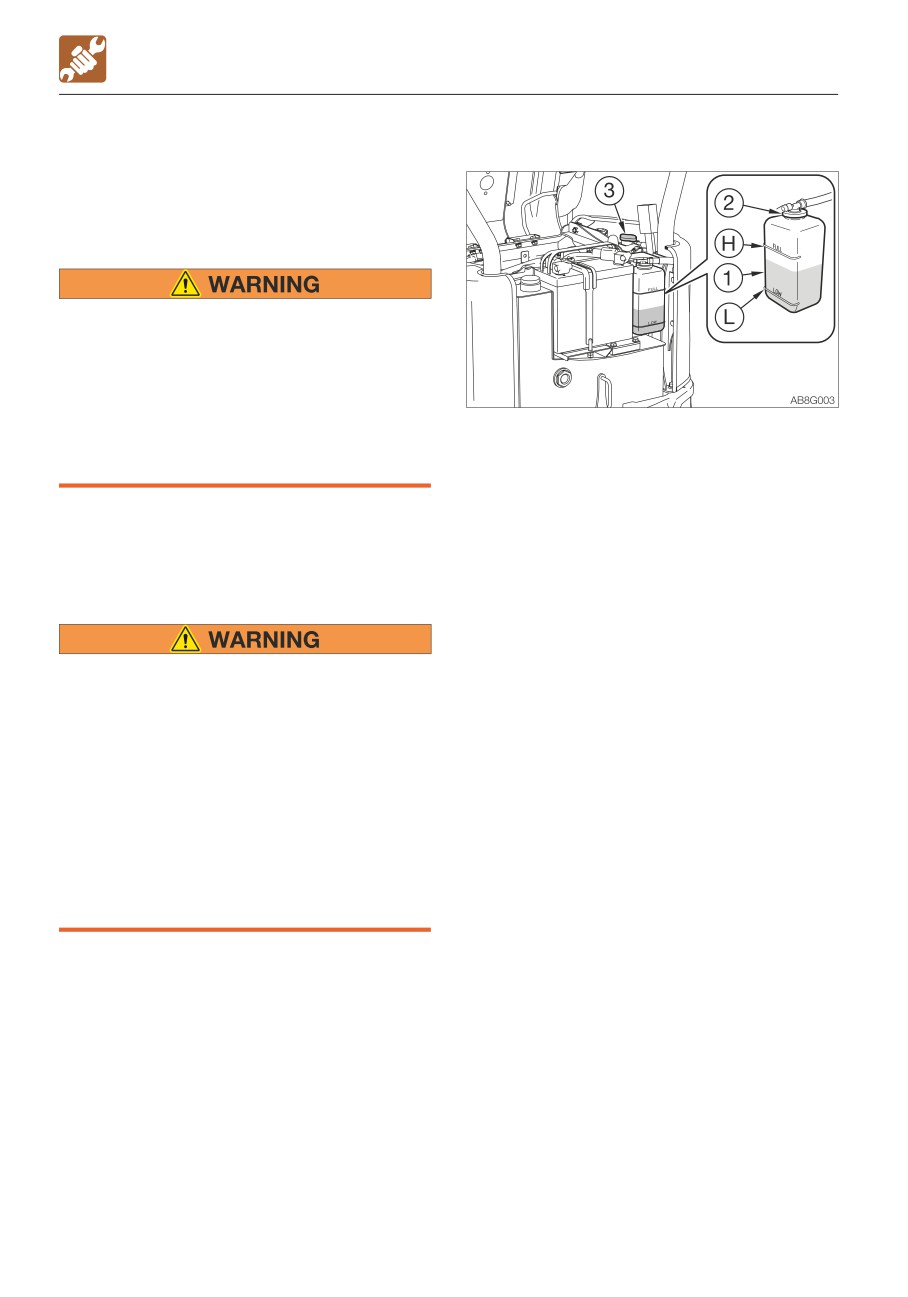

2. Inspect the cooling water level in the

slope.

reserve tank (1).

The level should be between the upper

limit (H) and the lower limit (L).

If it is below the lower limit (L), replenish.

INSPECTING AND REPLENISHING THE

COOLANT

Replenishing

1. Remove the cap (2) of the reserve tank (1).

2. Add cooling water up to the upper limit (H)

of the reserve tank (1).

• Do not remove the radiator cap or the

If the reserve tank (1) is found empty at the

drain plug when the cooling water is

inspection, check for water leakage and

hot. Stop the engine and wait until the

then the water level in the radiator (3). Add

engine and the radiator cool before

water to the radiator (3) as required, and

slowly loosening the radiator cap and

then to the reserve tank (1).

the drain plug to remove them.

3. Install the cap (2).

• Always wear the protective goggle and

gloves when handling coolant

Note: Use only clean water (soft water) to

(antifreeze). If any coolant (antifreeze)

replenish the cooling water loss due to

comes in contact with eyes or skin,

evaporation. Use coolant (antifreeze) and

wash it off with clean water. Otherwise,

clean water (soft water) of the specified

it could result in injures.

mixing ratio to replenish the cooling water

loss due to leaking.

5-16

Content      ..     1      2      3      4      ..
