Takeuchi Mini excavator TB215R (Serial No.215000003~). Operators Manual (2013) - page 3

OPERATION

OPERATING THE MACHINE

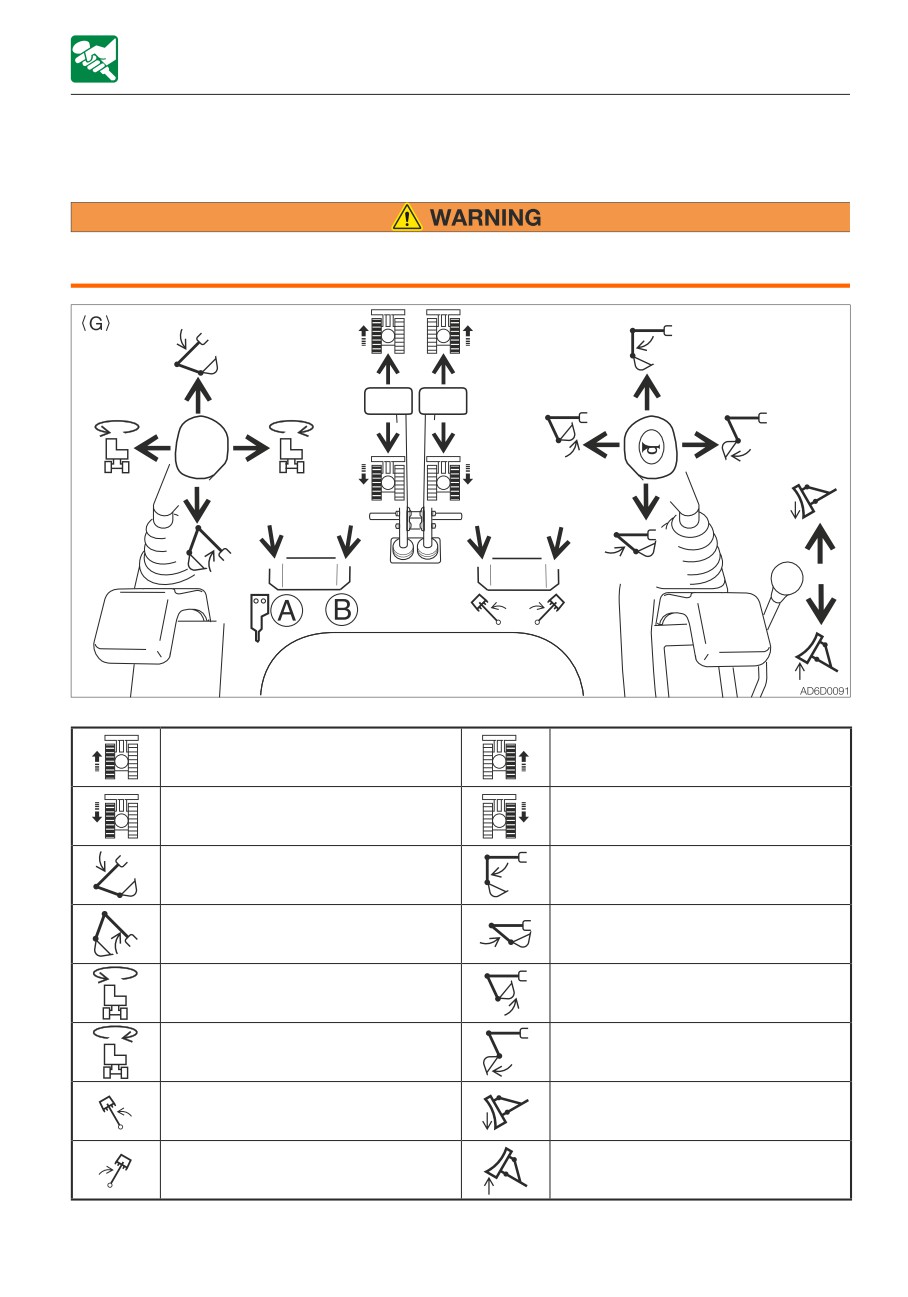

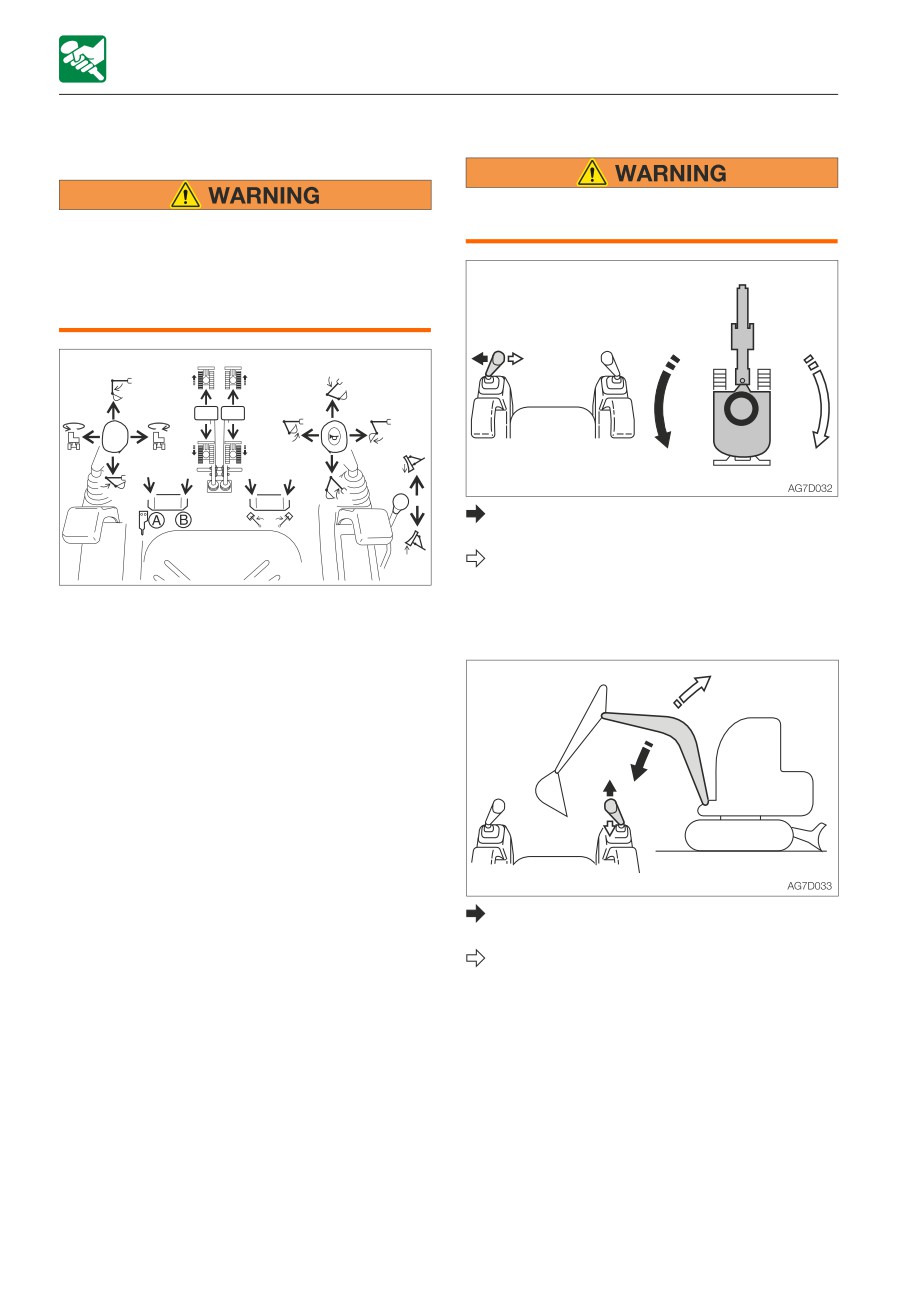

LEVER PATTERN (G PATTERN) IF EQUIPPED

• Before starting operation, carefully check which lever pattern you are going to use.

• It is described using the ISO pattern in this manual.

Left crawler forward

Right crawler forward

Left crawler reverse

Right crawler reverse

Boom lower

Arm out

Boom raise

Arm in

Upperstructure slew left

Bucket load

Upperstructure slew right

Bucket dump

Boom swing left

Dozer blade lower

Boom swing right

Dozer blade raise

Refer to “Selecting a lever pattern” on page 8-5.

3-7

OPERATION

OPERATING THE MACHINE

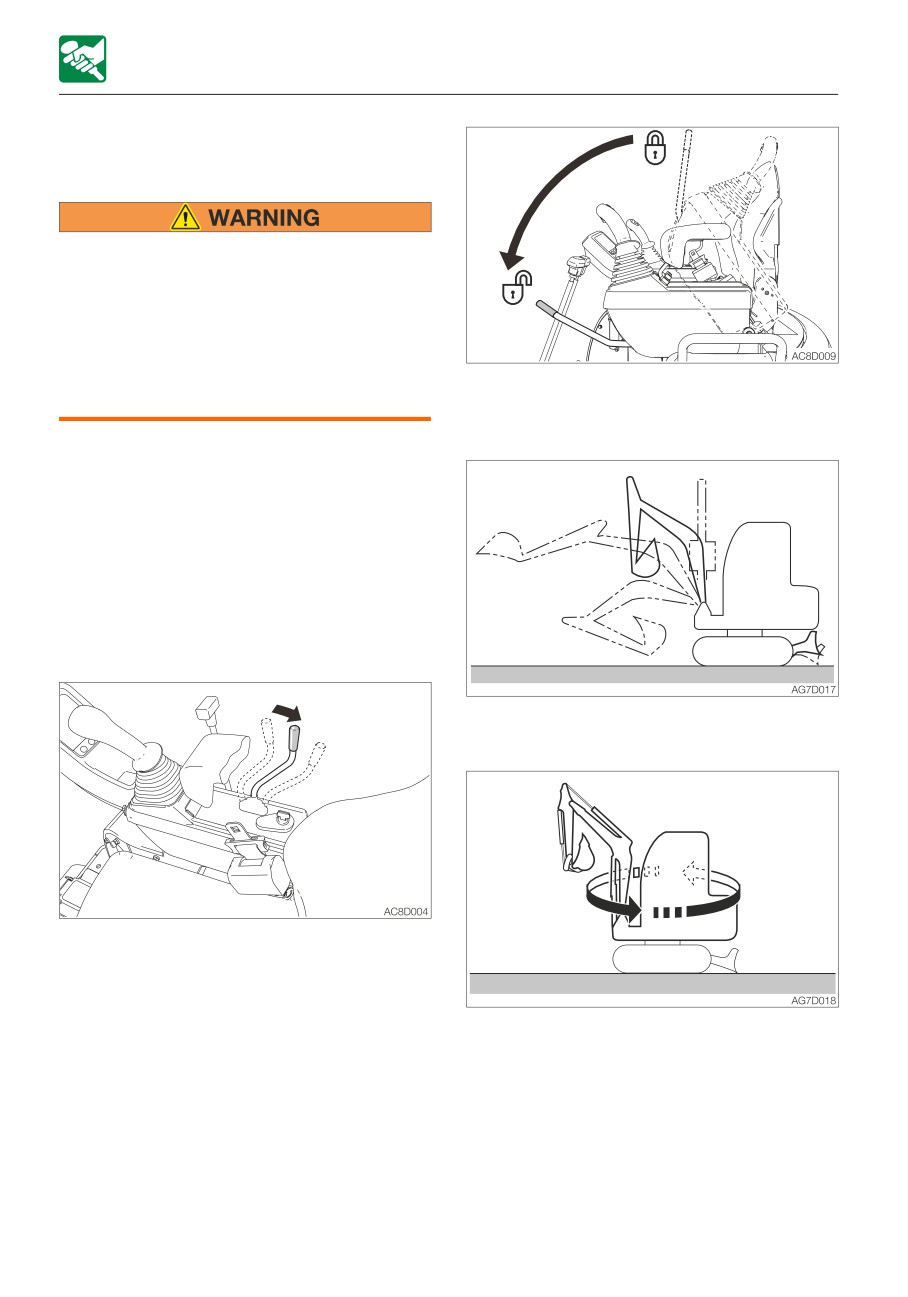

WARMING UP THE MACHINE

(HYDRAULIC OIL)

Operating the working equipment without

warming up the machine (hydraulic oil) is

dangerous, as the working equipment

cannot response to controls quickly or

may move in unexpected ways, and the

safety devices may not operate properly.

Be sure to sufficiently warm up the

2. Fully lower the safety lock lever to

machine.

disengage the lock and lift the bucket from

the ground.

IMPORTANT: Do not operate the levers

too quickly when the hydraulic oil

temperature is below 20°C (68°F). The

proper hydraulic oil temperature during

operation is 50 to 80°C (122 to 176°F). If

operations must be performed at lower

temperatures, heat up the hydraulic oil to

at least 20°C (68°F).

Normal warm-up

3. Extend and retract each of the cylinders

slowly several times with no load.

1. Pull the throttle lever to the middle

position, then run the engine at medium

speed for about 5 minutes with no load.

4. Slew slowly to the left and the right several

times.

3-8

OPERATION

OPERATING THE MACHINE

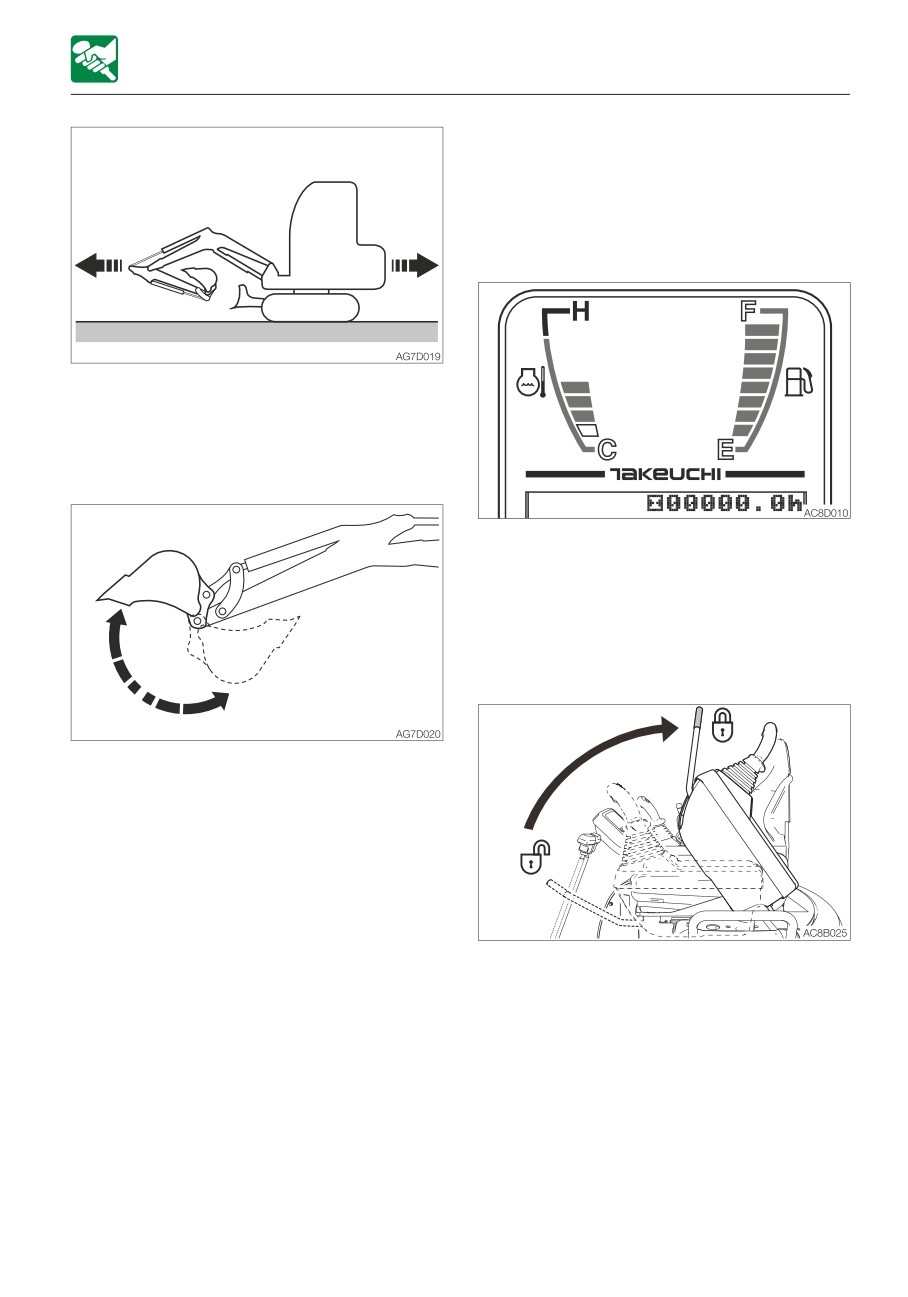

INSPECTION AFTER WARM-UP

After warming up the engine and machine

(hydraulic oil), perform the checks and

inspections described below, and repair if

necessary.

5. Travel slowly forward and in reverse

several times.

Warm-up in cold climates

1. Perform the normal warm-up procedure.

1. Check that the warning lamps and meters

are as follows:

· Are all warning lamps off?

· Is the LED on water temperature gauge

seen within the green range?

2. Check that there are no irregularities in the

exhaust color, sound and vibrations.

2. Set the bucket cylinder at the stroke end

and keep it there.

Do not keep this condition for more than

30 seconds.

3. Repeat Step 2 until the bucket operating

speed becomes normal.

3. Raise the safety lock lever to the locked

position, and then check that the

operating and travel levers are locked.

3-9

OPERATION

OPERATING THE MACHINE

CRAWLER WIDTH SWITCHING

Operate the machine with the maximum

crawler width

• Always operate the machine with the

crawler width extended to 1300 mm

(51.2 in.) to maximize the machine

stability. If the machine is operated with

the crawler width narrowed (980 mm,

38.6 in.), the machine may tip over due

2. Depress the selector lever.

to its poor stability.

• If the machine must be operated with

the narrowed crawler width (980 mm,

38.6 in.), traveling should be done after

folding the hoe attachment, lowering the

boom to lower the center of gravity and

keeping the machine facing forward.

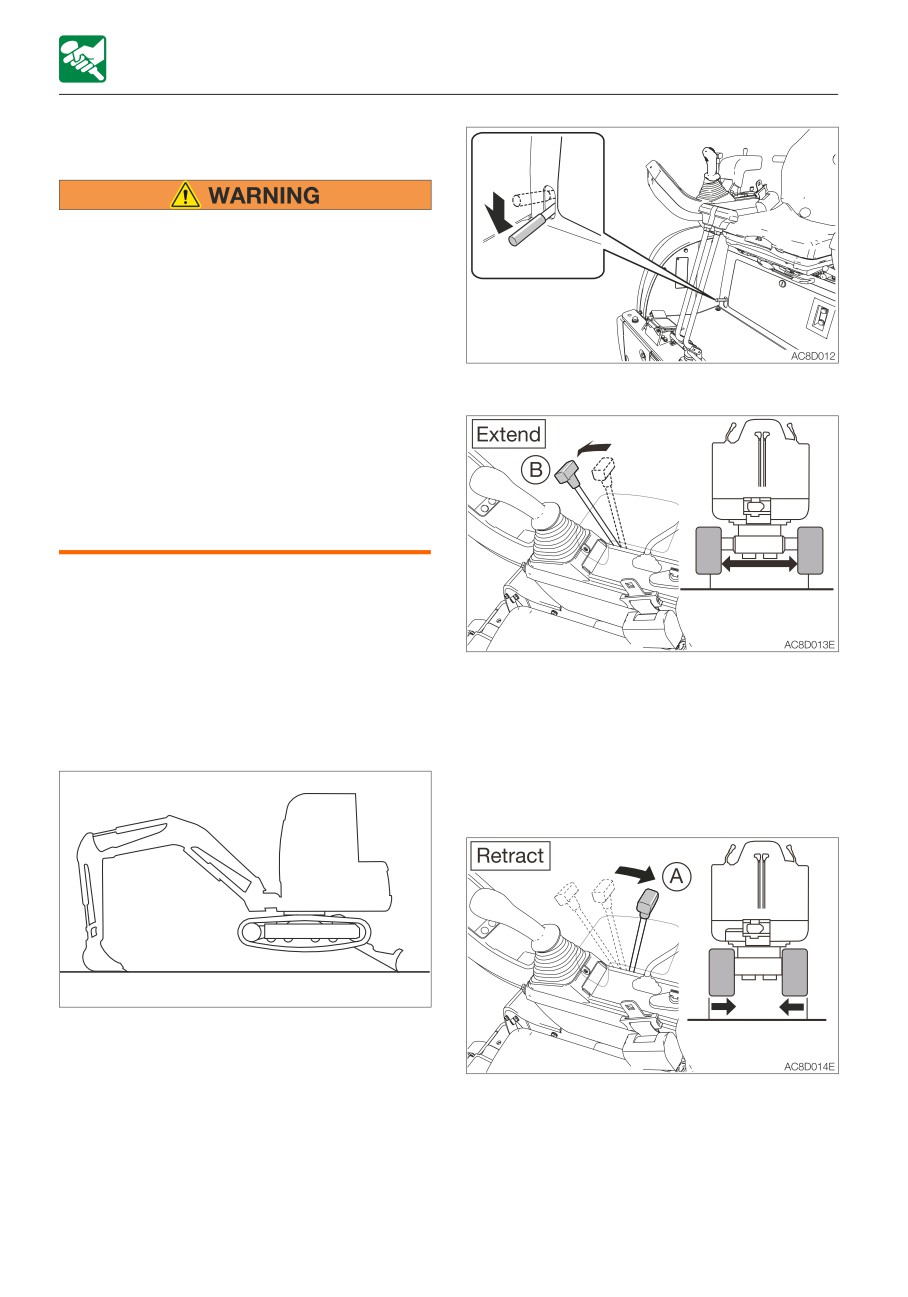

This machine is able to change the crawler

width. Normally, it is best to operate with the

crawler width extended for machine’s

stability.

3. Push the blade lever forward (B) to

Switching the crawler width

increase the crawler width (1300 mm or

Perform the operation on a flat and rigid

51.2 in.).

ground where no obstacles around.

If necessary, extend the blade width by

changing the plate (2).

Refer to “Switching the blade width” on

page 3-11.

AD6D012

1. Raise the machine body by using the hoe

attachment and the dozer blade.

IMPORTANT: Be sure to raise the machine

4. Pull the blade lever toward you (A) to

body before switching the crawler width.

decrease the crawler width (980 mm or

If the operation is attempted when the

38.6 in.).

crawler is rested on the ground, the travel

frame or span cylinder may be damaged.

3-10

OPERATION

OPERATING THE MACHINE

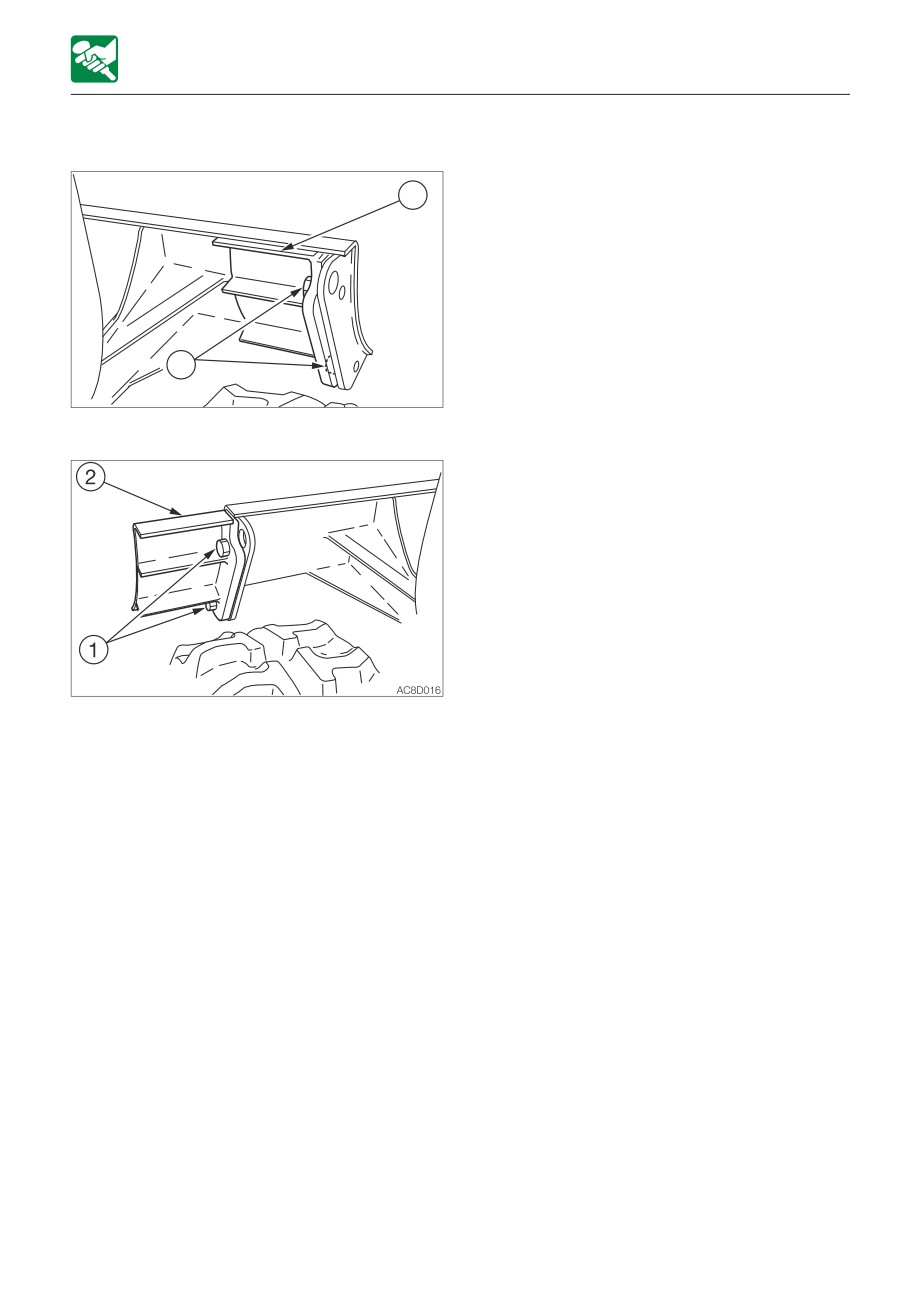

SWITCHING THE BLADE WIDTH

2

1

AC8D015

1. Loosen bolts (1) and remove plate (2).

2. Attach the right plate (2) to the left, the left

plate (2) to the right.

3. Tighten the plate (2) with bolts (1).

3-11

OPERATION

OPERATING THE MACHINE

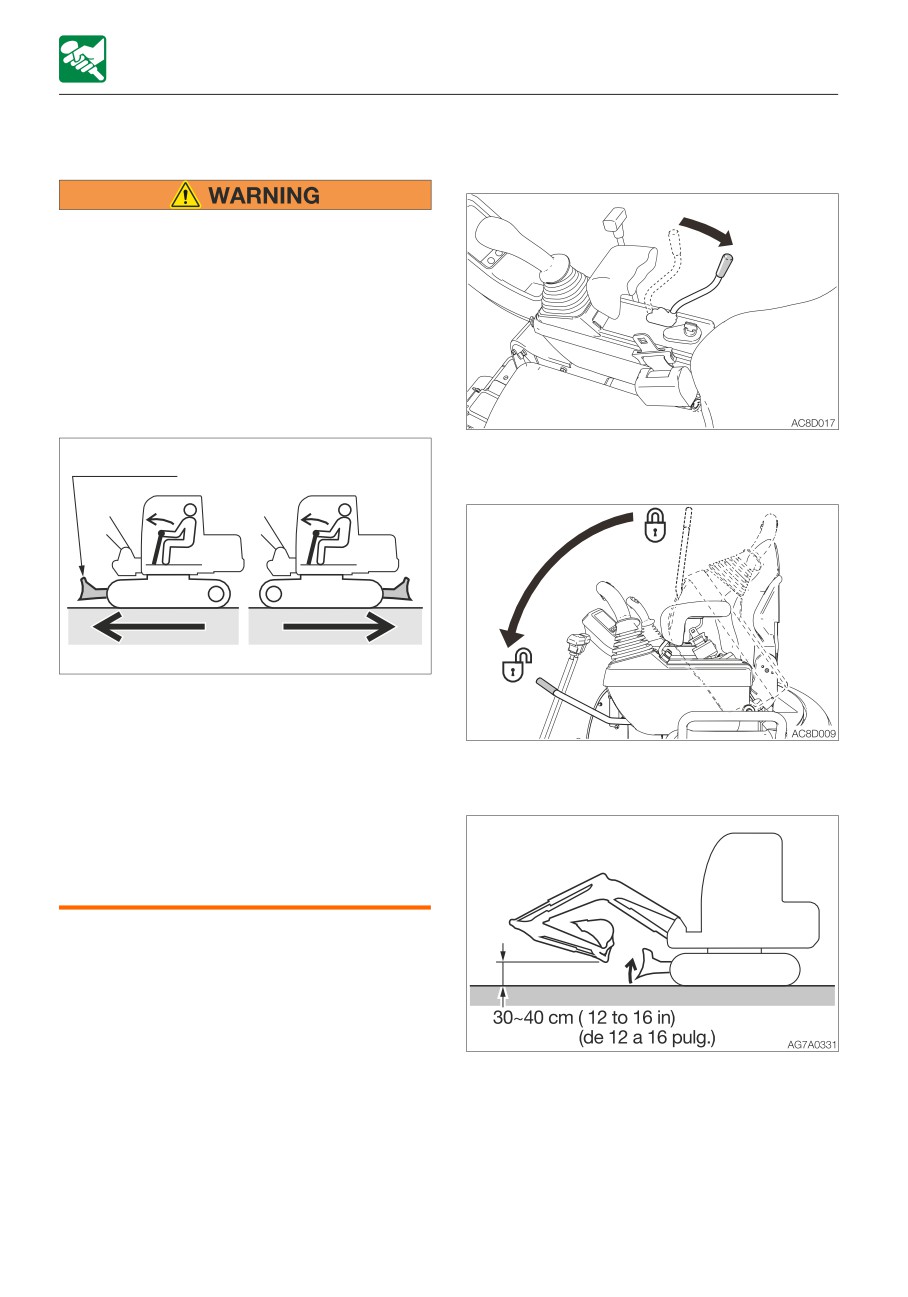

OPERATING THE TRAVEL LEVERS

Moving the machine forward and

backward

• Never allow anyone to enter the

machine’s slewing radius and path.

• Signal your intention to move by

sounding the horn.

• There is a blind spot in the rear of the

machine. Before traveling in reverse, as

necessary, swing the cab around in

reverse to check that the area is safe

and clear.

1. Pull the throttle lever and increase the

Dozer blade

engine speed.

AG7A032PE

• Before operating the travel levers/

pedals, make sure that the dozer blade

is to the front of the operator’s seat.

Remember that when the dozer blade is

2. Fully lower the safety lock lever to

to the rear of the operator’s seat, the

disengage the lock.

travel levers/pedals must be operated in

the reverse direction from when it is to

the front.

• Clear all obstacles from the path of the

machine.

3. Fold the hoe attachment and lower it 30 to

40 cm (12 to 16 in.) above the ground.

4. Lift the dozer blade.

5. Operate the left and right travel levers as

below.

3-12

OPERATION

OPERATING THE MACHINE

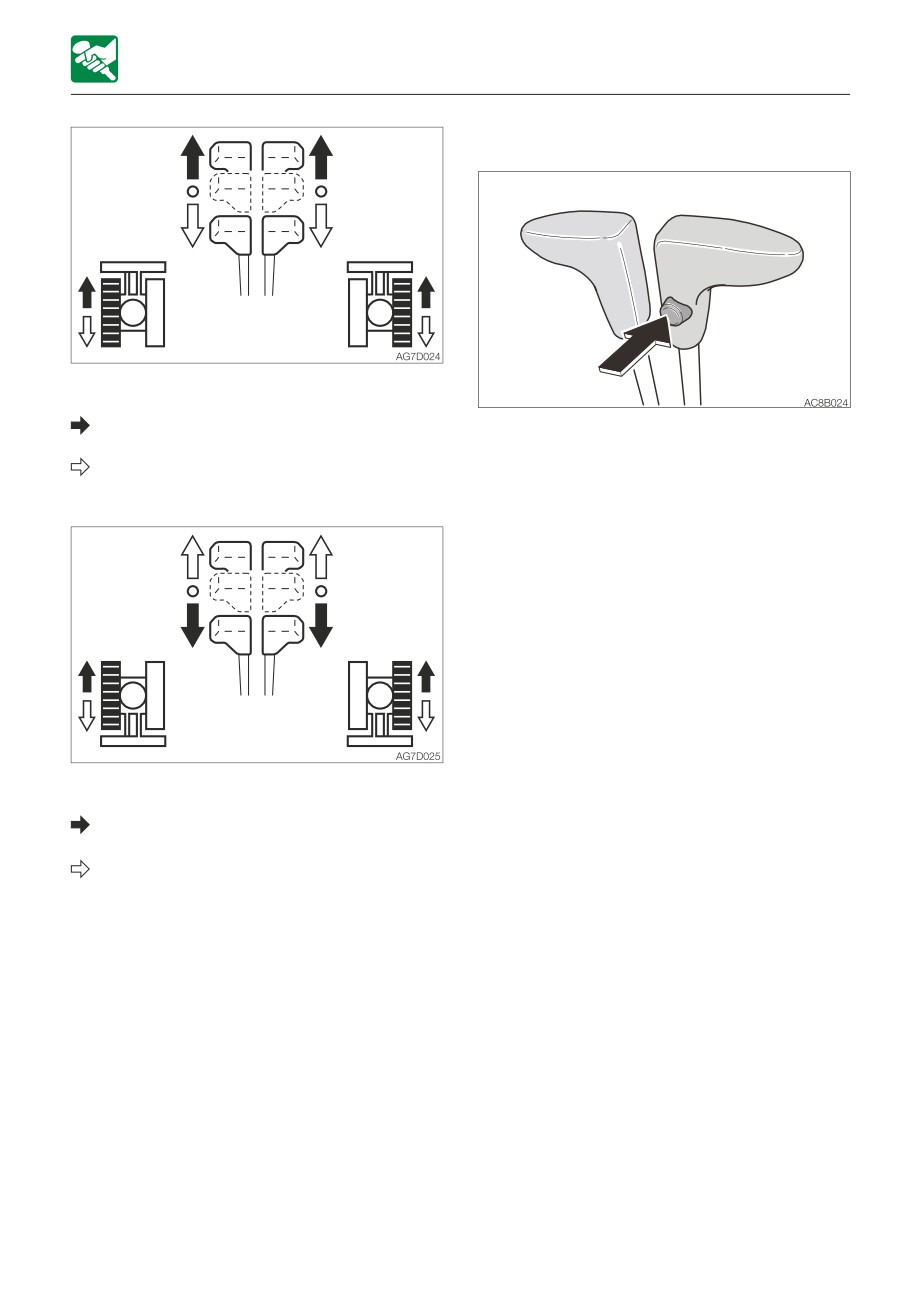

Traveling in 2nd (High) speed

When the dozer blade is in front of the

operator’s seat:

To move forward:

Press the travel speed switch on the right

Tilt the levers forward.

travel lever to switch to 2nd (high) speed,

To move backward:

and press it again to return to 1st (low)

Tilt the levers backward.

speed.

When the dozer blade is behind the

operator’s seat:

To move forward:

Tilt the levers backward.

To move backward:

Tilt the levers forward.

3-13

OPERATION

OPERATING THE MACHINE

Pivot turn

Spin turn

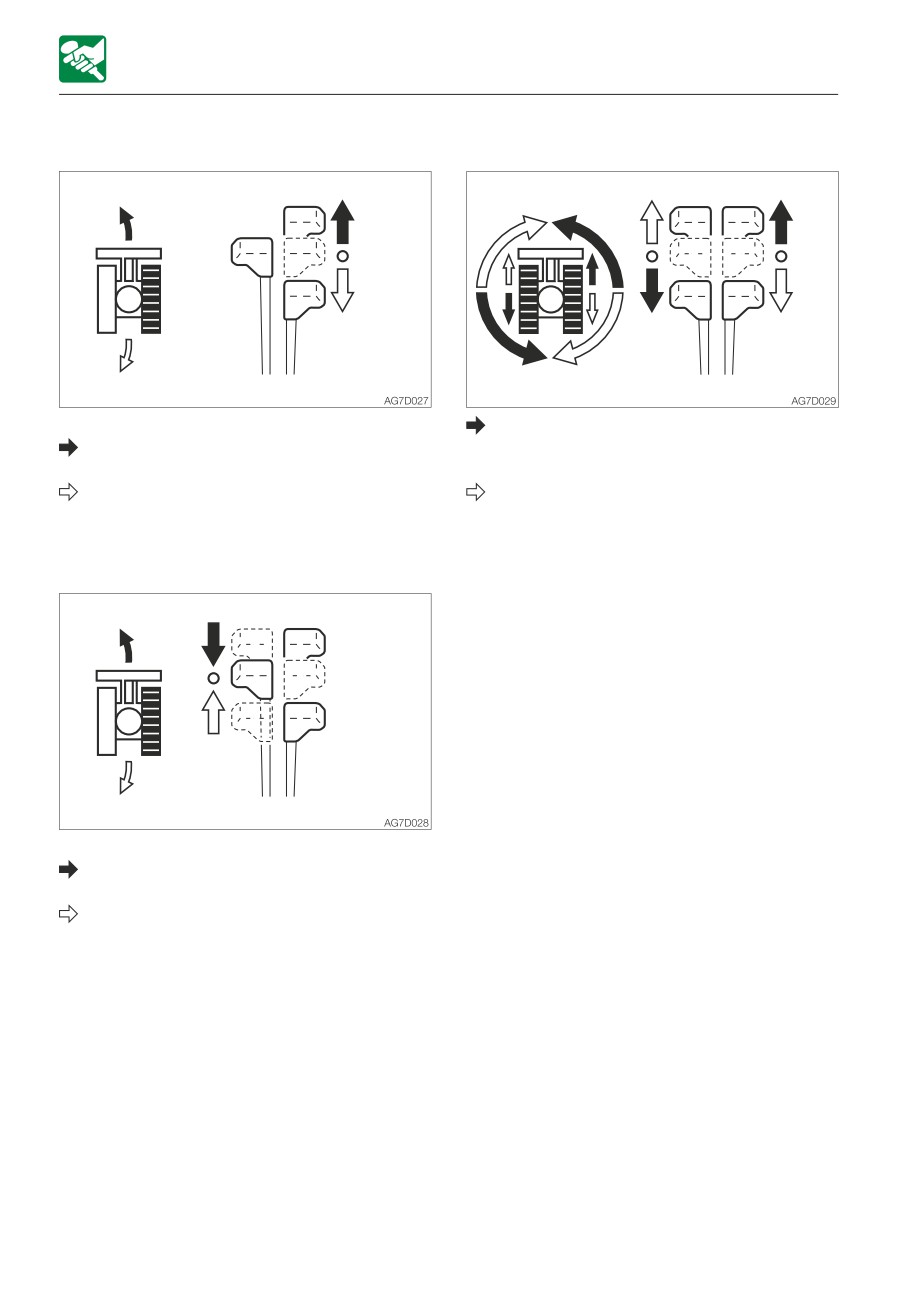

Turning to the left when stopped:

To spin left:

To turn forward to the left:

Tilt the left lever backward and the right

Tilt the right lever forward.

lever forward.

To turn backward to the left:

To spin right:

Tilt the right lever backward.

Tilt the right lever backward and the left

To turn to the right, operate the left lever in

lever forward.

the same way as for the right lever.

Turning to the left while traveling:

To turn left while traveling forward:

Set the left lever to neutral.

To turn left while traveling backward:

Set the left lever to neutral.

To turn to the right while traveling, operate

the right lever in the same way as for the left

lever.

3-14

OPERATION

OPERATING THE MACHINE

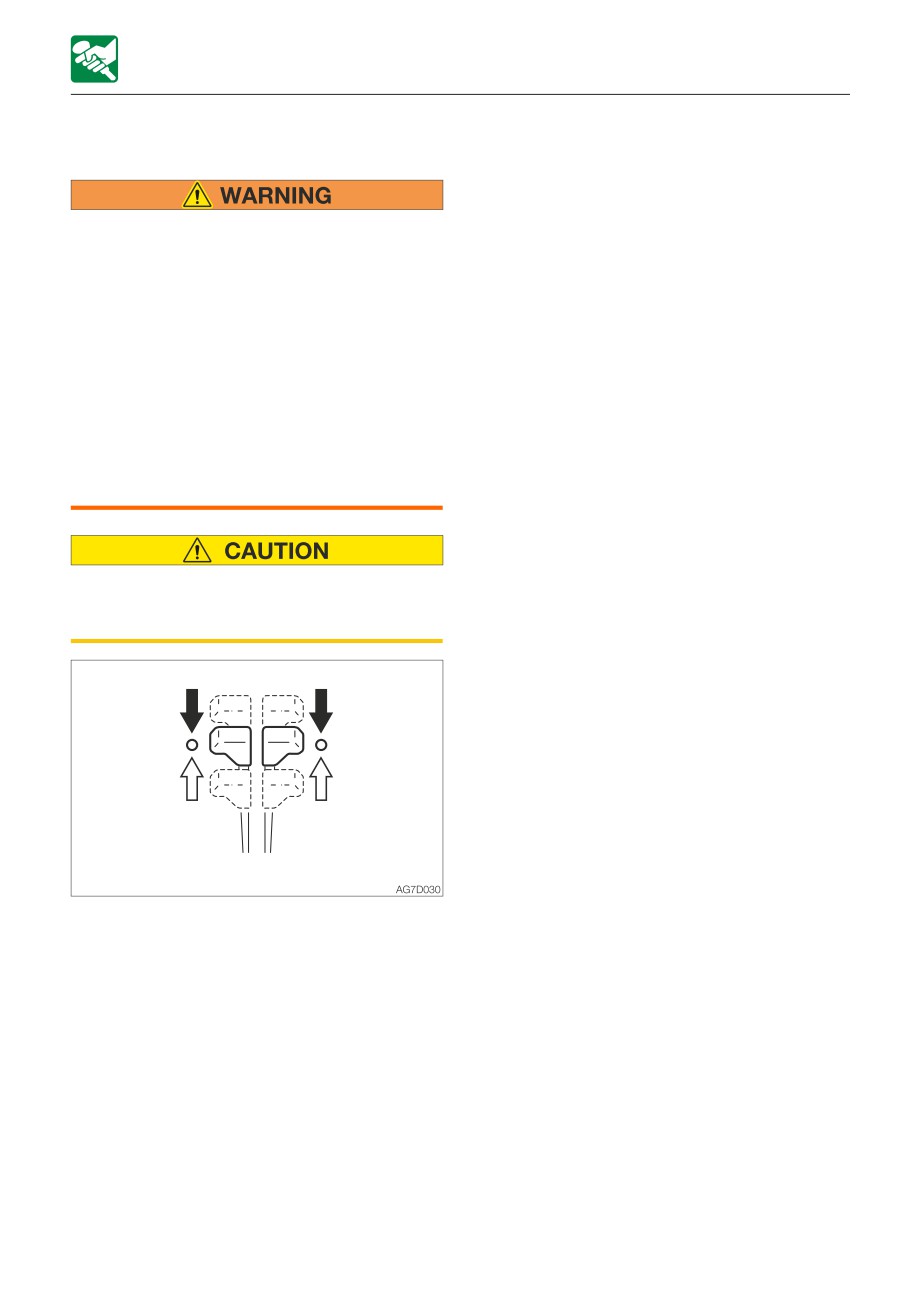

STOPPING TRAVEL

• Park the machine on a flat, rigid and

safe ground. Set the parking brake. If

you must park on a slope, chock the

tracks to block the machine.

• If any control is accidentally touched

when the safety lock lever is not locked,

the machine may suddenly move and

cause serious injury or death.

• Note that the dozer blade, boom swing

and auxiliary hydraulic controls cannot

be locked, even when the safety lock

lever is set to the locked position.

Do not carelessly touch these controls.

Never stop running the machine suddenly

except in emergency. Stop in good time,

if possible.

1. Set the left and right travel levers slowly to

the neutral position. The machine stops.

3-15

OPERATION

OPERATING THE MACHINE

OPERATING THE WORKING EQUIPMENT

Slewing

Check the surrounding area for safety

• Before starting operation, carefully

before slewing.

check which lever pattern you are going

to use.

• It is described using the ISO pattern in

this manual.

Upperstructure slew left:

Tilt the left operating lever to the left.

Upperstructure slew right:

AD6D003

Tilt the left operating lever to the right.

Use the right operating lever to operate the

boom and bucket.

Operating the boom

Use the left operating lever to operate the

arm and slewing.

Return the operating levers to the neutral

position to stop the hoe attachments.

1. Lower the safety lock lever to the

unlocked position.

2. Set the pedal cover to the unlocked

position.

Boom lower:

Tilt the right operating lever forward.

Boom raise:

Tilt the right operating lever backward.

3-16

OPERATION

OPERATING THE MACHINE

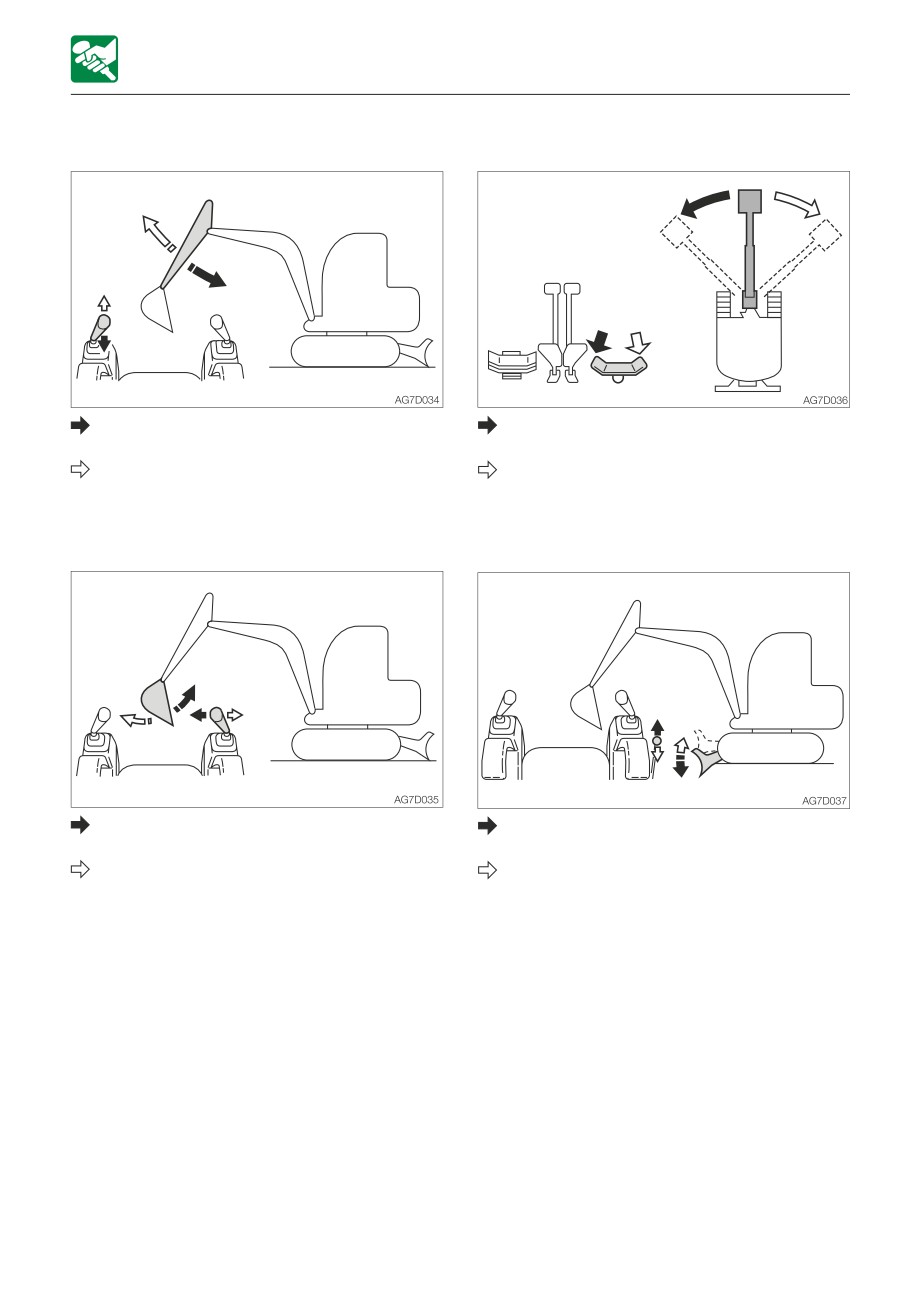

Operating the arm

Operating the boom swing

Arm in:

Boom swing left:

Tilt the left operating lever backward.

Step on the left side of the pedal.

Arm out:

Boom swing right:

Tilt the left operating lever forward.

Step on the right side of the pedal.

Operating the bucket

Operating the dozer blade

Bucket load:

Dozer blade lower:

Tilt the right operating lever to the left.

Tilt the lever forward.

Bucket dump:

Dozer blade raise:

Tilt the right operating lever to the right.

Tilt the lever backward.

3-17

OPERATION

CAUTIONS ON OPERATING

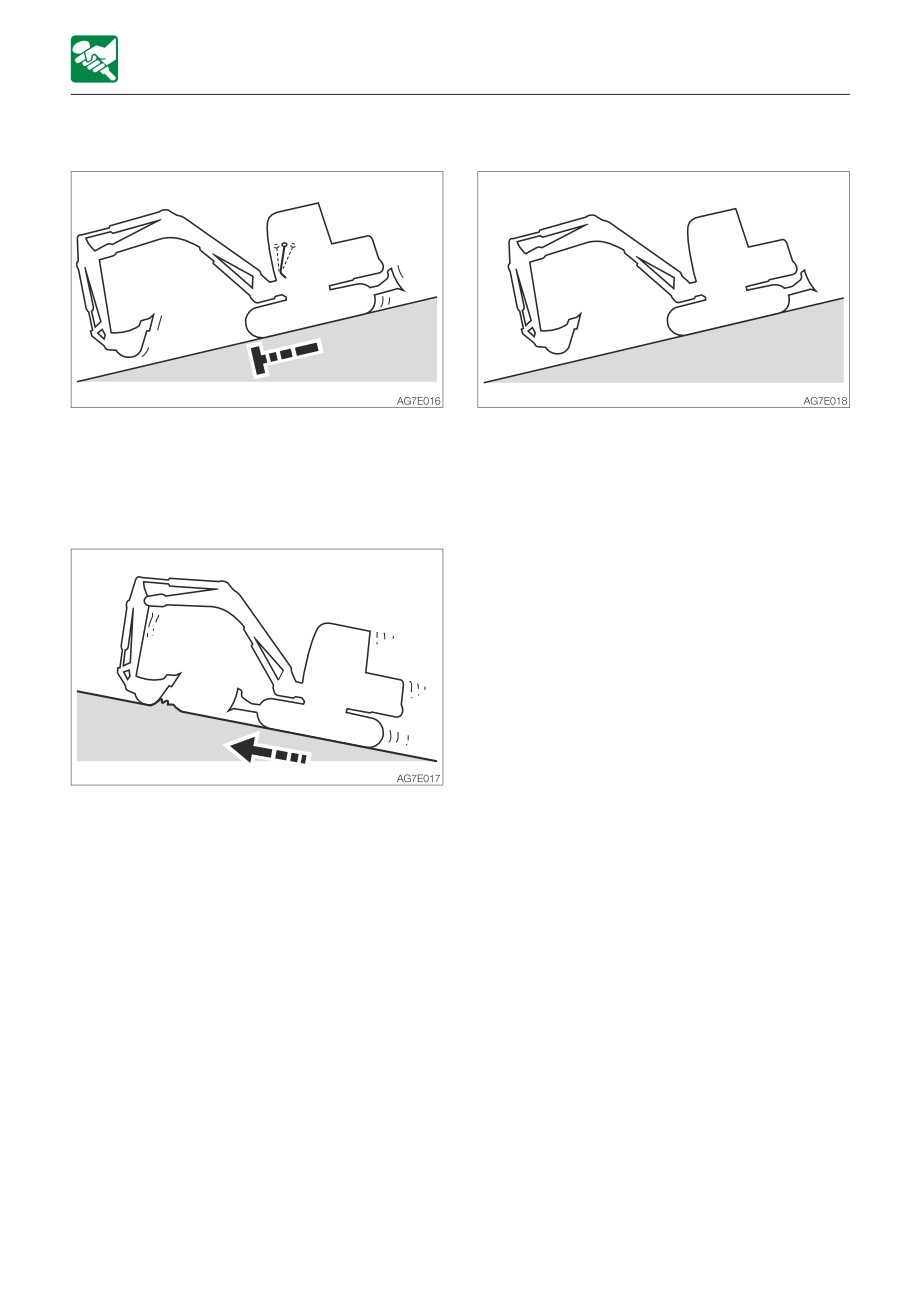

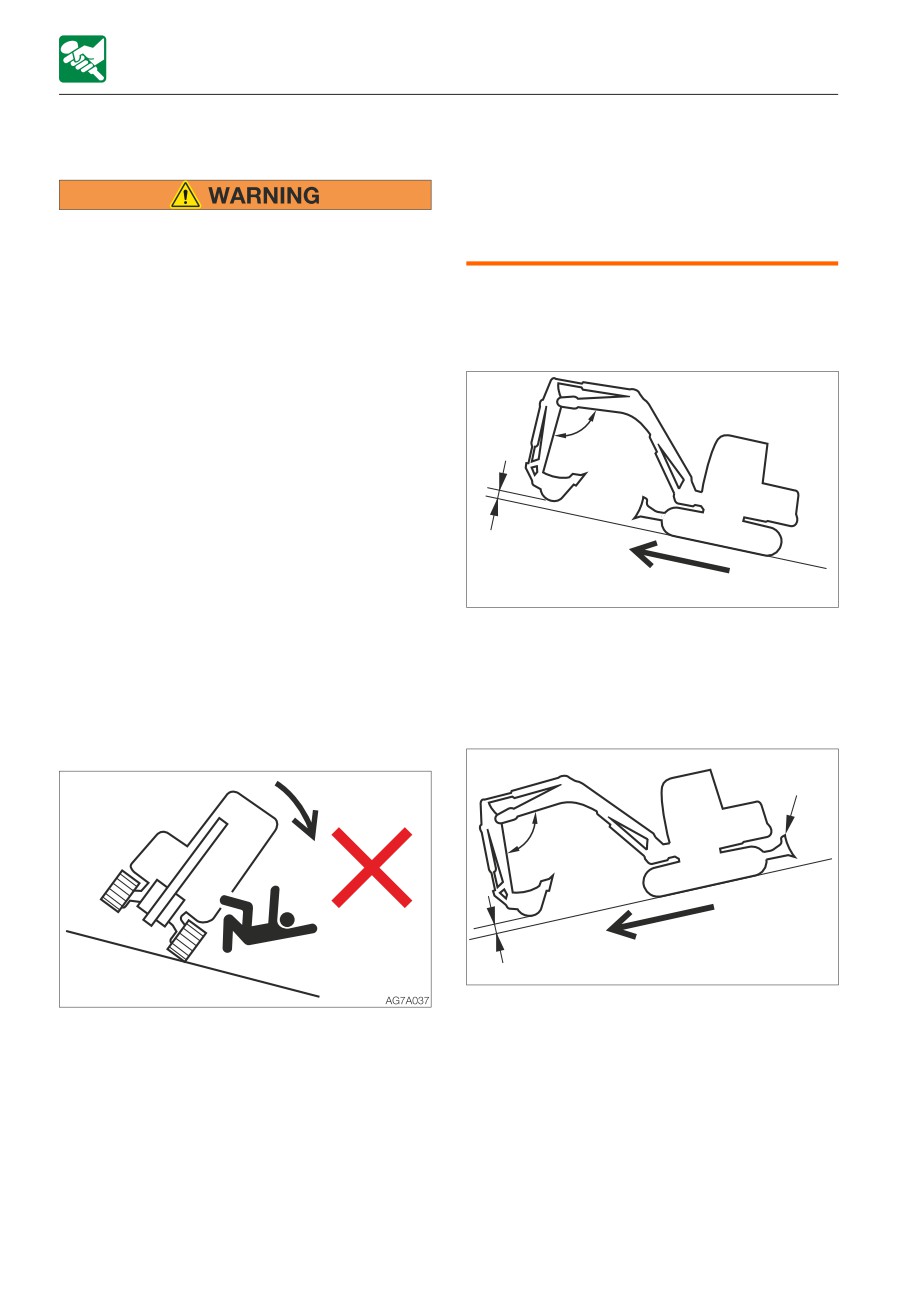

CAUTIONS ON TRAVELING ON SLOPES

• The machine may slip sideways even on

a slight slope if they are covered with

grass or dead leaves, or when traveling

on a wet metal plate or frozen surfaces.

• Never travel on slopes that are too

Do not allow the machine to position

steep for the machine to maintain its

sideways to slopes.

stability. (maximum gradeability: 30°,

lateral tipping angle: 10°) Note that in

reality, the machine’s stability becomes

Traveling posture on slopes

lower than the above values depending

Climbing slopes

on the working condition.

• When traveling on slopes, lower the

bucket to a height of 20 to 30 cm (8 to

12 in.) above the ground. When climbing

a steep slope, extend the hoe

90°~110°

attachment to the front. In emergencies,

lower the bucket to the ground and stop

the machine.

• When traveling on slopes or grades,

20~30cm

drive slowly in 1st (low) speed.

(8 to 12in)

• When climbing a hill, keep the

(de 8 a 12 pulg.)

operator’s seat facing the hillside. When

AG7A036

descending a hill, keep the operator’s

When climbing slopes of 15° or more,

seat facing the downhill direction. In

maintain the machine posture as shown in

either case, travel must be done while

the figure above.

paying attention to the ground in front

of the machine.

Descending slopes

• Do not descend slopes in reverse.

Dozer blade

90°~110°

Descending

20~30cm (8 to 12in)

AG7A035PE

When descending slopes of 15° or more,

• Do not change directions on slopes or

slow down the engine speed and maintain

traverse slopes. First return to a flat

the machine posture as shown in the figure

surface, and then take an alternative

above.

path.

3-22

OPERATION

CAUTIONS ON OPERATING

Braking when descending slopes

If the engine stops

When descending slopes, the brakes are

If the engine stops when descending a

applied automatically once the travel levers

slope, set the travel levers to the neutral

are returned to the neutral position.

position, stop the machine, then start the

engine.

If the crawler slips

If the crawler slips while climbing a slope and

impossible to travel, use the pulling force of

the arm to climb the slope.

3-23

OPERATION

CAUTIONS ON OPERATING

GETTING OUT OF MUD

OPERATIONS POSSIBLE WITH THIS

MACHINE

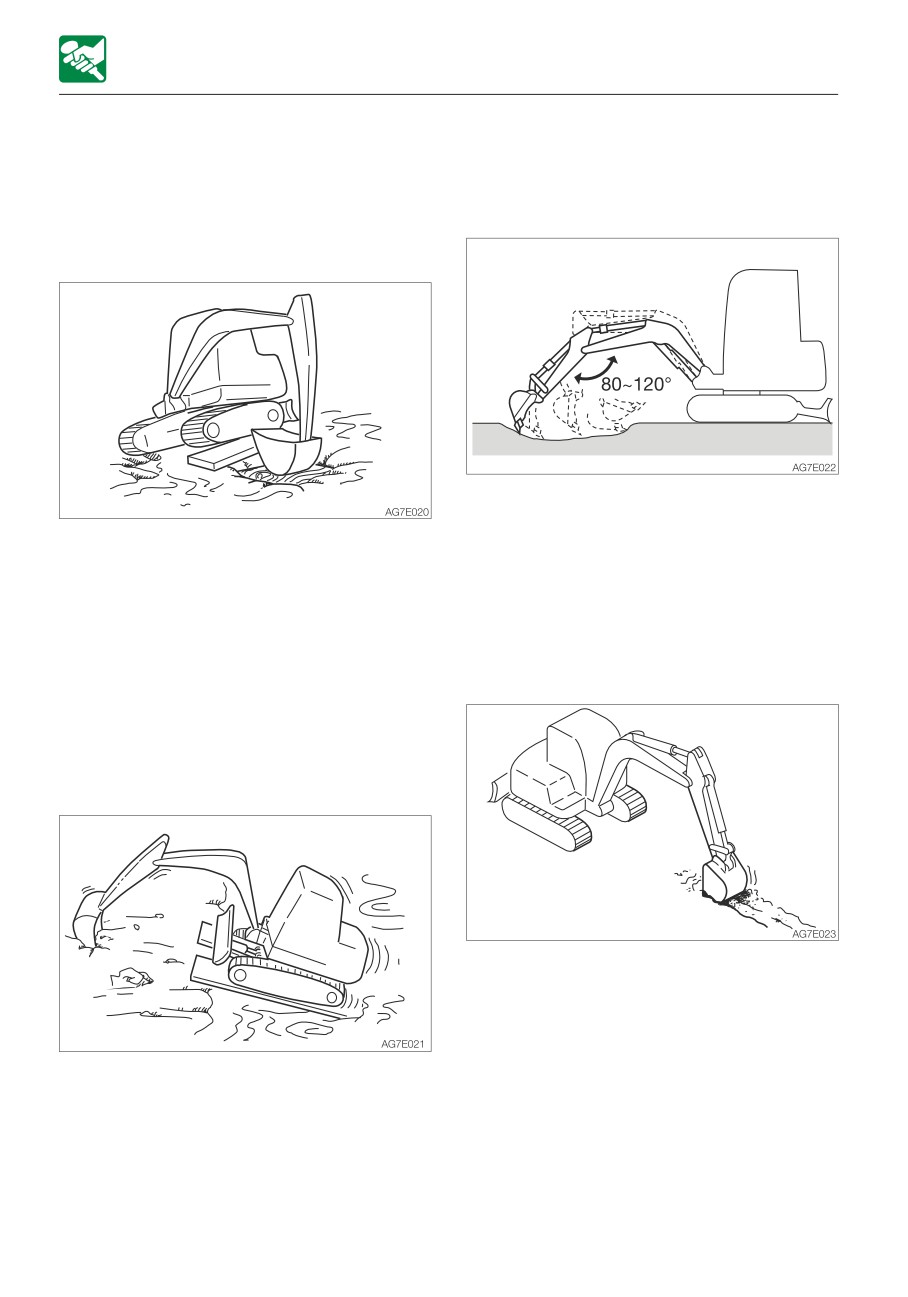

If the machine gets stuck in mud, use the

procedure below to get it out.

Excavating

If one crawler is stuck

1. Set the dozer blade on the side opposite

to the side you want to dig on.

1. Swing the bucket to the side of the

2. Use the arm and bucket and dig with

crawler being stuck.

shallow, long strokes. The maximum

2. Set the arm and boom to an angle of 90

digging force can be obtained when the

to 110°.

boom and arm angle is 80 to 120°. Use

3. Press the bottom of the bucket (not the

this angle for effective digging.

teeth) against the ground.

4. Place a plank or the like under the lifted

Digging ditches

crawler.

5. Lift the bucket and slowly move the

machine out of the mud.

If both crawlers are stuck

Install a bucket suited for digging ditches

and set the crawlers parallel to the ditch to

be dug for greater efficiency.

When digging wide ditches, dig the sides

first, and then dig the center.

1. Perform the steps 1 to 4 above for both

crawlers.

2. Dig the bucket into the ground in front of

the machine.

3. Pull with the arm while traveling forward to

slowly move the machine out.

3-24

OPERATION

CAUTIONS ON OPERATING

Digging side drains

Leveling

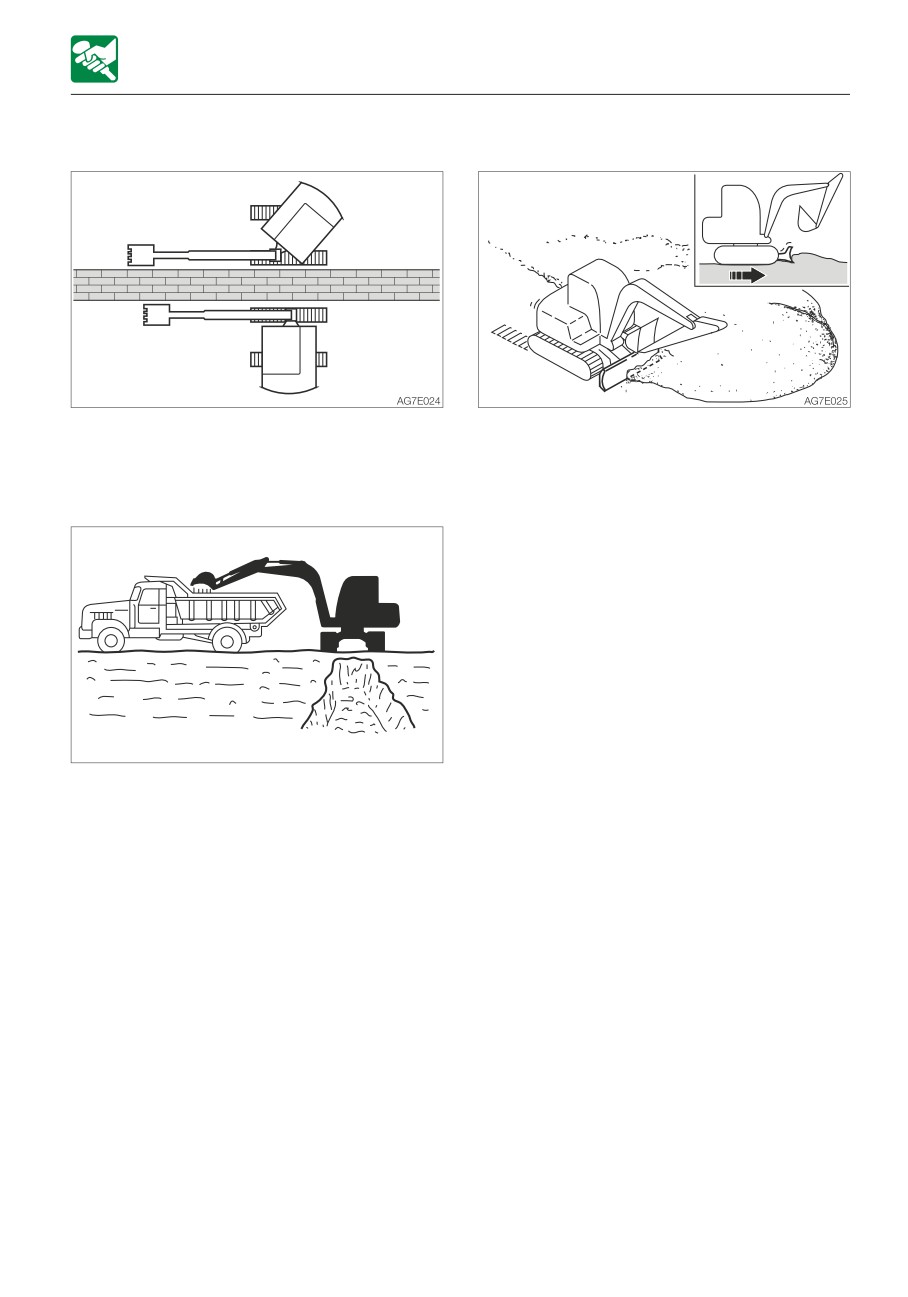

Use the boom swing function to dig side

1. Bring the hoe attachment close to the

ditches as shown in the figure.

body.

2. Gradually remove the dirt from the side of

Loading

the mound.

3. Once the mound is low, remove the dirt

from the top. If the load becomes too

heavy for the machine body, adjust by

raising or lowering the dozer blade.

AG7A040

When loading dirt onto a truck bed, load

from the back of the truck, as it is easier and

able to load more load than doing it from the

front.

Also, use a small slewing angle for greater

efficiency.

3-25

OPERATION

PARKING THE MACHINE

3. Lower the bucket and the dozer blade to

PARKING THE MACHINE

the ground.

PARKING

4. Raise the safety lock lever to the locked

position.

5. Stop the engine and remove the key.

Refer to “Stopping the engine” on page

3-5.

INSPECTION AND CHECKS AFTER

STOPPING THE ENGINE

1. Check for oil or water leak and inspect the

AG7A058

working equipment, covers and

• Park the machine on a flat, rigid and

undercarriage. If any irregularities are

safe ground. Set the parking brake.

found, repair.

2. Fill up the fuel tank.

Refer to “Inspecting the fuel level” on page

5-18.

3. Remove any paper scraps or dirt from the

engine room.

4. Remove any mud from the undercarriage.

Locking

Be sure to lock the following places:

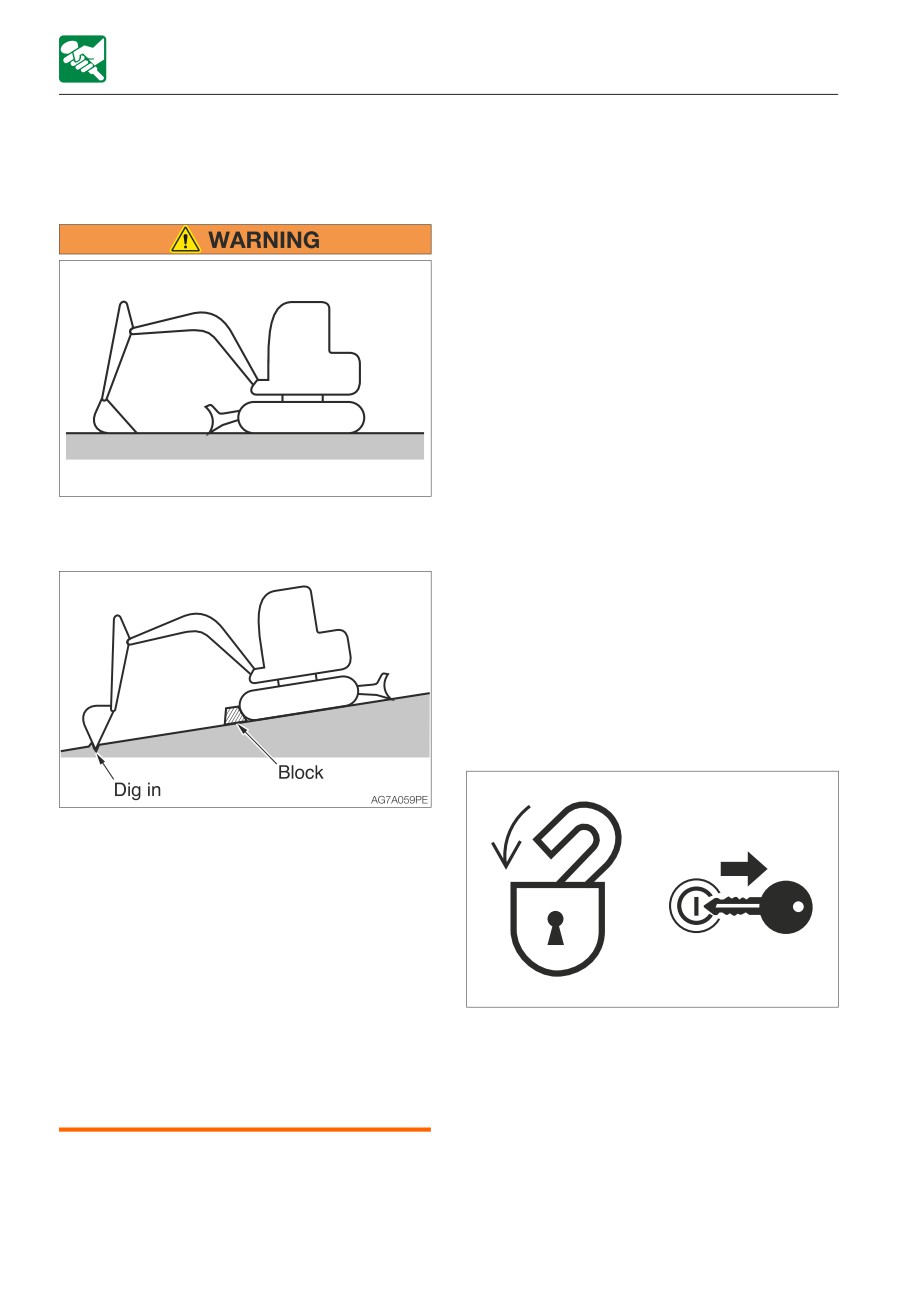

If you must park on a slope or incline,

park the machine securely and block

the movement of the machine.

• When parking on a street, use barriers,

caution signs, lights, etc., so that the

machine can easily be seen even at

night to avoid collision with other

vehicles.

AG7A009

• Before leaving the operator’s seat, raise

the safety lock lever to engage the lock

• Fuel lid

and stop the engine. Also, be sure to

• Manual storage compartment

remove the key, lock the door and

• Engine hood

covers, take it with you and store it in a

• Covers

specified place.

1. Set the left and right travel levers to the

neutral position.

2. Return the throttle lever to idle the engine

at low speed.

3-26

TRANSPORT

LOADING AND UNLOADING

When loading or unloading the machine, be

LOADING AND UNLOADING

sure to use ramps or a platform and follow

the procedure below.

The machine may roll or tip over or fall

while being loaded or unloaded. Take the

following precautions:

• Select a firm, level surface and keep

sufficient distance from road shoulders.

• Secure the ramps of adequate strength

and size to the truck bed. The slope of

Ramp

the ramps must not exceed 15°. If the

rumps are bowed down too low,

Stopper

support them with poles or blocks.

• Never use the working equipment to

15º or less

Distance between ramps

load or unload the machine. Doing so

AG7F001PE

may result in tipping over or falling

1. Set the parking brake on the transporter

down of the machine.

and chock the wheels.

• Keep the truck bed and loading ramps

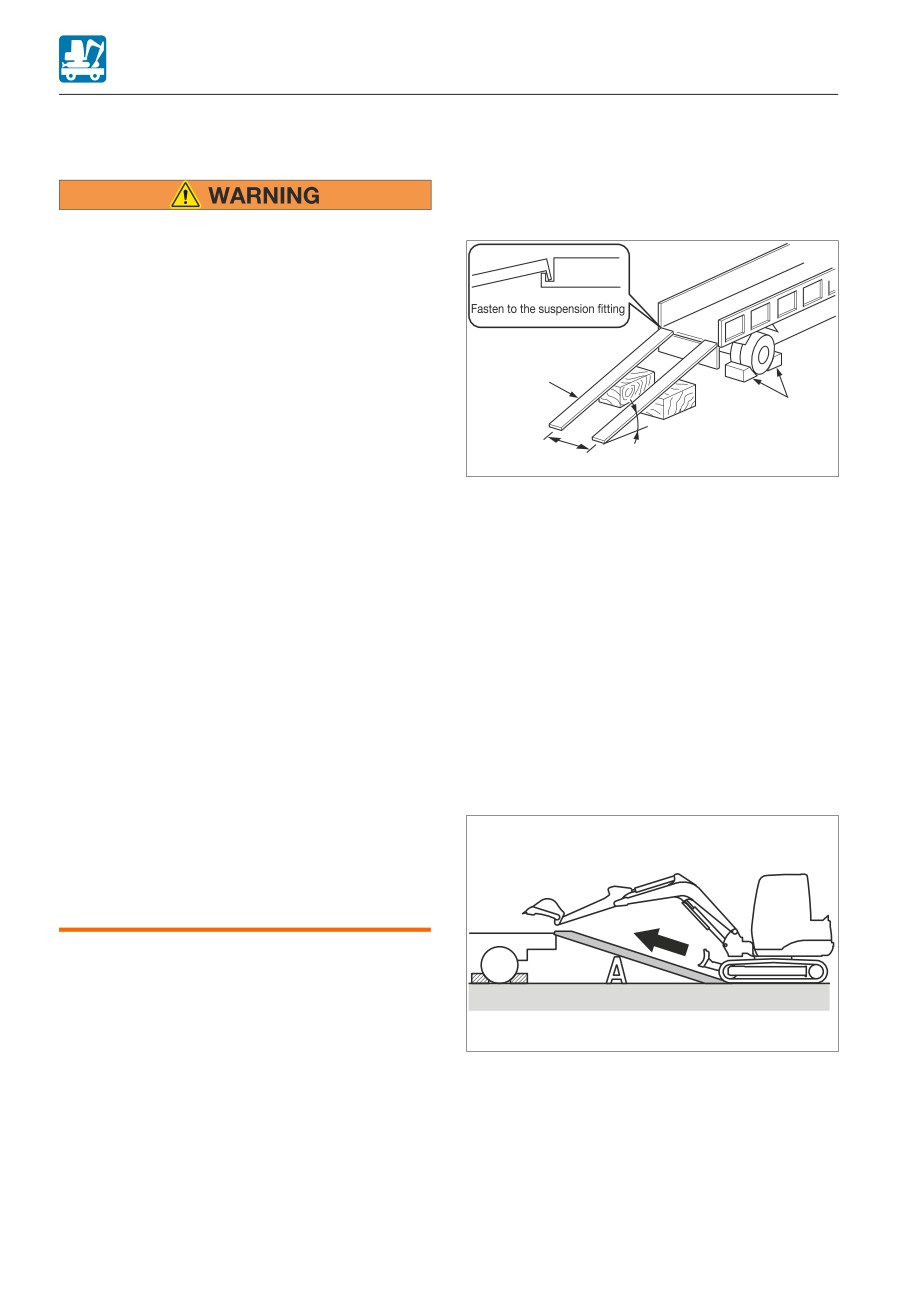

2. Fix the ramps securely to the truck bed.

clean of oil, soil, ice, snow, and other

The slope of the ramps must not exceed

materials to prevent the machine from

15°.

sliding sideways. Clean the crawlers.

3. Align the center of the truck bed with the

• Chock the transporter wheels to prevent

center of the machine, and of the ramp

movement.

with the center of the crawler.

• When being loaded or unloaded, travel

4. Make sure the dozer blade does not hit

slowly in 1st (low) gear by following the

the ramps.

signal from the signal person.

5. Lower the hoe attachment as far as

• Never change courses on the ramp.

possible without letting it touch the

• Do not slew/swing on the ramp. The

transporter.

machine may tip over.

6. Decrease the engine speed.

• When slewing/swinging on the truck

bed, do it slowly as the footing should

be unstable.

• Chock the tracks and secure the

machine to the truck bed with wire rope

or chain.

AG7F002

4-2

TRANSPORT

LOADING AND UNLOADING

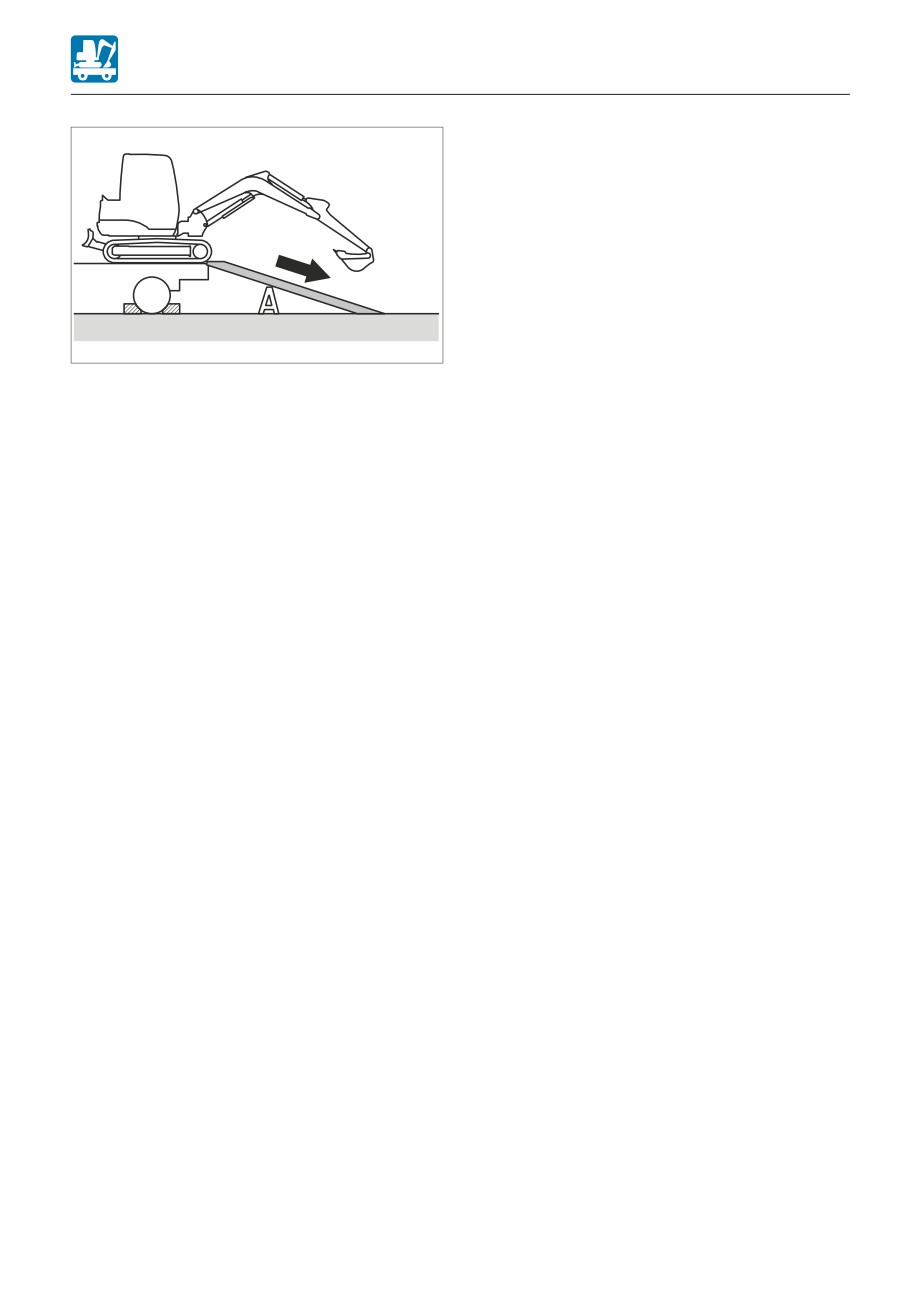

AG7F003

7. Drive the machine straight toward the

ramps and travel up or down the ramps at

1st (low) speed, by following the signal

from the signal person.

8. Load the machine at the specified position

on the transporter.

Refer to “Transporting posture” on page

4-5.

4-3

TRANSPORT

HOISTING THE MACHINE

Hoisting

HOISTING THE MACHINE

1. Slew the upperstructure so that the dozer

blade is at the rear of the machine (set the

upperstructure parallel to the track frame).

• Know and use the correct crane signals.

2. Raise the dozer blade fully.

• Check the hoisting equipment for

3. Extend the bucket cylinder and arm

damaged or missing parts on a daily

cylinder fully to raise the boom to its

basis and replace as necessary.

uppermost position.

• When hoisting, use a wire rope capable

4. If the boom is swung to either the left or

of lifting the machine mass.

right side, set it in the neutral position.

• Hoist the machine in such a manner

5. Raise the safety lock lever to the locked

described in the procedure below. Do

position.

not do it in any other manner. Doing so

6. Stop the engine, remove the starter key

is dangerous as it may result in the

and get off the machine.

machine losing its balance.

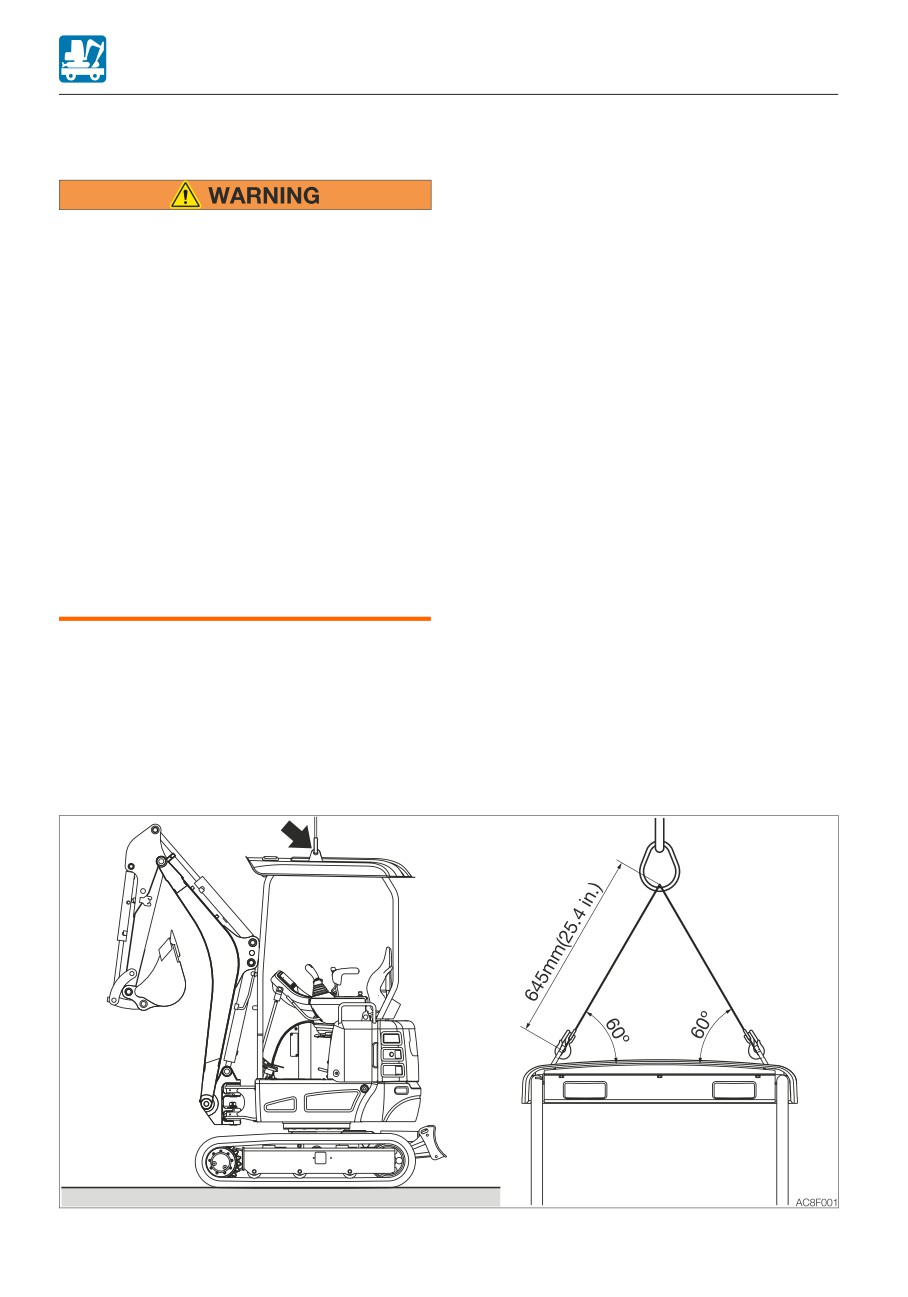

7. Install the wire ropes as shown on the

• Do not hoist the machine with an

figure below. The hoisting angle must be

operator on it.

60°; otherwise, the hook may be

• When hoisting, hoist slowly so that the

damaged.

machine does not tip.

8. Hoist the machine slowly until it leaves the

• Keep everyone out of the area when

ground.

hoisting. Do not move the machine over

9. Stop hoisting until the machine becomes

the heads of the persons.

stable, and then start hoisting the machine

slowly again.

IMPORTANT: This hoisting method

applies to machines with standard

specifications. The center of gravity

differs according to the attachments and

optional equipment installed.

Contact your Takeuchi service agent for

details.

4-4

TRANSPORT

SECURING THE MACHINE

SECURING THE MACHINE

After loading the machine at the specified position, secure it as described below.

Transporting posture

1. Lower the dozer blade.

Precautions to be taken during

2. Extend the bucket cylinder and arm

transportation

cylinder fully, and then lower the boom.

3. Raise the safety lock lever to the locked

position.

• Know and follow the applicable safety

4. Stop the engine, remove the starter key

rules, vehicle code and traffic laws

and lock all locks.

when transporting the machine.

5. Place the stoppers (chocks) in front and

• Select the best transport route by

behind the crawlers.

considering the length, width, height

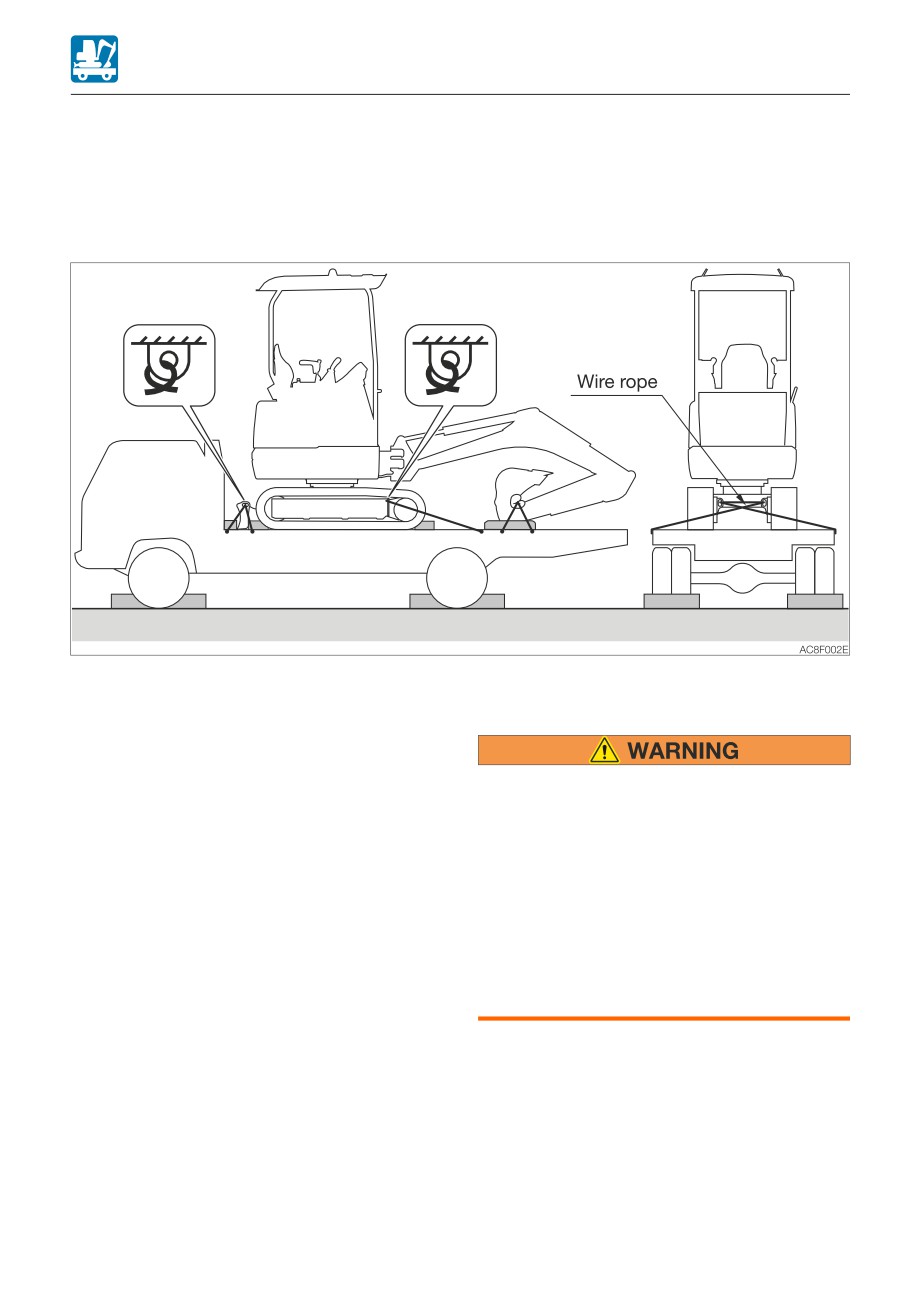

6. Install a chain or wire rope over the lower

and weight of the truck with the

frame of the machine and fasten it

machine loaded on it.

securely to prevent the machine from

• Never abruptly start or stop or run at a

slipping sideways.

high speed at the sharp curves during

7. Secure the bucket with a chain or wire

transport. Doing so will move or lose the

rope.

balance of the loaded machine.

IMPORTANT: Place a wooden block under

the bucket to protect the floor from

damage caused by the bucket.

4-5

MAINTENANCE

GENERAL

Clean the installation surfaces

Cautions on handling of battery wiring

When installing and removing parts, be sure

• Disconnect the wiring from the both

that the surfaces of contact of the parts are

terminals (+ and -) on the battery before

clean. If the sealing grooves of the surface of

working on the electrical system or doing

contact are damaged, consult your sales or

electric welding.

service dealer for repair or release.

Always disconnect it from the earth side (-).

When connecting, connect the earth side

Seals and split pins

last.

• Be sure to replace all seals and cotter pins

• Do not disconnect the battery wiring while

with new ones.

the engine is moving. Otherwise, the

• When installing, be careful not to damage

electric circuits of the rotary converter or

or twist the seal.

others may be damaged.

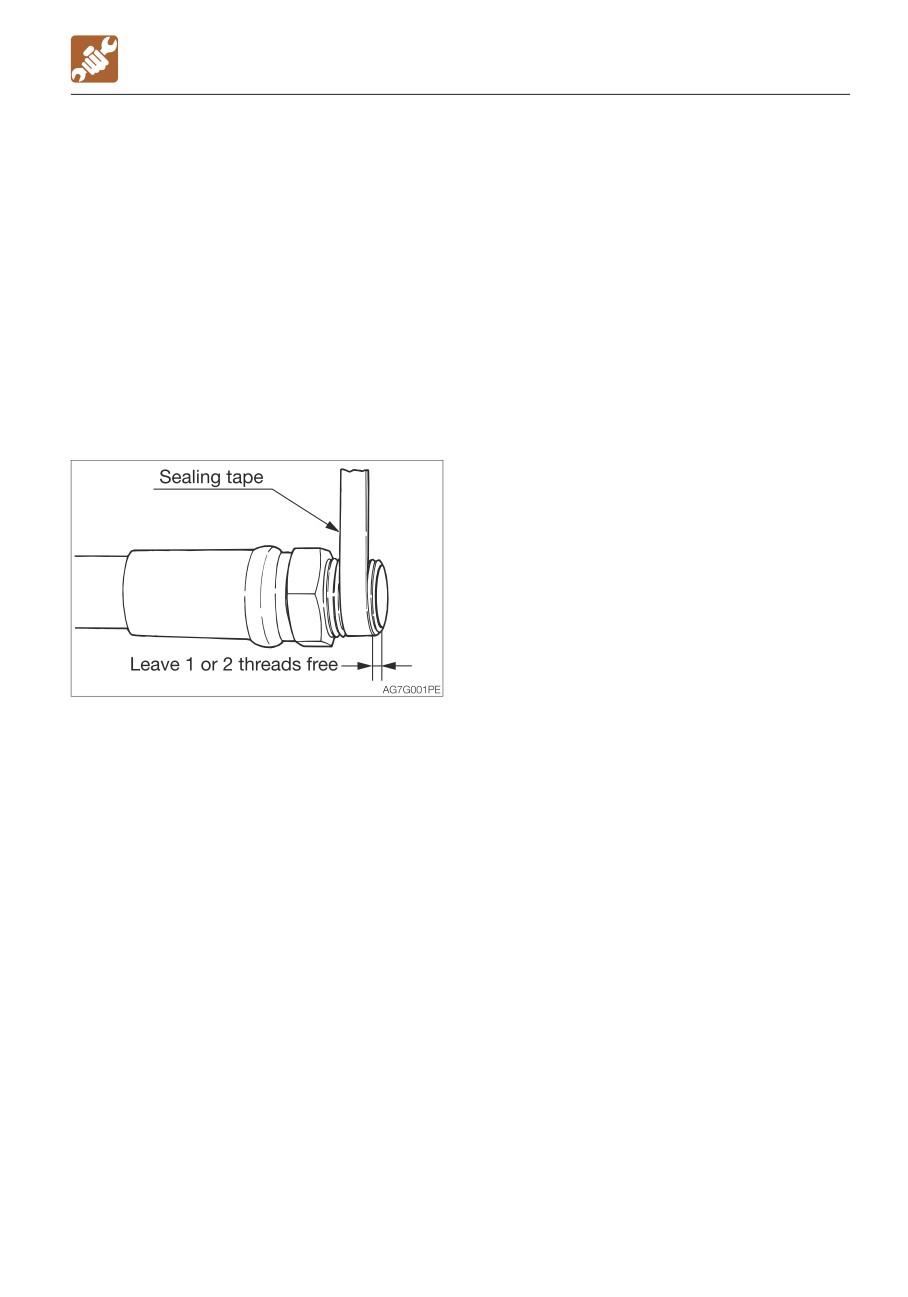

Sealing tape

• When wrapping the plug with sealing tape,

remove any old sealing tape from the

threads and clean the threads.

• Wrap the thread tight with seal tape

starting 1 or 2 threads away from the

thread end.

Disposing of wastes

• Always collect oil that is drained from the

machine in containers. Improperly

disposed waste oil can cause

environmental harm.

• Follow appropriate laws and regulations

when disposing of harmful objects such as

oil, fuel, cooling water, coolant, filters and

batteries.

Check after maintenance

• Gradually increase the engine speed from a

low idle to maximum speed and check that

there is no oil or water leaking from

serviced parts.

• Operate each control lever and check that

the machine is operating properly.

5-3

MAINTENANCE

SERVICE DATA

SERVICE DATA

FUEL AND LUBRICANT TABLE

Select the appropriate fuel, lubricant and grease according to the temperature by referring to

the table below.

• Regardless of the specified time, change the oil if it becomes too dirty or degraded.

• When refilling, never mix oils of different brands. If a brand is to be changed, replace the

whole fuel/oil.

Fuel

Diesel fuel specifications

Diesel fuel should comply with the following specifications. The table lists several worldwide

specifications for diesel fuels.

Diesel fuel specification

Location

Diesel fuel specification

Location

ASTM D975

No.1D S15

EN590: 96

No.2D S15

USA

European union

Bio-diesel fuel

Canada

Bio-diesel fuel

Biodiesel blends up to B5

Biodiesel blends up to B5

ASTM D6751, D7467

EN14214, EN590

ISO 8217DMX

International

BS2869-A1 or A2

United kingdom

To maintain the performance and service life of the engine, always use

clean and high-quality fuel.

• To avoid freezing in cold climates, use a diesel fuel that still functions

when the temperature is at least 12°C (53.6°F) below the lowest

expected ambient temperature.

• Use a diesel fuel that has a cetane number of 45 or higher. When

operating at a very low temperature or at a high altitude, a higher cetane

number fuel will be required.

• Use fuel with sulfur content of less than 0.05 to 0.0015% by volume.

Especially in the U.S.A. and Canada, ultra-low sulfur fuel should be used.

A higher sulfur content fuel may cause sulfuric acid corrosion in the

Fuel

Diesel

cylinders of the engines.

tank

fuel

• Never mix kerosene, used engine oil, or residual fuel with the diesel fuel.

Use of kerosene is prohibited.

• Poor quality fuel can reduce engine performance and / or cause engine

damage.

• Fuel additives are not recommended. Some fuel additives may cause

poor engine performance.

• The content of metal, such as zinc, sodium, magnesium, silicon and

aluminum, must be 1 mass ppm or less. (JPI-5S-44-95 test analysis

method)

Precautions when using bio-diesel fuel

The warranty of the engine manufacturer may be voided by using a bio-

diesel fuel that does not meet the standard or that is deteriorated.

5-4

MAINTENANCE

SERVICE DATA

Lubricant

Type by air temperature

Location

Type

-4

14

32

50

68

86 104°F

When to replace

-20 -10

0

10

20

30 40°C

Diesel engine oil

Every 250 hrs.

SAE 10W-30

Engine oil pan

API: CD class

after the initial

SAE 15W-40

ACEA: E-3, E-4 or E-5

50 hrs.

Takeuchi genuine

Every 4000

ISO VG46

hydraulic oil 46

hrs.***

Hydraulic oil

ISO VG32

tank

Every 2000

Anti-wear hydraulic oil

ISO VG46

hrs.***

ISOVG68

Cooling water (water +

Engine cooling

Mixture of 50% coolant

coolant)**

Every 1000 hrs.

system

Mixture of 30% coolant

SAE: J814C or J1034

Every 1000 hrs

Travel reduction

Gear oil

SAE 90

after the initial

gear

API: GL-4

250 hrs*.

Slew motor pinion

Every 50 hrs.

Lithium based grease

Slew bearing

Every 50 hrs.

EP-2

—

Working equipment

Daily or every 10 hrs.

NLGI No.2

Levers

When required

* : If the ratio of traveling time to total operating time is high, replace the gear oil earlier than

the specified time.

** : For water, use tap water (soft). Do not use well or river water. When the ambient

temperature drops below 0°C (32°F), add coolant (antifreeze). Follow the coolant

manufacturer’s instructions to determine the mixture ratio.

*** : The hydraulic oil replacement interval depends on the type of hydraulic oil being used. New

machine are delivered with Takeuchi genuine hydraulic oil 46, and the hydraulic oil

replacement intervals indicated in this manual assume that Takeuchi genuine hydraulic oil

46 is being used. When using conventional antiwear hydraulic oil, the hydraulic oil should

be replaced every 2000 hours.

5-5

MAINTENANCE

SERVICE DATA

Volume

Engine cooling

Hydraulic oil

Travel reduction

Engine oil pan

Fuel tank

system

tank

gear

Upper limit

3.9 L (4.1 US qt.)

System

22 L (5.8 US gal.)

0.33L X 2

4.3 L (4.5 US qt.)

24 L (6.3 US gal.)

(0.35 US qt.) X 2

Lower limit

Tank

1.5 L (1.6 US qt.)

16.1 L (4.3 US

gal.)

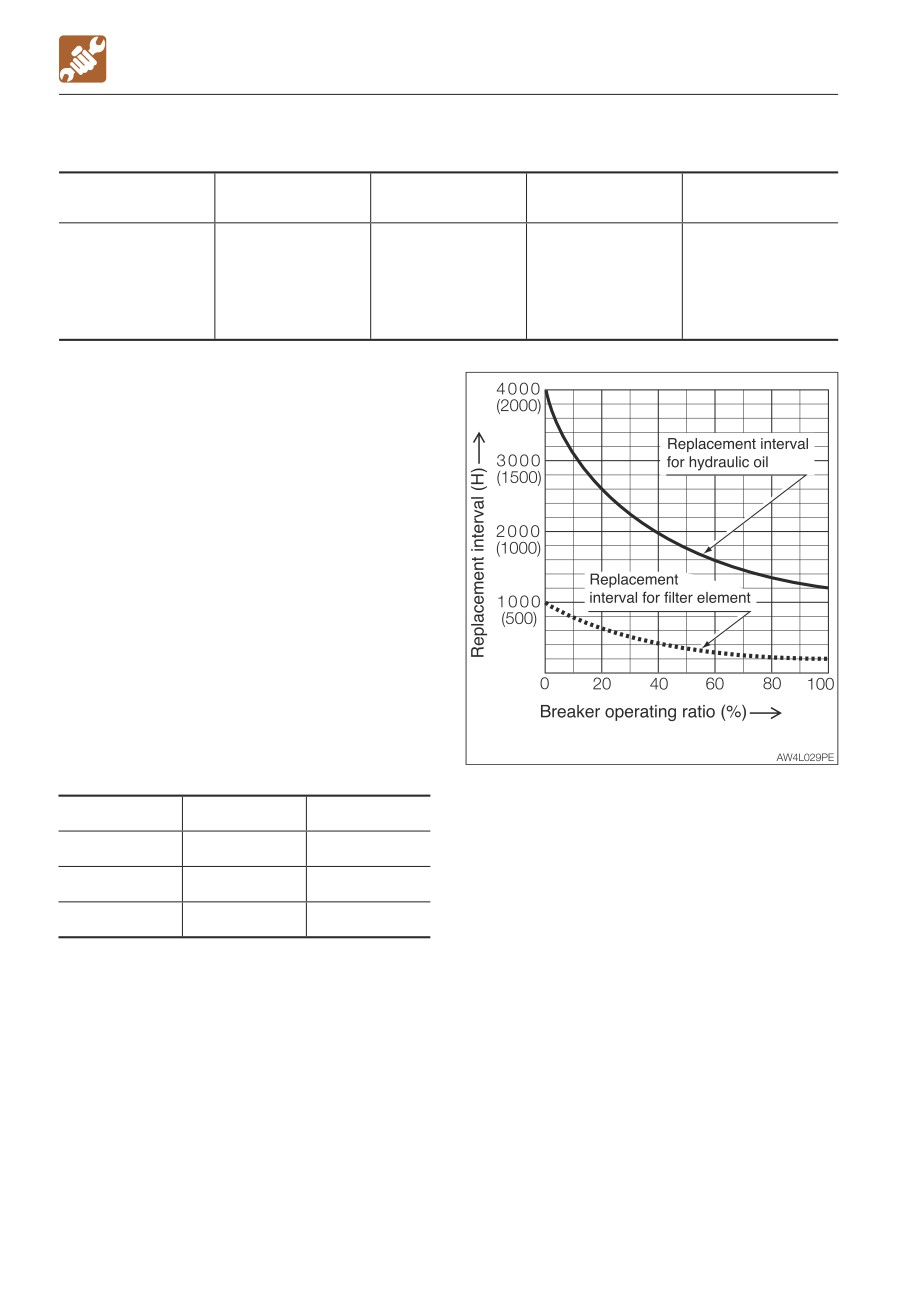

REGULARLY REPLACE THE HYDRAULIC

OIL

When a hydraulic breaker is used, the oil

deteriorates more quickly than that used for

a usual excavation operation. Be sure to

replace the hydraulic oil and the return filter

elements.

• Failure to replace these in time can lead to

damage to the machine and the breaker

hydraulic system. To prolong the service life

of the hydraulic devices, properly replace

the hydraulic oil and the return filter

elements according to the table below.

• When replacing the hydraulic oil, clean the

suction strainer.

Replacement interval (hours)

( ):

When a conventional antiwear hydraulic

oil is used.

Item

Hydraulic oil

Filter element

1st time

—

25

2nd time

—

100

Periodically

1200 (600)

200

When the breaker operating ratio is 100%.

Refer to “Hydraulic breaker” on page 8-6.

5-6

MAINTENANCE

SERVICE DATA

LIST OF CONSUMABLES

Periodically replace consumables such as filters and elements according to the table below.

System

Item

Part name

Part No.

When to replace

Hydraulic oil

Every 500 hrs after

Hydraulic system

Element

15511-01300

return filter

the initial 50 hrs.

Engine lubrication

Every 250 hrs after

Engine oil filter

Cartridge

Y119305-35160

system

the initial 50 hrs.

Water separator

Y171081-55910

filter

Fuel system

Element

Every 500 hrs.

Fuel filter

Y119810-55650

Every 1000 hrs. or

Primary (Outer)

after 6 cleanings

Y119515-12520

element

(whichever comes

first)

Air cleaner system

Air cleaner

When the primary

Secondary

19111-01342

elements are

(Inner) element

replaced.

5-7

MAINTENANCE

SERVICE DATA

LIST OF TOOLS

Code

Part name

Part No.

Remarks

1

Spanner

19100-47081

10 - 12

2

Spanner

19100-47082

14 - 17

3

Screwdriver

19100-06112

(+) (-) replaceable shank

4

Filter wrench

19100-96081

5

Monkey wrench

16904-00250

250 mm

6

Pliers

16905-00200

200 mm

7

Spanner

16901-00013

13

8

Spanner

16900-01922

19 - 22

9

Spanner

16909-00026

26

10

Tool case

16914-00005

11

Grease gun

16910-60600

600 cc

12

Drain connector

15545-12201

5-8

MAINTENANCE

SERVICE DATA

LIST OF TIGHTENING TORQUES

Nuts and Bolts (for ISO strength category 10.9)

Tighten nuts and bolts at the torques shown on the table below, unless otherwise specified.

• The tightening torques used for the mounted plastic covers are not listed in the table below.

Consult your sales or service dealer for details. They will be damaged if over tightened.

• When replacing nuts and bolts, replace them with nuts and bolts of the same size and

standards.

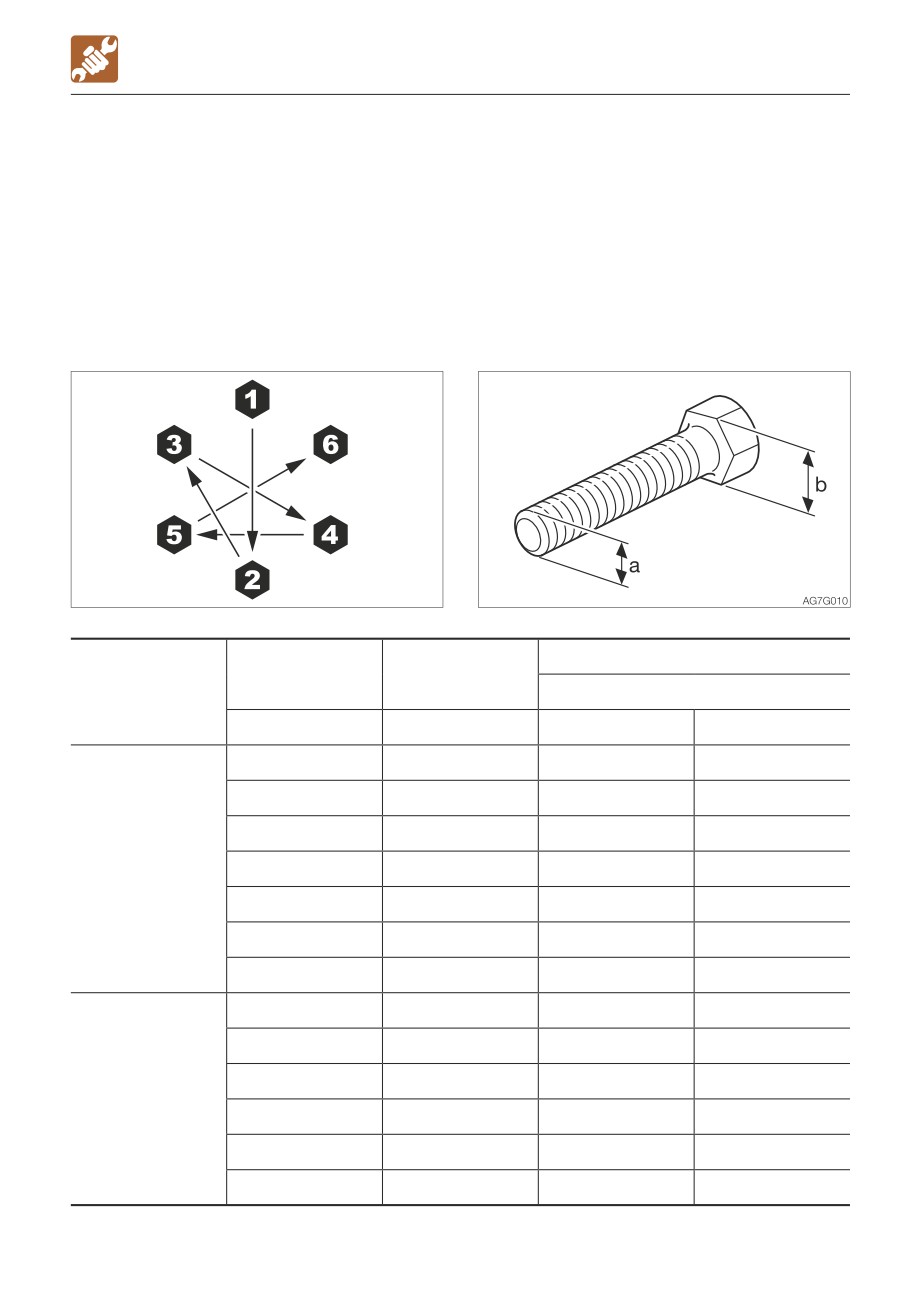

• Tighten nuts and bolts alternately (top, bottom, left then right) or in 2 or 3 times so that they

are evenly tightened.

AG7G009

Tightening torque

Head width (b)

Size (a) x pitch

Classification

General connection points

mm

mm

N·m

ft-lb.

10

M6 x 1.0

9.8±0.5

7.2±0.4

12, 13

M8 x 1.25

22.6±1.1

16.6±0.8

14, 17

M10 x 1.5

47.1±2.4

34.7±1.7

Coarse

17, 19

M12 x 1.75

83.4±4.1

61.5±3.0

19, 22

M14 x 2.0

134.4±6.7

99.1±4.9

22, 24

M16 x 2.0

207.9±10.4

153.3±7.7

27, 30

M20 x 2.5

410.9±20.5

303.1±15.1

12, 13

M8 x 1.0

24.5±1.2

18.1±0.9

14, 17

M10 x 1.25

50±2.5

36.9±1.8

17, 19

M12 x 1.5

87.3±4.3

64.4±3.2

Fine

19, 22

M14 x 1.5

135.3±6.8

99.8±5.0

22, 24

M16 x 1.5

220.6±11

162.7±8.1

27, 30

M20 x 1.5

452.1±22.6

333.4±16.6

5-9

MAINTENANCE

SAFETY-CRITICAL PARTS

SAFETY-CRITICAL PARTS

To use the machine safely, periodically perform inspection and maintenance. The safety-critical

parts listed below must be periodically replaced for an increased safety.

Serious injury or a fire could result if they are worn or damaged.

List of safety-critical parts

Unit

Safety-critical parts to be replaced periodically

When to replace

Fuel hoses

Fuel system

Packing on fuel filler cap

Hydraulic hoses (pump - delivery)

Hydraulic hoses (pump - suction)

Main body

Hydraulic hoses (slew motor)

Hydraulic hoses (travel motor)

Hydraulic hoses (boom cylinder piping)

Every 2 years

Hydraulic hoses (arm cylinder piping)

Hydraulic

system

Hydraulic hoses (bucket cylinder piping)

Hydraulic hoses (swing cylinder)

Working

equipment

Hydraulic hoses (blade cylinder)

Hydraulic hoses (span cylinder)

Hydraulic hoses (pilot valve)

Hydraulic hoses (auxiliary piping)

Seat belt

Every 3 years

5-10

Content      ..     1      2      3      4      ..
