Takeuchi Mini excavator TB215R (Serial No.215000003~). Operators Manual (2013)

SAFETY

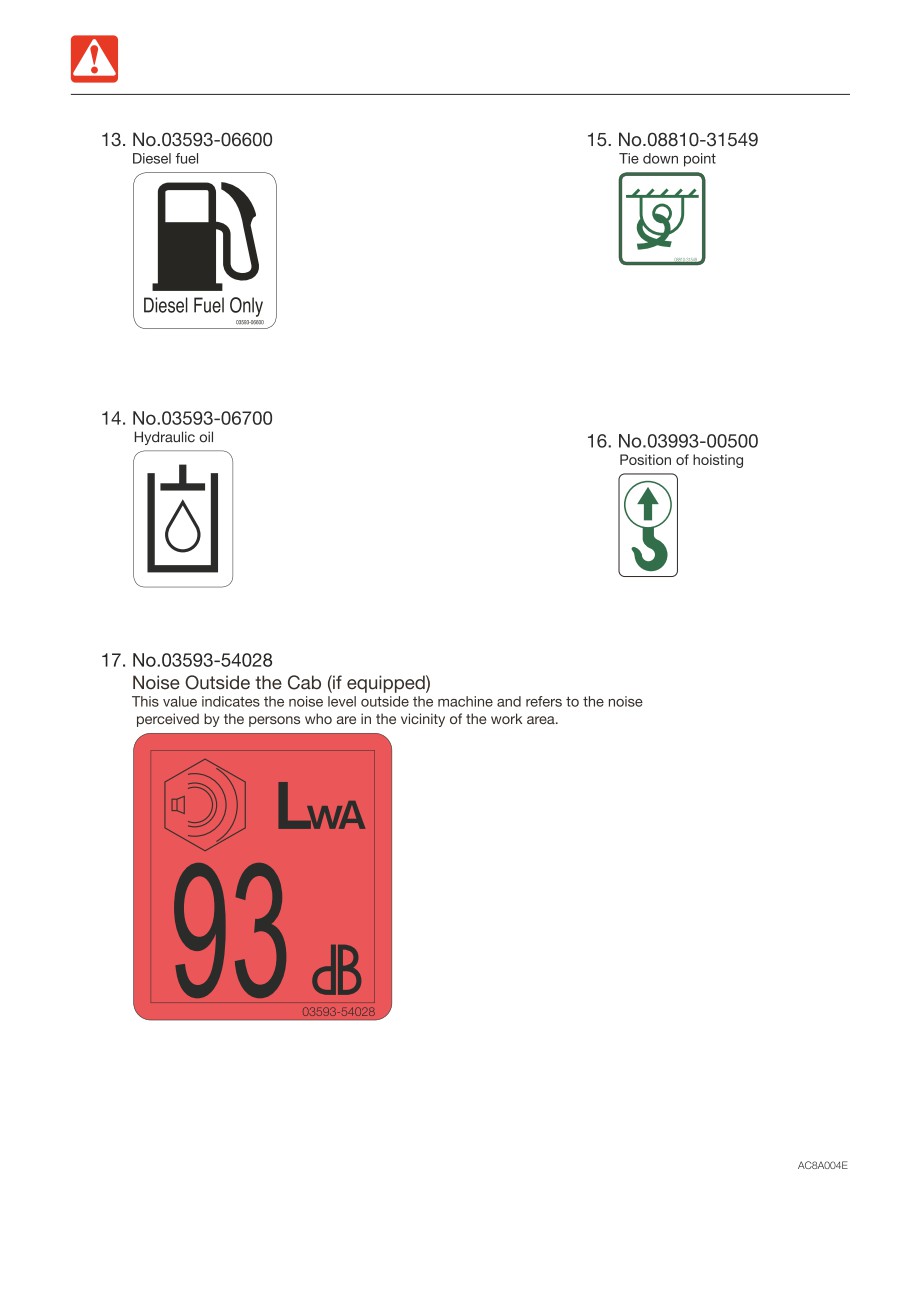

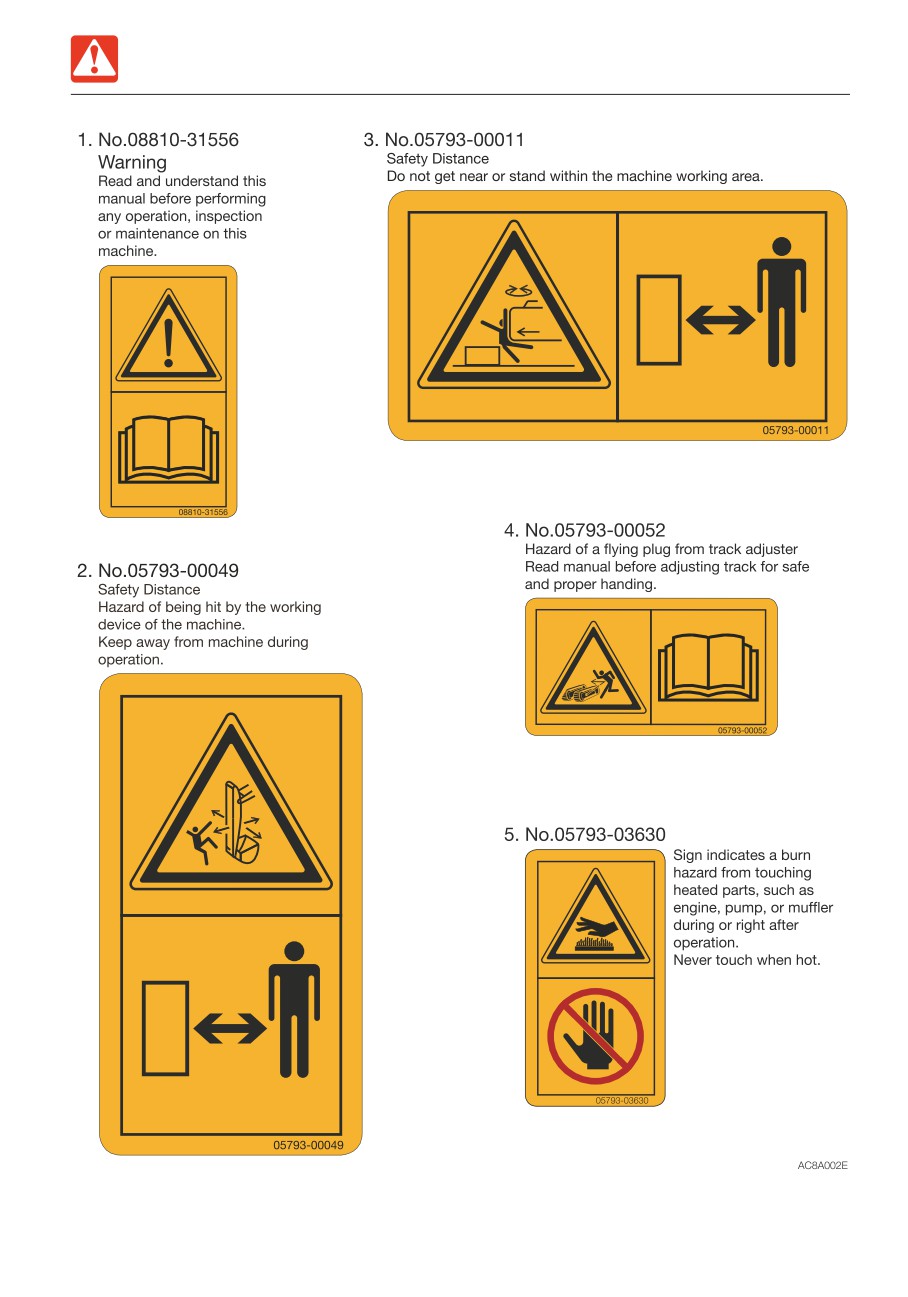

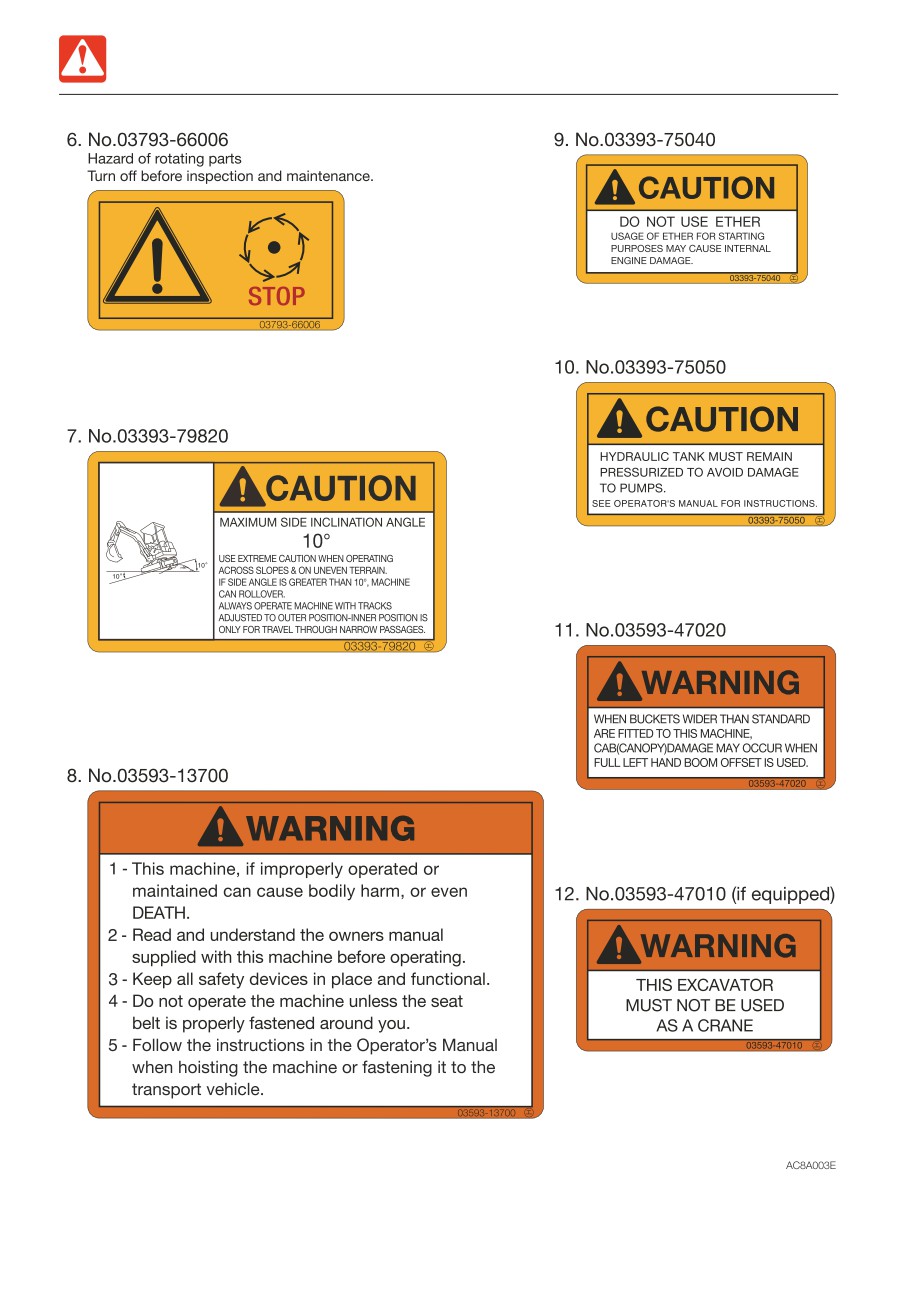

SAFETY SIGNS (DECALS)

For the safety of the operator and the personnel working around the site, safety signs (decals)

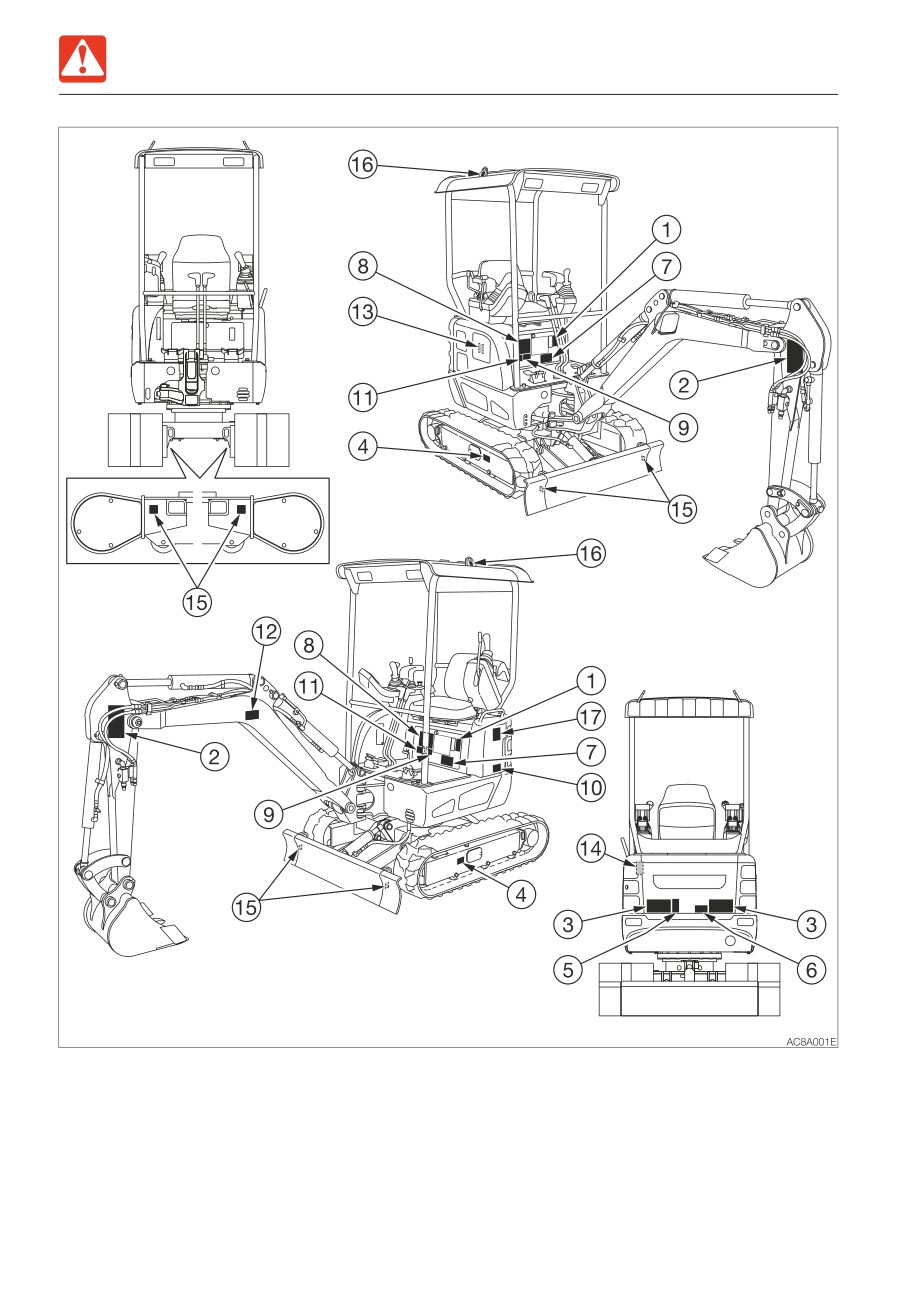

are placed at certain locations on the machine as shown below. Walk around the machine with

this manual, and check the content and location of these safety signs. Review these signs and

the operating instructions in this manual with your machine operators.

• Keep the signs clean and legible. If any of the safety labels is peeling or damaged and

becomes difficult to read, replenish it with a new one. Please include your product serial

number when ordering a new sign from the Takeuchi service agent.

• When a part/unit to which a safety sign is attached is replenished, a new sign must be

attached to the new part/unit.

1-33

CONTROLS

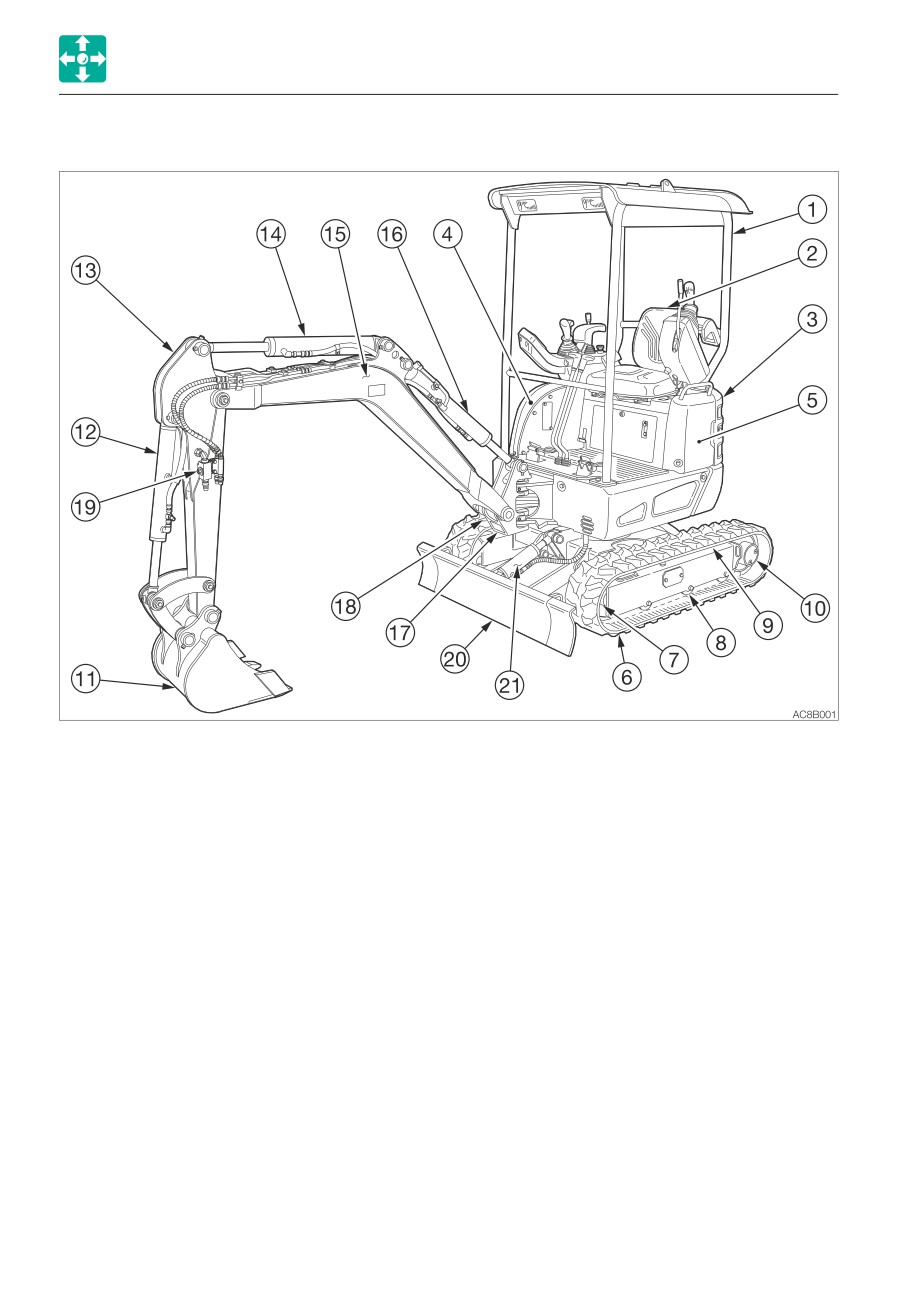

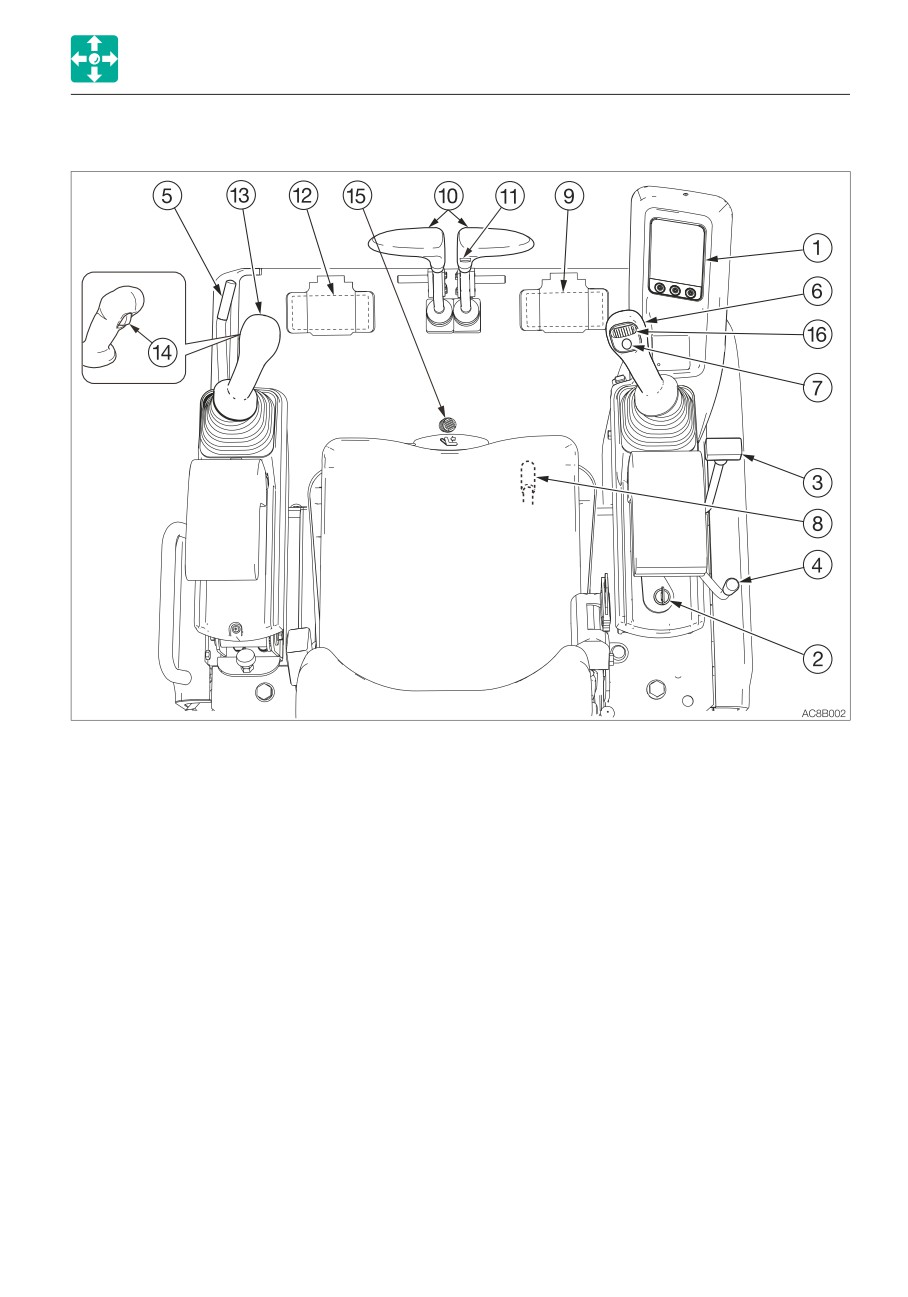

NAMES OF COMPONENTS

1. Instrument cluster

10. Travel lever/Pedal

2. Starter switch

11. Travel speed switch

3. Blade lever

12. Auxiliary hydraulic pedal

4. Throttle lever

13. Left operating lever

5. Safety lock lever

14. Third auxiliary hydraulic botton*

6. Right operating lever

15. Third auxiliary hydraulic switch*

7. Horn button

16. Auxiliary 2nd switch*

8. Selector lever

9. Boom swing pedal

*: Subject to the specifications or optional products selected

2-3

CONTROLS

COVERS

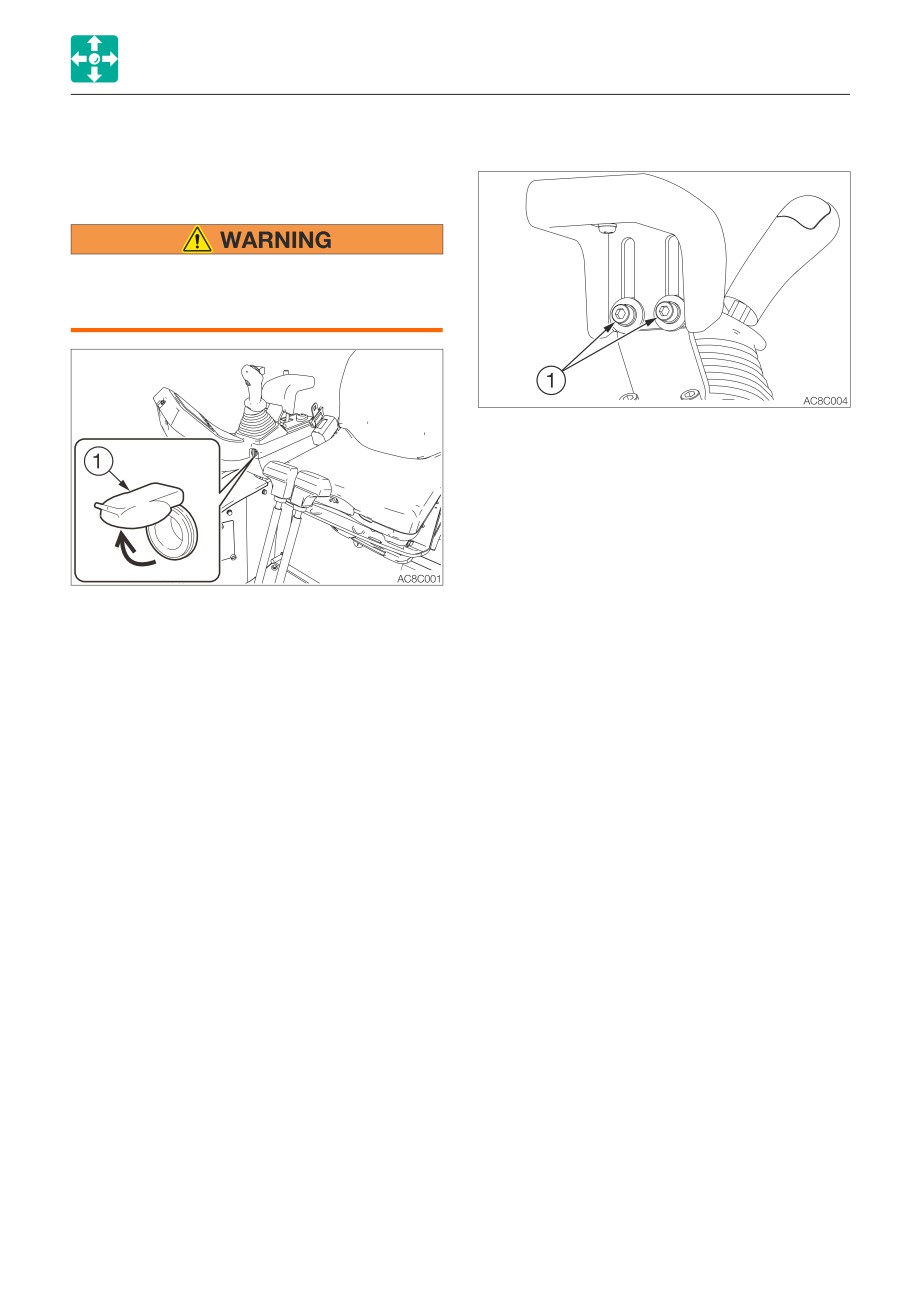

MAINTENANCE COVER A

COVERS

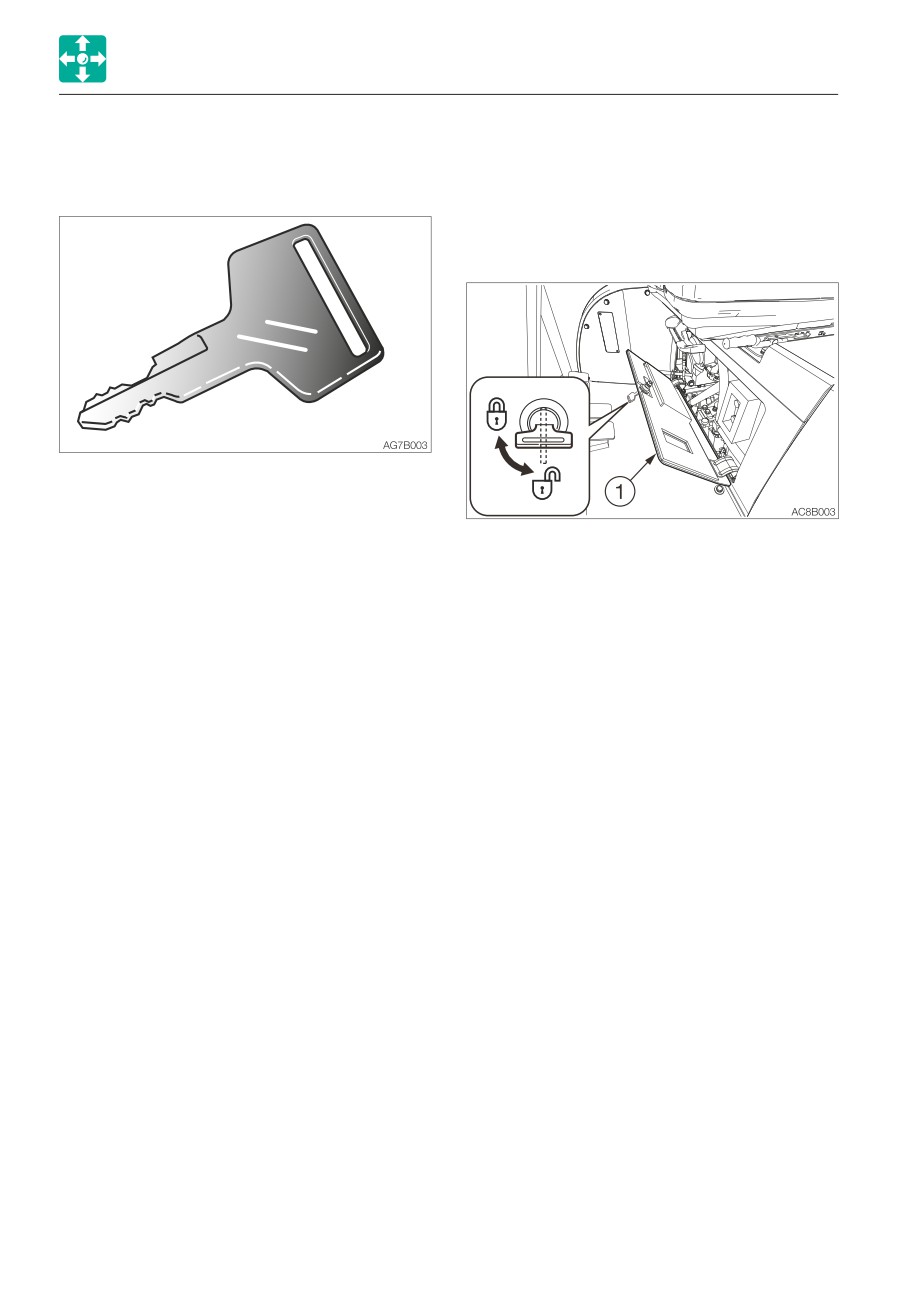

STARTER KEY

Opening

Open this cover to perform a maintenance

operation of the engine or to switch the

selector valve.

The starter key is used to start and stop the

engine, as well as to lock and unlock the

following components:

• Fuel lid

1. Insert the starter key and turn it

• Manual storage compartment

counterclockwise to unlock the

• Engine hood

maintenance cover A (1).

• Covers

Closing

1. Close the maintenance cover A (1).

2. Insert the starter key and turn it clockwise

to lock the maintenance cover A (1).

2-4

CONTROLS

COVERS

FUEL LID

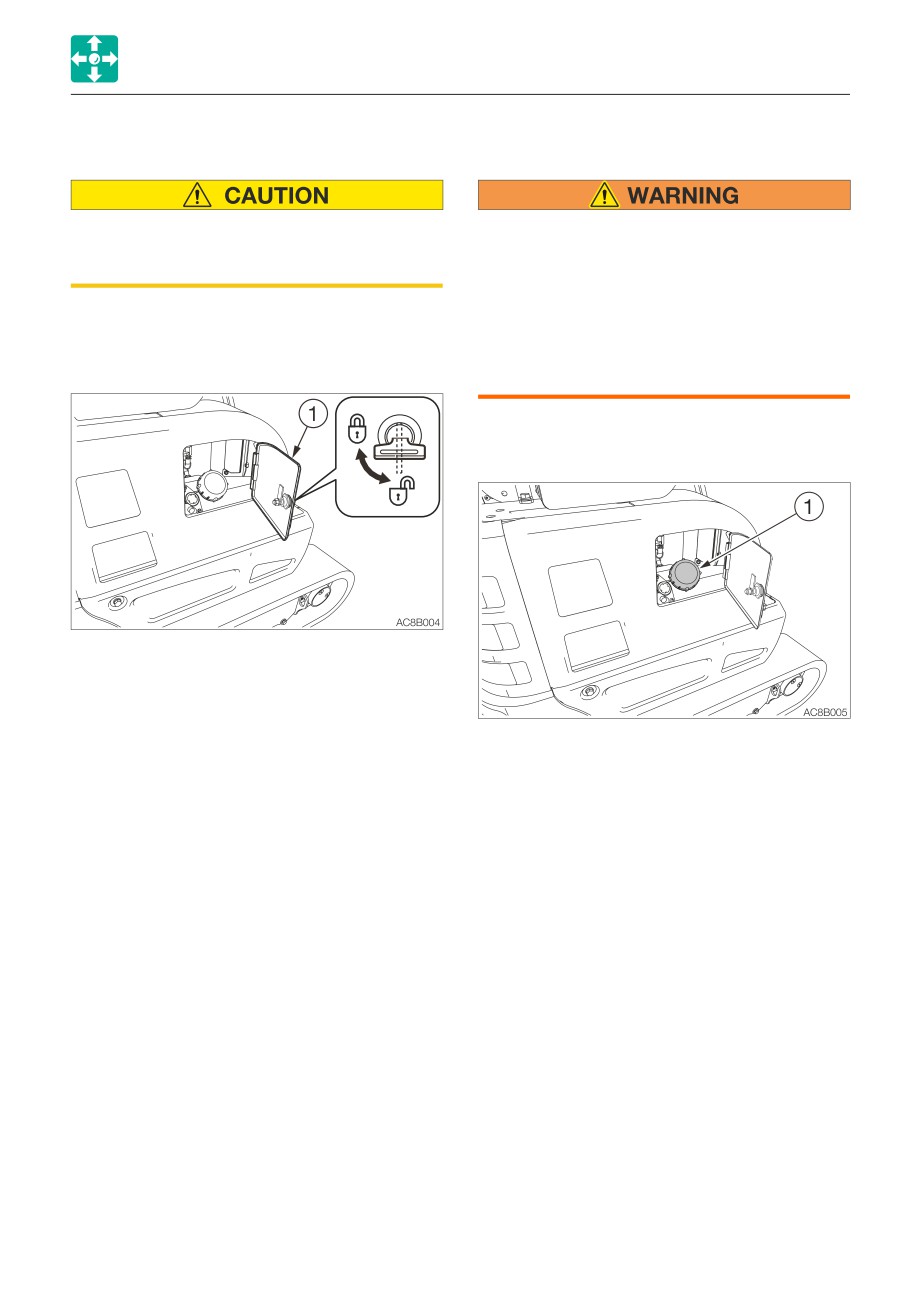

FUEL FILLER PORT

When opening and closing the fuel lid, be

• Do not smoke and keep away from heat

careful not to get your hands caught by

or flame while filling the fuel tank.

the lid.

• Fill the fuel tank in a well ventilated

place, with the engine turned off.

For adding fuel, open this cover.

• Clean up spilled fuel immediately.

• Do not fill the fuel tank to capacity.

Opening

Allow room for oil expansion.

• Securely tighten the fuel filler cap.

Opening

1. Insert the starter key and turn it

counterclockwise to unlock the fuel lid (1).

Closing

1. Close the fuel lid (1).

1. Open the fuel lid.

2. Insert the starter key and turn it clockwise

2. Turn the fuel cap (1) counterclockwise and

to lock the fuel lid (1).

remove it.

Closing

1. Turn the fuel cap (1) it clockwise and close

it.

2. Close the fuel lid and lock it.

2-5

CONTROLS

COVERS

ENGINE HOOD

MAINTENANCE COVER B

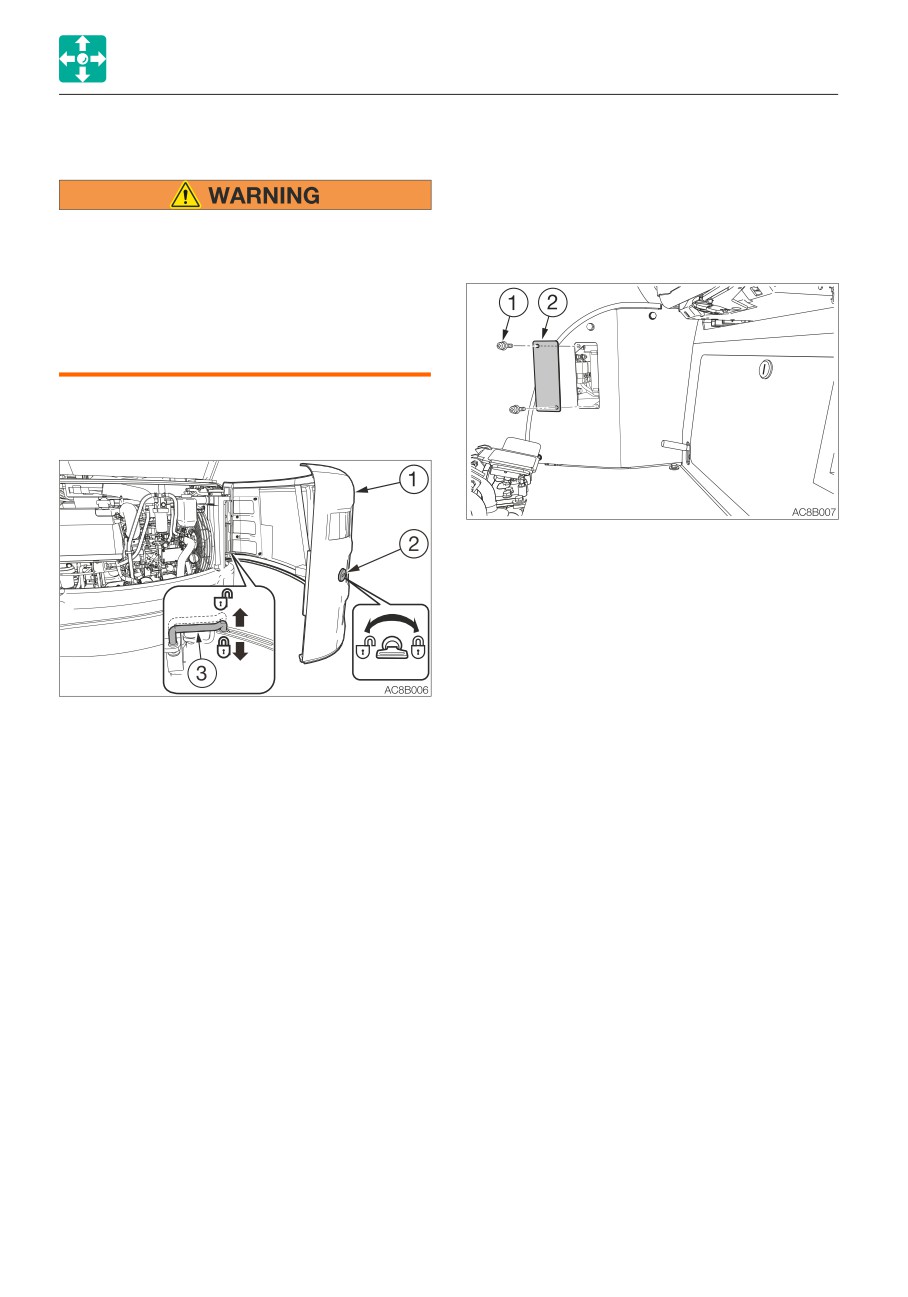

For inspection and maintenance of the fuse,

open this cover.

• Before opening the engine hood, be

sure to stop the engine. If a hand or tool

Opening

becomes trapped in the rotating or

moving part, serious injury could result.

• When opening or closing the engine

hood, be careful not to get your hands

or other parts of your body caught by it.

Opening

1. Remove the screws (1).

2. Remove the maintenance cover B (2).

Closing

1. Install the maintenance cover B (2) and

secure it with the screws (1).

1. Insert the starter key and turn it

counterclockwise to unlock the engine

hood (1).

2. Push in the key hole (2) with your thumb

and open the engine hood (1).

3. Open the engine hood (1) all the way until

it is fastened. (It is fastened automatically.)

Closing

1. Support the engine hood (1) by hand them

pull up the stay (3) to release the engine

hood (1).

2. Close the engine hood (1).

3. Insert the starter key and turn it clockwise

to lock the engine hood (1).

2-6

CONTROLS

SEAT AND SEAT BELT

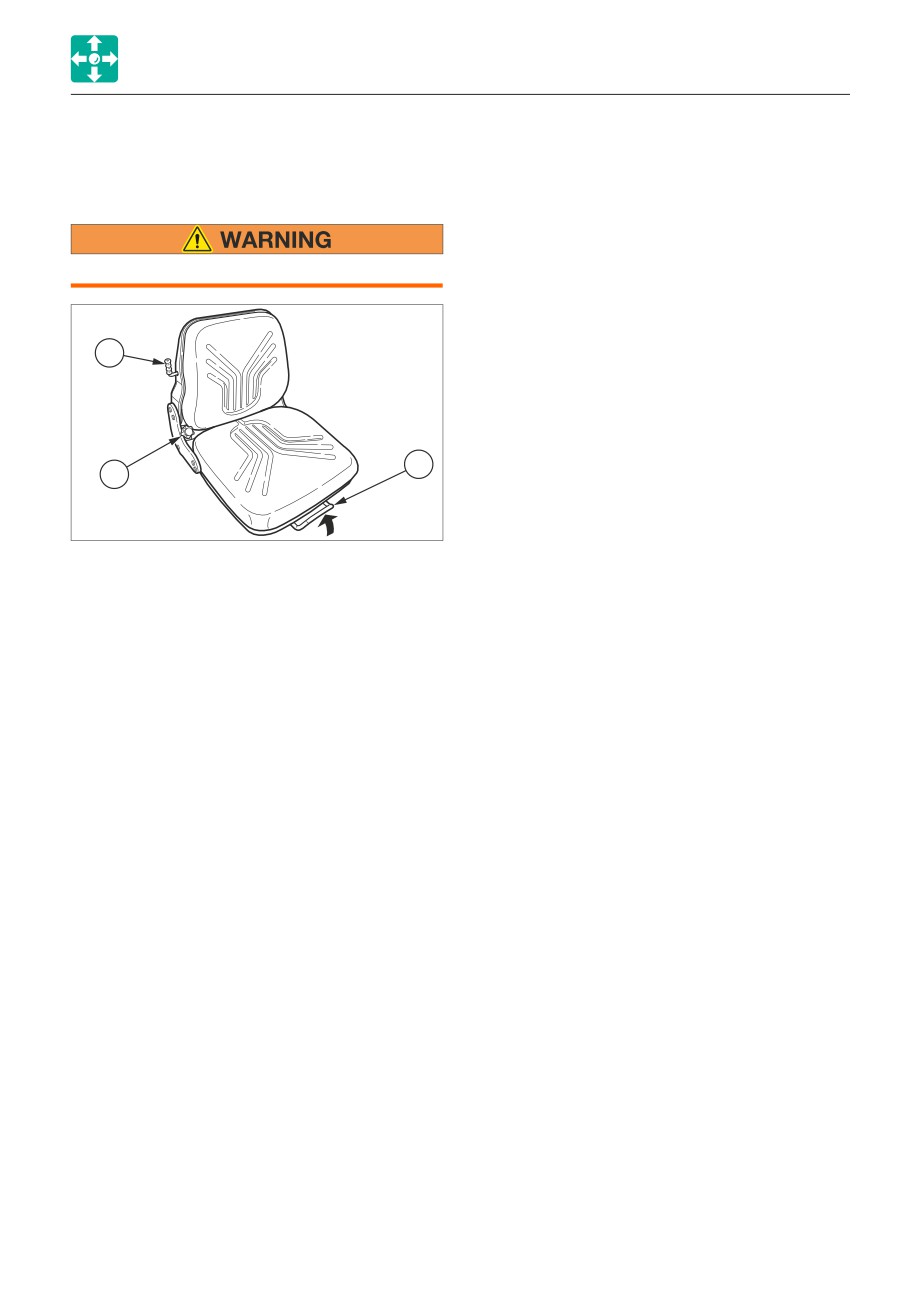

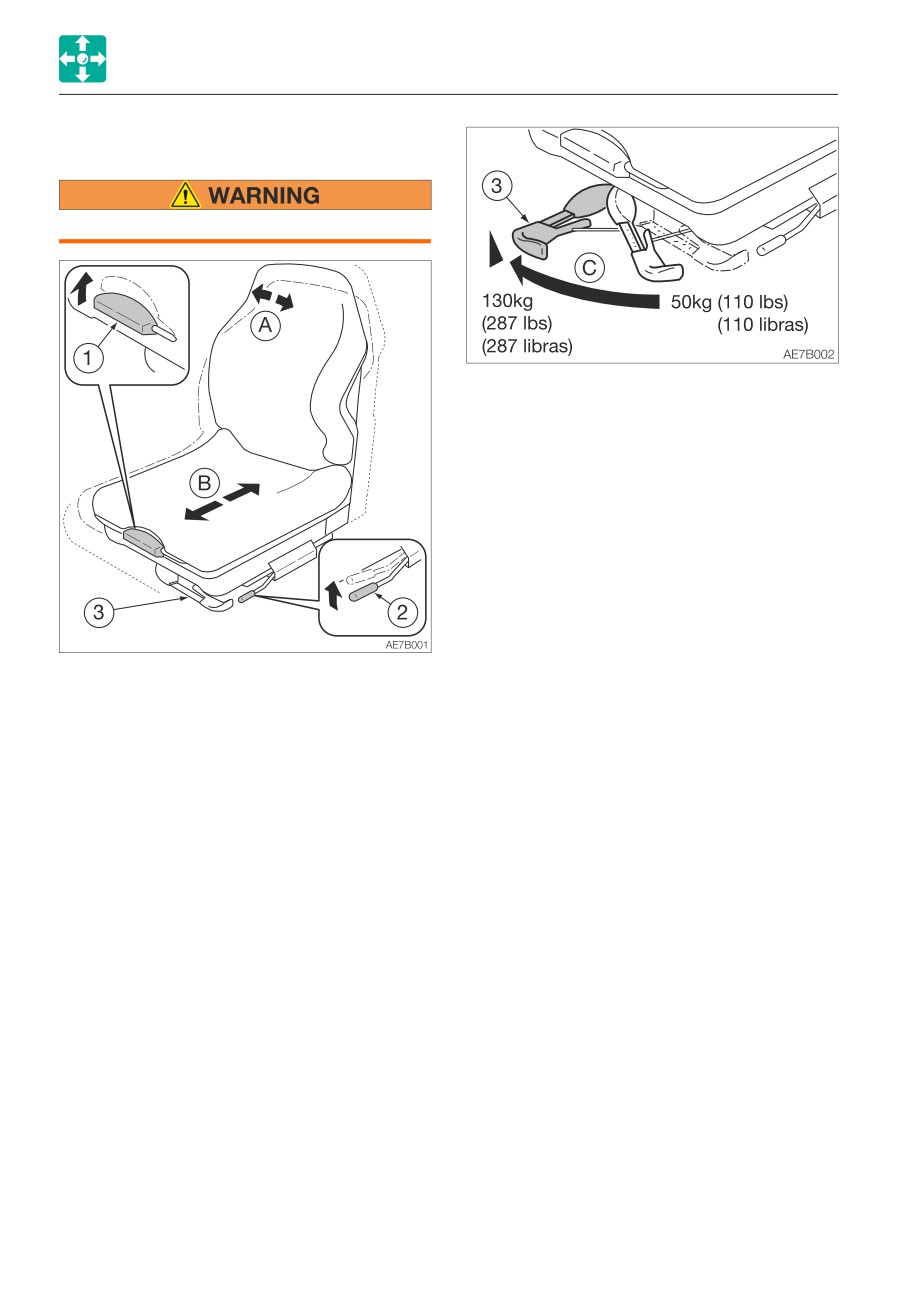

SEAT (IF EQUIPPED)

Adjust and secure the seat.

AD6B017

(A) Adjusting the backrest angle

1. Sit up and sit back in the chair.

2. Set the backrest to the desired angle by

turning the handle (1).

(B) Fore-and-aft adjustment

1. Pull up the lever (2) and slide the seat

backward or forward to the desired

position for operation of machine.

2. Release the lever (2) at the desired

position to secure the seat.

Adjustment range: 10 positions, in 150

mm (5.9 in.)

weight

1. Move the lever (3) to set it according to

the weight of operator.

Position of the lever (3)

Upper

Light weight operator

Middle

Medium weight operator

Lower

Heavy weight operator

2-7

CONTROLS

SEAT AND SEAT BELT

HIGH-BACK SEAT (IF EQUIPPED)

Adjust and secure the seat.

weight

1. Turn the handle (3) until the display

indicates the weight of operator.

Adjustment range: 50 to 130 kg (110 to

287 lbs)

2. When adjusting for a weight lower than

the currently set weight, first turn the

handle (3) as far as it goes to cancel the

setting, then readjust.

(A) Adjusting the backrest

1. Sit up and sit back in the chair.

2. Pull up the lever (1), recline the backrest

by using the spring force. Release the

lever (1) at the desired angle to secure the

backrest.

(B) Fore-and-aft adjustment

1. Pull up the lever (2) and slide the seat

backward or forward to the desired

position for operation of machine.

2. Release the lever (2) at the desired

position to secure the seat.

Adjustment range: 10 positions, in 150mm

(5.9in.)

2-8

CONTROLS

SEAT AND SEAT BELT

SEAT BELT

Releasing the seat belt

Be sure to fasten the seat belt securely

before starting the engine.

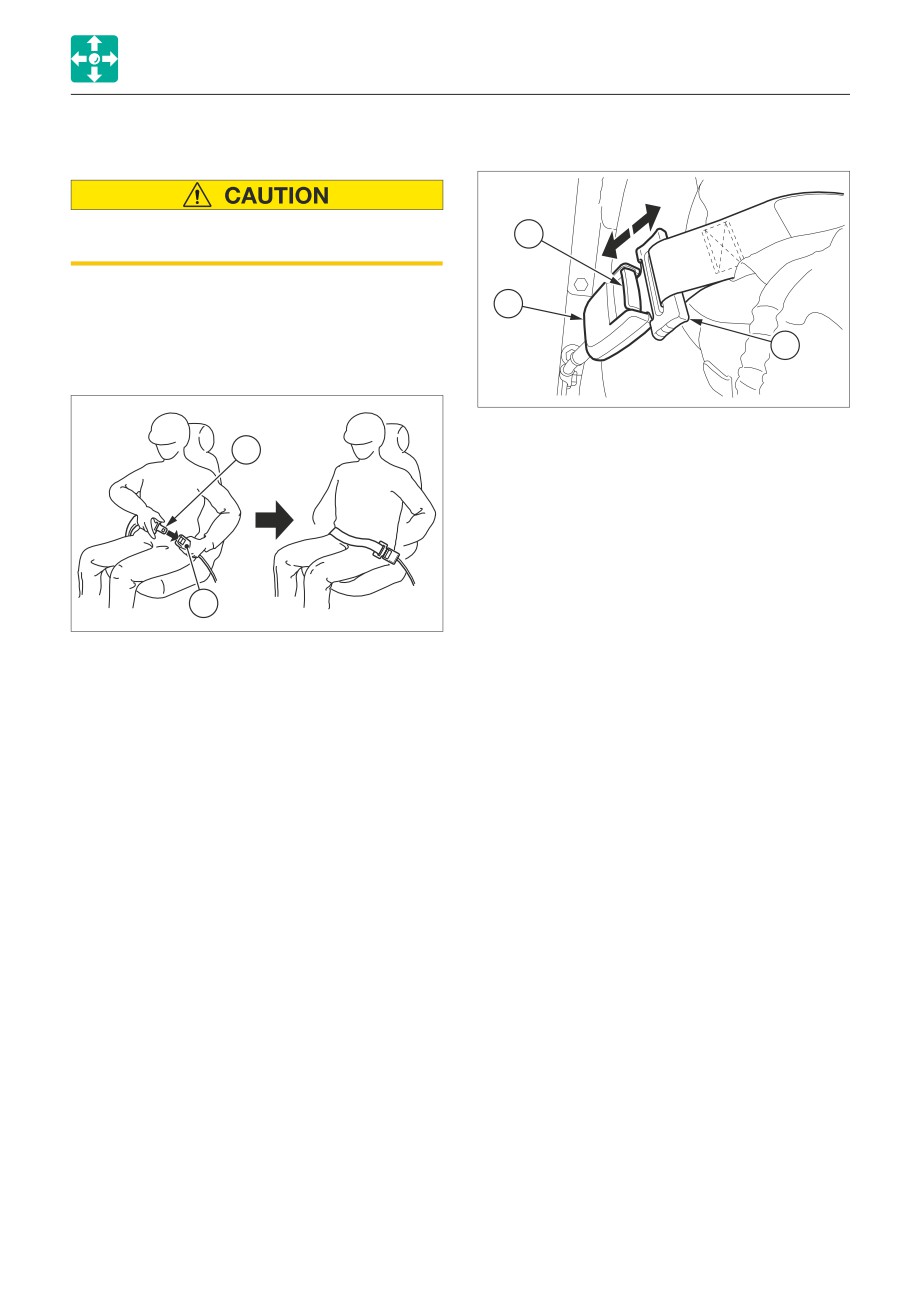

Fastening the seat belt

1. Adjust the seat to the desired position for

operation, sit up and sit back in the chair.

2. Pull the seat belt to the desired length.

AG7B024

1. Grasp the tongue plate (A) and press the

button (C) on the buckle (B).

The seat belt retracts back into its original

position.

AG7B023

3. Make sure that the belt is not twisted and

then insert the tongue plate (A) into the

buckle (B) of the seat belt until you hear a

clicking sound as it locks in place.

4. Check if the belt is securely locked by

pulling it, and arrange the belt around your

waist.

2-9

CONTROLS

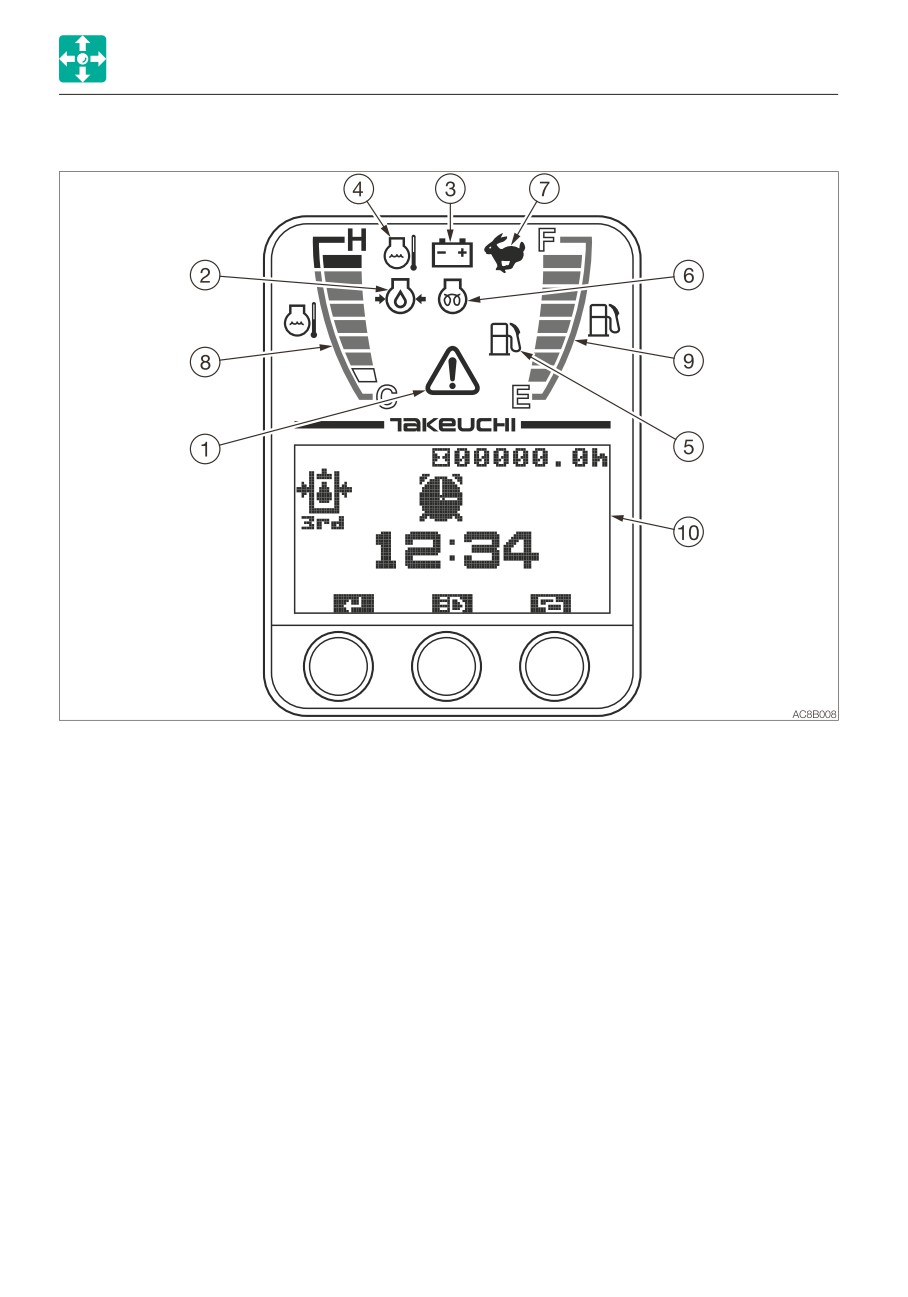

INSTRUMENT CLUSTER

Once the starter switch is turned to ON, all lamps on the instrument cluster light up and the

alarm sounds.

Then, the battery charge warning lamp (3) and the engine oil pressure warning lamp (2) start

flashing and an alarm sounds. The machine system is normal if the lamps turn off after the

engine is started.

If any lamp is not lit when the starter switch is turned to ON, there is something wrong in the

machine. Consult your sales or service dealer.

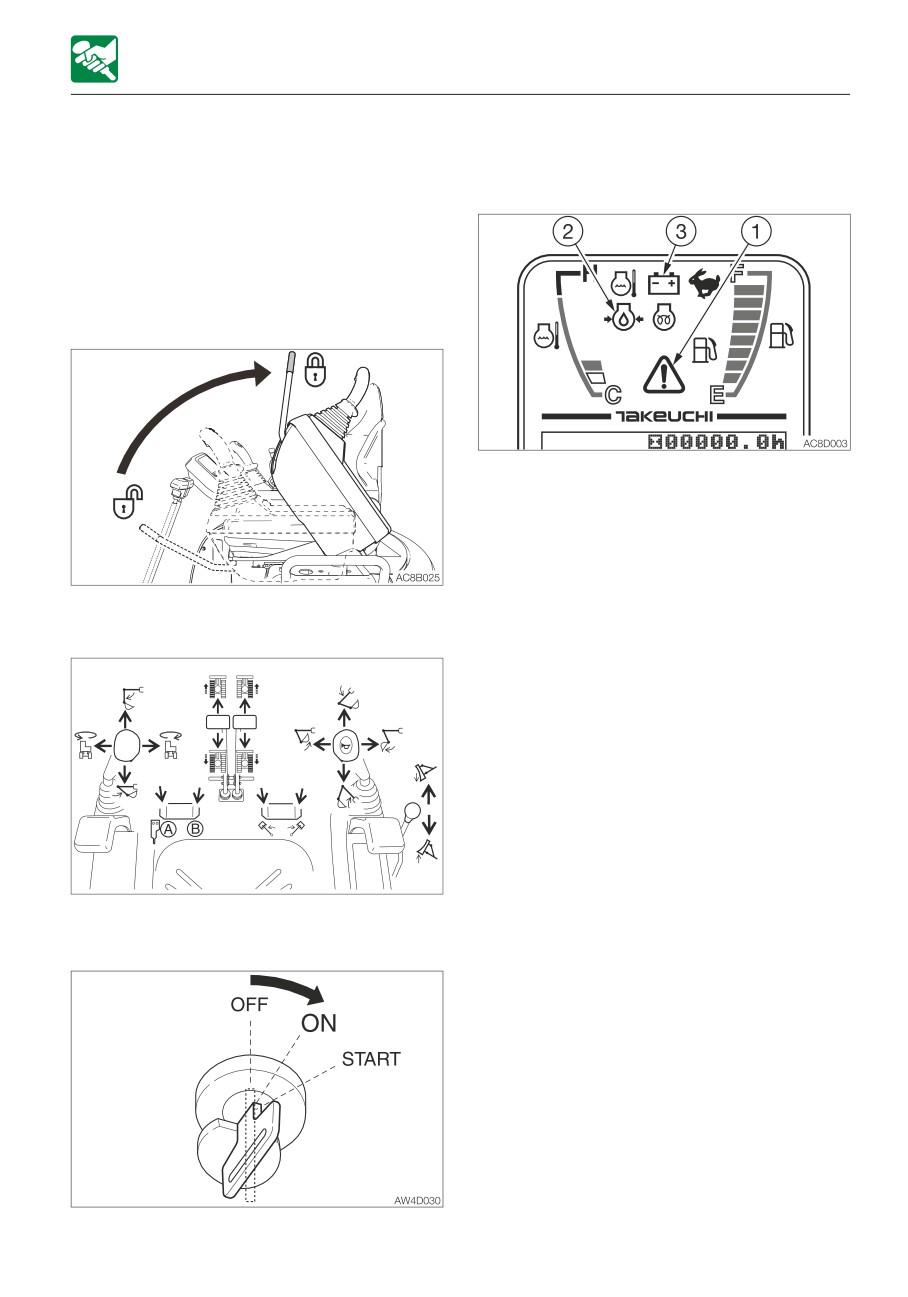

WARNING LAMPS

2. Engine oil pressure warning lamp

This lamp flashes and an alarm is sounded

IMPORTANT: If a warning lamp flashes

if the lubricant oil pressure abnormally low

and an alarm is sounded, immediately

while the engine is running.

stop all operations and check the

corresponding component.

3. Battery charge warning lamp

Refer to “If a warning lamp flashes” on

This lamp flashes and an alarm is sounded

page 6-9.

if a problem rises in the charging system

while the engine is running.

1. Engine emergency lamp

This lamp flashes and an alarm sounds if

4. Coolant temperature warning lamp

there is a problem with the engine or

This lamp flashes and an alarm is sounded

charging system.

if the engine coolant temperature

becomes abnormally high while the engine

is running.

2-10

CONTROLS

INSTRUMENT CLUSTER

5. Fuel level warning lamp

METERS

This lamp turns on if the fuel level

becomes low while the starter switch is in

8. Water temperature gauge

the ON position.

Indicates the temperature of the engine

coolant water.

The LED should be within the green range

INDICATORS

during machine operation.

The red range indicates overheating.

6. Glow lamp

This lamp goes out when the engine

9. Fuel Gauge

preheating is completed.

Indicates the amount of fuel in the tank.

Be sure to top off the tank before running

7. Travel speed lamp

out of fuel.

This lamp turns on when the travel speed

button is set to the 2nd (high) speed.

2-11

CONTROLS

INSTRUMENT CLUSTER

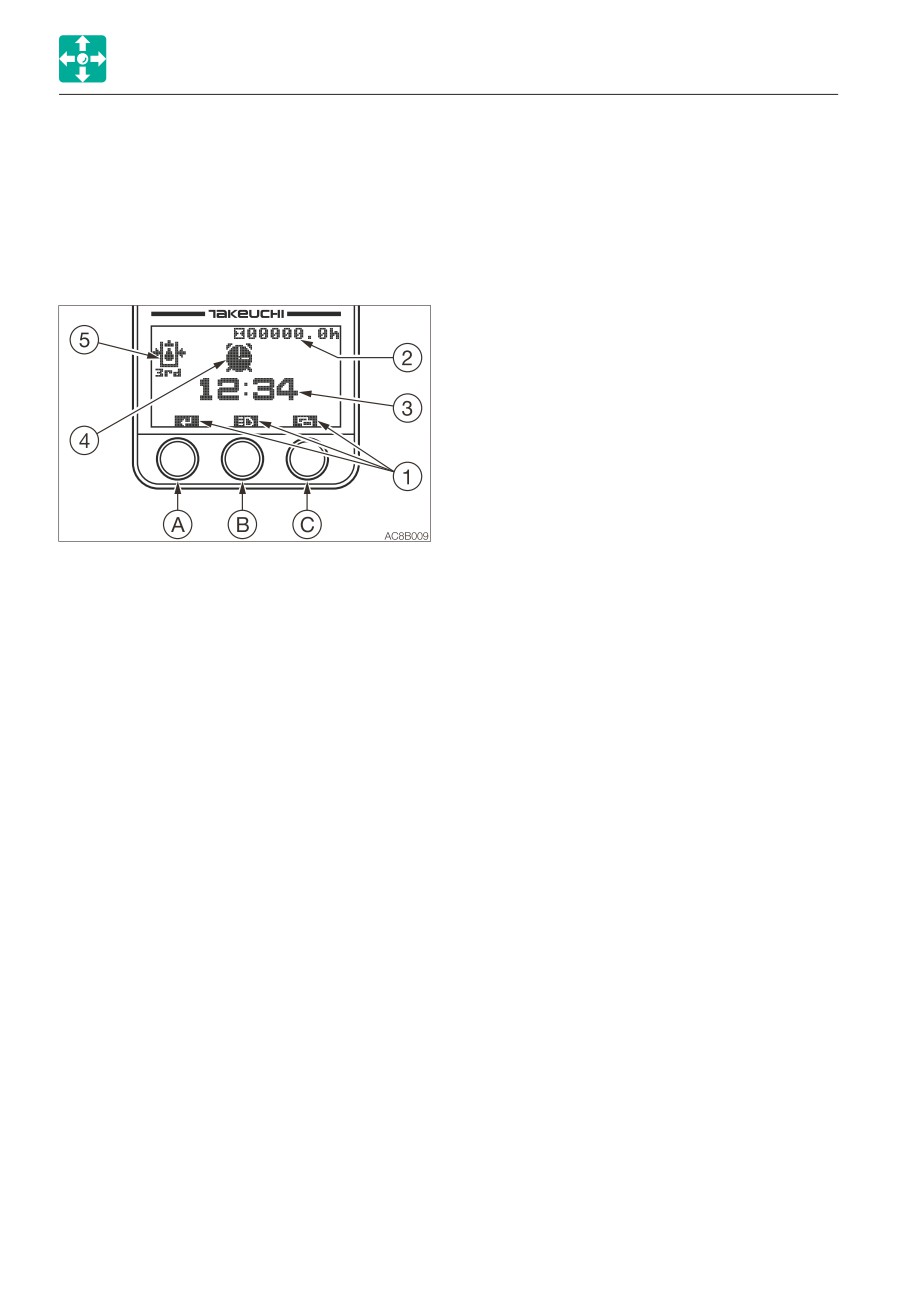

MULTI-DATA DISPLAY

4. Alarm indicator lamp

The clock symbol appears when the

10. LCD (liquid crystal display)

alarm function is turned on.

It displays various data on hour meter, trip

Refer to “Alarm setting” on page 2-16.

meter and the machine.

5. Auxiliary 3rd hydraulic pressure

Home screen

warning lamp (If equipped)

This lamp lights up and an alarm sounds

if the fixed side (left “e”) pressure of the

auxiliary 3rd drops abnormally while the

engine is running or if the quick-hitch is

being removed or installed.

1. Key function display

The key function display changes

depending on the screens (Home, Menu

and each setting)

For actual operation, use the buttons,

“A”, “B” and “C”, located beneath each

symbol. Refer to “Operating each key” on

page 2-12 to 2-17.

2. Hour meter/Trip meter

• Hour meter

Displays the total engine running time in

hours.

The rightmost digit indicates tenths of

hours (6 minutes).

Set the inspection and maintenance

intervals according to the time displayed

on the hour meter.

• Trip meter

Three patterns of desired operating hours

can be displayed.

Refer to “Trip meter display” on page 2-

13.

3. Time display

Displays the time set.

Refer to “Time setting” on page 2-16.

2-12

CONTROLS

INSTRUMENT CLUSTER

FUNCTION OF EACH KEY

C. Menu/trip meter reset

The functions are as below in the Home

· Pressing the (C) key switches to the

screen. The different functions appear in the

Menu screen.

other screens.

· Pressing and holding the (C) key for three

seconds or more while the trip meter is

A. Stopping alarm

displayed returns the trip meter to “0”.

Pressing the (A) key stops alarm.

B. Work light/meter switching

· Pressing the (B) key turns on or off the

work light.

· Pressing and holding the (B) key for two

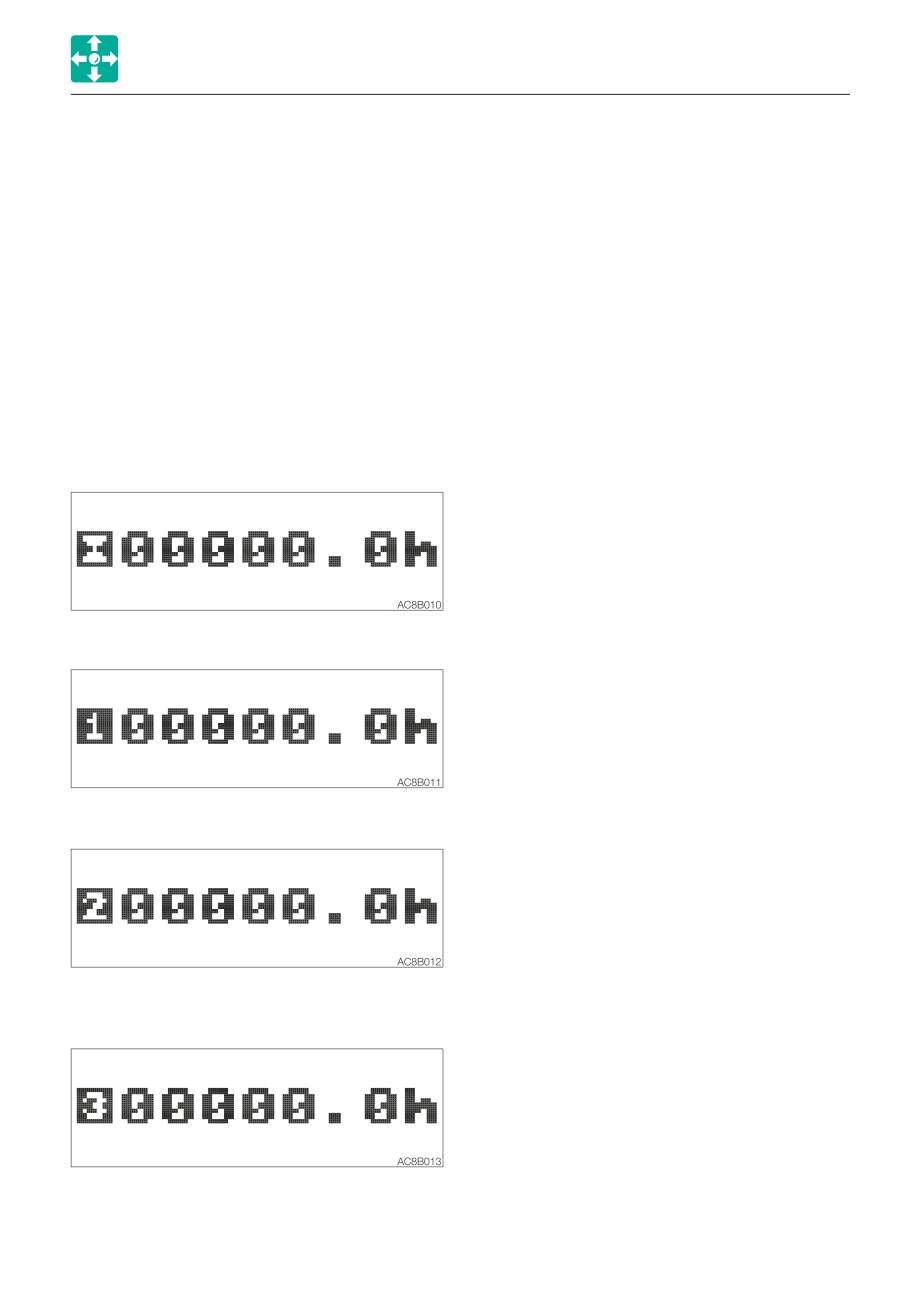

seconds or more each time the display

changes as follows:

1. Hour meter

2. Trip meter 1

3. Trip meter 2

4. Trip meter 3

5. Returns to the hour meter

2-13

CONTROLS

INSTRUMENT CLUSTER

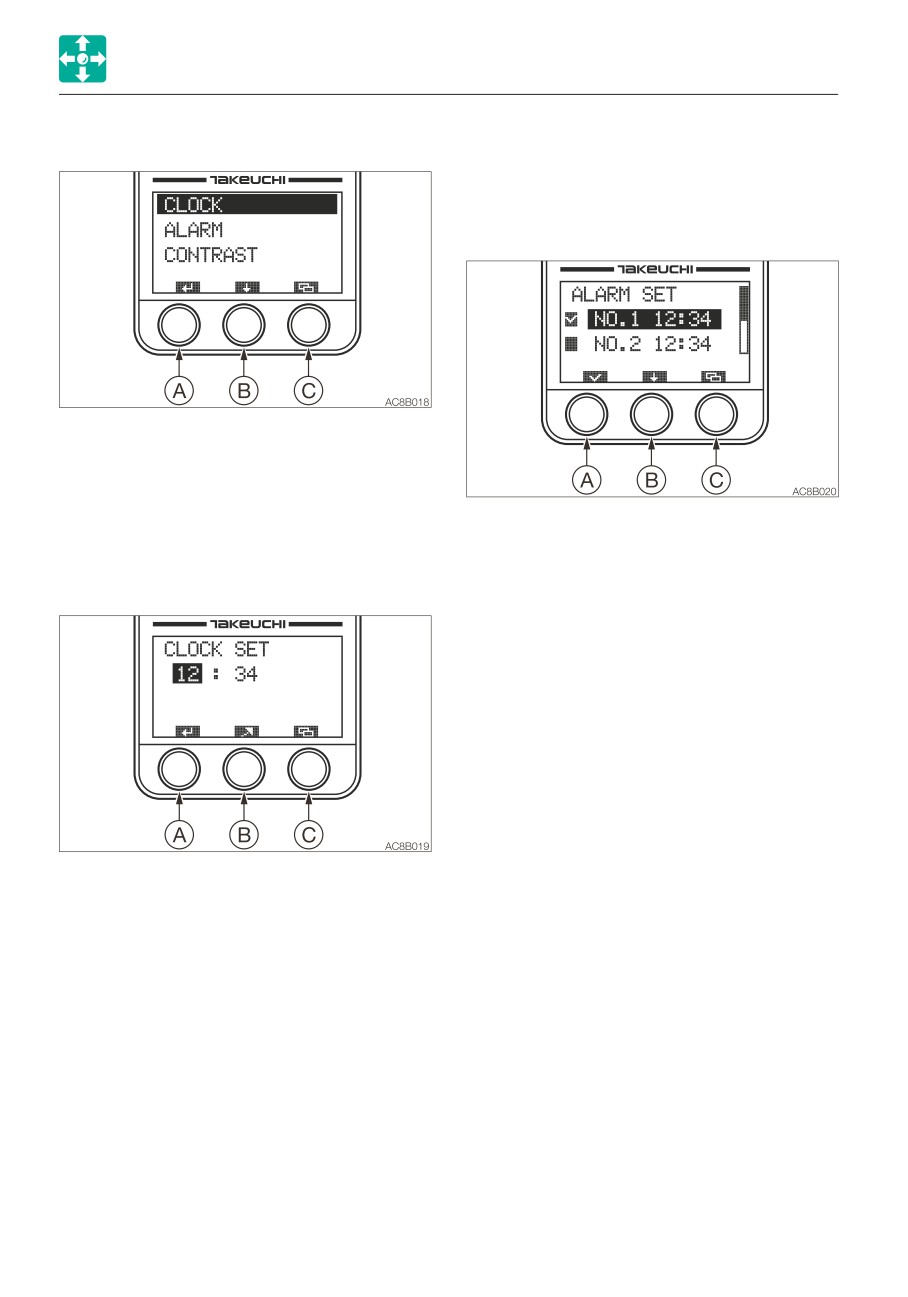

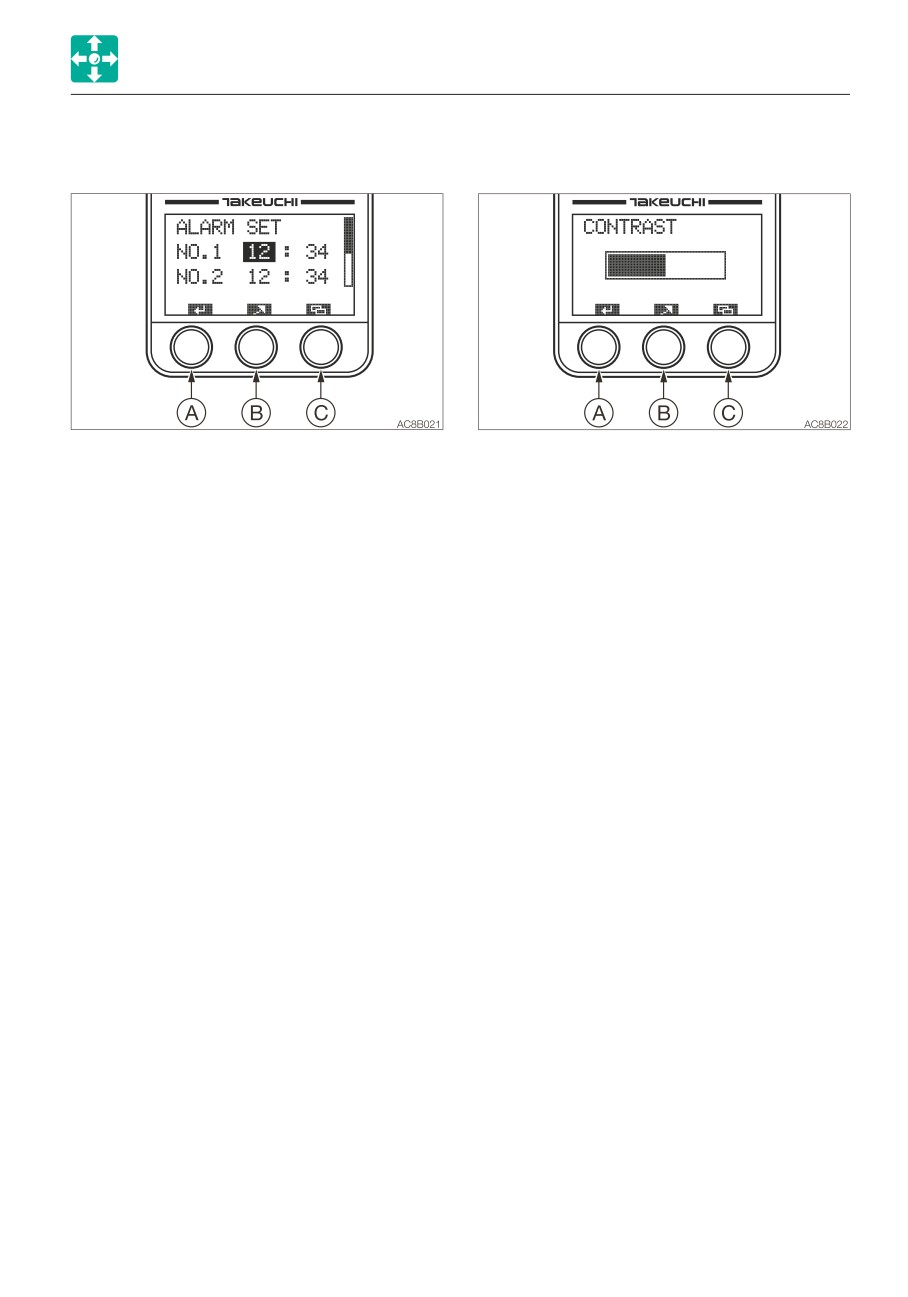

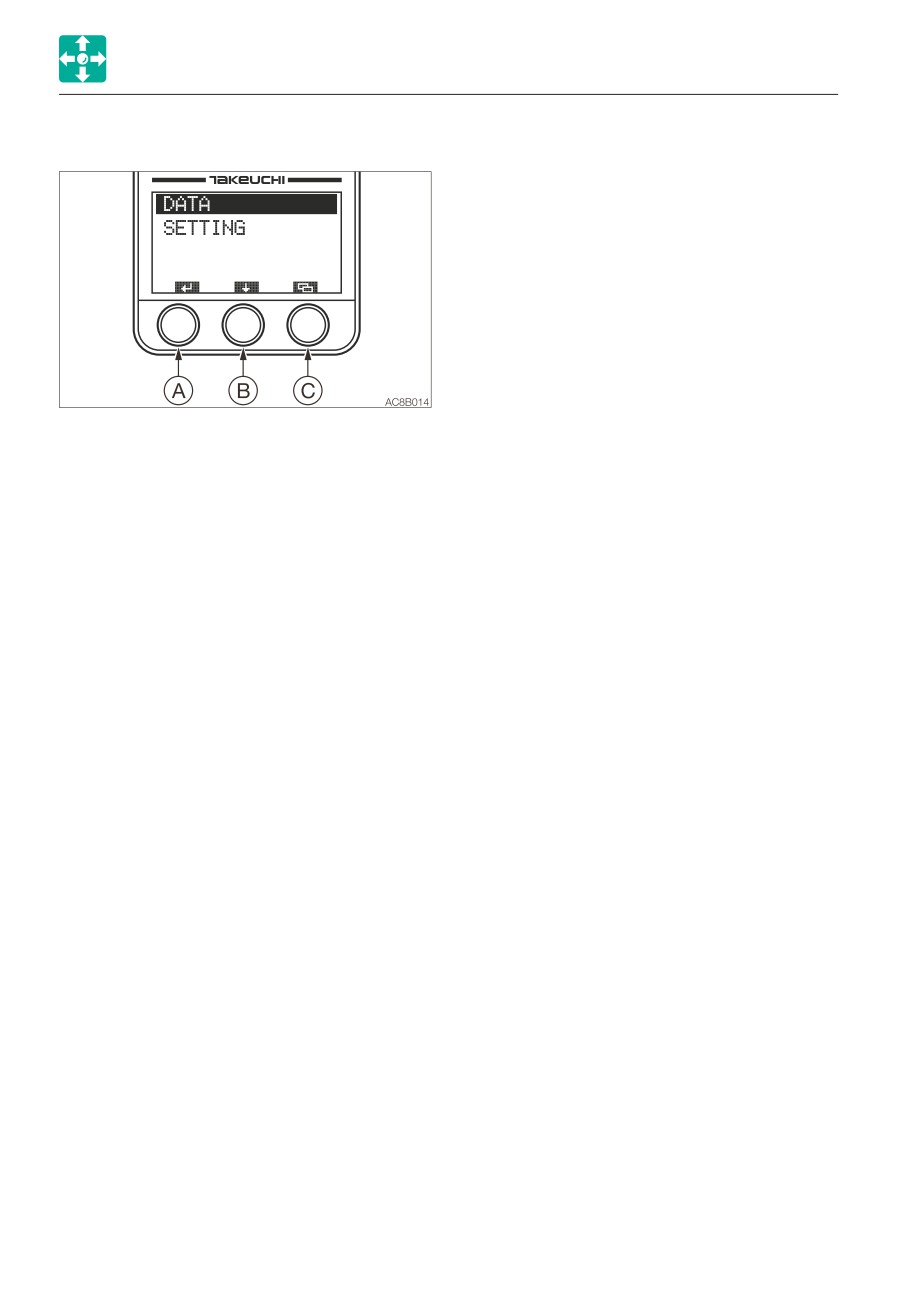

MENU SCREEN

Press the (A) key to proceed to the screen

selected by the bar.

Press the (B) key to move the selection bar.

Press the (C) key to return to the Home

screen.

• DATA

Shows the coolant temperature and the

trip meter for inspection and

maintenance.

Unlike the trip meter displayed on the

Home screen, data items on the engine

oil, hydraulic oil and coolant are included

so that you can use them as a guideline

for replacement.

• SETTING

Time, alarm and contrast can be set.

2-14

CONTROLS

INSTRUMENT CLUSTER

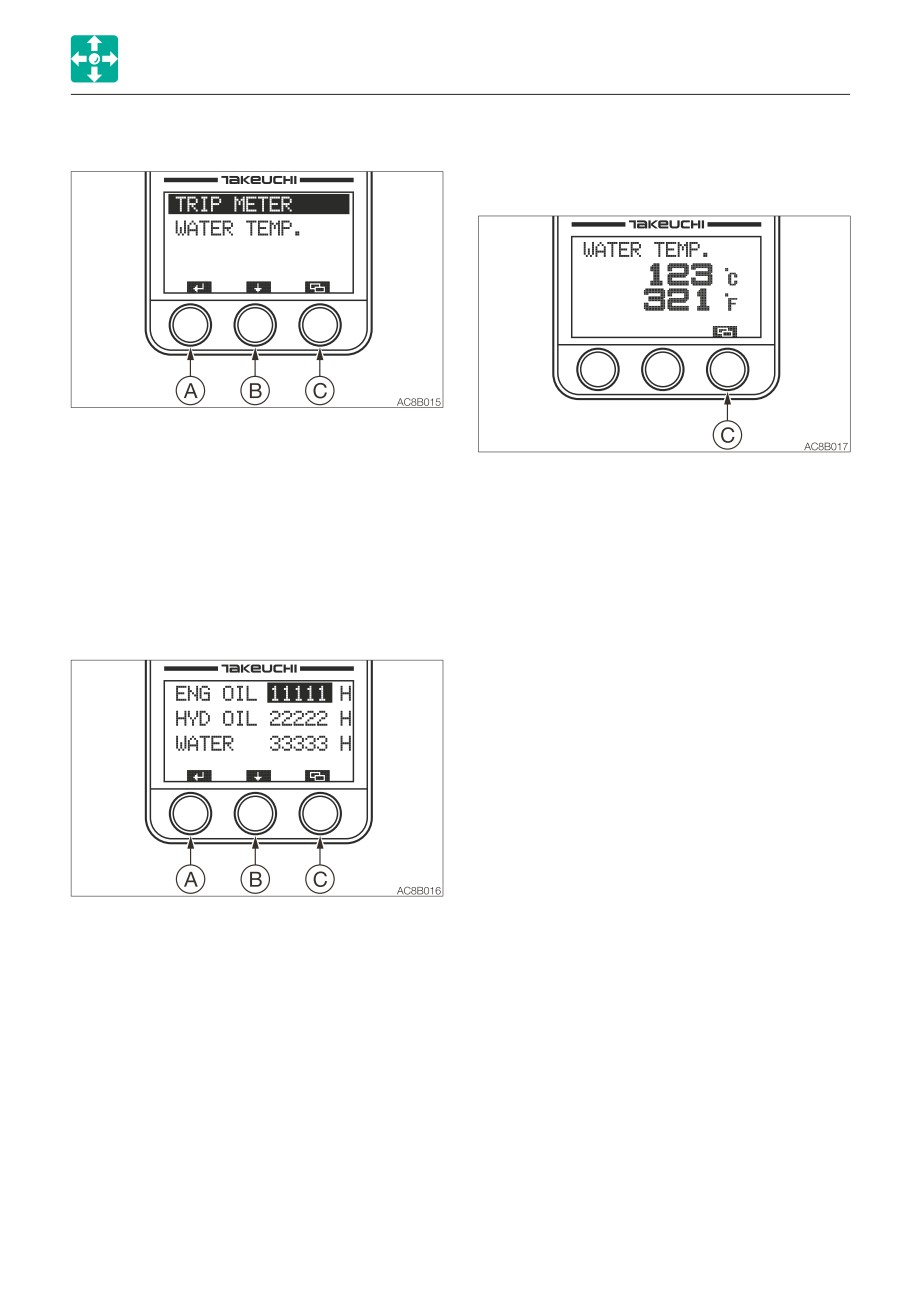

DATA SCREEN (DATA)

• Coolant temperature (WATER TEMP)

Displays the coolant temperature in

Celsius °C or Fahrenheit °F.

Press the (A) key to proceed to the screen

selected by the bar.

Press the (B) key to move the selection bar.

Press the (C) key to return to the Data

Press the (C) key to return to the Menu

screen.

• Trip meter (TRIP METER) for

maintenance

The trip meters for the engine oil,

hydraulic oil or coolant are displayed.

Press and hold the (A) key for at least five

seconds resets the selected trip meter to

“0”.

Press the (B) key to move the selection

bar.

Press the (C) key to return to the DATA

screen.

2-15

CONTROLS

INSTRUMENT CLUSTER

SETTING SELECTION SCREEN (SETTING)

• Alarm setting (ALARM)

Five patterns of alarm setting are

available.

Alarm function can be set to on or off

within the five patterns.

Press the (A) key to proceed to the screen

selected by the bar.

Press the key (B) to move the selection bar.

Press the (C) key to return to the Menu screen.

a. When the selection bar is at ALARM,

• Time setting (CLOCK)

press the (A) key to proceed to the alarm

The time to be displayed on the Home

setting screen (ALARM SET).

screen can be set here.

b. Press the (A) key in this screen to place

a checkmark in the box at the left of the

setting bar. Press the (A) key again to

remove the checkmark.

The alarm setting cannot be changed

only by placing or removing a checkmark.

c. Press and hold the (A) key for at least

two seconds to complete the setting and

to return to the Setting Selection screen.

Be sure to perform the above operation

when you wish to set the alarm.

A clock symbol is displayed on the Home

screen.

a. When the selection bar is at CLOCK,

d. Press the (B) key to move the selection

press the (A) key to proceed to the time

bar.

setting screen (CLOCK SET).

e. Press and hold the (B) key for at least

b. Pressing the (A) key in this screen moves

three seconds to enter the alarm time

the selection bar and flashes the figures

setting mode.

on the bar.

f. Press the (C) key to cancel editing and to

Setting range: hours, 1 to 24; minutes,

return to the Setting Selection screen.

00 to 59

Checked

c. Press the (B) key to increase the number

Unchecked

Off

value selected.

Press and hold the (B) key to rapidly

increase the number value selected.

d. Press and hold the (A) key for at least

two seconds to complete the setting and

to return to the Setting Selection screen.

e. Press the (C) key cancels editing and to

return to the Setting Selection screen.

2-16

CONTROLS

INSTRUMENT CLUSTER

• Alarm time setting mode

• Contrast setting (CONTRAST)

Sets the time for alarm.

Adjust the LCD contrast.

a. Select the item to be set in the alarm

a. When the selection bar is at CONTRAST,

setting screen (ALARM SET).

press the (A) key to proceed to the

b. Press and hold the (B) key for at least

contrast setting screen (CONTRAST).

three seconds to enter the alarm time

b. To increase contrast, press the (B) key.

setting mode.

The bar advances to the right.

c. Press the (A) key in this screen to move

Press and hold the (B) key to rapidly

the selection bar and to flash the figures

advance the bar.

on the bar.

Once the bar reaches the right end

Setting range: hours, 1 to 24; minutes,

(highest contrast), it returns to the left

00 to 59

end (lowest contrast).

d. Press the (B) key to increase the number

c. Press and hold the (A) key for at least

value selected.

three seconds to complete the setting

Press and hold the (B) key to rapidly

and to return to the Setting Selection

increase the number value selected.

screen.

e. Press and hold the (A) key for at least

d. Press the (C) key to cancel editing and

two seconds to complete the setting and

to return to the Setting Selection screen.

The changes made to the setting are

f. Press the (C) key to cancel editing and to

reflected, but they will be removed when

return to the Setting Selection screen.

the starter switch is turned off.

2-17

CONTROLS

SWITCHES

HORN BUTTON

SWITCHES

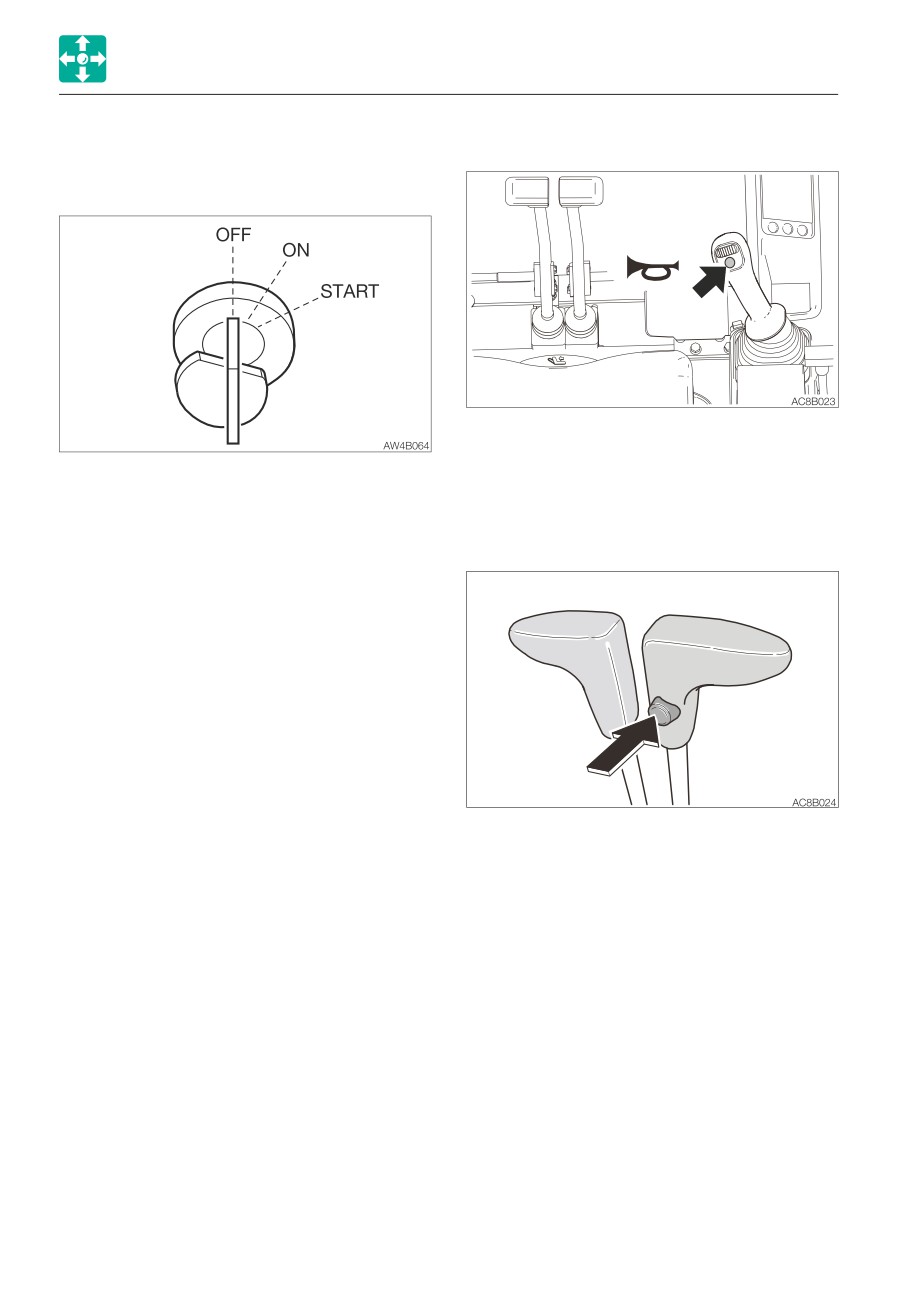

STARTER SWITCH

Press the button situated on the right

operating lever to blow the horn.

IMPORTANT: Do not repeatedly switch

the key from OFF to ON and ON to OFF

over a short period. Doing so will cause

engine breakdown.

TRAVEL SPEED SWITCH

OFF

Position for stopping the engine

and inserting or removing the key.

Position in which the engine is

running. At this position, all the

electrical equipment is functional.

When the coolant temperature is

too low, the engine is

automatically preheated.

START

Position for starting the engine.

When the key is released, the

switch automatically returns to the

ON position.

Press this switch to set the travel speed to

2nd (high) speed. Press it again to return to

1st (low) speed.

SECOND AUXILIARY HYDRAULIC

SWITCH

Refer to “Second auxiliary hydraulic switch”

on page 2-26.

THIRD AUXILIARY HYDRAULIC SWITCH

AND BUTTON

Refer to “Third auxiliary hydraulic switch and

button” on page 2-26.

2-18

CONTROLS

LEVERS AND PEDALS

THROTTLE LEVER

LEVERS AND PEDALS

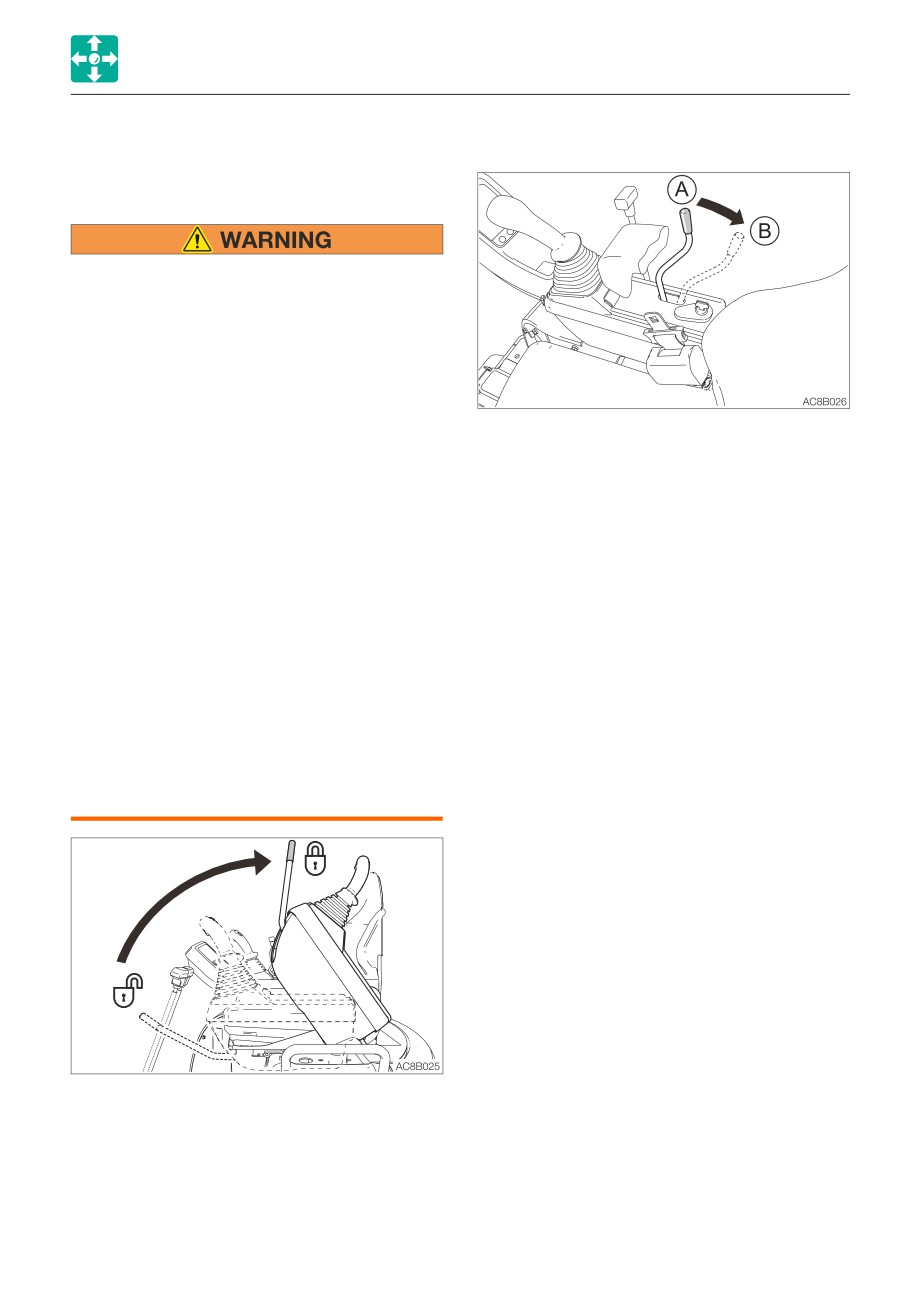

SAFETY LOCK LEVER

• Before standing up from the operator’s

seat to, for example, adjust the

operator’s seat, lower the working

equipment to the ground, raise the

safety lock lever to the lock position and

then stop the engine. If any control is

accidentally touched when the safety

lock lever is lowered (unlocked), the

This controls the engine speed.

machine will suddenly move and cause

(A)

Low idling

serious injury or death.

(B)

Maximum speed

• Note that the dozer blade, boom swing

and auxiliary hydraulic controls cannot

be locked, even when the safety lock

lever is set to the locked position.

Do not carelessly touch these controls.

• Be careful not to touch the operating

levers when raising or lowering the

safety lock lever.

• Before leaving the operator’s seat, lower

the working equipment to the ground,

raise the safety lock levers to engage

the lock and stop the engine. Also, be

sure to remove the key, lock the door

and covers, take it with you and store it

in a specified place.

This device is for locking the hoe attachment,

slewing and traveling.

When the lever is raised, the lever stand

springs up and the controls are locked.

2-19

CONTROLS

LEVERS AND PEDALS

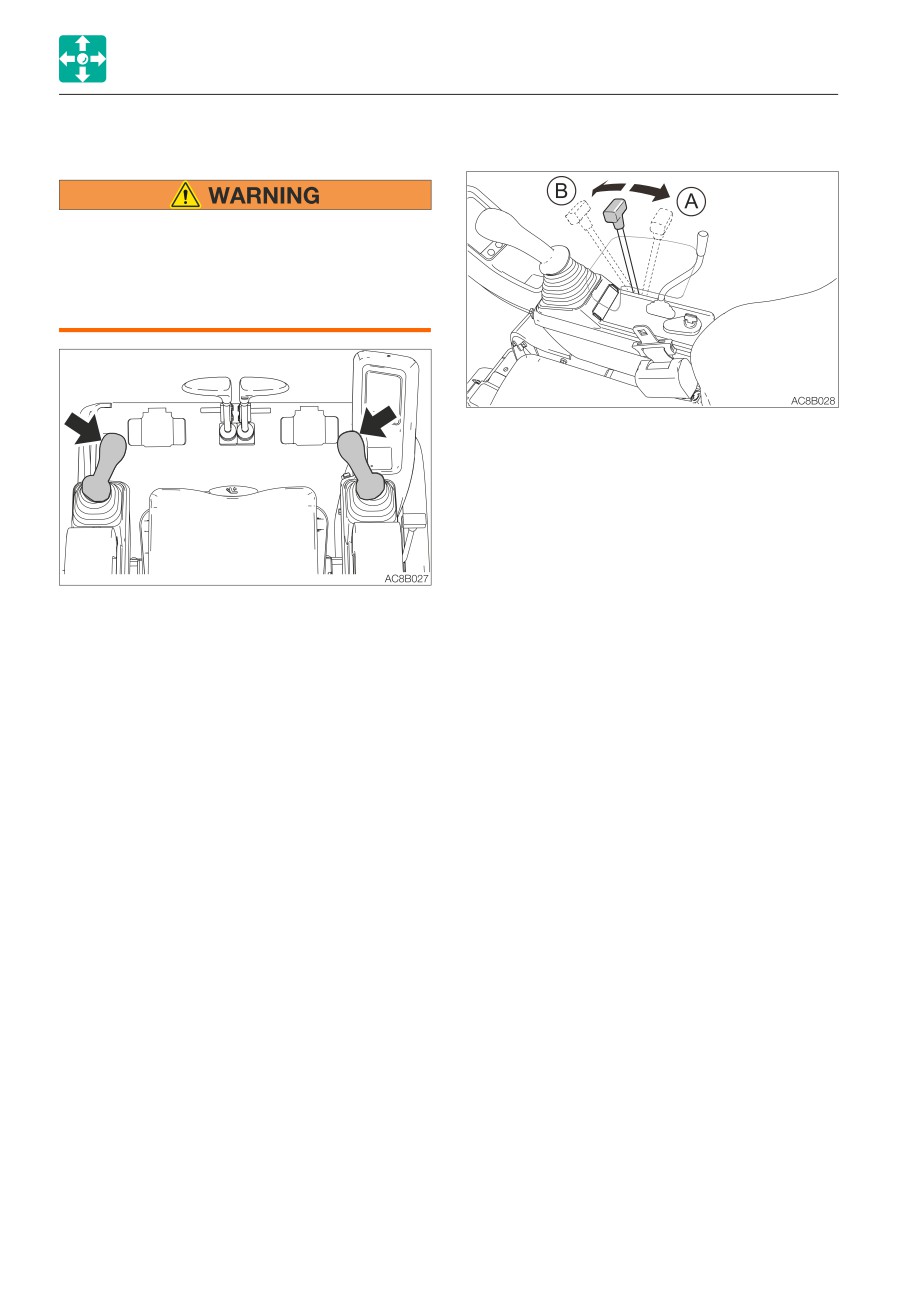

OPERATING LEVERS

BLADE LEVER

• Before starting operation, carefully

check which lever pattern you are going

to use.

• It is described using the ISO pattern in

this manual.

Use this lever to operate the dozer blade.

(A)

Blade up

(B)

Blade down

Refer to “Operating the dozer blade” on

page 3-17.

Use these levers to operate the boom, arm,

bucket and upperstructure.

Refer to “Lever pattern” on pages 3-6 and

3-7.

Refer to “Operating the working equipment”

on pages 3-16 and 3-17.

2-20

CONTROLS

LEVERS AND PEDALS

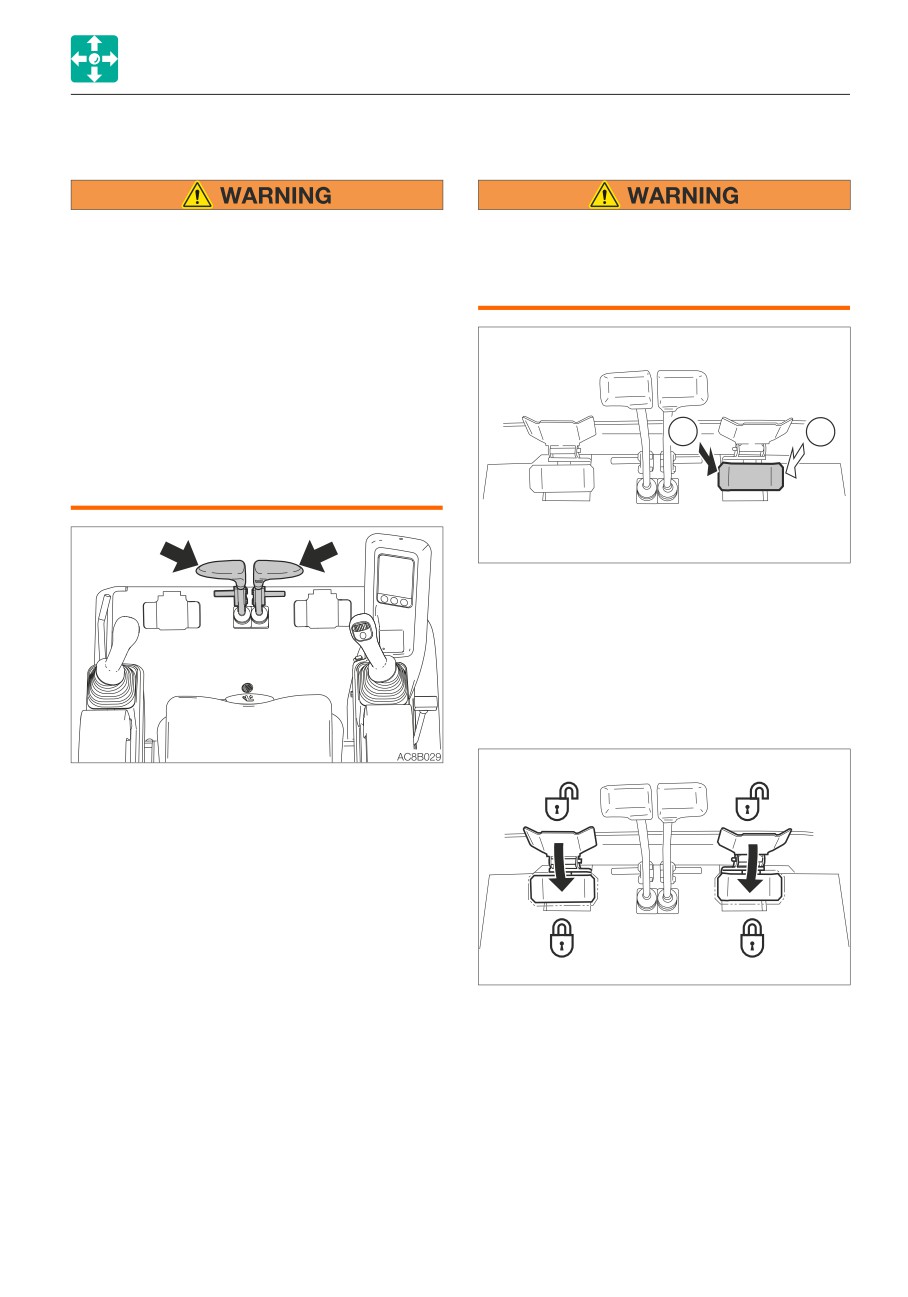

TRAVEL LEVERS/PEDALS

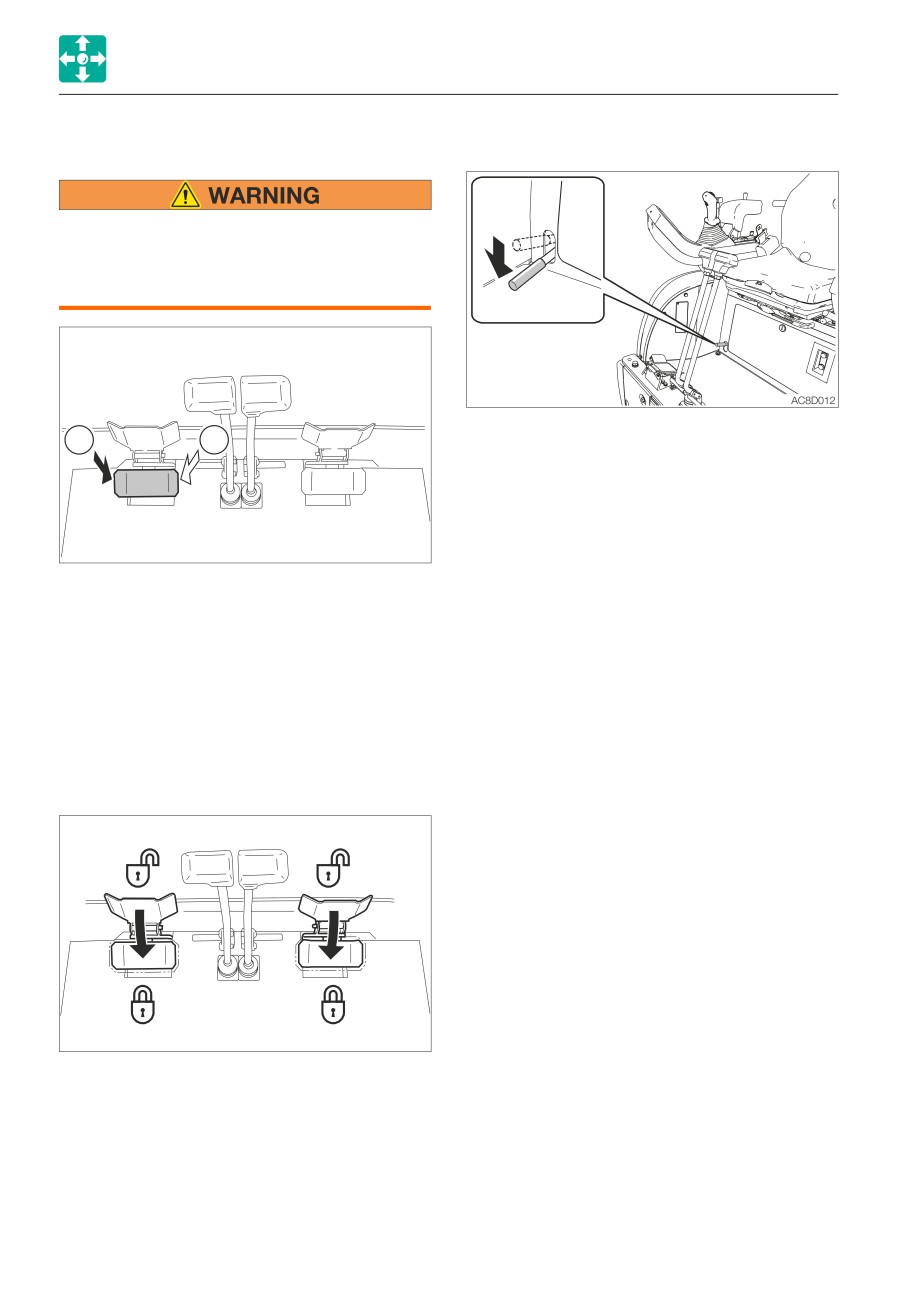

BOOM SWING PEDAL

• Before operating the travel levers/

Keep the pedal cover to the locked

pedals, make sure that the dozer blade

position when not using the pedal.

is to the front of the operator’s seat.

Stepping on a pedal accidentally when it

Remember that when the dozer blade is

is not locked may cause accidents.

to the rear of the operator’s seat, the

travel levers/pedals must be operated in

the reverse direction from when it is to

the front.

• Do not rest your foot on the pedal

unless operating it for traveling. If the

pedal is accidentally stepped while

working, the machine may suddenly

move and cause serious injury or death.

AD6B031

Use this pedal to operate the boom swing.

(A)

Boom swing right

(B)

Boom swing left

Refer to “Operating the boom swing” on

page 3-17.

Pedal lock

Use these levers/pedals to move forward or

backward and to change directions. Fold the

pedals when not being used.

Refer to “Operating the travel levers” on

page 3-12.

AD6B032

Set the pedal cover over the pedal to lock it.

Open the pedal cover from the pedal to

unlock it.

2-21

CONTROLS

LEVERS AND PEDALS

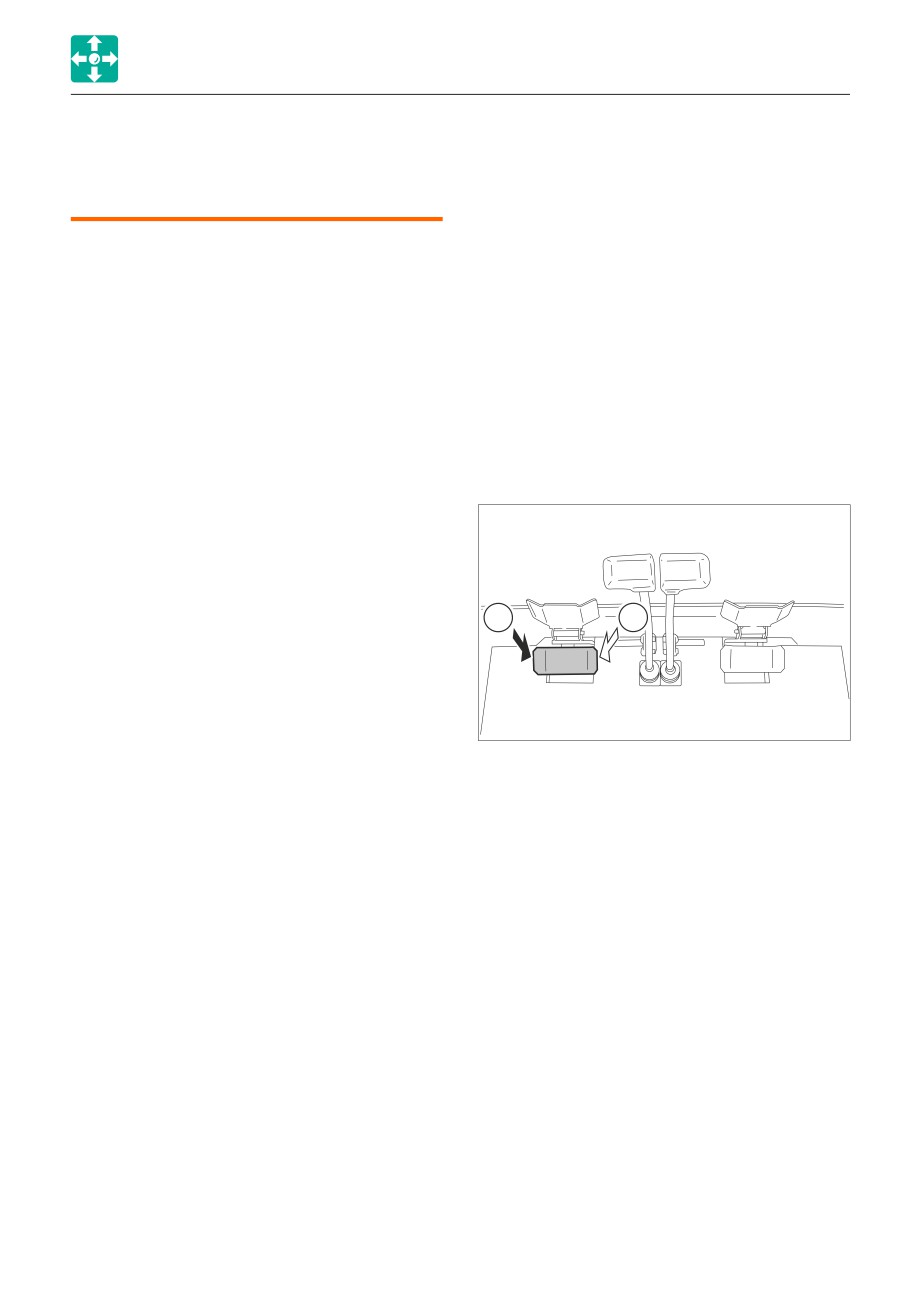

AUXILIARY HYDRAULIC PEDAL

SELECTOR LEVER

Keep the pedal cover to the locked

position when not using the pedal.

Stepping on a pedal accidentally when it

is not locked may cause accidents.

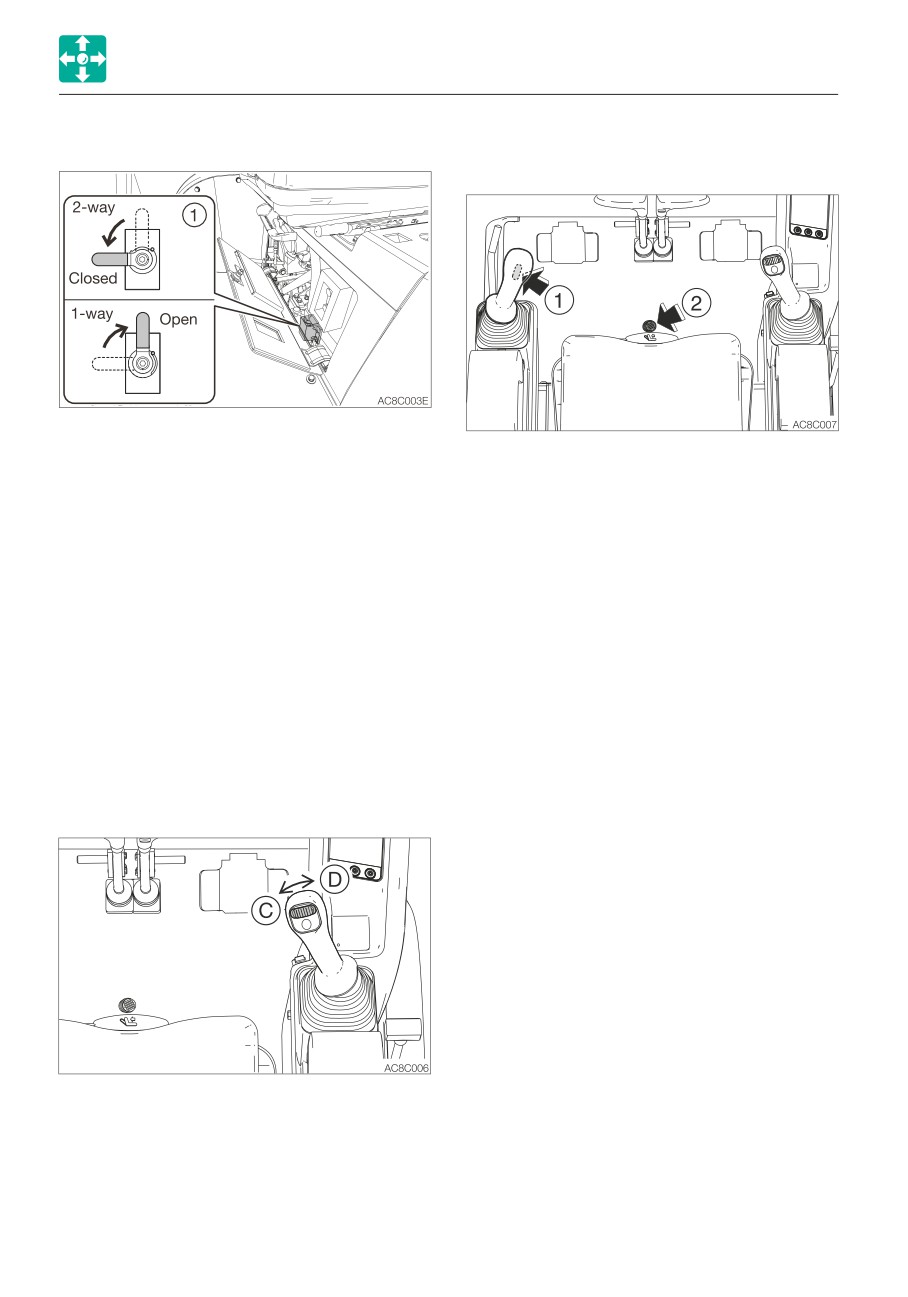

This lever is used to change the crawler

width. The operation of the dozer blade

cylinder and the span cylinder is switched

with this lever.

1. Change the crawler width by moving the

blade lever while depressing this lever.

AD6B033

This pedal controls the flow of the oil in the

auxiliary hydraulic circuit.

(A)

Hydraulic oil flows to left auxiliary

hose.

(B)

Hydraulic oil flows to right auxiliary

hose.

Refer to “Auxiliary hydraulic lines” on page 2-

24.

Pedal lock

AD6B032

Set the pedal cover over the pedal to lock it.

Open the pedal cover from the pedal to

unlock it.

2-22

CONTROLS

ACCESSORIES

AUXILIARY HYDRAULIC LINES

First / second auxiliary hydraulic lines (If equipped)

Third auxiliary hydraulic lines (If equipped)

second auxiliary switch several times to

Oil may spurt out if pipes disconnected

release the pressure from the auxiliary

before releasing the pressure in the

hydraulic circuit.

hydraulic system.

• Slowly loosen the air bleeding plug to

• Immediately after the engine is stopped,

relieve the internal pressure of the

press each auxiliary hydraulic pedal and

hydraulic oil tank.

2-24

CONTROLS

ACCESSORIES

• When disconnecting hoses, stand to the

IMPORTANT: Follow the procedures for

side and loosen them slowly to

purging air as instructed by the

gradually release the internal pressure

attachment manufacturer, if applicable.

before removing.

6. Check for oil leaks.

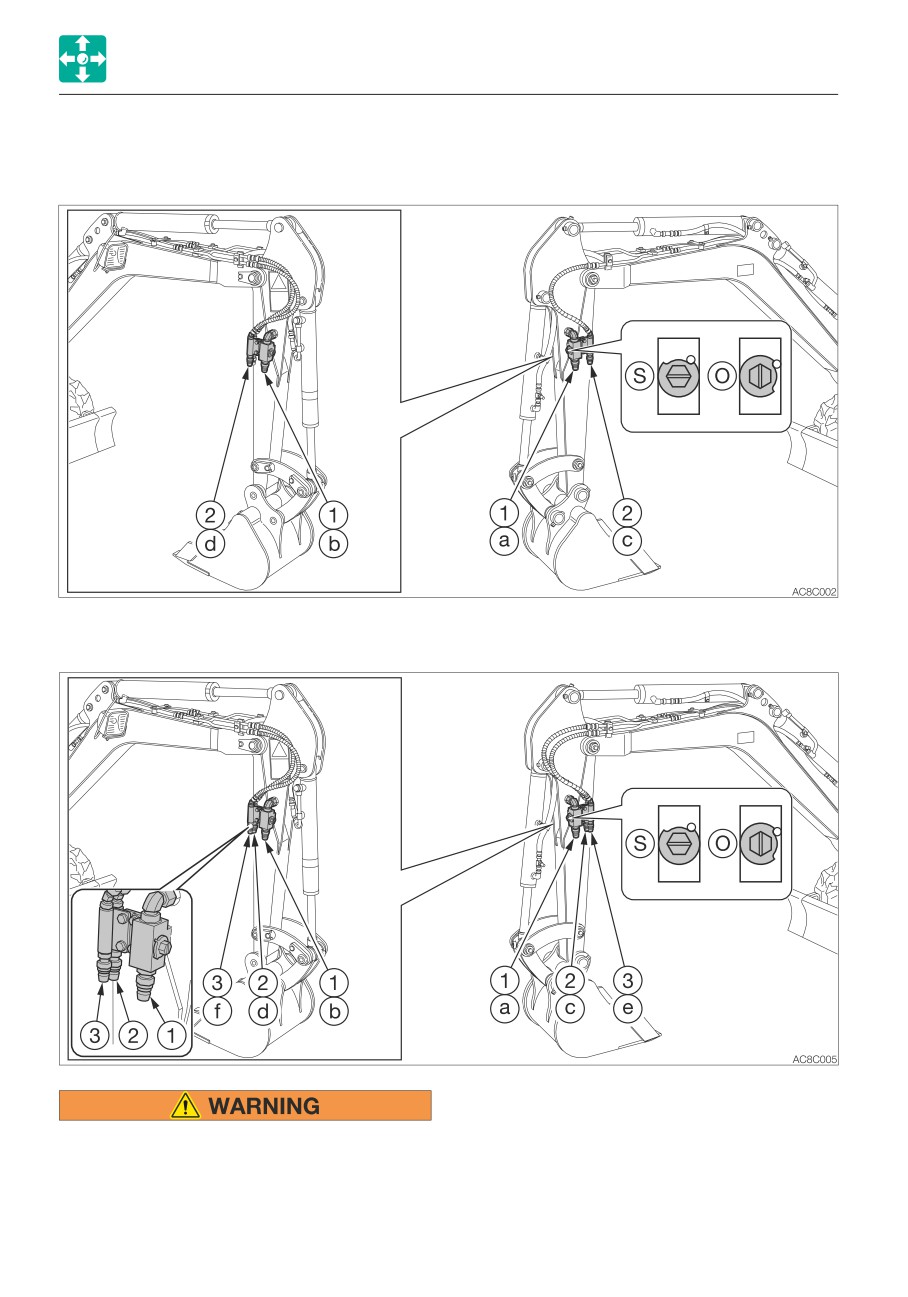

These lines deliver the hydraulic oil necessary

for operating a hydraulic breaker, crusher or

Disconnecting the hydraulic circuits

other attachments.

1. Release the pressure remaining in the

lines, and then close the stop valve.

(1)

First auxiliary hydraulic lines

Refer to “Releasing the residual pressure”

(2)

Second auxiliary hydraulic lines

on page 2-26.

(3)

Third auxiliary hydraulic lines

2. Disconnect the lines from the ports (a/c)

and (b/d).

Stop valve

3. Install the plugs.

(S) : Closed

(O) : Open

Operating

Connecting the hydraulic circuits

To connect the attachment hydraulic lines,

observe the following procedures:

1. Release the pressure remaining in the

lines, and then close the stop valve.

Refer to “Releasing the residual pressure”

on page 2-26.

2. Remove the plugs.

3. Connect the attachment hydraulic lines to

ports (a/c) and (b/d). When installing a

AD6B033

hydraulic breaker, connect the supply

circuit to the port (a) and the return circuit

Press this pedal to control the flow of the oil

to port (b).

in the auxiliary hydraulic lines.

4. Open the stop valves. When installing a

(A)

Hydraulic oil flows to left auxiliary line

hydraulic breaker, open the selector valve

(a).

(1). Refer to “Selector valve” on page

(B)

Hydraulic oil flows to right auxiliary line

2-26.

(b).

5. When connecting is complete, purge air

from the hydraulic lines.

Releasing the residual pressure

a. Start the engine and run it at a low idle

After the auxiliary hydraulic circuits have

speed with no load for 10 minutes.

been used, pressure remains in the circuits.

b. With the engine running in low idle,

This is called the residual pressure. Release

operate the auxiliary hydraulic switches

this residual pressure before disconnecting

repeatedly (approx. 10 times) to purge

the lines.

air from the hydraulic lines.

1. When the engine is stopped, depress the

c. Stop the engine and wait for at least 5

auxiliary hydraulic pedals from side to side

minutes until bubbles escape from the

several times.

hydraulic oil in the tank.

2-25

CONTROLS

ACCESSORIES

Selector valve (Option)

Third auxiliary hydraulic switch and

button

Open

When using a hydraulic breaker

(1-way flow)

The third auxiliary hydraulic lines are normally

Closed

When using a reversible

used to control the “quick attachment”

attachment (2-way flow)

installed to connect/disconnect the bucket.

Change the direction of the hydraulic oil flow

When the safety lock lever is released after

by opening or closing the selector valve (1)

the engine is started, hydraulic oil flows into

on the machine body.

the pipe (e). This allows the pressure in the

(e) side to increase and to prevent the pin

inserted on the bucket from coming out. If

Second auxiliary hydraulic switch

the pressure in the (e) side drops, the alert

that the bucket may come out is indicated by

Slider switch

the warning lamp and the alarm. For a safety

(Proportional control)

reason, the bucket can be disconnected only

Proportional control allows for slow-to-fast/

when the button (1) and the switch (2) are

fast-to-slow movement of attachment.

pressed at the same time. When they are

Example: If you move the slider switch half

pressed, the hydraulic oil flows into the line (f)

way, the attachment will move at

to increase the pressure there. As the result,

approximately one-half the speed.

the pin on the bucket comes out and the

bucket is removed from the machine.

Move this switch to control the flow of the oil

in the second auxiliary hydraulic lines.

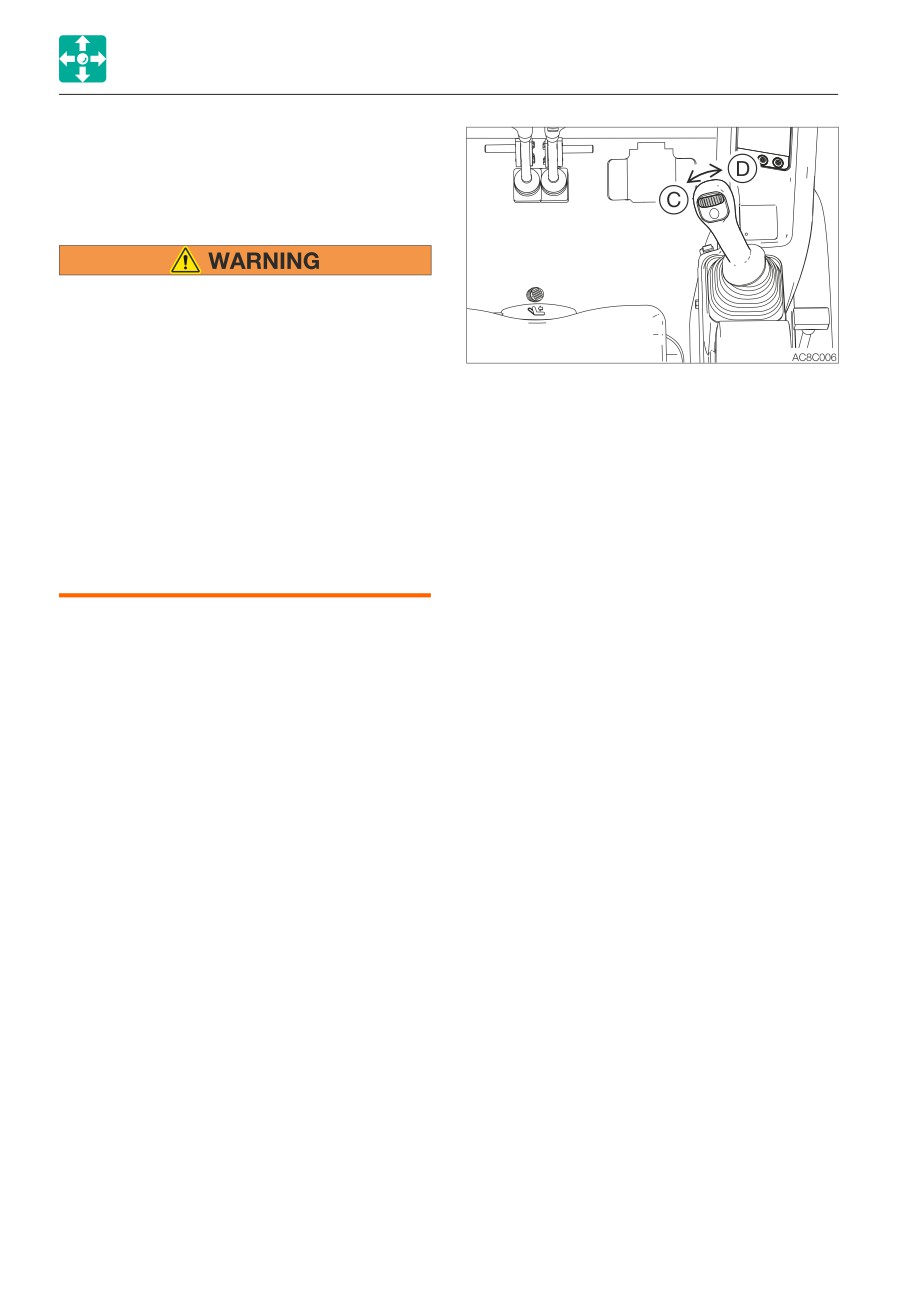

(C):

Hydraulic oil flows to the left auxiliary line (c).

(D):

Hydraulic oil flows to the right auxiliary line (d).

Releasing the residual pressure

Refer to “Accumulator” on page 2-28.

2-26

CONTROLS

ACCESSORIES

Adjusting the stroke of auxiliary hydraulic

When using a reversible attachment (2-

pedal

way flow)

When a breaker is used, the pedal stroke

must be adjusted so as not to activate the

right auxiliary hydraulic line even if the B side

of the pedal is accidentally depressed.

When a general attachment is used, the

pedal stroke must be readjusted. Adjust it so

that the right auxiliary hydraulic line is

activated when the B side of the pedal is

depressed.

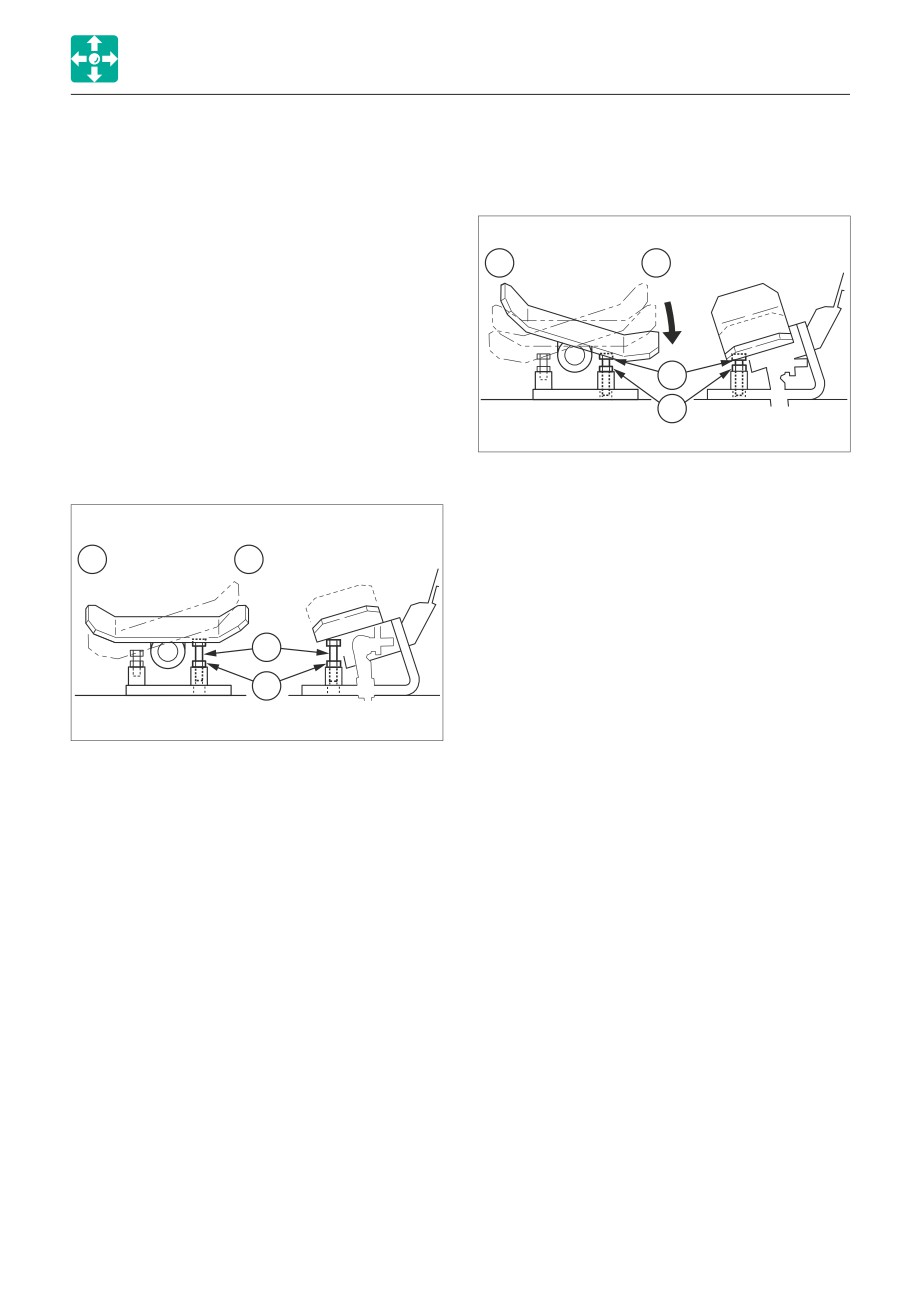

When using a hydraulic breaker (1-way

flow)

AD6C014

1. Loosen the lock nut (1) and screw in the

adjustment bolt (2) to the end.

2. Depress the B side of the auxiliary

hydraulic pedal to the stroke end and hold

its position.

3. Loosen the adjustment bolt (2) until it

touches the pedal.

4. Fasten the lock nut (1) to secure the

adjustment bolt (2).

AD6C013

1. Make sure that the auxiliary hydraulic

pedal is in the neutral position.

2. Loosen the lock nut (1).

3. Loosen the adjustment bolt (2) until it

touches the pedal.

4. Fasten the lock nut (1) to secure the

adjustment bolt (2).

2-27

CONTROLS

ACCUMULATOR (IF EQUIPPED)

OPERATING THE MACHINE WITH AN

ACCUMULATOR

Be sure to handle the high-pressure

nitrogen gas enclosed in the accumulator

with care. If handled incorrectly, it could

explode and cause serious injury. Strictly

observe the following precautions:

6. Move the auxiliary 2nd switch several

• Do not disassemble.

times to release the residual pressure in

• Do not allow flame near or throw it into

the circuitry. (If equipped)

a fire.

7. Move all the control levers and pedals

• Do not drill, weld or fuse.

several times in all directions to release the

• Do not subject it to physical shock such

pressure from the working equipment

as hitting, rolling or dropping.

circuitry.

• Before disposing of the unit, the sealed

8. Raise the safety lock lever to engage the

gas must be drained. Contact a

lock.

Takeuchi service agent for help.

Lowering the boom when the engine has

For a machine with an accumulator, the

stopped

residual pressure in the auxiliary hydraulic

Perform this operation within 10 minutes

circuit or the working equipment circuit can

after the engine stopping.

be released even after the engine is stopped.

1. Check that the safety lock lever is in the

released position.

Releasing residual pressure

2. Check that the starter switch is in the ON

Residual pressure refers to the pressure that

position.

remains in the hydraulic circuit after the

3. Slowly push the operating lever forward to

operation. Release the residual pressure as

lower the boom.

necessary by using the following steps.

Perform the residual pressure releasing

within 10 minutes after the engine stopping.

1. Return the throttle lever to idle the engine

at low speed.

2. Lower the bucket and dozer blade to the

ground.

3. Check that the safety lock lever is in the

released position.

4. Stop the engine.

5. Turn the starter switch to the ON position.

2-28

OPERATION

BEFORE STARTING OPERATION

WALK-AROUND INSPECTION

BEFORE STARTING

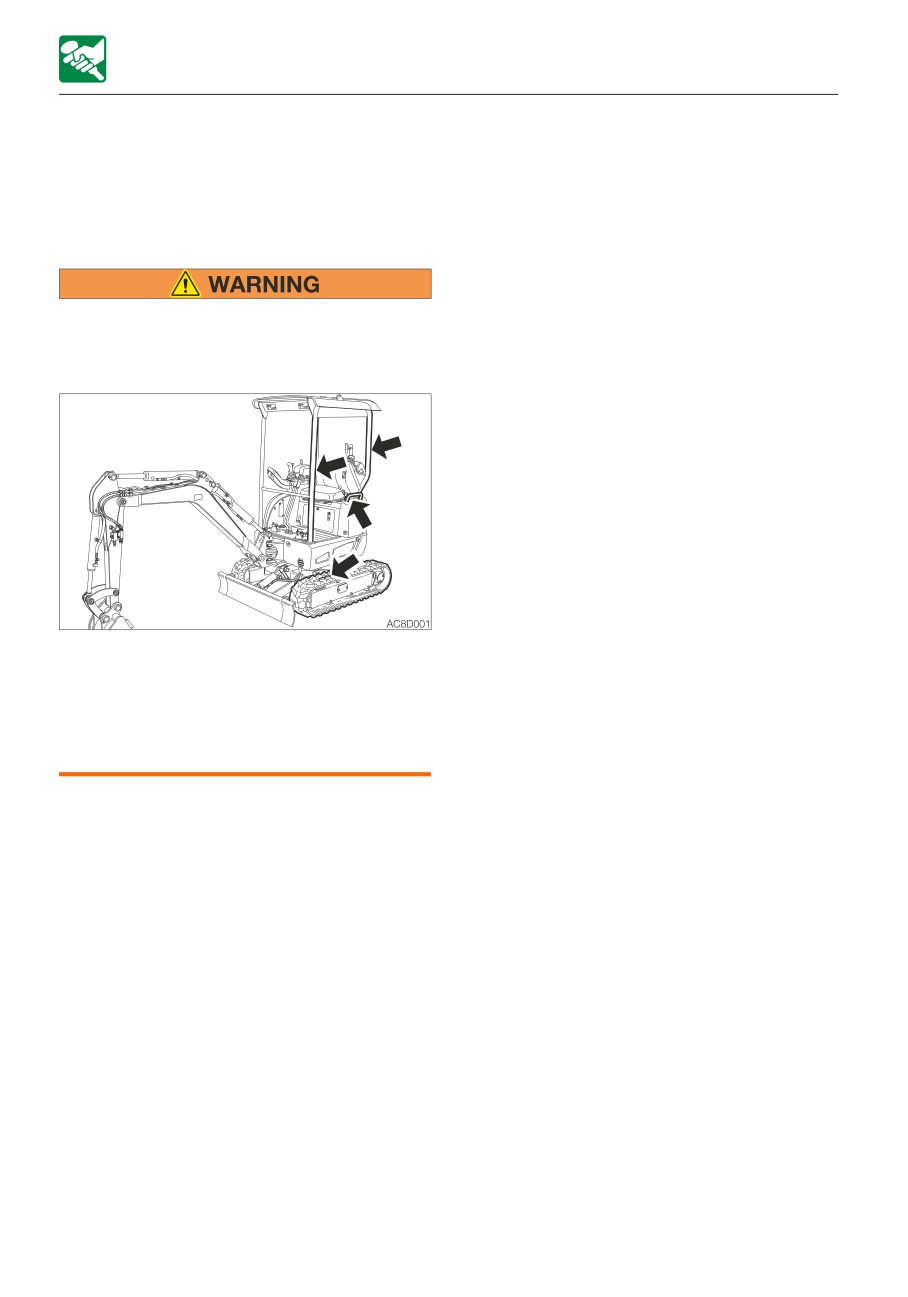

Perform the walk-around inspections once a

OPERATION

day before starting the engine for the first

GETTING ON OR OFF THE MACHINE

time that day.

Refer to “MAINTENANCE, Walk-around

inspection”, on pages 5-14 and 5-15.

• Do not jump on or down from the

machine. Never attempt to get on or off

DAILY INSPECTION

the moving machine.

Perform the daily inspections once a day

before starting the engine for the first time.

Refer to “MAINTENANCE, Daily inspection”,

on pages 5-16 to 5-21.

• Climb up/down the steps holding the

handrail to support your weight in a

three point secure stance (hand and

feet).

• Never use the safety lock lever or

control levers as hand holds.

3-2

OPERATION

STARTING AND STOPPING THE ENGINE

5. Insert the key into the starter switch, turn it

STARTING AND STOPPING

to the ON position, then perform the

following inspections:

THE ENGINE

BEFORE STARTING THE ENGINE

1. Adjust the seat for a comfortable operating

position.

2. Fasten the seat belt.

· All warning lamps flash for one second

and an alarm is sounded for ten

seconds. The meters also start

functioning. After two seconds, only the

battery charge warning lamp (3), the

engine oil pressure warning lamp (2) and

3. Check that the safety lock lever is in the

the engine emergency lamp (1) start

locked position.

flashing, and the other lamps turn off.

· Press the light switch to check that the

boom light, front light and meter lights

turn on.

If a lamp does not light or the alarm is not

sounded, the bulb may be burnt out or a

wire may be damaged. Ask a Takeuchi

service agent for repair.

AD6D003

4. Check that all levers and pedals are in the

neutral position.

3-3

OPERATION

STARTING AND STOPPING THE ENGINE

STARTING THE ENGINE

Starting in cold climates

Never use starting fluid on this engine, as

• Clear all personnel from the work area.

the starting fluid could cause an

• Sound the horn to warn people around

explosion.

the machine.

IMPORTANT: Do not run the starter motor

for more than 15 consecutive seconds. If

the engine fails to start, wait for 30

seconds, and then try again to start the

engine.

Normal starting

1. Pull the throttle lever to the middle

position.

1. Pull the throttle lever to the middle

position.

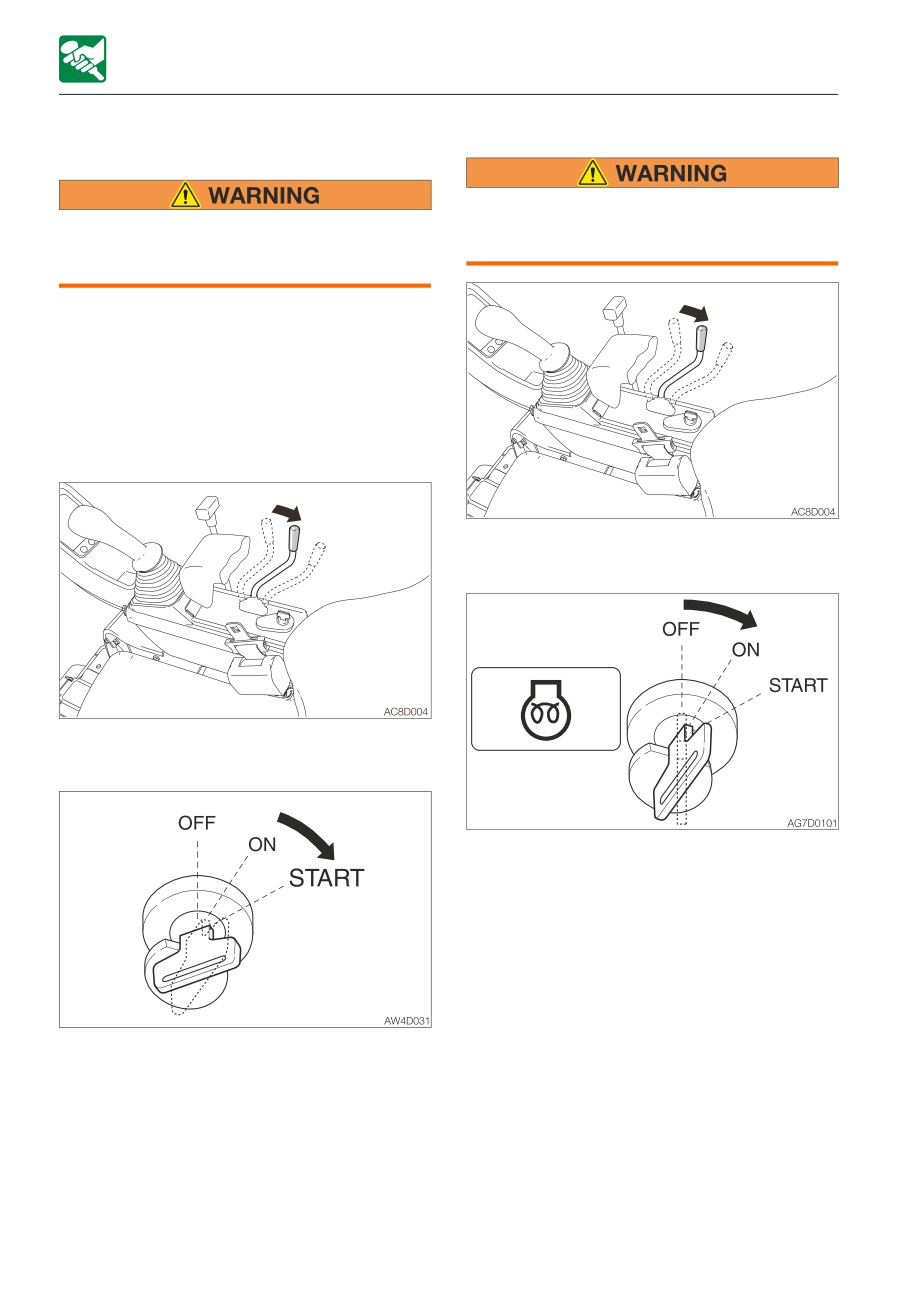

2. Turn the starter key to the ON position,

and confirm that the glow lamp is on. (The

glow lamp stays lit for up to three seconds

when the coolant temperature is 5°C

(41°F).)

3. After the glow lamp goes out, turn the key

to the START position to start the engine.

4. Once the engine starts, release the key.

The key automatically returns to the ON

2. Turn the starter key to the START position

position.

and start the engine.

5. Check that the warning lamps are off.

3. Once the engine starts, release the key.

6. Return the throttle lever and warm up the

The key automatically returns to the ON

engine.

position.

Refer to “Warming up the engine”.

4. Check that the warning lamps are off.

5. Return the throttle lever and warm up the

engine.

Refer to “Warming up the engine” on page

3-5.

3-4

OPERATION

STARTING AND STOPPING THE ENGINE

WARMING UP THE ENGINE

STOPPING THE ENGINE

IMPORTANT: Avoid racing the engine until

IMPORTANT: Do not stop the engine

it has warmed up.

suddenly when operating with heavy

Do not warm up the engine for a long time

loads or at the maximum speed. Doing so

(20 minutes or more). When idling is

may cause the engine to overheat or

required, occasionally place a load or run

seize. Never stop running the engine

the engine at medium speed.

suddenly except in emergency.

1. Return the throttle lever, then run the

1. Return the throttle lever.

engine at a low idle speed with no load for

2. Idle the engine for about 5 minutes to

5 minutes.

gradually let it cool.

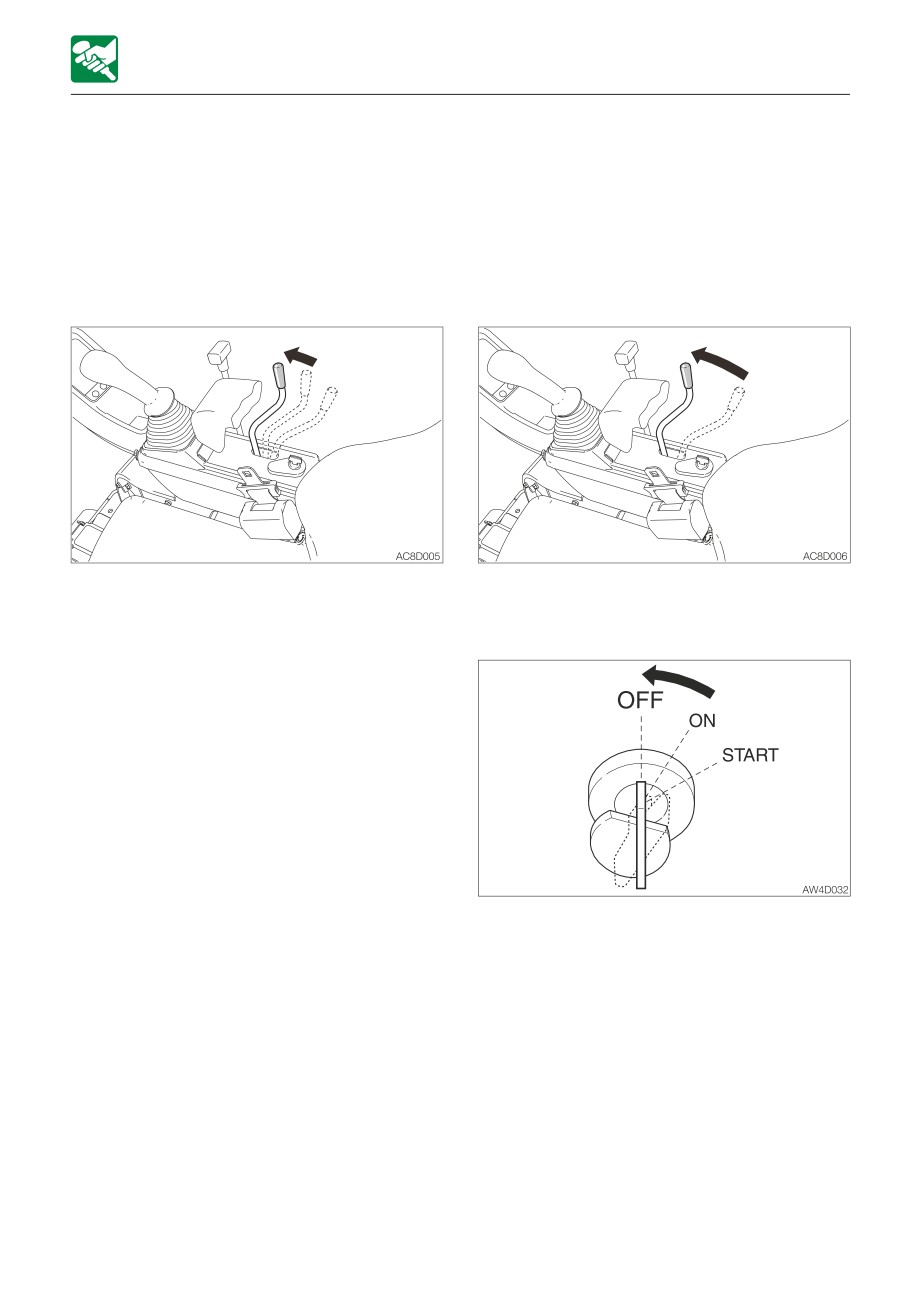

3. Turn the starter key to the OFF position to

stop the engine.

3-5

OPERATION

OPERATING THE MACHINE

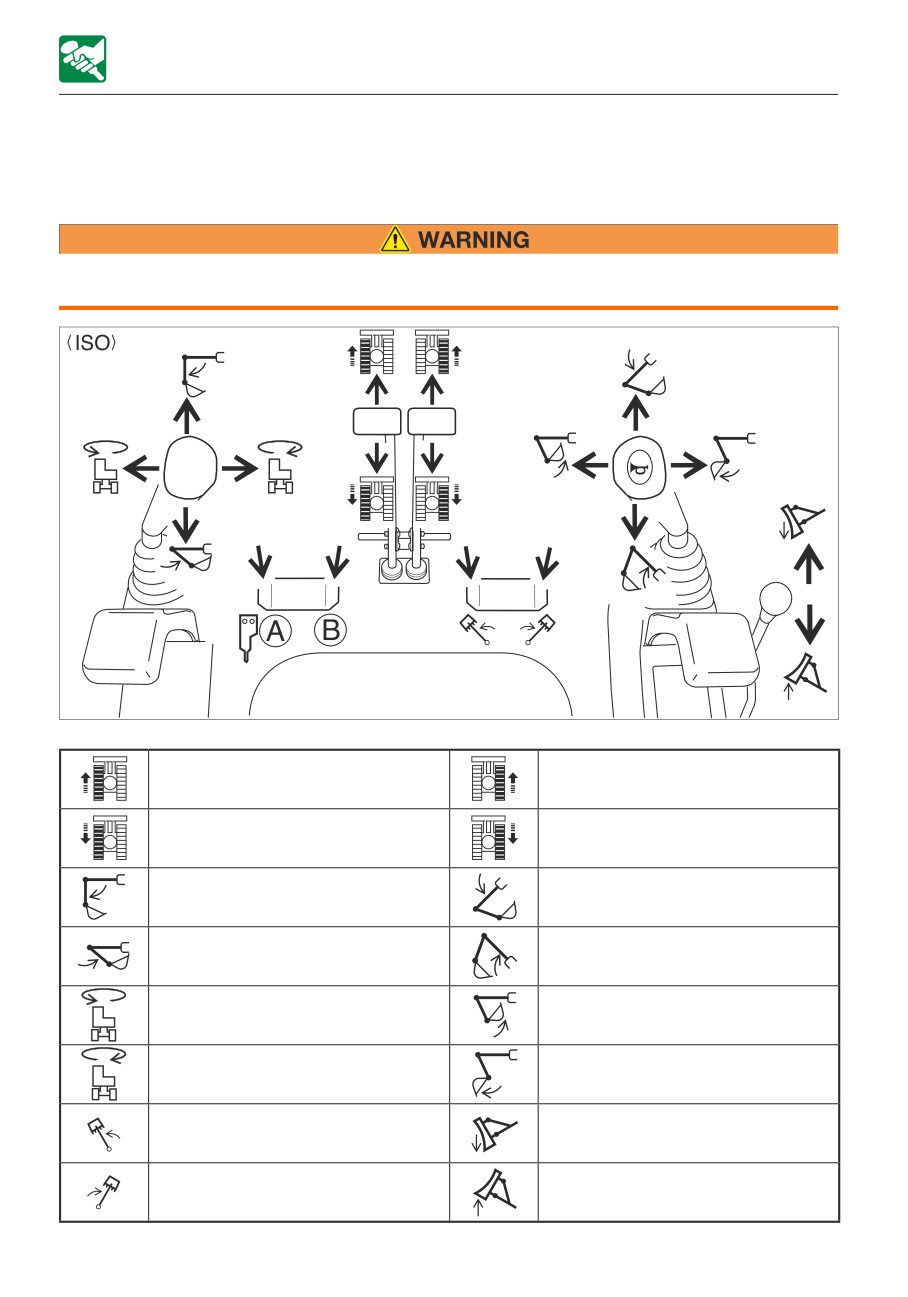

LEVER PATTERN (ISO PATTERN)

• Before starting operation, carefully check which lever pattern you are going to use.

• It is described using the ISO pattern in this manual.

AD6D008

Left crawler forward

Right crawler forward

Left crawler reverse

Right crawler reverse

Arm out

Boom lower

Arm in

Boom raise

Upperstructure slew left

Bucket load

Upperstructure slew right

Bucket dump

Boom swing left

Dozer blade lower

Boom swing right

Dozer blade raise

3-6

Takeuchi Mini excavator TB215R (Serial No.215000003~). Operators Manual (2013) - page 2
