SiteSentinel Automated Monitoring System Model 2 and Model 3. Operator Manual Software Version 1.12CUS

OPW Fuel Management Systems -

System and Replacement Parts Warranty Statement

Effective September 1, 2002

System and Replacement Parts Warranty

OPW Fuel Management Systems warrants that all OPW Tank Gauge and Petro Vend Fuel Control systems

supplied by OPW Fuel Management Systems to the Original Purchaser will be free from defects in material

and/or workmanship under normal use and service for a period of 12 months from the date of installation or 15

months from the date of shipment. Additionally, OPW Fuel Management Systems warrants that all upgrades

and replacement parts (new and remanufactured) supplied by OPW Fuel Management Systems will be free

from defects in material and workmanship under normal use and service for a period of 90 days from the date

of installation or for the remainder of the system’s original warranty, whichever is greater, as set forth in the

first sentence of this statement. The foregoing warranties will not extend to goods subjected to misuse,

neglect, accident, or improper installation or maintenance or which have been altered or repaired by anyone

other than OPW Fuel Management Systems or its authorized representative.

The buyer’s acceptance of delivery of the goods constitutes acceptance of the foregoing warranties and

remedies, and all conditions and limitations thereof.

If a claim is made within the warranted time period that any equipment and/or remanufactured part is defective

in material or workmanship under normal use and service, such equipment and/or remanufactured part shall be

returned to OPW Fuel Management Systems, freight prepaid. If such equipment or remanufactured part is

found by OPW Fuel Management Systems in its sole judgment, to be defective in material or workmanship

under normal use and service, OPW Fuel Management Systems, shall, at its sole option, repair or replace such

equipment and/or remanufactured part (excluding, in all instances, fuses, ink cartridges, batteries, other

consumable items, etc.)

The warranties, as set forth above, are made expressly in lieu of all other warranties, either expressed or

implied, including, without limitation, warranties of merchantability and fitness for any particular purpose and

of all other obligations or liabilities on OPW Fuel Management Systems part. Further, OPW Fuel

Management Systems neither assumes, nor authorizes any other person to assume for it, any other liability in

connection with the sale of the systems, or any new/replacement part that has been subject to any damage from

any act of nature or any force majeure.

The term “Original Purchaser” as used in these warranties shall be deemed to mean the authorized OPW Fuel

Management Systems distributor to which the system or any new/replacement part was originally sold. These

warranties may be assigned by the original purchaser to any of its customers who purchase any OPW Fuel

Management Systems systems or new/replacement parts.

The sole liability of OPW Fuel Management Systems, for any breach of warranty, shall be as set forth above.

OPW Fuel Management Systems does not warrant against damage caused by accident, abuse, faulty or

improper installation or operation. In no event shall manufacturer’s liability on any claim for damages arising

out of the manufacture, sale, delivery or use of the goods exceed the original purchase price of the goods. In

no event shall OPW Fuel Management Systems be liable for any direct, indirect, incidental or consequential

damage or loss of product.

Table Of Contents

Chapter 1 - Introduction

1.1 Specifications

1.2 Hardware Overview

Chapter 2 - Functional Overview

2.1 Passwords

2.2 Tank Inventory Report

2.3 Other Reports

2.4 System Commands

2.5 Scheduled Commands & Reports

2.6 System Setup

2.7 Module Data Overview

2.8 Quick Sale Report

2.9 Quick Delivery Report

2.10 Menus-At-A-Glance

2.11 "How-To" Flowcharts

Chapter 3 - System Setup

3.1 Controller Setup

3.2 Smart Module (Probes & Sensors) Setup

3.3 I/O Module Setup

3.4 Alarm Setup

Chapter 4 - SmartModule & I/O Module Data

4.1 Smart Module Menu

4.2 I/O Module Hardware Menu

Chapter 5 - System Commands

101

5.1 System State

101

5.2 Clear History Buffer

101

5.3 Timed Leak Test

102

5.4 Save Tank Inventory

105

5.5 Passthrough Port

105

5.6 Abort Scheduled Report Printout

105

5.7 Red Light Switch

106

5.8 Buzzer Switch

106

5.9 Computer Reports

106

5.10 System Backup

107

5.11 System Restore

107

5.12 Change I/O Module Output State

108

Chapter 6 - Reports

109

6.1 Report Output Setup Report

111

6.2 Controller Status Report

115

6.3. Tank, Probe & Sensor Status Graphs Report

116

SiteSentinel

6.4 Tank Inventory Report

117

6.5 Sensor Levels Report

117

6.6 Warnings in Progress Report

118

6.7 Sensor, Probe, Input, & HW Failure Events Report

119

6.8 Sensor, Probe, & Input Events Menu

119

6.9 Hardware Failure Events Menu

119

6.10 Individual Events Menu

120

6.11 Saved Tank Inventories Report

121

6.12 I/O Module Status Report

122

Chapter 7 - Scheduled Commands & Reports

123

7.1

Scheduled Open/Close System

125

7.2

Scheduled Clear History Buffer

126

7.3

Scheduled Timed Leak Test

127

7.4

Scheduled Save Tank Inventory

128

7.5

Scheduled Reports

129

Chapter 8 - Quick Sale and Delivery Reports

131

8.1

Quick Sale Report

131

8.2

Quick Delivery Report

131

Appendix A - System Setup Worksheet

133

Appendix B - Modem Use

143

B.1 Overview

143

B.2 Local Modem Configuration

144

B.3 Remote Modem Configuration

144

B.4 Calling a Site

144

Appendix C - EPROM Replacement Procedure

145

C.1 Overview

145

C.2 Controller EPROMs

145

C.3 Smart Module EPROMs

146

Appendix D - Liquid Sensor Drying Procedure

147

D.1 Overview

147

D.2 Gasoline Activation

147

D.3 Activation by Other Petroleum Products

147

Appendix E - PC Connections

149

E.1 Introduction

149

E.2 Local Vs. Remote

149

E.3 Local Connection

149

E.4 Modem Connection

150

E.5 Emulation Software

150

Table Of Contents

Appendix F - Report Protocols & Data Formats

151

F.1 Introduction

151

F.2 Petro Vend File Transfer Protocol

151

F.3 Decimal Values of Standard ASCII Characters

153

F.4 ASCII Protocol for File Transfer

154

F.5 Data Formats

154

F.6 Report Formats

156

Appendix G - Cold Starting the System

165

Appendix H - Troubleshooting

167

H.1 Probe/Sensor Troubleshooting

167

H.2 Controller & Modules Troubleshooting

173

H.3 Test Voltages

179

H.4 LED Indicators

182

H.5 Internal Printer Troubleshooting (Model II ONLY)

184

Appendix I - Model II Printer Paper Replacement

185

Appendix J - Assembling a Model III Terminal Cable

187

Appendix K - Computer Access

189

K.1 Overview

189

K.2 Computer Report Protocols

190

K.4 Report Data Formats

198

K.5 Configuration Variables

209

K.6 Data Formats

221

Index

229

Conformance Data

C1:

iii

Chapter 1 - Introduction

The SiteSentinel Monitoring System is one of

the most comprehensive tank management and

This manual describes operation of both the

leak detection systems ever devised.

Site Sentinel MODEL II and MODEL III. The

functionality of both models is nearly

Performance and reliability are guaranteed by

identical - the differences are in the

independent testing and approvals from

hardware.

Underwriter's Laboratories, the Canadian

The Site Sentinel II has a large keypad-

Standards Association, and the U.S. EPA.

equipped controller with a built-in LCD

screen. The Model III controller is a small,

The SiteSentinel's modular design lets you buy

desktop unit that is run completely from an

the system you want now. And you can expand

outside terminal or PC.

your system - on site, anytime - by adding what

you need ... when you need it.

Screens in this manual are illustrating either

the built-in Model II display, or a CRT on a

Each SiteSentinel system has one controller to

terminal or PC for Model III use.

manage operations. Inventory and system

reports are available anytime

- and can be

Any other differences between Model II and

Model III are explained in the appropriate

scheduled to print automatically.

sections.

Built-in sound and light alarms can signal any

system event (such as a tank overflow). Or,

attach a modem for remote operation from a terminal or PC.Tank probes and sensors connect to

intrinsically safe Smart Modules. As many as 16 probes and sensors connect to each module, in any

combination. Up to eight Smart Modules can be connected for a total of 128 probes and sensors.

The probe used with the SiteSentinel is the Model 613, by Petro Vend. The 613 has its own

microprocessor and data base for easy installation and accurate performance.

Petro Vend also makes available a wide variety of sensors for the SiteSentinel: liquid, vapor,

sump, reservoir, liquid phase, interstitial, and Freon.

The optional I/O Module connects to as many four input devices and 12 output devices. Up to eight

I/O Modules can be connected to the Controller for a total of 32 input and 96 output devices.

Programmers can write programs to

The I/O Module has not been evaluated by

control the SiteSentinel via an external

Underwriter’s Laboratories. Interconnection

computer. See the Computer Access

of the I/O Module and the system covered in

appendix.

this manual has not been evaluated by

Underwriter’s Laboratories.

SiteSentinel

1.1 Specifications

1.1.1 MODEL II and MODEL III CONTROLLERS

MODEL II CONTROLLER

Dimensions

Width:

18" (46 cm)

Height:

15" (38 cm)

Depth:

5" (13 cm)

Electrical Requirements

Standard Voltage Supply:

105 to 125 VAC, 60 Hz

Optional Voltage Supply:

220 to 240 VAC, 50 Hz

Power Consumption:

60 watts maximum

Temperature Range

32EF to 122EF (0EC to 50EC)

Module Capacity

8 Smart Modules and 8 I/O Modules

Display

Backlight:

CCFT

Viewing Area:

5" x 3" (127 mm x 76 mm)

Dot Matrix:

25 lines by 40 characters

Dot Color:

320 x 200 dots

blue characters, white background

Keypad

16 keys: 10 alphanumeric, 6 function

Optional Internal Printer

40 column plain paper

Optional Internal Modem

model 224A; up to 2400 baud

(for remote operation)

Standard Alarms

one audible, one visible

Alarm Inputs (2 standard)

for use with closed contact type inputs rated at

12 VDC, 40 mA

RS-232 Ports

up to 19,200 baud; VT100, VT52 or WYSE 50

(for remote operation)

emulation available;

7 data bits, even parity,

1 stop bit

Functional Overview

MODEL III CONTROLLER

Dimensions

Width:

10" (25 cm)

Height:

2" (5 cm)

Depth:

11" (28 cm)

Electrical Requirements

Standard Voltage Supply:

120 VAC, 50/60 Hz

Optional Voltage Supply:

220 to 240 VAC, 50/60 Hz

Temperature Range

20EF to 100EF (-7EC to 38EC) (indoors only)

Module Capacity

8 Smart Modules and 8 I/O Modules

Serial Communication Ports

Petro-Net (RS-485)

Printer (proprietary)

Terminal (RS-232)

Modem (RS-232)

3 Auxiliary Ports (RS-232)

1.1.2 SMART MODULE

Electrical Requirements

Standard Voltage Supply:

105 - 125 VAC, 60 Hz

Optional Voltage Supply:

220 - 240 VAC, 50 Hz

Power Consumption:

60 watts maximum

Dimensions

Width:

18" (46 cm)

Height:

9.25" (38 cm)

Depth:

(13 cm)

Temperature Range

32EF to 122EF (0EC to 50EC)

Module Capacity

up to 8 Smart Modules per Controller

Device Capacity

per I. S. Barrier:

up to 4 devices (probes and/or sensors)

per Smart Module:

up to 16 devices (probes and/or sensors)

per System:

up to 128 devices (probes and/or sensors)

Petro-Net Communication

18 AWG, twisted pair, oil & gas resistant

Wiring Requirement

(TFFN, THHN, or THWN)

Maximum Cable Extension to Controller

5000 feet (1.5 km)

SiteSentinel

1.1.3 I/O MODULE

Electrical Requirements

Standard Voltage Supply:

105 - 125 VAC, 60 Hz

Optional Voltage Supply:

220 - 240 VAC, 50 Hz

Power Consumption:

60 watts maximum

Dimensions

Width:

(20 cm)

Height:

10" (25 cm)

Depth:

(10 cm)

Module Capacity

up to 8 I/O Modules per Controller

Device Capacity

4 input devices

12 output devices

Output Relay Rating

20 amps @ 240 VAC (normally open)

10 amps @ 240 VAC (normally closed)

Input Rating

10 milliamps @ 5 VDC (sink)

Input Wiring Requirement

12 to 14 AWG

Petro-Net Communication

18 AWG, twisted pair, oil & gas resistant

Wiring Requirement

(TFFN, THHN, or THWN)

Maximum Cable Extension to Controller

5000 feet (1.5 km)

Functional Overview

1.1.4 MODEL 613 PROBE

Power Requirements

Powered through intrinsically safe barrier in Smart

Module only

Temperature Range, Probe or Product

-13EF to 131EF (-25EC to +55EC)

Cable Requirement

Belden #88760 or Alpha #55371 cable

(shielded two-wire twisted pair)

Maximum Cable Extension

1000 feet (305 m)

Level Measurement

Product

Resolution of 0.0005 inch (0.01 mm)

Water

Resolution of 0.01 inch (0.3 mm)

Temperature

Resolution of 0.001E F (.0005E C)

Classification

Class I, Division 1, Group D hazardous locations

PV MODEL 613 PROBE LENGTHS

Probe

Tank Diameter

Location of Temperature Sensors

Length

(or Height)

(Measured from Probe End)

36"

31"

5", 13"

(91 cm)

(79 cm)

(13, 83 cm)

53"

48"

7", 12", 20", 28", 36"

(135 cm)

(122 cm)

(18, 30, 51, 71, 91 cm)

69"

64"

10", 16", 27", 37", 48"

(175 cm)

(163 cm)

(25, 41, 69, 94, 122 cm)

77"

72"

11", 18", 30", 42", 54"

(196 cm)

(183 cm)

(28, 46, 76, 107, 137 cm)

89"

84"

13", 22", 36", 49", 63"

(226 cm)

(213 cm)

(33, 56, 91, 124, 160 cm)

101"

96"

15", 25", 41", 55", 71"

(257 cm)

(244 cm)

(38, 64, 104, 140, 180 cm)

105"

100"

16", 26", 42", 58", 74"

(267 cm)

(254 cm)

(41, 66, 106, 147, 188 cm)

113"

108"

17", 28", 46", 62", 80"

(287 cm)

(274 cm)

(43, 71, 117, 157, 203 cm)

125"

120"

19", 31", 51", 69", 89"

(317 cm)

(305 cm)

(48, 79, 130, 175, 226 cm)

137"

132"

22", 35", 56", 76", 97"

(348 cm)

(335 cm)

(56, 89, 142, 193, 246 cm)

149"

144"

24", 38", 61", 83", 106"

(378 cm)

(366 cm)

(61, 97, 155, 211, 269 cm)

NOTE: The probe head also contains a temperature sensor.

SiteSentinel

1.2 Hardware Overview

1.2.1 MODEL II CONTROLLER

The Model II controller can monitor up to eight Smart Modules and eight I/O Modules. See Page

10 for more terminal/PC info.

Model II controller operation is done:

G Via the built-in keypad and display

G Via an on-site terminal or PC

G With a modem, via an off-site terminal or PC

Menus. You’ll see the same menus on the built-in display as on external computers or terminals. In

this manual, a "pathway" to the indicated menu is shown near each menu.

Printer. An optional internal 40-column printer can be factory-installed in the controller to create

hard copies of reports.

Model II Keypad

G Ten keys have a number and three letters (or

ABC

DEF

CLEAR

punctuation). The "1" key shares its function with

the letters "Q" and "Z", and a space.

GHI

JKL

MNO

BACK

G The CLEAR/NO key either erases an entry or

SPACE

field, or answers NO to a prompt. This key also

"toggles" (displays in sequence) available options in

PRS

TUV

WXY

ALPHA

multi-choice prompts.

G The BACKSPACE key moves the cursor back

?*-

HELP

ENTER

CANCEL

YES

one space, erasing one character. It operates the

same as the [BACKSPACE] key on a external

terminal keyboard.

G The ALPHA key "shifts" the number/letter keys to enter letters. For example, to enter an "A",

you would press the [2] key, and then the [ALPHA] key, and finally the [ENTER] key.

G The ENTER/YES key either finishes an entry or answers YES to a prompt. It functions the same

as pressing the [ENTER/RETURN] key on an external terminal keyboard.

G The HELP key is not functional in this release of software. The CANCEL key backs you out

of as menu, or cancels your previous command.

Functional Overview

An auto-logout feature returns the system to an Idle Mode when no menu selection or data entry is

made for 10 minutes.

Display Screen. The Model II controller display is a backlit LCD screen for showing inventory

and system data. Print most displayed screens by pressing the [?*-/0] key on the keypad, or the

terminal [P] key. Only screens with Print on the bottom can be printed.

You can set the SiteSentinel Model II to display graphs showing the status of the Smart and I/O

Modules (opposite). The display shows each graph for 10 seconds. Pause the display at any time to

review an individual graph. See Page 49 for more information.

Two types of status graph are available for each Smart Module. In the Probe Level Graph, a bar

indicates the level of each product float as a percentage of its tank's diameter. In the Tank Volume

Graph, a bar indicates the current gross product volume for each tank as a percentage of its total

volume. Both types of graph also show immediate sensor status.

I/O module status graphs indicate module position: open, closed, energized, not energized or

removed from operation.

SITE SENTINEL

NOV 16, 1994

7:45 AM

MANIFOLDED TANK INVENTORY REPORT

MANIFOLDED TANK GROUP: 1

MODULE: 1 POSITIONS : .B.D

PRODUCT: DIESEL

VOLUME

GAL

PRODUCT

0.00

13168.99

WATER

0.00

42.61

TOTAL TANK

0.00

13211.60

TEMPERATURE CORRECTED

PRODUCT

13066.89

WATER

42.28

TOTAL TANK

13109.17

TO FILL TANK ADD

7288.40

TO FILL TO 90% ADD:

0.00

AVERAGE PRODUCT TEMPERATURE:

77.1

SiteSentinel

SiteSentinel v1.08A-USA-235 TERM IN USE

Smart Module #: 1, OKAY

POSITION

A B C D E F G H I J K L M N O P

P TOP6444444444444444444444444444444447

N U

75%5

C N

O I

N N

50%5

F S

I T N

O A G A O A

25%5

$ D R L U L R L

$ O M E R L M E

$ W A R E E A R

BOTTOM5

$ N L T D D L T

9444444444444444444444444444444448

P P V W P P S H

.=NONE; P=PROBE; G=GENERIC; F=FREON

V=VAPOR, L=LIQUID, S=SUMP, R=RESERVOIR

SiteSentinel v1.08A-USA-235 TERM IN USE

I/O STATES

PSTNS A B C D E F G H I J K L M N O P

6444444444444444444444444444444447

I M

5 O O O O N N N N N N N N N N N N5

/ O

5 NOT INSTALLED

0 D

5 NOT INSTALLED

9444444444444444444444444444444448

INPUT

OUTPUTS

LEGEND:"O"=OPENED "N"=NOT ENERGIZED

"C"=CLOSED "E"=ENERGIZED

"R"=REMOVED FROM OPERATION

PAUSED

DIRECTIONS: Press [Enter] for Main Menu,

[ALPHA] to Pause, [CANCEL] to Resume.

Functional Overview

1.2.2 MODEL III CONTROLLER

The Model III controller is a microprocessor-based device which can monitor up eight Smart

Modules and eight I/O Modules. Because of its small size, the controller can conveniently be placed

in a convenient-to-get-to convenient location.

The Model III controller is designed for INDOOR USE ONLY.

There are two methods of Model III controller operation: (1) an on-site terminal or PC, and (2) an

off-site terminal or PC connected via modems. All setup and operating commands are listed on

menus.

No commands need to be memorized and no computer expertise is required to program the

controller. The same menus are used for all methods of controller operation. Help screens are

available at each menu.

1.2.3 SMART MODULE

The Smart Module gathers probe and sensor data and routes it to the controller. Up to 16 probes or

sensors can be connected to each Smart Module. Up to eight Smart Modules can communicate with

the controller via the Petro-Net LAN.

1.2.4 I/O MODULE

The optional Input/Output Module expands I/O capacity, and allows connection of up to four input

devices and 12 output devices to the controller. Up to eight I/O modules can be connected for a grand

total of 32 input and 96 output devices.

The I/O Module communicates with the controller via Petro-Net.

1.2.5 PROBES

The Petro Vend Model 613 probe has a built-in computer. Setup data is stored in the probe, and

downloaded to the controller, during configuration.

The Model 613 probes have diagnostic capabilities to assist trouble shooting.

SiteSentinel

1.2.6 SENSORS

The following sensors are available from Petro Vend. All these sensors connect to the Smart Module

for intrinsically safe operation.

See your Site Sentinel Installation Manual for illustrations of these sensors.

G Vapor Sensor. You can place vapor sensors in monitoring wells around the tanks, near

pipelines or between the walls of double containment systems. You can also locate this sensor above

ground to detect most petroleum vapors.

G Liquid Sensor. These sensors determine if a liquid is covering the vapor sensor or if a liquid

has entered the space between the walls of a double-wall tank, pipe or delivery system. The liquid

sensor is not destroyed when activated.

G Universal Sump Sensor. These sensors go in an attached manway riser or an attached collar

riser. They detect liquid in the piping sump.

G Universal Reservoir Sensor. The URS monitors the reservoir level in double-walled

monitored tanks.

G Liquid Phase Sensor. This sensor detects liquid hydrocarbon in various types of installations;

for example, wet inspection wells, wet monitoring wells, piping with or without secondary

containment, and above or below grade vaulted tanks.

G Interstitial Sensor. This device detects liquid hydrocarbons and/or water within a tank's

interstitial space. Two sensing elements are wired to separate terminals in the SiteSentinel Smart

Module, so the system indicates hydrocarbon and water independently.

G Freon Sensor. These sensors continuously detect Freon gas caused by leaks or spills, typically

from pipes and tanks in and around refrigeration equipment.

1.2.7 TERMINAL/PC OPERATION

Using a terminal to program your Site Sentinel is optional on the Model II, but required on the

Model III.

Local Operation. The terminal can be connected locally, within six feet of the controller.

Communication is through the RS232 port of the controller.

Remote (Modem) Operation. For modem information, see Page 143. Terminal emulation and PC

connections are explained on Page 149.

Functional Overview

If you intend to write a computer interface program to execute SiteSentinel commands, remember

that the menu and command arrangements are subject to change in future software versions.

Appendix K, beginning on Page 189, is a comprehensive guide to writing programs for controlling

your system.

Your terminal must be able to use one of the following operating standards

9 VT52

9 VT100

9 WYSE 50.

If you are using a PC, use a software program that can emulate one of these terminal standards.

The baud rate for the terminal or emulation software must match the rate set in the controller - refer

to the SiteSentinel Installation Manual for details.

The terminal or emulation software must be configured for the following features:

G Carriage Return only

G 40 or 80 columns

G 25 (or more) lines

G Full duplex

G 7 data bits, 1 stop bit, even parity

The Timed Auto-logout feature prevents unauthorized access to the SiteSentinel if the system is

left unattended.

When enabled, auto logout exits current mode (privileged, restricted, or normal) and returns to Idle

Mode whenever a key has not been pressed for 10 minutes.

The auto-logout feature cannot be disabled when you are accessing the system via a modem.

Refer to Page 37 for more information about the timed auto-logout feature.

Chapter 2 - Functional Overview

2.1 Passwords

The SiteSentinel has three modes of operation: Privileged, Non-Privileged and Restricted.

Before you set or configure anything, enter the Privileged password: the default password is HELLO.

Use the 1. ENTER PASSWORD on the Main Menu (below).

SITESENTINEL

APR

29,

1996

8:36 AM

MAIN MENU

1.ENTER PASSWORD:

2.TANK INVENTORY REPORT

3.REPORTS

4.SYSTEM COMMANDS

5.SCHEDULE COMMANDS & REPORTS

6.SYSTEM SETUP

7.I/O AND SMART MODULE DATA

8.QUICK SALE REPORT

(PRINTER REQUIRED)

9.QUICK DELIVERY REPORT

(PRINTER REQD)

DIRECTIONS:

-----------

AT ANY MENU YOU MAY ENTER THE FOLLOWING:

OPTION

SELECTS OPTION

[C] OR

[CANCEL] EXITS TO PREVIOUS MENU

[P] OR

[0]

PRINTS DATA FROM SCREEN

To prevent unauthorized viewing of data, activate the restricted mode. In this mode you must enter

a password to display and print reports.

In normal mode, reports can be displayed and printed without entering a password.

When the system is not being programmed or requested for data, it is in Idle Mode. In idle mode,

status charts showing current probe and sensor readings can be shown on the display.

SiteSentinel

2.2 Tank Inventory Report

The 2. TANK INVENTORY REPORT option on the Main Menu displays current readings of all

positions in all modules. Simply press 2 to see current inventories of all your tanks.

Other reports are accessed with Option 3 in the Main Menu.

2.3 Other Reports

The 3. REPORTS option in the Main Menu lets you generate and print the following current and

saved reports.

Current:

G Controller Status

G Tank, Probe & Sensor Status Graphs

G Tank Inventory

G Sensor Levels

G Warnings In Progress

Saved Events:

G Sensor, Probe & Input Data

G Hardware Failures

G Individual Events

Other Reports:

G Saved Tank Inventories

G I/O Module Status Reports

Use the 8. QUICK SALES REPORTS and the 9. QUICK DELIVERY REPORTS options in the Main

Menu for other report options.

Functional Overview

2.4 System Commands

The 4. SYSTEM COMMANDS option in the Main Menu displays a submenu with the following

options:

G System State (OPEN or CLOSE)

G Clear History Buffer

G Timed Leak Test

G Save Tank Inventory

G Passthrough Port *

G Abort a Scheduled Report

G Red Light Switch (ON or OFF)**

G Buzzer Switch (ON or OFF)**

G Computer Reports*

G System Backup*

G System Restore*

G Change I/O Module State

* Terminal-equipped systems only

** For Model III, the “Red Light” is the STATUS LED, and the “Buzzer” is an internal beeper.

2.5 Scheduled Commands & Reports

Select 5. SCHEDULE COMMANDS & REPORTS from the Main Menu to display a submenu with

the following options:

System Commands

Open or Close

Clear History Buffer

Timed Leak Test

Save Tank Inventories

SiteSentinel

2.6.4 ALARM SETUP

The Alarm setup tells the system how to respond to conditions such as low product level in a tank

or a sensor activation.

Sixteen alarm conditions can be defined: overflow, low product, high water, temperature, theft,

delivery, sale, leaks, sensor (high or low), I/O module inputs, input 1 or 2 closed, failure of a probe

or module, a printer failure or a power failure.

2.7 Module Data Overview

The 7. I/O AND SMART MODULE DATA option in the Main Menu is divided into two groups of

functions:

Smart Module Data:

G Tank Dip Charts

G Tank & Sensor Info

G Probe & Sensor Hardware & Diagnostics

G Module/Device Level Summaries

I/O Module Hardware Data

2.8 Quick Sale Report

Pressing 8. QUICK SALE REPORT from the Main Menu prints out a list of sales either in progress

or recently completed. This one-touch report eliminates the need for you to go through layers of

menus.

SiteSentinel

2.10 Menus-At-A-Glance

MAIN MENU

5. SCHEDULED COMMANDS &

REPORTS

1. ENTER PASSWORD

2. TANK INVENTORY REPORT

1. Open/Close System

3. REPORTS

2. Clear History Buffer

4. SYSTEM COMMANDS

3. Timed Leak Test

5. SCHEDULED COMMANDS/ REPORTS

4. Save Tank Inventory

6. SYSTEM SETUP

5. In Progress Warning Report

I/O & SMART MODULE DATA

6. Saved Event Report

8. QUICK SALE REPORT

7. Inventory Report

9. QUICK DELIVERY REPORT

8. Delivery Report

6. SYSTEM SETUP

Following are each sub-menu accessed from the Main

CONTROLLER

Menu. Some functions only apply to the Model II, and

1. Security

are labeled as such.

2. Time/Date

3. Printer Options

4. Measurement Units

5. Event History Buffer

1. ENTER PASSWORD

6. System Hardware Test

7. Idle Mode Graphs (Model II)

2. TANK INVENTORY REPORT

8. Red Button/Light & Buzzer

9. Protocol Options

3. REPORTS

SMART MODULE

1. REPORT OUTPUT SETUP

1. Module Position Type Assign.

2. CONTROLLER STATUS

2. Probe & Sensor Configuration

3. TANK, PROBE, SENSOR STATUS GRAPHS

3. Tank Manifolding

4. TANK INVENTORY

4. Tank & Sensor Thresholds

5. SENSOR LEVELS

5. Install/Remove Modules & Positions

6. WARNINGS IN PROGRESS

6. Tank and Sensor Correction

7. SENSOR,PROBE,INPUT,HW FAILURE

8. SENSOR, PROBE, INPUT

I/O MODULE

9. HARDWARE FAILURE

1. I/O Configuration

10. INDIVIDUAL

Overflows

2. Event Output Setup

Low Products

3. Install/Remove Modules & Positions

High Waters

Bad Temperatures

Thefts

ALARMS

Deliveries

1. Overflow

Sales

2. Low Product

Timed Leak Tests

High Sensor Levels

3. High Water

Low Sensor Levels

4. Bad Temperature

I/O Module Input Contact Closures

5. Theft

Input #1 Contact Closures

Input #2 Contact Closures

6. Delivery

Probe Failures

7. Sale

Module Failures

8. Timed Leak Test

Printer Failures

9. Sensor High

Power Failures

10.

Sensor Low

11. SAVED TANK INVENTORY

11.

I/O Module Inputs

12. I/O MODULE STATUS REPORT

12.

Input #1 Closed

13.

Input #2 Closed

4. SYSTEM COMMANDS

14.

Probe Failure

1. SYSTEM STATE

15.

Module Failure

2. CLEAR HISTORY BUFFER

16.

Printer Failure

3. TIMED LEAK TEST

17.

Power Failure

4. SAVE TANK INVENTORY

7. I/O & SMART MODULE DATA

5. PASSTHROUGH PORT

6. ABORT SCHEDULED REPORT PRINTOUT

I/O DATA

7. RED LIGHT SWITCH (Model II)

8. BUZZER SWITCH (Model II)

1. TANK DIP CHART

9. COMPUTER REPORTS

2. TANK & SENSOR

3. PROBE & SENSOR HARDWARE

10. SYSTEM BACKUP

4. PROBE & SENSOR DIAGNOSTIC

11. SYSTEM RESTORE

5. MODULE DEVICE LEVEL SUMMARY

12. CHANGE I/O MODULE OUTPUT

STATE

MODULE HARDWARE

8. QUICK SALE REPORT

9. QUICK DELIVERY REPORT

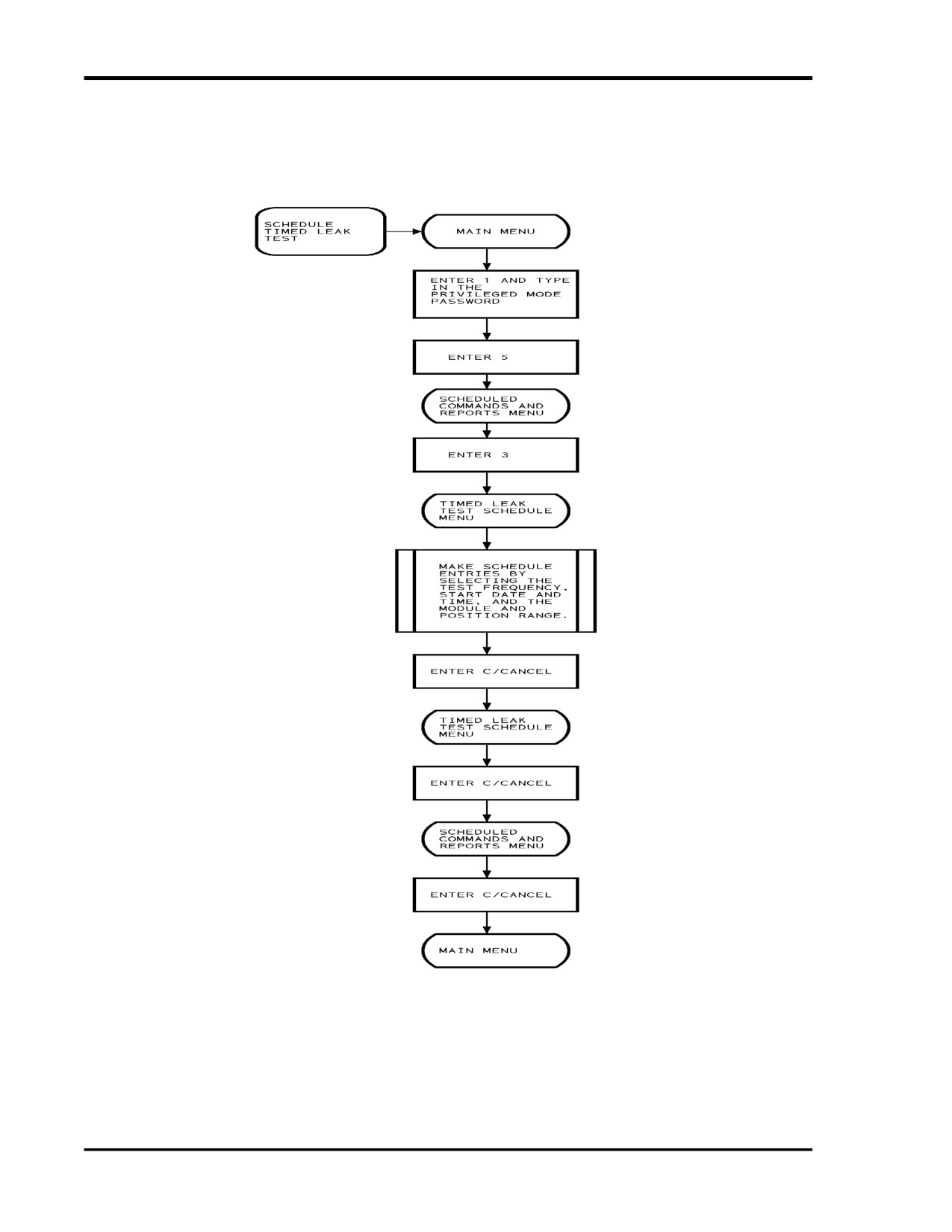

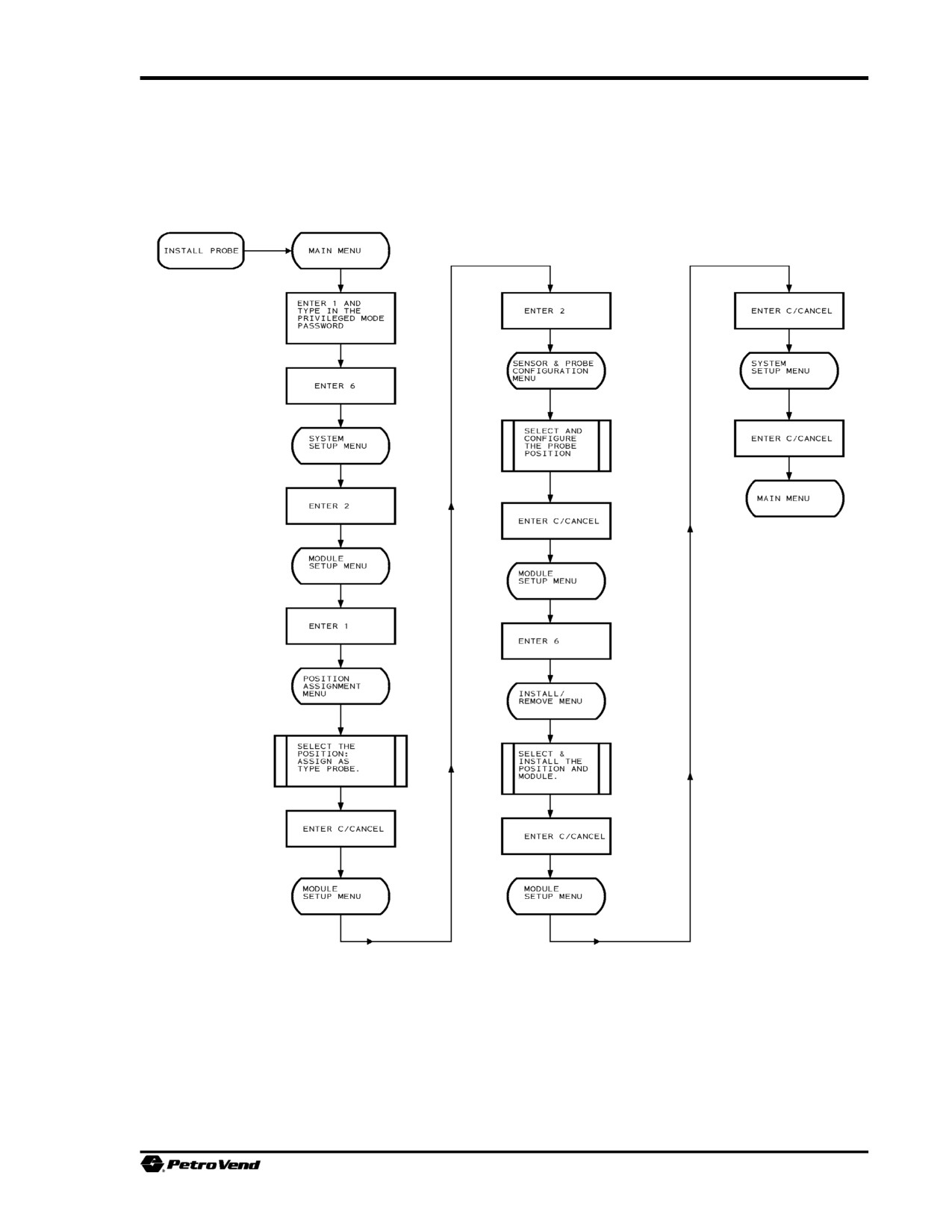

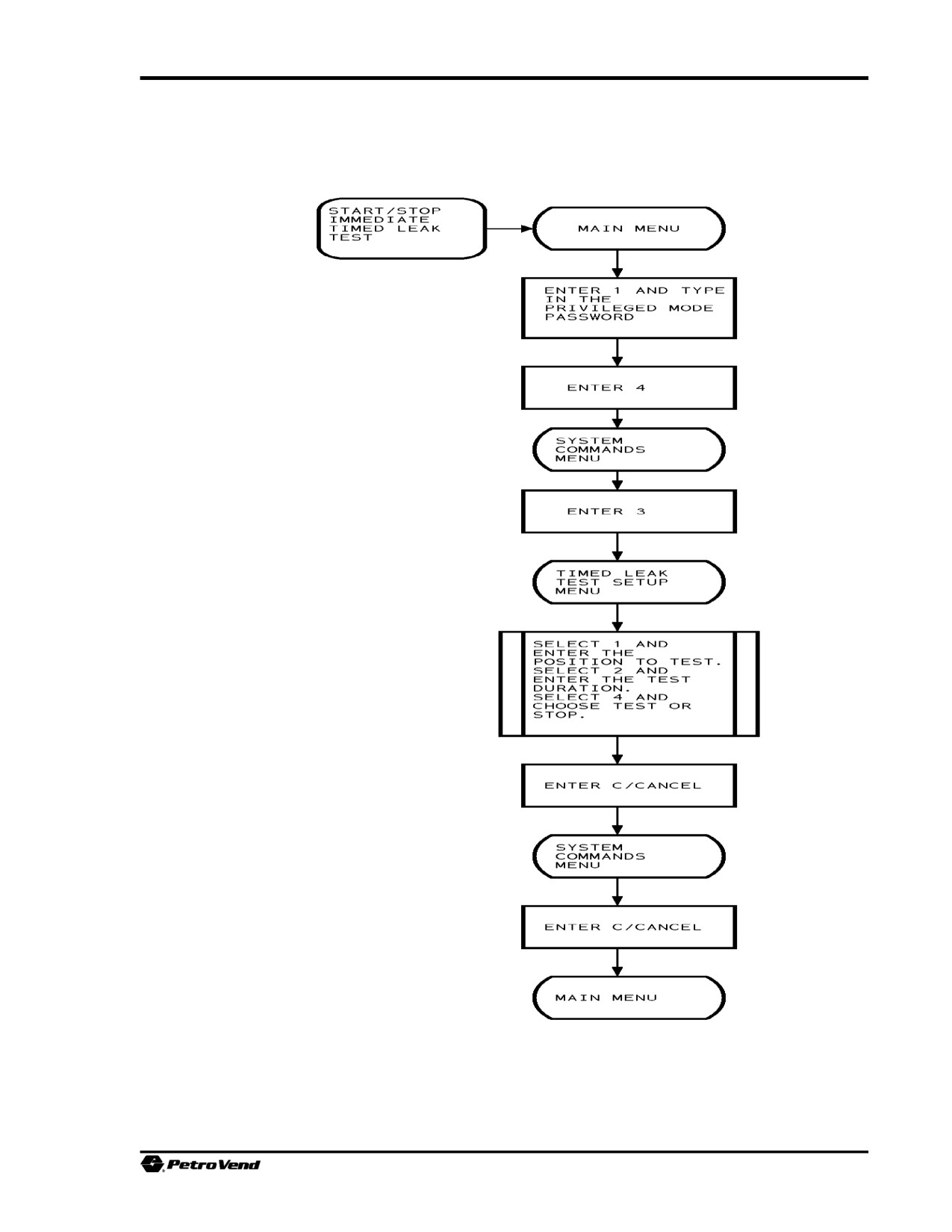

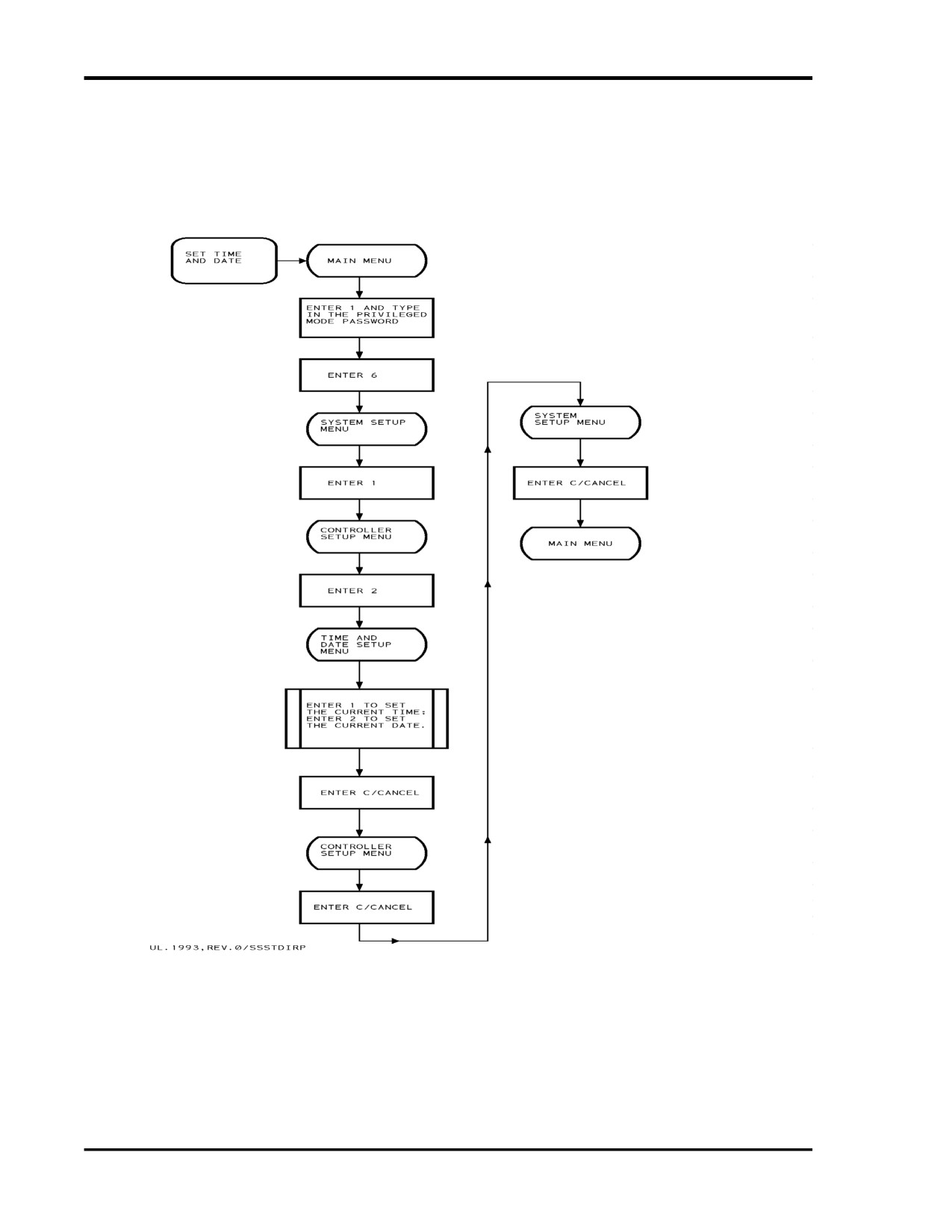

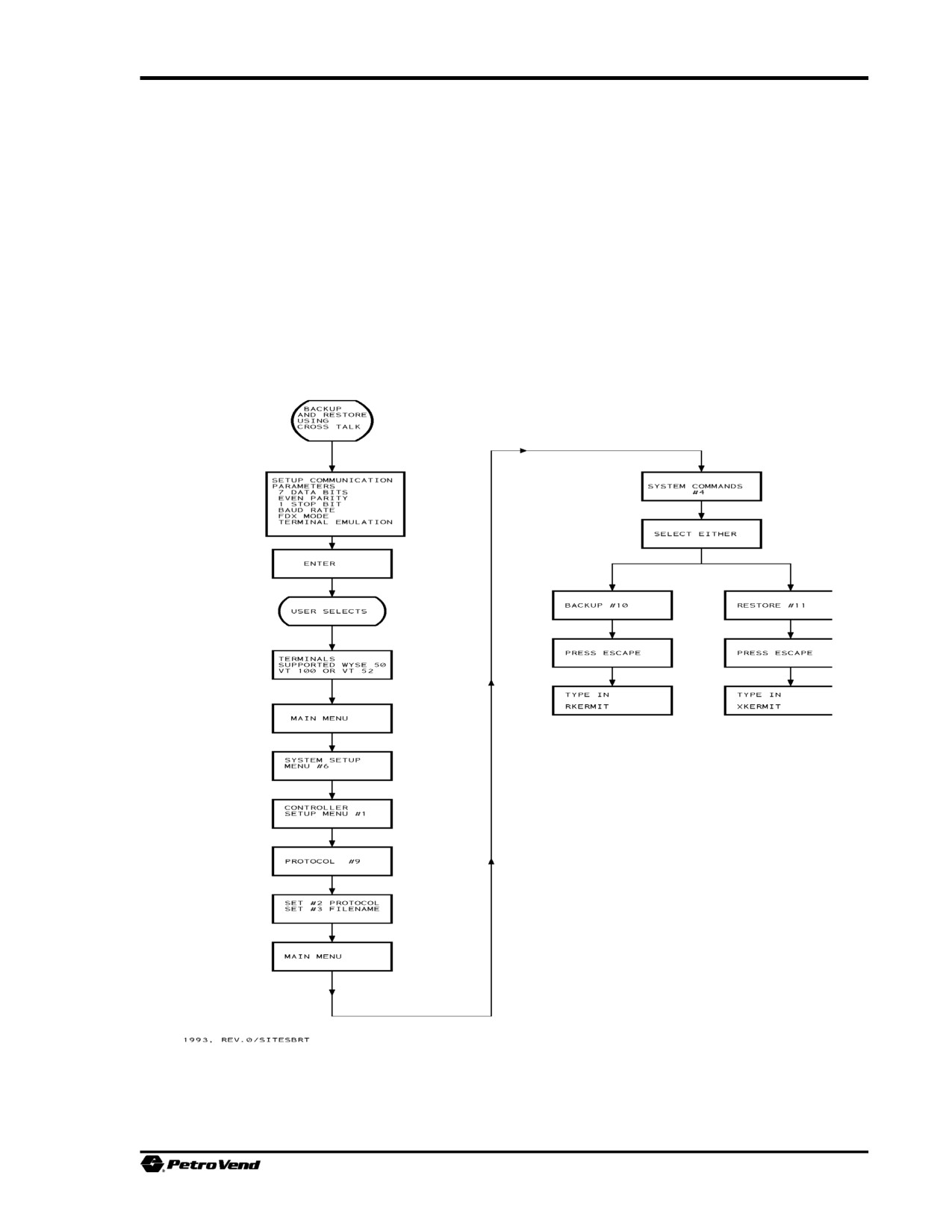

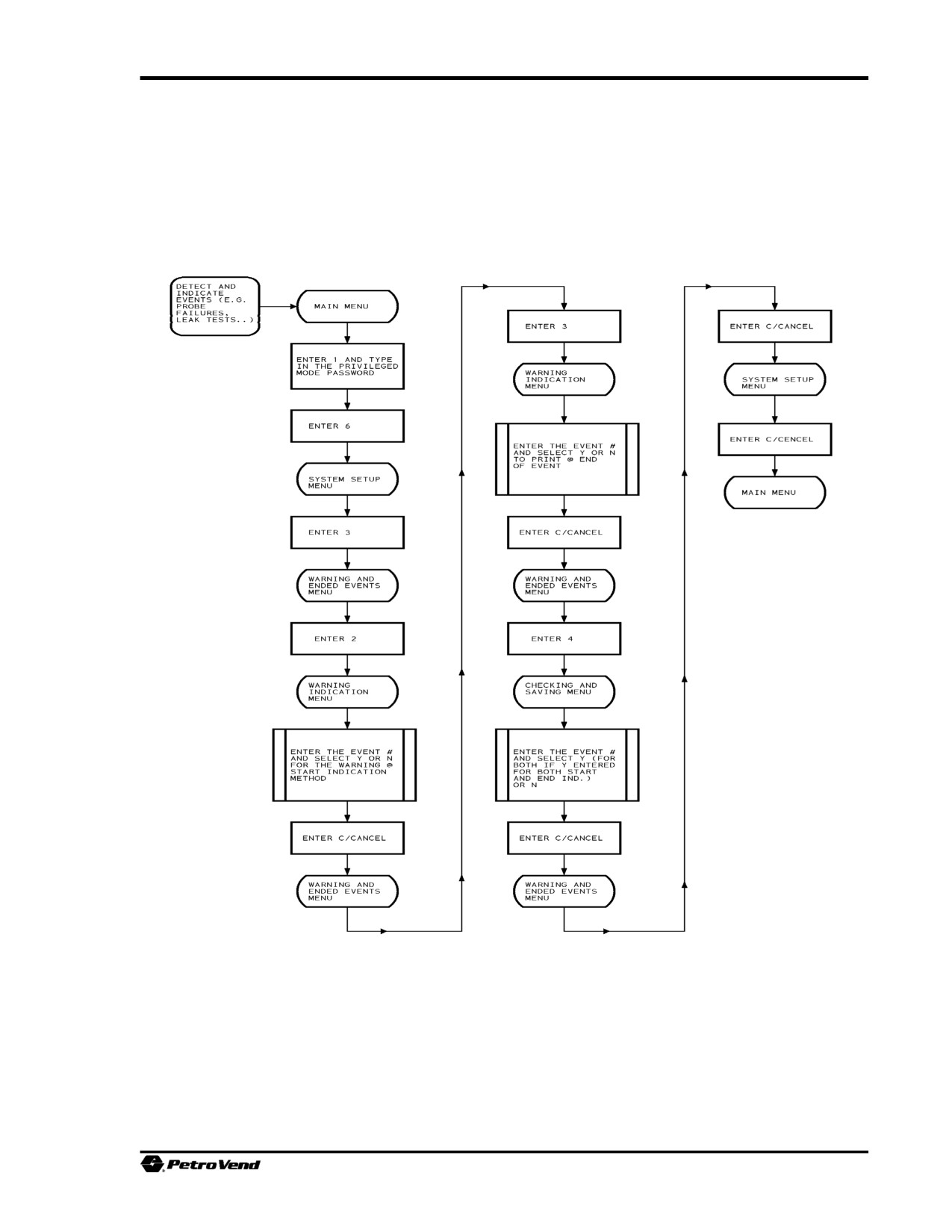

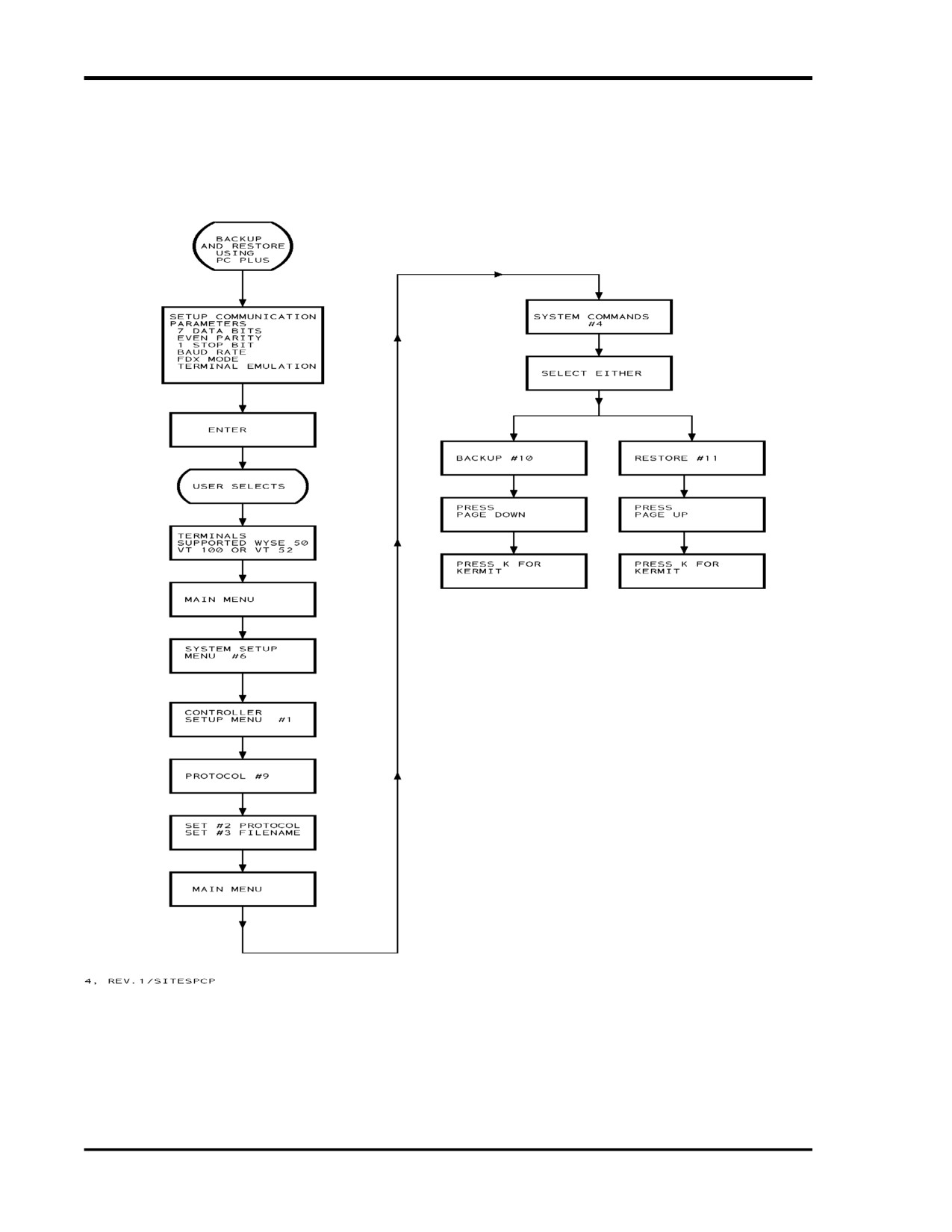

Chapter 3 - System Setup

MAIN MENU L Á

PRIVILEGED MODE

APR 29, 1996

8:36 AM

SYSTEM SETUP MENU

1.CONTROLLER

2.SMART MODULE (PROBES & SENSORS)

3.I/O MODULE

4.ALARMS

ENTER #, C/CANCEL, 0/PRINT:

After the SiteSentinel hardware has been installed, certain data must be entered to make the system

operational. The System Setup menu (above) is where you access all setup functions.

After selecting an item from the menu, additional submenus are displayed, and are described in this

section:

G Controller Setup (Section 3.1)

G Smart Module Setup (Section 3.2)

G I/O Module Setup (Section 3.3)

G Alarm Setup (Section 3.4)

BEFORE making any changes to settings, copy the Configuration Worksheet (Appendix A, Page

133) and record settings. Keep the master as a blank for future changes. You must be in Privileged

mode to enter or change setup data. The default password is `HELLO'. If you are not already in

Privileged mode, do the following:

From the Main Menu, press (1)

Enter HELLO (Model II users: Use the number keys and the (ALPHA) key to change the

numbers to letters.

When HELLO is complete on the display line, press YES.

The unit is now in Privileged mode.

If you change any setup data for a module position, all measurement, warning, and event data for

that position are erased. This prevents the possible misinterpretation of data that was recorded for

a different setup.

SiteSentinel

INITIAL STARTUP

When you first start the system (or after a cold start), the SiteSentinel has no operational data.

Several features have "default" values that are installed automatically. The following is a basic startup

sequence:

1. Select measurement units (U.S. or metric) [Controller Setup]

2. Set the current time and date [Controller Setup]

3. If a printer is connected, you must enter its setup data in order to use it [Controller Setup]

4. For Model II, enter data for the idle mode status graphs, the red button/light and the buzzer. For

either model, enter data the red button/light and the buzzer [Controller Setup]

5. Enable probes, sensors, and alarms by following these steps [Smart Module Setup]

ë Assign devices to Smart Module positions

ë Configure Smart Module positions.

ë For manifolded tanks, assign module positions to a manifold group

ë Enter tank and sensor thresholds. Not all sensors require thresholds

ë Install Smart Module positions

ë Enter tank correction data (optional)

ë Enter data for the I/O modules (optional) [I/O Module Setup]

ë Enable alarms [Alarm Setup]

CONTROLLER SETUP OVERVIEW

Section 3.1, Page 35. Data can be entered for the following:

ë Security

ë Time/date

ë Printer options

ë Measurement units

ë Event history buffer

ë Status graphs

ë Button & buzzer setup

ë Computer protocol options.

ë Probe diagnostics and system tests

System Setup

SMART MODULE SETUP OVERVIEW

Section 3.2, Page 59. The Smart Module setup includes:

ë Module position type assignment

ë Sensor and probe configuration

ë Tank correction and manifolding

ë Tank and sensor thresholds

ë Module position installation and removal

I/O MODULE SETUP OVERVIEW

Section 3.3, Page 81. The I/O module setup includes:

ë I/O configuration

ë Event output setup

ë Module position installation and removal.

ALARMS SETUP OVERVIEW

Section 3.4, Page 88. You can program the SiteSentinel to respond to the start of an alarm event

by printing a message. With Model II, alarms can be signaled by sounding its buzzer, and/or by

lighting its red light.

Either model can respond to the end of an alarm event by printing a message.

System Setup

3.1

Controller Setup

MAIN MENU L Á L Ï

PRIVILEGED MODE

APR 29, 1996

8:36 AM

CONTROLLER SETUP MENU

1. SECURITY

2. TIME/DATE

3. PRINTER OPTIONS

4. MEASUREMENT UNITS: US

5. EVENT HISTORY BUFFER

6. SYSTEM HARDWARE TEST

7. IDLE MODE GRAPHS

8. RED BUTTON/LIGHT & BUZZER

9. PROTOCOL OPTIONS

10.VOLUME REFERENCE TEMP.: 15C

ENTER #, C/CANCEL, 0/PRINT:

ì SECURITY

Privileged/restricted passwords, enabling/disabling restricted mode.

(Page 37).

ì TIME/DATE

Set or show current time and date, the date format and the time format (Page 39).

ì PRINTER OPTIONS

Define page headers, leading and trailing page form feed measurements (Page 41).

ì MEASUREMENT UNITS

Selects the system of measurement: (1) US - feet, gallons, and Fahrenheit degrees or (2) Metric - meters,

liters, and Celsius degrees (Page 43).

ì EVENT HISTORY BUFFER

The event history buffer stores information generated by the SiteSentinel (Page 44).

System Setup

3.1.1 Security Setup Menu

MAIN MENU L Á L ‚ L Ï

PRIVILEGED MODE

APR 29, 1996

8:36 AM

SECURITY SETUP MENU

1.PRIVILEGED PASSWORD: HELLO

2.RESTRICTED PASSWORD: HELLO

3.RESTRICTED MODE:

DISABLED

4.TIMED AUTO-LOGOUT:

ENABLED

5.SITE ID:

123456ABCDEF

ENTER #, C/CANCEL, 0/PRINT:

PRIVILEGED PASSWORD

You must first correctly enter the privileged password in order to enter or change any setup data.

Factory-set password is `HELLO'.

RESTRICTED PASSWORD

Required when restricted mode is enabled. Factory-set password is `HELLO'.

RESTRICTED MODE

The restricted mode protects the system data from unauthorized viewing. When this mode is enabled,

the restricted password must be entered before any data can be displayed or printed. Initially, this mode

is disabled.

TIMED AUTO-LOGOUT

The timed auto-logout feature prevents unauthorized access to the SiteSentinel if the system is left

unattended.When this feature is enabled, the system exits its current operational mode (privileged,

restricted, or normal) and returns to idle status whenever a key has not been pressed for 10 minutes.

In the Model II, the timed auto-logout feature can be disabled to allow viewing of Smart Module data

when on the status graphs. The timed auto-logout feature can be disabled to allow extended viewing of

Smart Module data when displaying the status graphs. When you access the SiteSentinel via modems, the

system always times out after 10 minutes when left unattended.

System Setup

3.1.2 Time/Date Setup Menu

MAIN MENU L Á L ‚ L Ì

PRIVILEGED MODE

APR 29, 1996

8:36 AM

TIME & DATE SETUP MENU

CURRENT TIME & DATE

1.DATE:

OCT 31, 1994

2.TIME:

8:36 AM

DATE FORMAT

3.FORMAT:

LONG

4.ORDER (LONG):

MMM DDD, YYYY

5.ORDER (SHORT):

MDY

6.SEPARATOR (SHORT):

7.LEADING CHARACTER:

NONE

TIME FORMAT

8.FORMAT:

12-HOUR

9.BEFORE NOON SUFFIX: AM

10.AFTER NOON SUFFIX: PM

11.SEPARATOR:

12.LEADING CHARACTER:

NONE

ENTER #, C/CANCEL, 0/PRINT:

CURRENT TIME & DATE

The time and date are included on all menus and reports. You must be in privileged mode to set time or date

DATE FORMAT

Date format can be short or long. Though it is easier to enter data using the short format; the long format

is easier to read. Use the [NO] or [N] key to make your selection, and then press the [ENTER] key.

Separator: In short format, a separator distinguishes the parts of the date. The options are `/', `-', space an

none. Use the [NO] or [N] key to make your selection, and then press the [ENTER] key.

Leading Character: can be either a blank or a zero. Use the [NO] or [N] key to toggle the options for this feature.

When the appropriate option displays, press the [ENTER] key.

System Setup

3.1.3 Printer Setup Menu

MAIN MENU L Á L ‚ L Ó

PRIVILEGED MODE

APR 29, 1996

8:36 AM

PRINTER SETUP MENU

1.PRINTER TYPE: EXTERNAL

2.CLEAR PRINTER STATUS ERROR

3.TOP OF PAGE HEADER (4 LINES):

SITESENTINEL

INTEGRATED MONITORING SYSTEM

BY PETRO VEND, INC.

(708) 485-4200

4.LEADING PAGE FORM FEED:

DISABLED

5.TRAILING PAGE FORM FEED: DISABLED

ENTER #, C/CANCEL, 0/PRINT:

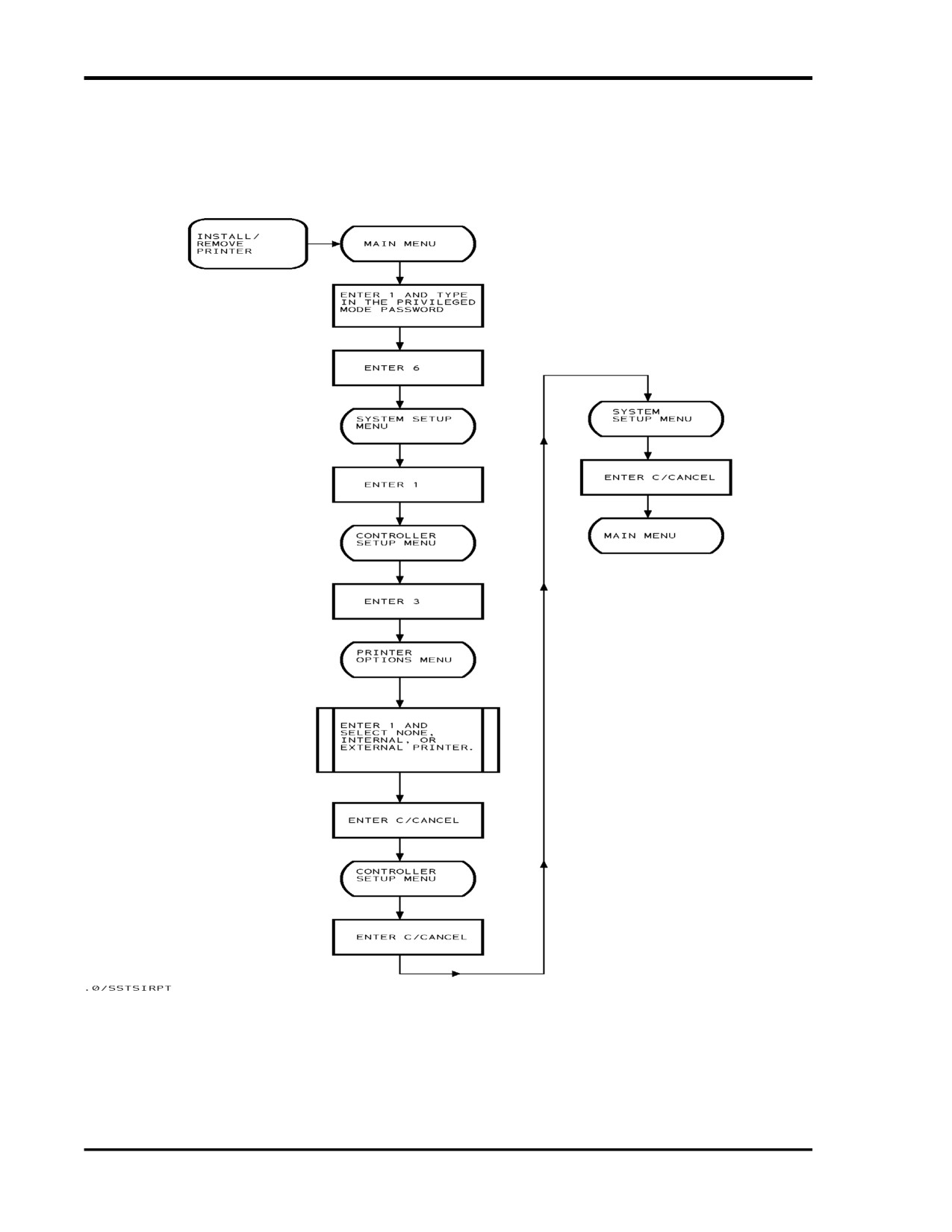

PRINTER TYPE

The Model II SiteSentinel can use an optional internal or external printer, an internal 8-bit or external

8-bit printer, or no printer. The Model III can use either an external printer, an external 8-bit printer (a

journal printer), or NO printer.

In the Model II, the status of the internal printer (if present) is also displayed.

CLEAR ERROR

The Model II internal printer will show an error if it runs out of paper, or jams. After paper is cleared,

select to clear the error.

SiteSentinel

TOP OF PAGE HEADER

Enter up to four lines of 40 characters each for the page header. Headers can be names, addresses,

telephone numbers, or other identification data for a site. After entering this selection, you are prompted

for the first line. The entry is not "case-sensitive;" that is, upper and lower case letters are not

distinguished.

Text is "left-justified" as you enter the characters. Use the backspace key to delete one or more characters

in a line before pressing [ENTER].

To create a blank line, enter only a single space. To keep a line the same, press the [ENTER] key without making

an entry.

Press the [ENTER] key to complete the line entry. The line centers on the display; this is how the line will

actually be printed. After pressing the [ENTER] key, you are prompted for the next line. After the fourth

line, the complete message is displayed, and you are returned to the menu.

To change a line after pressing [ENTER], you must complete the entries for all four lines and re-select the

command. To change one or more characters in a line after pressing [ENTER] , you must enter the entire correct

line.

LEADING PAGE FORM FEED

MODEL II INTERNAL PRINTER - Before printing, the system first sends three blank lines to the

printer. This allows some spacing between printed data.

EXTERNAL PRINTER - Before printing, the system first sends a form feed character to the printer.

This allows the printer to begin at the top of a new page.

TRAILING PAGE FORM FEED

MODEL II INTERNAL PRINTER - The system sends three additional blank lines to the printer at the

end of a printout. This make it easier to tear the paper from the printer.

EXTERNAL PRINTER - The system sends a form feed to the printer.

SiteSentinel

3.1.5 Event History Buffer Menu

MAIN MENU L Á L ‚ L ð

SITE SENTINEL

APR 29, 1996

8:36 AM

EVENT HISTORY BUFFER MENU

TOTAL RECORDS:

6864

FREE RECORDS:

6000

USED RECORDS:

864

1.WRAP AROUND: ENABLED

2.CLEAR RECORD BUFFER

ENTER #, C/CANCEL, 0/PRINT:

Information for events such as a timed leak test or a hardware problem, is stored as a record in "buffers"

inside the controller. The information in the buffers is used to generate the various reports.

Note that the total number of records that can be stored in the buffer may vary slightly between software

versions.

WRAPAROUND

Enabling the wrap around causes new data to overwrite (and destroy) old data when the buffer is

full.RECORD BUFFER

The record buffer can be cleared (that is, all data are erased).

The erased data cannot be recovered from the SiteSentinel after its buffer is cleared.

As a safeguard, you should print or copy to an external file (using a PC) any important data before

clearing the record buffer.

System Setup

3.1.6 System Hardware Test Menu

MAIN MENU L Á L ‚ L Ò

SITE SENTINEL

APR 29, 1996

8:36 AM

CONTROLLER HARDWARE TEST MENU

ONLY TO BE ACCESSED BY QUALIFIED

PETROVEND SERVICE PERSONNEL!!!!!

1.PROBE DIAGNOSTICS: DISABLED

2.PROBE FAILED TOLERANCE: 5

3.PROBE PRODUCT TO WATER/TEMP RATIO: 5

4.TANK ACTIVITY DETECTION PARAMETERS

5.CLEAR EPROM CHECKSUM ERROR

6.BATTERY TEST: PASSED

7.TIMED PROBE TEST

8.PROBE TEMP. DIFFERENTIAL ALLOWED: 5.0

ENTER #, C/CANCEL, 0/PRINT:

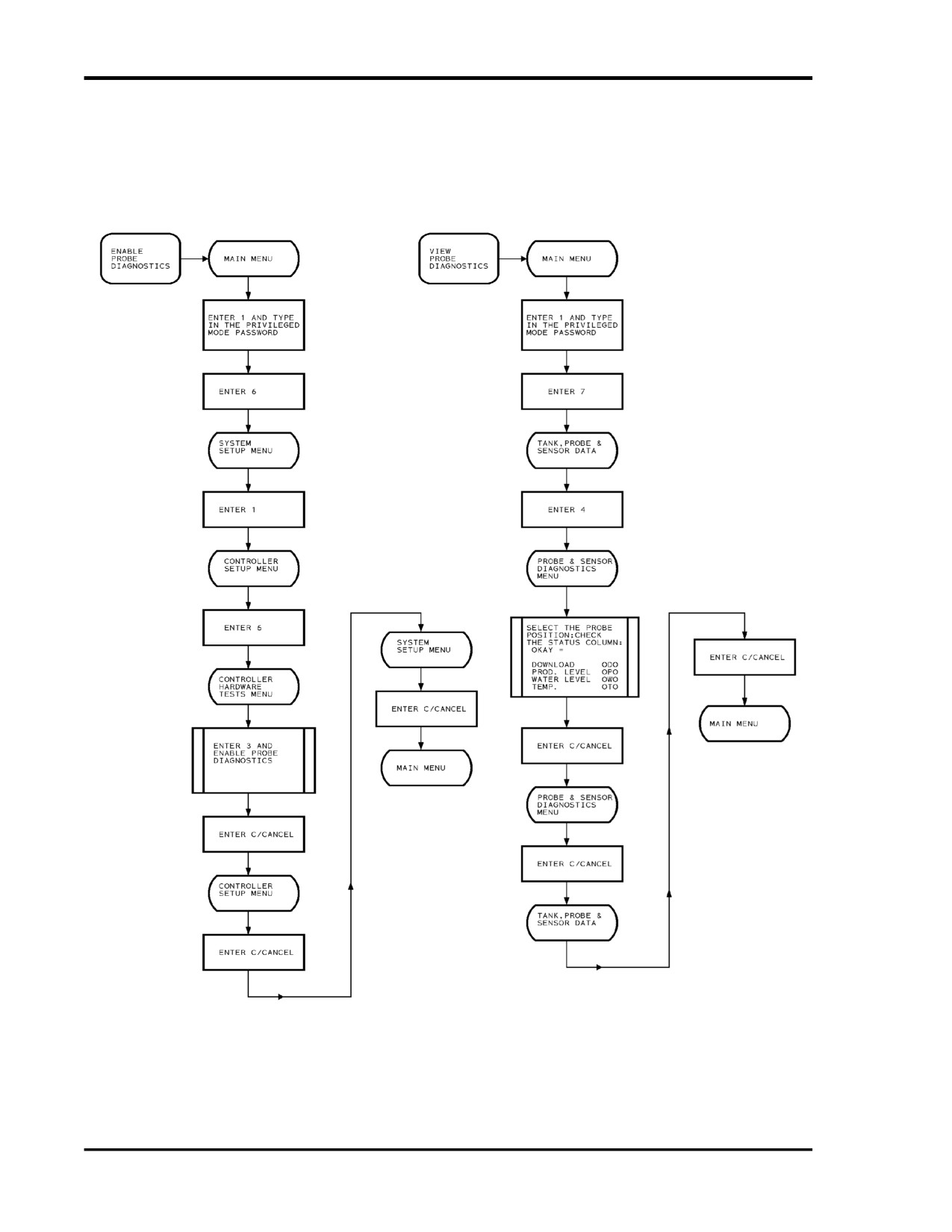

PROBE DIAGNOSTICS

WARNING!

A special mode can be enabled to test probe

These features should be used only by

operation. This feature should be disabled for

qualified Petro Vend service personnel.

normal system operation!

The system defaults with probe diagnostics disabled.

PROBE FAILED TOLERANCE

This is how many consecutive probe error messages are required for the system to term a probe "down."

This feature should not be changed for normal operation.

PROBE PRODUCT TO WATER/TEMP RATIO

This sets the ratio of product-to-water measurements of temperature. This feature should not be

changed for normal operation.

SiteSentinel

TANK ACTIVITY

The various parameters to determine tank activity should be adjusted only by qualified service personnel.

CLEAR EPROM CHECKSUM ERROR

This feature is only required to clear an error that may be caused by a software upgrade.

BATTERY TEST

Use this feature to run a test on the battery inside the controller. This battery protects the system data

in case of a power failure. When the system is operating, this battery is tested automatically every day,

just after midnight. In addition, the system automatically tests the battery after an initial power up and

after a power failure and recovery.

In the Model II, the condition of the battery is indicated with two LEDs on the controller board, just

above the battery - a `PASS' (green) LED or `FAIL' (red) LED lights. The results of the latest automatic

battery test can also be viewed in the status report menu - see Page 115.

Confirm that the battery is plugged in before you test it.

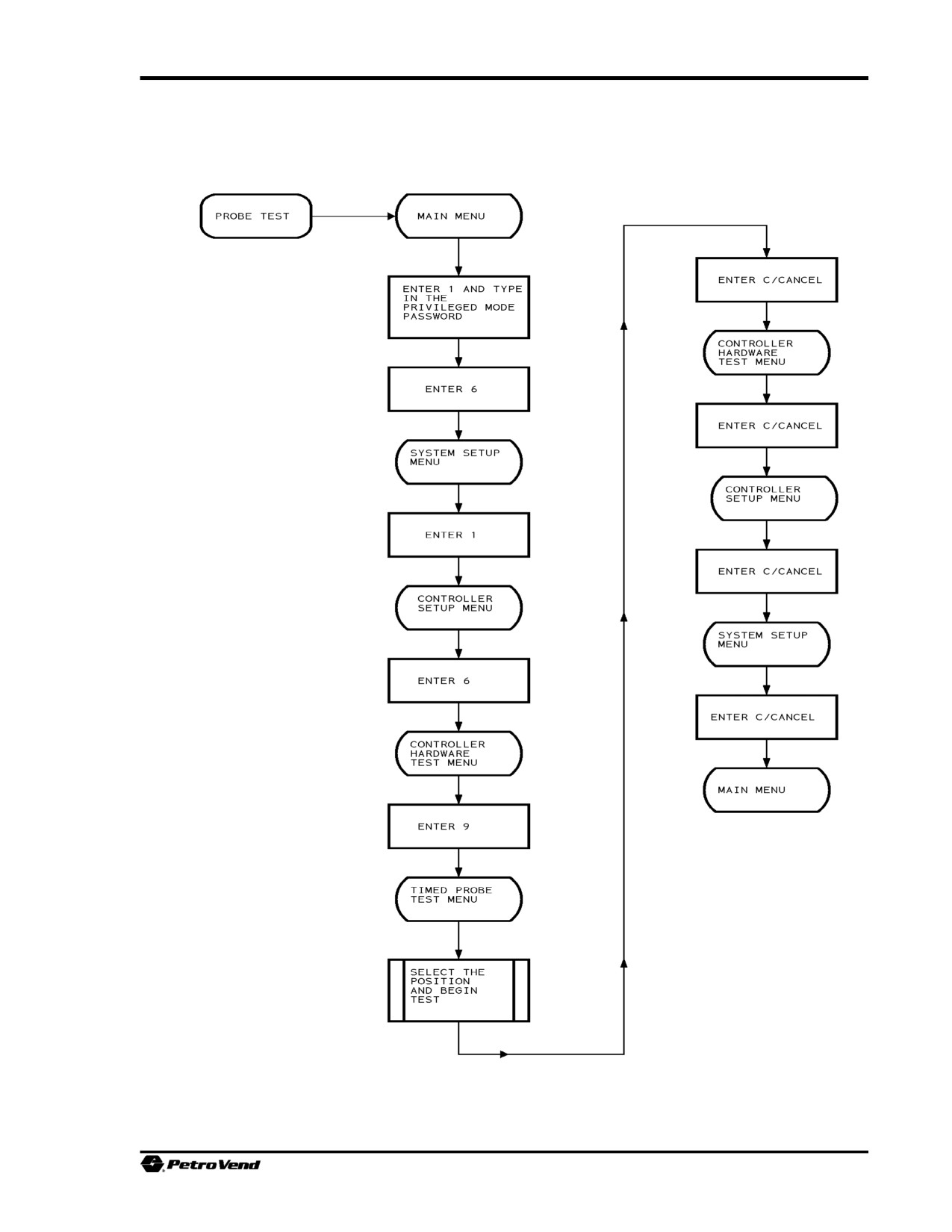

TIMED PROBE TEST

Use this feature to test probes via timed error monitoring. This feature requires a printer, and does not

affect normal operation. The current configurations for the Smart Module positions are displayed. Use

submenu selections #1 and #2 to specify which probe(s) to test and the duration of the test.

Selection #3 starts the test (and, if necessary, stops it before the end of the period). All test printouts

indicate the following

L Starting and ending dates and times

L Test duration

L Software versions

L Probe serial number.

If an error message is received during the test period, the test is immediately aborted. The printout

indicates "FAILED" and lists the specific error code received. When no error is received, the printout

indicates "PASSED".

If a Smart Module position is assigned as a probe position, but not yet configured, the probe test

automatically installs the probe with a typical set of values when the test is started.

System Setup

3.1.7 Idle Mode Graph Setup Menu (Model II Only)

MAIN MENU L Á L ‚ L Ú

SITE SENTINEL

APR 29, 1996

8:36 AM

IDLE MODE GRAPH SETUP

SMART MODULE

1.DISPLAY FEATURE:

DISABLED

2.GRAPH TYPE:

LEVEL & VOL.

3.SENSOR STATUS DISPLAY:

TEXT & BAR

I/O MODULE

4. DISPLAY FEATURE:

ENABLED

ENTER #, C/CANCEL, 0/PRINT:

OVERVIEW

The Site Sentinel Model II default operating mode is IDLE. In this mode the display shows the

PetroVend/SiteSentinel logo screen.

You can program the system to instead display graphs showing the status of the Smart Modules (probes

and sensors) and/or the I/O modules.

The top line of all status graphs shows the controller's current software version. When the system is

being accessed via a modem or terminal, that is also indicated (`TERM IN USE').

When enabled, the system displays each graph for five seconds. To review an individual graph, press the

[ALPHA] key. Press the [CANCEL] key to resume the display cycle.

The status graphs may be disabled to prevent unauthorized viewing of system data.Two types of sensor

graph are available for each Smart Module. A total of 16 status graphs may be displayed.

The second line indicates the Smart Module number and its operational status (`OKAY' or `DOWN').

No information can be displayed from a module that is down.

Two graphs can be cyclically displayed for each active Smart Module. You can also display a graph to

monitor the input and output devices that are connected to the optional I/O module(s).

SiteSentinel

SMART MODULE GRAPH TYPES

Two types of graph are available to display Smart Module Model II Site Sentinel data:

SiteSentinel v1.08A-USA-235 TERM IN USE

Smart Module #: 1, OKAY

In the `PROBE LEVEL' graph, a bar indicates

POSITION

the level of each product float as a

A B C D E F G H I J K L M N O P

percentage of its corresponding tank's

FULL6444444444444444444444444444444447

diameter. For example, a 12-foot tank with

a level measurement of nine feet (measured

N U

from the bottom of the tank) would show a

75%5

C N

level of 75%.

O I

N N

50%5

F S

In the `TANK VOLUME' graph, a bar indicates

I T N

the current gross product volume for each tank

O A G A O A

as a percentage of its total volume. For

25%5

$ D R L U L R L

example, a 10,000 gallon tank with 5000

$ O M E R L M E

gallons of product, would show a volume

$ W A R E E A R

measurement of 50%. For cylindrical tanks,

EMPTY5

$ N L T D D L T

9444444444444444444444444444444448

corresponding level and volume percentages

P P V W P P S H

should be equal only at 0%, 50%, and 100%

.=NONE; P=PROBE; G=GENERIC, F=FREON

readings.

V=VAPOR, L=LIQUID, S=SUMP, R=RESERVOIR

H=HYDROCARBON LIQUID,& W=WATER SENSORS

You may program the system to display

PAUSED

either or both types. Use the [NO] or [N] key

DIRECTIONS: Press [Enter] for Main Menu,

to "toggle" (display in sequence) the options

[ALPHA] to Pause, [CANCEL] to Resume.

for this feature. Then press

[ENTER].

SiteSentinel v1.08A-USA-235 TERM IN USE

Smart Module #: 1, OKAY

POSITION

SENSOR STATUS DISPLAY

A B C D E F G H I J K L M N O P

P TOP6444444444444444444444444444444447

Both types of status graph for the Smart

Module also show immediate sensor status.

N U

You can program the system for either or

75%5

C N

both of the following types of indication:

O I

N N

50%5

F S

Bar Level. Present measurements as a

I T N

percentage of the maximum possible

O A G A O A

measurement; for example, a sensor reading

25%5

$ D R L U L R L

of 2.5 volts would be indicated by a bar level

$ O M E R L M E

of 50%.

$ W A R E E A R

BOTTOM5

$ N L T D D L T

9444444444444444444444444444444448

Text. A printed description showing a normal

P P V W P P S H

or alert status. For example, a liquid sensor

.=NONE; P=PROBE; G=GENERIC,F=FREON

configured with an alarm value of three volts

V=VAPOR, L=LIQUID, S=SUMP, R=RESERVOIR

would indicate

`NORMAL' when its

H=HYDROCARBON LIQUID,& W=WATER SENSORS

measurements are less than three volts and

PAUSED

`ALERT' when its measurements are three volts

DIRECTIONS: Press [Enter] for Main Menu,

or more.

[ALPHA] to Pause, [CANCEL] to Resume.

System Setup

Use the [NO] or [N] key to toggle the options for this feature. When the appropriate option displays, press

the [ENTER] key.

SiteSentinel v1.08A-USA-235 TERM IN USE

I/O STATES

PSTNS A B C D E F G H I J K L M N O P

6444444444444444444444444444444447

I M 5 O O O O N N N N N N N N N N N N5

/ O 5 NOT INSTALLED

0 D 5 NOT INSTALLED

U 5 NOT INSTALLED

L 5 NOT INSTALLED

E 5 NOT INSTALLED

5 NOT INSTALLED

9444444444444444444444444444444448

INPUT

OUTPUTS

LEGEND:"O"=OPENED "N"=NOT ENERGIZED

"C"=CLOSED "E"=ENERGIZED

"R"=REMOVED FROM OPERATION

PAUSED

DIRECTIONS: Press [Enter] for Main Menu,

[ALPHA] to Pause, [CANCEL] to Resume.

Sensor positions can also be indicated as `UNCONFIGURED' (no setup data), `UNINSTALLED' (set up, but not

activated), and `DOWN' (malfunctioning).I/O MODULE GRAPH

The idle mode status graph for the I/O modules indicates whether each module position is currently

"open," "closed," "energized," "not energized," or "removed from operation."

System Setup

3.1.8 Red Button/Light & Buzzer Setup Menu

MAIN MENU L Á L ‚ L Û

PRIVILEGED MODE

APR 29, 1996

8:36 AM

RED BUTTON/LIGHT & BUZZER SETUP MENU

1.LIGHT TERM:

DURATION

DAYS:

364

HRS:

MINS:

SECS:

2.BUZZER TERM:

DURATION

DAYS:

364

HRS:

MINS:

SECS:

3.BUTTON TERMINATES: NOTHING

ENTER #, C/CANCEL, 0/PRINT:

Site Sentinel Model II uses a red illuminated button and buzzer. The Model III uses a STATUS lamp and

beeper.

LIGHT TERM

When an alarm is triggered, the red light on the front of the controller can be programmed to illuminate

in one of three ways:

DURATION' ON only while the event is in progress.

FOREVER Glows until terminated by the button on the front of the controller (or through the

System Commands menu).

TIMED When `TIMED' is selected, you are prompted to enter the number of days, hours, minutes

and seconds.

BUZZER TERM

When an alarm is triggered, the buzzer on the front of the controller can be programmed to sound in one

of three ways:

DURATION. ON only while the event is in progress.

System Setup

3.1.9 Protocol Options Setup Menu

MAIN MENU L Á L ‚ L Ù

PRIVILEGED MODE

OCT 31, 1994

8:36 AM

COMPUTER PROTOCOL SETUP

GENERAL COMMUNICATION OPTIONS

1.INPUT FLOW CTRL (XON/XOFF): DISABLED

2.PROTOCOL:

ASCII

3.FILE NAME:

REPORT.TXT

ENTER #, C/CANCEL, H/HELP OR 0/PRINT:

OVERVIEW

IMPORTANT

System report data can be downloaded to an external

Computer protocol setup applies only to

computer.

the computer reports, system backup, and

system restore options. These options

The SiteSentinel setup information can be

require a system capable of ASCII

transmitted to an external computer where it can be

transmission.

stored for safekeeping, then restored to that system

or a similar system.

Refer to Page 107 for Backup/Restore information. Refer to Appendix E for information about

connecting a PC and installing a terminal emulation program. Refer to Appendix F for details about the

computer report protocols and data formats.

INPUT FLOW CONTROL

The `XON' and `XOFF' characters start and stop the flow of the data stream. This feature affects only

data transmissions that are in the ASCII protocol.

SiteSentinel

PROTOCOL

The SiteSentinel can use one five protocols when transferring data. The proprietary Petro Vend (`PV')

protocol is described in the Appendix F; this protocol is used by other Petro Vend products.

Xmodem and two versions of Kermit (7-bit, even parity and 8-bit, no parity) are also available; at least

one of these protocols can be used with most terminal emulation software packages. Consult your

terminal emulation manual before using any of these protocols. Data can also be transferred as straight

ASCII files; `XON' and `XOFF' may be enabled or disabled for this protocol.

FILE NAME

Data will be sent from or received in a file with the name shown on the menu. The default name is

`REPORT.TXT'.

Change the file name by selecting option 3, and entering up to eight numbers or letters before the period

and up to three numbers or letters afterward.

For example:

`INVENTRY.ONE', `SITE1234.INV',

and

`REPORT.123'.

System Setup

3.1.10 Volume Reference Temp Setup

MAIN MENU L Á L ‚ L ı

OVERVIEW

Most liquids expand when warmed and contract when cooled. For example, a tank with 4,000 gallons

of gasoline at 50EF has a level measurement of 60 inches. At 70EF the level measurement would be 61

inches because the product has expanded. The new volume would be 4010 gallons, even though no new

product was added.

To prevent volume changes due to temperature fluctuation from being confused with volume changes

due to leakage, the SiteSentinel calculates a "net corrected" volume for the product in each tank.

Net corrected volumes are NOT affected by changes in product temperature.

To calculate a net corrected volume, the SiteSentinel uses level and temperature measurements from the

probe, along with a "volume correction factor" (VCF). For most petroleum products, the VCF is

determined by the API number or density of the product, and a set of volume conversion tables. For

products that are not covered by these tables (such as crude oil and lubricating oil), the thermal expansion

coefficient - Alpha - must be determined.

VOLUME CONVERSION TABLES

When you enter an API number or density for a product, the SiteSentinel uses a set of tables to convert

the measured (gross) volume into a corrected volume based on the reference temperature. The

SiteSentinel uses two sets of tables for this purpose.

The first set of tables is based on a reference temperature of 60EF (15EC). This set of tables is used in

most locations. The tables in this set are commonly referred to as 5b, 6b, 53b, 54b, and 54c, and are

accepted by the ASTM, the API, the IP, and the ISO as standards ASTM D-1250, API-2540, IP200, and

ISO DIS 91/1-1982, respectively.

The second set of tables is based on the reference temperature 68EF (20EC). This set includes tables

commonly referred to as 59b and 60b. These tables are being approved by the IP and the ISO as IP250

and ISO-91/2 respectively.

API NUMBER

The API (American Petroleum Institute) number is a measure of product density. This number ranges

from 0E API to 85E API. For API numbers, the SiteSentinel uses the 60EF table set for the reference

temperature. THIS CANNOT BE CHANGED. Tables 5b and 6b within this set are used.

SiteSentinel

DENSITY

Density is the measure of a product's weight per volume. The range for density values is 654 - 1075 kg/m³

(kilograms per cubic meter). For density values, the SiteSentinel can correct to either 15EC (using tables

53b and 54b) or to 20EC (using tables 59b and 60b).

The terminal options for changing the density reference temperature are in the Controller Setup menu,

accessed from the Main menu. Once in the Controller Setup menu, enter [10] to change the VOLUME

REFERENCE TEMP: field as desired.

Specific gravity is similar to density, but relates to the density of water instead of petroleum products.

To convert a specific gravity value into a SiteSentinel compatible value, multiply specific gravity by

999.

ALPHA

Alpha is the direct measure of a product's thermal expansion. Alpha must be measured and calculated for

products without effective API or density values. This is a complicated procedure that must be done by a

commercial laboratory, based on the SiteSentinel table 54c.

The range for Alpha is 1,500 - 80,000, and are based on a reference temperature of 15EC (60EF).

When Alpha is measured in PPM/EF (parts-per-million, per degree F), multiply Alpha by 18 before

entering the value. When Alpha is measured directly per degree F, multiply Alpha by 18,000,000

(eighteen million) before entering the data.

When Alpha is measured in PPM/EC, multiply Alpha by 10 before entering the value. When Alpha is

measured directly per degree C, multiply Alpha by 10,000,000 (ten million) before entering the value.

PRODUCT VARIATION

To insure proper volume correction, the SiteSentinel must be programmed with accurate product

information.

To enter API numbers, density values, or Alpha values, use the Probe Configuration menu, accessed from

the Sensor And Probe Configuration menu (accessed from System Setup).

Because the API number or density often vary between shipments, the site operator should check these

values after each delivery. Alpha values may or may not vary with deliveries, depending on the product.

Check with the product's distributor to see how often to evaluate Alpha.

The API number or density (at the reference temperature) is available from most petroleum distributors.

It is often printed on the delivery ticket. Or, you can measure the API number directly using a

hydrometer.

System Setup

3.2 Smart Module (Probes & Sensors) Setup

MAIN MENU L Á L Ì

PRIVILEGED MODE

OCT 31, 1994

8:36 AM

SENSOR, PROBE & TANK SETUP MENU

1.MODULE POSITION TYPE ASSIGNMENT

2.PROBE & SENSOR CONFIGURATION

3.TANK MANIFOLDING

4.TANK & SENSOR THRESHOLDS

5.INSTALL/REMOVE MODULES & POSITIONS

6.TANK & SENSOR CORRECTION

ENTER #, C/CANCEL, H/HELP OR 0/PRINT:

PROBE SETUP CHECKLIST

To make the probes, sensors and alarms operational, you must follow these steps in order:

(1) Assign devices to Smart Module positions.

(2) Configure Smart Module positions.

(3) For manifolded tanks only, assign module positions to a manifold group.

(4) Enter tank and sensor thresholds. Note that not all sensors require thresholds.

(5) Install Smart Module positions.

(6) Enter tank correction data. This step is optional.

(7) Enter data for the I/O Modules (if applicable). Note that the I/O Modules selection is on the

SYSTEM SETUP MENU.

(8) Enable threshold alarms. Note that the alarms selection is on the SYSTEM SETUP MENU.

ì MODULE POSITION TYPE ASSIGNMENT

View or change module type assignment (Page 61).

ì PROBE & SENSOR CONFIGURATION

View or change sensor and probe configuration via Smart Module (Page 63).

SiteSentinel

ì TANK MANIFOLDING

For defining tanks that are connected together so that product can flow freely between them (Page 70).

ì TANK & SENSOR THRESHOLDS

At this submenu, enter the Smart Module number and position you wish to configure. The prompts

corresponding to the assigned device are displayed automatically.

Tank threshold data includes high water; overflow; low product; minimum theft, sales and delivery; and

leak rate (Page 72). The threshold data for sensors include high and low values for sensor voltage

measurements and alarm delays

ì INSTALL/REMOVE MODULES & POSITIONS

This selection is used to activate or deactivate the modules and module positions (Page 87).

ì TANK & SENSOR CORRECTION

You can compensate for an irregularly shaped tank by entering up to 20 "correction factors," measured

product volumes at known product levels.

When you select a position assigned to a probe, the current tank correction factors (if any) are displayed.

You will be prompted to change or add any additional correction factors (Page 79).

System Setup

3.2.1 Module Position Type Assignment Menu

MAIN MENU L Á L „ L Ï

PRIVILEGED MODE

OCT 31, 1994

8:36 AM

SENSOR & PROBE ASSIGNMENTS

1.MODULE & POSITION: 1A PROBE

2.ASSIGN POSITION

MOD #

POSITIONS

A B C D E F G H I J K L M N O P

+--------------------------------

1 | . V . P

2 | G V L S R F H W . . . S

3 |

4 |

5 |

6 |

7 |

8 |

.=NONE; P=PROBE; G=GENERIC, F=FREON,

V=VAPOR, L=LIQUID, S=SUMP, R=RESERVOIR

H=HYDROCARBON LIQUID, & W=WATER SENSORS

ENTER #, C/CANCEL, H/HELP OR 0/PRINT:

MODULE & POSITION

Select this option to specify which module and position to assign a device type. Device types include the

following:

•

Probe

•

Hydrocarbon Vapor Sensor

•

Liquid Sensor (stand-alone sensor or water-sensing element of interstitial sensor)

•

Universal Sump Sensor

•

Universal Reservoir Sensor

•

Hydrocarbon Liquid Sensor (interstitial or liquid phase)

•

Water Sensor (optional part of liquid phase sensor)

•

Freon

•

Generic Sensor (user-defined thresholds)

SiteSentinel

IMPORTANT

(1) The interstitial sensor has two sensing elements, one for liquid hydrocarbon products and one for

water. The liquid phase sensor, which also detects liquid hydrocarbon products, is available with and

without a water-sensing element.

When a sensor has two sensing elements, each element must be wired to a separate terminal

position in the same Smart Module. Both module positions must be assigned, configured, and

installed. This enables the SiteSentinel to indicate the presence of hydrocarbon products and water

independently.

(2) The water-sensing element for the interstitial sensor should be configured as a "liquid" sensor.

(3) The water-sensing element for the liquid phase sensor should be configured as a "water" sensor.

ASSIGN POSITION

This puts the cursor at the appropriate position. Press the [NO] or [N] key to "toggle" your choices, and

then press [ENTER] to confirm your choice.

If you change a position from probe to sensor or from sensor to probe, a warning message is displayed.

If you proceed to make the change, the old configuration data are destroyed.

The number for each Smart Module is determined by a small rotary switch, located on the PV242 board

(inside the module cabinet). This switch has ten positions, marked "0" to "9". A small arrow on the

switch points to the current position.

Positions #0 and #9 disconnect the module from the controller.

System Setup

3.2.2 Probe & Sensor Configuration Menu

MAIN MENU L Á L „ L Ì

PRIVILEGED MODE

OCT 31, 1994

8:36 AM

SENSOR & PROBE CONFIGURATION

1.MODULE: 1

POSITION: 1E VSENSOR

2.RECONFIGURE

3.SENSOR #:

4.DESCRIPTION:

NORTHWEST VAPOR

5.PRODUCT:

DIESEL

ENTER #, C/CANCEL, H/HELP OR 0/PRINT:

MODULE & POSITION

Select this item to specify which module and position to configure. The menu above shows the prompts

for a vapor sensor.

Before you enter configuration data for a sensor, you must assign a module and position to the device

(see Page 61).

After you enter sensor configuration data, you must enter threshold data for liquid, hydrocarbon vapor,

and Freon sensors. Alarm delay data can also be entered for each sensor

(see Page 72). All sensor

module positions must also be installed (see Page 61).

RECONFIGURE

This menu selection prompts you for the sensor number (`SENSOR #'), the sensor label (`DESCRIPTION'),

and for a label for the monitored product (`PRODUCT'). For a vapor sensor, you are also prompted for

the type of product (`OPERATING VAPOR').To select an individual menu item, enter the corresponding

menu number.

SENSOR #

The sensor number is a label that is used to identify sensors in the SiteSentinel reports. You are not

required to match the sensor number to the module or position number.

SiteSentinel Automated Monitoring System Model 2 and Model 3. Operator Manual Software Version 1.12CUS - part 1
