10/REAR WHEEL

1 2 3

16 17 18

400409-10

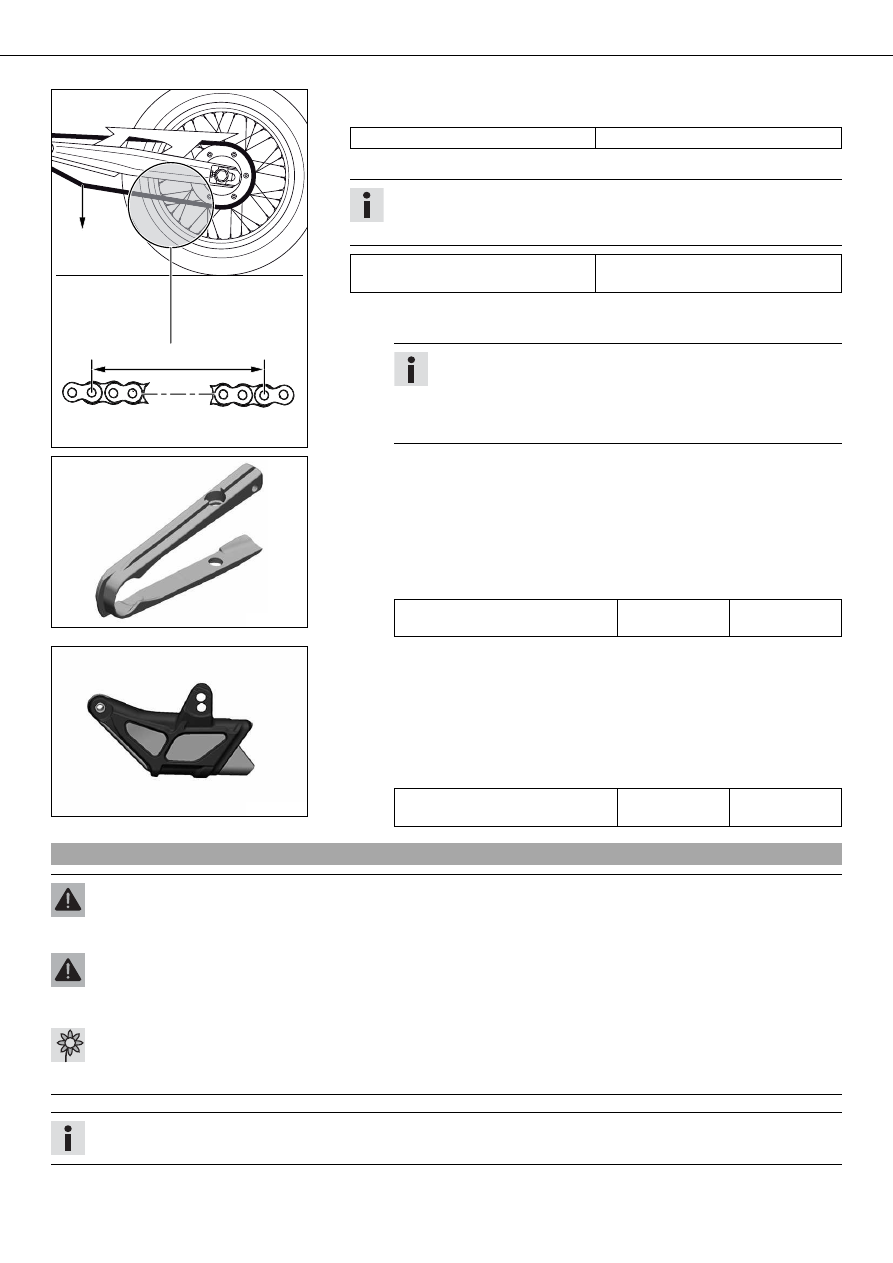

– Shift into neutral; pull the lower chain section with specified weight



Guideline

Weight of chain wear measurement

15 kg (33 lb.)

– Measure distance



of 18 chain links in the lower chain section.

Info

Chain wear is not always even, so you should repeat this measurement at
different chain positions.

Maximum distance



at the longest

chain section

272 mm (10.71 in)

» If distance



is greater than the specified measurement:

– Replace the chain.

Info

When the chain is replaced, the rear sprocket and engine sprocket
should also be changed.
New chains wear out faster on old, worn sprockets.
For safety reasons, the chain has no chain joint.

400925-01

– Check the chain sliding guard for wear.

» If the chain sliding guard is worn:

– Replace the chain sliding guard.

– Check that the chain sliding guard is firmly seated.

» If the chain sliding guard is loose:

– Tighten the chain sliding guard.

Guideline

Remaining screws, chassis

10 Nm
(7.4 lbf ft)

302112-10

– Check the chain guide for wear.

» If the chain guide is worn:

– Change the chain guide.

– Check that the chain guide is firmly seated.

» If the chain guide is loose:

– Tighten the chain guide.

Guideline

Remaining screws, chassis

10 Nm
(7.4 lbf ft)

13.7

Cleaning the chain

Warning

Danger of accidents Oil or grease on the tires reduces their grip.
– Remove oil and grease with a suitable cleaning material.

Warning

Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.

Warning

Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.

Info

The service life of the chain depends largely on its maintenance.

10/REAR WHEEL

400725-01

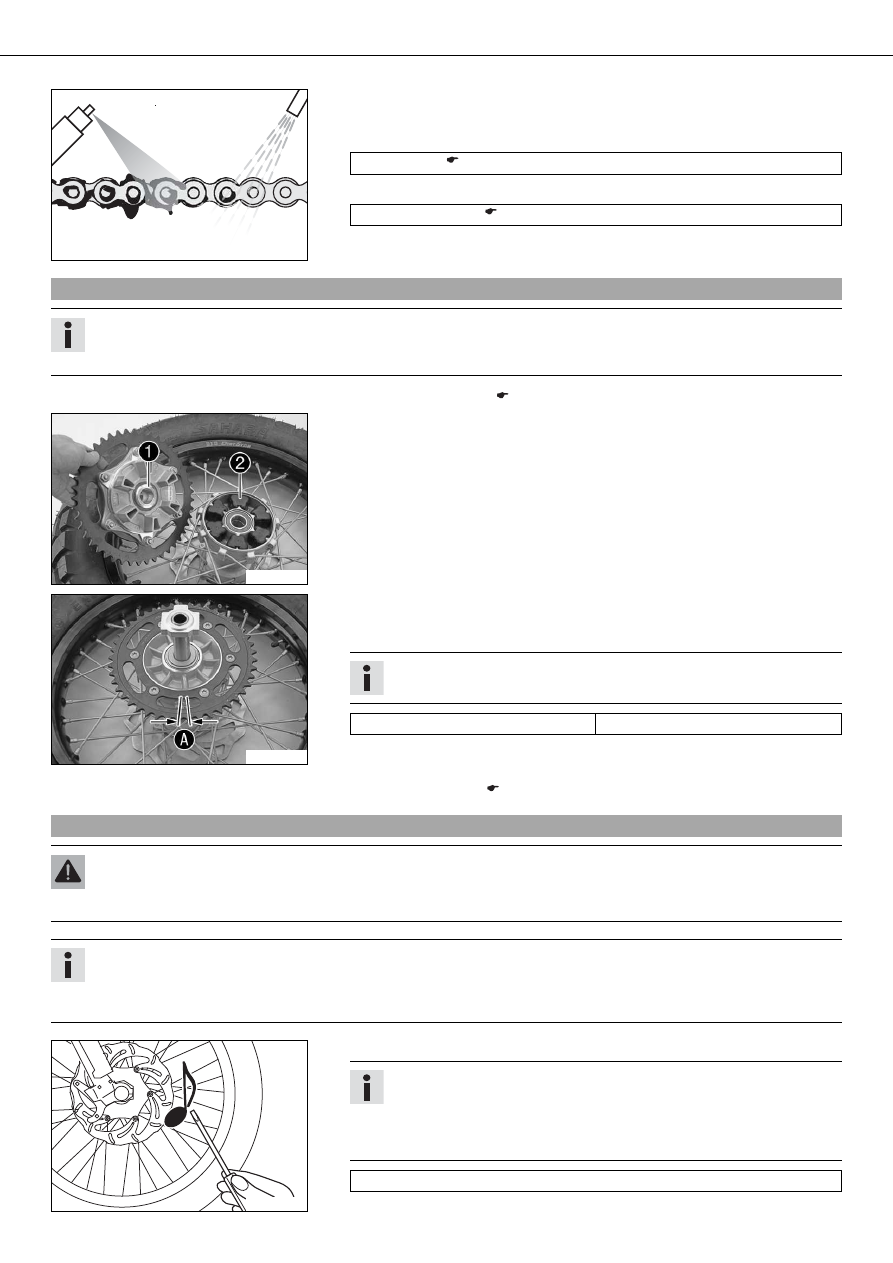

– Clean the chain regularly.
– Rinse off loose dirt with a soft jet of water.
– Remove old grease remains with chain cleaner.

Chain cleaner (

p. 210)

– After drying, apply chain spray.

Off-road chain spray (

p. 211)

13.8

Checking the rear hub rubber dampers

Info

The engine power is transmitted from the rear sprocket to the rear wheel via 6 rubber dampers. They eventually wear out during
operation. If the rubber dampers are not changed in time, the rear sprocket carrier and the rear hub will be damaged.

– Remove the rear wheel. (

p. 66)

100271-10

– Check bearing



» If the bearing is damaged or worn:

– Replace the bearings.

– Check rubber dampers



of the rear hub for damage and wear.

» If the rubber dampers of the rear hub are damaged or worn:

– Change all rubber dampers in the rear hub.

100272-10

– Lay the rear wheel on a workbench with the rear sprocket facing upwards and insert

the wheel spindle in the hub.

– To check play



, hold the rear wheel tight and try to rotate the rear sprocket.

Info

Measure the play on the outside of the rear sprocket.

Play in rubber dampers, rear wheel

≤ 5 mm (≤ 0.2 in)

» If play



is larger than the specified value:

– Change all rubber dampers in the rear hub.

– Install the rear wheel. (

p. 66)

13.9

Checking the spoke tension

Warning

Danger of accidents Instable handling due to incorrect spoke tension.
– Ensure that the spoke tension is correct.

Info

A loose spoke causes wheel imbalance and rapidly leads to more loose spokes.
If the spokes are too tight, they can break due to local overload.
Check the spoke tension regularly, especially on a new motorcycle.

400694-01

– Briefly strike each spoke with a screwdriver blade.

Info

The frequency of the tone is a function of the spoke length and spoke diam-
eter.
If you hear different tone frequencies from individual spokes of the same
length and thickness, this is an indication of different spoke tensions.

You should hear a high note.

10/REAR WHEEL

» If the spoke tensions differ:

– Correct the spoke tension.

13.10

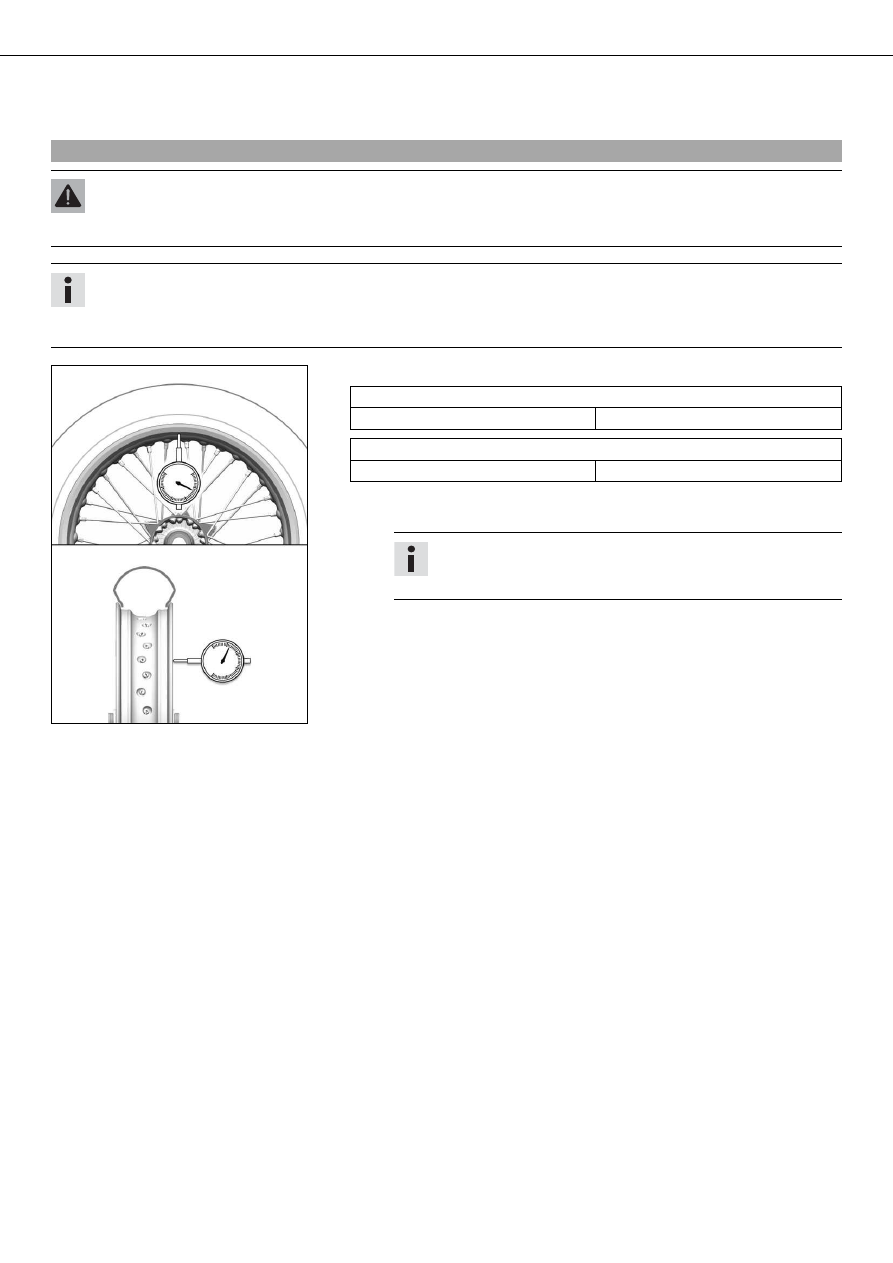

Checking the rim run-out

Warning

Danger of accidents Instable handling due to incorrect spoke tension.
– Ensure that the spoke tension is correct.

Info

A loose spoke can cause wheel imbalance, which leads to more loose spokes in a short time.
If the spokes are too tight, they can break due to local overload.
Check the spoke tension regularly, especially on a new motorcycle.

400998-01

– Check the axial run-out and radial run-out of the rim.

Axial run-out

outside of the rim joint

< 1.8 mm (< 0.071 in)

Radial run-out

outside of the rim joint

< 1.8 mm (< 0.071 in)

» If the measured value is greater than the specified value:

– Center the rim.

Info

Center the rim by tightening the spoke nipple on the opposite side of
the rim run-out. Change the rim if it is excessively deformed.

– Correct the spoke tension.

11/WIRING HARNESS, BATTERY

14.1

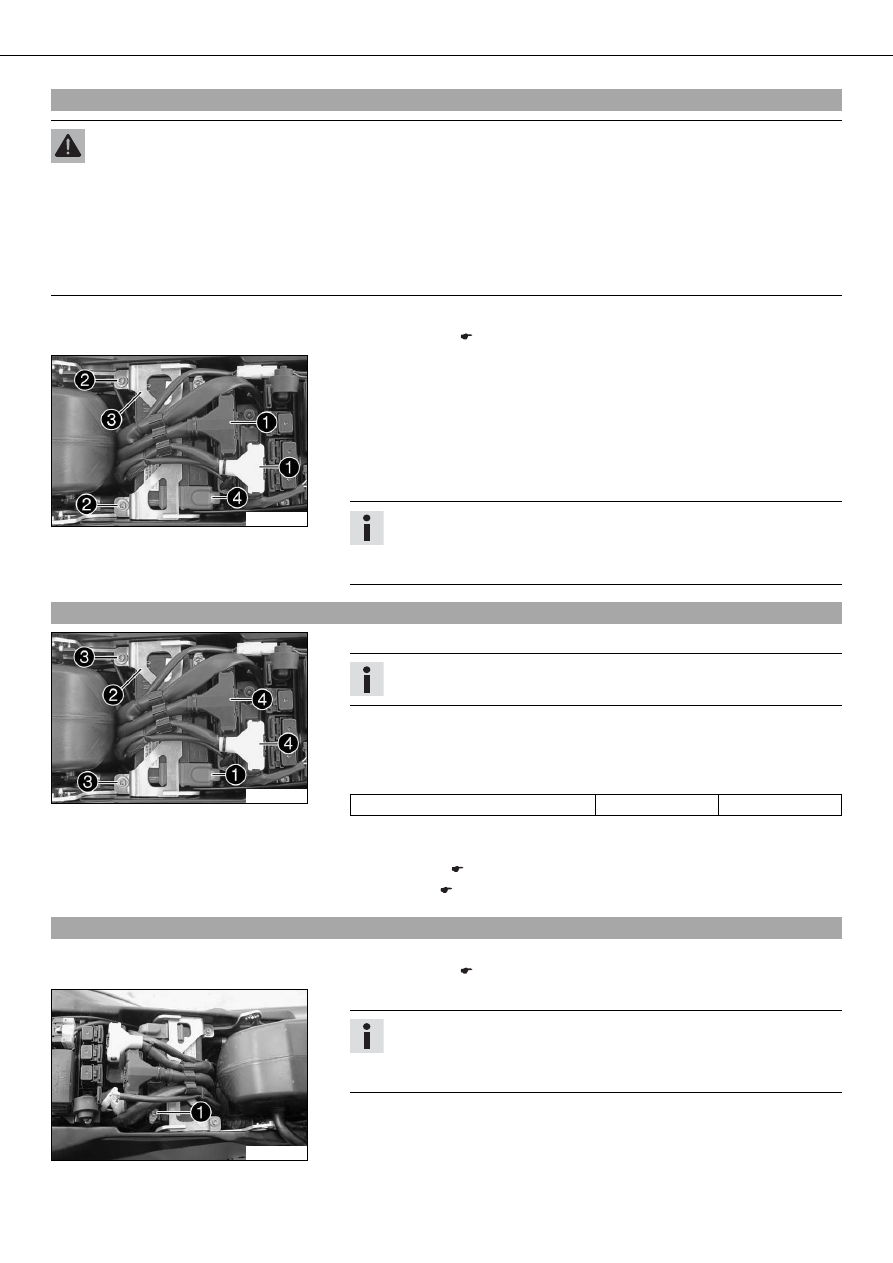

Removing the battery

Warning

Risk of injury Battery acid and battery gases cause serious cauterization.
– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep the battery away from sparks or open fire. Charge only in well ventilated rooms.
– Flush with copious amounts of water in case of skin contact. If battery acid comes into contact with the eyes, flush the

eyes with water for at least 15 minutes and consult a physician.

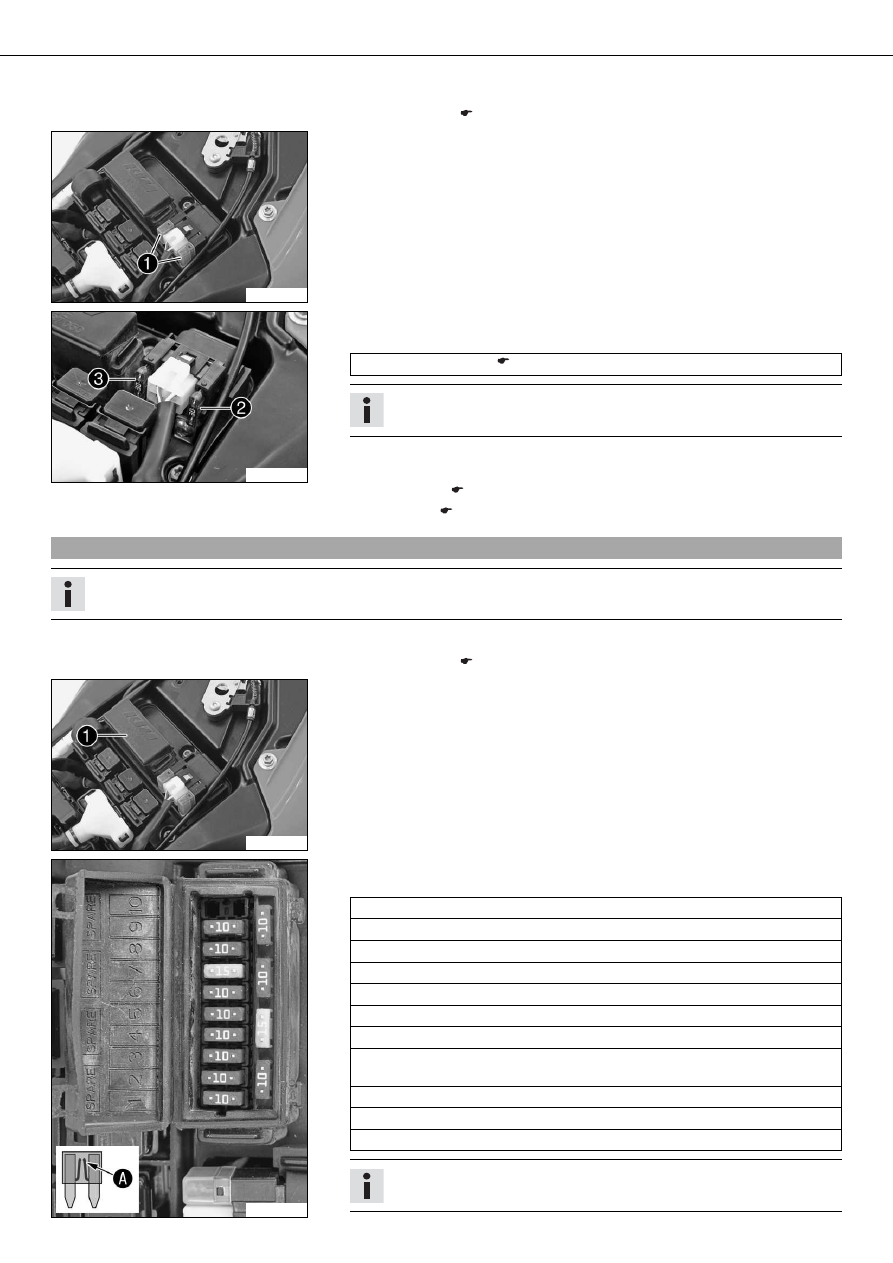

– Switch off all power consumers and switch off the engine.
– Remove the seat. (

p. 58)

100277-10

– Disconnect the negative (minus) cable of the battery.
– Pull off the plug connector



upwards.

– Remove screws



– Pull the retaining bracket



of the battery forward and remove it.

– Take off the positive pole cover



– Disconnect the positive (plus) cable of the battery.
– Push the wiring harness to the side and pull the battery out of the battery rack.

Info

Never operate the motorcycle with a discharged battery or without a battery.
In both cases, electrical components and safety devices can be damaged.
The vehicle is therefore no longer roadworthy.

14.2

Installing the battery

100277-11

– Slide the battery into the battery rack.

Info

The battery terminals must be at the rear.

– Attach the positive cable and mount positive terminal cover



– Position retaining bracket



– Mount and tighten screws



Guideline

Remaining screws, chassis

10 Nm (7.4 lbf ft)

– Plug in connector



– Attach the minus cable .
– Mount the seat. (

p. 58)

– Set the clock. (

p. 87)

14.3

Disconnecting the battery

– Switch off all power consumers and switch off the engine.
– Remove the seat. (

p. 58)

300199-11

– Disconnect the negative (minus) cable



of the battery.

Info

Never operate the motorcycle with a discharged battery or without a battery.
In both cases, electrical components can safety equipment can be dam-
aged. The vehicle is therefore no longer roadworthy.

11/WIRING HARNESS, BATTERY

14.4

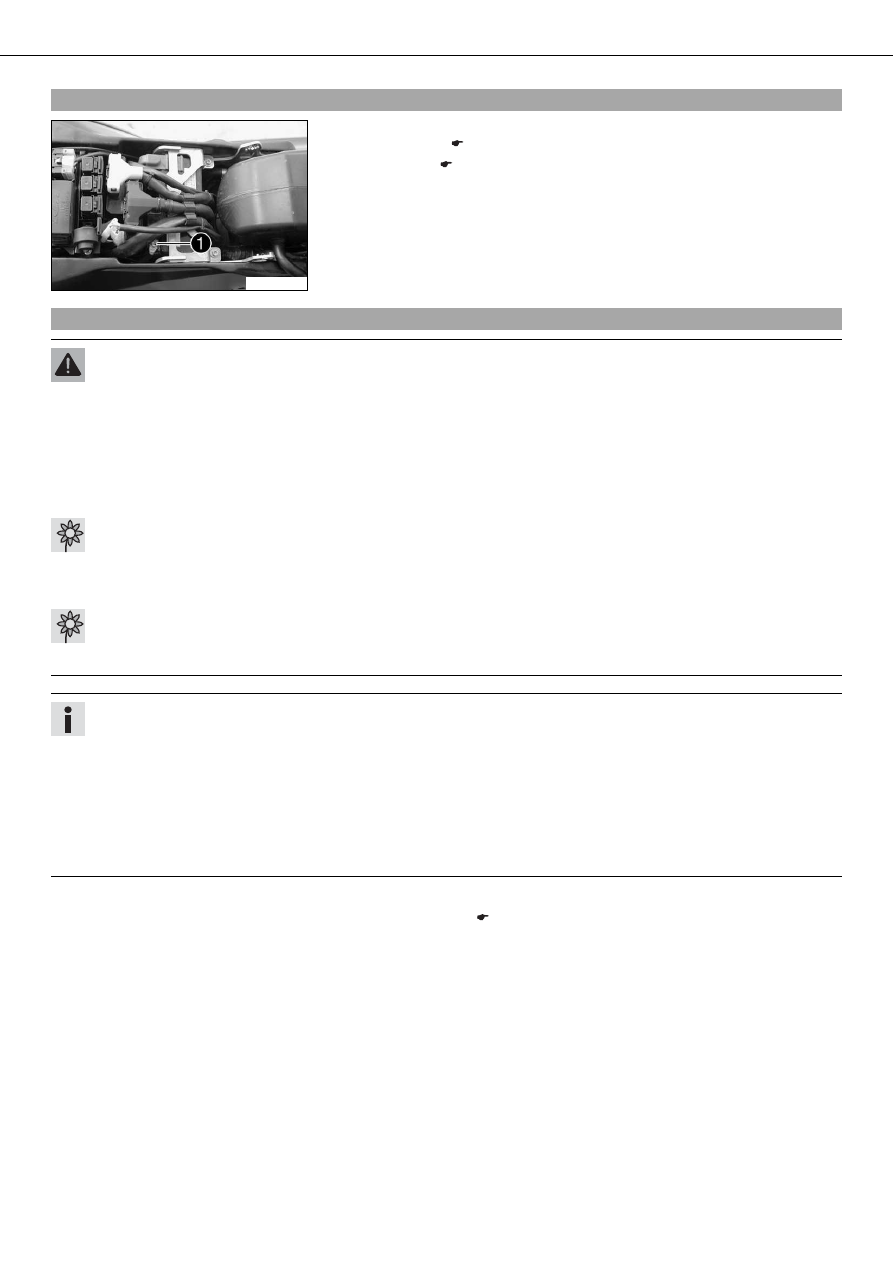

Connecting the battery

300199-11

– Reconnect minus cable



– Mount the seat. (

p. 58)

– Set the clock. (

p. 87)

14.5

Recharging the battery

Warning

eyes with water for at least 15 minutes and consult a physician.

Warning

Environmental hazard Battery parts and acid are harmful to the environment.
– Do not discard batteries with the household trash. Dispose of a defective battery in an environmentally compatible manner.

Give the battery to your KTM dealer or to a recycling center that accepts used batteries.

Warning

Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.

Info

Even when there is no load on the battery, it still loses power steadily.
The charge state and the type of charge are very important for the service life of the battery.
Rapid recharging with a high charging current shortens the battery's service life.
If the charging current, charging voltage and charging time are exceeded, electrolyte escapes through the safety valves. This
reduces the battery capacity.
If the battery is depleted from starting the vehicle repeatedly, the battery must be charged immediately.
If the battery is left in a discharged state for an extended period, it will become over-discharged and sulfate, destroying the
battery.
The battery is maintenance-free, which means that the acid level does not need to be checked.

– Switch off all power consumers and switch off the engine.
– Remove the battery. (

p. 72)

11/WIRING HARNESS, BATTERY

100151-10

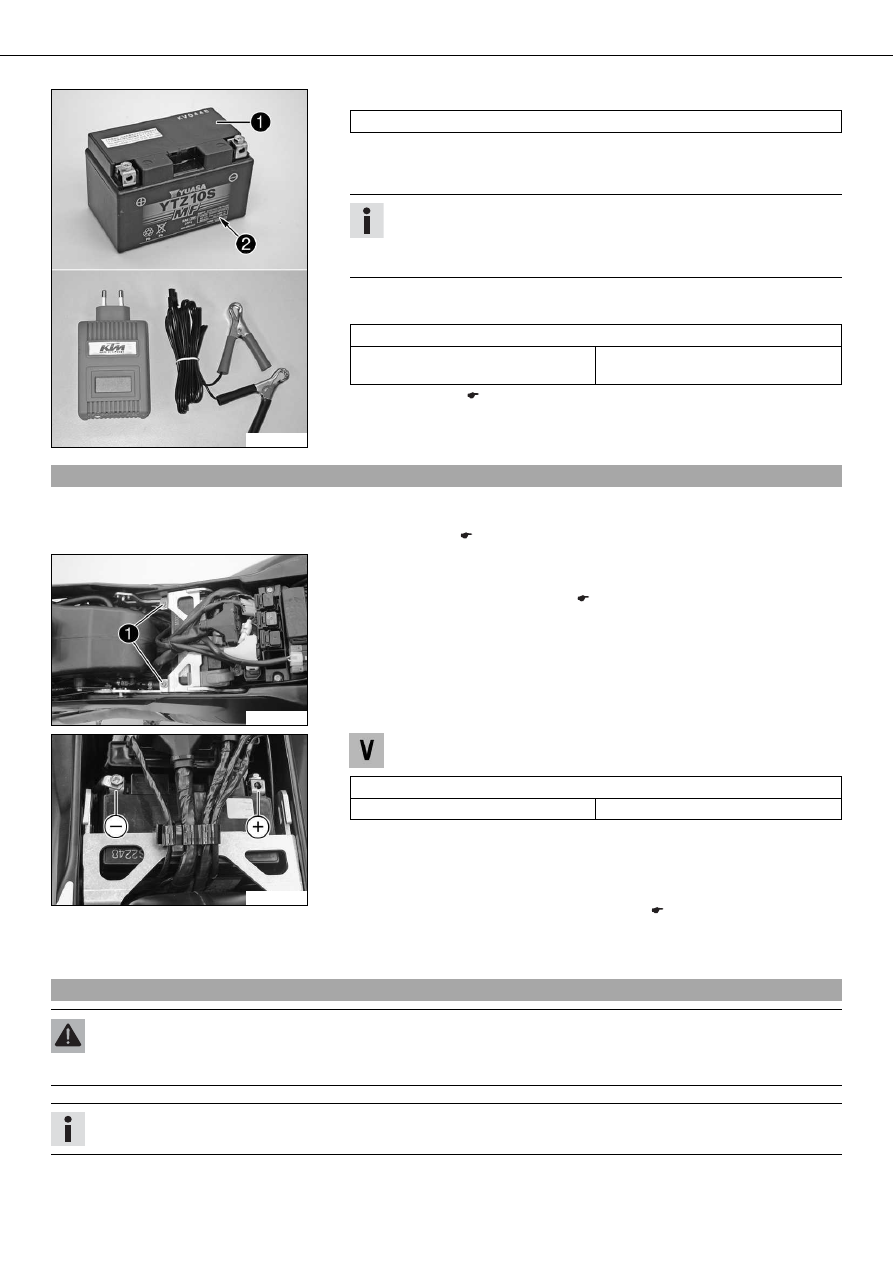

– Connect the battery charger to the battery. Switch on the battery charger.

Battery charger (58429074000)

You can also use the battery charger to test rest potential and start potential of the
battery, and to test the alternator. With this device, you cannot overcharge the bat-
tery.

Info

Never remove lid



Charge the battery with a maximum of 10% of the capacity specified on the
battery housing



– Switch off and disconnect the charger after charging.

Guideline

The charge current, charge voltage and charge time must not be exceeded.
Charge the battery regularly when the
motorcycle is not in use

3 months

– Install the battery. (

p. 72)

14.6

Checking the charging voltage

Condition
The battery must be fully functional and completely charged.
– Remove the seat. (

p. 58)

302035-10

– Remove screws



– Push the retaining bracket forward and take off the terminal cover.
– Start the motorcycle to make checks. ( p. 11)

601014-10

–

Measure the voltage between the specified points.
Measuring point

Plus (+) – Measuring point Ground (−)

Charging voltage

5,000 rpm

13.5… 15.0 V

» If the displayed value is less than the specified value:

– Check the plug-in connections from the alternator to the voltage regulator.
– Check the plug-in connections from the voltage regulator to the wiring har-

ness.

– Check the stator winding of the alternator. ( p. 163)

» If the displayed value is greater than the specified value:

– Change the voltage regulator.

14.7

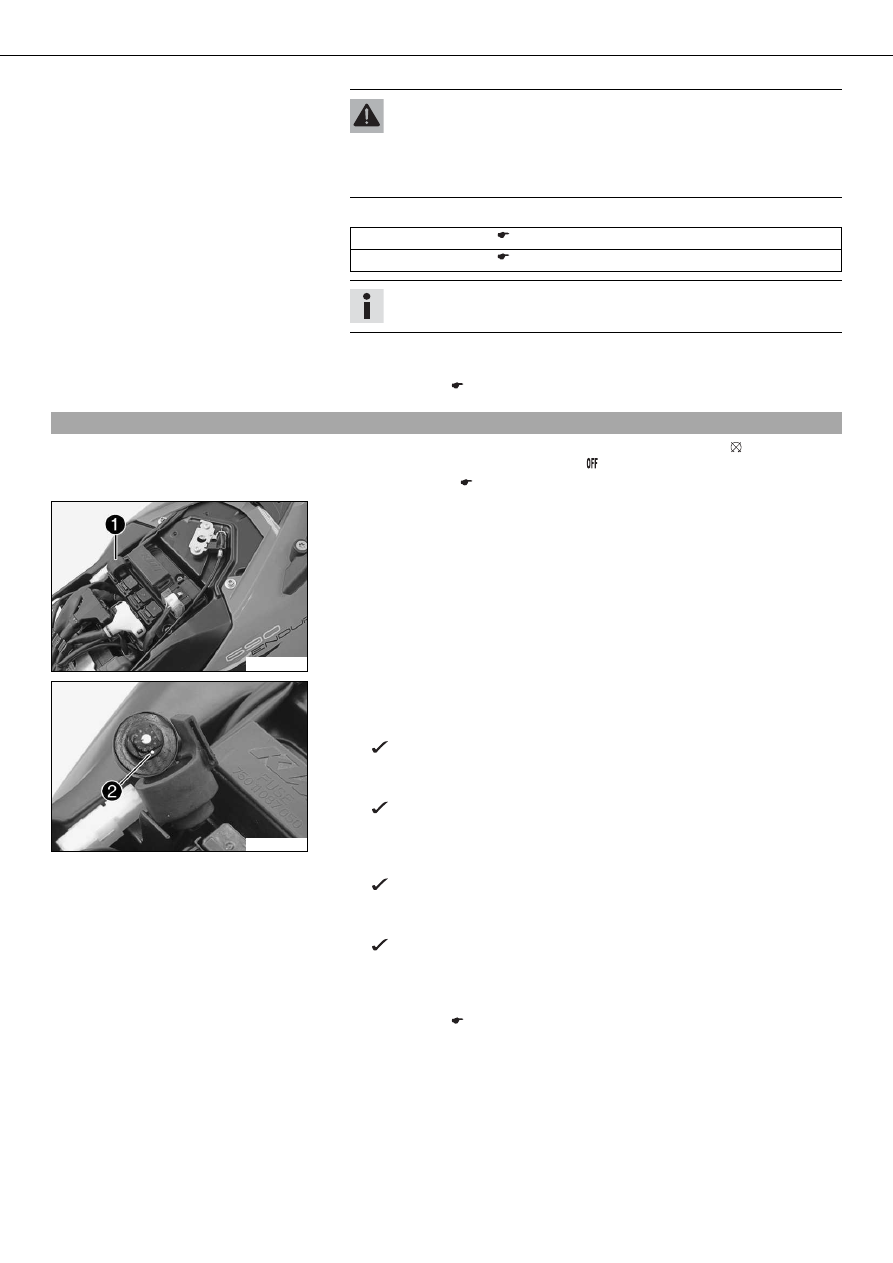

Changing the main fuse

Warning

Fire hazard The electrical system can be overloaded by the use of incorrect fuses.
– Use only fuses with the prescribed amperage. Never by-pass or repair fuses.

Info

The main fuse protects all power consumers in the vehicle. It is in the housing of the starter relay next to the battery.

11/WIRING HARNESS, BATTERY

– Switch off all power consumers and switch off the engine.
– Remove the seat. (

p. 58)

600604-10

– Remove protection covers



600605-10

– Remove a defective main fuse



with needle nose pliers.

– Install a new main fuse.

Fuse (58011109130) (

p. 178)

Info

A reserve fuse



is located in the starter relay.

– Check that the electrical equipment is functioning properly.
– Mount the protection covers.
– Mount the seat. (

p. 58)

– Set the clock. (

p. 87)

14.8

Changing fuses of individual power consumers

Info

The fuse box containing the fuses of individual power consumers is located under the seat.

– Switch off all power consumers and switch off the engine.
– Remove the seat. (

p. 58)

600604-11

– Open fuse box cover



600606-10

– Remove the defective fuse.

Guideline

Fuse

1 - 10A - ignition, combination instrument

Fuse

2 - 10A - clock, ignition (EFI control unit)

Fuse

3 - 10A - throttle valve control unit

Fuse

4 - 10A - fuel pump

Fuse

5 - 10A - radiator fan

Fuse

6 - 10A - horn, brake light, turn signal

Fuse

7 - 15A - high beam, low beam, parking light, tail light, license plate lamp

Fuse

8 - 10A - for supplementary equipment (accessories connected with igni-

tion switch)
Fuse

9 - 10A - for accessories (permanent positive)

Fuse

10 - not used

Fuse

SPARE - 10A/15A - spare fuses

Info

A defective fuse is shown by a burned-out fuse wire



11/WIRING HARNESS, BATTERY

Warning

Fire hazard The electrical system can be overloaded by the use of incorrect
fuses.
– Use only fuses with the prescribed amperage. Never by-pass or repair

fuses.

– Replace with a spare fuse of the right rating.

Fuse (75011088010) (

p. 178)

Fuse (75011088015) (

p. 178)

Tip

Put a new spare fuse in the fuse box for future use if needed.

– Checking the function of power consumers.
– Close the fuse box cover.
– Mount the seat. (

p. 58)

14.9

Adjusting the engine characteristic

– Switch off the ignition by turning the ignition key in the position

(690 Enduro EU, 690 Enduro AUS/UK)

(690 Enduro USA).

– Remove the seat. (

p. 58)

100237-10

– Pull the Map‑Select switch and holder



upward off of the retaining bracket.

– Pull the Map‑Select switch out of the holder.

100238-10

– Turn the adjusting wheel until the desired digit is next to marking



Set the Map‑Select switch to Soft.

– Set the adjusting wheel to position 1.

Soft – reduced homologated peak performance for better driveability.

Set the Map‑Select switch to Advanced.

– Set the adjusting wheel to position 2.

Advanced – homologated performance with extremely direct responsive-
ness.

Set the Map‑Select switch to Standard.

– Set the adjusting wheel to position 3, 4, 5, 6, 7, 8 or 9.

Standard – homologated performance with balanced responsiveness.

Set the Map‑Select switch to poor fuel quality.

– Set the adjusting wheel to position 0.

Poor fuel quality – homologated performance is reduced in accordance with
the fuel quality, use for no more than 1 tank of fuel

– Position the Map‑Select switch in the holder.
– Slide the Map‑Select switch with the holder downward onto the retaining bracket.
– Mount the seat. (

p. 58)

Content .. 7 8 9 10 ..
