34.31

e

 Caution:

The same Torx screws must be re-used because of
their self-locking effect.
When inserting the screws again, make sure that
they pick up with the existing thread in the sheet-
metal element.
Failing this, vibration could cause the screws to
work loose.

Place the ring show (with two cables) on the bore
of the insert at the rear of the relay base, with the
crimp side towards the relay base, and screw on
together the red engine cable, using the Torx
screw.

Use the second Torx screw to secure the flat
plug to the relay.

Press the contact interlock into the relay base at
the side.

Push the relay base into the relay housing, at the
same time pressing both engine cables into the
left cable entries on the relay housing (red at bot-
tom, black at top).

Attach black engine cable to left threaded pin
(M5) with crimp at back.

e

 Caution:

Make sure the cable is not at an angle or its insula-
tion may be damaged.

Push the 2-pin plug fully on in the correct posi-
tion and press the two wires into the center
(smaller) cable entries.

Push the two plugs for the connecting cable/
wiring harness onto the threaded pins with the
crimp at the front.

Press the two cables into the remaining free
cable entries.

Tighten the nuts.

e

 Caution:

Always use new self-locking nuts.

Install a new cover (1).

e

 Caution:

When sliding the cover on, make sure that all cables
are correctly located in their cable entries.

34.32

Removing and installing brake line
(with ABS)

Removing and installing front ABS
brake line

RS

RS340040

34.33

Removing and installing rear ABS
brake line

RS

RS340030

34.34

Drain fluid from brake system.

e

 Caution:

Do not allow brake fluid to come into contact with
painted parts of the motorcycle, because brake fluid
destroys paint.

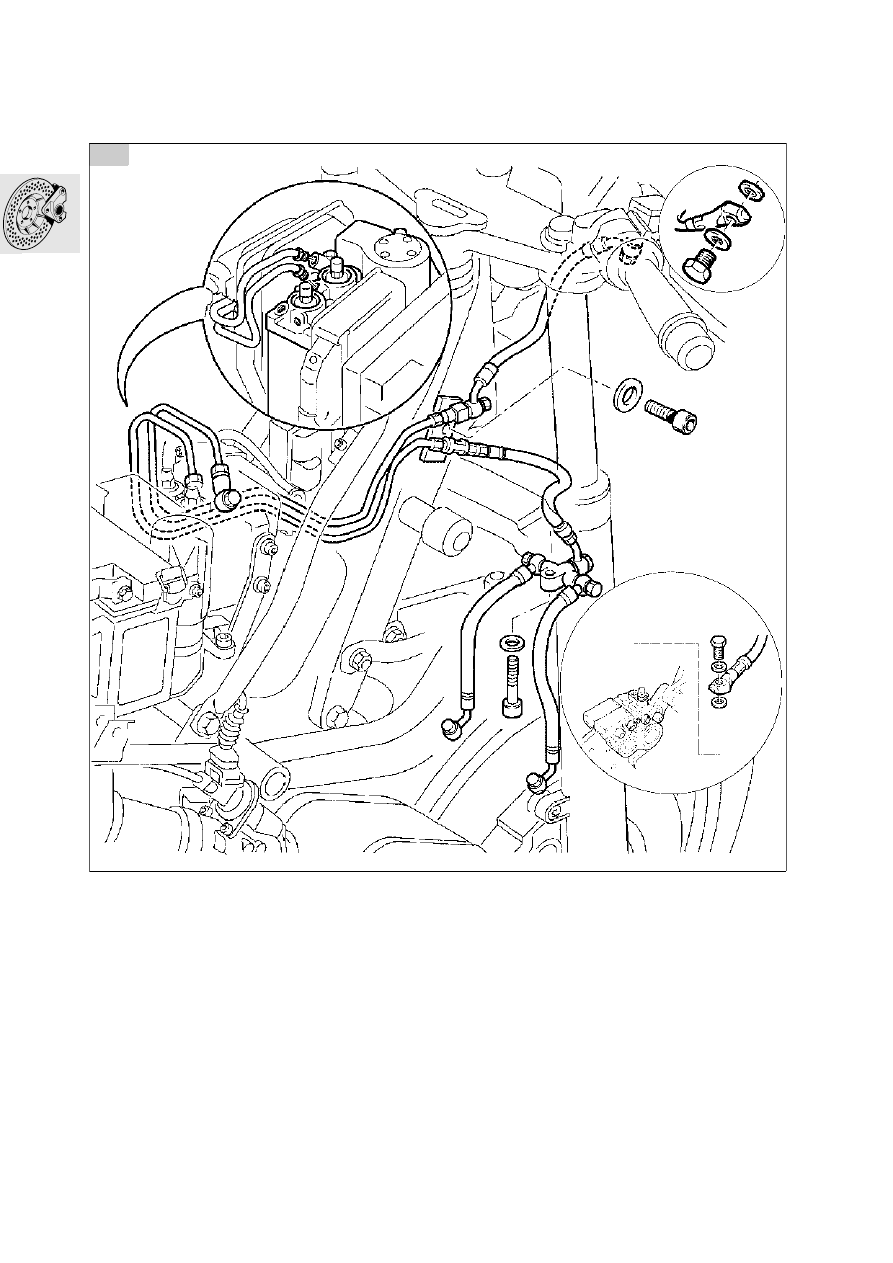

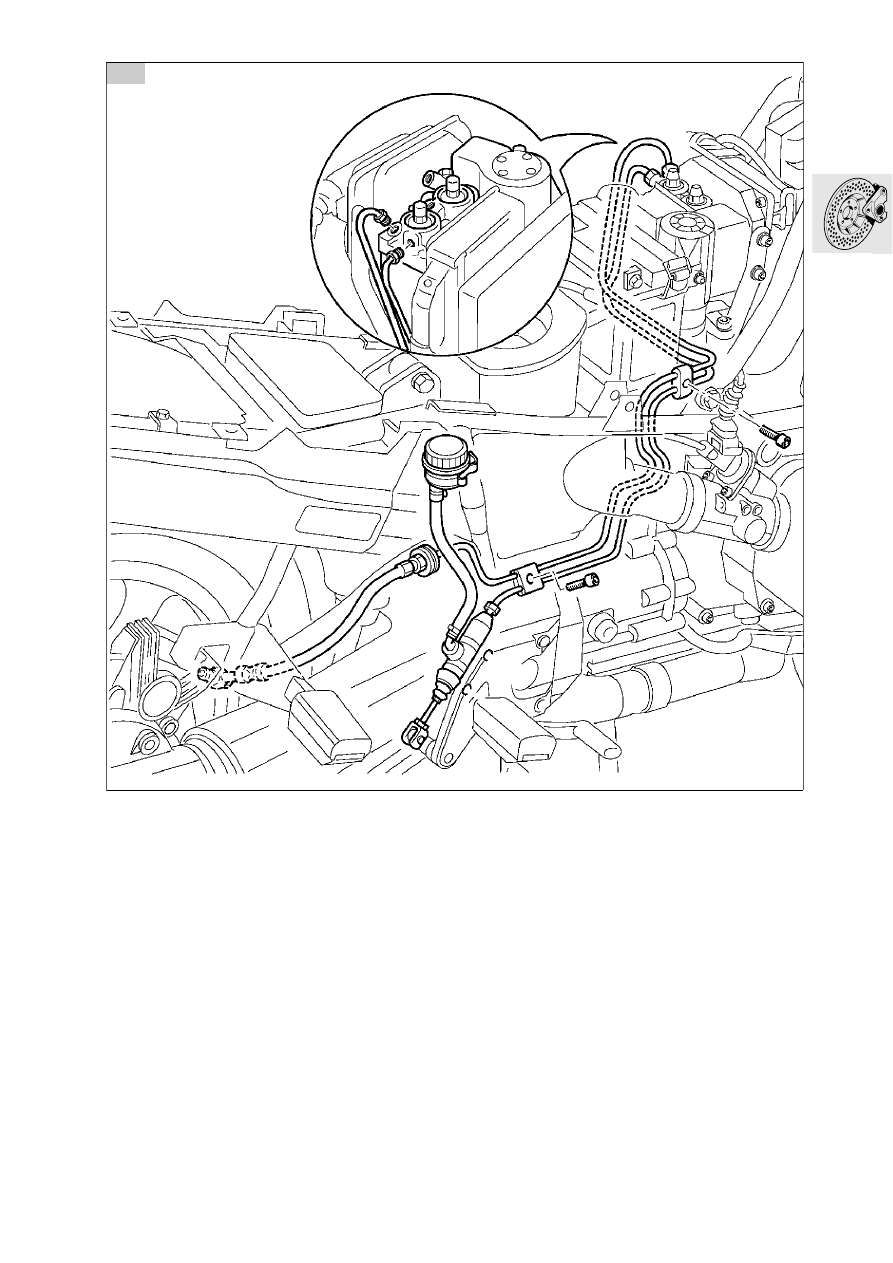

[ABS] Removing fuel tank.

[RS] Removing front section of front mudguard.

[GS] Removing front mudguard.

Remove brake lines.

Install in the reverse order of work.

e

 Caution:

Renew sealing rings for brake line.
Attach brake line to master cylinder so that it cannot
become kinked or abraded when the handlebar is
turned.
[RS/adjustable handlebar] In its center position,
the brake hose fitting must have adequate clearance
at the center section of the handlebar
(app. 5...10 mm (0.11969...0.3937in)).
If necessary, unfasten the wiring harness.

Fill/bleed the brake system.

X

 Tightening torque:

Brake line to fitting ....................................... 15 Nm
Brake line to front/rear brake caliper ............ 15 Nm
Brake line at fluid distributor ......................... 15 Nm
Flow distributor to slider tube bridge
[RS/GS] ........................................................ 9 Nm
Flow distributor to holder/slider tube
[R/RT]............................................................ 9 Nm
Bleed screws ................................................. 7 Nm
Bleed screw on rear brake caliper
[GS/R/RT] ..................................................... 4 Nm
[ABS] Bleed screw at ABS unit ...................... 9 Nm
[ABS] Distributor block to frame..................... 9 Nm
[ABS] Brake line at ABS unit ........................ 15 Nm

36.1

Contents

Page

36

Technical Data

............................................................................................................................... 3

Removing and installing front wheel

.................................................................................7

Removing front wheel

...................................................................................................................7

Installing front wheel

......................................................................................................................7

Removing and installing wheel bearings

..............................................................................8

[RS/R/RT] Removing and installing rear wheel (cast alloy)

................................10

Removing rear wheel

..................................................................................................................10

Installing rear wheel

.....................................................................................................................10

[GS/R] Removing and installing rear wheel (spoked)

............................................11

Removing rear wheel

..................................................................................................................11

Installing rear wheel

.....................................................................................................................11

Static balancing of front wheel/rear wheel

..................................................................12

Checking front/rear wheel rim for runout

.....................................................................13

[GS/R (spoked wheel)] Removing and installing spokes

.....................................14

[GS/R (spoked wheel)] Centering wheel rim

...............................................................14

Centering horizontal runout

.....................................................................................................14

36 Wheels and tyres

36.2

36.3

36

Technical Data

R 1100 RS

Rim size

front

3.50 x 17  MT H 2

rear

4.50 x 18  MT H 2

Max. vertical/lateral runout

Cast wheel

front

mm (in)

0.5 (0.0197)

rear

mm (in)

0.3 (0.0118)

Tyre size

Cast wheel

front

120/70 ZR 17 Tubeless

rear

160/60 ZR 18 Tubeless

Tyre pressure (cold)

Solo

front

bar (psi)

2.2 (31.91)

rear

bar (psi)

2.5 (36.26)

With pillion passenger

front

bar (psi)

2.5 (36.26)

rear

bar (psi)

2.7 (39.16)

With pillion passenger and luggage

front

bar (psi)

2.5 (36.25)

rear

bar (psi)

2.9 (42.06)

36.4

Technical Data

R 1100 RT

Rim size

front

3,50 x 17  MT H 2

rear

4,50 x 18  MT H 2

Max. vertical/lateral runout

Cast wheel

front

mm (in)

0.5 (0.0197)

rear

mm (in)

0.3 (0.0118)

Tyre size

Cast wheel

front

120/70 ZR 17 Tubeless

rear

160/60 ZR 18 Tubeless

Tyre pressure (cold)

Solo

front

bar (psi)

2.2 (31.91)

rear

bar (psi)

2.5 (36.26)

With pillion passenger

front

bar (psi)

2.5 (36.26)

rear

bar (psi)

2.7 (39.16)

With pillion passenger and luggage

front

bar (psi)

2.5 (36.25)

rear

bar (psi)

2.9 (42.06)
