34.15

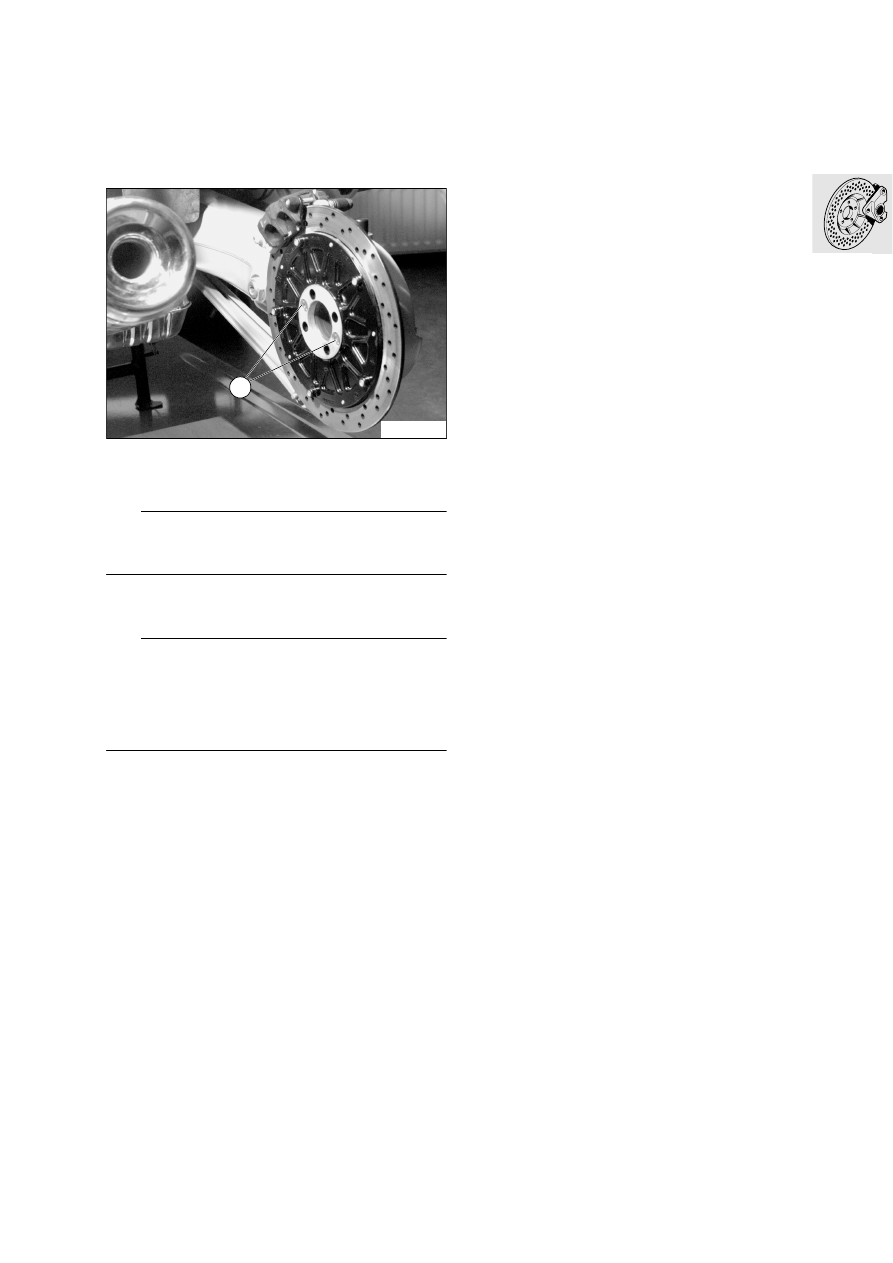

[RT/R] Removing and installing rear
brake disc (attached to rear wheel
drive)

•

Remove the brake caliper.

•

Remove rear wheel.

•

Heat the brake disc retaining screws (1) to
120 °C/remove.

L

 Note:

Mark installed position of brake disc, so that lateral
runout of sensor wheel is not changed.

•

Install in the reverse order of work.

•

Degrease the brake disc before installing.

e

 Caution:

[ABS] Check sensor gap and adjust with spacing
plates if necessary.
[ABS] If the brake disc and therefore the sensor
wheel are renewed, the disc’s lateral runout must be
determined/marked.

Sensor gap:.. 0.45...0.55 mm (0.0177...0.02165 in)

X

 Tightening torque:

Brake disc to rear wheel drive
(clean thread + Loctite 273).......................... 21 Nm

1

RT340162

34.16

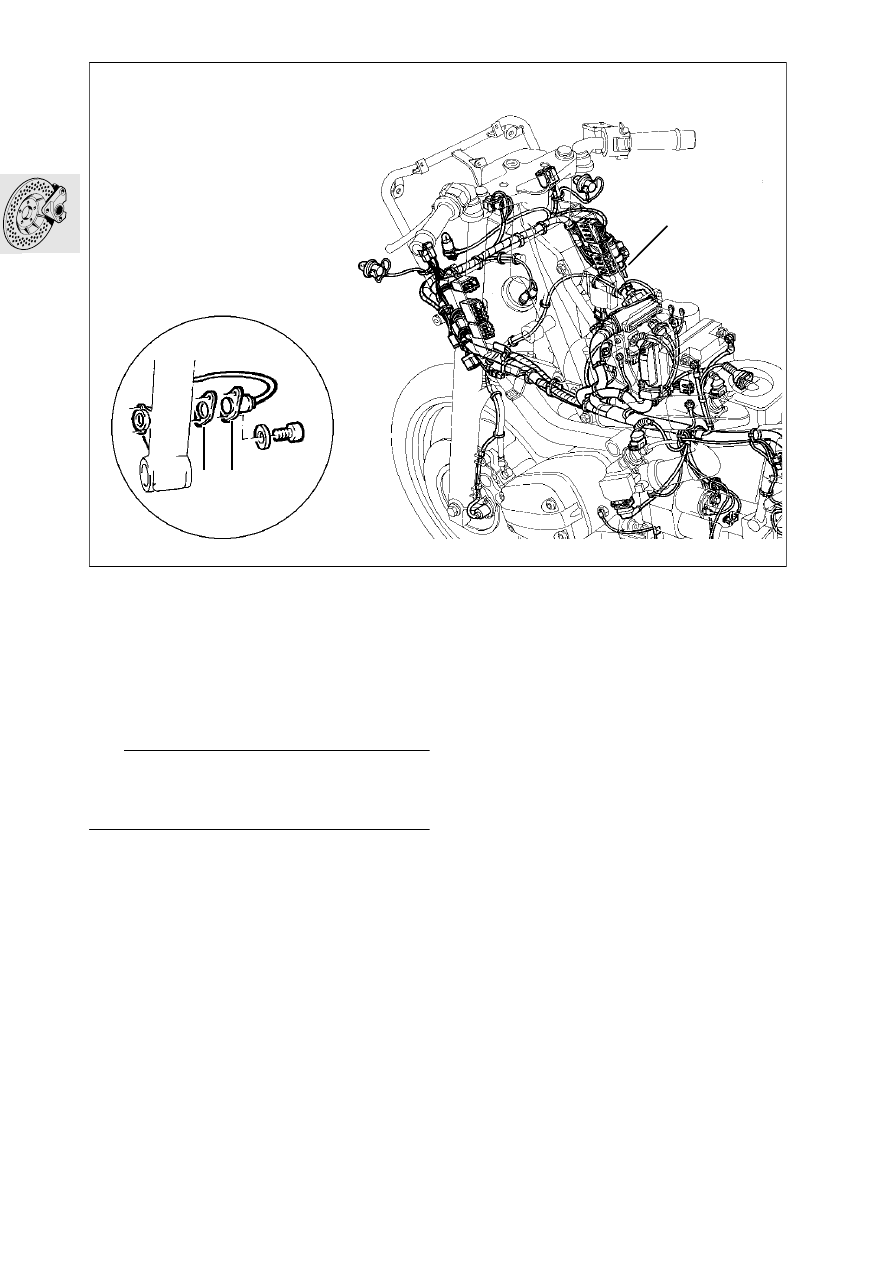

[RS] Removing and installing front
ABS sensor

•

Remove the right side section of the fairing.

•

Remove front mudguard.

•

Separate plug connector (1) in sensor line.

•

Remove sensor (2) with Torx T 25.

•

Install in the reverse order of work.

e

 Caution:

Run the sensor line correctly.
Check sensor gap and adjust if necessary with
spacer plate (3).

Sensor gap:.. 0.45...0.55 mm (0.0177...0.02165 in)

X

 Tightening torque:

Sensor  ..........................................handtight, 4 Nm

1

3 2

RS340090

34.17

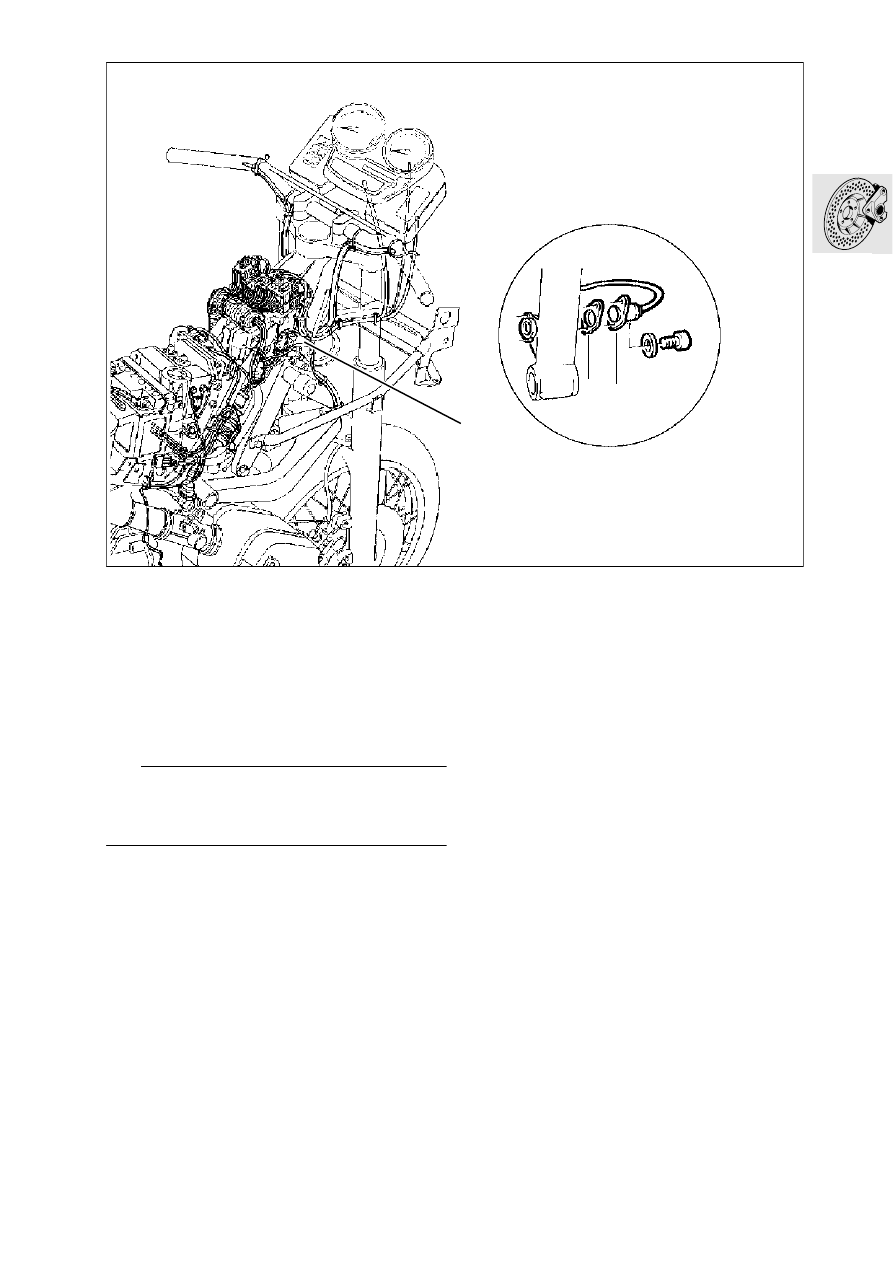

[GS/R] Removing and installing front
ABS sensor

•

[GS] Remove front wheel.

•

[GS] Remove front mudguard.

•

Remove fuel tank.

•

Separate plug connector (1) in sensor line.

•

Remove sensor (2) with Torx T 25.

•

Install in the reverse order of work.

e

 Caution:

Run the sensor line correctly.
Check sensor gap and adjust if necessary with
spacer plate (3)..

Sensor gap:.. 0.45...0.55 mm (0.0177...0.02165 in)

X

 Tightening torque:

Sensor  ..........................................handtight, 4 Nm

3 2

1

GS340090

34.18

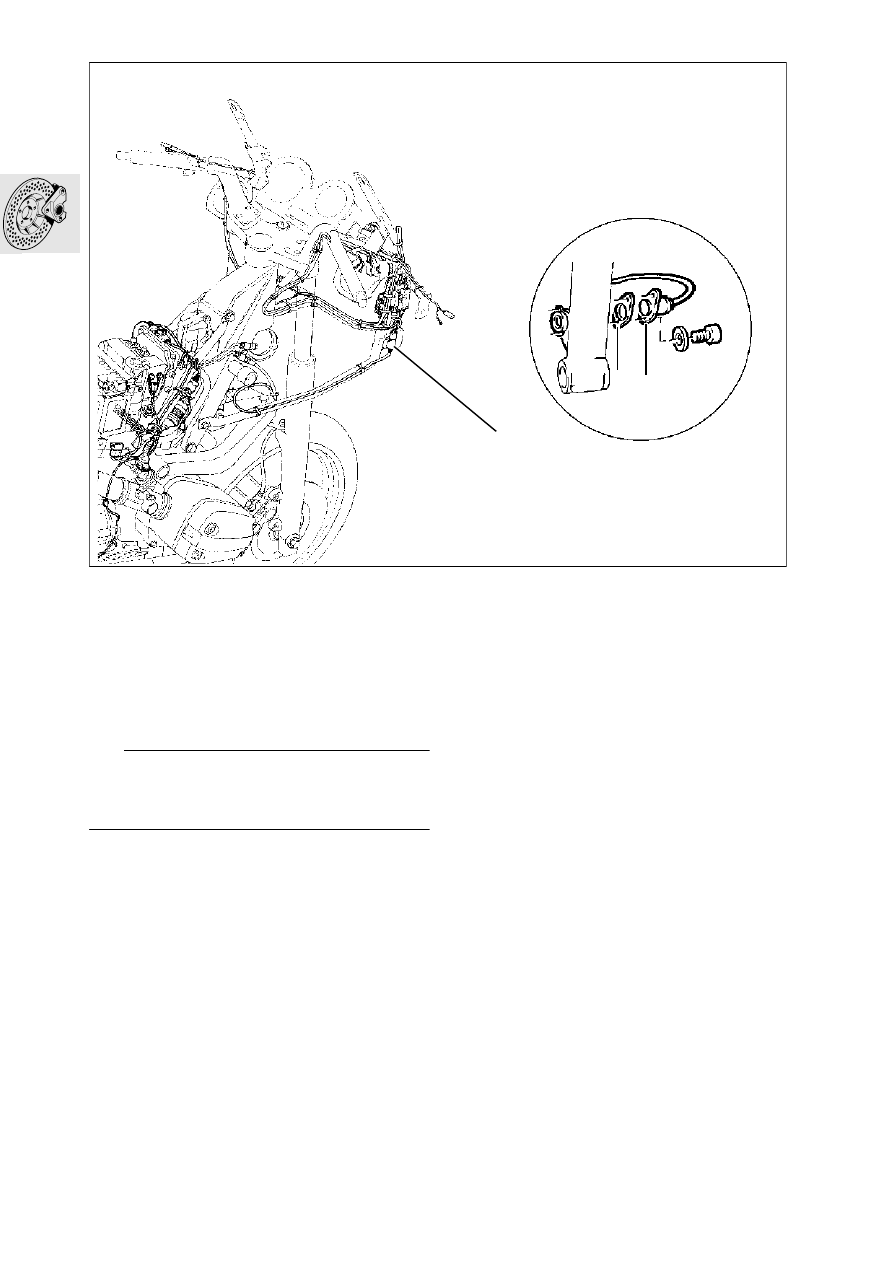

[RT] Removing and installing front
ABS sensor

•

Remove right side sections of fairing.

•

Remove front mudguard.

•

Separate plug connector (1) in sensor line.

•

Remove sensor (2) with Torx T 25.

•

Install in the reverse order of work.

e

 Caution:

Run the sensor line correctly.
Check sensor gap and adjust if necessary with
spacer plate (3).

Sensor gap:.. 0.45...0.55 mm (0.0177...0.02165 in)

X

 Tightening torque:

Sensor  ..........................................handtight, 4 Nm

RT340090

1

3 2

34.19

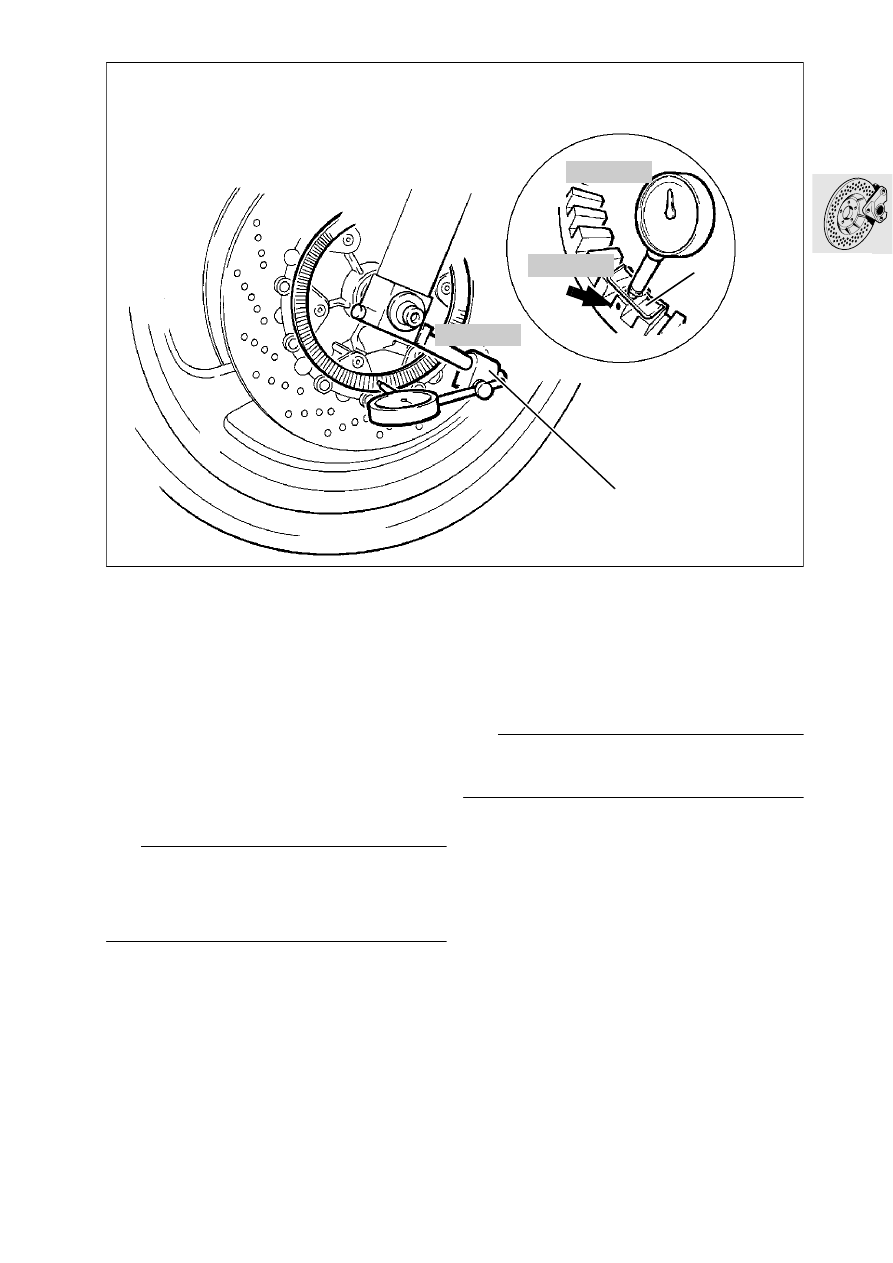

[ABS] Adjusting front sensor gap

Marking sensor wheel

•

Take load off front wheel/lift clear of ground.

•

Attach dial gauge holder (1), BMW No. 00 2 500,
with dial gauge, BMW No. 00 2 510 and meas-
uring shoe (2), BMW No. 34 2 510, to fork slider
tube.

•

Zero the dial gauge.

•

Measure axial runout over the entire circum-
ference.

•

Using a paint pencil, make a permanent mark at
the point where the sensor is farthest away from
the sensor wheel (arrow).

e

 Caution:

If parts are replaced (brake disc etc.) and a used or
previously marked sensor wheel is installed, the
sensor ring must be measured and marked again.
Remove the old marking.

Checking and adjusting sensor gap

•

Check/adjust at the marked point.

•

If necessary, remove/install sensor with
Torx T 25  and adjust sensor gap with spacing
plates.

Sensor gap:.. 0.45...0.55 mm (0.0177...0.02165 in)

e

 Caution:

After adjusting, check that the sensor wheel is free
to turn at all points on its circumference.

00 5 500

34 2 510

00 2 510

1

2

RS340100

34.20

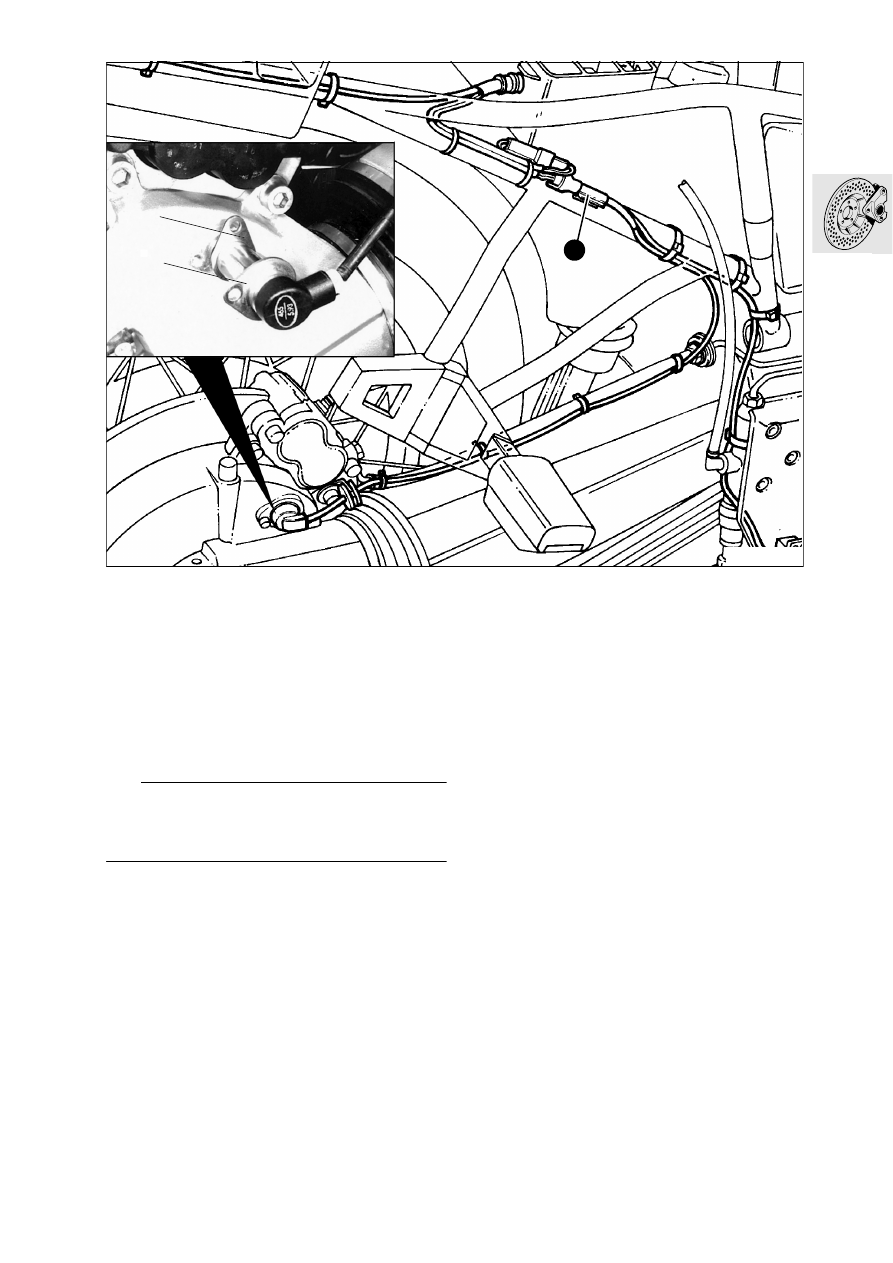

[RS] Removing and installing rear
ABS sensor

•

Remove brake caliper but do not detach brake
line.

•

Using Torx T 25, detach sensor (1).

•

Separate the plug connector (2) in the sensor
line.

•

Install in the reverse order of work.

e

 Caution:

Check sensor gap and adjust if necessary with
spacer plates (3).
Run the sensor line correctly.

Sensor gap:.. 0.45...0.55 mm (0.0177...0.02165 in)

X

 Tightening torque:

Sensor ...........................................handtight, 4 Nm

1

3

2

RS340170

34.21

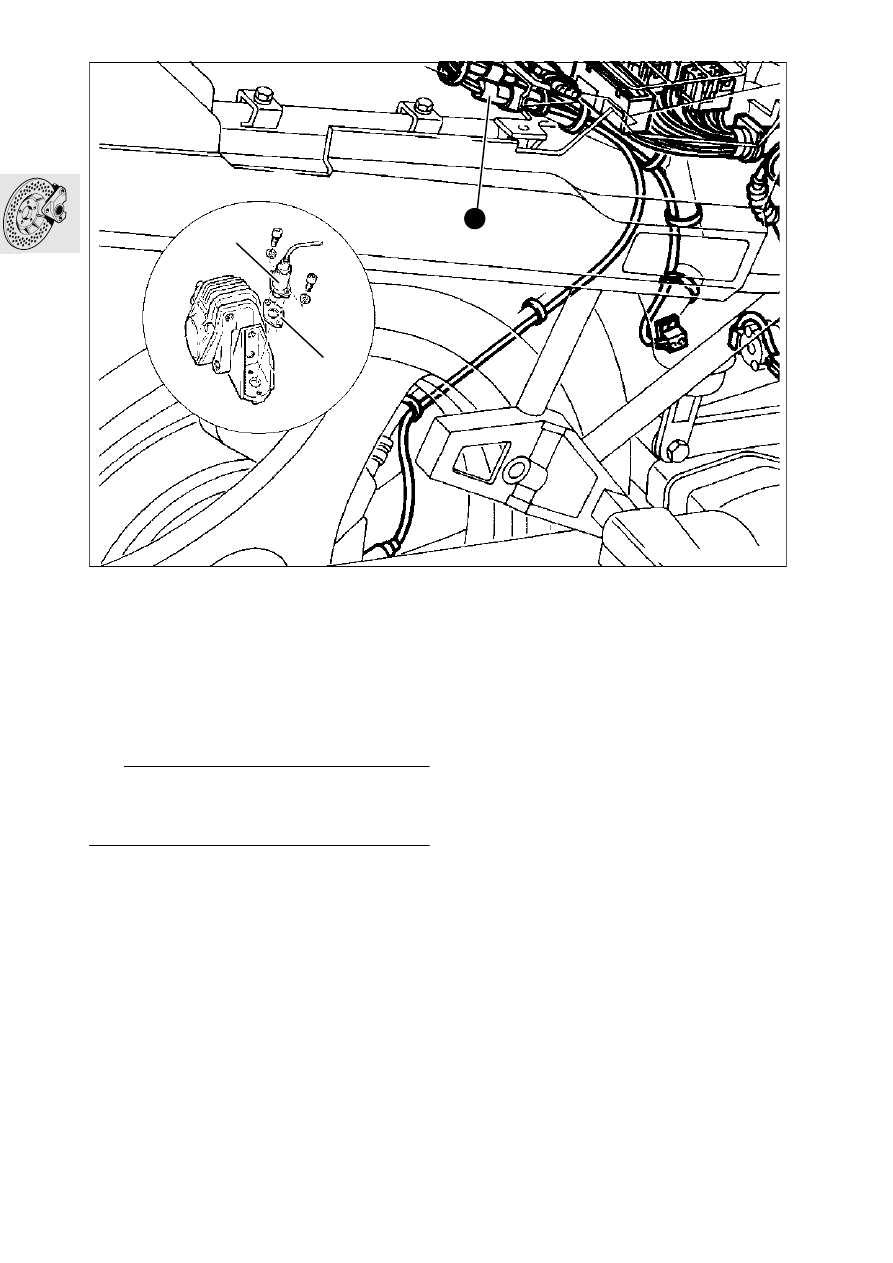

[GS/R/RT] Removing and installing
rear ABS sensor

•

[RT] Remove small right side section of fairing.

•

Before removing/installing, clean the sensor
bore.

•

Detach sensor (1) with Torx T 25.

•

Separate plug connector (2) in the sensor line.

•

Install in the reverse order of work.

•

Coat O-rings with oil before installing

e

 Caution:

Run the sensor line correctly.
Check sensor gap and adjust if necessary with
spacer plates (3).

Sensor gap:.. 0.45...0.55 mm (0.0177...0.02165 in)

X

 Tightening torque:

Sensor ...........................................handtight, 4 Nm

1

3

2

GS340170

34.22

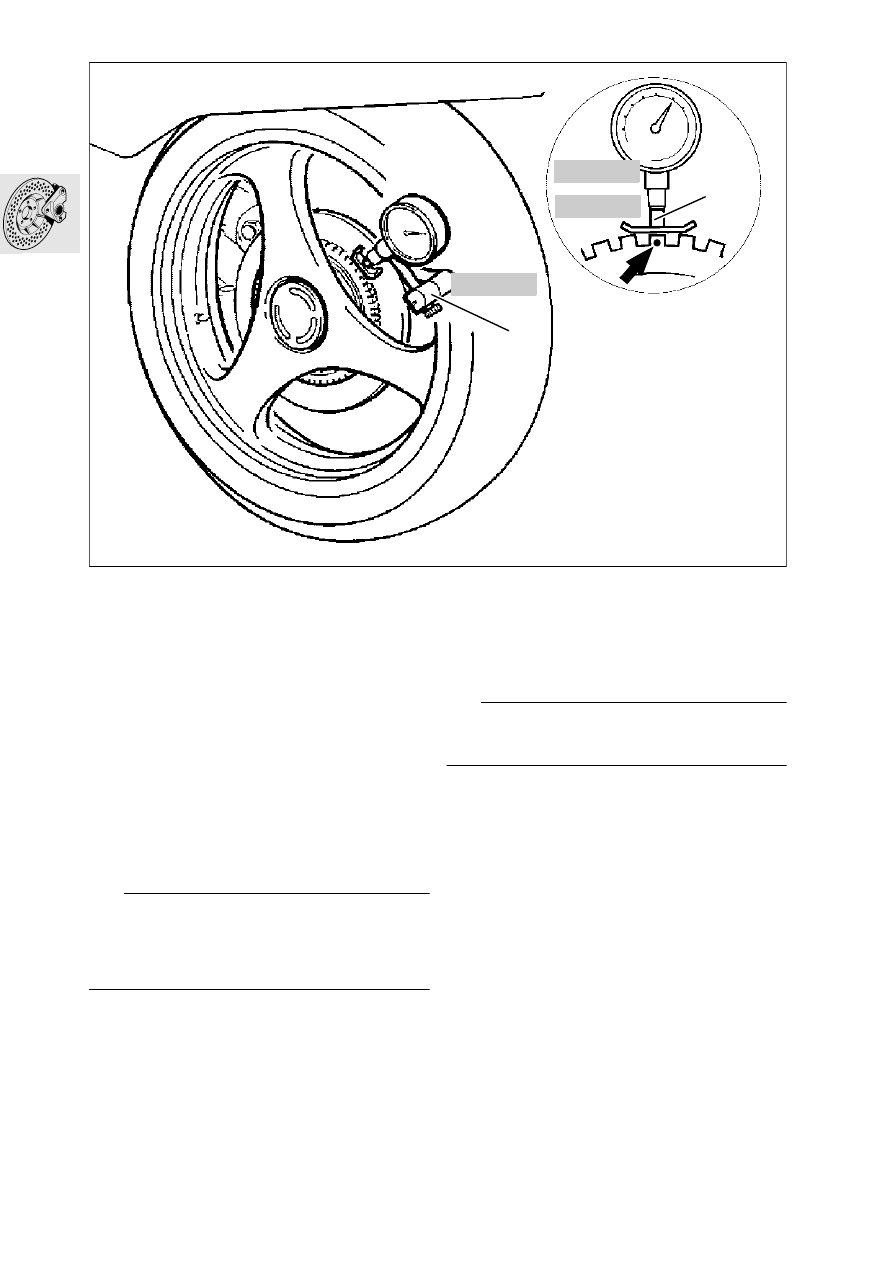

[RS] Adjusting rear ABS sensor gap

Marking sensor wheel

•

Remove the brake caliper.

•

Remove rear wheel.

•

Fasten measuring adapter, BMW No. 36 4 600,
with a M 8 x 60 mm bolt to the brake caliper
mount.

•

Attach dial gauge holder (1), BMW No. 00 2 500,
with dial gauge, BMW No. 00 2 510 and meas-
uring shoe (2), BMW No. 34 2 510.

•

Zero the dial gauge.

•

Measure radial runout over the entire circum-
ference.

•

Make a permanent paint pencil mark at the point
where the sensor wheel is farthest away from the
sensor (arrow).

e

 Caution:

If parts are replaced (brake disc etc.) and a used or
previously marked sensor wheel is installed, the
sensor ring must be measured and marked again.
Remove the old marking.

Checking and adjusting sensor gap

•

Check/adjust at the marked point

•

In necessary, remove/install sensor with
Torx T 25 and adjust sensor gap with spacing
plates.

e

 Caution:

After adjusting, check that the sensor wheel is free
to turn at all points on its circumference.

Sensor gap:.. 0.45...0.55 mm (0.0177...0.02165 in)

X

 Tightening torque:

Sensor ...........................................handtight, 4 Nm

RS340180

00 5 500

00 2 510

34 2 510

1

2
