BMW Motorcycle (R1100RT, R1100RS, R850/1100GS, R850/1100R). Manual - part 12

11.44

•

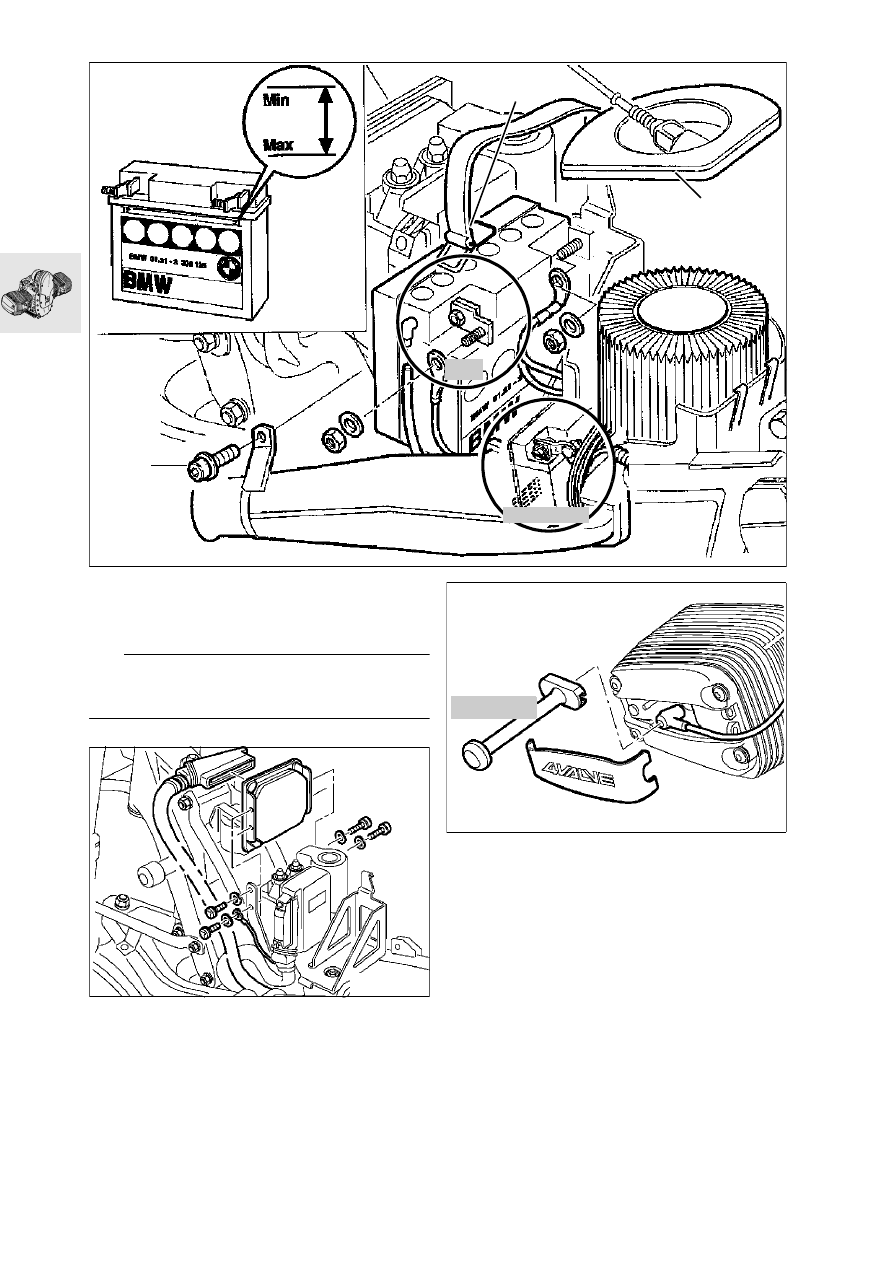

Remove air filter cover (1) and air intake pipe (2).

•

Remove battery (3).

e

 Caution:

Disconnect negative terminal first, then positive
terminal.

•

Remove Motronic control unit.

•

Remove spark plug covers.

•

Pull off spark plug caps with puller,
BMW No. 12 3 520.

RS

1

2

3

GS/R/RT

RS000340

RS130010

12 3 520

RS120170

11.45

•

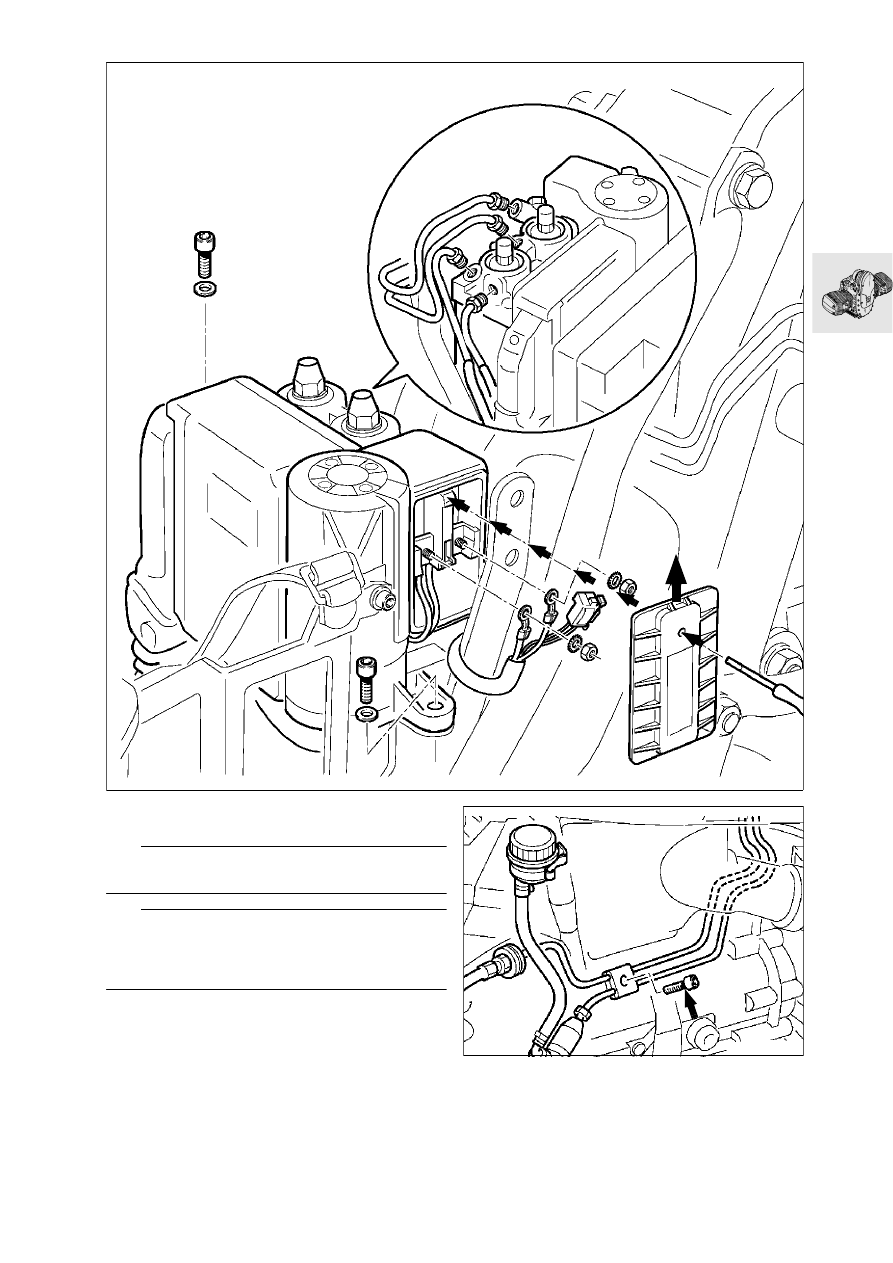

[ABS] unit - remove.

L

 Note:

Retain brake lines with cable straps.

e

 Caution:

Always follow the instructions in the repair manua
a See Group 34,Removing and installing
ABS unit.

•

[ABS] Detach brake pipes at gearbox.

•

[RT] Detach brake master cylinder.

RS340010

RS110530

11.46

•

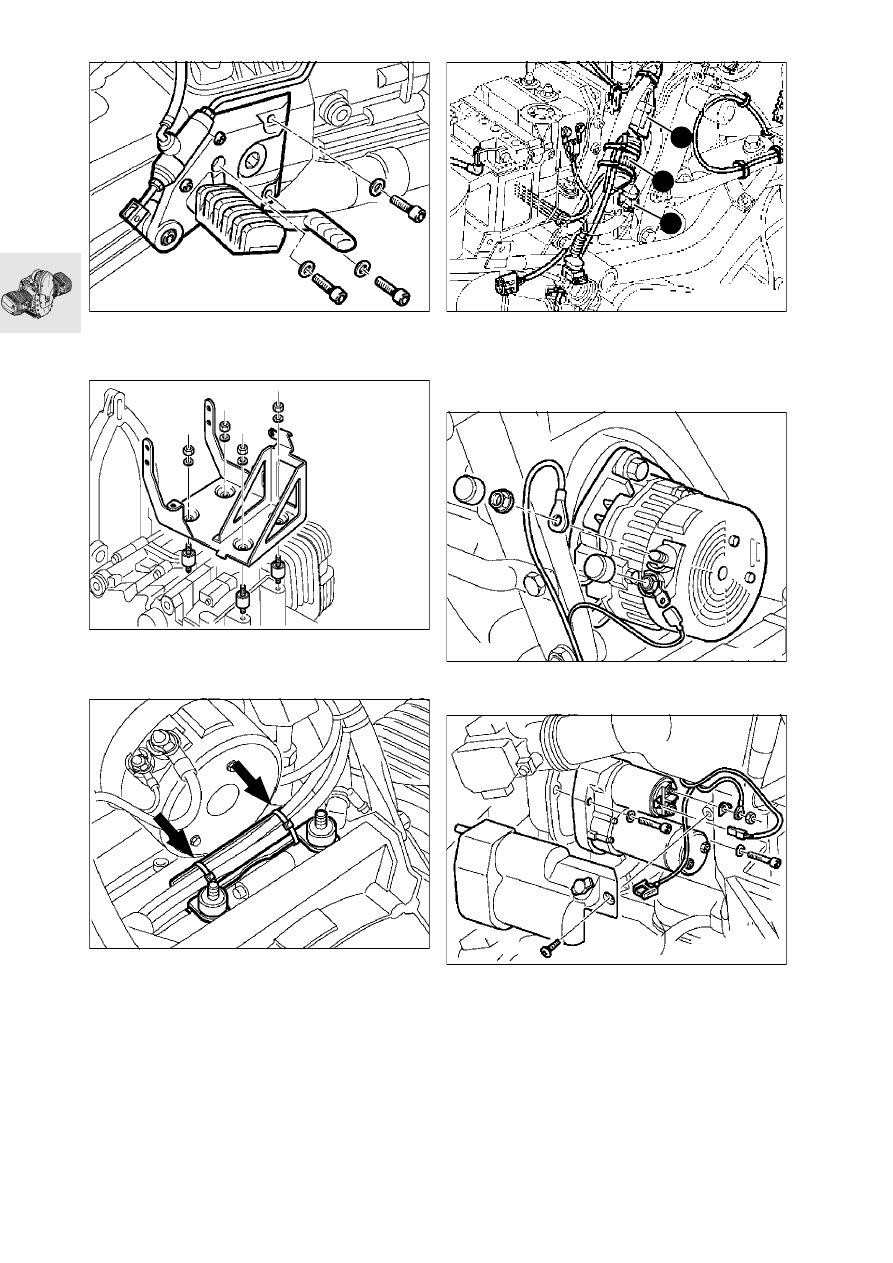

[RT] Detach brake master cylinder.

•

Unfasten right footrest plate

•

Detach wire cable junction block.

•

Remove battery holder

•

Remove cable strap from cable guide under bat-
tery holder.

•

Separate connector/Hall-effect transmitter wire
(1).

•

Separate connector/oxygen sensor (2).

•

Pull off plug/NTC-oil temperature (3).

•

Detach leads from alternator.

•

[RS/GS/RT] Detach starter-motor cover/pull off
socket cable.

•

Detach leads on starter motor/remove starter
motor.

RS460010

RS610010

RS610020

1

2

3

RS110540

RS110510

RS120141

11.47

•

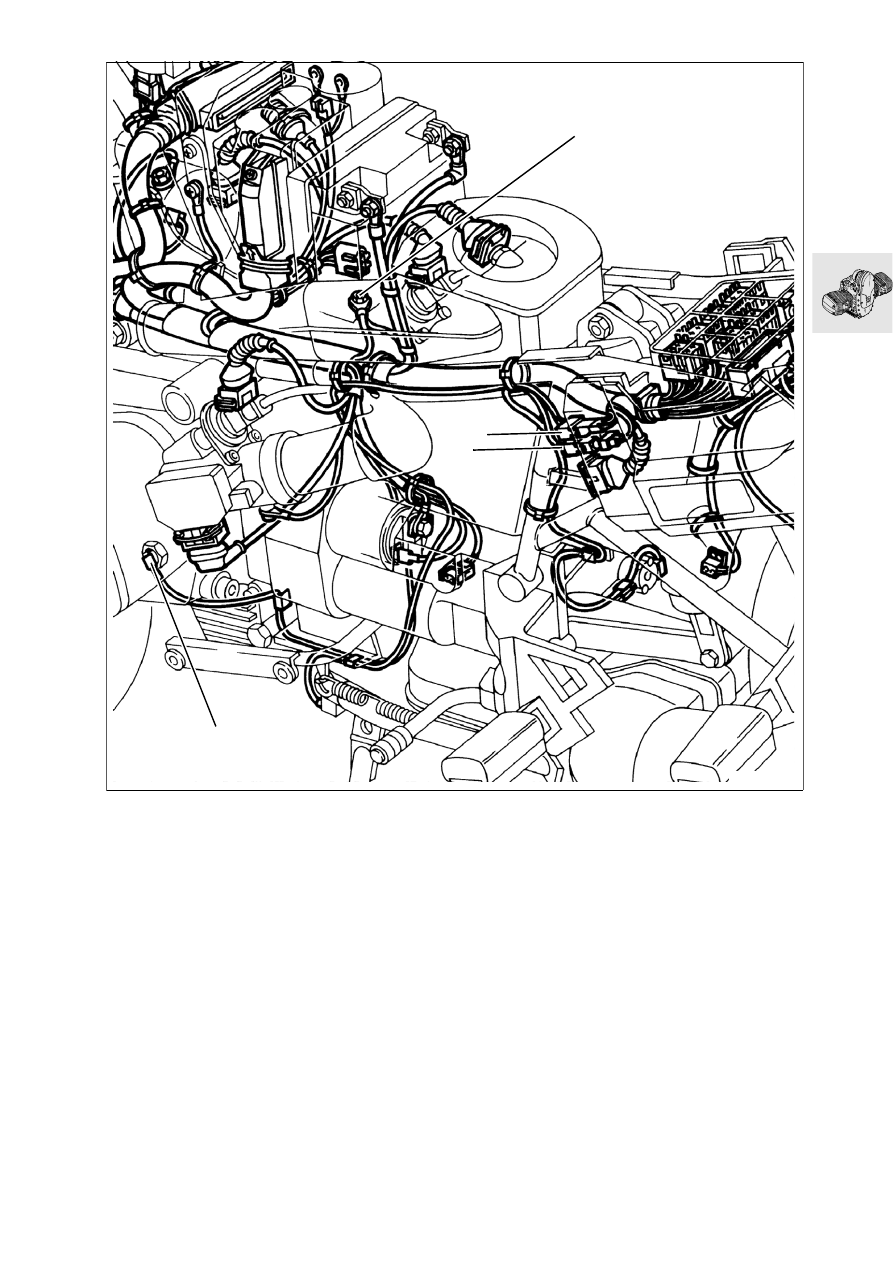

Disconnect oil pressure switch (1).

•

Separate plug connection for side stand
switch (2).

•

Separate plug connection for gearbox neutral-
indicator switch (3).

•

Detach ground (earth) strap (4).

2

4

3

1

RS610044

11.48

•

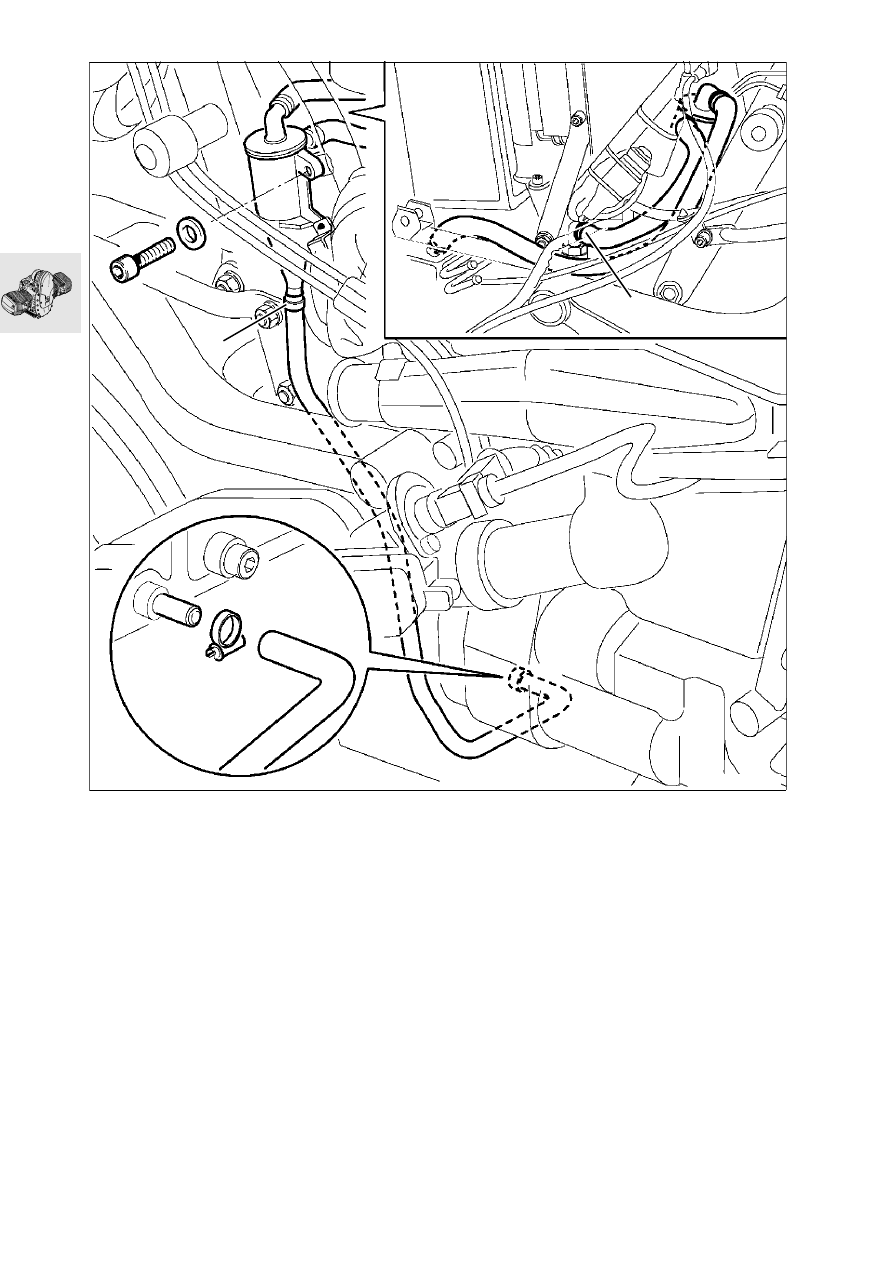

[RS] (Version without rotary breather) Detach oil
return line at oil trap (1).

•

Detach engine breather pipe from engine (2)

2

1

RS110570

11.49

•

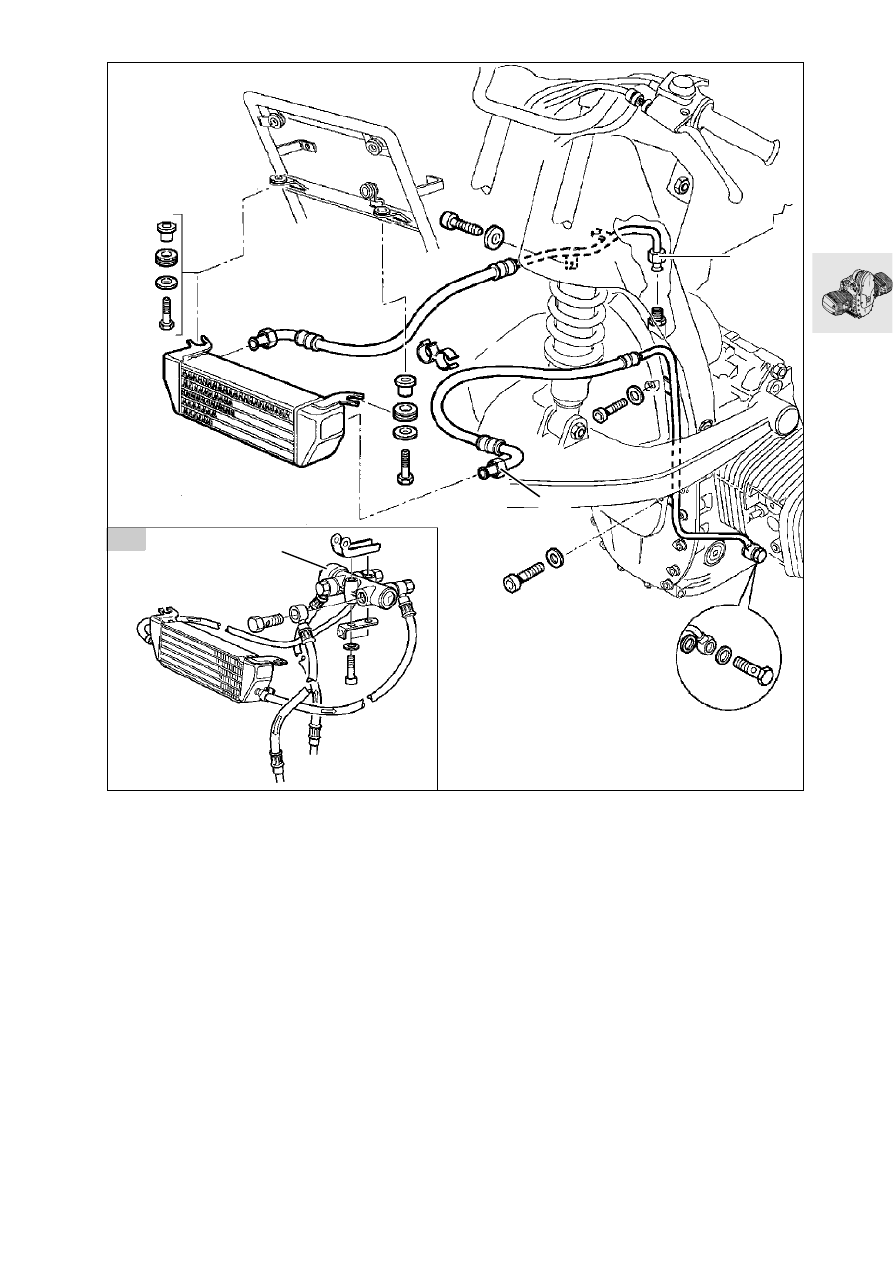

Detach oil cooler pipe (1) at left of oil cooler.

•

[RT] Detach oil cooler line at oil thermostat (3).

•

Detach right oil cooler line from engine (2).

•

[R] Detach oil cooler holder and remove together
with oil cooler.

•

Unscrew hose clips/throttle stub pipe and insert
stub pipe into air cleaner box.

•

Remove rear brake caliper/tie up to rear frame
with cable strap.

•

[ABS]/[GS/R/RT] Detach ABS sensor.

•

Disconnect clutch cable.

RT

2

1

3

RS110561

11.50

•

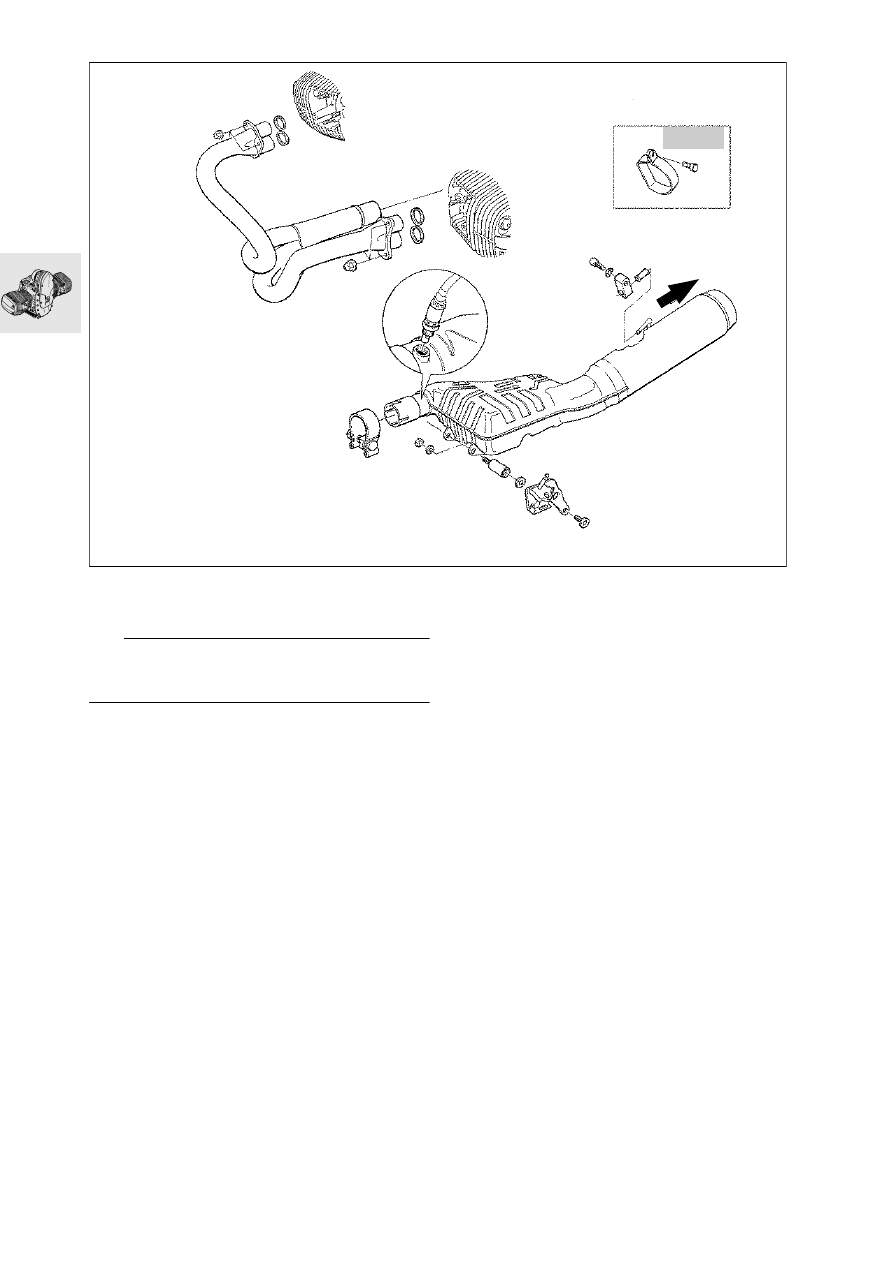

Remove muffler (silencer).

•

Remove manifold pipes.

e

 Caution:

Detach oxygen sensor cable - do not subject to
tension.

GS/R

RS180040

11.51

•

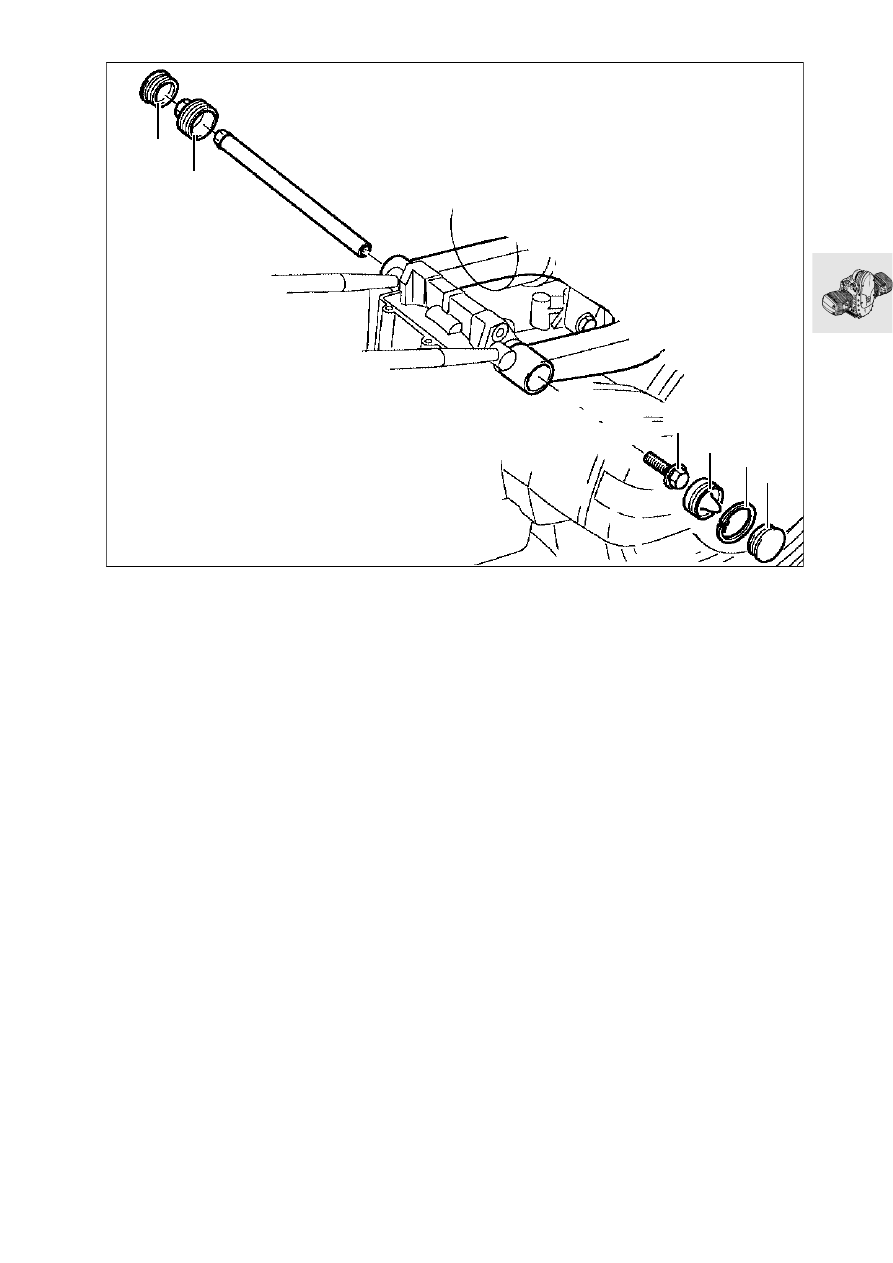

Remove covers (1) on leading link pivots.

•

Unfasten left screw cap (2).

•

Remove right retaining ring (3).

•

Remove retaining cap (4).

•

Take out bolt (5) at right.

1

3

4

5

2

1

RS310011
