BMW AG Motorcycle (R 850 C, R 1200 C). Manual - part 29

61.7

Frame wiring harness

e

 Caution:

Use (yellow) galvanized bolts for the ground (earth)
connection to the engine.
Screws with unsuitable corrosion proofing can
cause the electrical resistance to rise as high as
80

Ω

.

Run wiring without kinking and avoid risk of abra-
sion.
Note the number and position of the cable straps.

•

Apply a thin coating of contact grease, e.g.
CENTOPLEX 3 CU to the central earth (ground)
point, which must be cleaned to bright metal
first.

L

 Note:

When removing the wiring harness, take out the
central electrical equipment box at the same time.

X

Tightening torque:

Ground (earth) connection to engine .............. 7 Nm

61.8

Wiring harness

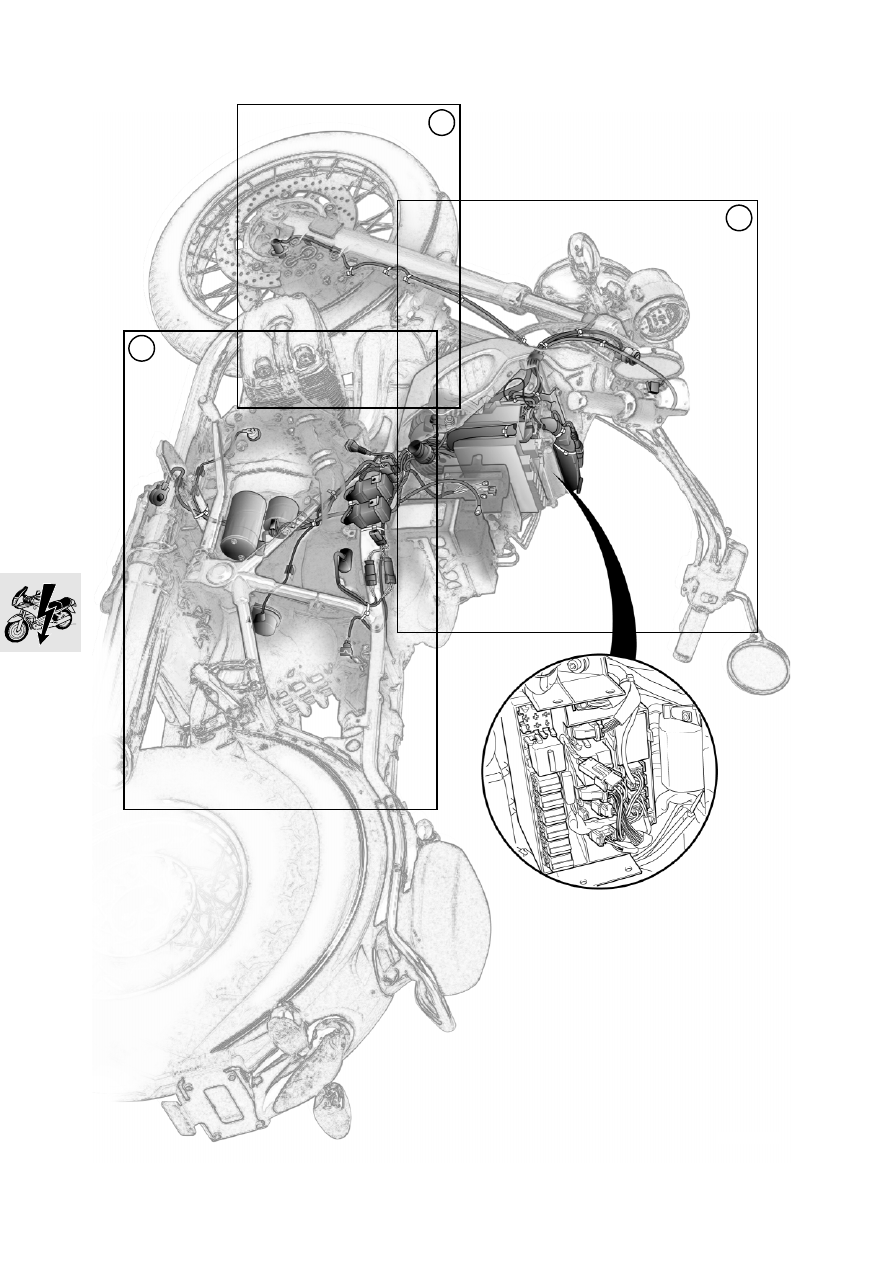

View from left

C619020

1

2

3

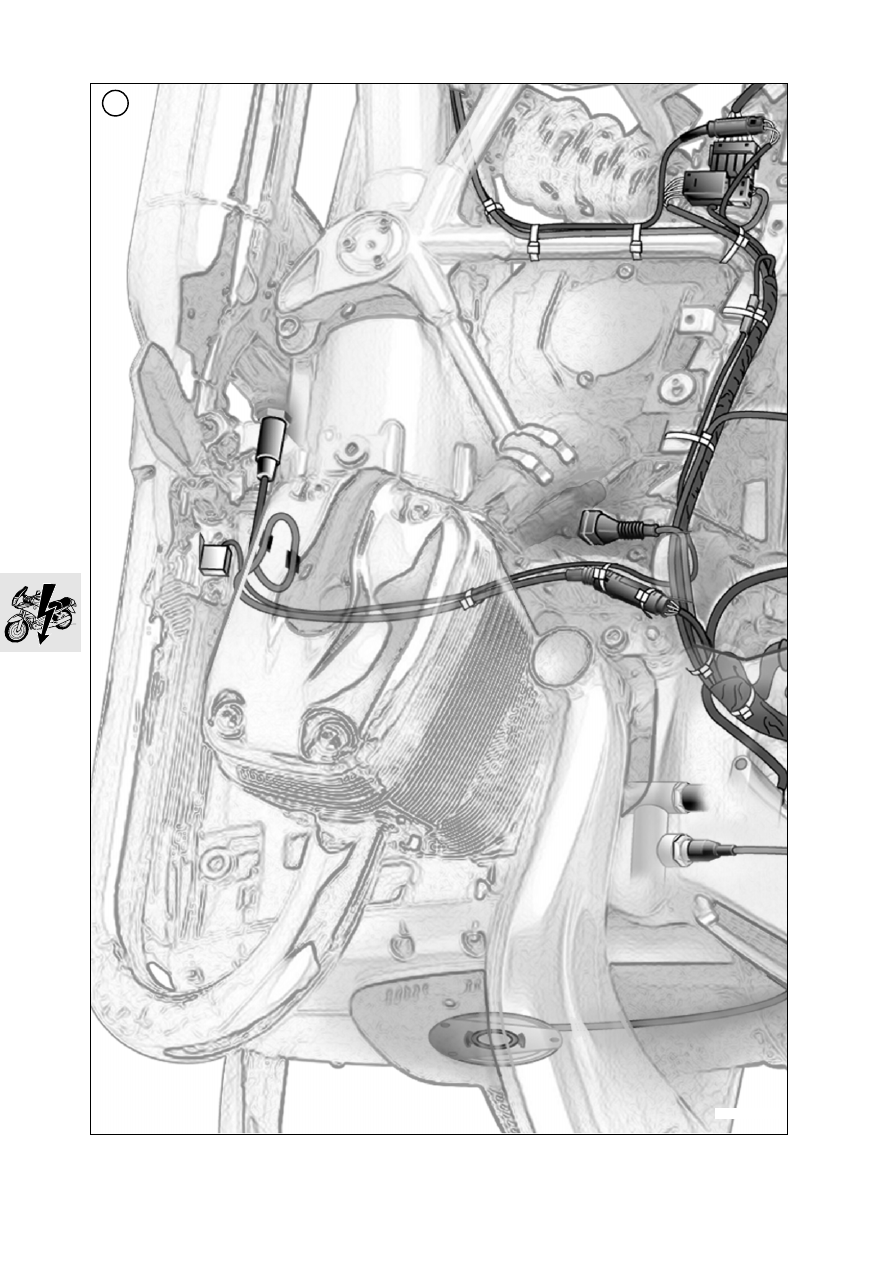

61.9

1

C619021

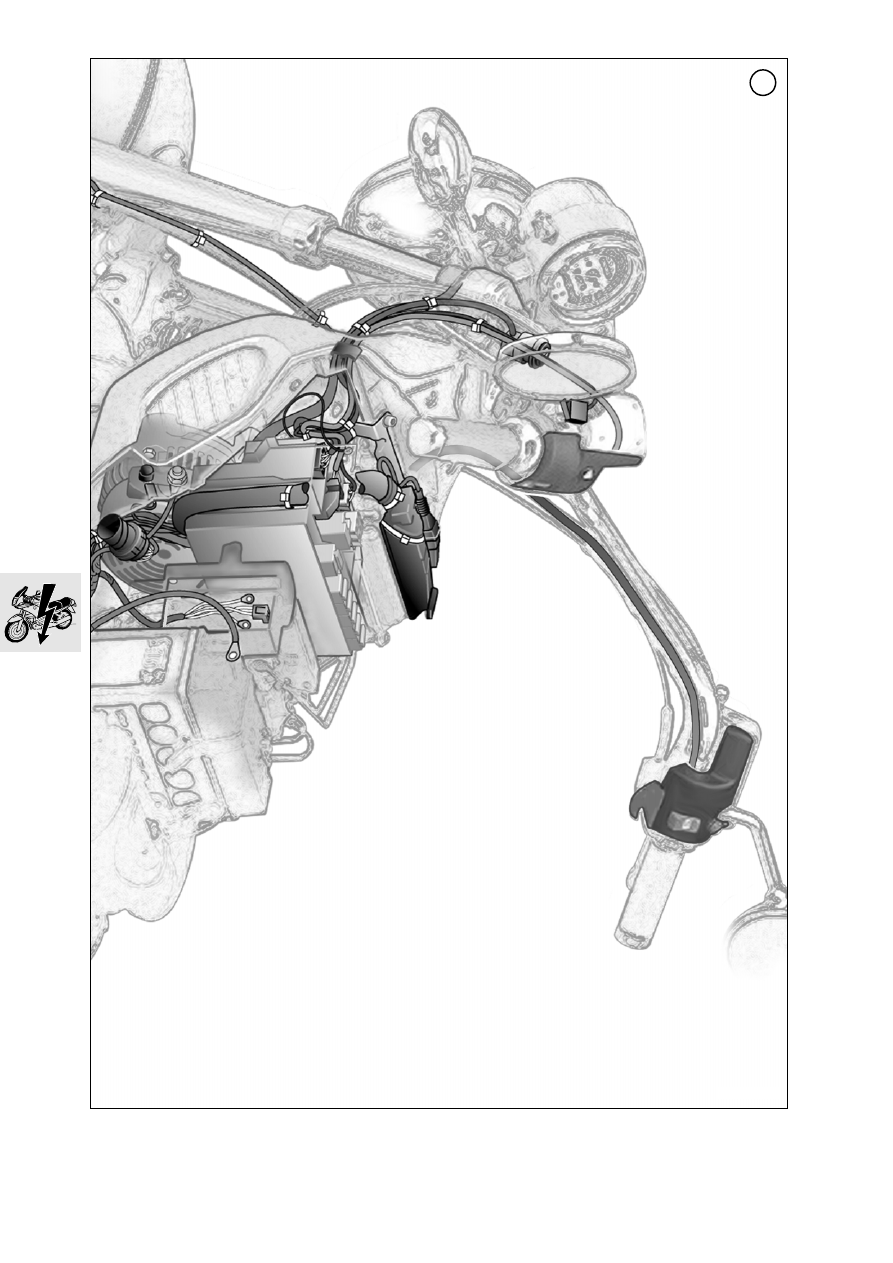

61.10

2

C619022

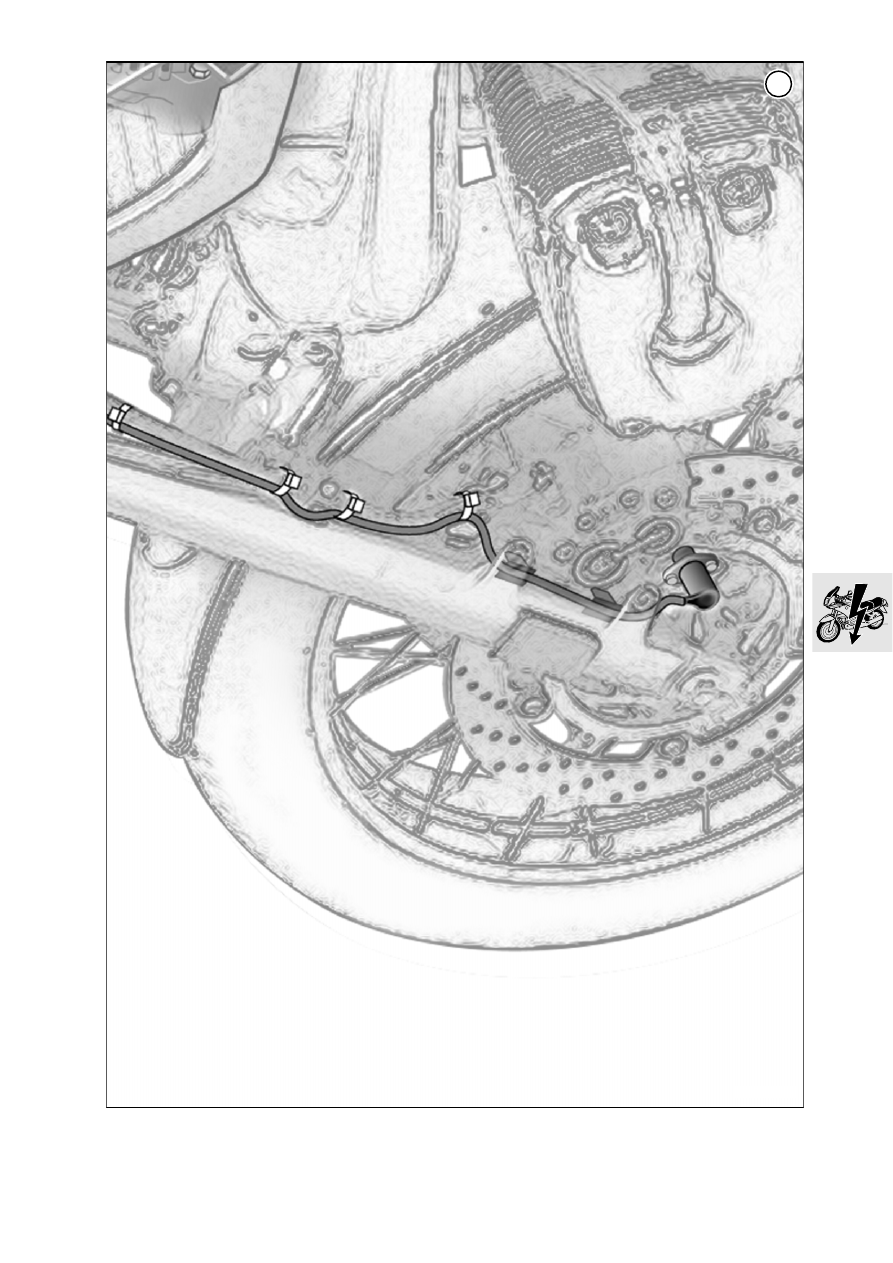

61.11

3

C619023

61.12

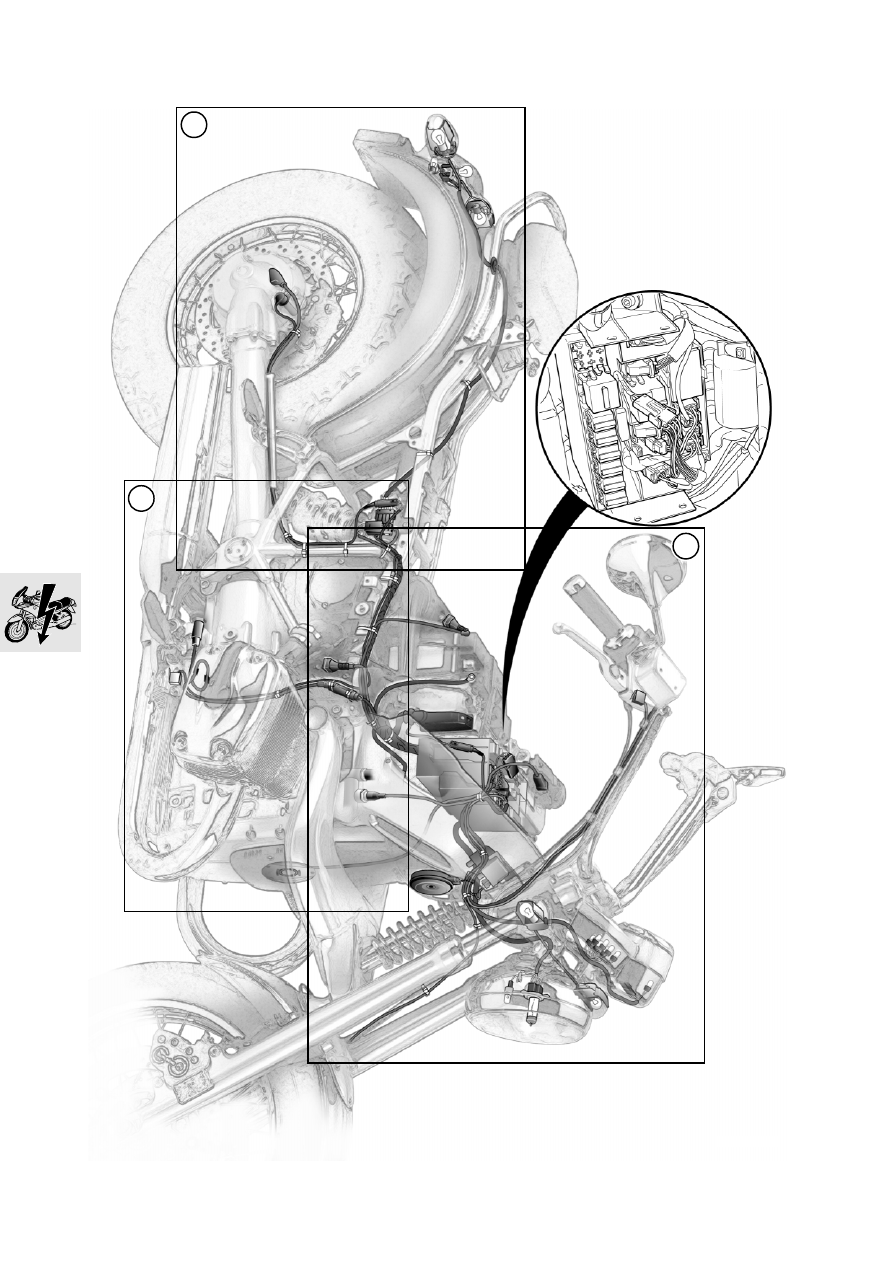

Wiring harness
View from right

1

2

3

C619030

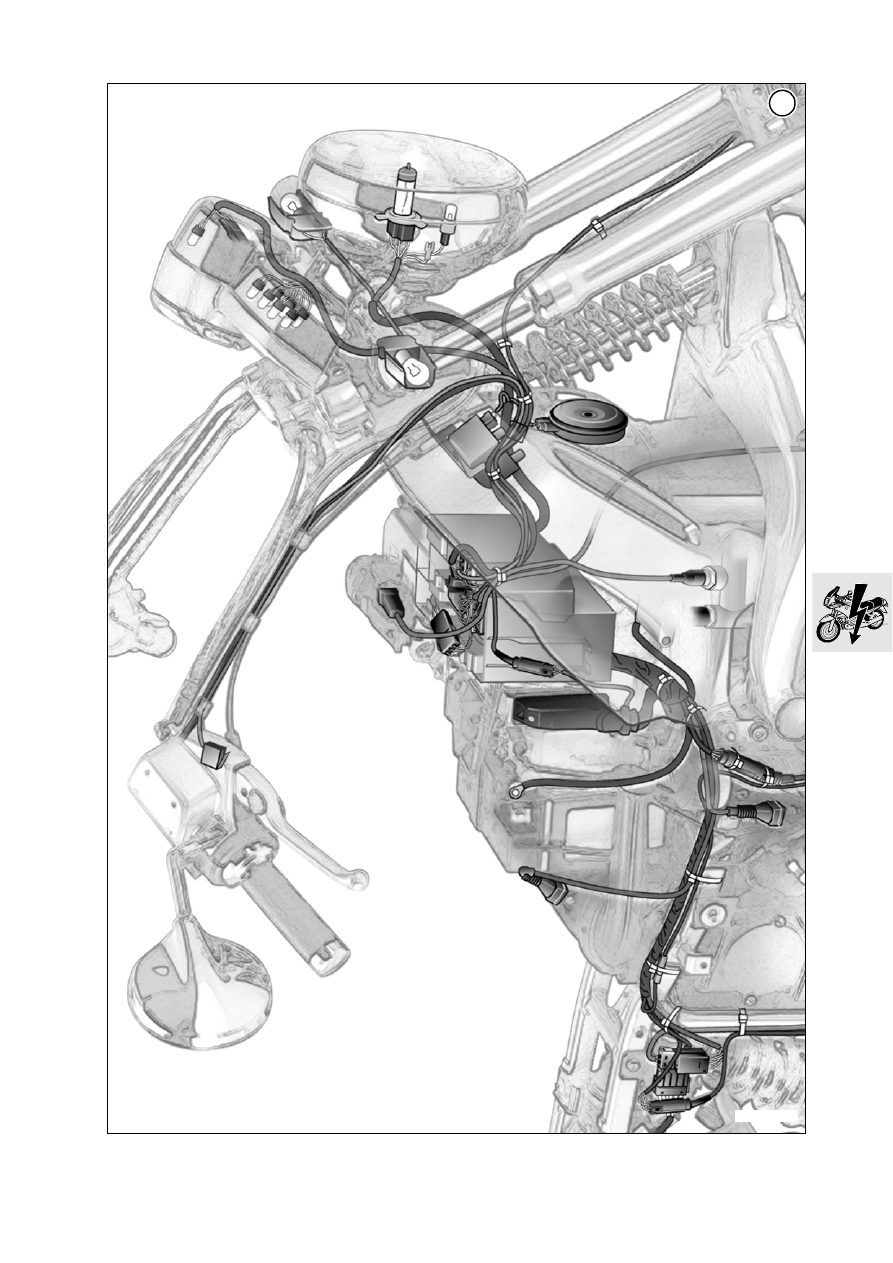

61.13

1

C619011

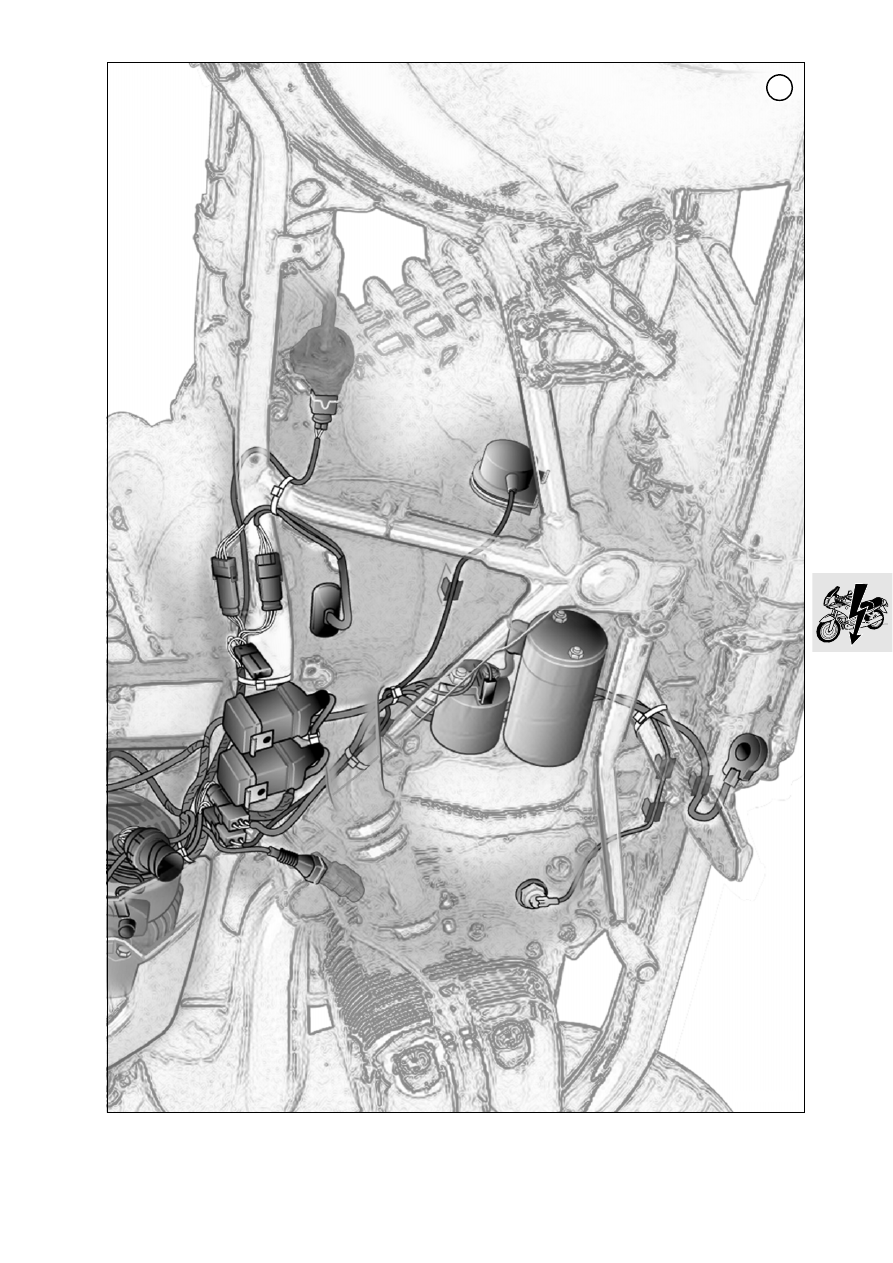

61.14

2

C619012
