63.5

Disassembling and assembling
headlights

•

Remove upper section of fairing.

•

Remove headlight.

•

Release retaining spring (5).

L

 Note:

Do not touch the inside of the reflector or bulbs with
bare hands.

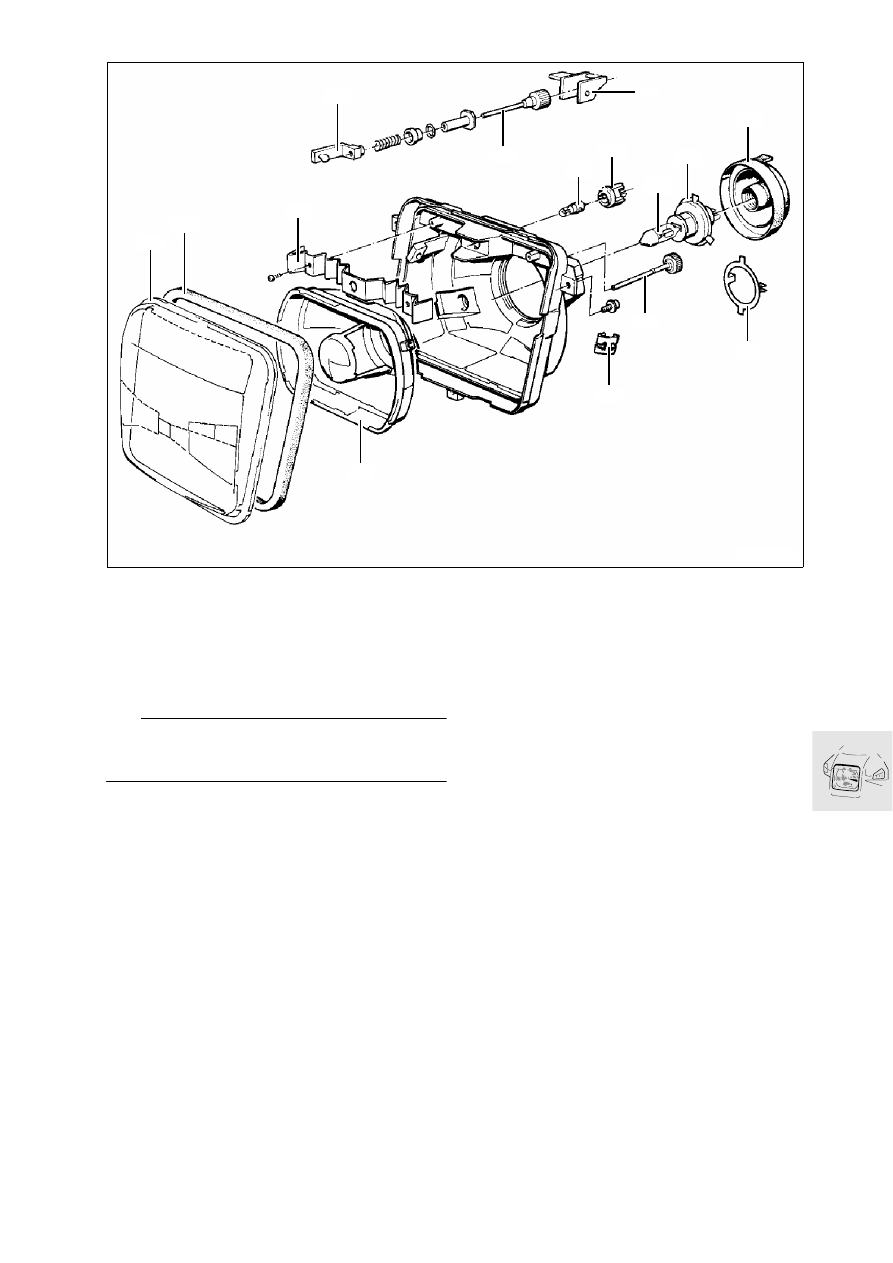

Individual parts:
1. Glass
2. Gasket
3. Reflector
4. Reflector
5. Retaining spring
6. Bulb
7. Bulb socket
8. Retaining spring
9. Cover
10.Adjusting screw
11.Lamp socket
12.Bulb
13.Swivel lever
14.Adjusting screw
15.Bracket

LT630010

13

15

1

2

4

12

11

6

7

9

3

5

10

8

14

63.6

Adjusting headlights

•

Engage swivel lever (1) in top position.

•

Correct headlight range with adjusting screw (2).

•

Turning counterclockwise: shorter

•

Turning clockwise: further

•

Adjust side angle with knurled screw (3).

LT630020

2

3

1
