Technical Data

F 650

General electrical equipment

Circuit voltage

V 12

Battery

A/h 12

61.4

61.5

Wiring harness

View from left

E619011

61.6

View from right

E619020

61.7

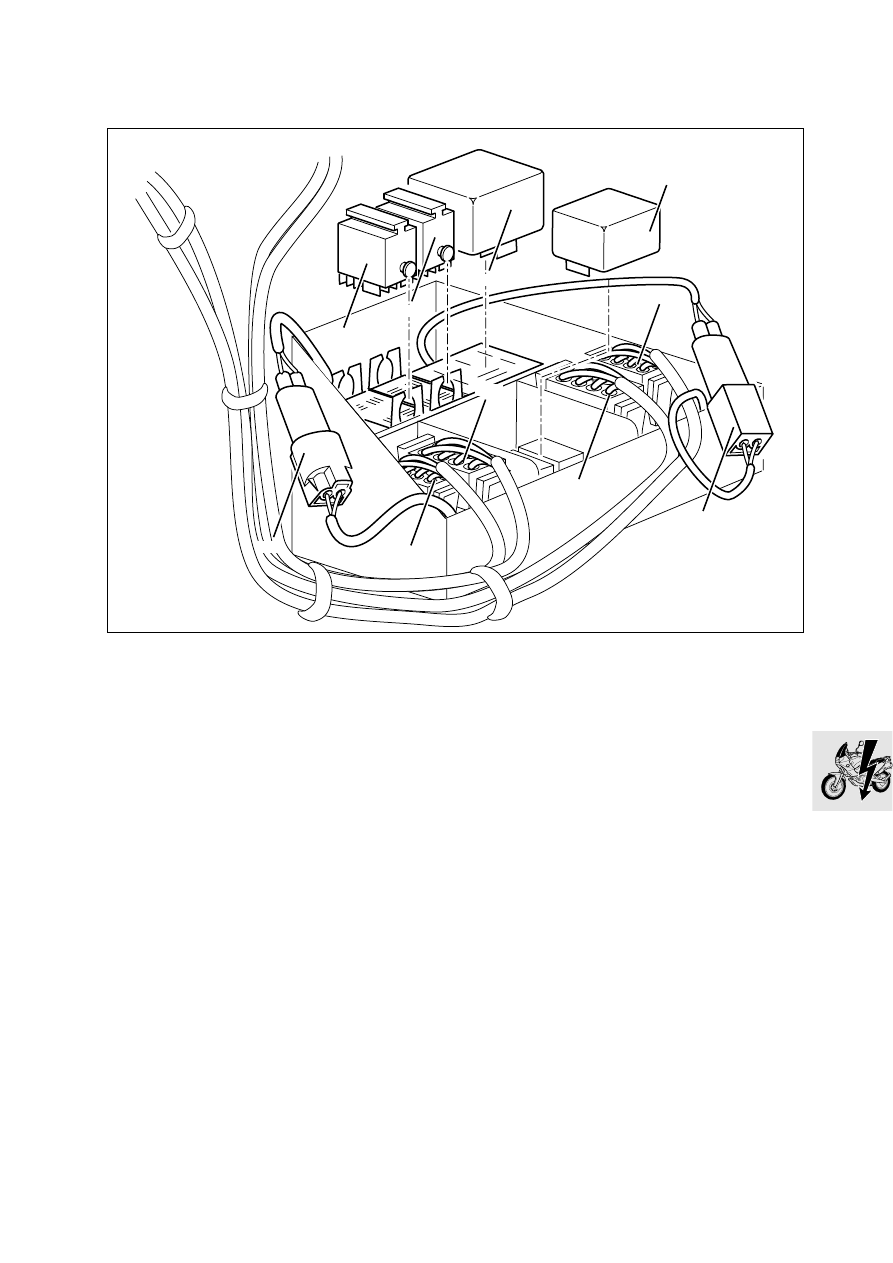

Component positions in electronic
equipment box



Relay positions in electronic
equipment box

1 Relief relay
2 BMS relay
3 Diode relay
4 Flasher unit

Connectors, electronic equipment box

5 Ignition light switch
6 Brake light switch
7 Multi-function switch, right
8 Multi-function switch, left
9 Clutch switch
10 ABS switch

E619012

6

7

9

1

3

4

10

5

8

2

61.8

61 21 010

Removing and installing bat-

tery

d

 Warning:

Battery acid is highly caustic.
Protect your eyes, face, hands, clothing and the
paintwork.

–

Remove left, right and centre covers.

a

....................................................See Group 46

e

 Caution:

Disconnect the battery only with the ignition
switched off.
Disconnect the negative battery terminal first, then
the positive one.

•

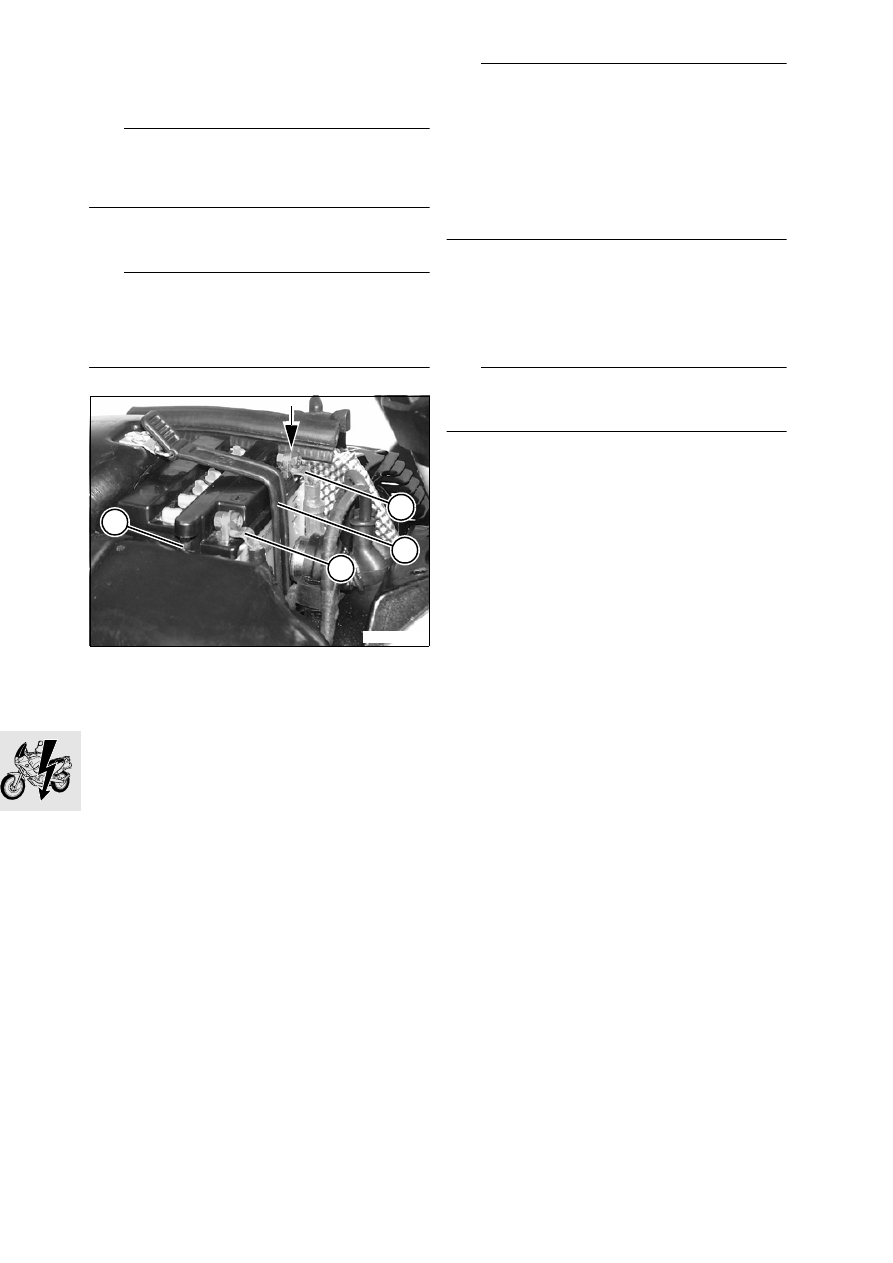

Disconnect the earth lead (3) from the battery
and insulate it.

•

Remove positive lead (1) from battery.

•

Disengage rubber strap (2) holding the battery.

•

Remove battery drain tube (4).

•

Remove the battery.

•

Grease the battery posts with acid-proof bat-
tery terminal grease.

Acid-proof battery terminal grease

................................................e.g. Bosch Ft 40 V1

L



Note:

Disconnecting the battery clears all entries (such as
errors, adaptations) from the BMS control unit mem-
ory.
The loss of the adaptations may sometimes lead to
engine performance being temporarily impaired
when the engine is restarted.
The BMS restores the lost adaptations itself over the
following operating hours.

•

Switch on the ignition.

•

Open the throttle once or twice fully with the en-
gine off. Motronic registers the throttle valve po-
sition.

•

Installation is the reverse of the removal proce-
dure: pay particular attention to the following.

e

 Caution:

Connect the positive battery terminal first, then the
negative terminal.

•

Route the positive lead vertically (arrow) to the
battery post. Make sure that all battery cells are
visible through the inspection port in the cover.

E610020

1

3

4

2

61.9

61 21 100

Removing and installing bat-

tery carrier

–

Place motorcycle on its centre stand.

–

Remove seat.

–

Remove left, right and centre covers.

–

Remove the battery.

a

......................................................... See above

–

Remove the intake air pipe.

a

....................................................See Group 13

–

Remove intake air silencer.

a

....................................................See Group 13

•

Remove the starter relay from the holder.

•

Remove the lid of the electronic equipment box.

•

Remove the fasteners for the battery tray.

•

Installation is the reverse of the removal proce-
dure.

X

Tightening torques:

Intake air silencer to retainer .......................... 9 Nm
Intake air silencer to oil tank ........................... 9 Nm
Connecting flange .......................................... 5 Nm
Fasteners, cover/
trim panel for turn indicator ............................ 3 Nm
Lid of electronic equipment box ..................... 4 Nm

Replacing fuses

Motorcycle fuses

–

Remove seat.

•

Open the cover of the fuse box.

•

Replace the defective fuse.

Fuses

1 BMS Compact ........................................... 20 A
2 Headlight, brake light, turn indicators,

horn ........................................................... 15 A

3 Fan............................................................ 7.5 A
4 Heated handlebar grips............................. 7.5 A

61 13 011

Removing and installing

electronic equipment box

–

Remove battery carrier.

a

......................................................... See above

•

Disconnect the expansion tank from the radiator,
pull it to one side and allow it to dangle from the
hose.

•

Remove the fasteners securing the oil tank and
allow the oil tank to dangle to one side on the
hoses.

•

Remove circlip securing throttle cable to throttle
flap stub and disengage the throttle cable from
the guide.

•

Disengage throttle cable from adapter.

•

Pull the throttle cable forward to remove.

•

Disengage the cover from the anchorages on the
main frame on each side and remove.

•

Remove screws securing ignition coil to cylinder
head cover.

•

Cut through the cable tie holding the wiring har-
ness at the electronic equipment box.

•

Remove the relay panel from the electronic
equipment box.

•

Cut through the cable tie holding the wiring har-
ness at the electronic equipment box.

•

Remove the fastener securing the electronic
equipment box to the frame.

•

Pull the electronic equipment box toward the
rear and off the pin on the frame.

•

Turn the electronic equipment box and remove it
toward the rear.

•

Installation is the reverse of the removal proce-
dure.

E610100

1

3

2
