APPENDIX 17-1
Appendix
Table of Contents
Cable, Wire, and Hose Routing
17-2
Troubleshooting Guide
17-40
17
17-2 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-3
Cable, Wire, and Hose Routing

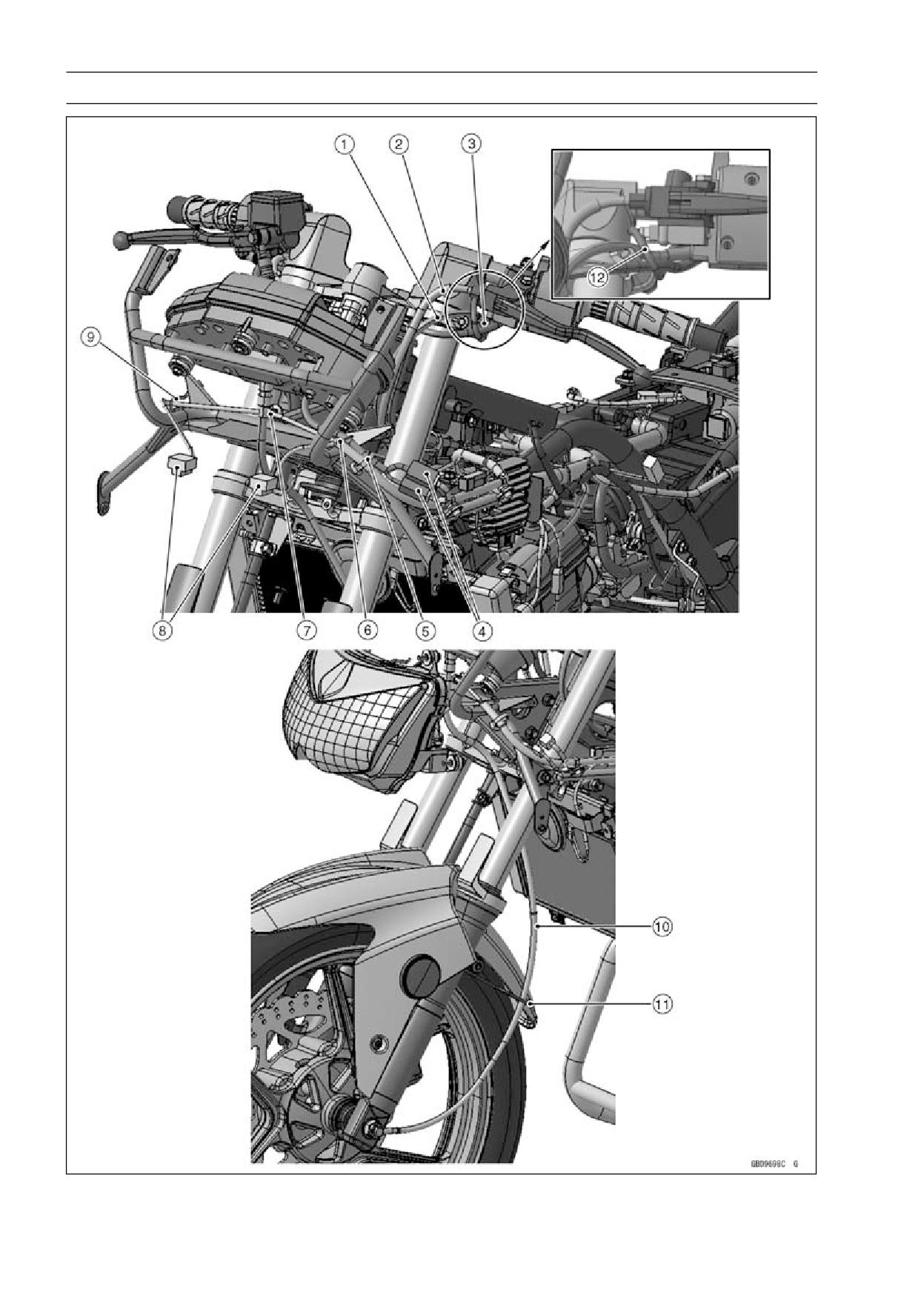

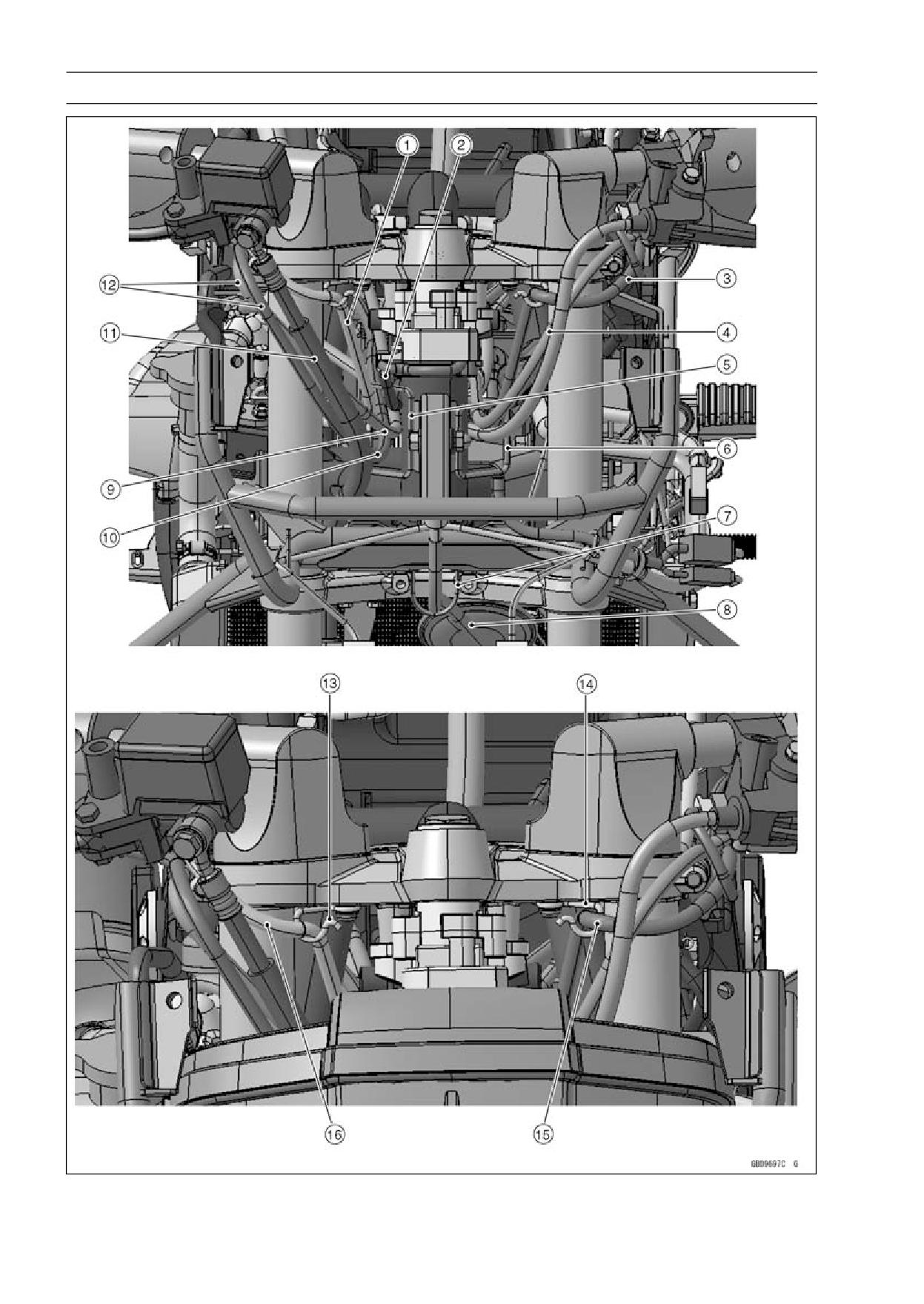

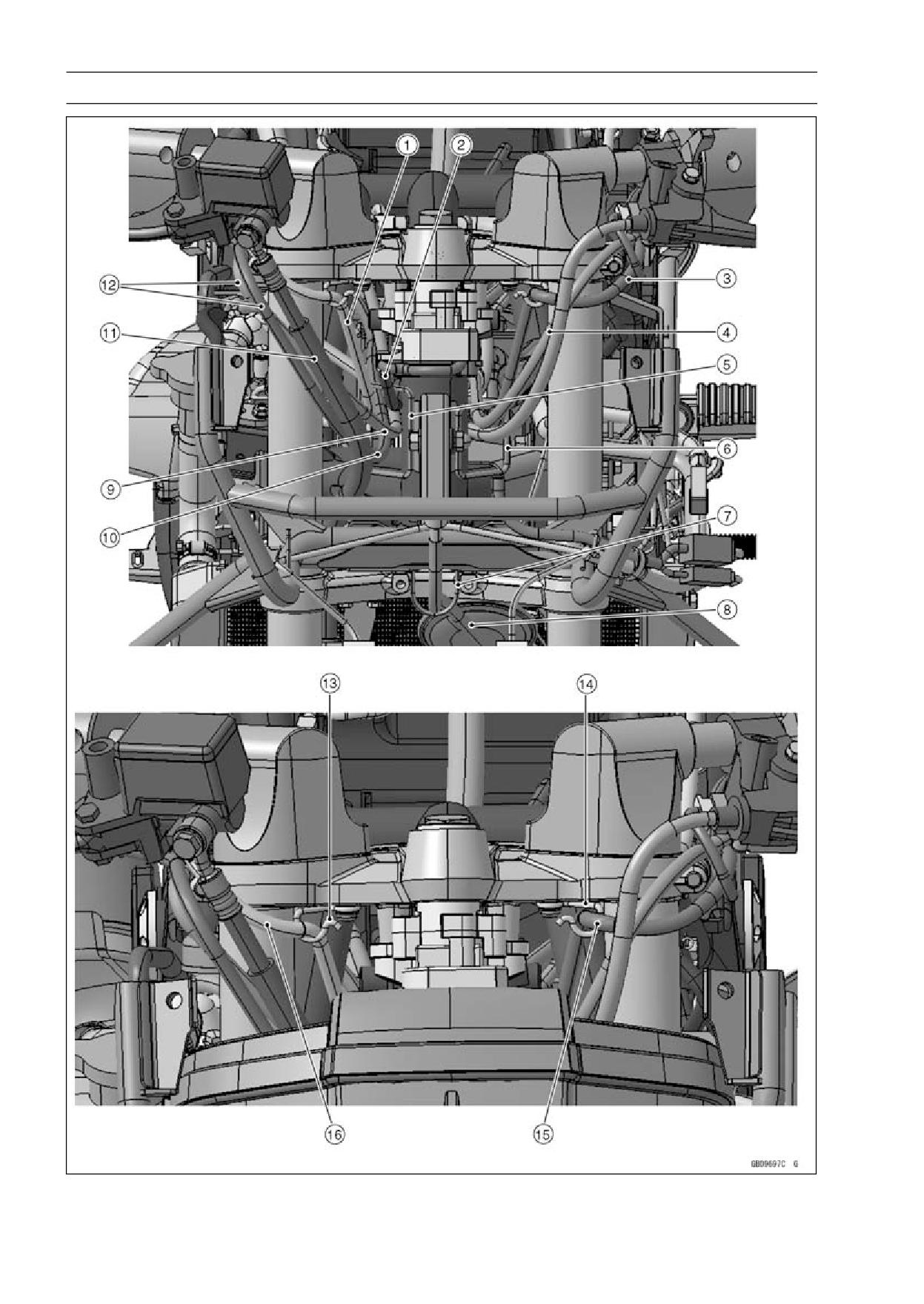

1. Right Switch Housing Leads
2. Ignition Switch Leads
3. Left Switch Housing Leads
4. Choke Cable
5. Guide
6. Guide
7. Guide
8. Speedometer Cable
9. Throttle Cable (Accelerator)
10. Throttle Cable (Decelerator)
11. Brake Hose
12. Throttle Cables
13. Guide
14. Guide
15. Left Switch Housing Leads
16. Right Switch Housing Leads
17-4 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-5
Cable, Wire, and Hose Routing
1. Choke Cable
2. Clutch Cable
3. Left Switch Housing Leads
4. Meter Leads Connectors
5. Band
6. Guide
7. Band
8. Headlight Leads Connectors
9. Guide
10. Speedometer Cable
11. Guide
12. Starter Locknut Switch Lead
17-6 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-7
Cable, Wire, and Hose Routing
1. Throttle Cables
2. Guide
3. Radiator Fan Leads Connectors
4. Clamp
5. Right Switch Housing Leads
6. Water Temperature Switch
7. #2 Ignition Coil
8. Clutch Cable
9. Front Right Turn Signal Light Connector
10. #2 Ignition Coil
11. Water Temperature Switch
12. Main Harness
13. Guide
14. Front Left Turn Signal Light Connector
15. Bracket
16. Bracket
17. Ignition Switch Leads Connector
17-8 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-9
Cable, Wire, and Hose Routing
1. Left Switch Housing Leads
2. Clutch Cable
3. Clamp
4. Left Switching Housing Leads Connector
5. Guide
6. Front Left Turn Signal Light Connector
7. Guide
8. #1 Ignition Coil
9. Oil Pressure Switch Connector
10. Radiator Fan Switch
11. Radiator/Rectifier
12. Guide
13. Choke Cable
14. Horn
15. Guide
16. Guide
17. Coolant Reserver Tank Breather Hose
18. Guide
19. Fuel Tank Tank Breather Hose
20. Fuel Tank Tank Breather Hose
21. Guide
22. Guide
17-10 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-11
Cable, Wire, and Hose Routing
1. Alternator Leads
2. Crankshaft Sensor Leads
3. Brackets
4. Engine Ground Lead
5. Clutch Cable
6. Guide
17-12 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-13
Cable, Wire, and Hose Routing
1. Neutral Switch Connector
2. Clamp
3. Sidestand Switch Connector
4. Sidestand Switch Leads
5. Clamp
6. Sidestand Switch
17-14 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-15
Cable, Wire, and Hose Routing

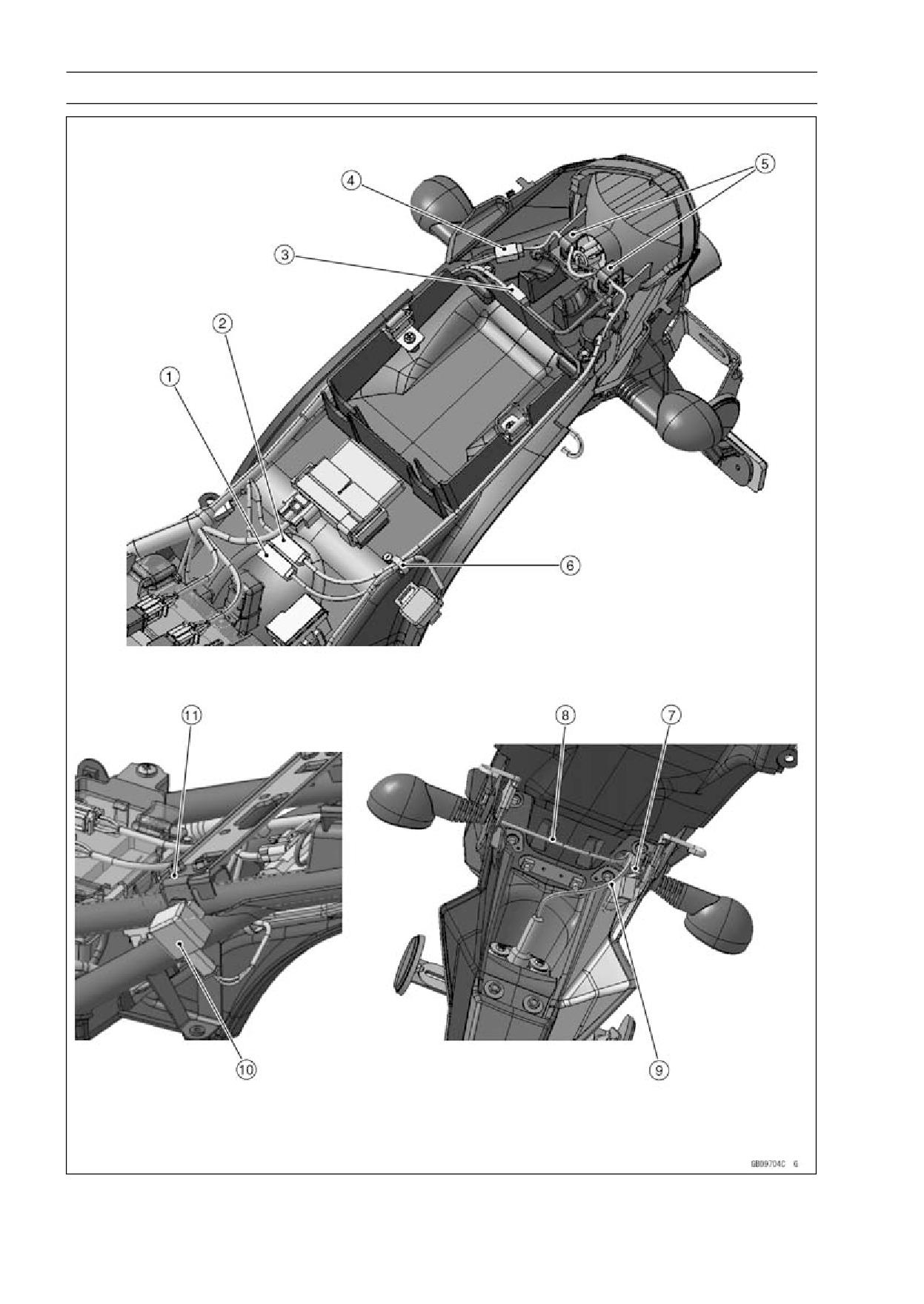

1. Rear Left Turn Signal Light Connector
2. Rear Right Turn Signal Light Connector
3. IC Igniter
4. Fuse Box
5. Headlight Circuit Relay
6. Starter Circuit Relay
7. Diodes
8. Starter Relay
9. Fuel Level Sensor Connector
10. Clamp
11. Alternator Connector
12. Crankshaft Connector
13. Clamp
14. Battery (+) Cable
15. Starter Relay
16. Starter Motor Cable
17. Battery (-) Cable
18. Rear Brake Switch
19. Clamp
20. Rear Brake Switch Connector
17-16 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-17
Cable, Wire, and Hose Routing

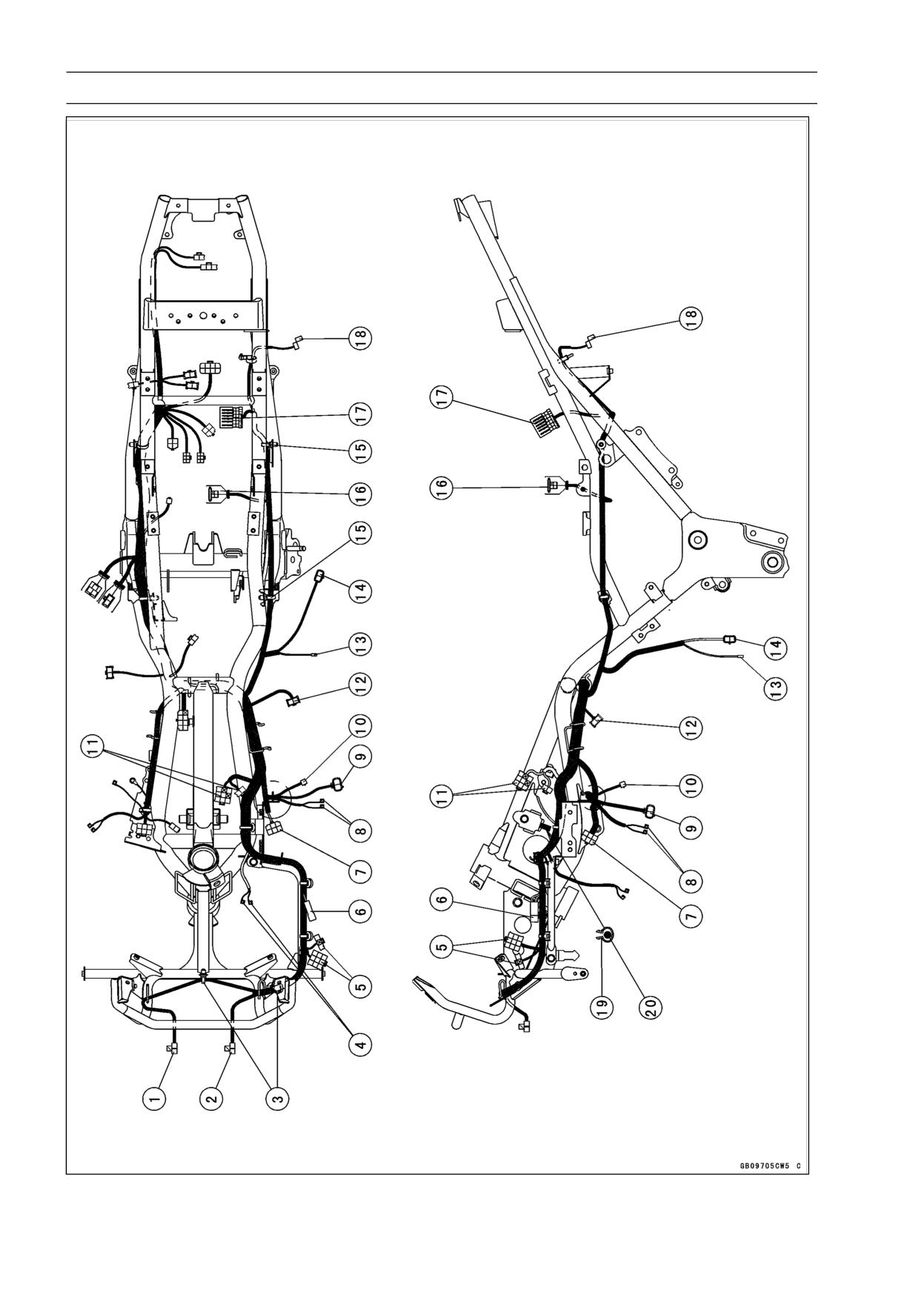

1. Rear Left Turn Signal Light Connector
2. Rear Right Turn Signal Light Connector
3. Brake/Tail Light Connector
4. License Plate Light Connector
5. Clamps
6. Clamp
7. Rear Left Turn Signal Light Connector
8. Rear Right Turn Signal Light Connector
9. License Plate Light Connector
10. Turn Signal Relay
11. Bracket
17-18 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-19
Cable, Wire, and Hose Routing
1. Headlight (High) Connector
2. Headlight (Low) Connector
3. Bands
4. Horn Connector
5. Meter Connector
6. Diode Connector
7. Regulator/Rectifier Connector
8. Ignition Coil Connector
9. Radiator Fan Switch Connector
10. Oil Pressure Switch Connector
11. Left Switch Housing Connectors
12. Front Turn Signal Light Connector
13. Neutral Switch Connector
14. Sidestand Switch Connector
15. Bands
16. Starter Relay
17. Fuse Box
18. Turn Signal Relay
19. Clamp
20. Choke Cable
17-20 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-21
Cable, Wire, and Hose Routing

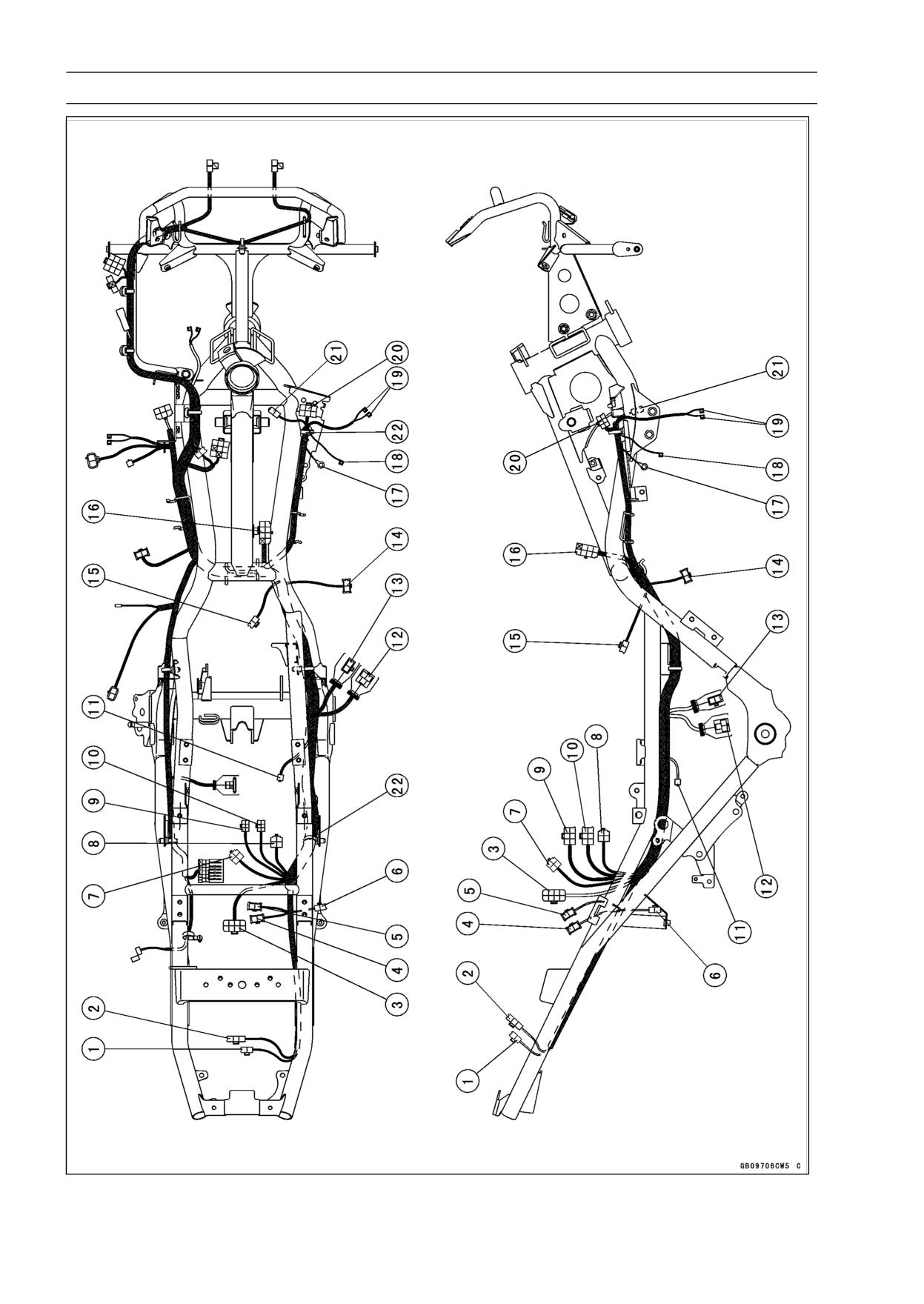

1. License Plate Light Connector
2. Tail/Brake Light Connector
3. IC Igniter Connector
4. Rear Right Turn Signal Light Connector
5. Rear Left Turn Signal Light Connector
6. Brake Light Switch Connector
7. Starter Relay Connector
8. Headlight Circuit Relay
9. Diode
10. Diode
11. Battery (-) Cable
12. Alternator Connector
13. Crankshaft Sensor Connector
14. Front Turn Signal Light Connector
15. Fuel Level Sensor Connector
16. Ignition Switch Connector
17. Frame Ground Terminal
18. Radiator Fan Switch Connector
19. Ignition Coil Connector
20. Right Switch Housing Connector
21. Radiator Fan Connector
22. Bands
17-22 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-23
Cable, Wire, and Hose Routing

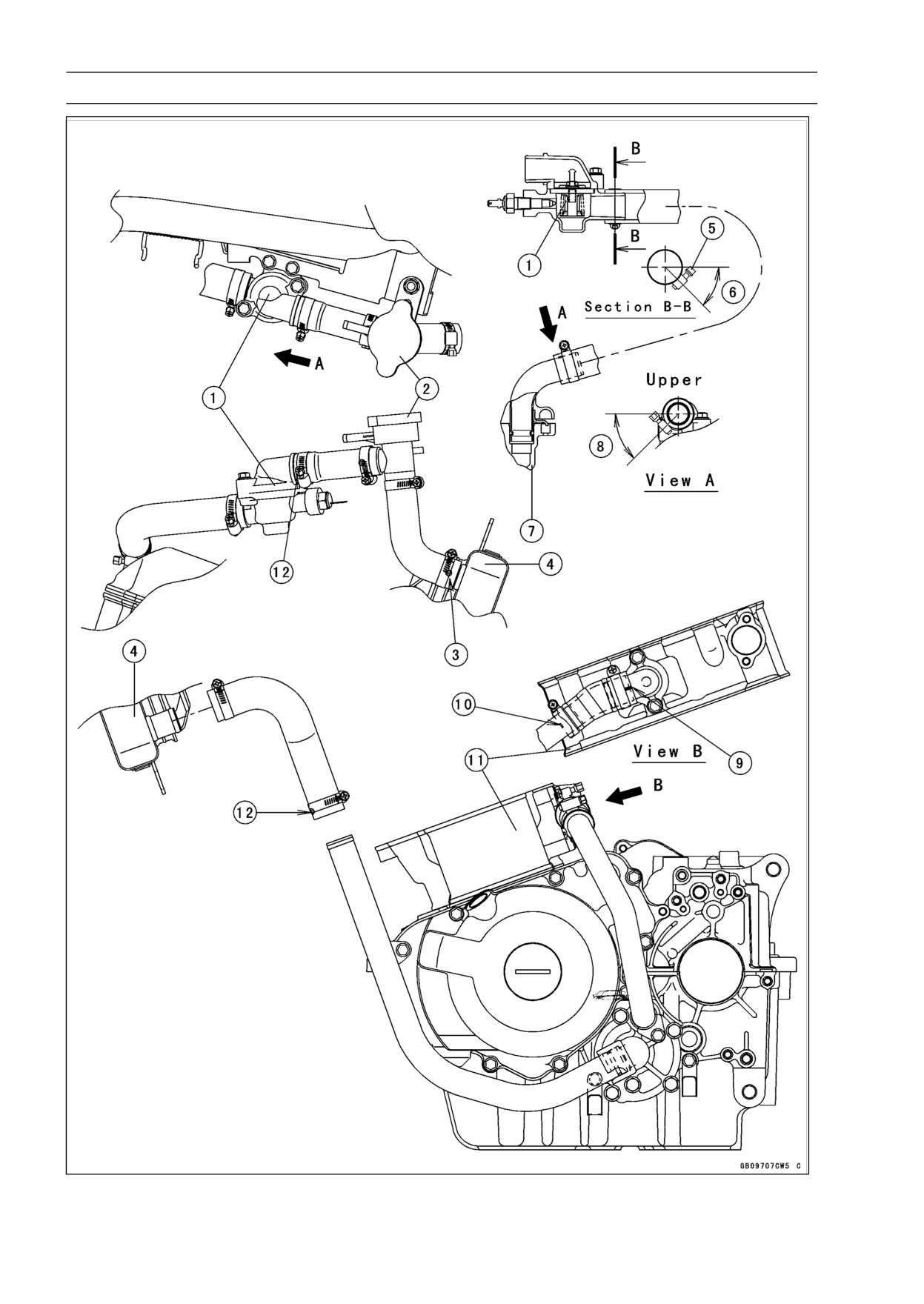

1. Thermostat
2. Radiator Cap
3. Install the hose so that its white mark side faces the radiator.
4. Radiator
5. Clamp Screw
6. 45°
7. Cylinder Head
8. 45° ∼ 55°
9. Align the white mark on the hose with the projection mark on the fitting.
10. Install the hose so that its end cover the white mark on the pipe.
11. Cylinder
12. Install the hose so that its white mark side faces the pipe.
17-24 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-25

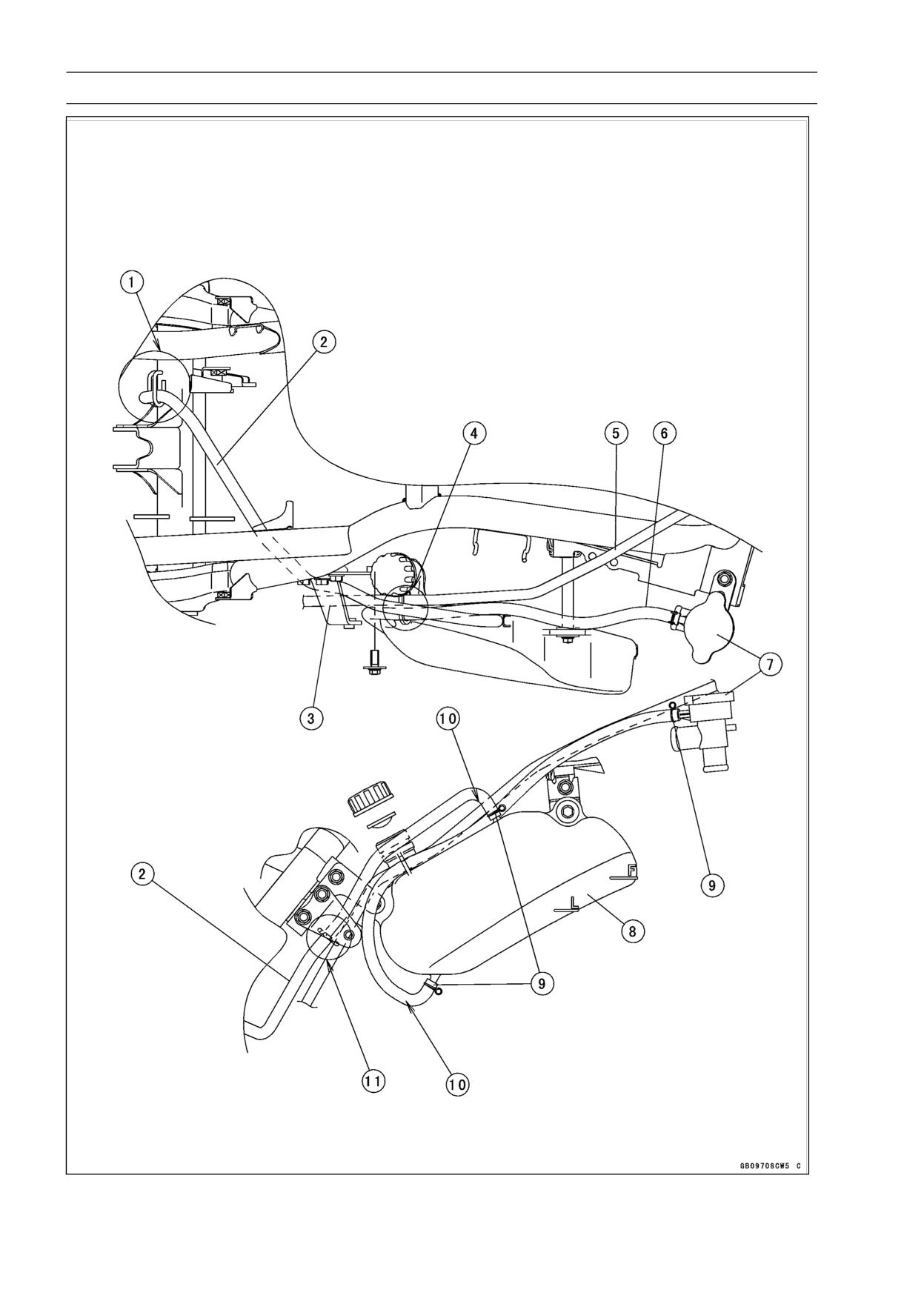

Cable, Wire, and Hose Routing
1. Run the reserver tank vent hose into the guide (2 places).
2. Reserver Tank Vent Hose
3. Bracket

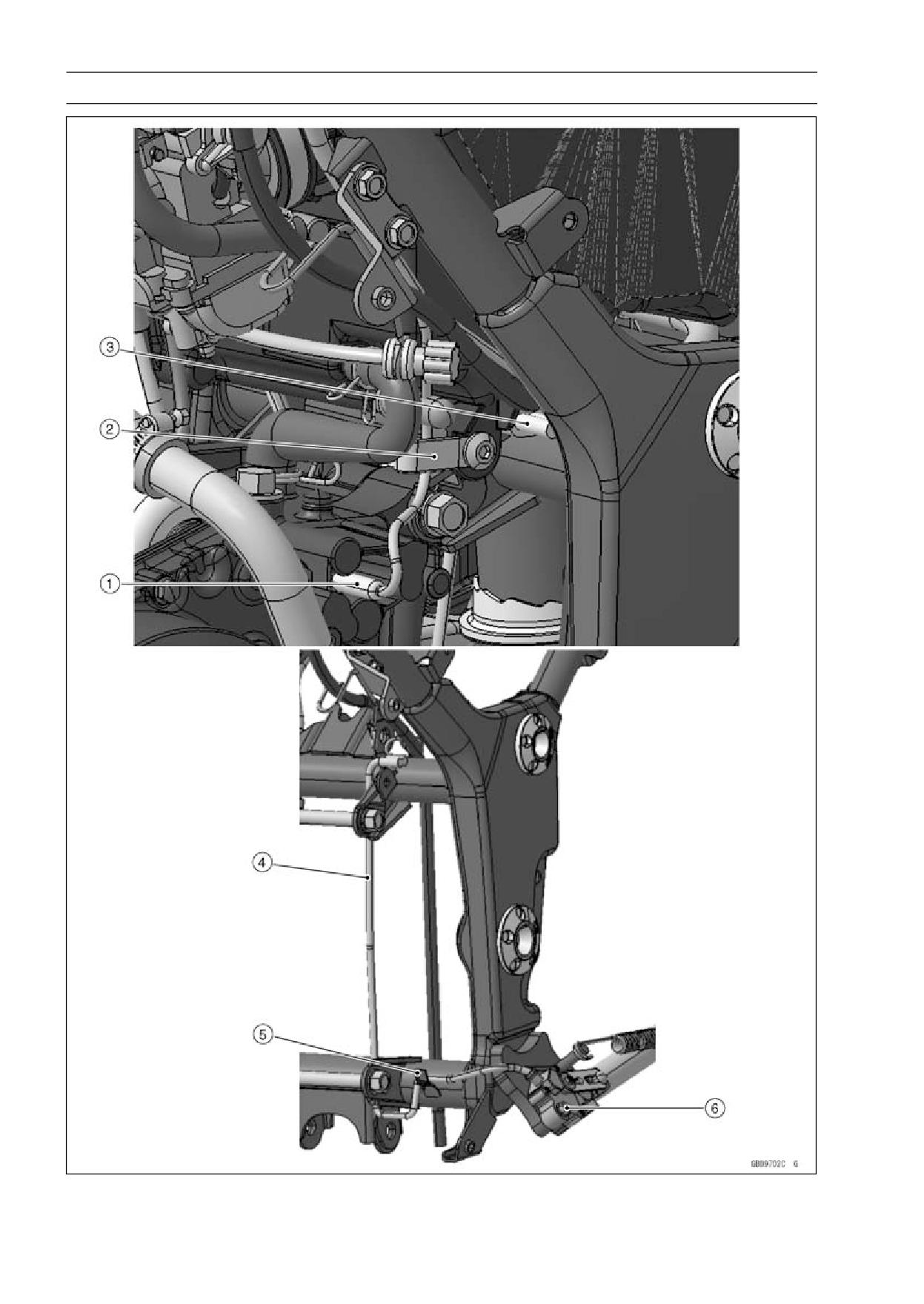

4. Run the clutch cable and over flow hose into the hole of the reserver tank.
5. Clutch Cable
6. Radiator Overflow Hose
7. Radiator Cap
8. Coolant Reserver Tank
9. Clamp
10. Hose Curve Side
11. Run the only reserver tank vent hose into the bracket guide.
17-26 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-27
Cable, Wire, and Hose Routing
1. Air Suction Valve Cover
2. Vaccum Switch Valve
3. Carburetor
4. Install the vaccum switch valve hose so that its white mark faces the air cleaner box.
5. Air Cleaner Box
6. Install the vaccum valve switch fitting so that its white mark side faces the air suction valve hose.
7. This side is closed.
8. Air Suction Valve Hose
17-28 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-29
Cable, Wire, and Hose Routing

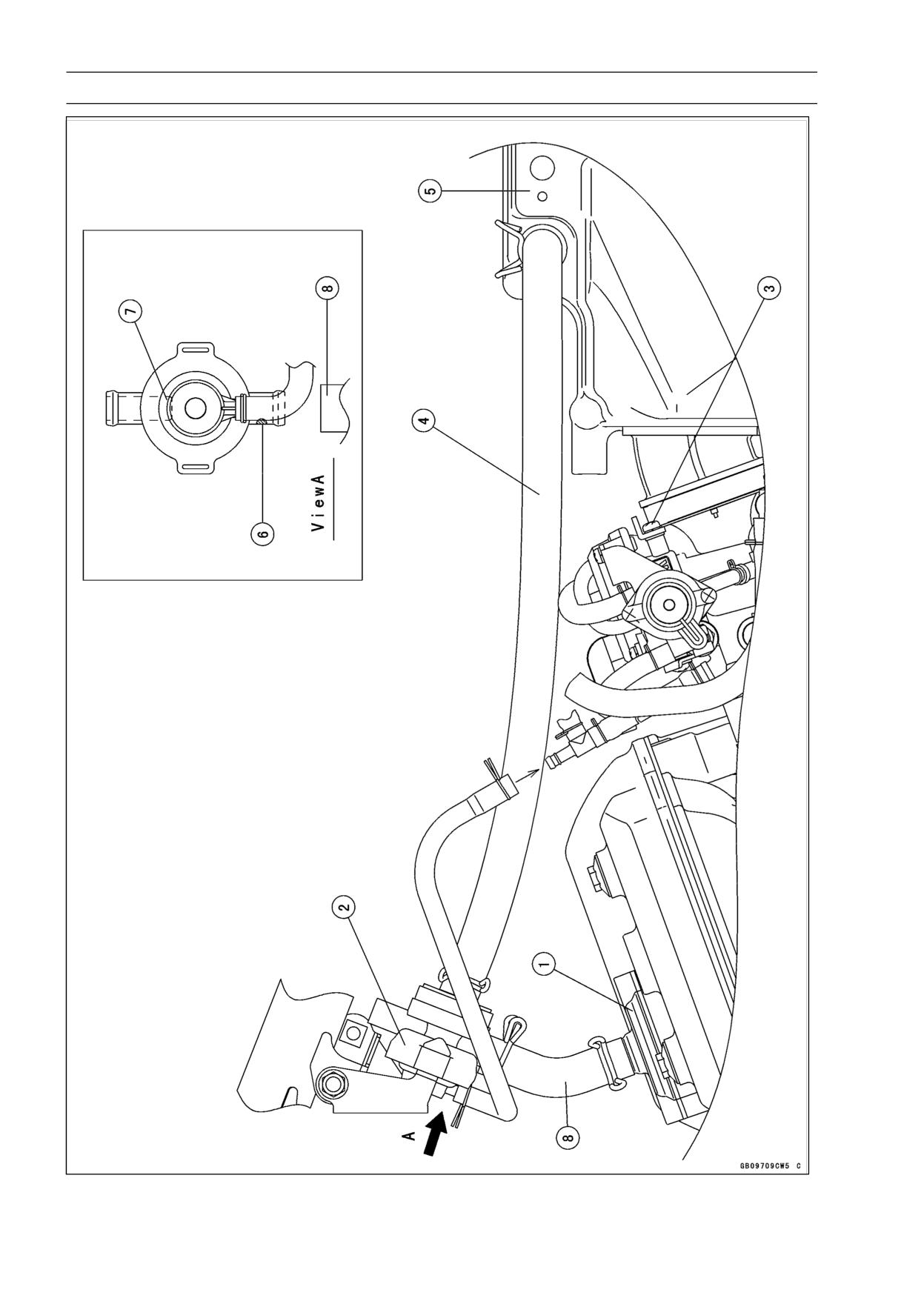

1. Air Cleaner Box
2. Battery
3. Run the carburetor vent hose between the air cleaner box and battery.
4. Fuel Hose
5. Run the fuel hose inside of the frame.
17-30 APPENDIX
Cable, Wire, and Hose Routing
APPENDIX 17-31
Cable, Wire, and Hose Routing

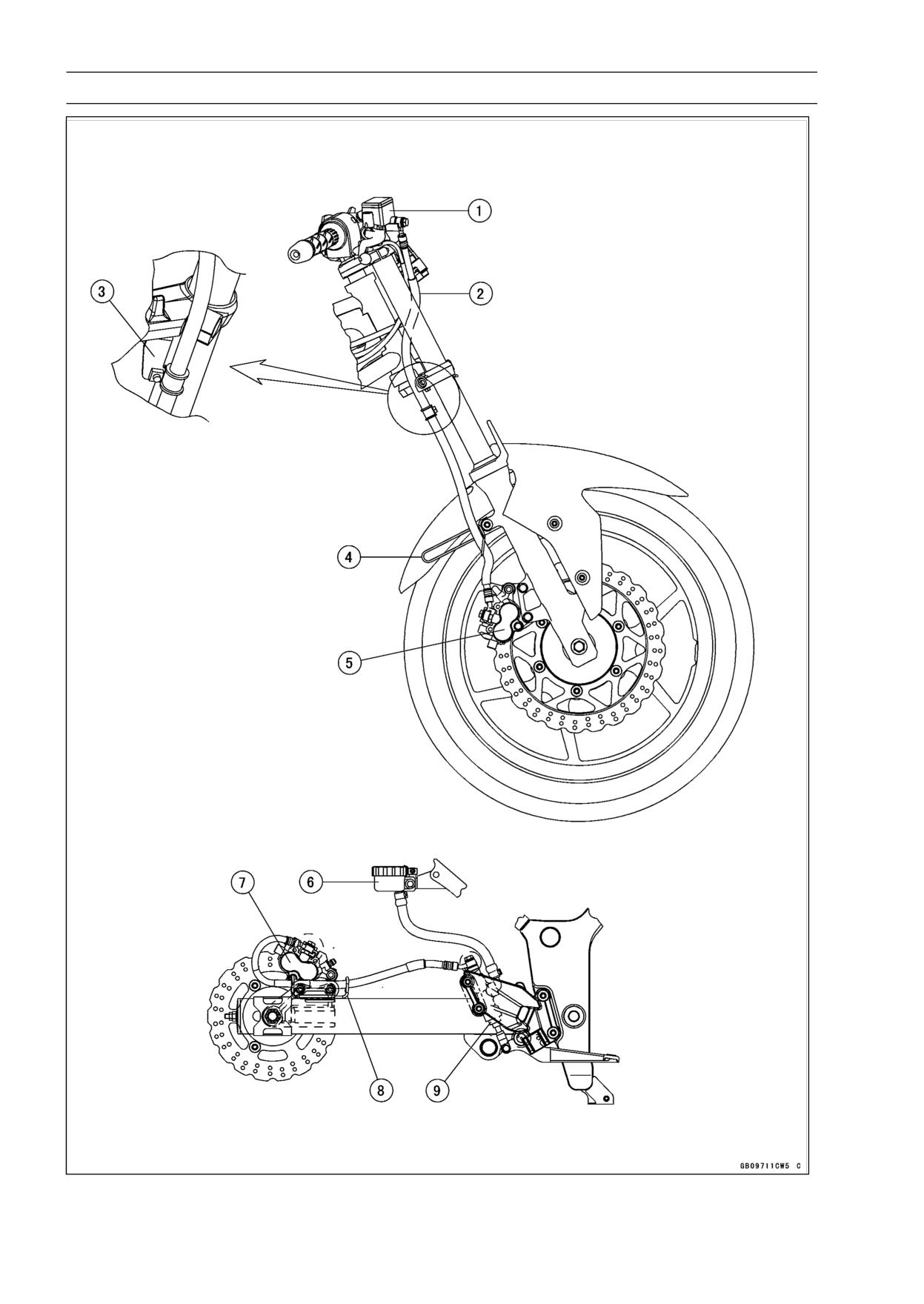

1. Front Master Cylinder
2. Front Brake Hse
3. Bracket
4. Clamp
5. Front Brake Caliper
6. Rear Brake Resevvoir
7. Rear Brake Caliper
8. Clamp
9. Rear Master Cylinder
17-32 APPENDIX
Cable, Wire, and Hose Routing
California Model (EX250J8)
APPENDIX 17-33
Cable, Wire, and Hose Routing

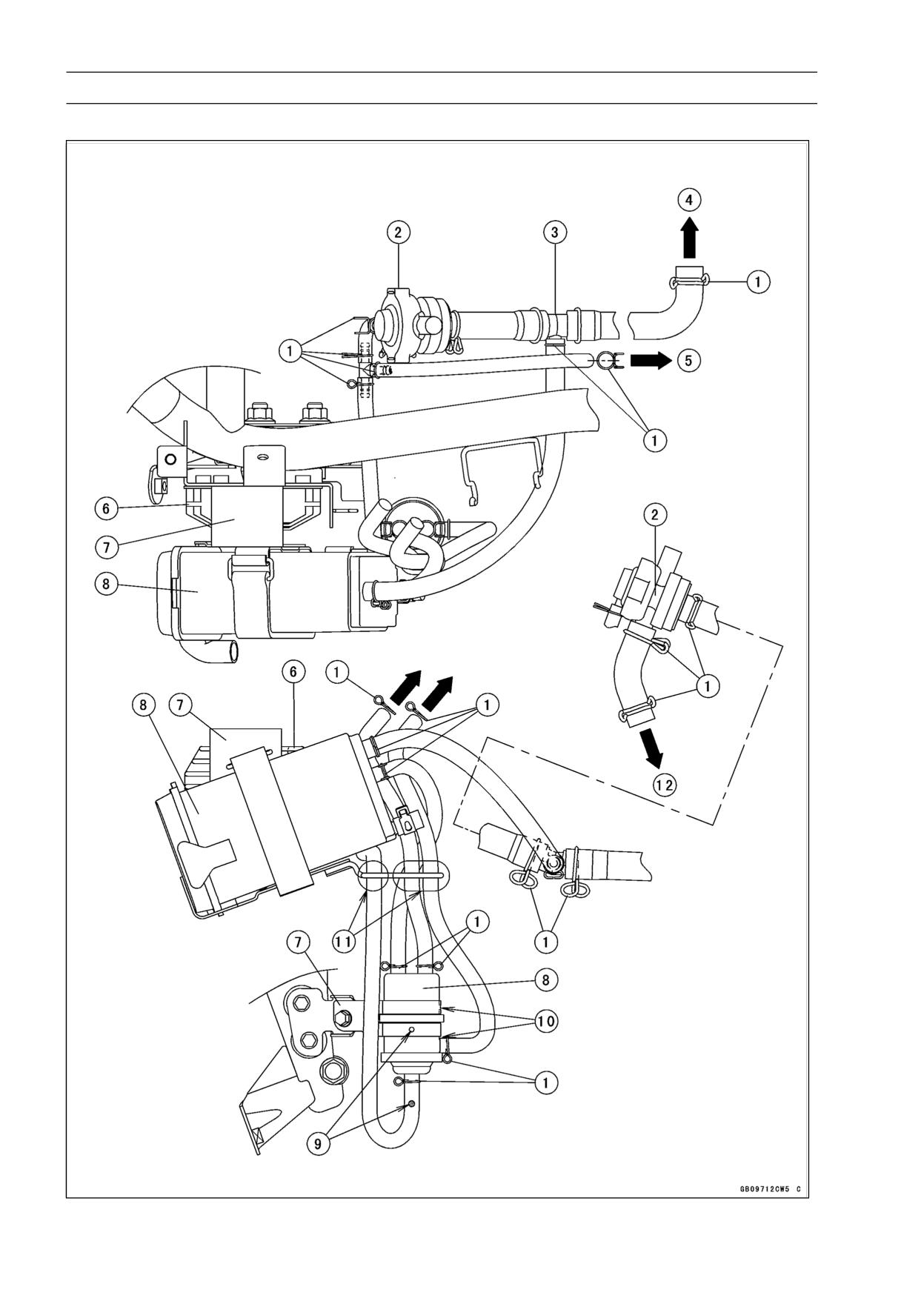

1. Install the clamps as shown, noting their clip direction.
2. Vaccum Switch Valve
3. Fitting
4. To Air Cleaner Box
5. To Carburetor
6. Regulator/Rectifier
7. Bracket
8. Canister
9. Align the hole on the separator with the white mark on the hose.
10. Align the hole on the separator with the hose direction.
11. Run the hoses through the guide of the bracket.
12. To Air Suction Valve Cover.
17-34 APPENDIX
Cable, Wire, and Hose Routing
California Model (EX250J9 JC)
APPENDIX 17-35
Cable, Wire, and Hose Routing

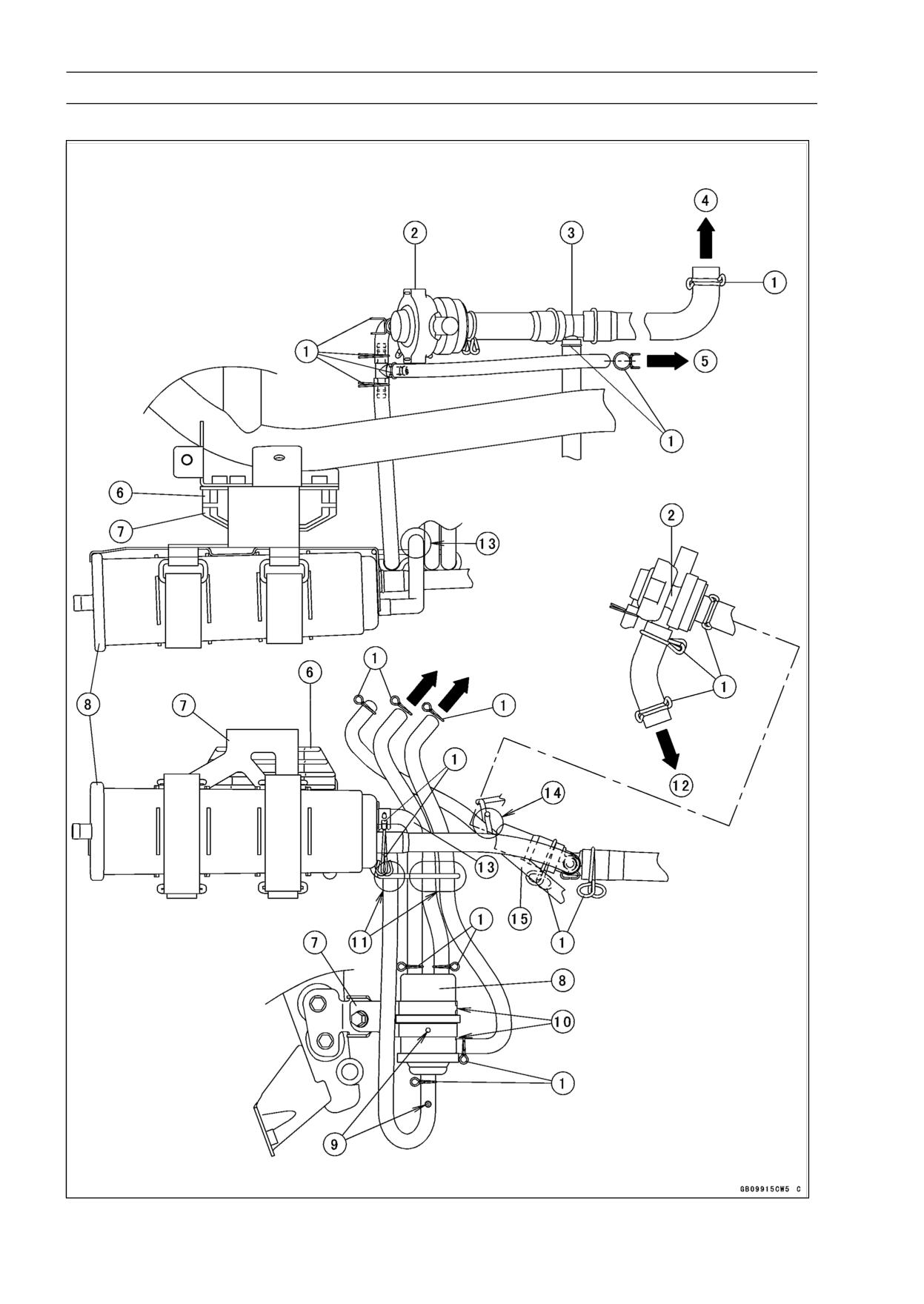

1. Install the clamps as shown, noting their clip direction.
2. Vaccum Switch Valve
3. Fitting
4. To Air Cleaner Box
5. To Carburetor
6. Regulator/Rectifier
7. Bracket
8. Canister
9. Align the hole on the separator with the white mark on the hose.
10. Align the hole on the separator with the hose direction.
11. Run the hoses through the guide of the bracket.
12. To Air Suction Valve Cover.
13. Run the hose through the clamp as shown.
14. Run the hose through the clamp.
15. Drain Hose.
17-36 APPENDIX
Cable, Wire, and Hose Routing
California Model
APPENDIX 17-37
Cable, Wire, and Hose Routing

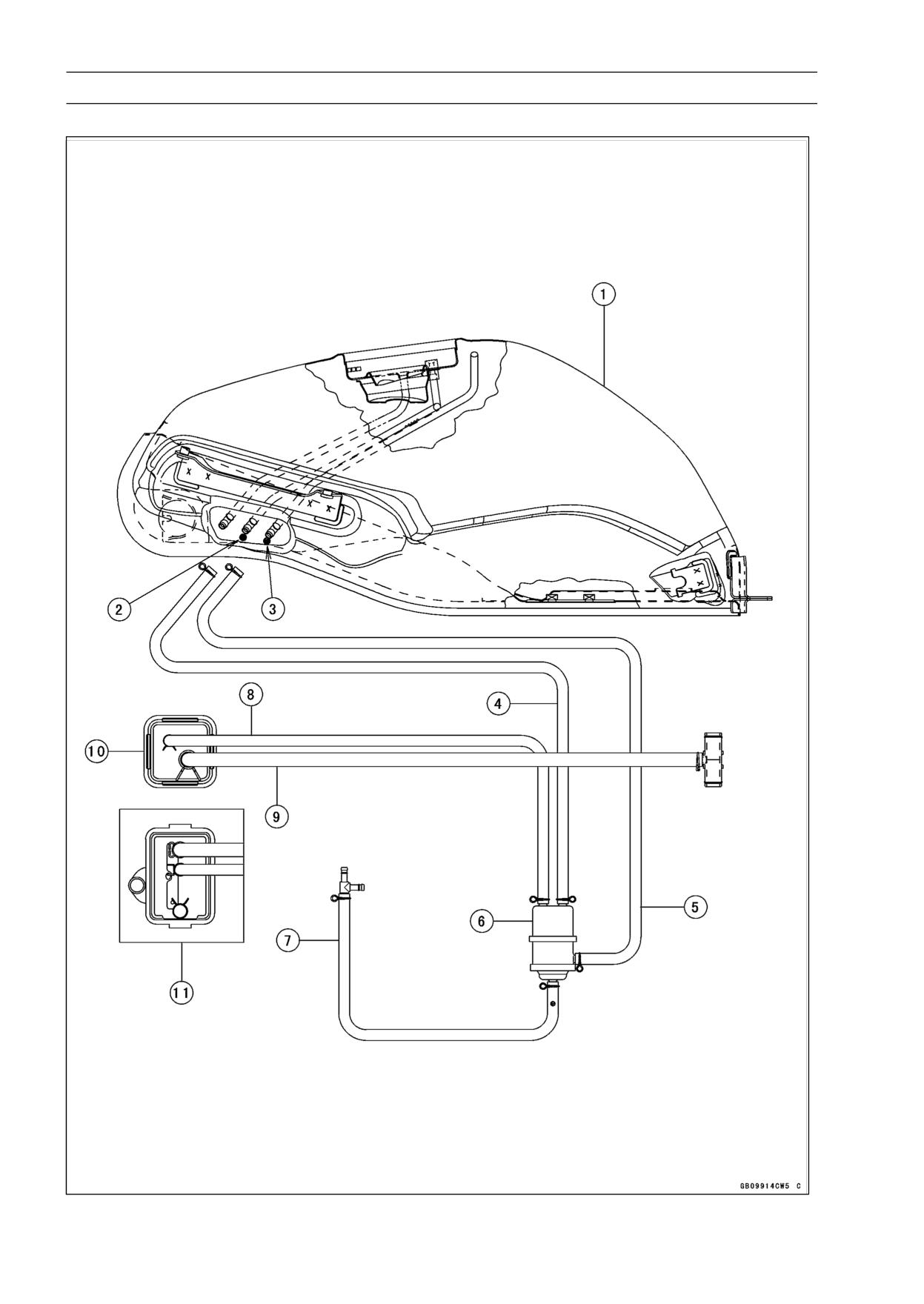

1. Fuel Tank
2. Blue Mark
3. Red Mark
4. Hose (Blue)
5. Hose (Red)
6. Separator
7. Hose (White)
8. Hose (Green)
9. Hose (Blue)
10. Canister
11. EX250J8
17-38 APPENDIX
Cable, Wire, and Hose Routing
Australia Model
APPENDIX 17-39
Cable, Wire, and Hose Routing
1. Filter Body
2. Clamps
3. Cooling Hose
4. Water Pipe
5. Carburetor
6. Coolant Valve Assmbly
7. Damper
8. Run the cooling hose inside of the water pipe.
17-40 APPENDIX
