      1. CARBURETTOR SPECIFICATIONS




        COMPONENTS



        SPECIFICATIONS



        125 cc

        250 cc

        Type

        CVK 7 30 KEHIN

        WVF 7 0 29 WALBRO

        Throttle port (Venturi)

        0 29

        0 29

        Engine-side fitting

        0 40

        0 40

        Float

        5.9 g (0.035 oz)

        -

        Float valve - needle seat

        1.5

        1.2

        Start air inlet hole

        200

        150

        Starter jet

        50

        42

        Idling adj. hole

        -

        -

        Idle jet

        36

        38

        Mixture control screw open by (turns)

        2 5/8

        2 1/2

        Idle air hole

        100

        115

        Maximum rpm air hole

        115

        70

        Main jet

        108

        100

        Throttle valve slide

        Standard

        Standard

        Mixing tube

        0 2.7 mm (0.106 in)

        0 2.8 mm (0.110 in)

        Nozzle needle

        51C

        NDWA

        Notch

        -








      2. CHECKING AND TOPPING UP TRANSMISSION OIL LEVEL




NOTE Use the recommended oil only, see 9.1.4 (LUBRICANT CHART).

  • Ride until covering several kilometres to warm up engine up to operating temperature and then stop the engine.





    CHECKING LEVEL

  • Place the vehicle on firm and level ground.

  • Put the vehicle on the centre stand.




    image WARNING

    Allow several minutes for the engine and

    exhaust system to cool down.

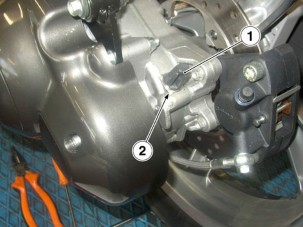

  • Unscrew and extract the plug/dipstick (1).

  • Clean the part in contact with the oil with a clean cloth.

  • Tighten the plug/dipstick (1) fully into the filler opening (2).

  • Extract the plug/dipstick (1) again and check oil level on the dipstick.





  • Correct level is achieved when the oil reaches approximately the first mark over the dot.

  • Top up if needed.




    TOPPING UP

  • Pour a small quantity of oil into the filler opening (2). Allow one minute for oil to flow into the crankcase.

  • Check level and top up if needed.

  • Top up with small quantities of oil until obtaining the correct level.

  • When finished, tighten the plug/dipstick (1).

NOTE Do not use the vehicle when lubricant levels are low or lubricant has become contaminated. Use specified lubricants only. Improper lubrication will lead to moving parts fretting, resulting in irreparable damage.




image image image




500 SPRINT UPDATES 10

SUMMARY

    1. UPDATES 3

      1. REFERENCE MANUALS 3

      2. SPECIFICATIONS 4

      3. SCHEDULED MAINTENANCE CHART 7

      4. TIGHTENING TORQUE SETTINGS 8

    2. COOLING SYSTEM 13

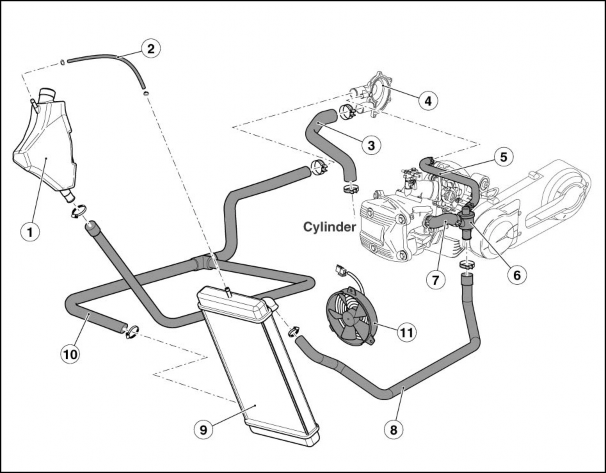

      1. DIAGRAM 13

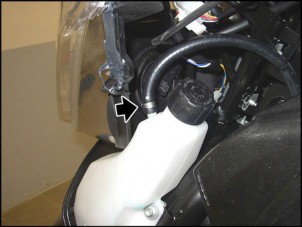

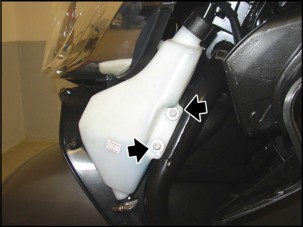

      2. REMOVING THE EXPANSION TANK 14

    3. THROTTLE BODY 15

      1. REMOVING THE THROTTLE BODY. 15

    4. ENGINE 17

      1. REMOVING THE ENGINE 17

      2. REASSEMBLING THE ENGINE ON THE FRAME 24

    5. CHASSIS 29

      1. REMOVING THE BATTERY COVER 29

      2. REMOVING THE TAIL GUARD 30

      3. REMOVING THE HELMET COMPARTMENT 32

      4. REMOVING THE SHOCK ABSORBER 34

    6. ELECTRIC SYSTEM 35

      1. WIRING DIAGRAM 35

    1. UPDATES

      1. REFERENCE MANUALS




        SPARE PARTS CATALOGUES

        aprilia part# (description)

        6824
























        SPECIAL TOOLS MANUAL




        aprilia part# (description)

        001H
























        OWNER'S MANUALS




        aprilia part# (description)

        8104859










        8104867































        8104868










        CHASSIS WORKSHOP MANUAL




        aprilia part# (description)

        8140862







        8140863







        8140864







        8140865







        8140866







        8140867







        8CM0080





















        8CM0081










        ENGINE WORKSHOP MANUAL




        aprilia part# (description)

        8140868







        8140869







        8140870







        8140871







        8140872







        8140873







        8CM0082





















        8CM0083








      2. SPECIFICATIONS

        DIMENSIONS

        Max. length 2085 mm (82.086 in)

        Max. length 2200 mm (86.614 in)

        Max. width 785 mm (30.905 in)

        Max. width 815 mm (32.086 in)

        Max. height (to the headlight fairing) 1370 mm (53.937 in)

        Seat height 790 mm (31.102 in)

        Wheelbase 1460 mm (57.480 in)

        Wheelbase 1480 mm (58.267 in)

        Wheelbase 1550 mm (61.023 in)

        Minimum ground clearance 190 mm (7.480 in)

        Loadless weight (in running order) 162 kg (357.148 lb)

        Loadless weight (in running order) 170 kg (374.785 lb)

        Loadless weight (in running order) 210 kg (642.970 lb) ENGINE

        Type M 245 M

        Type M 237 M

        Type M 273 M

        Type One cylinder, 4 stroke engine with 4 valves, forced lubrication with wet sump, one overhead camshaft.

        Number of cylinders 1

        Total displacement 124 cu. cm (7.567 cu. in).

        Total displacement 244 cu. cm (14.890 cu. in).

        Total displacement 459 cu. cm (28.010 cu. in).

        Bore I stroke 57 x 48.6 mm (2.244 x 1.913 in)

        Bore I stroke 72 x 60 mm (2.835 x 2.362 in)

        Bore I stroke 92 x 69 mm (3.622 x 2.716 in)

        Compression ratio 12.0 ± 0.5 : 1

        Compression ratio 11.0 ± 0.5 : 1

        Compression ratio 10.5 ± 0.5 : 1

        Starting Electric

        Engine idling rpm 1600 ± 100 rpm

        Engine idling rpm 1450 ± 100 rpm

        Clutch Automatic dry centrifugal clutch

        Gearbox Automatic

        Cooling Liquid cooling (50% water + 50% coolant) with forced circulation

        Valve clearance Intake 0.10 I Exhaust 0.15

        CARBURETTOR

        Type CVK 7 30 KEIHIN

        Type WVF 7 0 29 WALBRO

        FUEL SUPPLY

        Type Vacuum pump

        Fuel Premium grade unleaded petrol, minimum octane rating 95 (ROM) and 85 (MON).

        CAPACITY

        Fuel (reserve included) 9.5 litres (17.25 pt)

        Fuel (reserve included) 14.5 litres (26.33 pt)

        Fuel reserve 1.5 litres (2.72 pt)

        Engine oil

        • engine oil change only 1000 cu. cm (61.024 cu. in).

        • changing engine oil and oil filter 1100 cu. cm (67.126 cu. in).

        • changing engine oil and oil filter 1500 cu. cm (91.535 cu. in).

        • change for engine overhaul 1150 cu. cm (70.177 cu. in).

        • change for engine overhaul 1700 cu. cm (103.74 cu. in).

        Transmission fluid 150 cu. cm (9.154 cu. in).

        Transmission fluid 250 cu. cm (15.256 cu. in).

        Cooling system 1200 cu. cm (73.228 cu. in).

        Cooling system 1500 cu. cm (91.535 cu. in).

        Seats 2

        Max. carrying load (rider + passenger + luggage)

        210 kg (462.970 lb)

        Max. carrying load (rider + passenger + luggage) 200 kg (440.924 lb)


        TRANSMISSION

        Converter Automatic, stepless

        Primary V belt

        Final gears

        Total engineIwheel ratio

        • minimum 1:29.40

        • maximum 1:8.78

          Total engineIwheel ratio

        • minimum 1:19.30

        • maximum 1:6.80

          Total engineIwheel ratio

        • minimum 1:12.72

        • maximum 1:4.88

        FRAME

        Type Single beam, superimposed double cradle

        Steering head angle 28°

        Trail 104 mm (4.094 in)

        SUSPENSIONS

        Front Hydraulically operated telescopic fork

        Stroke 105 mm (4.134 in)

        Rear Hydraulic shock absorber

        Stroke 105 mm (4.134 in)

        Stroke 90 mm (3.543 in)

        BRAKES

        Front Disc 0 240 mm (9.449 in) with hydraulic transmission.

        Front Disc 0 260 mm (10.236 in) with hydraulic transmission.

        Rear Disc 0 190 mm (7.480 in) with hydraulic transmission combined with front brake

        Rear Disc 0 220 mm (8.661 in) with hydraulic transmission combined with front brake

        WHEEL RIMS

        Front E 13 x 3.00 DOT D

        Front E 14 x 3.00 DOT D

        Rear E 13 x 3.50 DOT D

        Rear E 14 x 3.75 DOT D

        TYRES

        Type Tubeless

        Front 110 I 90 - 13" 56 P

        Front 120 I 70 - 14" 55 R

        Rear 130 I 70 - 13" 63 P

        Rear 140 I 60 - 14" 64 P

        STANDARD INFLATION PRESSURE

        Front 200 kPa (2.0 bar)

        Front 230 kPa (2.3 bar)

        Rear 220 kPa (2.2 bar)

        Rear 240 kPa (2.4 bar)

        INFLATION PRESSURE WITH PASSENGER

        Front 220 kPa (2.2 bar)

        Front 230 kPa (2.3 bar)

        Rear 240 kPa (2.4 bar)

        Rear 260 kPa (2.6 bar)

        IGNITION

        Type Capacity discharge ignition with variable advance

        Spark advance Variable, controlled by the ECU 5°Iminimum 24°I>4000 rpm

        Spark advance Variable, controlled by the ECU 4°Iminimum 15°I4000 6000 rpm

        Spark advance Variable, controlled by the ECU 20°I3100 rpm 33°I6200 rpm


        SPARK PLUG

        Standard




        As an alternative




        • NGK CR8EB CHAMPION RG6YC CHAMPION RG4HC

        • NGK CR7EB

        • NGK CR9EB

        • CHAMPION RG6YC

        • CHAMPION RG4HC NGK CR7EKB

        NGK CR8EKB

        Spark plug gap 0.7 - 0.8 mm (0.028 - 0.031 in) ELECTRIC SYSTEM

        Battery 12 V 12 Ah

        Fuses 20 15 7.5 A

        Fuses 3 15 30 A

        Generator (with permanent magnet) 12 V - 180 W

        Generator (with permanent magnet) 12 V 235 W

        Generator (with permanent magnet) 12 V - 380 W BULBS

        Low beam 12 V - 55 W

        High beam 12 V - 55 W

        Parking light 12 V - 16 W

        Direction indicator light 12 V - 10 W

        Tail light I brake light 12 V - 5 W I 21 W

        WARNING LIGHTS

        Instrument panel lighting 12 V 1.2 W

        Direction indicators 12 V 1.2 W

        Engine oil pressure 12 V 1.2 W

        Low beam 12 V 1.2 W

        High beam 12 V 1.2 W

        Fuel reserve 12 V 1.2 W


      3. SCHEDULED MAINTENANCE CHART




        Component




        After running-in [1000 km (621 mi)]




        Every 6000 km

        (3728 mi)

        or 8 months




        Every 12000 km

        (7456 mi)

        or 16 months

        Idle mixture (CO) 1

        Belt, converter rollers and plastic guides 1 3

        Converter belt 1 3

        Steering tube bearings 1 1

        Wheel bearings 1

        Converter cover air filter 2

        Secondary air scoop filter 2

        Clutch jaws 1

        Valve clearance 1

        Brake fluid 1 1 every 2 years:3

        Front suspension fluid 1 1 3

        Engine oil filter screen and magnetic screw 1 1

        Converter rollers and converter plastic guides 1 3

        Wheels I tyres 1

        Nut, bolt, screw tightening 1 1

        Cylinder head nut tightening 1

        Battery terminals tightening 1

        Draining brake fluid 1

        Fuel hose 1 every 2 years:3

        Rear shock absorber 1 1

        Battery I Electrolyte level 1 1

        Spark plug 1 1 3

        Carburettor idling 4 1

        Air filter 2

        Engine oil filter 3 3

        Throttle operation 1 1

        Brake locking operation 1 1

        Converter grease 3

        Stop light switches 1

        Coolant 1 every 1000 km (621 mi): 1 I

        every 16 months: 3

        Engine oil 3 every 1000 km (621 mi): 1 I

        every 6000 months: 3

        Transmission fluid 3 every 6000 km (3728 mi): 1 I

        every 24000 km (14913 mi): 3

        Headlight beam direction operation 1 Tyres I inflation pressure Every month: 1

        Battery terminals tightening 1

        Front suspension 1 1

        Brake pad wear 1 every 2000 km (1250 mi): 1




        1 = check and clean, adjust, lubricate or change, if necessary; 2 = clean; 3= change; 4= adjust.

        Carry out the maintenance operations more frequently if you use the vehicle in rainy and dusty areas, on uneven ground or for racing.





        ( image) = OPERATIONS THAT CAN BE CARRIED OUT BY THE USER

      4. TIGHTENING TORQUE SETTINGS







DESCRIPTION

QUANTITY




SCREW INUT

TIGHTENINGTORQUES(Nm)




Notes

FRAME ASSEMBLY

Connecting arch onto frame

4

M6

10



Connecting distribution support to arch

2

M6

12






Connecting grab handle to frame

2

M8

25



2

M6

10



Connecting wheelhouse to frame

1

M5

5






Connecting key operated switch to frame

1

M6

10



1

M6

5



Connecting warning horn to frame

1

M6

10



CONNECTING ROD ASSEMBLY

Adjusting ring nut

1

M25



manual

Connecting rod securing nut to frame

1

M14

60



Securing screw of adjusting ring nut

1

M4

3



Securing nut of connecting rod joint

1

M14

70



Securing nut of connecting rod

1

M14

120



STAND ASSEMBLY

Stand screw

2

M12

35



Stopper securing nut

1

M6

10



Short nut

1

M10

30



Side stand screw

1

M10

10



FRONT SUSPENSION ASSEMBLY




Standard steering nut




1




M36




15

Loosen of 1I6of a turn andtighten self locking nut

Standard steering self locking nut

1

M36

110



Tightening screw for wheel shaft fork clamp

1

M6

10



REAR SUSPENSION ASSEMBLY

Upper shock absorber screw

2

M10

50



Lower shock absorber screw

2

M10

50



Screw for tightening shock absorber brackets to engineImufflersupport

4

M8

27



ENGINE ASSEMBLY

Air box to engine support screw

2

M6

10



Air box lower screw

1

M6

10



Air box lower nut

1

M6

10



Air box upper screw

1

5x14 self tapping

3



Hose to throttle body clamp

1

0 50 70

3



Hose to filter body clamp

1

0 40 60

10



Converter cover screw

4

M6

10



Fuel hoses to throttle body screw

1

M5

5









DESCRIPTION

QUANTITY




SCREW INUT

TIGHTENINGTORQUES(Nm)




Notes

EXHAUST UNIT

Muffler support to engine screw

2

M10

35



Muffler screw

3

M10

50



Manifold clamp

1

0 40 43

10



Nut

2

M8

15



Heat guard screw

3

M5

8



COOLING SYSTEM ASSEMBLY

Expansion tank to frame screw

2

M6

5



Frame to conveyor centre screw

1

M6

10



Rear and front conveyor screw

4

Swp 5

3



Electric fan screw

3

Swp 5

3

loctite 243

Frame to conveyor side screw

2

M6

10



Conveyor flap screw

2

3.9x14 self tapping

1



FRONT BRAKE ASSEMBLY

Front brake calliper screw

2

M8

25



Brake line to calliper screw

1

M10

20



Brake calliper breather screw

1



14



Brake line to master cylinder screw

1

M10

20



Front brake bracket screw

2

M8

25



INTEGRAL BRAKE ASSEMBLY

Brake calliper screw

2

M8

27



Muffler support to brake line screw

1

M6

10



Brake line to calliper and master cylinder screw

2

M10

20



Front brake calliper breather screw

1



14



Brake line master cylinder to delaying device screw

1

M10

20



Rear brake line to delaying device capstan screw

1

M10

20



Drain screw

1



14



FRONT WHEEL ASSEMBLY

Wheel shaft

1

M12

70



REAR WHEEL ASSEMBLY

Rear wheel nut

1

M16

150



HANDLEBAR AND CONTROL ASSEMBLY

Handlebar screw

1

M10

42



Safety screw

1

M8

20



RH and LH shells screw

4

M5

1



RH and LH shells screw

4

M5

1



RH and LH brake master cylinder screw

4



10



Counterweights screw

2

M6

10









DESCRIPTION

QUANTITY




SCREW I NUT

TIGHTENINGTORQUES(Nm)




Notes

FRONT BODYWORK ASSEMBLY

Front side body panel screw

2

3.9x10 self tapping

0.5



Front side body panel screw

2

3.9x14 self tapping

0.5



Front body side screw

6

4.2x16 self tapping

1.5



Front cover upper area screw

2

M4

1



Front cover screw

2

4.2x25 self tapping

1



Front mudguard screw

4

M5

6



Splash guard to front mudguard screw

5

M5

0.5



Lower light support to arch screw

2

M6

10



Mirrors to arch screw

4

M6

10



Windscreen to arch screw

2

M5

6



Glove compartment to flap screw

12

3.9x14 self tapping

1



Flap to inner shield screw

4

3.9x14 self tapping

1



Handlebar U bolt to rear hand guard screw

2

M4

1



Front hand guard to handlebar screw

2

4.2x20 self tapping

2



Front to rear hand guard screw

7

4.2x20 self tapping

1



Turn indicator to headlight screw

4

3.9x14 self tapping

1



Headlight to arch screw

4

M6

3



CENTRE BODYWORK ASSEMBLY

Glove compartment to helmet compartment screw

2

5x14 self tapping

3



Glove compartment to helmet compartment screw

5

M5

4



Fuse carrier support to fuse carrier box screw

1

5x14 self tapping

3



Head cover I helmet compartment screw

7

5x14 self tapping

3



Helmet compartment to frame screw

4

M6

4



Fuel flap to platform screw

8

3.9x14 self tapping

0.5



Keylock to fuel flap nut

1

M19

3



Lever to fuel flap lock screw

1

M4

1






Platform to underplatform screw

10

3.9x14 self tapping

1



4

5.5x22 self tapping

2



Platform to frame screw

8

M5

3



Tightening screw for RH I LH flap of helmet compartment

4

3.9x14 self tapping

1



Inner shield I RH side body panel I LH side body panel screw

12

CCH 4.2

1



Inner shield to frame centre screw

1

M5

3



Inner shield to lower side body panels screw

10

4.2x16 self tapping

1



Inner shield to centre platform screw

2

4.2x16 self tapping

1









DESCRIPTION

QUANTITY




SCREW INUT

TIGHTENINGTORQUES(Nm)




Notes

CENTRE BODYWORK ASSEMBLY

Inner shield to platform screw

2

5.5x22 self tapping

2



Bag hook to shield screw

2

4.2x25 self tapping

1



Compartment light to battery cover screw

1

3.9x14 self tapping

1



Wheelhouse to underplatform screw

3

4.2x16 self tapping

1



REAR BODYWORK ASSEMBLY

Cat's eye to number plate holder nut

2

M4

1.5



Number plate light to number plate holder screw

2

M5

1



Luggage rack cover screw

2

3.9x14 self tapping

1



Light to rear cover screw

6

5x20 self tapping

2



Tail guards to rear cover screw

6

CCH 5.5

2






Rear splash guardI helmet compartment screw

1

M5

3



4

5x14 self tapping

4



Number plate holder I rear splash guard screw

2

3.9x14 self tapping

2



Alarm I rear splash guard screw

4

4x15 self tapping

2



Number plate holder to tail guards screw

4

M5

1



Tail guards to splash guard screw

2

M5

3



Tail guards and cover to helmet compartment screw

6

3.9x14 self tapping

1



Relay holder to rear splash guard screw

2

M5

3



RhILh tail guards to platform screw

2

M5

3



LOCKS ASSEMBLY

Locks to glove compartment flap nut

1

M22

3



Seat locks to helmet compartment screw

2

M6

4



Seat locks to Lh tail guard screw

2

M5

3



SEAT ASSEMBLY

Hinge to seat screw

4

M6

4



ELECTRIC SYSTEM ASSEMBLY

Voltage regulator screw

2

M6

10



ECU to glove compartment screw

4

Swp 5

3



Coil to support screw

4

M3

2



Coil support to frame screw

2

M5

7



Starter motor cable screw

1

Nut M6

5



Stand rotary sensor screw

1

M6

10









DESCRIPTION

QUANTITY




SCREW INUT

TIGHTENINGTORQUES(Nm)




Notes

INSTRUMENT PANEL ASSEMBLY

Instrument panel on dashboard screw

5

3.9x14 self tapping

0.5



Rear and front dashboard screw

3

3.9x14 self tapping

0.5



Dashboard to inner shield screw

2

M4

1



Dashboard to arch screw

2

4.2x16 self tapping

1



FUEL TANK ASSEMBLY

Fuel pump ring nut

1



22



Fuel pump stabiliser screw

1

M5

5



Fuel tank I frame screw

3

M6

10


    1. COOLING SYSTEM

      1. DIAGRAM





        Key:

        1. Expansion tank

        2. Breather hose

        3. Cylinder pump hose

        4. Water pump cover

        5. By pass hose

        6. Thermostat

        7. Thermostat head hose

        8. Radiator head hose

        9. Radiator

        10. Pump radiator hose

        11. Fan

      2. REMOVING THE EXPANSION TANK


        • Remove left side body panel, see (ATLANTIC 125 200 WORKSHOP MANUAL).

        • Drain the cooling system, see (REMOVING THE ENGINE FROM THE FRAME).

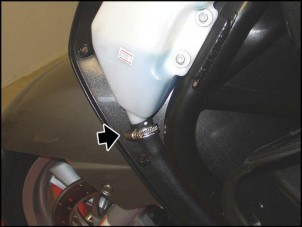

        • Loosen and remove the two screws securing the expansion tank.





        • Loosen both clamps of cooling system hoses to remove them.

        • Remove the expansion tank.
























содержание   ..  10  11  12  13
