BODY

SLIDING ROOF

3633

DISASSEMBLY

1.

REMOVE NO. 3 SLIDING ROOF HOUSING SIDE
MOUNTING BRACKETS

2.

REMOVE SLIDING ROOF HOUSING REAR MOUNT-
ING BRACKETS

3.

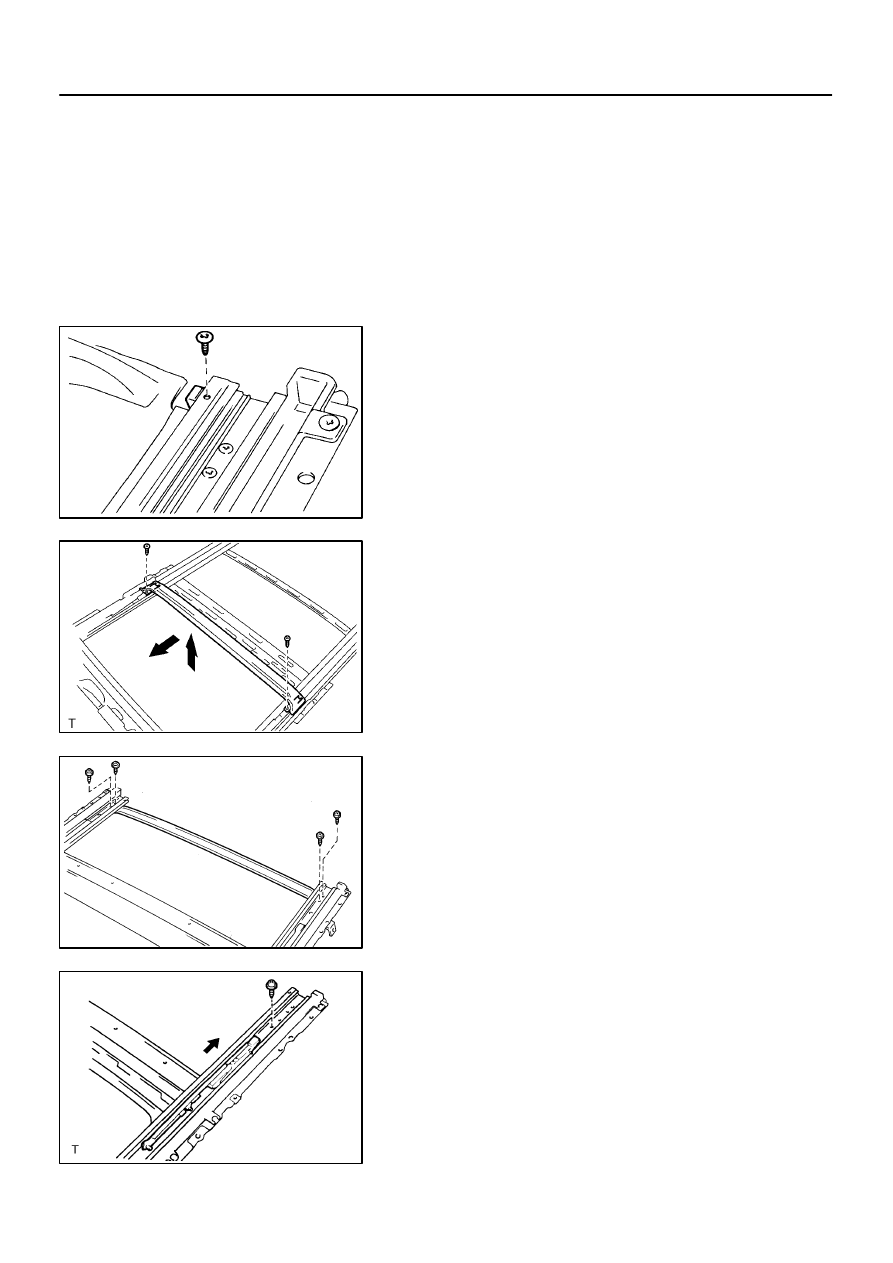

REMOVE SLIDING ROOF SUNSHADE STOPPER

(a)

Remove the screw and stopper.

(b)

Employ the same manner described above to the other
side.

4.

REMOVE SUNSHADE TRIM

5.

REMOVE REAR ROOF DRIP CHANNEL

Remove the 2 screws and rear roof drip channel as shown in
the illustration.

6.

REMOVE REAR FRAME

Remove the 4 screws and rear frame.

7.

REMOVE DRIVE CABLE

(a)

Remove the screw and sliding roof panel stopper.

(b)

Slide the drive cable rearward, then remove it.

(c)

Employ the same manner described above to the other
side.

H12171

H10516

N21522

H11049

–

BODY

SLIDING ROOF

BO–81

3634

HINT:
At the time of reassembly, please refer to the following items.

Adjust the drive cable to a closed and tilted down position.

Slide the cable forward or backward to align the 2 marks
as shown in the illustration.

Slide the cable to the forefront with your hand.

8.

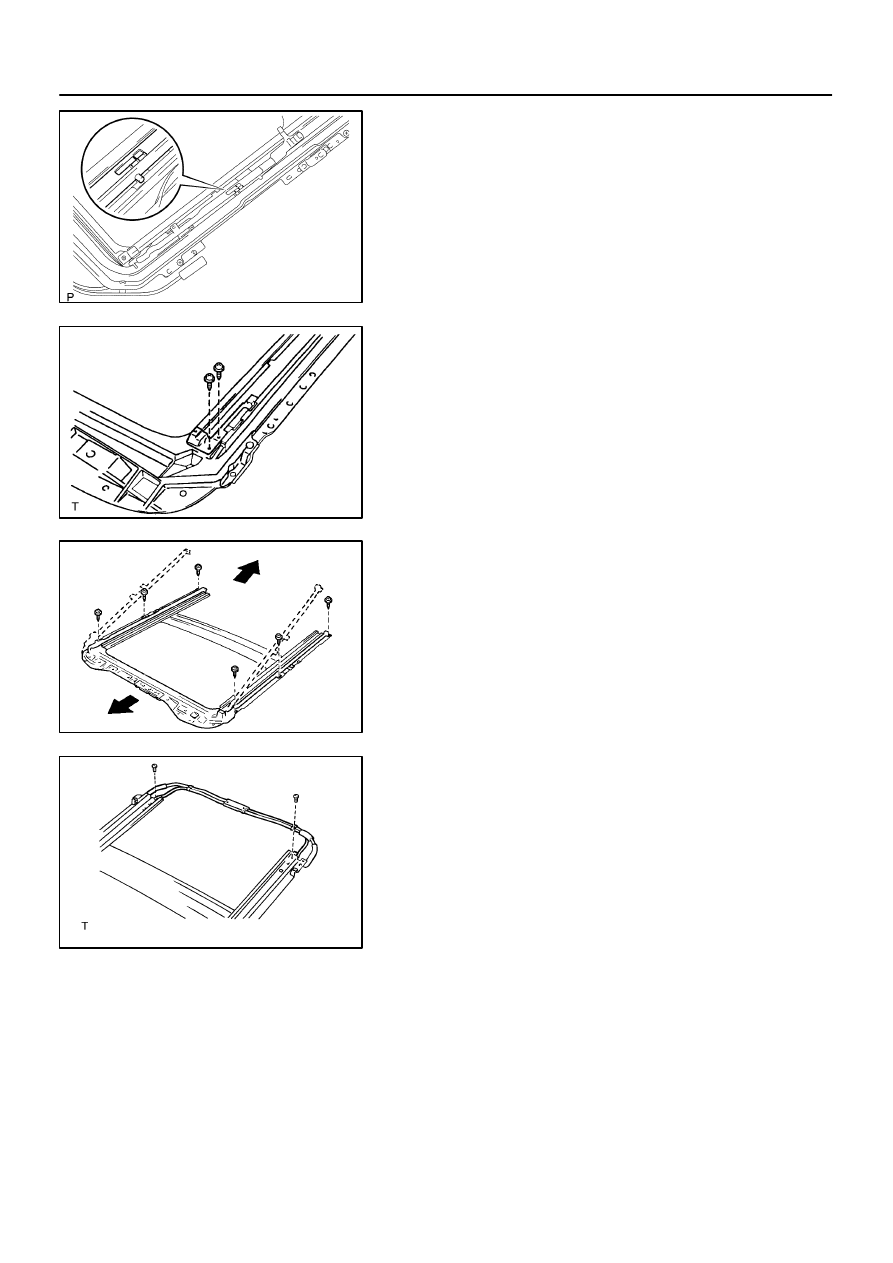

REMOVE ROOF WIND DEFLECTOR PANEL

9.

REMOVE GUIDE BLOCK

(a)

Remove the 2 screws and guide block.

(b)

Employ the same manner described above to the other
side.

10.

REMOVE SLIDING ROOF HOUSING

Remove the 6 screws and sliding roof housing.

11.

REMOVE CABLE GUIDE CASING

Remove the 2 screws and cable guide casing.

BO46S–01

BO3396

H12171

BO–82

–

BODY

SLIDING ROOF

3635

ADJUSTMENT

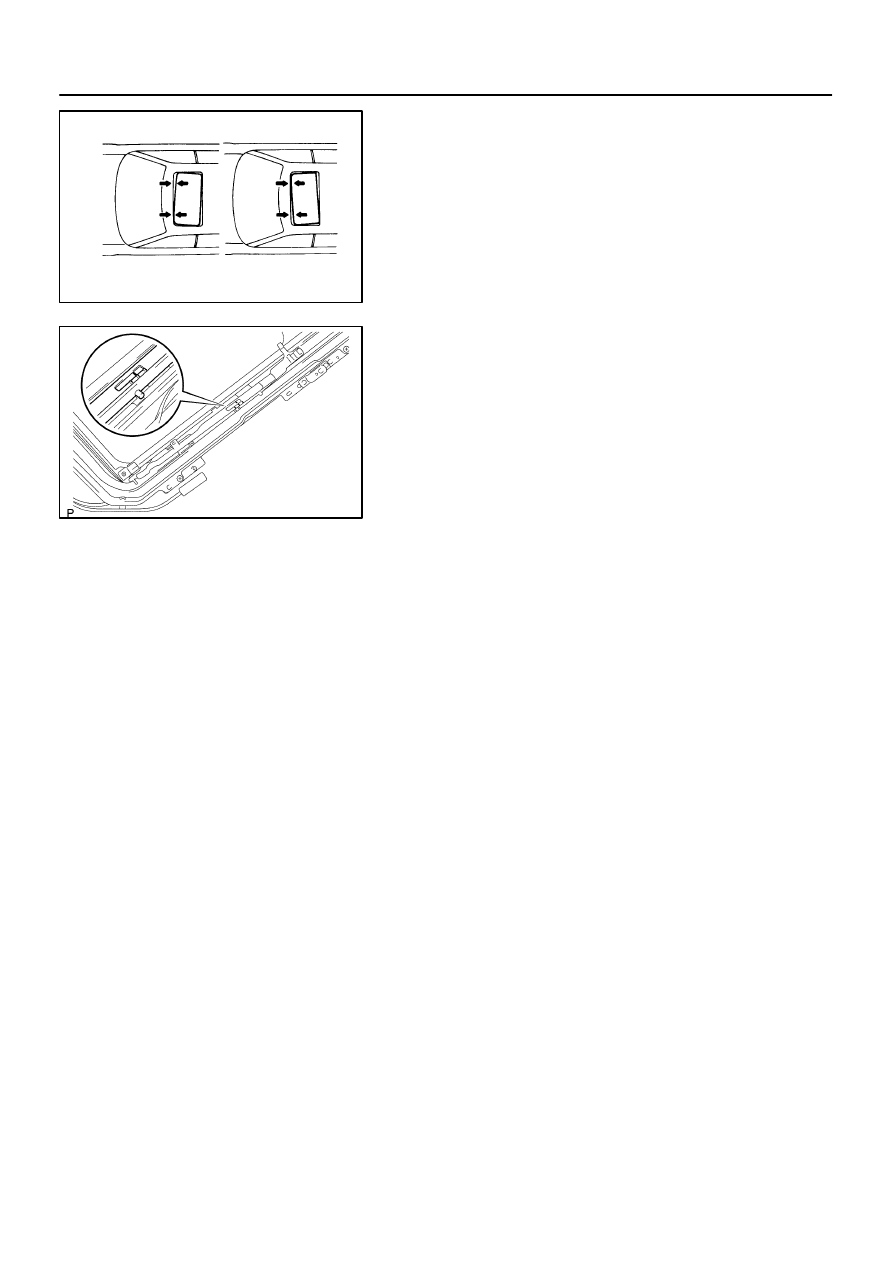

ADJUST SLIDING ROOF GLASS IN CLEARANCE
(a)

When the front or rear/left or right alignment is not correct,
remove the drive gear and sliding roof glass, then adjust
the drive cable.

NOTICE:
Remove the drive gear with the sliding roof fully closed.
(b)

Adjust by sliding the cable forward or rearward or rear-
ward to align the 2 marks as shown.

(c)

Install the driving ear and sliding roof glass.

BO46T–01

–

BODY

SLIDING ROOF

BO–83

3636

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BO–80

).
