BO–76

–

BODY

QUARTER WINDOW GLASS

3629

13.

INSTALL QUARTER TRIM PANEL

14.

INSTALL REAR No. 1 SEAT OUTER BELT FLOOR AN-
CHOR
Torque: 42 N·m (430 kgf·cm, 31 ft·lbf)

15.

w/ Rear No. 2 seat:
INSTALL QUARTER TRIM UPPER BELT HOLE COVER

16.

w/o Rear No. 2 seat:
INSTALL QUARTER TRIM HOLE COVER

17.

INSTALL REAR FLOOR MAT SUPPORT PLATE

18.

INSTALL REAR TRIM

19.

INSTALL REAR TRIM COVER

20.

INSTALL DOME LIGHT

21.

INSTALL REAR DOOR OPENING TRIM WEATH-
ERSTRIP

22.

INSTALL REAR DOOR SCUFF PLATE

23.

w/ Rear No. 2 seat:
INSTALL REAR No. 2 SEAT

BO0139

Rear End

Front End

BO46O–01

–

BODY

SLIDING ROOF

BO–77

3630

SLIDING ROOF

ON–VEHICLE INSPECTION

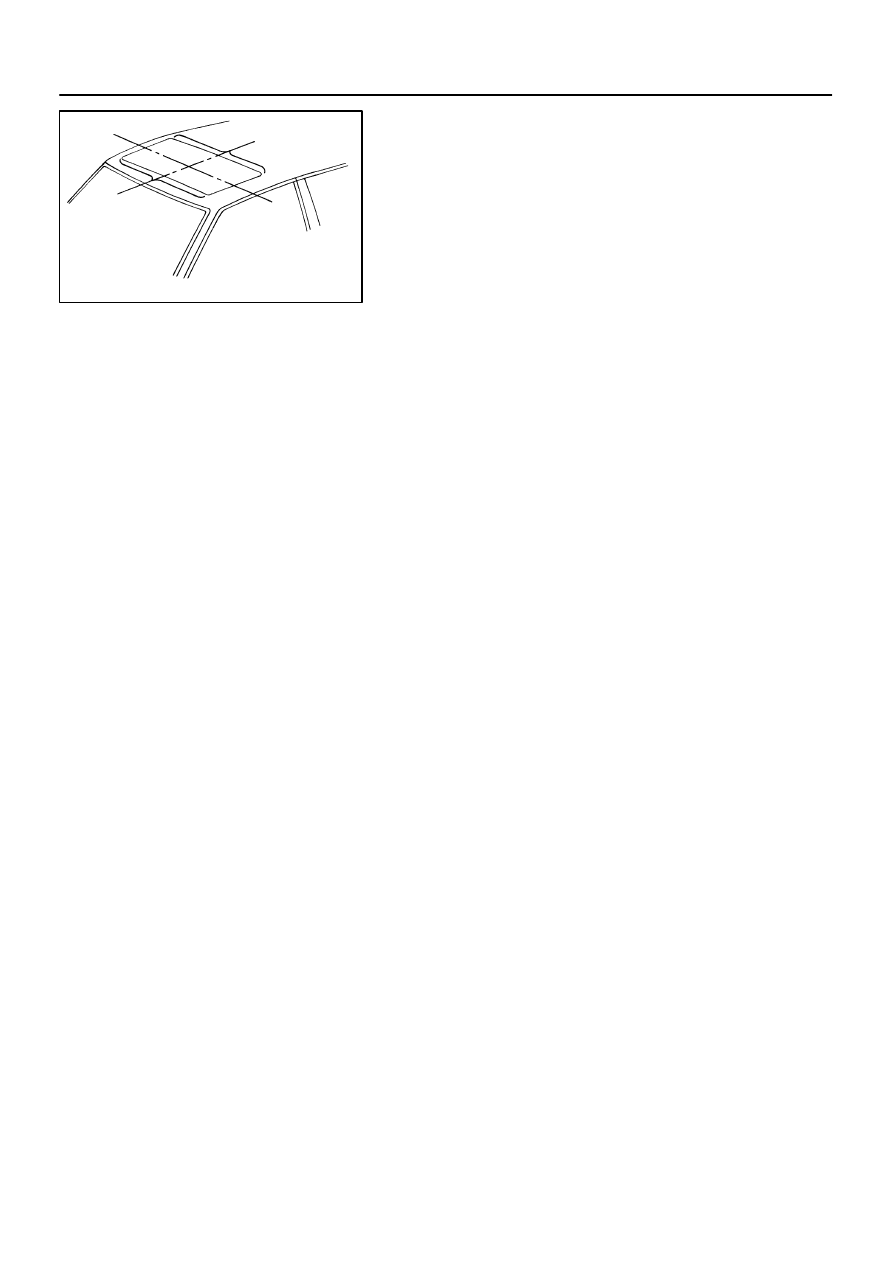

INSPECT SLIDING ROOF GLASS ALIGNMENT
(a)

Start the engine and check the operation time of the slid-
ing roof.
Operation time:
Approx. 6 secs.

(b)

Check for abnormal noise or binding during operation.

(c)

With the sliding roof fully closed, check for water leakage.

(d)

Check for a difference in level between the sliding roof
weatherstrip and roof panel.
Front end:
0

−

 2.0 mm (0 – 0.079 in.)

0

+

 1.0 mm (0 + 0.039 in.)

Side end:
0

±

 1.5 mm (0

±

 0.059 in.)

Rear end:
0 – 1.0 mm (0 – 0.039 in.)
0 + 2.0 mm (0 + 0.079 in.)

BO46P–02

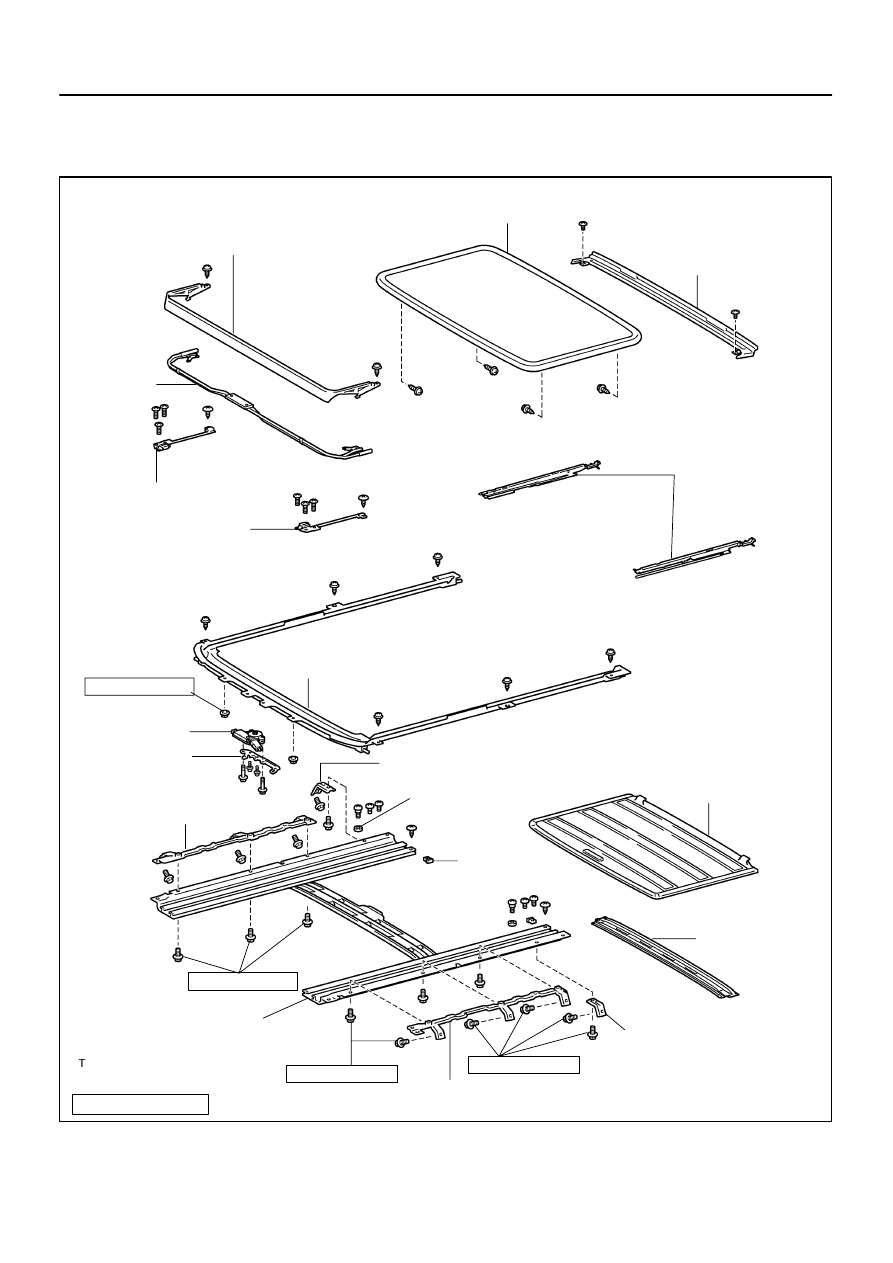

H16773

Rear Roof
Drip Channel

Sliding Roof Glass Assembly

Roof Wind
Deflector Panel

Cable Guide
Casing

Guide Block

Guide Block

Drive Cable

Sliding Roof Housing

Drive Gear

Bracket

Sliding Roof Housing Rear Mounting Bracket

Sliding Roof Panel Stopper

Sunshade Trim

Sliding Roof
Sunshade Stopper

No. 3 Sliding Roof Housing
Side Mounting Bracket

Sliding Roof Rail

Rear Frame

Sliding Roof Housing
Rear Mounting Bracket

No. 3 Sliding Roof Housing
Side Mounting Bracket

5.5 (56, 49 in.·lbf)

N·m (kgf·cm, ft·lbf) : Specified Torque

5.5 (56, 49 in.·lbf)

5.5 (56, 49 in.·lbf)

5.5 (56, 49 in.·lbf)

BO–78

–

BODY

SLIDING ROOF

3631

SLIDING ROOF

COMPONENTS

BO46Q–02

H16774

H16776

–

BODY

SLIDING ROOF

BO–79

3632

REMOVAL

1.

REMOVE ROOF HEADLINING (See page

BO–101

)

2.

REMOVE SLIDING ROOF GLASS ASSEMBLY

(a)

Using a torx wrench, remove the 4 screws.

(b)

Pull the glass upward to remove it.

3.

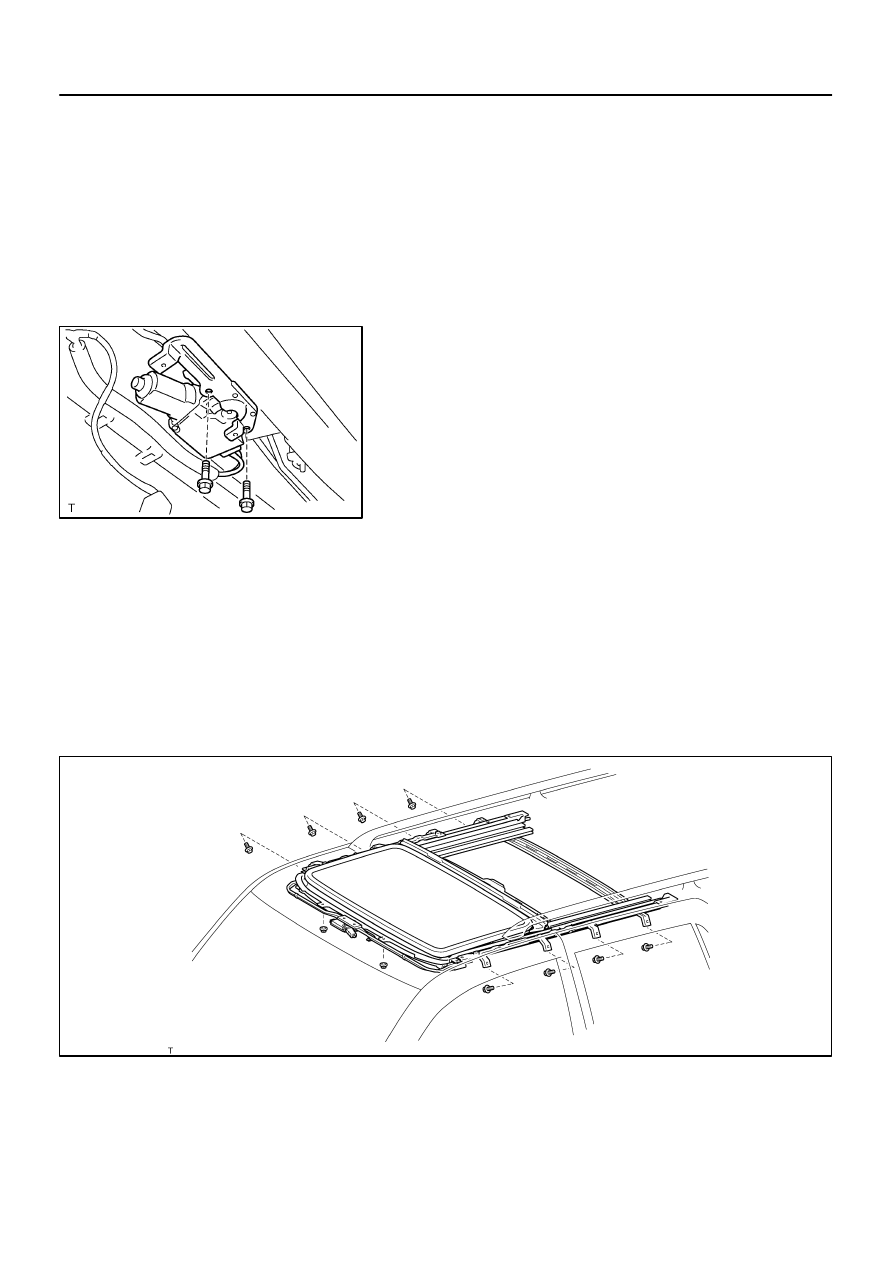

REMOVE DRIVE GEAR

NOTICE:
Remove the drive gear with the sliding roof fully closed.
(a)

Disconnect the connector.

(b)

Remove the 2 bolts and drive gear.

(c)

Remove the 2 screws and drive gear bracket.

4.

REMOVE SLIDING ROOF HOUSING

(a)

Disconnect the 4 drain hoses from the housing.

(b)

Disengage the wire harness clamps.

(c)

Remove the 8 bolts, 2 nuts and sliding roof housing.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)
