BO464–01

H16671

H16672

H16674

5 Clips

H16675

3 Clips

H16676

10 Clips

BO–40

–

BODY

REAR WIPER AND WASHER

3593

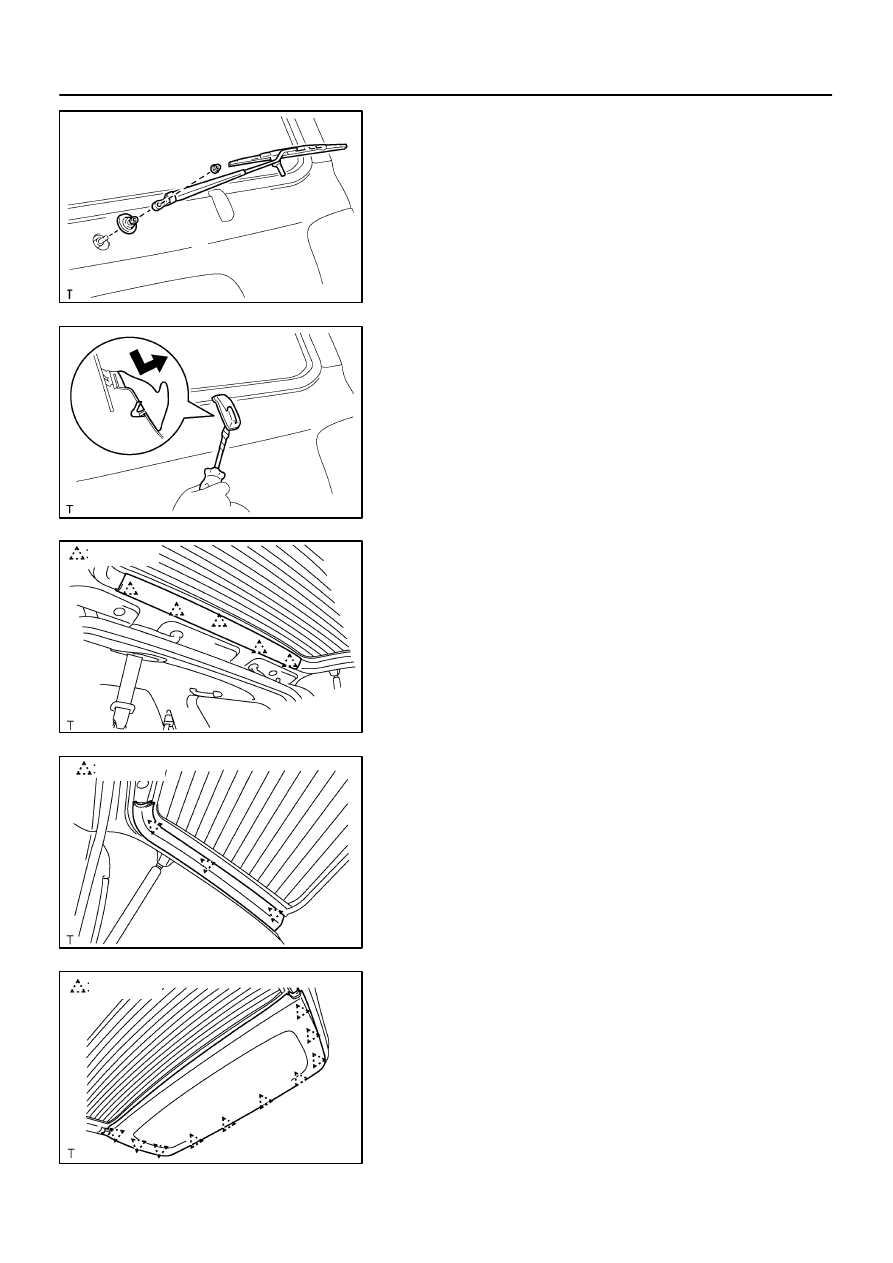

REMOVAL

1.

REMOVE REAR WIPER ARM

(a)

Open the cover.

(b)

Remove the nut and rear wiper arm.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

(c)

Remove the rear wiper motor grommet.

2.

REMOVE STEP LINER

Using a screwdriver, remove the step liner.
HINT:
Tape the screwdriver tip before use.
3.

REMOVE BACK DOOR PULL STRAP

(a)

Using a screwdriver, remove the strap cover.

HINT:
Tape the screwdriver tip before use.
(b)

Remove the screw and back door pull strap.

4.

REMOVE BACK DOOR CENTER GARNISH

Using a screwdriver, remove the back door center garnish.
HINT:
Tape the screwdriver tip before use.

5.

REMOVE BACK DOOR SIDE GARNISH

(a)

Using a screwdriver, remove the back door side garnish.

HINT:
Tape the screwdriver tip before use.
(b)

Employ the same manner described above to the other
side.

6.

REMOVE BACK DOOR TRIM BOARD

(a)

Insert a screwdriver between the back door and back
door time board to pry the back door trim board out.

NOTICE:
Be careful not to damage the back door and back door trim
board.
HINT:
Tape the screwdriver tip before use.
(b)

Pull the back door trim board to remove it as shown in the
illustration.

H16677

H16678

H16680

H16682

–

BODY

REAR WIPER AND WASHER

BO–41

3594

7.

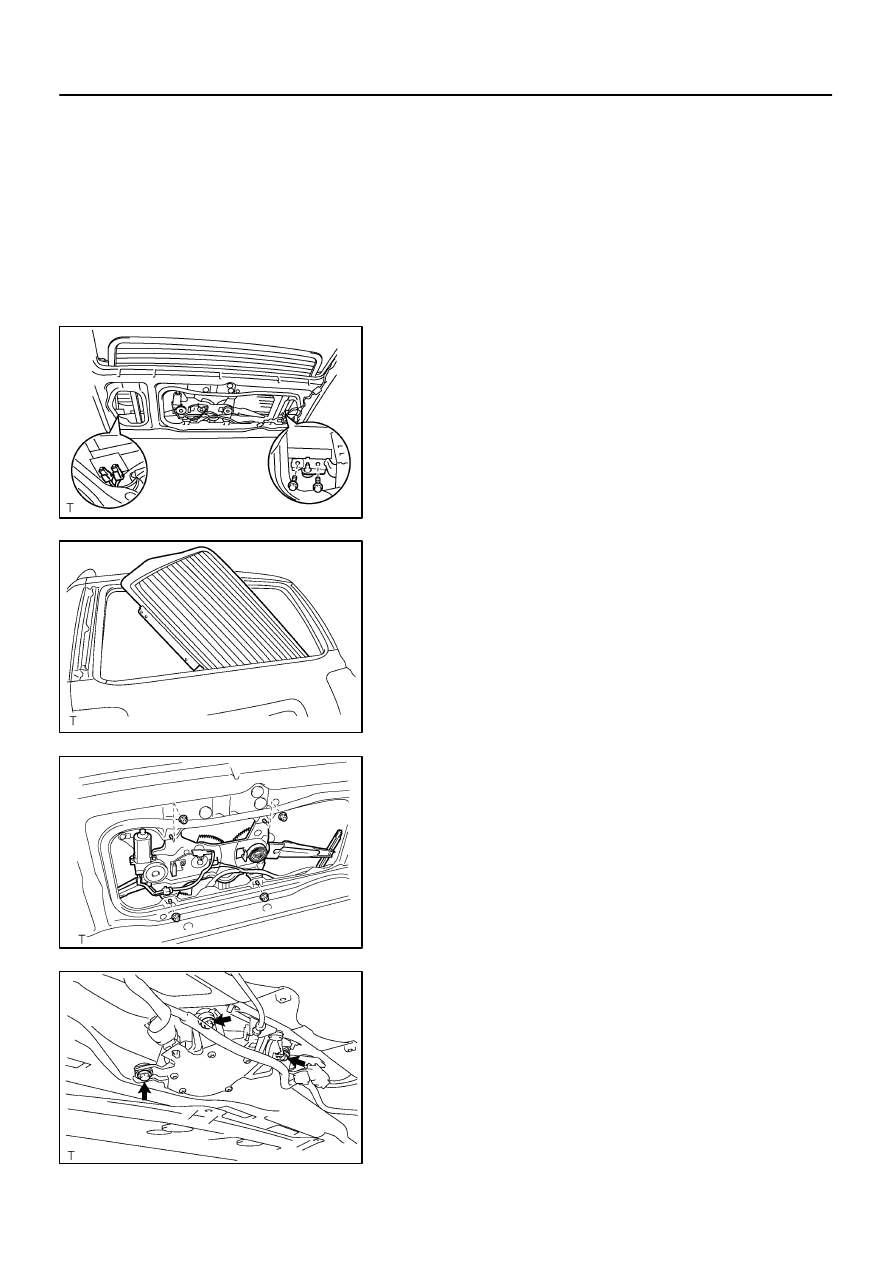

REMOVE NO. 1 SERVICE HOLE COVER

8.

REMOVE NO. 2 SERVICE HOLE COVER

9.

REMOVE BACK DOOR GLASS

(a)

Open the back door glass until the bolts appear in the ser-
vice hole.

(b)

Disconnect the connector.

(c)

Remove the 2 bolts and guide bracket.

(d)

Remove the 4 bolts and back door glass as shown in the
illustration.

NOTICE:
Be careful not to drop the back door glass.

10.

REMOVE POWER WINDOW REGULATOR

(a)

Disconnect the connector.

(b)

Disengage the connector and clamp.

(c)

Remove the 4 nuts and power window regulator.

HINT:
Remove the power window regulator through the service hole.

11.

REMOVE REAR WIPER MOTOR

(a)

Disconnect the connector.

(b)

Disengage the connector and clamp.

(c)

Remove the service hole plug.

(d)

Unfasten the 3 bolts, then remove the rear wiper motor.

H16694

BO–42

–

BODY

REAR WIPER AND WASHER

3595

12.

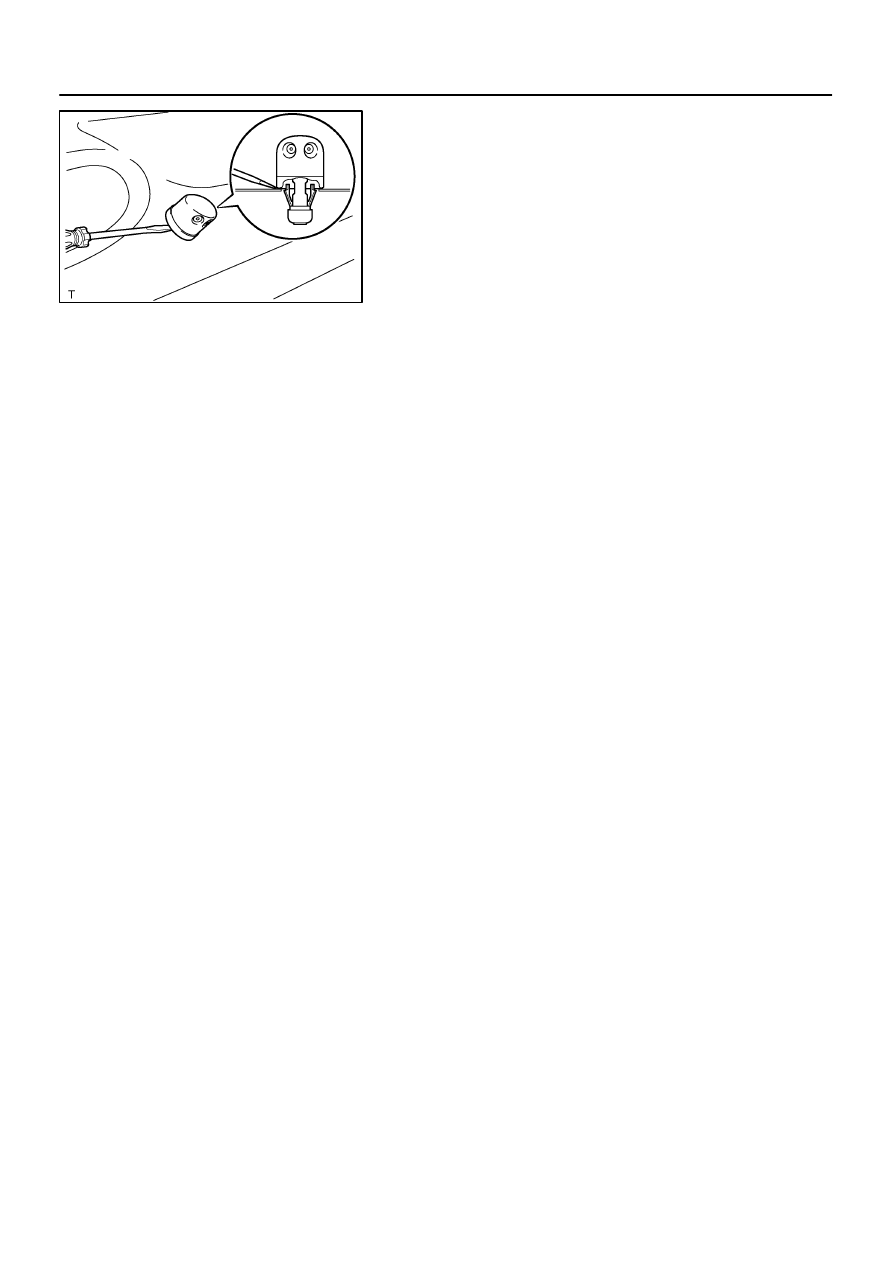

REMOVE WASHER NOZZLE

(a)

Using a screwdriver, remove the washer nozzle.

HINT:
Tape the screwdriver tip before use.
(b)

Disconnect the washer hose.

H16695

B

A

C

D

BO465–01

–

BODY

REAR WIPER AND WASHER

BO–43

3596

INSPECTION

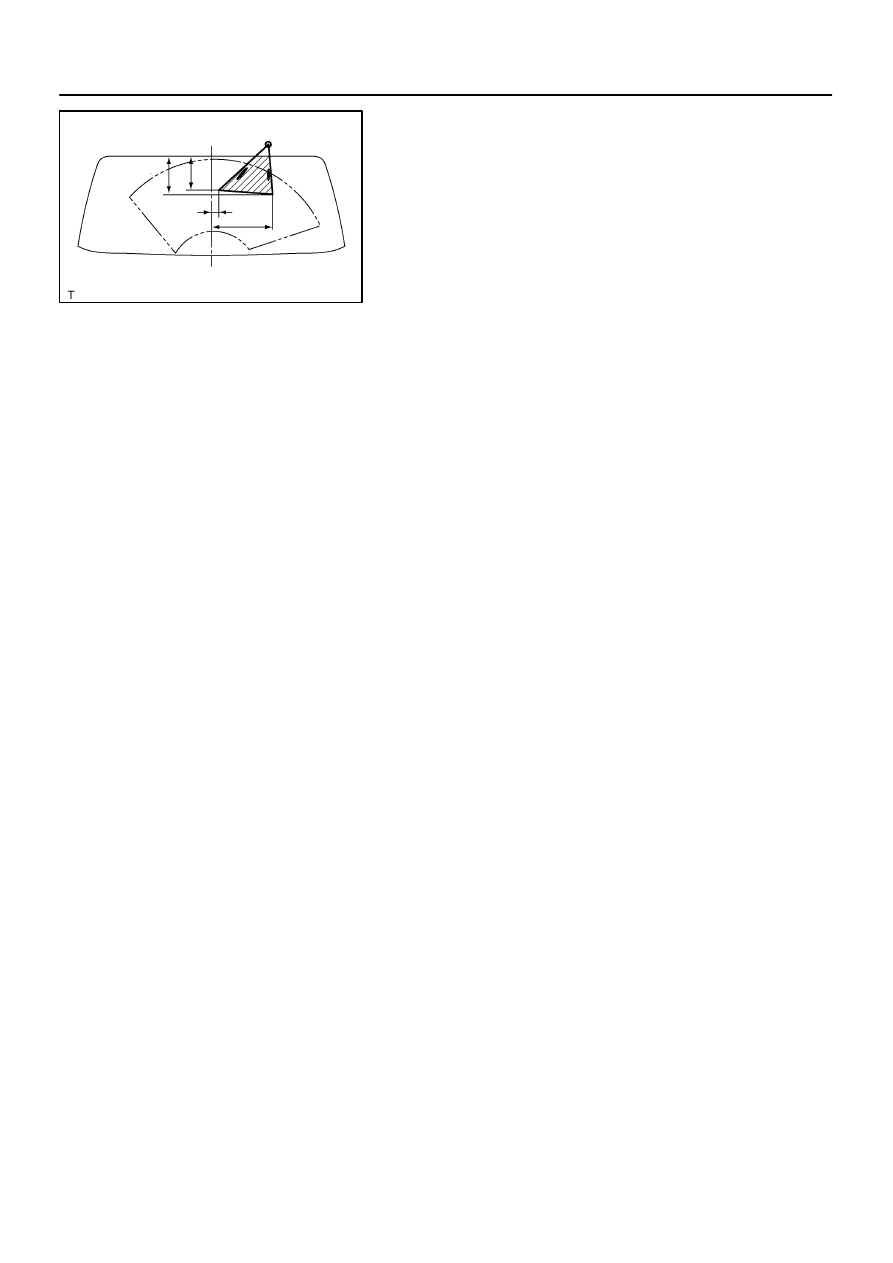

INSPECT REAR WASHER NOZZLE
While operating the washer, check it the point where the washer
fluid hits the back door glass is within the range indicated by the
hatched line.

A: Approx. 156 mm (6.14 in)
B: Approx. 180 mm (7.09 in)
C: Approx. 33 mm (1.30 in)
D: Approx. 292 mm (11.50 in)
