FRONT WIPER AND WASHER

3589

INSPECTION

INSPECT WASHER NOZZLE

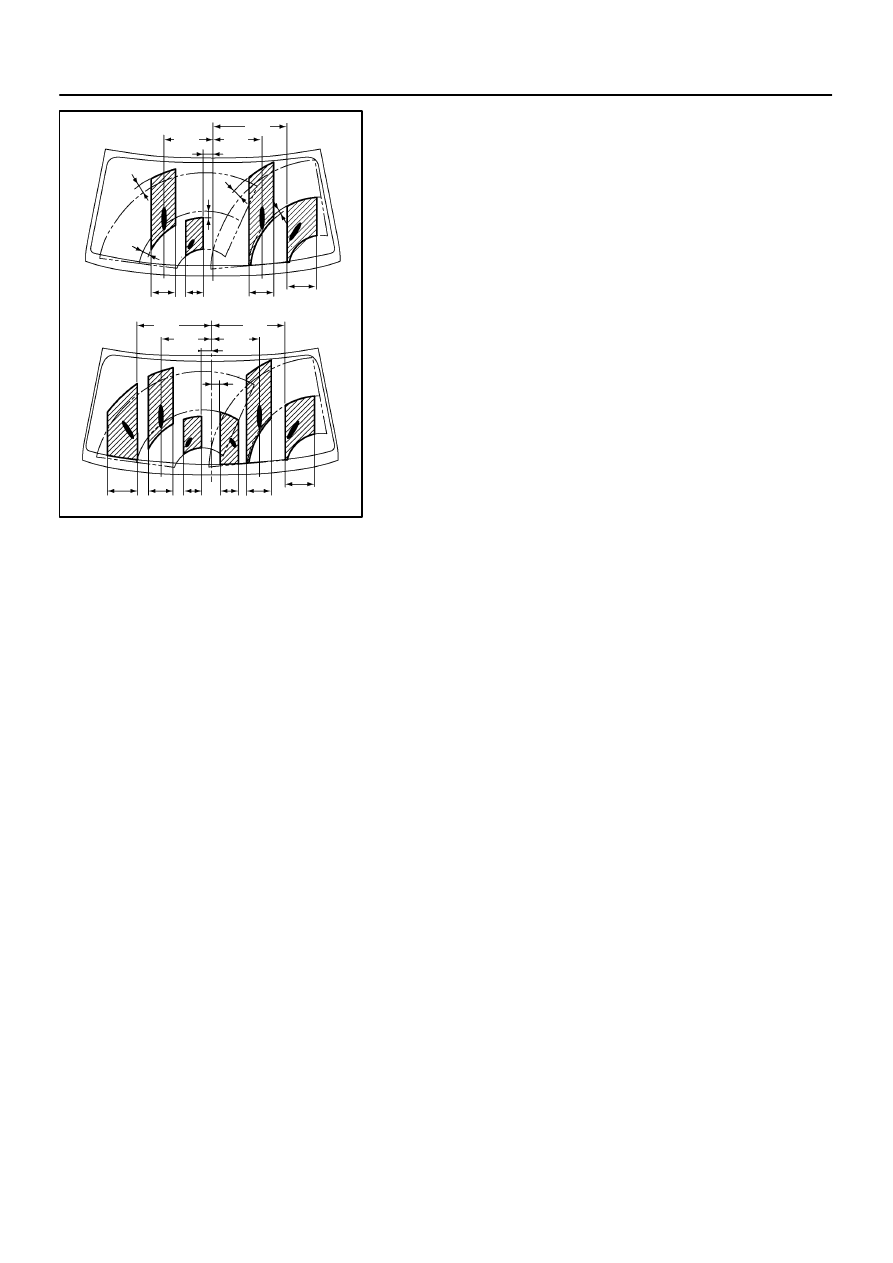

While operating the washer, check whether the point where the
washer fluid hits the windshield and the surge area are within
the range indicated by hatched line.

A: Approx. 50 mm (1.97 in)
B: Approx. 40 mm (1.57 in)
C: Approx. 10 mm (0.39 in)
D: Approx. 150 mm (5.91 in)
E: Approx. 110 mm (4.33 in)
F: Approx. 180 mm (7.09 in)
G: Approx. 60 mm (2.36 in)
H: Approx. 310 mm (12.20 in)
I: Approx. 298 mm (11.69 in)
J: Approx. 455 mm (17.91 in)

BO461–01

BE3367

2.0 – 2.5 mm
(0.079 – 0.098 in.)

0.7 – 0.75 mm
(0.028 – 0.0295 in.)

–

BODY

FRONT WIPER AND WASHER

BO–37

3590

ADJUSTMENT

ADJUST WASHER NOZZLE
Using a tool like the one shown in the illustration, change the
direction of the nozzle hole to adjust the point where washer
fluid hits the windshield.

BO462–01

H02485

Wiper Link

Cowl Panel

H09483

A

B

C

C

BO–38

–

BODY

FRONT WIPER AND WASHER

3591

INSTALLATION

1.

INSTALL WASHER NOZZLES

2.

INSTALL WIPER LINK

Install the wiper link through the service hole, then torque the
6 bolts.

Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

3.

INSTALL WIPER MOTOR

(a)

Install the wiper motor to the wiper link.

HINT:
When installing the wiper motor, connect the claw of wiper link
to the cowl panel shown in the illustration.
(b)

Torque the 4 bolts.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

(c)

Connect the connector.

4.

INSTALL HOOD TO COWL TOP SEAL

Install the hood to cowl top seal to the cowl top ventilator louver.
5.

INSTALL COWL TOP VENTILATOR LOUVER

Install the cowl top ventilator louver with the 8 screws and 6
clips.
6.

INSTALL WIPER ARMS

(a)

Operate the wiper once and turn the wiper switch OFF.

(b)

Install the wiper arms and tighten the nuts by hand.

(c)

Adjust the installation positions of the wiper arms to the
positions shown in the illustration.
A: Approx. 25.4 mm (1.000 in)
B: Approx. 40.0 mm (1.574 in)

HINT:
When installing the wiper arms, make sure that the tips of the
blades are not beyond the ceramic edge as indicated ”C” part
in the illustration.
(d)

Torque the 2 nuts.
Torque: 20 N·m (205 kgf·cm, 15 ft·lbf)

(e)

Install the 2 caps.

BO463–01

H16777

Washer Nozzle

Back Door Glass

Rear Wiper Arm

Back Door Center Garnish

Back Door
Side Garnish

Power Window
Regulator

Step Liner

Service Hole Cover

Wiper Motor
Grommet

Rear Wiper Motor

Back Door Side Garnish

No. 2 Service
Hole Cover

Strap Cover

No. 1 Service Hole Cover

Back Door Trim Board

Back Door Pull Strap

: Specified torque

N·m (kgf·cm, ft·lbf)

5.5 (56, 49 in.·lbf)

8.0 (82, 71 in.·lbf)

5.5 (56, 49 in.·lbf)

8.0 (82, 71 in.·lbf)

–

BODY

REAR WIPER AND WASHER

BO–39

3592

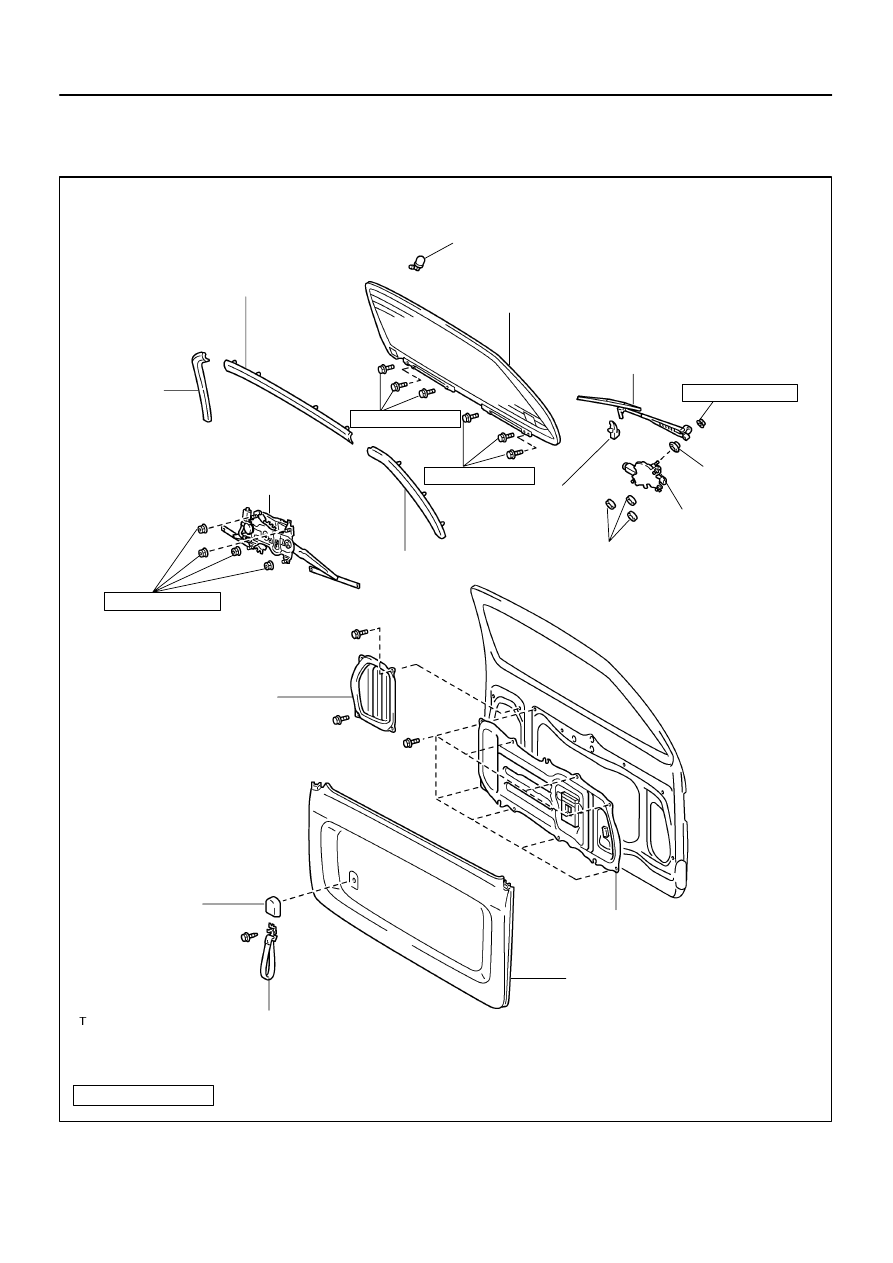

REAR WIPER AND WASHER

COMPONENTS
