LUBRICATION

OIL PUMP

LU–11

2845

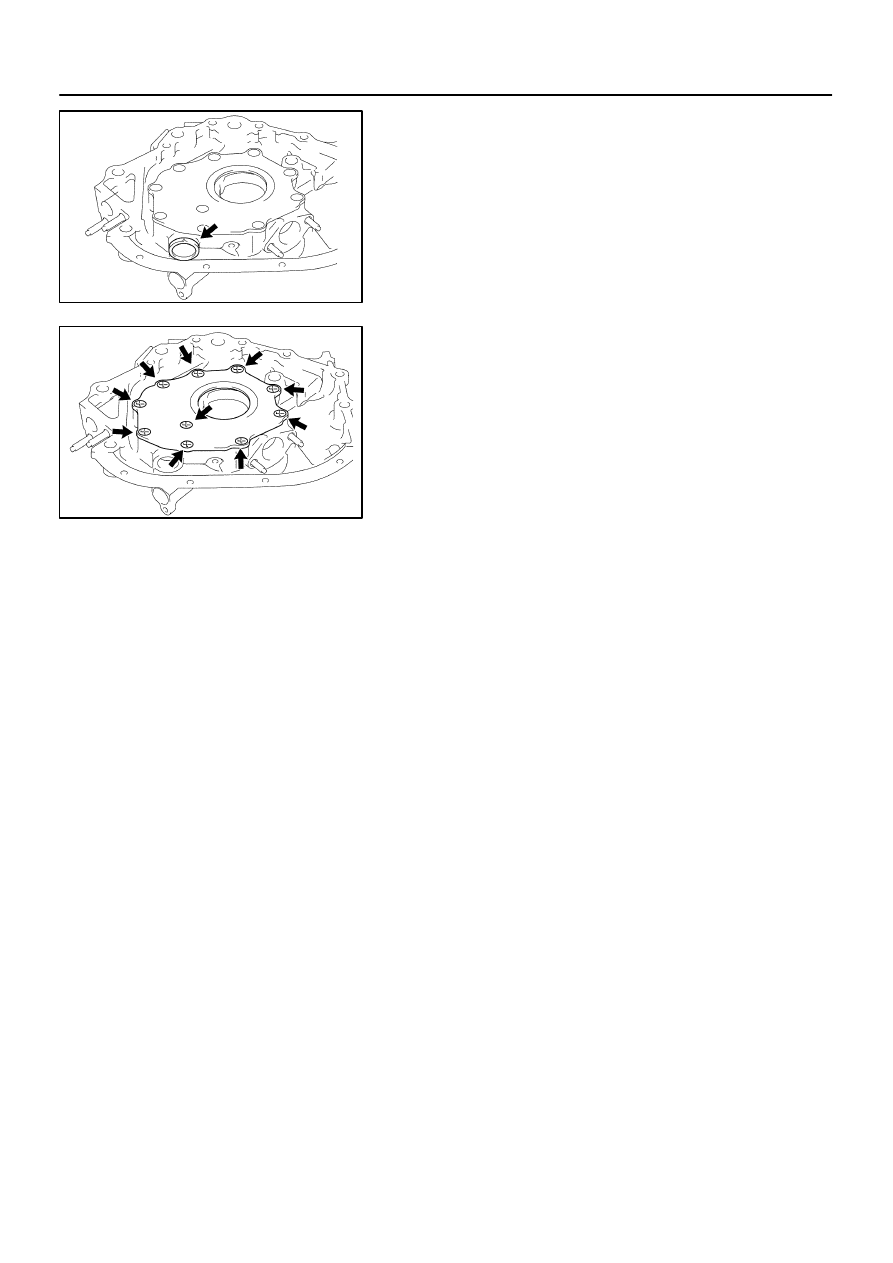

DISASSEMBLY

1.

REMOVE RELIEF VALVE

Remove the plug, compression spring and relief valve.

2.

REMOVE DRIVE AND DRIVEN ROTORS

Remove the 10 screws, pump body cover, the drive and driven
rotors.

LU08S–07

B02609

B02613

B02614

B02615

LU–12

–

LUBRICATION

OIL PUMP

2846

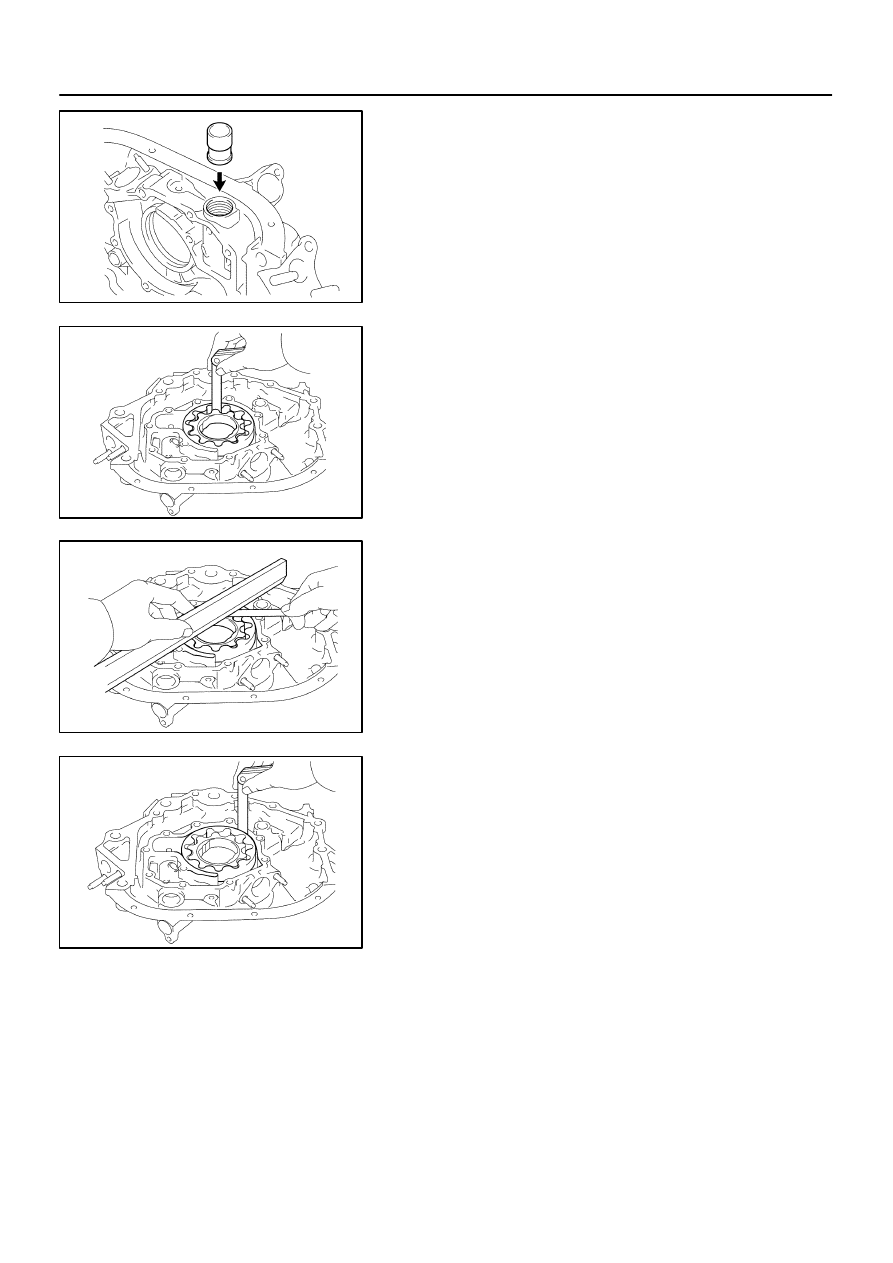

INSPECTION

1.

INSPECT RELIEF VALVE

Coat the valve with engine oil and check that it falls smoothly
into the valve hole by its own weight.
If it doesn’t, replace the relief valve. If necessary, replace the oil
pump assembly.
2.

INSPECT DRIVE AND DRIVEN ROTORS

(a)

Place the drive and driven rotors into the oil pump body.
(see page

LU–14

)

(b)

Inspect the rotors for the body clearance.
Using a feeler gauge, measure the clearance between
the drive and driven rotor tips.
Standard tip clearance:
0.060 to 0.180 mm (0.0024 to 0.0071 in.)
Maximum tip clearance: 0.18 mm (0.0071 in.)

If the tip clearance is greater than maximum, replace the rotors
as a set.

(c)

Inspect the rotors for the side clearance.
Using a feeler gauge and precision straight edge, mea-
sure the clearance between the rotors and precision
straight edge.
Side clearance:
0.030 to 0.090 mm (0.0012 to 0.0035 in.)
Maximum body clearance: 0.09 mm (0.0035 in.)

If the side clearance is greater than maximum, replace the ro-
tors as a set. If necessary, replace the oil pump assembly.

(d)

Inspect the rotor for the body clearance.
Using a feeler gauge, measure the clearance between
the driven rotor and body.
Standard body clearance:
0.250 to 0.325 mm (0.0098 to 0.0128 in.)
Maximum body clearance: 0.325 mm (0.0128 in.)

If the body clearance is greater than maximum, replace the ro-
tors as a set. If necessary, replace the oil pump assembly.
(e)

Remove the drive and drive rotors.

LU0GX–05

A04865

A04866

SST

A04863

Cut Position

A04864

SST

–

LUBRICATION

OIL PUMP

LU–13

2847

REPLACEMENT

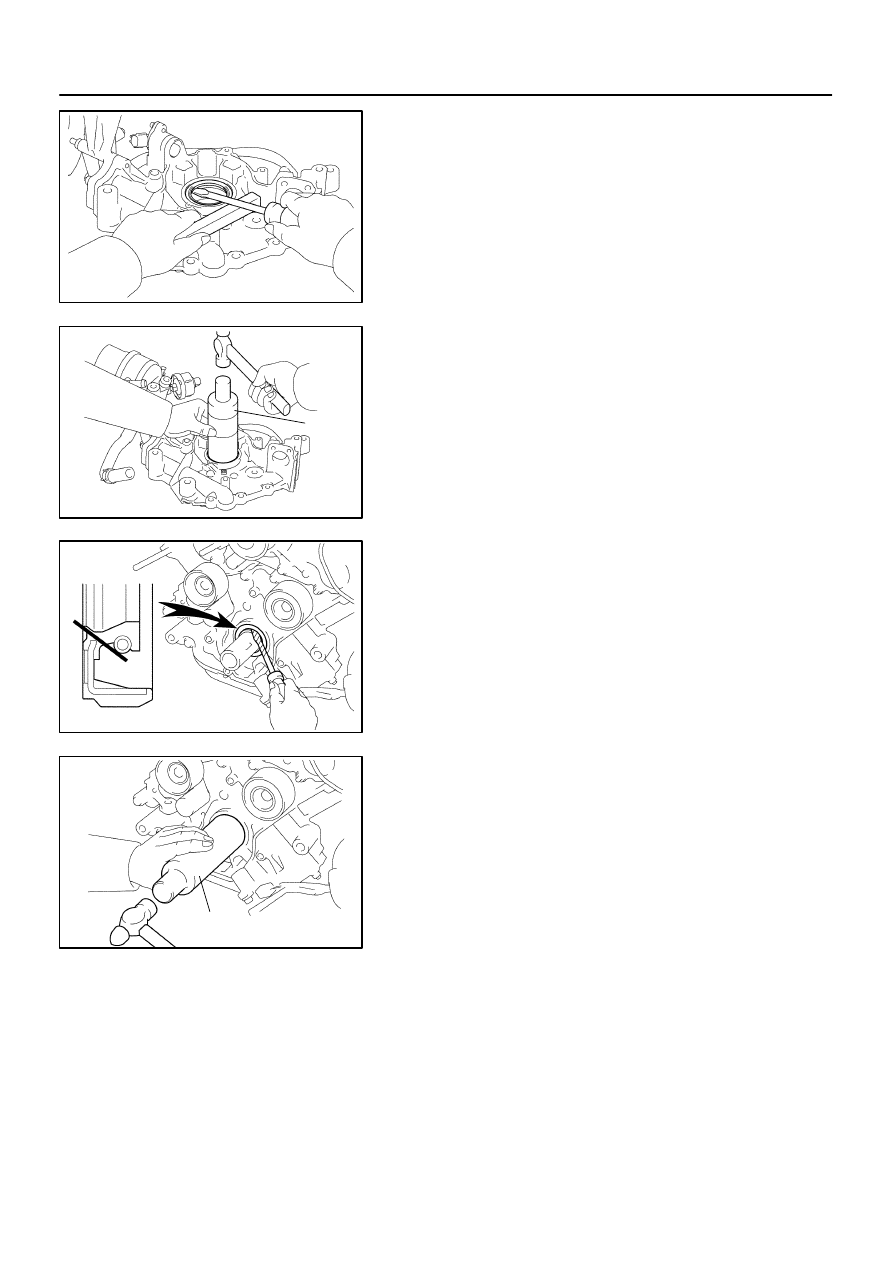

REPLACE CRANKSHAFT FRONT OIL SEAL
HINT:
There are 2 methods ((a) and (b)) to replace the oil seal.
(a)

If the oil pump is removed from the cylinder block:
(1)

Using a screwdriver, pry out the oil seal.

(2)

Using SST and a hammer, tap in a new oil seal until
its surface is flush with the oil pump body edge.

SST

09316–60011 (09316–00011)

(3)

Apply MP grease to the oil seal lip.

(b)

If the oil pump is installed to the cylinder block:
(1)

Using a knife, cut off the oil seal lip.

(2)

Using a screwdriver, pry out the oil seal.

NOTICE:
Be careful not to damage the crankshaft. Tape the screw-
driver tip.

(3)

Apply MP grease to a new oil seal lip.

(4)

Using SST and a hammer, tap in the oil seal until its
surface is flush with the oil pump body edge.

SST

09316–60011 (09316–00011)

LU08U–07

B02612

B02611

B02610

LU–14

–

LUBRICATION

OIL PUMP

2848

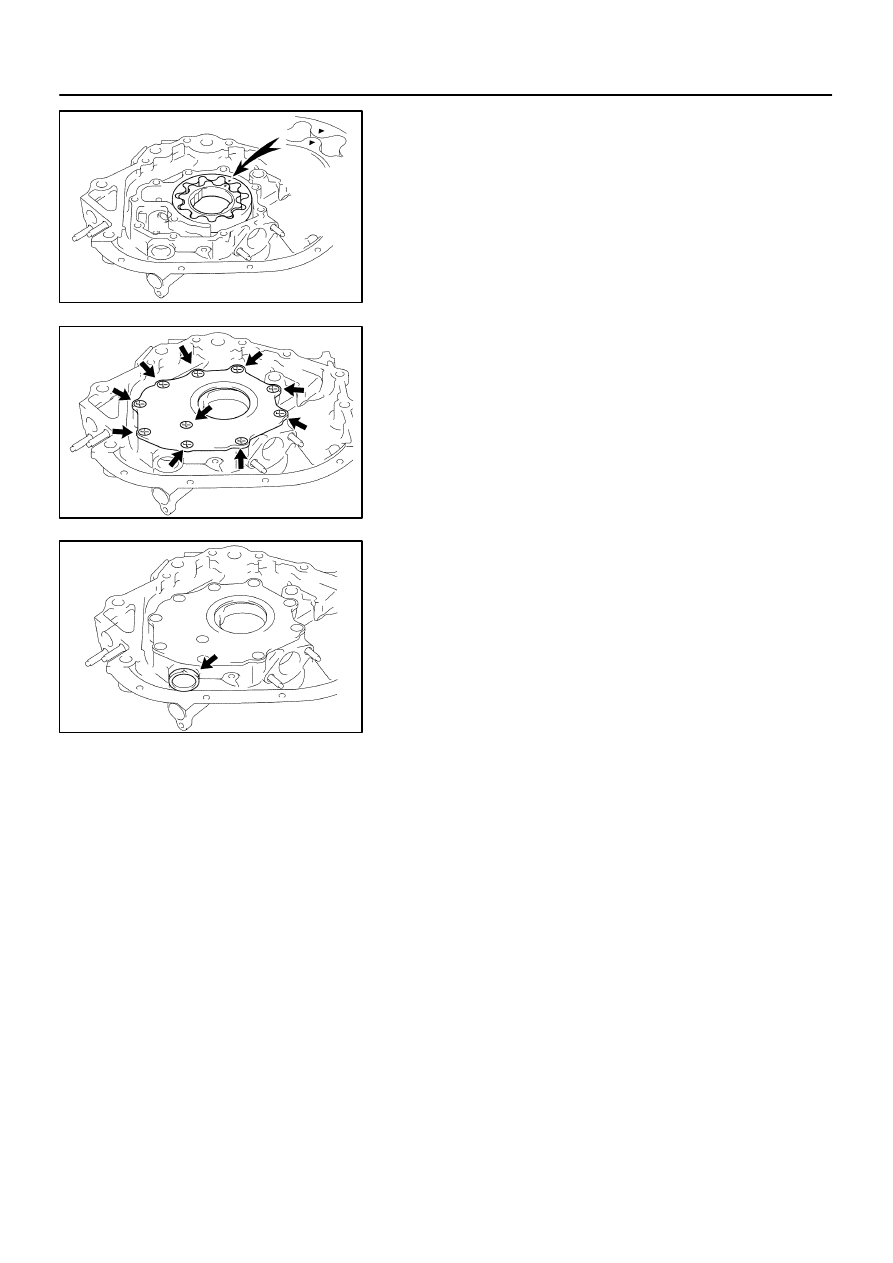

REASSEMBLY

1.

INSTALL DRIVE AND DRIVEN ROTORS

(a)

Place the drive and driven rotors into pump body with the
marks facing the pump body cover side.

(b)

Install the pump body cover with the 10 screws.
Torque: 10 N·m (105 kgf·cm, 7 ft·lbf)

2.

INSTALL RELIEF VALVE

(a)

Insert the relief valve and compression spring into the oil
pump body hole.

(b)

Install the plug.
Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)
