Toyota Tundra (2015 year). Manual - part 821





Last Modified: 9-16-2014

6.6 G

Doc ID: RM0000029YF01OX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: DRIVE SHAFT: FRONT DRIVE SHAFT ASSEMBLY (for 4WD): INSPECTION; 2015 MY Tundra [08/2014 -

       ]

INSPECTION

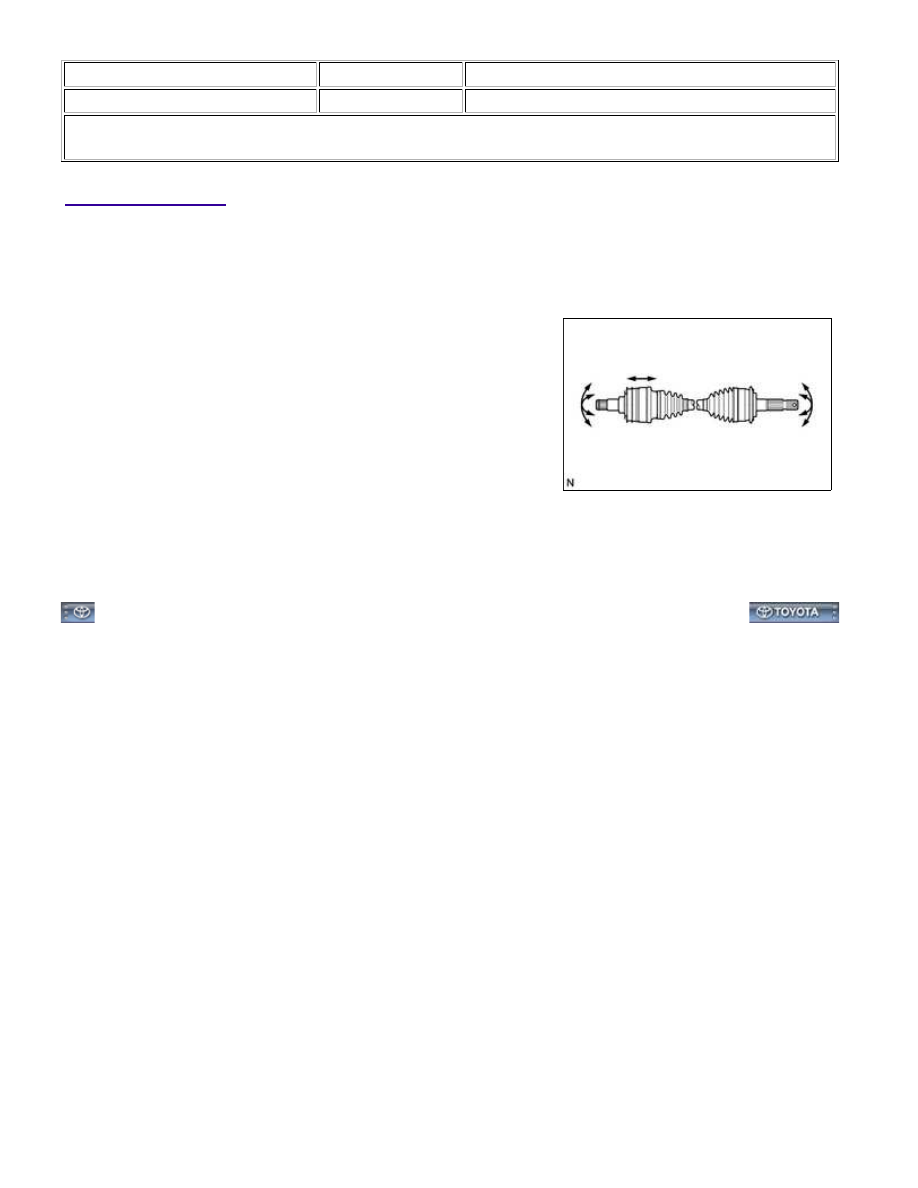

1. INSPECT FRONT DRIVE SHAFT ASSEMBLY

NOTICE:

Move the drive shaft while keeping it level.

(a) Check if there is excessive play in the outboard joint.

(b) Check if the inboard joint shaft slides smoothly in the thrust direction.

DRIVE SHAFT: FRONT DRIVE SHAFT ASSEMBLY (for 4WD): IN...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM0000016WX02VX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: DRIVE SHAFT: FRONT DRIVE SHAFT ASSEMBLY (for 4WD): REASSEMBLY; 2015 MY Tundra [08/2014 -

       ]

REASSEMBLY

NOTICE:

Do not allow brake fluid, front differential oil, gasoline, or battery fluid to contact the drive shaft boots, as

they may damage the boots.

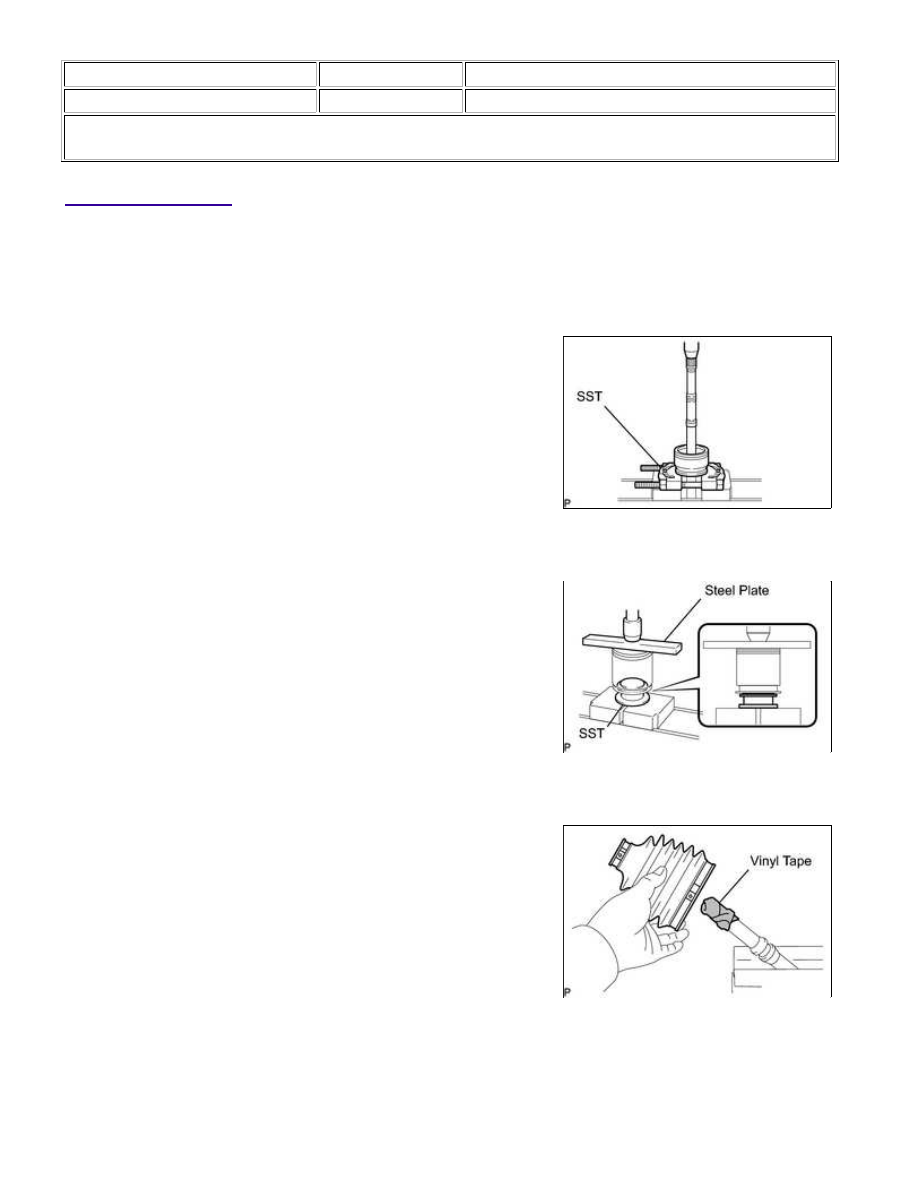

1. INSTALL DUST SEAL

(a) Using SST and a press, press in a new dust seal to the outboard

joint shaft.

SST: 09950-00020

NOTICE:

Be careful not to damage the dust seal.

2. INSTALL FRONT DRIVE SHAFT DUST COVER LH

(a) Using SST, a steel plate and press, press in a new dust cover.

SST: 09316-20011

NOTICE:

Be careful not to damage the dust cover.

3. INSTALL OUTBOARD JOINT BOOT

(a) Place 2 new boot clamps on the boot.

HINT:

Before installing the boot, wrap vinyl tape around the spline of

the shaft to prevent damaging the boot.

(b) Temporarily install a new boot to the outboard joint shaft.

(c) Position the inside clamp onto the boot.

DRIVE SHAFT: FRONT DRIVE SHAFT ASSEMBLY (for 4WD): RE...

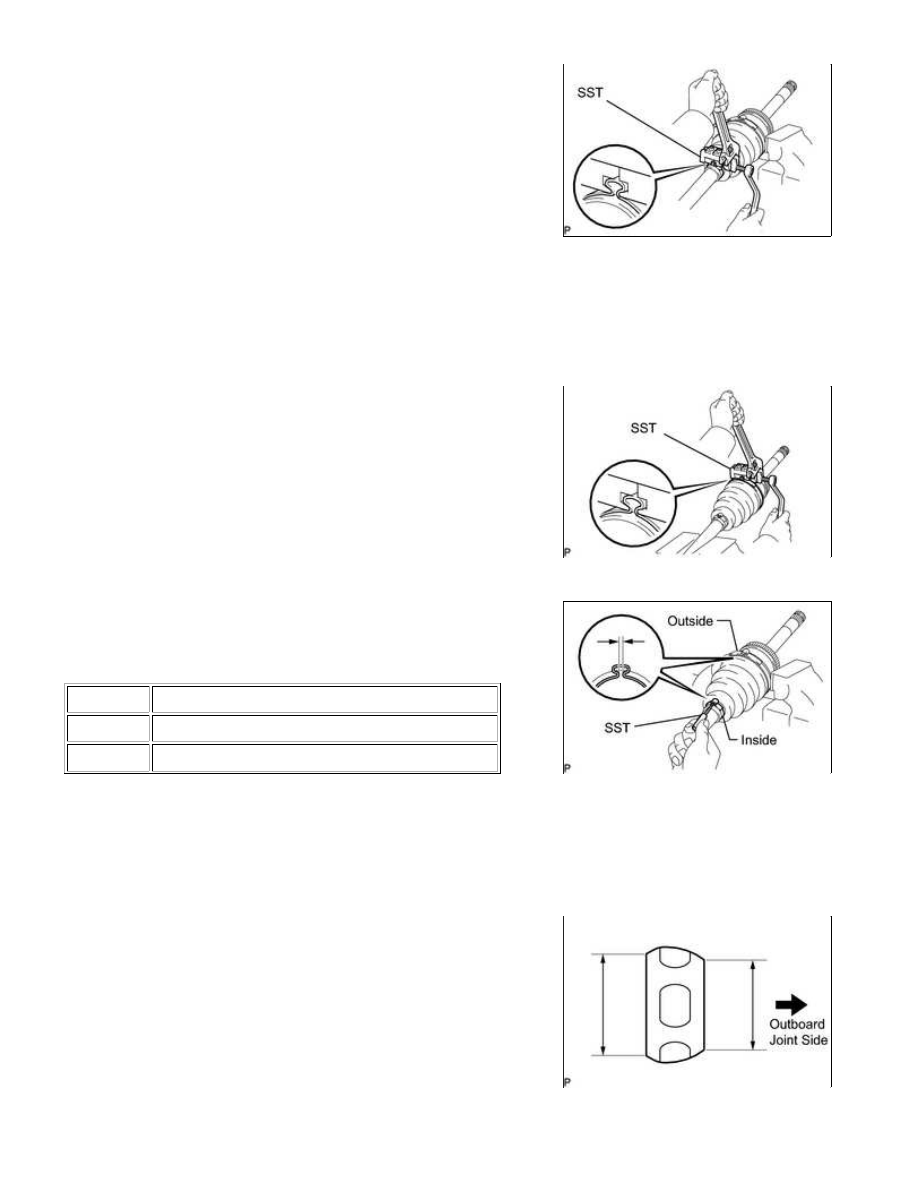

(d) Using SST, pinch the inside clamp.

SST: 09521-24010

NOTICE:

Do not overtighten SST.

(e) Pack the outboard joint and boot with grease in the boot kit.

Standard grease capacity:

292 to 312 g (10.3 to 11.0 oz.)

(f) Position the outside clamp onto the boot.

(g) Using SST, pinch the outside clamp.

SST: 09521-24010

NOTICE:

Do not overtighten SST.

Standard clearance:

CLAMP

SPECIFIED CONDITION

Inside

2.8 to 3.8 mm (0.110 to 0.150 in.)

Outside

3.5 to 4.5 mm (0.138 to 0.177 in.)

4. TEMPORARILY INSTALL INBOARD JOINT BOOT

(a) Temporarily install 2 new boot clamps and a boot to the outboard joint shaft.

5. INSTALL INBOARD JOINT SHAFT

(a) Install the cage to the outboard joint shaft.

NOTICE:

Insert the cage with its smaller inner diameter side facing the

outboard joint.

DRIVE SHAFT: FRONT DRIVE SHAFT ASSEMBLY (for 4WD): RE...

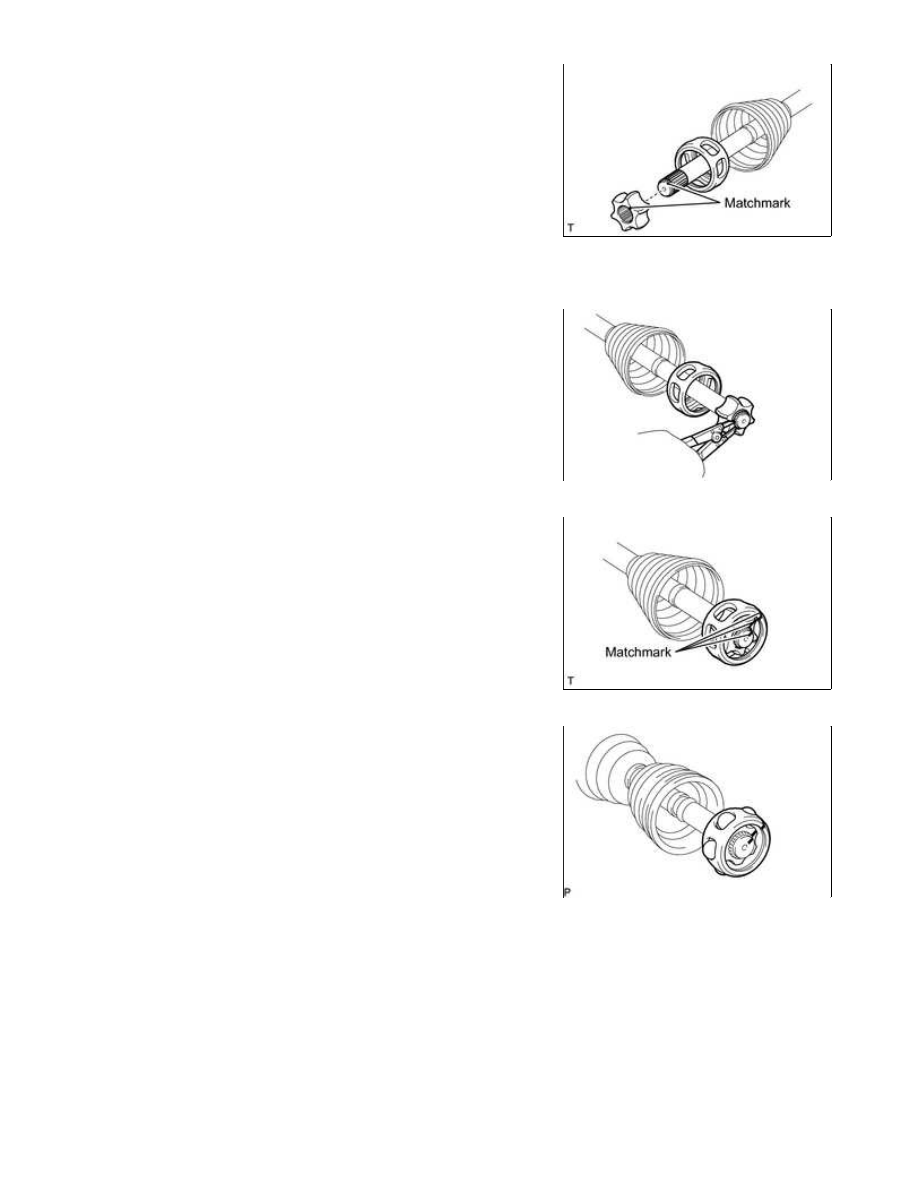

(b) Align the matchmarks placed before removal.

(c) Install the inner race.

(d) Using a snap ring expander, install a new snap ring.

(e) Align the matchmarks placed before removal, and install the

cage to the inner race.

(f) Install the 6 balls.

HINT:

Apply grease onto the balls to keep them from falling out.

(g) Pack the inboard joint shaft and boot with grease in the boot kit.

Standard grease capacity:

380 to 400 g (13.3 to 14.1 oz.)

DRIVE SHAFT: FRONT DRIVE SHAFT ASSEMBLY (for 4WD): RE...
