Toyota Tundra (2015 year). Manual - part 814

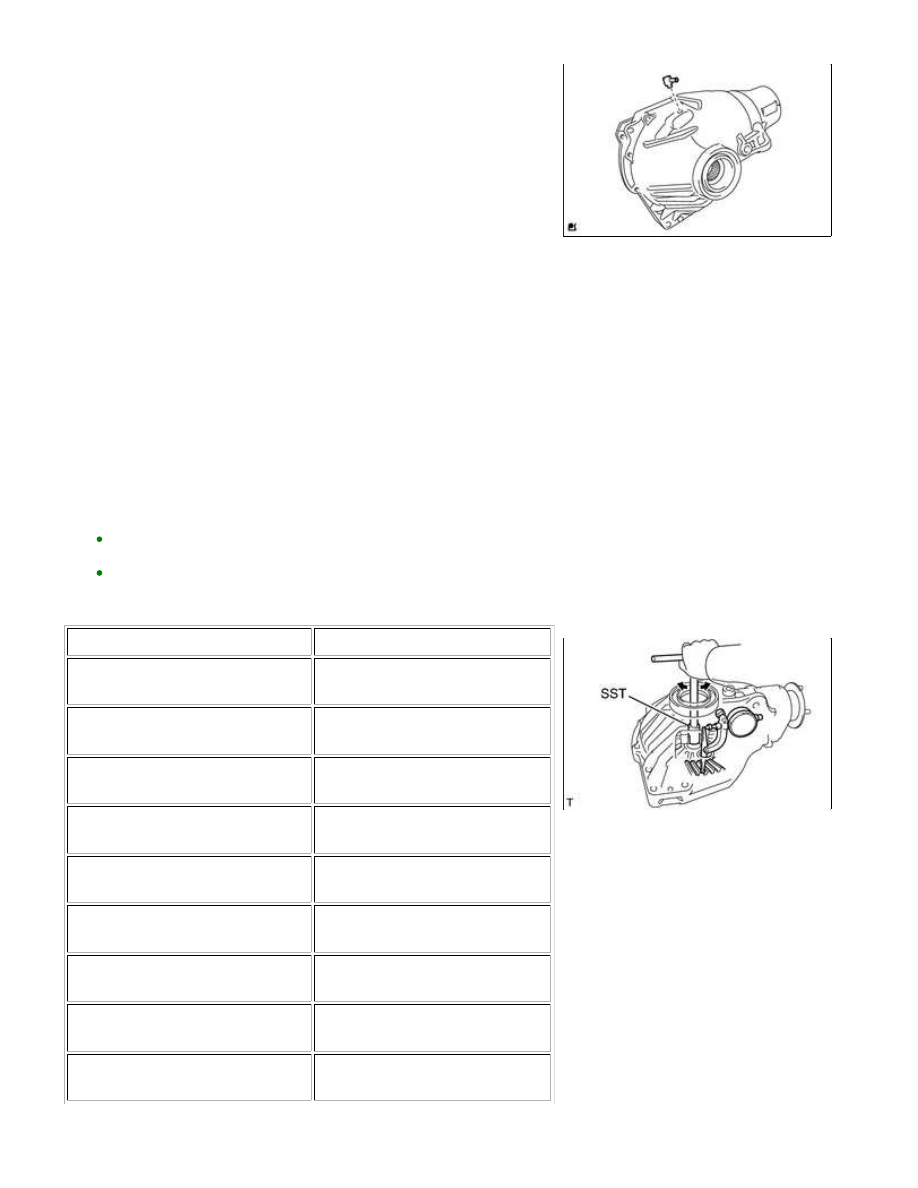

(a) Install the front differential union.

22. ADJUST BACKLASH BETWEEN DIFFERENTIAL RING GEAR AND DIFFERENTIAL DRIVE

PINION

(a) Using SST and a dial indicator, measure the ring gear backlash.

SST: 09564-33010

Standard backlash:

0.17 to 0.27 mm (0.00670 to 0.01062 in.)

If the backlash is not within the specification, adjust it by either

HINT:

There should be no clearance between the plate washer and
differential case.
Make sure that there is ring gear backlash.

Washer thickness:

THICKNESS

1.49 to 1.51 mm (0.0587 to

0.0594 in.)

1.93 to 1.95 mm (0.0760 to

0.0767 in.)

1.51 to 1.53 mm (0.0595 to

0.0602 in.)

1.95 to 1.97 mm (0.0768 to

0.0775 in.)

1.53 to 1.55 mm (0.0603 to

0.0610 in.)

1.97 to 1.99 mm (0.0776 to

0.0783 in.)

1.55 to 1.57 mm (0.0611 to

0.0618 in.)

1.99 to 2.01 mm (0.0784 to

0.0791 in.)

1.57 to 1.59 mm (0.0619 to

0.0626 in.)

2.01 to 2.03 mm (0.0792 to

0.0799 in.)

1.59 to 1.61 mm (0.0627 to

0.0633 in.)

2.03 to 2.05 mm (0.0800 to

0.0807 in.)

1.61 to 1.63 mm (0.0634 to

0.0641 in.)

2.05 to 2.07 mm (0.0808 to

0.0814 in.)

1.63 to 1.65 mm (0.0642 to

0.0649 in.)

2.07 to 2.09 mm (0.0815 to

0.0822 in.)

1.65 to 1.67 mm (0.0650 to

0.0657 in.)

2.09 to 2.11 mm (0.0823 to

0.0830 in.)

DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER ASSEMBLY (f...

THICKNESS

1.67 to 1.69 mm (0.0658 to

0.0665 in.)

2.11 to 2.13 mm (0.0831 to

0.0838 in.)

1.69 to 1.71 mm (0.0666 to

0.0673 in.)

2.13 to 2.15 mm (0.0839 to

0.0846 in.)

1.71 to 1.73 mm (0.0674 to

0.0681 in.)

2.15 to 2.17 mm (0.0847 to

0.0854 in.)

1.73 to 1.75 mm (0.0682 to

0.0688 in.)

2.17 to 2.19 mm (0.0855 to

0.0862 in.)

1.75 to 1.77 mm (0.0689 to

0.0696 in.)

2.19 to 2.21 mm (0.0863 to

0.0870 in.)

1.77 to 1.79 mm (0.0697 to

0.0704 in.)

2.21 to 2.23 mm (0.0871 to

0.0877 in.)

1.79 to 1.81 mm (0.0705 to

0.0712 in.)

2.23 to 2.25 mm (0.0878 to

0.0885 in.)

1.81 to 1.83 mm (0.0713 to

0.0720 in.)

2.25 to 2.27 mm (0.0886 to

0.0893 in.)

1.83 to 1.85 mm (0.0721 to

0.0728 in.)

2.27 to 2.29 mm (0.0894 to

0.0901 in.)

1.85 to 1.87 mm (0.0729 to

0.0736 in.)

2.29 to 2.31 mm (0.0902 to

0.0909 in.)

1.87 to 1.89 mm (0.0737 to

0.0744 in.)

2.31 to 2.33 mm (0.0910 to

0.0917 in.)

1.89 to 1.91 mm (0.0745 to

0.07521 in.)

2.33 to 2.35 mm (0.0918 to

0.0925 in.)

1.91 to 1.93 mm (0.0752 to

0.0759 in.)

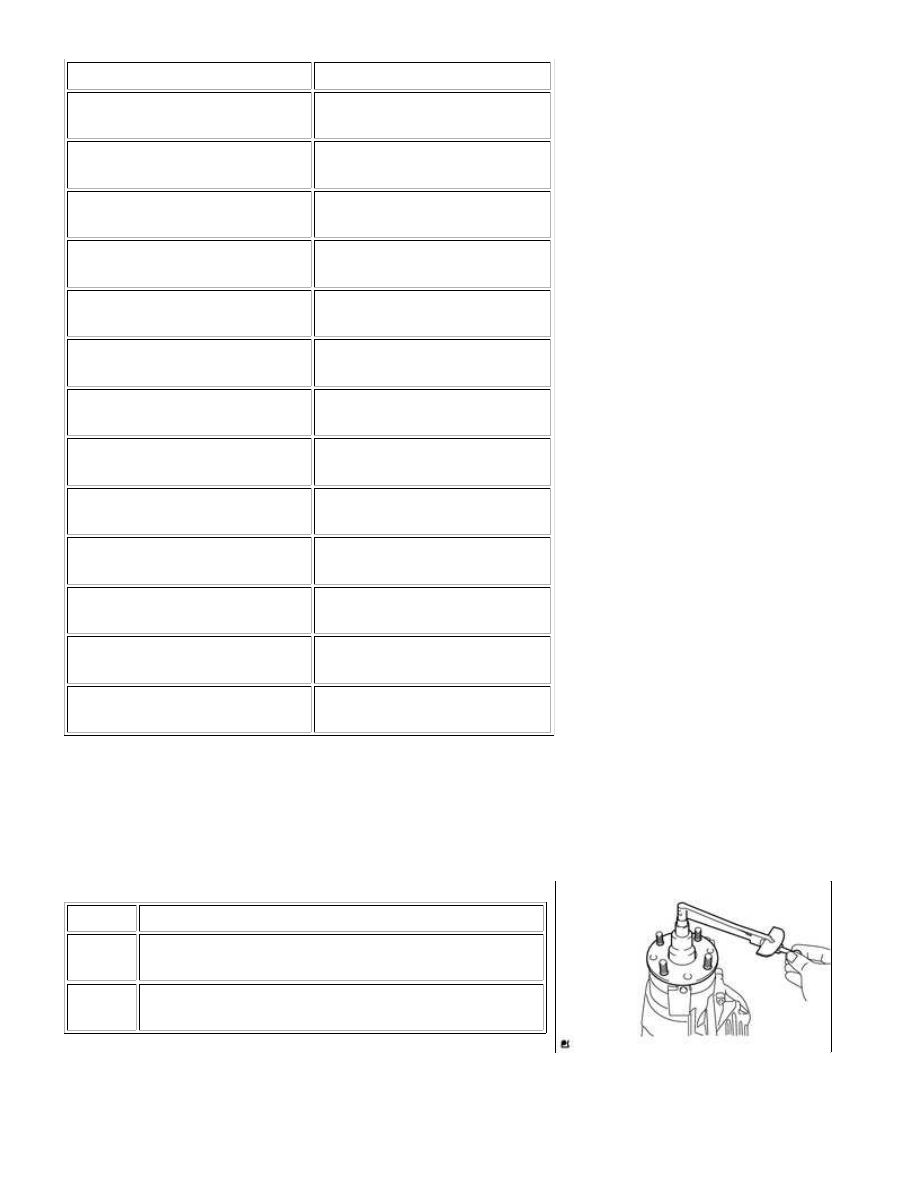

23. INSPECT TOTAL PRELOAD

(a) Using a torque wrench, measure the preload with the teeth of

the drive pinion and ring gear in contact.

Standard Drive Pinion Preload Plus:

BEARING

SPECIFIED CONDITION

New

Drive pinion preload + 1.61 to 2.41 N*m (17 to 24

kgf*cm, 15 to 21 in.*lbf)

Reused

Drive pinion preload + 1.33 to 2.13 N*m (14 to 21

kgf*cm, 12 to 18 in.*lbf)

NOTICE:

Record the differential ring gear preload.

If necessary, disassemble and inspect the differential.

DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER ASSEMBLY (f...

24. INSPECT TOOTH CONTACT BETWEEN RING GEAR AND DRIVE PINION

(a) Remove the bearing retainer and differential case.

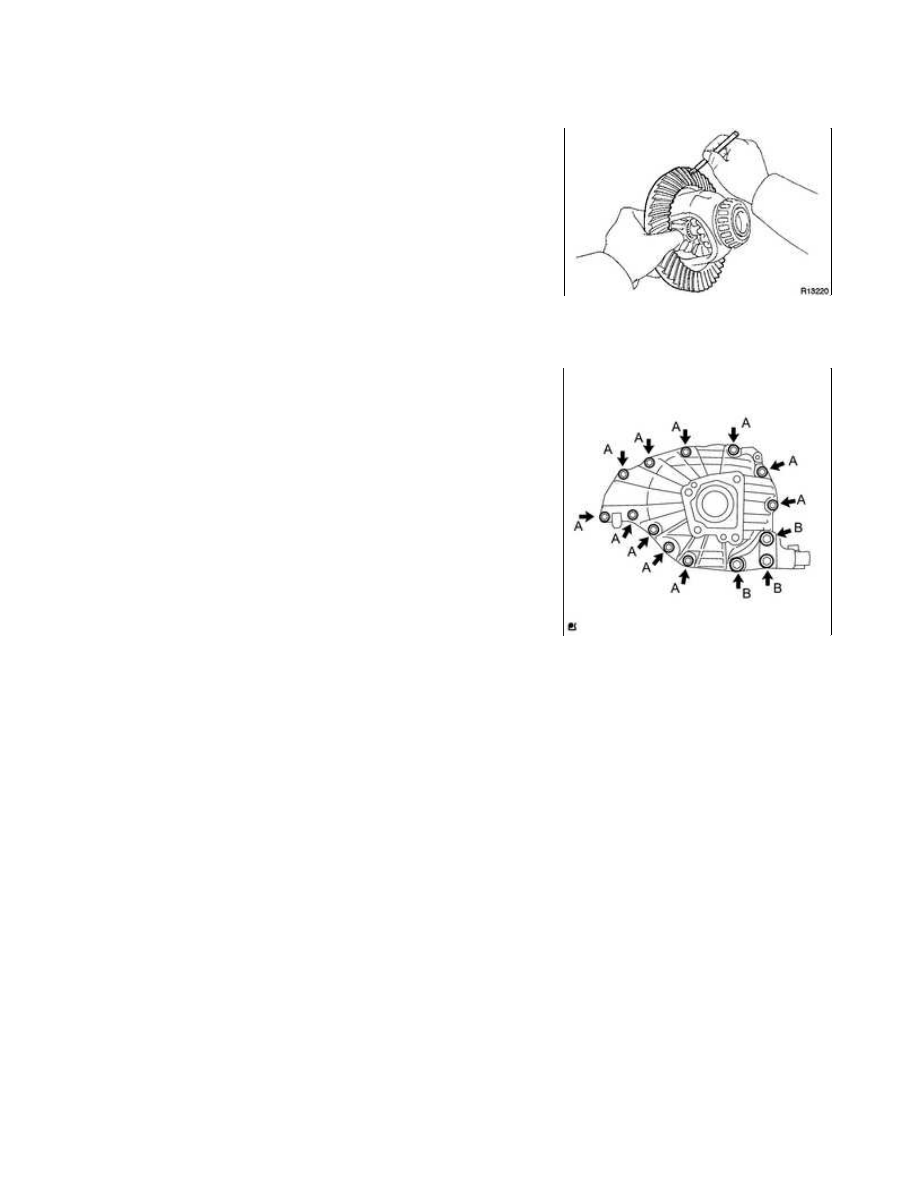

(b) Coat 3 or 4 teeth at 3 different positions on the ring gear with

Prussian blue.

(d) Install the differential cross shaft bearing retainer and front

differential front support assembly LH with the 14 bolts.

Torque:

for bolt A -

65 N·m {633 kgf·cm, 48ft·lbf}

for bolt B -

155 N·m {1581 kgf·cm, 114ft·lbf}

(e) Hold the companion flange firmly and rotate the ring gear in both directions.

(f) Remove the differential case, side bearing retainer and differential case.

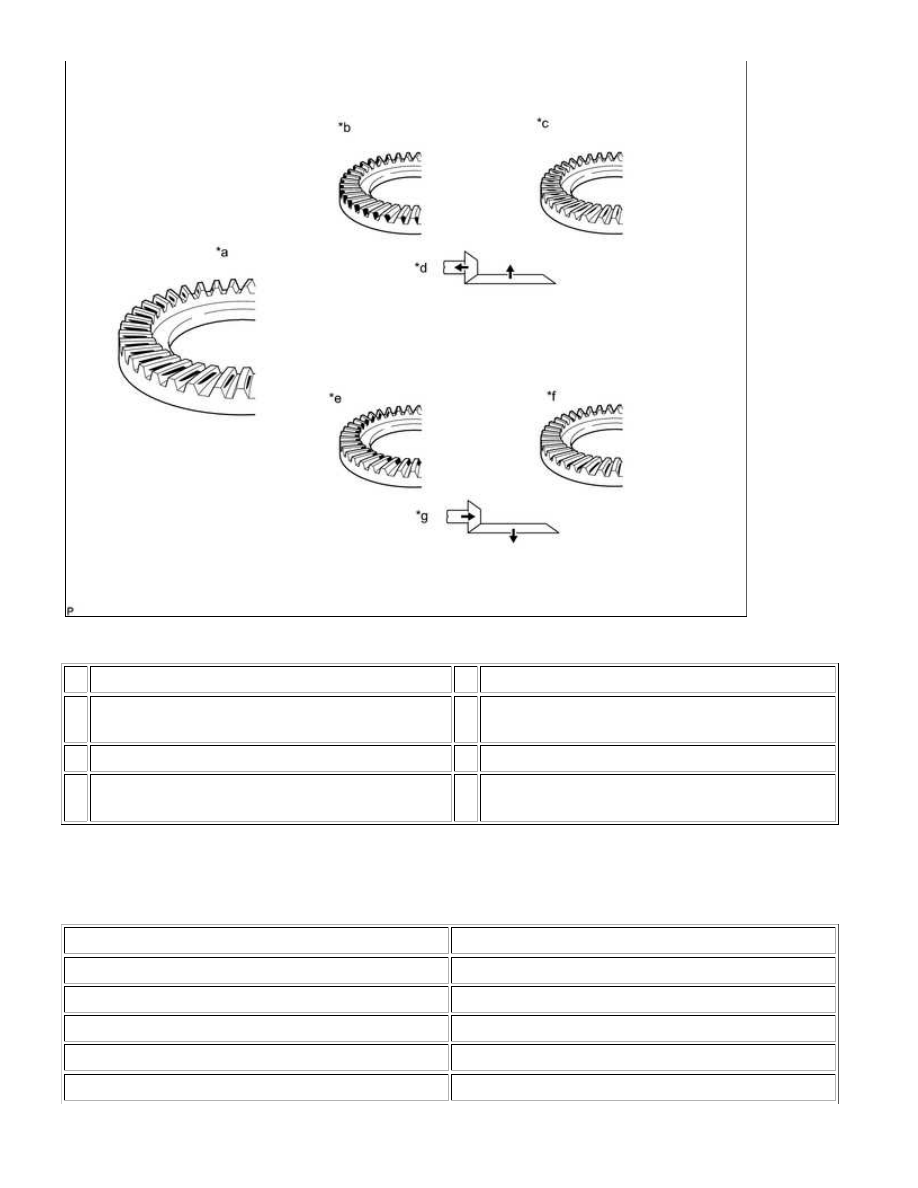

(g) Inspect the tooth contact pattern.

DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER ASSEMBLY (f...

Text in Illustration

*a Proper Contact

*b Heel Contact

*c Face Contact

Select an adjusting washer that will shift the drive

pinion closer to the ring gear (*b, *c)

*e Toe Contact

*f Flank Contact

Select an adjusting washer that will shift the drive

pinion away from the ring gear (*e, *f)

If the teeth are not engaged properly, use the following chart to select the appropriate washer for

correction.

Washer thickness:

THICKNESS

1.815 to 1.835 mm (0.0715 to 0.0722 in.)

2.065 to 2.085 mm (0.0813 to 0.0821 in.)

1.840 to 1.860 mm (0.0725 to 0.0732 in.)

2.090 to 2.110 mm (0.0823 to 0.0830 in.)

1.865 to 1.885 mm (0.0735 to 0.0742 in.)

2.115 to 2.135 mm (0.0833 to 0.0840 in.)

1.890 to 1.910 mm (0.0744 to 0.0751 in.)

2.140 to 2.160 mm (0.0843 to 0.0850 in.)

1.915 to 1.935 mm (0.0754 to 0.0761 in.)

2.165 to 2.185 mm (0.0853 to 0.0860 in.)

DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER ASSEMBLY (f...
