(d) After the moisture on the ring gear has completely evaporated,

quickly set the ring gear onto the differential case.

Text in Illustration

Adhesive

Matchmark

HINT:

Align the matchmarks on the ring gear and differential case.

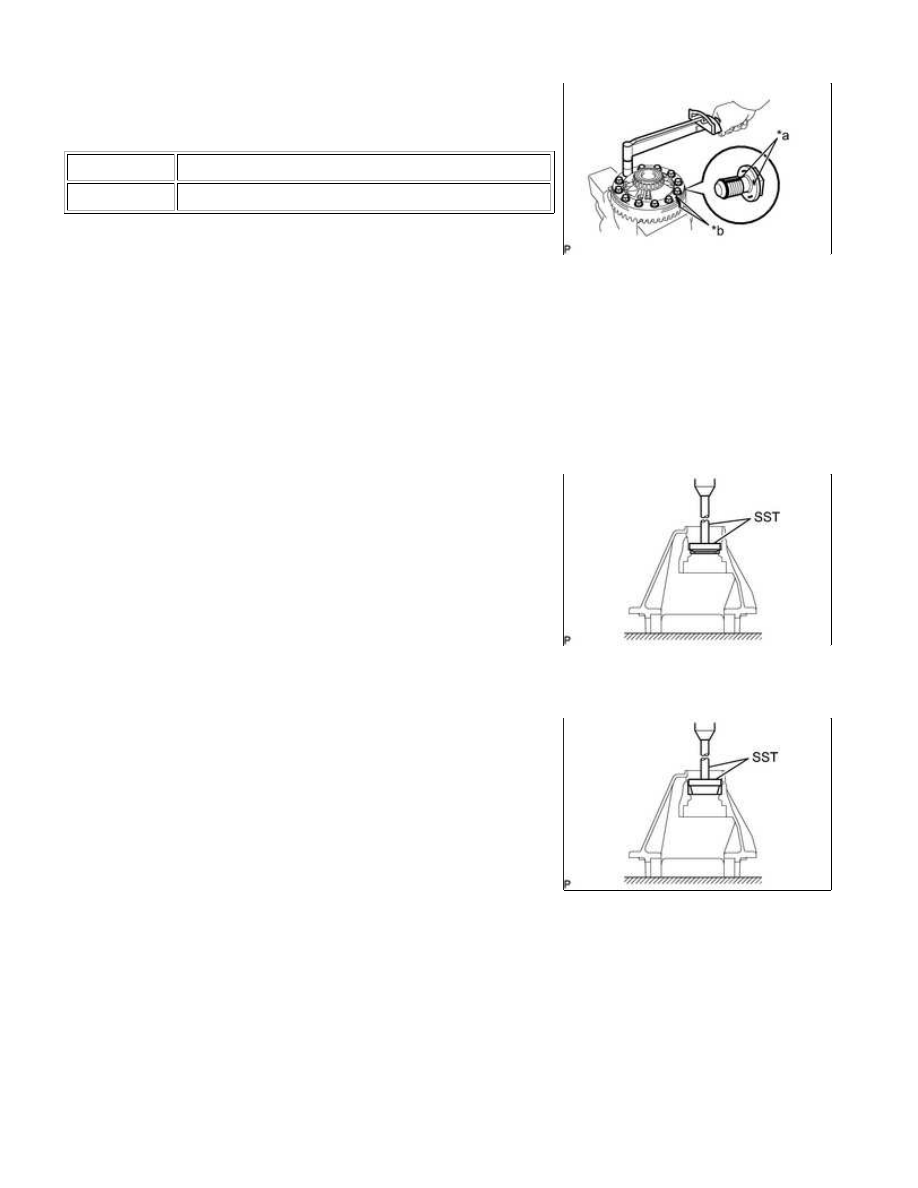

(e) After the ring gear cools down sufficiently, apply adhesive to the bolts and install them.

Adhesive:

Toyota Genuine Adhesive 1360K, Three Bond 1360K or equivalent

Torque:

197 N·m {2005 kgf·cm, 145ft·lbf}

5. INSTALL DIFFERENTIAL OIL STORAGE RING

(a) Using SST and a press, press in the oil storage ring to the

differential carrier.

SST: 09950-70010

09951-07150

SST: 09950-60020

09951-00750

6. INSTALL REAR DRIVE PINION FRONT TAPERED ROLLER BEARING

(a) Using SST and a press, press in the bearing (outer race).

SST: 09950-60020

09951-00810

SST: 09950-70010

09951-07150

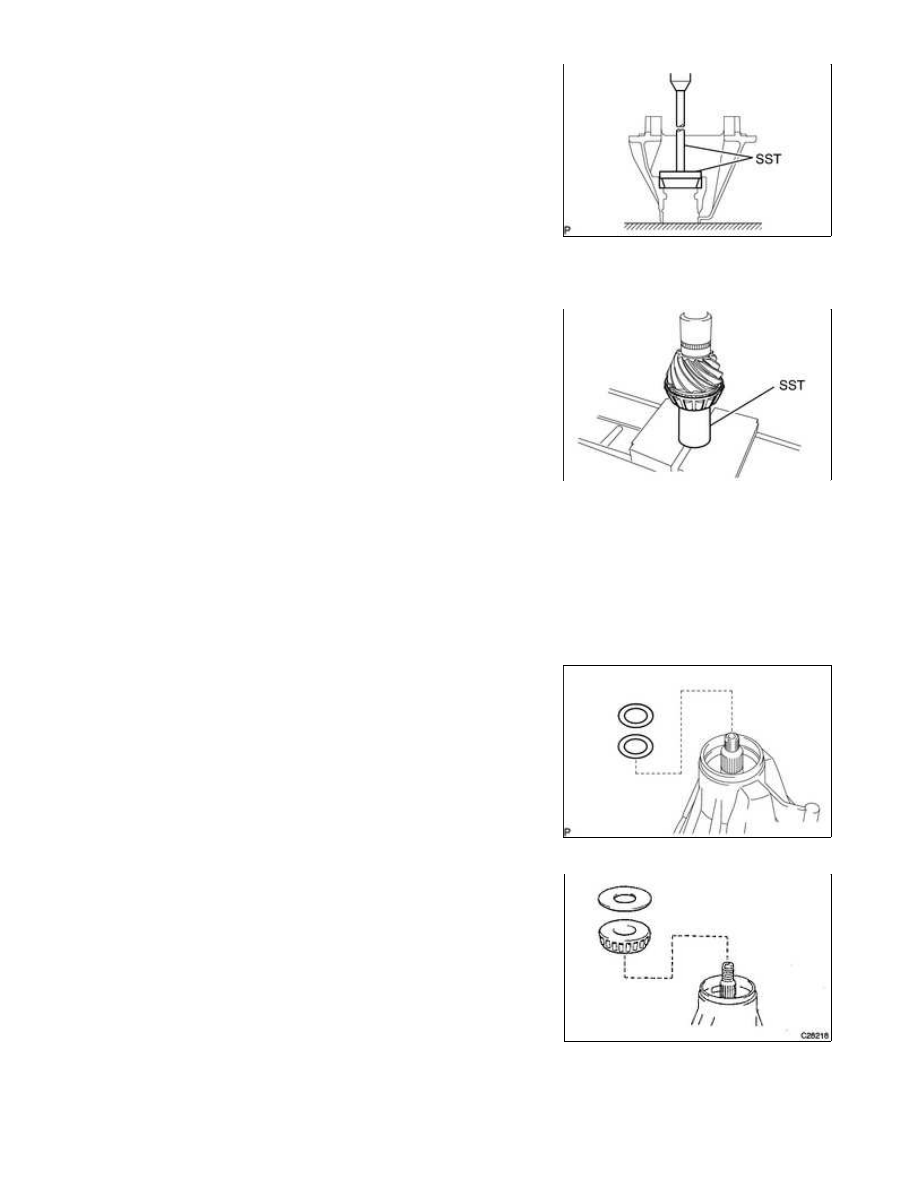

7. INSTALL REAR DRIVE PINION REAR TAPERED ROLLER BEARING

DIFFERENTIAL: DIFFERENTIAL CARRIER ASSEMBLY (for 3UR-...

(a) Using SST and a press, press in the bearing (outer race).

SST: 09950-60020

09951-01030

SST: 09950-70010

09951-07360

8. INSTALL REAR DRIVE PINION REAR TAPERED ROLLER BEARING

(a) Install the plate washer onto the drive pinion.

HINT:

First fit a washer with the same thickness as the removed

SST: 09630-24014

09620-24051

9. INSPECT DIFFERENTIAL DRIVE PINION PRELOAD (with Shim Pairing Table)

(a) Install the bearing spacer onto the drive pinion.

(b) Install the 2 preload adjusting shims.

HINT:

Install the oil seal after adjusting the gear contact pattern.

DIFFERENTIAL: DIFFERENTIAL CARRIER ASSEMBLY (for 3UR-...

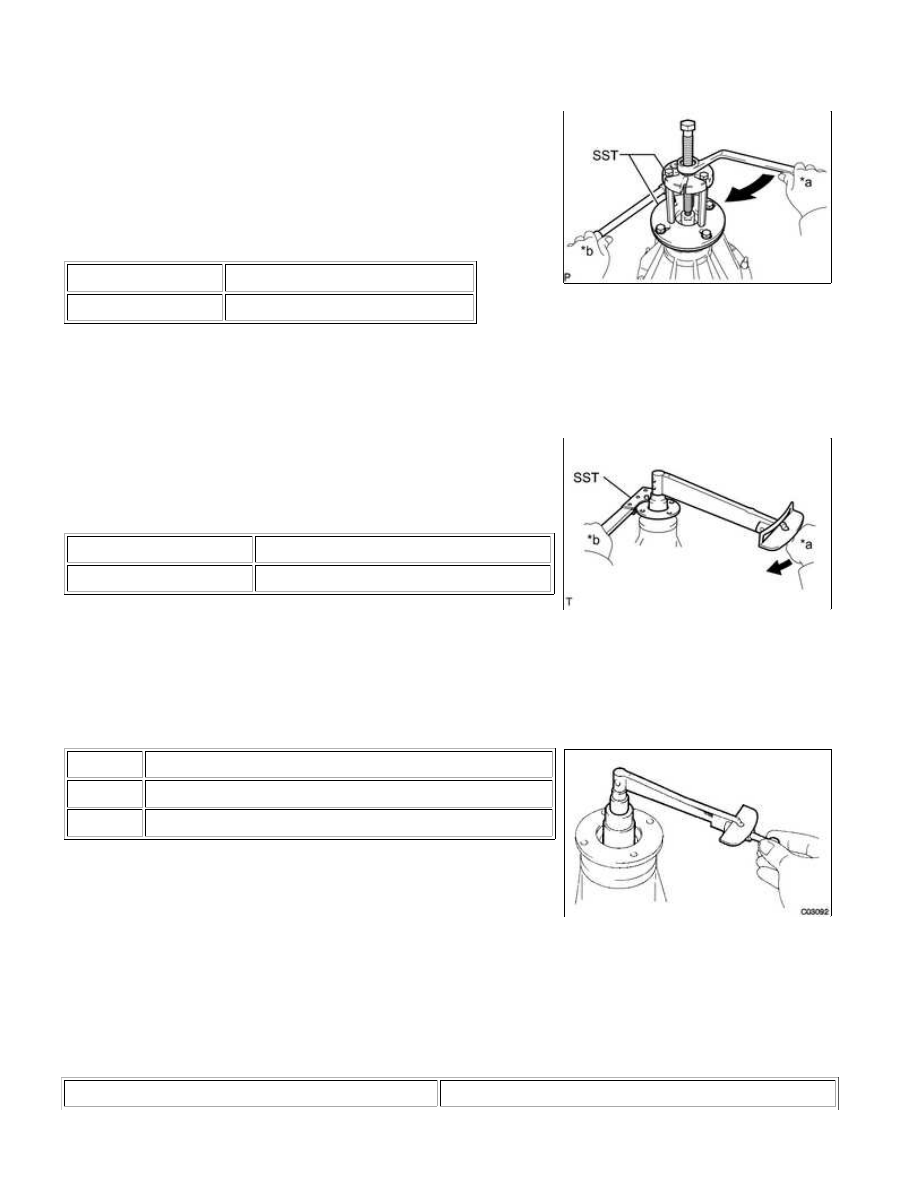

(d) Using SST, install the companion flange.

SST: 09950-30012

09951-03010

09953-03010

09954-03010

09956-03050

SST: 09955-03050

Text in Illustration

Turn

Hold

tightening it until the standard preload is reached.

SST: 09330-00021

09330-00030

Text in Illustration

Turn

Hold

Torque:

304 N·m {3100 kgf·cm, 224ft·lbf}

(g) Using a torque wrench, measure the preload.

Standard preload (at starting):

BEARING

SPECIFIED CONDITION

New

1.80 to 3.17 N*m (19 to 32 kgf*cm, 16 to 28 in.*lbf)

Reused

1.62 to 2.25 N*m (17 to 22 kgf*cm, 15 to 19 in.*lbf)

HINT:

Measure the total preload after first turning the bearing clockwise

and counterclockwise several times to make the bearing smooth.

If the preload is not within the specification, adjust the preload

until it is within the specification by performing the following

procedures.

SHIM A THICKNESS

SHIM B THICKNESS

DIFFERENTIAL: DIFFERENTIAL CARRIER ASSEMBLY (for 3UR-...

SHIM A THICKNESS

SHIM B THICKNESS

1.89 to 1.91 mm (0.0744 to 0.0751 in.)

1.792 to 1.808 mm (0.0706 to 0.0711 in.)

1.99 to 2.01 mm (0.0784 to 0.0791 in.)

1.802 to 1.818 mm (0.0710 to 0.0715 in.)

2.09 to 2.11 mm (0.0823 to 0.0830 in.)

1.812 to 1.828 mm (0.0714 to 0.0719 in.)

2.19 to 2.21 mm (0.0863 to 0.0870 in.)

1.822 to 1.838 mm (0.0718 to 0.0723 in.)

2.29 to 2.31 mm (0.0902 to 0.0909 in.)

1.832 to 1.848 mm (0.0723 to 0.0727 in.)

2.39 to 2.41 mm (0.0941 to 0.0948 in.)

1.842 to 1.858 mm (0.0726 to 0.0731 in.)

2.49 to 2.51 mm (0.0981 to 0.0988 in.)

1.852 to 1.868 mm (0.0730 to 0.0735 in.)

2.59 to 2.61 mm (0.1020 to 0.1027 in.)

1.862 to 1.878 mm (0.0733 to 0.0739 in.)

2.69 to 2.71 mm (0.1060 to 0.1066 in.)

1.872 to 1.888 mm (0.0737 to 0.0743 in.)

2.79 to 2.81 mm (0.1099 to 0.1106 in.)

1.882 to 1.898 mm (0.0741 to 0.0747 in.)

2.89 to 2.91 mm (0.1138 to 0.1145 in.)

2.99 to 3.01 mm (0.1178 to 0.1185 in.)

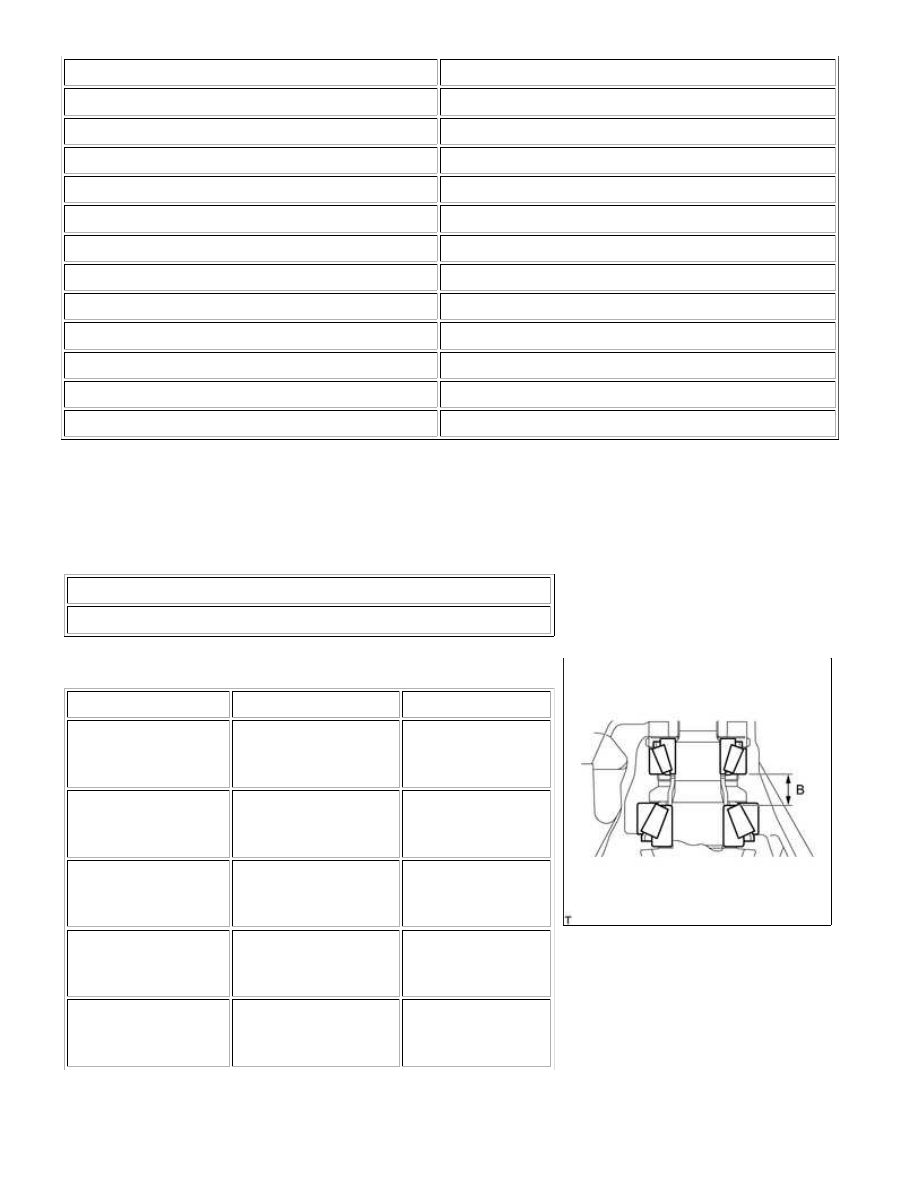

(i) Calculate the B measurement.

B measurement:

Shim A + Shim B + Spacer = B measurement

Spacer:

MEASUREMENT

24.15 to 24.20 mm (0.9508 to 0.9527 in.)

Preload adjustment shim pairing table (Reference):

SHIM A THICKNESS

SHIM B THICKNESS

B MEASUREMENT

1.89 to 1.91 mm

(0.0744 to 0.0751 in.)

1.792 to 1.808 mm

(0.0706 to 0.0711 in.)

27.832 to 27.918

mm (1.0958 to

1.0991 in.)

↑

1.802 to 1.818 mm

(0.0710 to 0.0715 in.)

27.842 to 27.928

mm (1.0962 to

1.0995 in.)

↑

1.812 to 1.828 mm

(0.0714 to 0.0719 in.)

27.852 to 27.938

mm (1.0966 to

1.0999 in.)

↑

1.822 to 1.838 mm

(0.0718 to 0.0723 in.)

27.862 to 27.948

mm (1.0970 to

1.1003 in.)

↑

1.832 to 1.848 mm

(0.0722 to 0.0727 in.)

27.872 to 27.958

mm (1.0974 to

1.1007 in.)

DIFFERENTIAL: DIFFERENTIAL CARRIER ASSEMBLY (for 3UR-...
