Last Modified: 9-16-2014

6.6 G

Doc ID: RM000000ODH05UX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: A760F AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: INSPECTION; 2015 MY Tundra [08/2014 -

       ]

INSPECTION

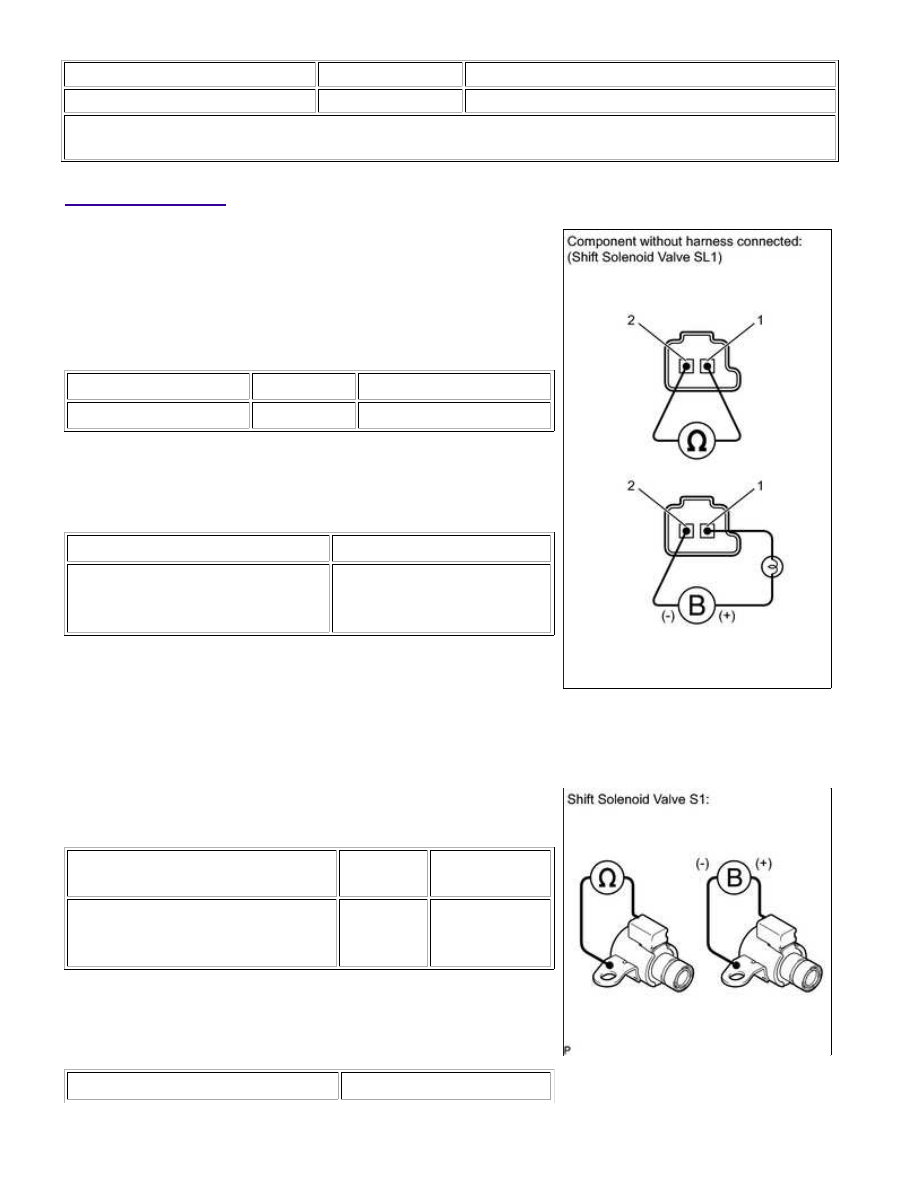

1. INSPECT SHIFT SOLENOID VALVE SL1

(a) Measure the resistance according to the value(s) in the table

below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

1 - 2

20°C (68°F)

5.0 to 5.6 Ω

(b) Apply 12 V battery voltage to the shift solenoid valve and check

that the valve moves and makes an operating noise.

OK:

MEASUREMENT CONDITION

SPECIFIED CONDITION

Battery positive (+) with a 21 W bulb

→ Terminal 1
Battery negative (-) → Terminal 2

Valve moves and makes an

operating noise

If the result is not as specified, replace the solenoid valve.

2. INSPECT SHIFT SOLENOID VALVE S1

(a) Measure the resistance according to the value(s) in the table

below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED

CONDITION

Shift solenoid valve S1 connector

terminal - Shift solenoid valve S1

body

20°C

(68°F)

11 to 15 Ω

(b) Apply 12 V battery voltage to the shift solenoid valve and check

that the valve moves and makes an operating noise.

OK:

MEASUREMENT CONDITION

SPECIFIED CONDITION

A760F AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY:...

MEASUREMENT CONDITION

SPECIFIED CONDITION

Battery positive (+) → Shift solenoid
valve S1 connector

Battery negative (-) → Shift solenoid
valve S1 body

Valve moves and makes an

operating noise

If the result is not as specified, replace the solenoid valve.

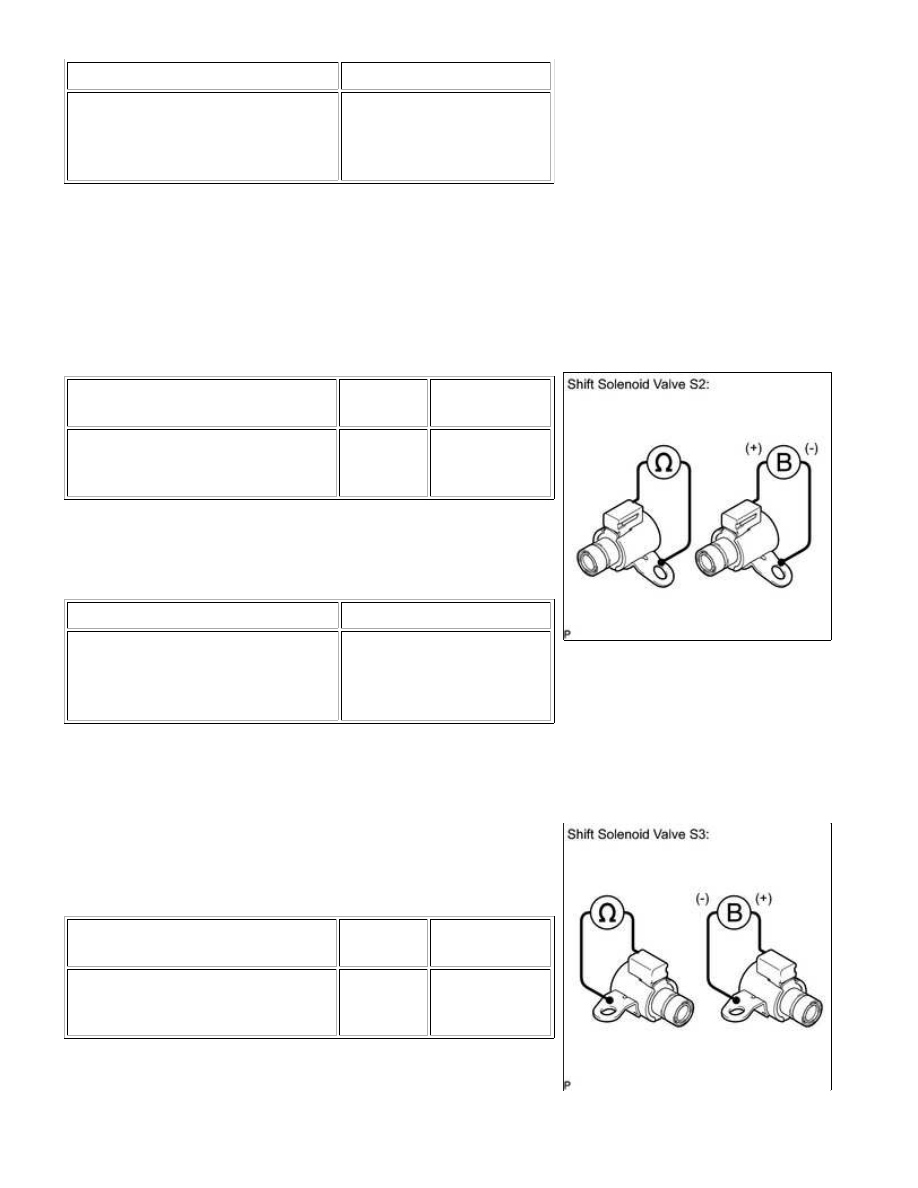

3. INSPECT SHIFT SOLENOID VALVE S2

(a) Measure the resistance according to the value(s) in the table

below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED

CONDITION

Shift solenoid valve S2 connector

terminal - Shift solenoid valve S2

body

20°C

(68°F)

11 to 15 Ω

(b) Apply 12 V battery voltage to the shift solenoid valve and check

that the valve moves and makes an operating noise.

OK:

MEASUREMENT CONDITION

SPECIFIED CONDITION

Battery positive (+) → Shift solenoid
valve S2 connector

Battery negative (-) → Shift solenoid
valve S2 body

Valve moves and makes an

operating noise

If the result is not as specified, replace the solenoid valve.

4. INSPECT SHIFT SOLENOID VALVE S3

(a) Measure the resistance according to the value(s) in the table

below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED

CONDITION

Shift solenoid valve S3 connector

terminal - Shift solenoid valve S3

body

20°C

(68°F)

11 to 15 Ω

(b) Apply 12 V battery voltage to the shift solenoid valve and check

that the valve moves and makes an operating noise.

OK:

A760F AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY:...

MEASUREMENT CONDITION

SPECIFIED CONDITION

Battery positive (+) → Shift solenoid
valve S3 connector

Battery negative (-) → Shift solenoid
valve S3 body

Valve moves and makes an

operating noise

If the result is not as specified, replace the solenoid valve.

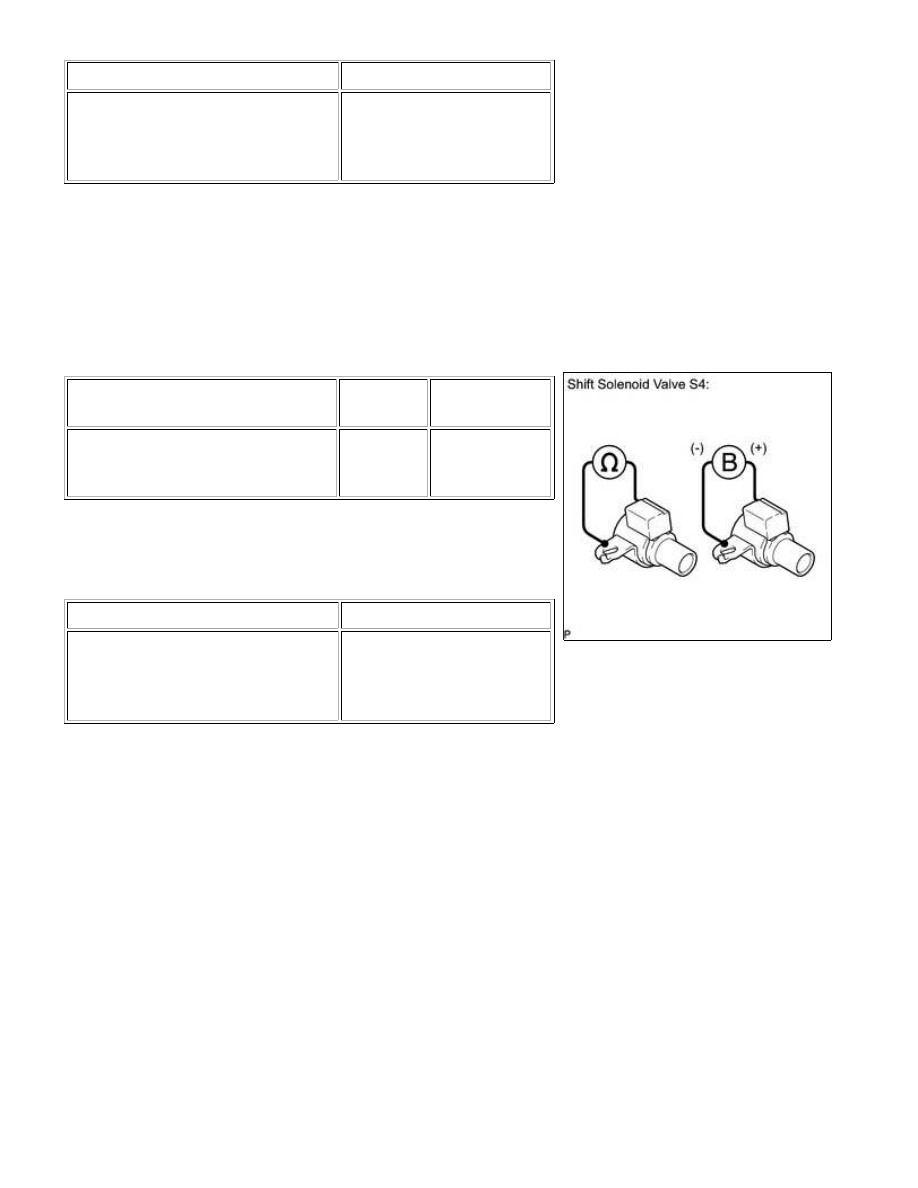

5. INSPECT SHIFT SOLENOID VALVE S4

(a) Measure the resistance according to the value(s) in the table

below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED

CONDITION

Shift solenoid valve S4 connector

terminal - Shift solenoid valve S4

body

20°C

(68°F)

11 to 15 Ω

(b) Apply 12 V battery voltage to the shift solenoid valve and check

that the valve moves and makes an operating noise.

OK:

MEASUREMENT CONDITION

SPECIFIED CONDITION

Battery positive (+) → Shift solenoid
valve S4 connector

Battery negative (-) → Shift solenoid
valve S4 body

Valve moves and makes an

operating noise

If the result is not as specified, replace the solenoid valve.

A760F AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY:...

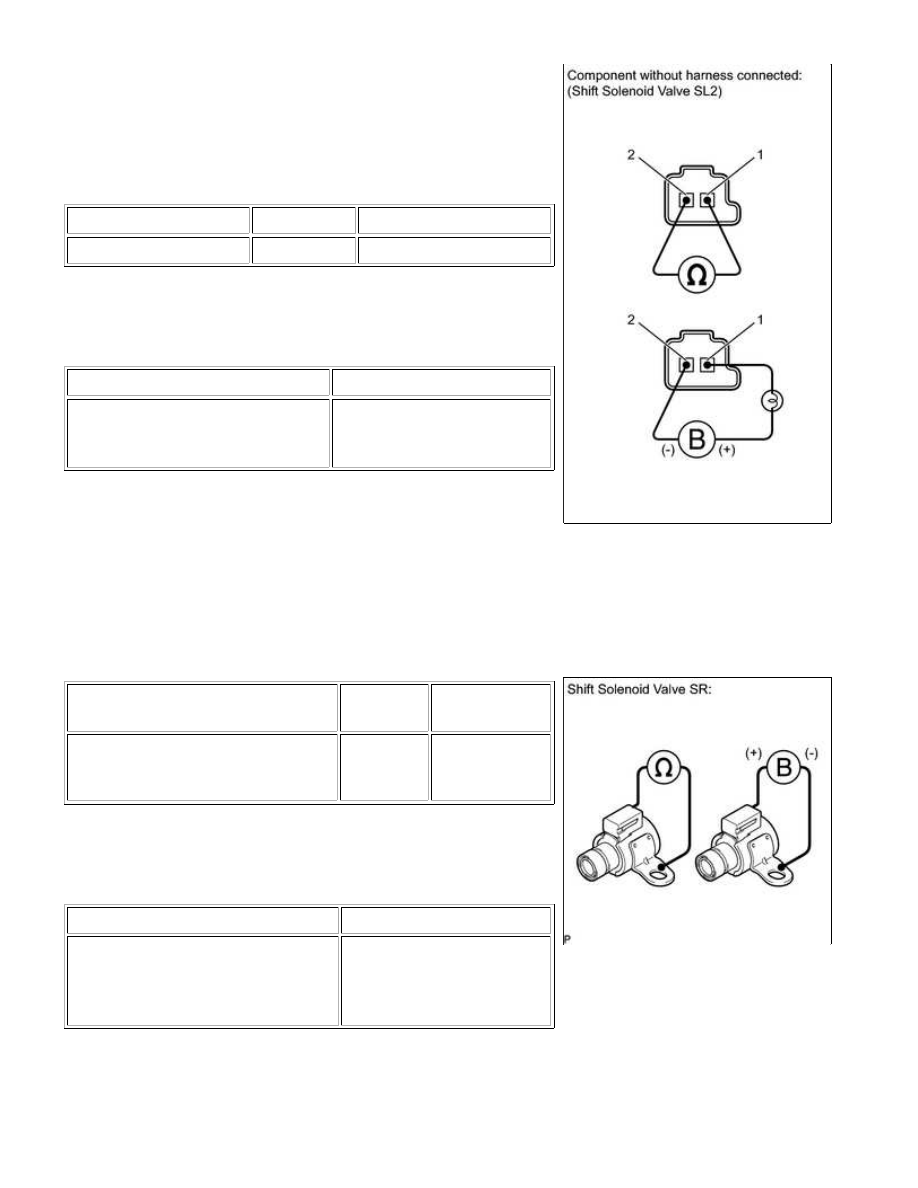

6. INSPECT SHIFT SOLENOID VALVE SL2

(a) Measure the resistance according to the value(s) in the table

below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

1 - 2

20°C (68°F)

5.0 to 5.6 Ω

(b) Apply 12 V battery voltage to the shift solenoid valve and check

that the valve moves and makes an operating noise.

OK:

MEASUREMENT CONDITION

SPECIFIED CONDITION

Battery positive (+) with a 21 W bulb

→ Terminal 1

Battery negative (-) → Terminal 2

Valve moves and makes an

operating noise

If the result is not as specified, replace the solenoid valve.

7. INSPECT SHIFT SOLENOID VALVE SR

(a) Measure the resistance according to the value(s) in the table

below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED

CONDITION

Shift solenoid valve SR connector

terminal - Shift solenoid valve SR

body

20°C

(68°F)

11 to 15 Ω

(b) Apply 12 V battery voltage to the shift solenoid valve and check

that the valve moves and makes an operating noise.

OK:

MEASUREMENT CONDITION

SPECIFIED CONDITION

Battery positive (+) → Shift solenoid
valve SR connector

Battery negative (-) → Shift solenoid
valve SR body

Valve moves and makes an

operating noise

If the result is not as specified, replace the solenoid valve.

A760F AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY:...
