Toyota Tundra (2015 year). Manual - part 2800





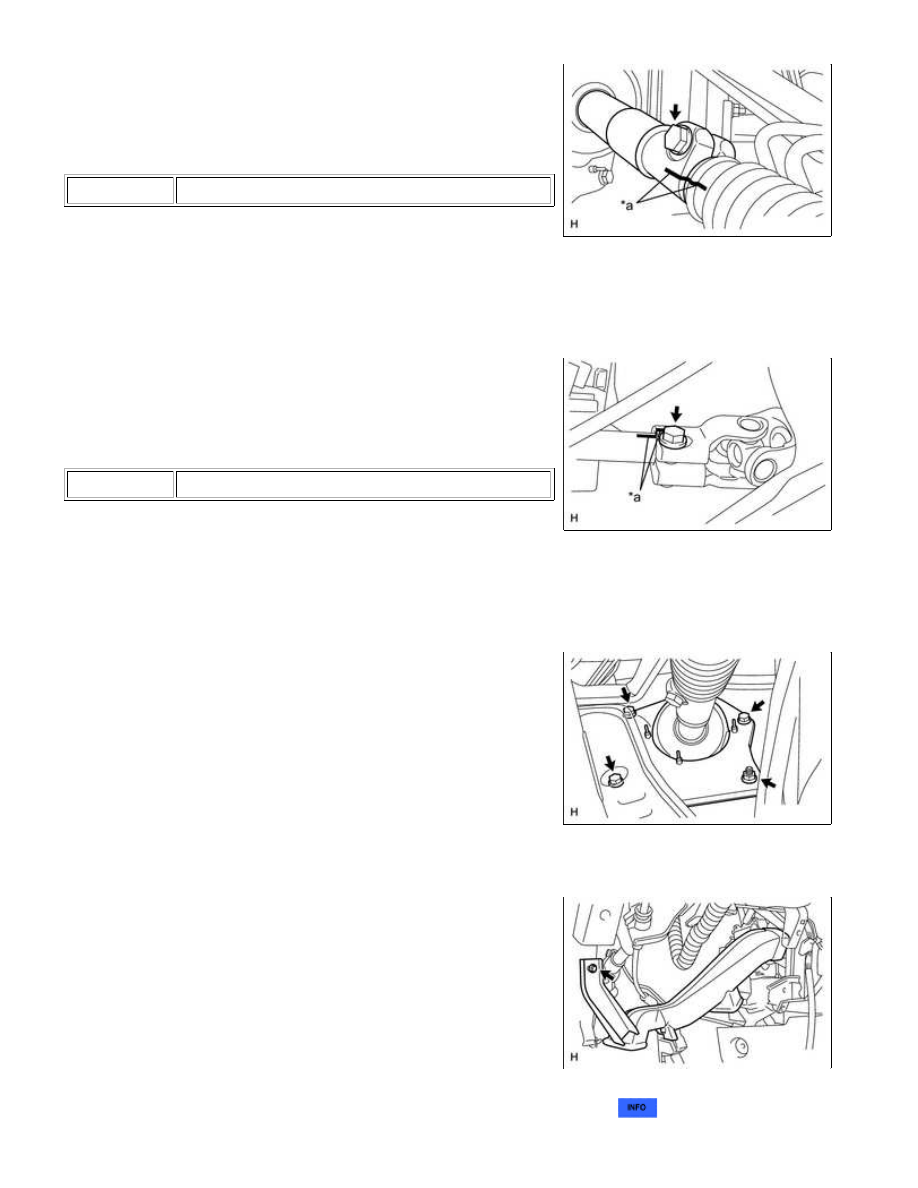

(a) Align the matchmarks on the steering intermediate shaft and

No. 2 steering intermediate shaft.

Text in Illustration

*a

Matchmark

(b) Install the bolt.

Torque:

35 N·m {357 kgf·cm, 26ft·lbf}

(c) Align the matchmarks on the steering column and steering

intermediate shaft.

Text in Illustration

*a

Matchmark

(d) Install the bolt.

Torque:

35 N·m {357 kgf·cm, 26ft·lbf}

(e) Install the 3 bolts and nut.

Torque:

5.0 N·m {51 kgf·cm, 44in·lbf}

4. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY

(a) Install the air duct with the bolt.

5. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Power...

6. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

7. INSTALL INSTRUMENT SIDE PANEL LH

8. INSTALL COWL SIDE TRIM BOARD LH

9. INSTALL FRONT DOOR SCUFF PLATE LH (for Regular Cab)

10. INSTALL FRONT DOOR SCUFF PLATE LH (for Double Cab, CrewMax)

11. INSTALL COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

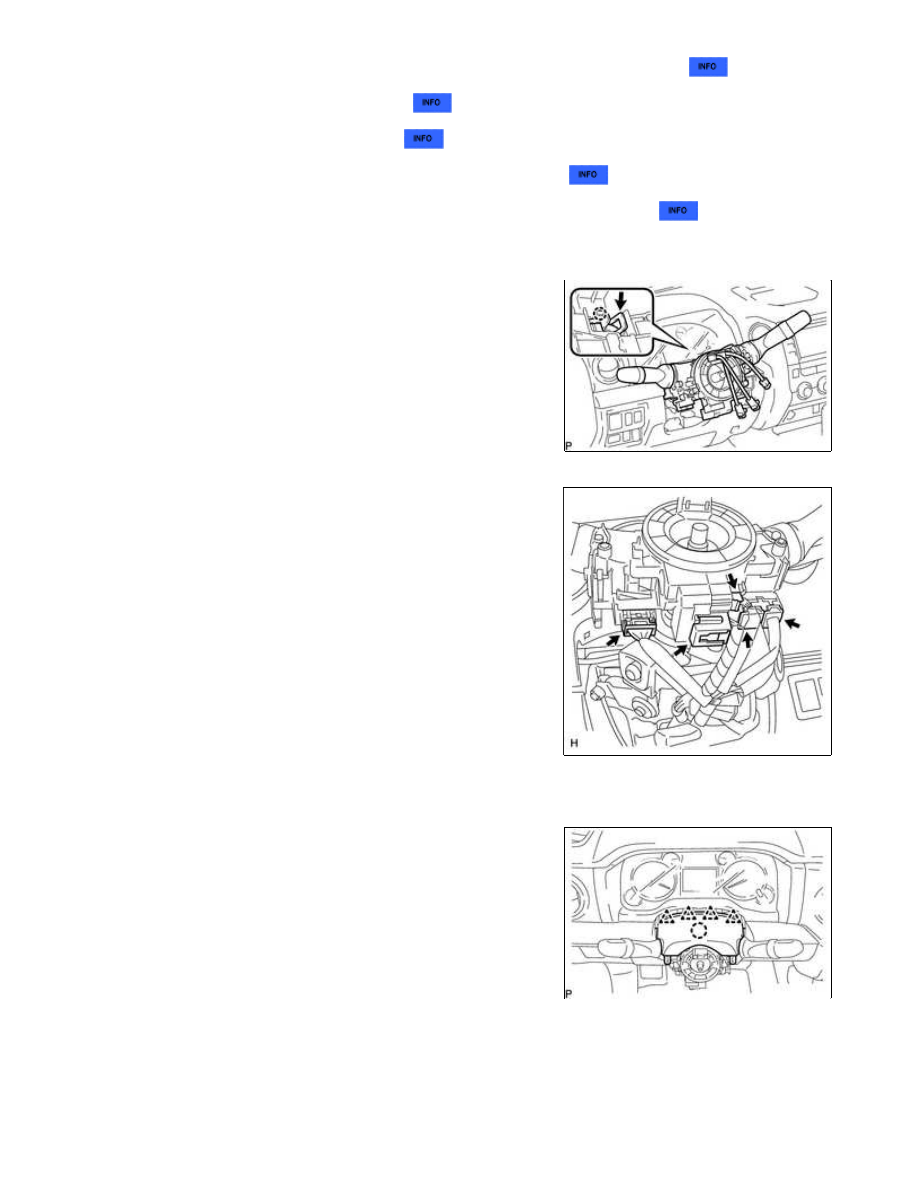

(a) Install the combination switch assembly with spiral cable to the

steering column assembly with the clamp.

(b) Connect the 5 connectors to the combination switch with spiral

cable.

12. INSTALL UPPER STEERING COLUMN COVER

(a) Attach the claw to install the upper steering column cover.

(b) Attach the 4 clips.

13. INSTALL LOWER STEERING COLUMN COVER

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Power...

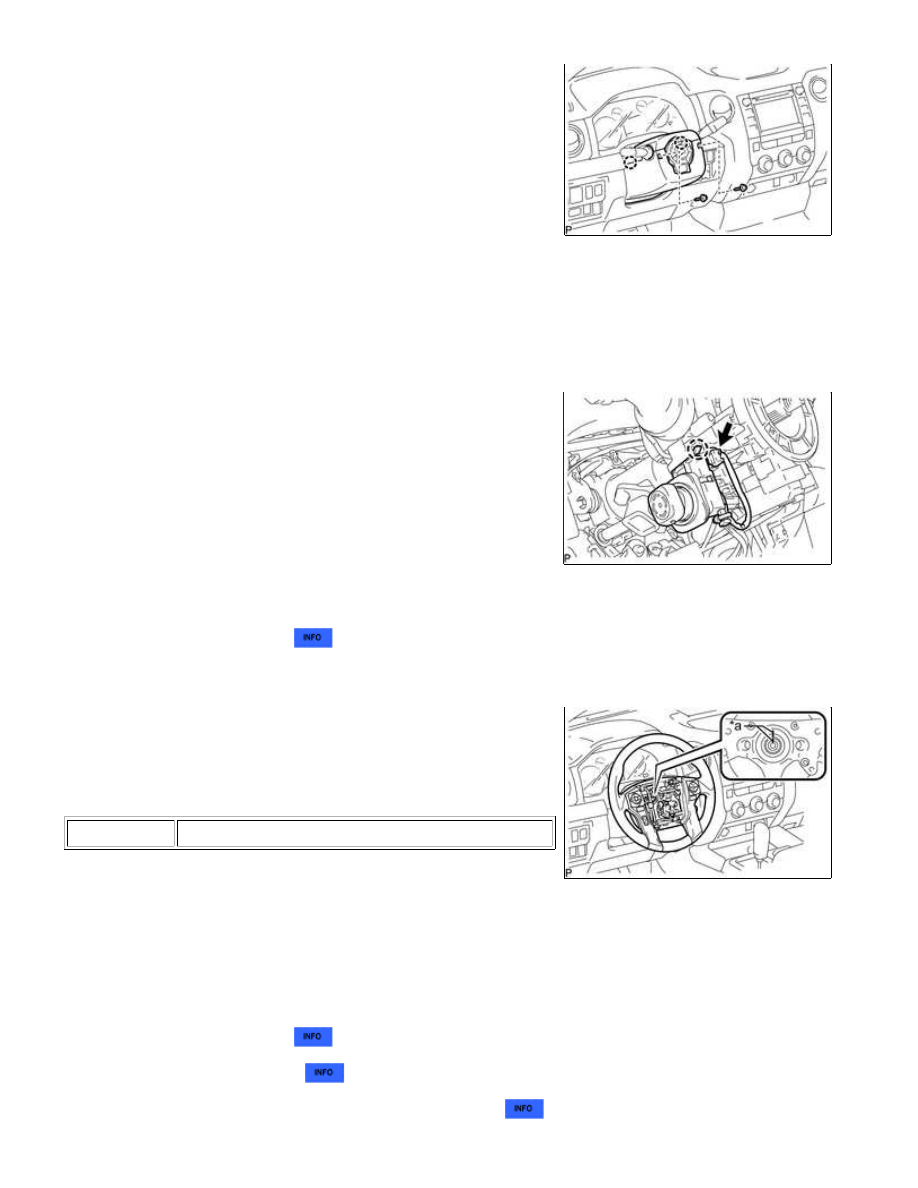

(a) Attach the 2 claws to install the column cover.

(b) Install the 2 screws.

Torque:

2.0 N·m {20 kgf·cm, 18in·lbf}

14. INSTALL TILT AND TELESCOPIC MANUAL SWITCH

(a) Attach the claw to install the tilt and telescopic switch.

(b) Connect the connector.

15. ADJUST SPIRAL CABLE

16. INSTALL STEERING WHEEL ASSEMBLY

(a) Align the matchmarks on the steering wheel and steering main

shaft.

Text in Illustration

*a

Matchmark

(b) Install the steering wheel set nut.

Torque:

50 N·m {510 kgf·cm, 37ft·lbf}

17. INSPECT STEERING WHEEL CENTER POINT

18. ADJUST SPIRAL CABLE

19. INSTALL STEERING PAD

20. INSTALL LOWER NO. 3 STEERING WHEEL COVER

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Power...

21. INSTALL LOWER NO. 2 STEERING WHEEL COVER

22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque:

5.4 N·m {55 kgf·cm, 48in·lbf}

NOTICE:

Some systems need to be initialized after the cable is reconnected



.

23. CHECK SRS WARNING LIGHT

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Power...
