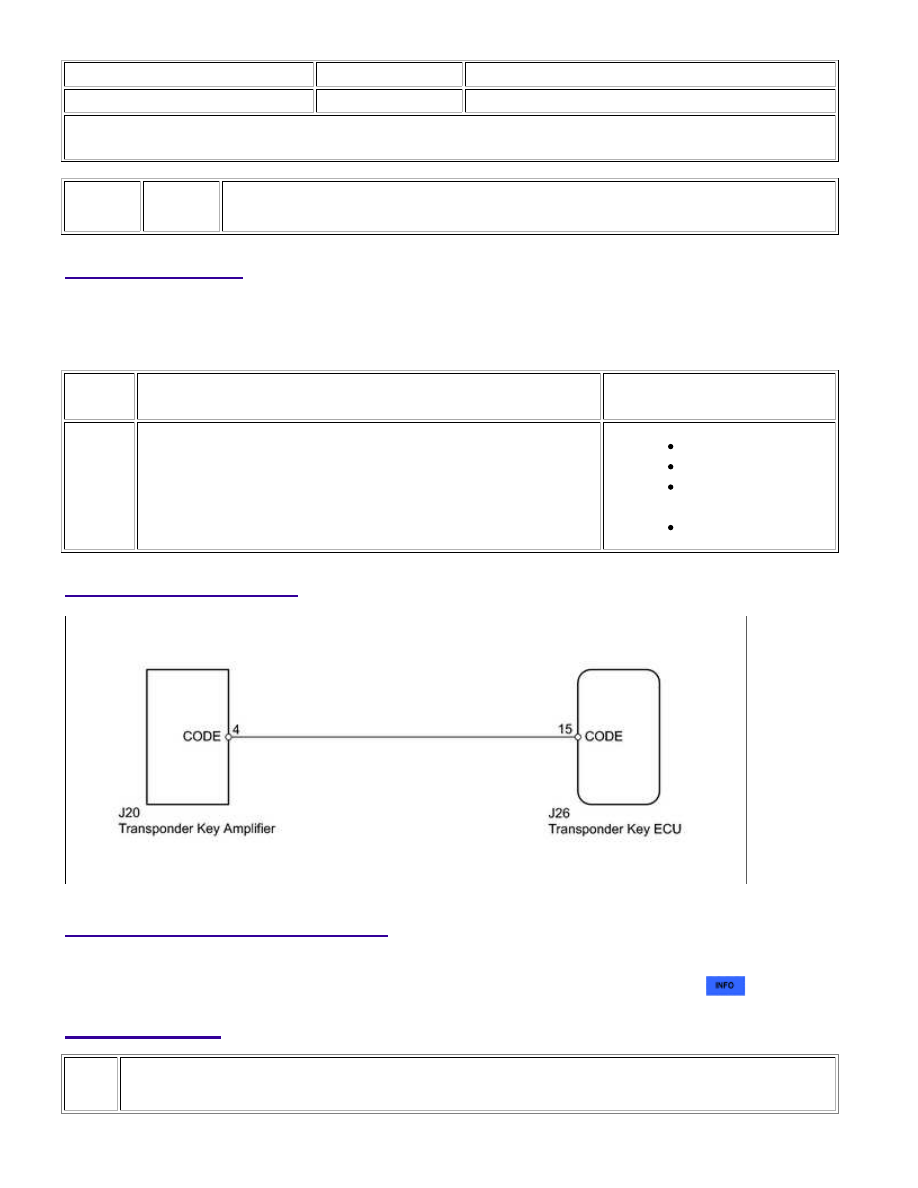

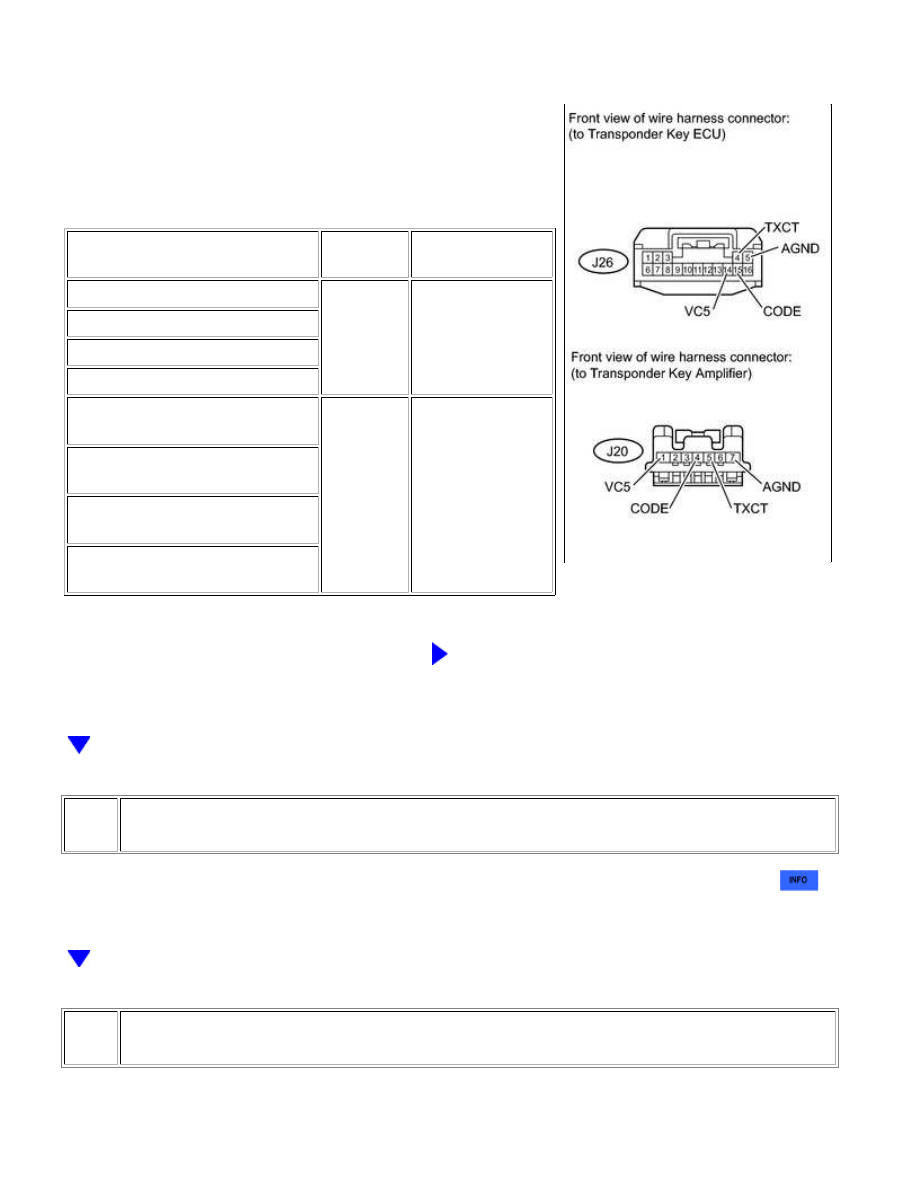

OK NEXT (a) Disconnect the J26 ECU connector. (b) Disconnect the J20 amplifier connector. (c) Measure the resistance according to the value(s) in the table below. Standard resistance: TESTER CONNECTION CONDITION SPECIFIED CONDITION J26-14 (VC5) - J20-1 (VC5) Always Below 1 Ω J26-15 (CODE) - J20-4 (CODE) J26-4 (TXCT) - J20-5 (TXCT) J26-5 (AGND) - J20-7 (AGND) J26-14 (VC5) or J20-1 (VC5) - Body ground Always 10 kΩ or higher J26-15 (CODE) or J20-4 (CODE) - Body ground J26-4 (TXCT) or J20-5 (TXCT) - Body ground J26-5 (AGND) or J20-7 (AGND) - Body ground NG REPAIR OR REPLACE HARNESS OR CONNECTOR 6. REPLACE TRANSPONDER KEY AMPLIFIER (a) Temporarily replace the transponder key amplifier with a new or normally functioning one

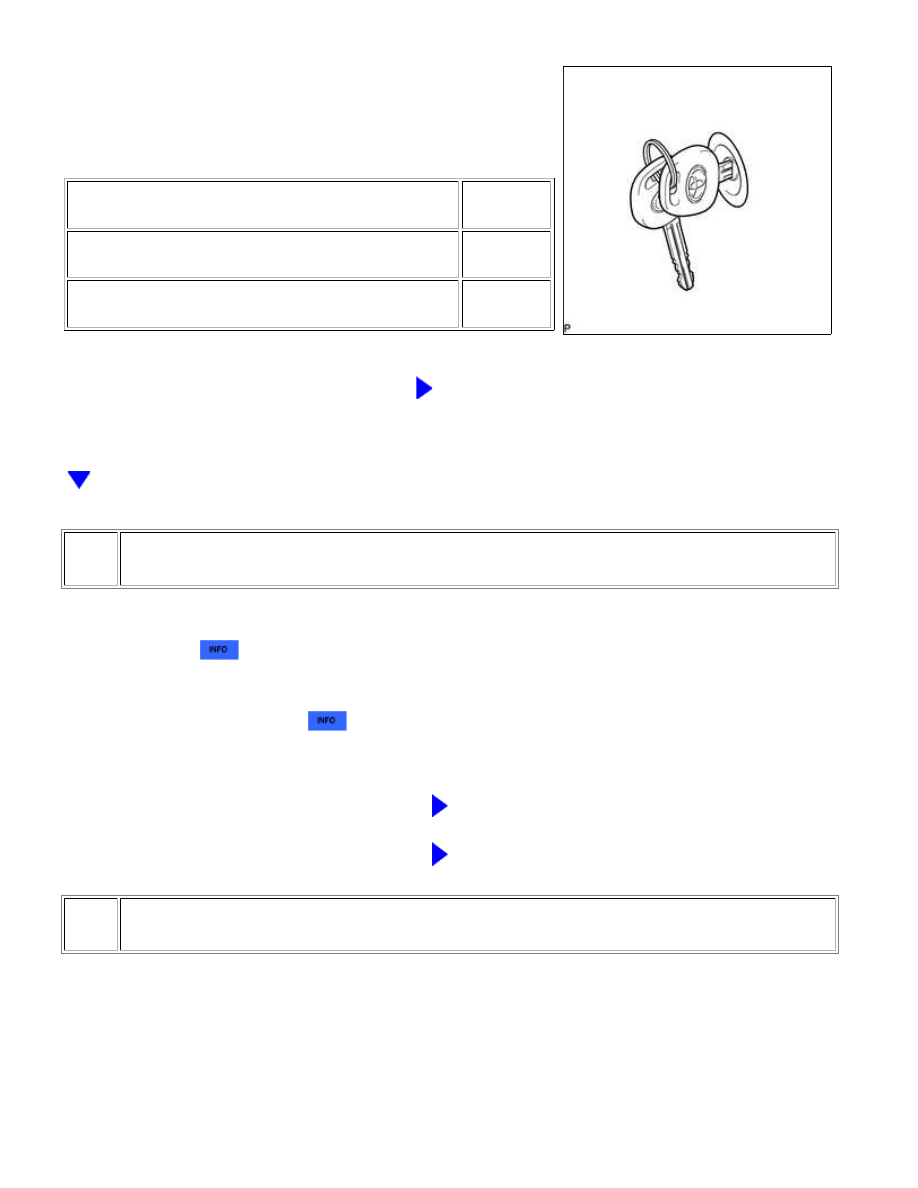

. 7. CHECK WHETHER ENGINE STARTS (a) Check that the engine starts normally. OK: ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: B2796,B... |
