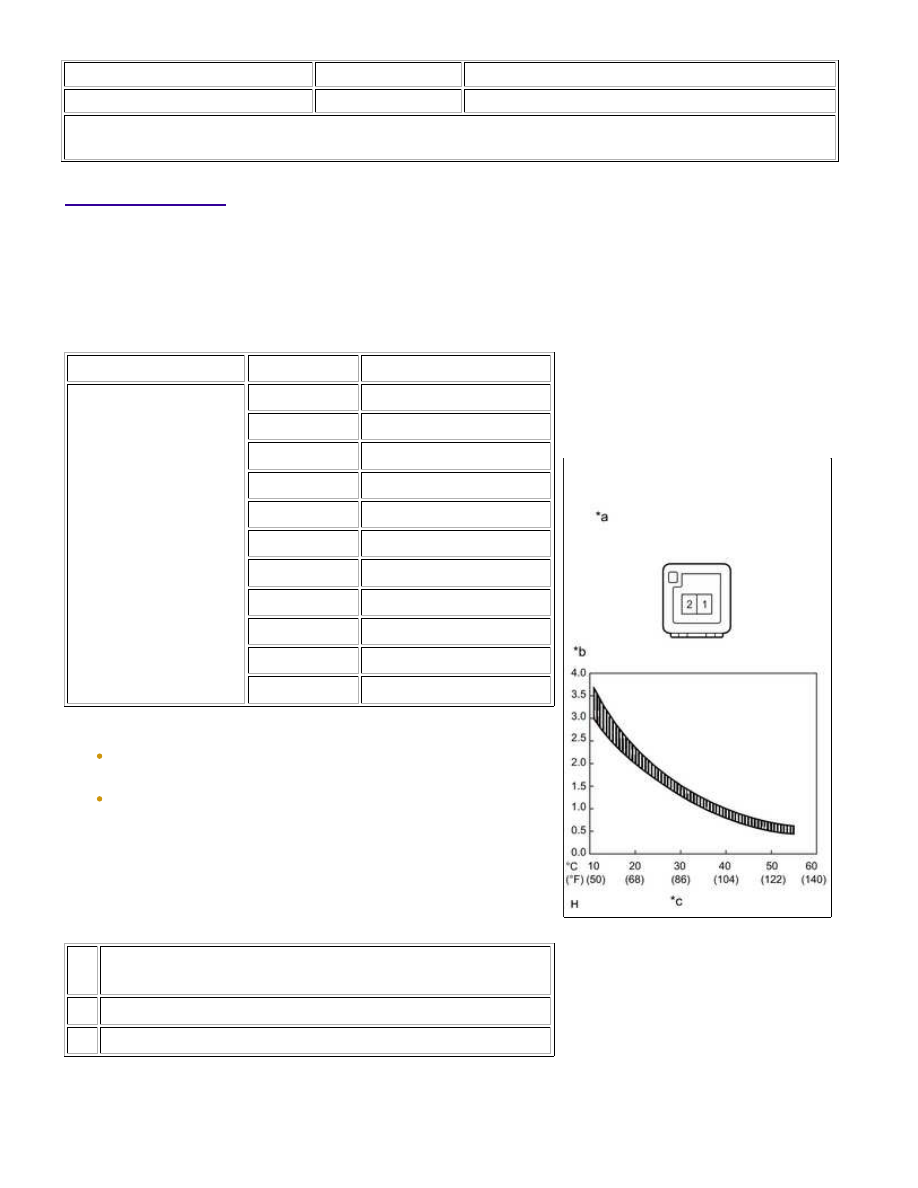

Last Modified: 9-16-2014 6.6 G Doc ID: RM000000Y0G03RX Model Year: 2015 Model: Tundra Prod Date Range: [08/2014 - ] Title: AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Automatic Air Conditioning System): INSPECTION; 2015 MY Tundra [08/2014 - ] INSPECTION 1. INSPECT COOLER (ROOM TEMPERATURE SENSOR) THERMISTOR (a) Measure the resistance according to the value(s) in the table below. Standard Resistance: TESTER CONNECTION CONDITION SPECIFIED CONDITION 1 - 2 10°C (50°F) 3.00 to 3.73 kΩ 15°C (59°F) 2.45 to 2.88 kΩ 20°C (68°F) 1.95 to 2.30 kΩ 25°C (77°F) 1.60 to 1.80 kΩ 30°C (86°F) 1.28 to 1.47 kΩ 35°C (95°F) 1.00 to 1.22 kΩ 40°C (104°F) 0.80 to 1.00 kΩ 45°C (113°F) 0.65 to 0.85 kΩ 50°C (122°F) 0.50 to 0.70 kΩ 55°C (131°F) 0.44 to 0.60 kΩ 60°C (140°F) 0.36 to 0.50 kΩ NOTICE: HINT: As the temperature increases, the resistance decreases (see the graph). Text in Illustration *a Component without harness connected (Cooler (Room Temperature Sensor) Thermistor) *b Resistance (kΩ) *c Temperature If the result is not as specified, replace the cooler (room temperature sensor) thermistor. AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Automati... |
