Toyota Tundra (2015 year). Manual - part 2012





DTC

CODE

DTC DETECTION CONDITION

TROUBLE AREA

Open or ground short

in VPA2 circuit

ECM

P2128

Conditions (a) and (b) continue for 2.0 seconds or more (1 trip

detection logic):

(a) VPA2 4.8 V or more

(b) VPA between 0.4 V and 3.45 V

APP sensor

Open in EPA2 circuit

ECM

P2138

Condition (a) or (b) continues for 2.0 seconds or more (1 trip

detection logic):

(a) Difference between VPA and VPA2 0.02 V or less

(b) VPA 0.4 V or less and VPA2 1.2 V or less

Short between VPA

and VPA2 circuits

APP sensor

ECM

HINT:

TROUBLE AREA

ACCEL SENSOR

OUT NO. 1

WHEN AP

RELEASED

ACCEL SENSOR

OUT NO. 2

WHEN AP

RELEASED

ACCEL SENSOR

OUT NO. 1

WHEN AP

DEPRESSED

ACCEL SENSOR

OUT NO. 2

WHEN AP

DEPRESSED

VCP circuit open

0 to 0.2 V

0 to 0.2 V

0 to 0.2 V

0 to 0.2 V

Open or ground short in

VPA circuit

0 to 0.2 V

1.2 to 2.0 V

0 to 0.2 V

3.4 to 4.75 V

Open or ground short in

VPA2 circuit

0.5 to 1.1 V

0 to 0.2 V

2.6 to 4.5 V

0 to 0.2 V

EPA circuit open

4.5 to 4.98 V

4.5 to 4.98 V

4.5 to 4.98 V

4.5 to 4.98 V

Normal condition

0.5 to 1.1 V

1.2 to 2.0 V

2.6 to 4.5 V

3.4 to 4.7 V

HINT:

Accelerator pedal positions are expressed as voltages.

AP stands for Accelerator Pedal.

MONITOR DESCRIPTION

malfunction in the APP sensor. The ECM then illuminates the MIL and sets a DTC.

Example:

If the malfunction is not repaired successfully, a DTC is set 2 seconds after the engine is next started.

MONITOR STRATEGY

3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2120,P2122...

Related DTCs

P2120: APP sensor 1 range check (fluctuating)

P2122: APP sensor 1 range check (low voltage)

P2123: APP sensor 1 range check (high voltage)

P2125: APP sensor 2 range check (fluctuating)

P2127: APP sensor 2 range check (low voltage)

P2128: APP sensor 2 range check (high voltage)

P2138: APP sensor range check (correlation)

Required Sensors/Components (Main)

APP sensor

Required Sensors/Components (Related)

-

Duration

0.5 seconds: P2120, P2122, P2125 and P2127

2.0 seconds: P2123, P2128 and P2138

MIL Operation

Immediate

TYPICAL ENABLING CONDITIONS

Monitor runs whenever following DTCs not present

None

1. Ignition switch

ON

2. Throttle actuator power

ON

TYPICAL MALFUNCTION THRESHOLDS

P2120:

1. VPA voltage when VPA2 voltage 0.04 V or more

0.4 V or less

2. VPA voltage

4.8 V or more

P2122:

VPA voltage when VPA2 voltage 0.04 V or more

0.4 V or less

P2123:

VPA voltage

4.8 V or more

P2125:

1. VPA2 voltage when VPA voltage 0.04 V or more

1.2 V or less

2. VPA2 voltage when VPA voltage 0.4 to 3.45 V

4.8 V or more

P2127:

VPA2 voltage when VPA voltage 0.04 V or more

1.2 V or less

3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2120,P2122...

P2128:

VPA2 voltage when VPA voltage 0.4 V or more, and 3.45 V or less

4.8 V or more

P2138:

Condition A

-

Difference between VPA and VPA2 voltages

0.02 V or less

Condition B

-

VPA voltage

0.4 V or less

VPA2 voltage

1.2 V or less

COMPONENT OPERATING RANGE

VPA voltage

0.4 to 4.8 V

VPA2 voltage

1.2 to 4.8 V

Difference between VPA and VPA2 voltages

More than 0.02 V

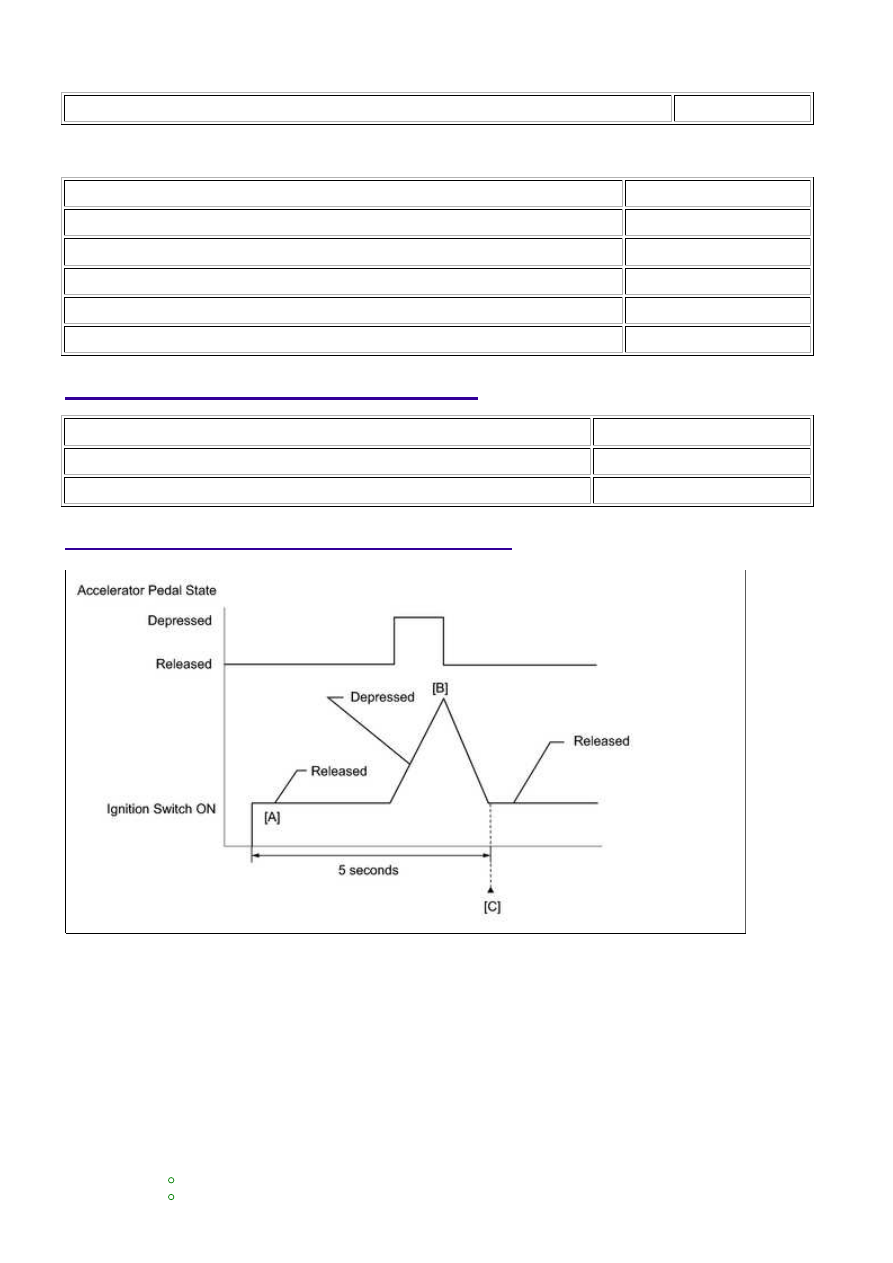

CONFIRMATION DRIVING PATTERN

Connect the Techstream to the DLC3.

1.

Turn the ignition switch to ON and turn the Techstream on.

2.

Clear DTCs (even if no DTCs are stored, perform the clear DTC operation).

3.

Turn the ignition switch off and wait for at least 30 seconds.

4.

Turn the ignition switch to ON and turn the Techstream on [A].

5.

Fully depress and release the accelerator pedal [B].

6.

Check that 5 seconds or more have elapsed since the DTCs were cleared.

7.

Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [C].

8.

Read the Pending DTCs.

HINT:

If a pending DTC is output, the system is malfunctioning.
If a pending DTC is not output, perform the following procedure.

9.

3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2120,P2122...

Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

10.

Input the DTC: P2120, P2122, P2123, P2125, P2127, P2128 or P2138.

11.

Check the DTC judgment result.

TESTER

DISPLAY

DESCRIPTION

NORMAL

DTC judgment completed

System normal

ABNORMAL

DTC judgment completed

System abnormal

INCOMPLETE

DTC judgment not completed

Perform driving pattern after confirming DTC enabling conditions

N/A

Unable to perform DTC judgment

HINT:

If the judgment result shows ABNORMAL, the system has a malfunction.
If the judgment result shows INCOMPLETE or N/A, perform steps [B] and [C] again.

12.

If no pending DTC is output, perform a universal trip and check for permanent DTCs



.

HINT:

If a permanent DTC is output, the system is malfunctioning.
If no permanent DTC is output, the system is normal.

13.

FAIL-SAFE

When DTC P2120, P2121, P2122, P2123, P2125, P2127, P2128 or P2138 is set, the ECM enters fail-safe mode.

accelerator pedal as being released. As a result, the throttle valve is closed and the engine idles.

Fail-safe mode continues until a pass condition is detected, and the ignition switch is turned off.

WIRING DIAGRAM
