Toyota Tundra (2015 year). Manual - part 1307

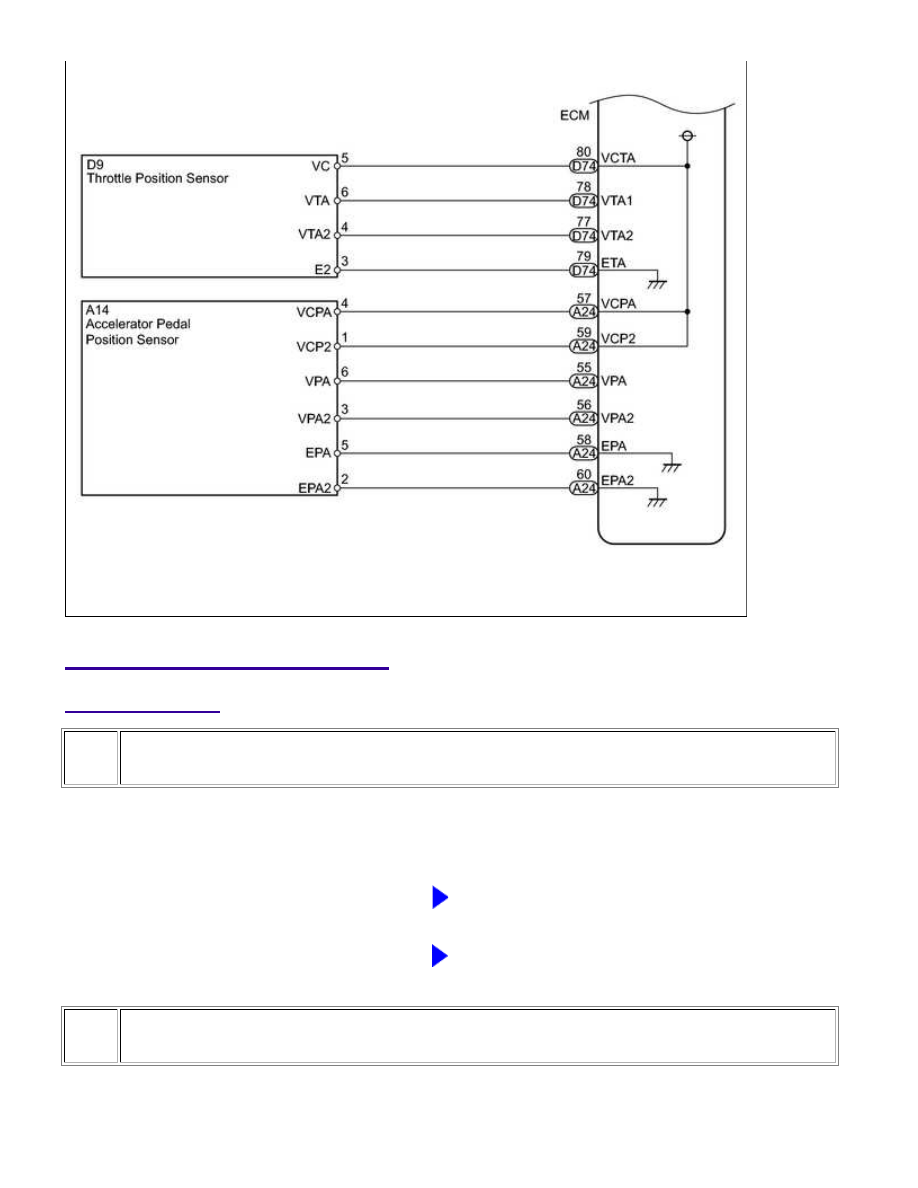

1UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: VC Output Cir...

INSPECTION PROCEDURE

PROCEDURE

1.

CHECK MIL

(a) Check that the Malfunction Indicator Lamp (MIL) lights up when turning the ignition switch to ON.

OK:

MIL lights up.

NG

GO TO STEP 2

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN

PROBLEM SYMPTOMS TABLE

2.

CHECK COMMUNICATION BETWEEN TECHSTREAM AND ECM

(a) Connect the Techstream to the DLC3.

1UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: VC Output Cir...

B

B

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Check the communication between the Techstream and ECM.

Result

RESULT

PROCEED TO

Communication is possible

A

Communication is not possible

B

A

GO TO MIL CIRCUIT

3.

CHECK MIL (THROTTLE POSITION SENSOR)

(a) Disconnect the throttle with motor body assembly connector.

(b) Turn the ignition switch to ON.

(c) Check the MIL.

Result

RESULT

PROCEED TO

MIL illuminates

A

MIL does not illuminate

B

HINT:

Perform "Inspection After Repair" after replacing the throttle with motor body assembly



.

A

REPLACE THROTTLE WITH MOTOR BODY ASSEMBLY

4.

CHECK MIL (ACCELERATOR PEDAL POSITION SENSOR)

(a) Disconnect the accelerator pedal sensor assembly connector.

(b) Turn the ignition switch to ON.

1UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: VC Output Cir...

B

B

(c) Check the MIL.

Result

RESULT

PROCEED TO

MIL illuminates

A

MIL does not illuminate

B

A

REPLACE ACCELERATOR PEDAL SENSOR ASSEMBLY

5.

CHECK MIL (CANISTER PUMP MODULE)

(a) Disconnect the canister pump module connector.

(b) Turn the ignition switch to ON.

(c) Check the MIL.

Result

RESULT

PROCEED TO

MIL illuminates

A

MIL does not illuminate

B

A

REPLACE CANISTER PUMP MODULE

6.

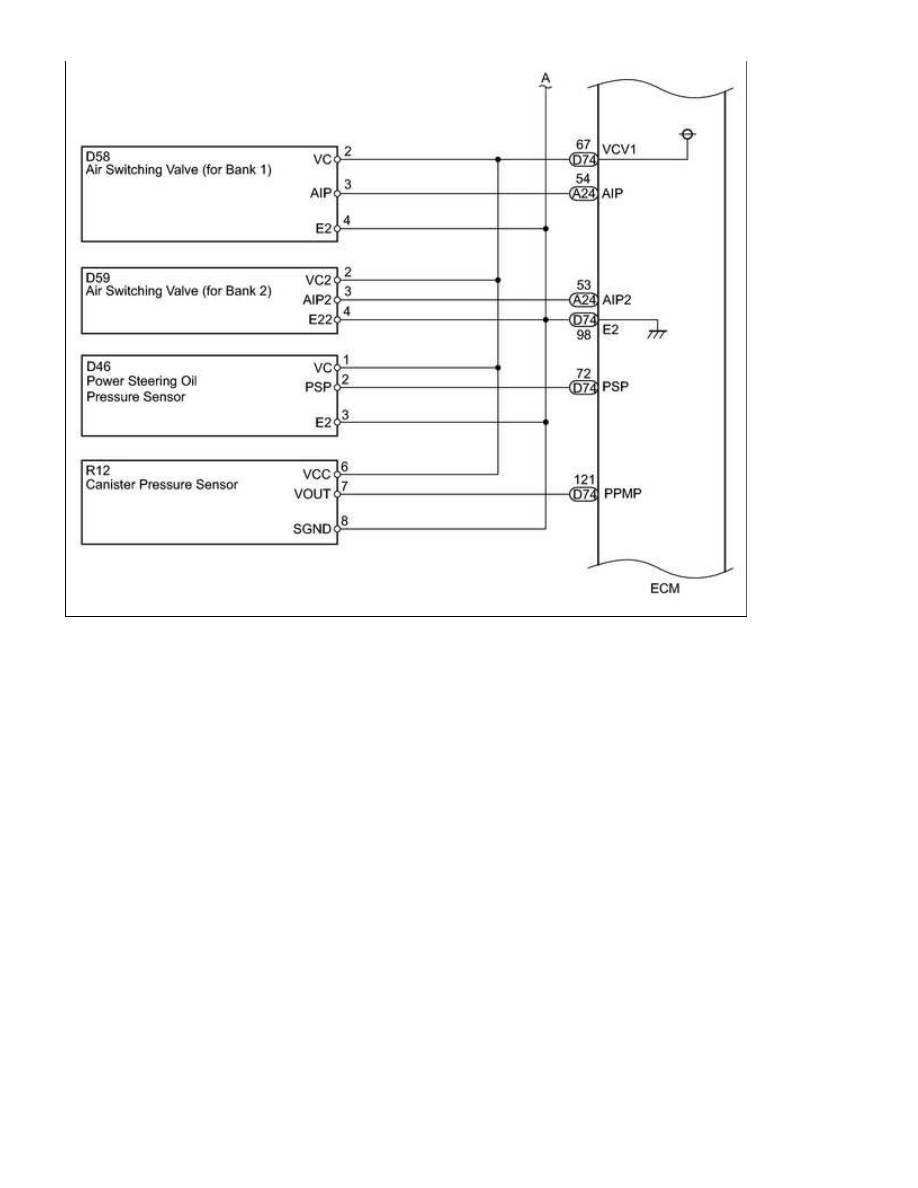

CHECK MIL (AIR SWITCHING VALVE for Bank 1)

(a) Disconnect the air switching valve assembly connector.

(b) Turn the ignition switch to ON.

(c) Check the MIL.

Result

RESULT

PROCEED TO

1UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: VC Output Cir...
