Toyota Tundra (2015 year). Manual - part 117





Last Modified: 9-16-2014

6.6 J

Doc ID: RM0000019NG0WDX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: NAVIGATION: NAVIGATION SYSTEM: AVC-LAN Circuit; 2015 MY Tundra [08/2014 -        ]

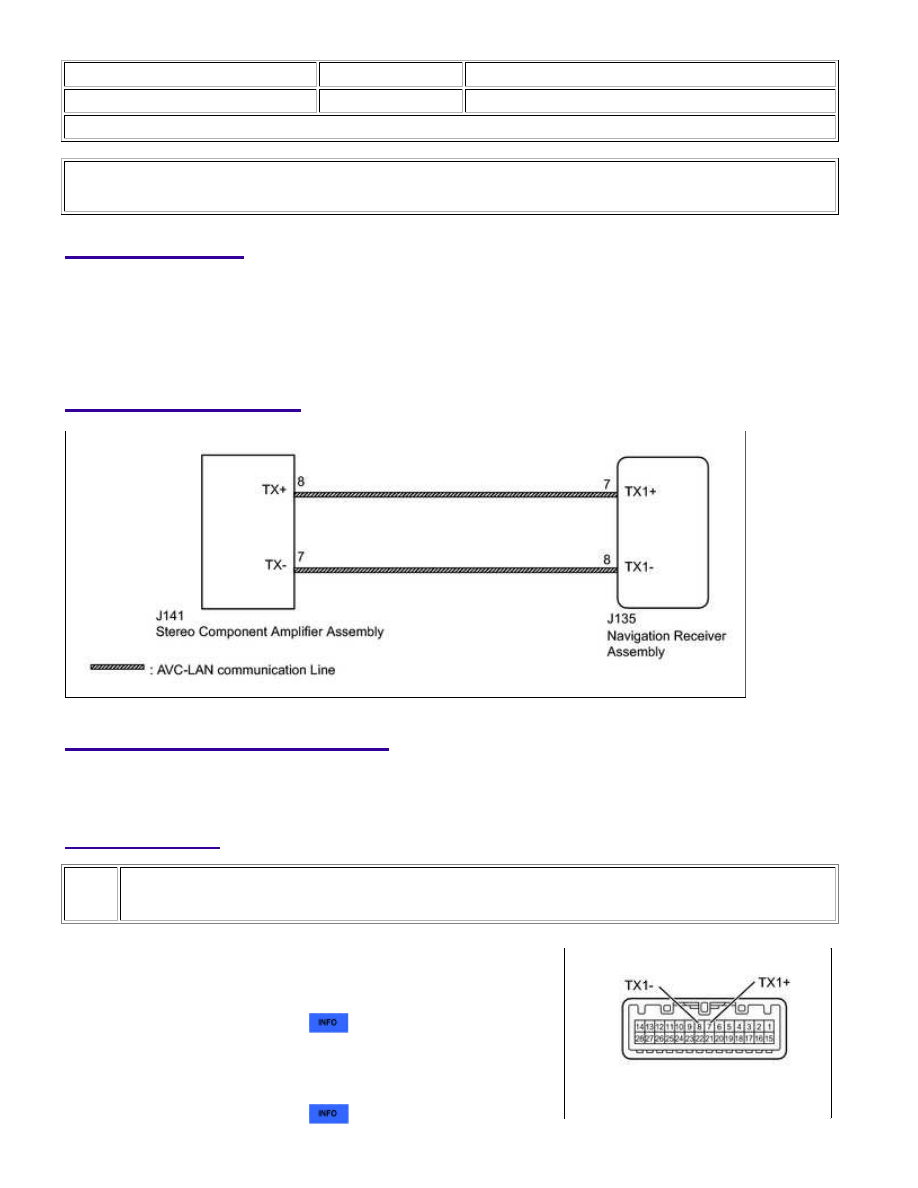

AVC-LAN Circuit

DESCRIPTION

If a short to +B or short to ground occurs in the AVC-LAN, the navigation system will not function normally

because communication is not possible.

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

The navigation receiver assembly is the master unit.

PROCEDURE

1.

INSPECT NAVIGATION RECEIVER ASSEMBLY

(a) for Column Shift Type:

(1) Remove the navigation receiver assembly with the

connector(s) still connected



.

(b) for Floor Shift Type:

(1) Remove the navigation receiver assembly with the

connector(s) still connected



.

NAVIGATION: NAVIGATION SYSTEM: AVC-LAN Circuit; 2015 MY...

A

OK

(c) Measure the resistance according to the value(s) in the table

below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

7 (TX1+) - 8 (TX1-)

Always

60 to 80 Ω

Result

RESULT

PROCEED TO

OK

A

NG (for Column Shift Type)

B

NG (for Floor Shift Type)

C

B

REPLACE NAVIGATION RECEIVER ASSEMBLY

C

REPLACE NAVIGATION RECEIVER ASSEMBLY

2.

CHECK HARNESS AND CONNECTOR (AVC-LAN CIRCUIT)

(a) Disconnect the J135 navigation receiver assembly connector.

(b) Disconnect the J141 stereo component amplifier assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

J141-8 (TX+) - J135-7 (TX1+)

Always

Below 1 Ω

J141-7 (TX-) - J135-8 (TX1-)

Always

Below 1 Ω

J141-8 (TX+) - Body ground

Always

10 kΩ or higher

J141-7 (TX-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

NAVIGATION: NAVIGATION SYSTEM: AVC-LAN Circuit; 2015 MY...

3.

INSPECT MALFUNCTIONING PARTS

(a) Disconnect and reconnect each slave unit one by one until the master unit returns to normal

operation.

HINT:

Check all slave units.
If disconnecting a slave unit causes the master unit to return to normal operation, the slave unit is
defective and should be replaced.

OK:

Master unit returns to normal operation.

Result

RESULT

PROCEED TO

OK

A

NG (for Column Shift Type)

B

NG (for Floor Shift Type)

C

B

REPLACE NAVIGATION RECEIVER ASSEMBLY

C

REPLACE NAVIGATION RECEIVER ASSEMBLY

A

REPLACE MALFUNCTIONING PARTS

NAVIGATION: NAVIGATION SYSTEM: AVC-LAN Circuit; 2015 MY...

Last Modified: 9-16-2014

6.6 J

Doc ID: RM000002NNE18GX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: NAVIGATION: NAVIGATION SYSTEM: Vehicle Speed Signal Circuit between Stereo Component Amplifier

and Combination Meter; 2015 MY Tundra [08/2014 -        ]

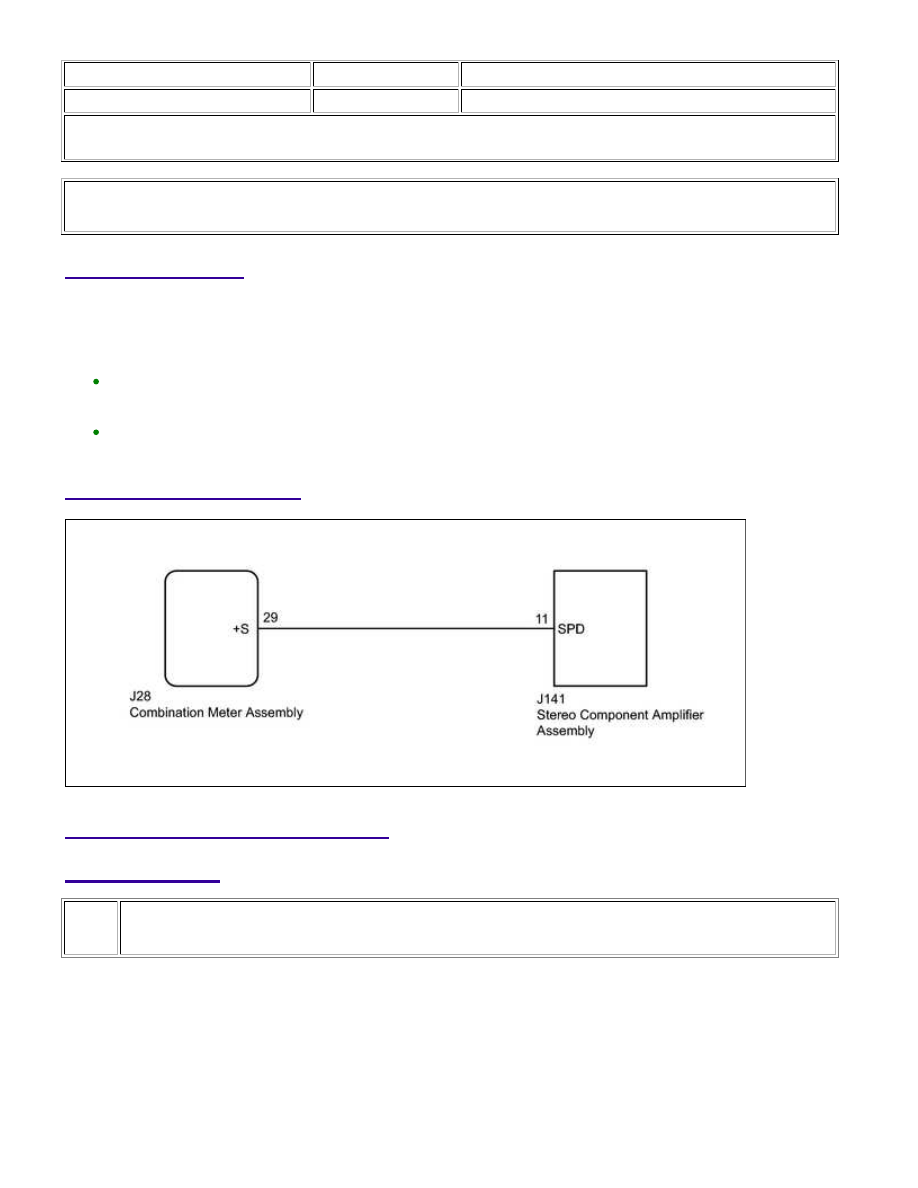

Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter

DESCRIPTION

The stereo component amplifier assembly receives a vehicle speed signal from the combination meter assembly

to control the ASL function.

HINT:

INSPECTION PROCEDURE

PROCEDURE

1.

CHECK COMBINATION METER ASSEMBLY (OUTPUT WAVEFORM)

NAVIGATION: NAVIGATION SYSTEM: Vehicle Speed Signal Circuit ...
