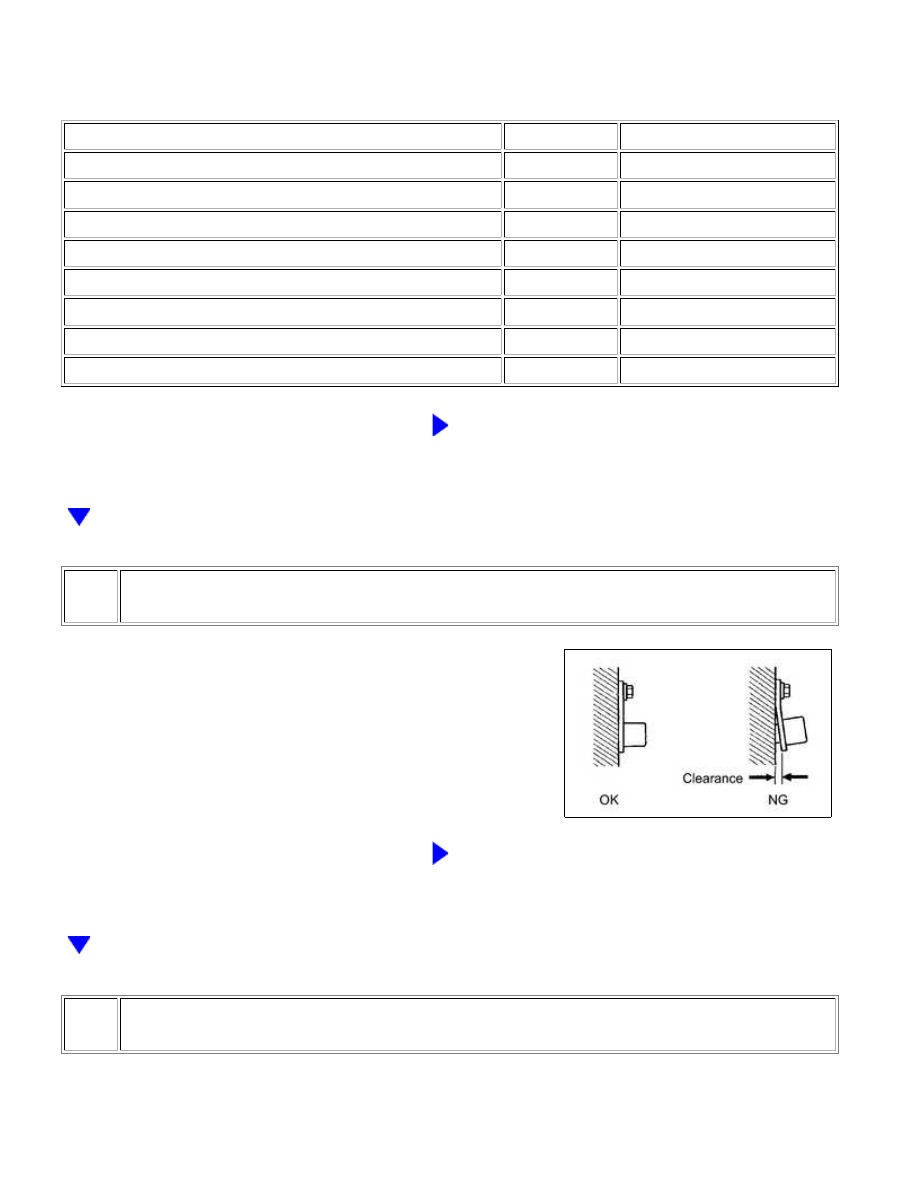

OK OK (c) Measure the resistance according to the value(s) in the table below. Standard Resistance: TESTER CONNECTION CONDITION SPECIFIED CONDITION D37-1 (VVL+) - D74-92 (VV1+) Always Below 1 Ω D37-2 (VVL-) - D74-91 (VV1-) Always Below 1 Ω D39-1 (VVR+) - D74-87 (VV2+) Always Below 1 Ω D39-2 (VVR-) - D74-88 (VV2-) Always Below 1 Ω D37-1 (VVL+) or D74-92 (VV1+) - Body ground Always 10 kΩ or higher D37-2 (VVL-) or D74-91 (VV1-) - Body ground Always 10 kΩ or higher D39-1 (VVR+) or D74-87 (VV2+) - Body ground Always 10 kΩ or higher D39-2 (VVR-) or D74-88 (VV2-) - Body ground Always 10 kΩ or higher NG REPAIR OR REPLACE HARNESS OR CONNECTOR 3. CHECK SENSOR INSTALLATION (VVT SENSOR FOR INTAKE SIDE) (a) Check the VVT sensor (for intake side) installation. OK: Sensor is installed correctly. NG SECURELY REINSTALL SENSOR 4. INSPECT INTAKE CAMSHAFT (TEETH) 1UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0340,P0342,... |
