HINT:

Use the same procedures described for the LH side.

37. INSTALL FRONT DOOR SCUFF PLATE LH

a. Attach the 6 claws and 3 clips to install the scuff plate.

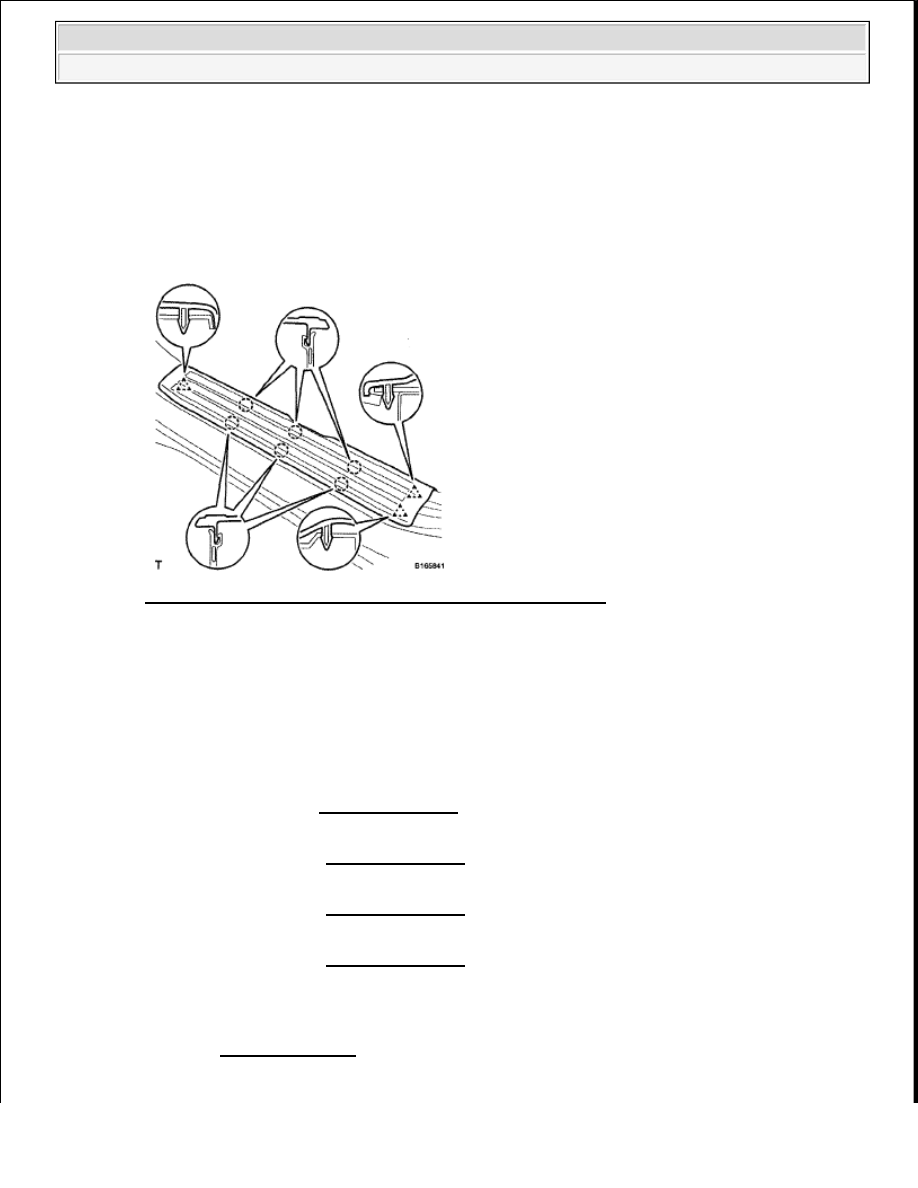

Fig. 62: Identifying Front Door Scuff Plate Clips And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

38. INSTALL FRONT DOOR SCUFF PLATE RH

HINT:

Use the same procedures described for the LH side.

39. INSTALL REAR SEAT ASSEMBLY (for Double Cab)

a. Install the rear seat (see INSTALLATION ).

40. INSTALL FRONT SEAT ASSEMBLY (for Center Seat)

a. Install the front seat (see INSTALLATION ).

41. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)

a. Install the front seat (see INSTALLATION ).

42. INSTALL FRONT SEAT ASSEMBLY (for Power Seat)

a. Install the front seat (see INSTALLATION ).

43. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTE:

Some systems need to be initialized after the cable is reconnected (see
INITIALIZATION ).

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Interior - Tundra

44. CHECK SRS WARNING LIGHT

a. Check the SRS warning light (see DIAGNOSIS SYSTEM ).

ROOF HEADLINING (FOR CREWMAX)

COMPONENTS

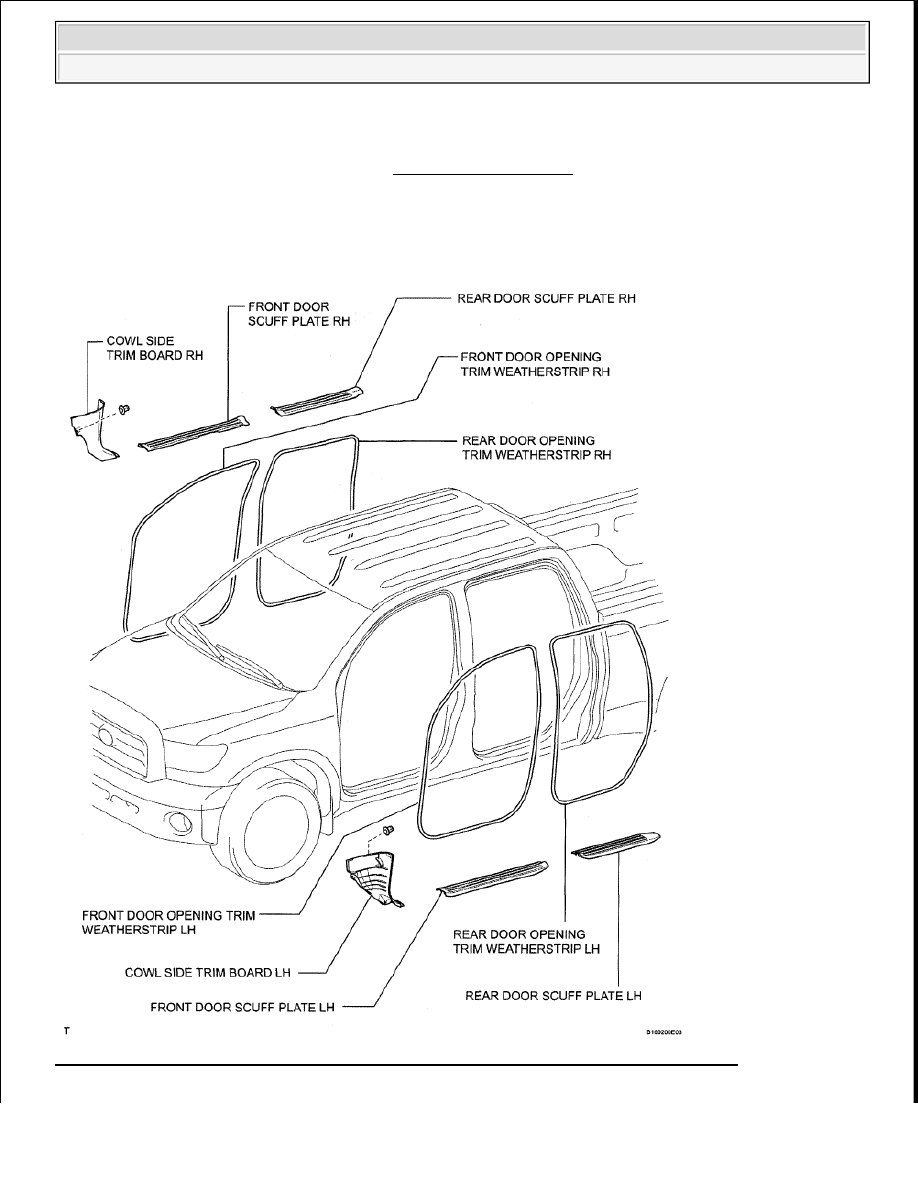

Fig. 63: Identifying Roof Headlining Replacement Components (For CrewMax) (1 Of 12)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Interior - Tundra

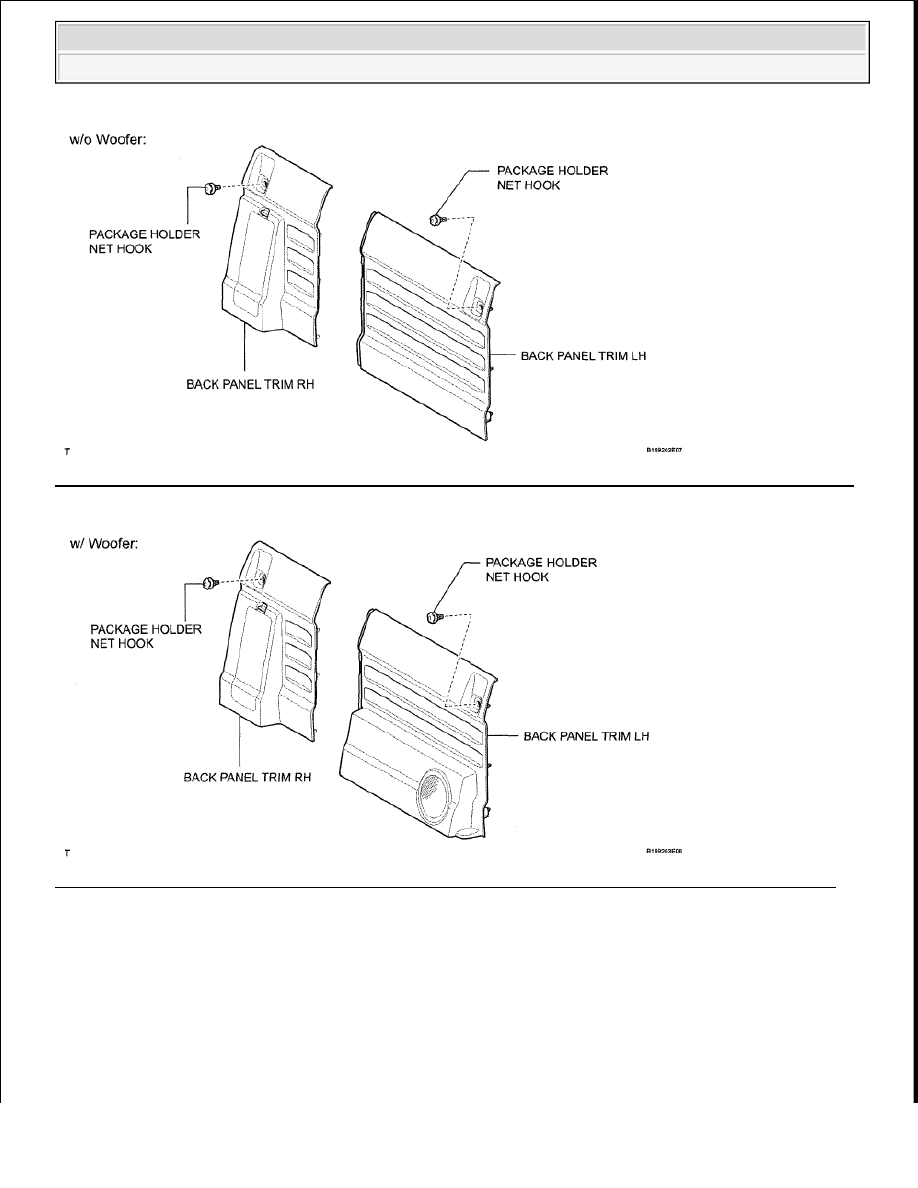

Fig. 64: Identifying Roof Headlining Replacement Components (W/O Woofer) (For CrewMax) (2 Of 12)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 65: Identifying Roof Headlining Replacement Components (W/Woofer) (For CrewMax) (3 Of 12)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Interior - Tundra

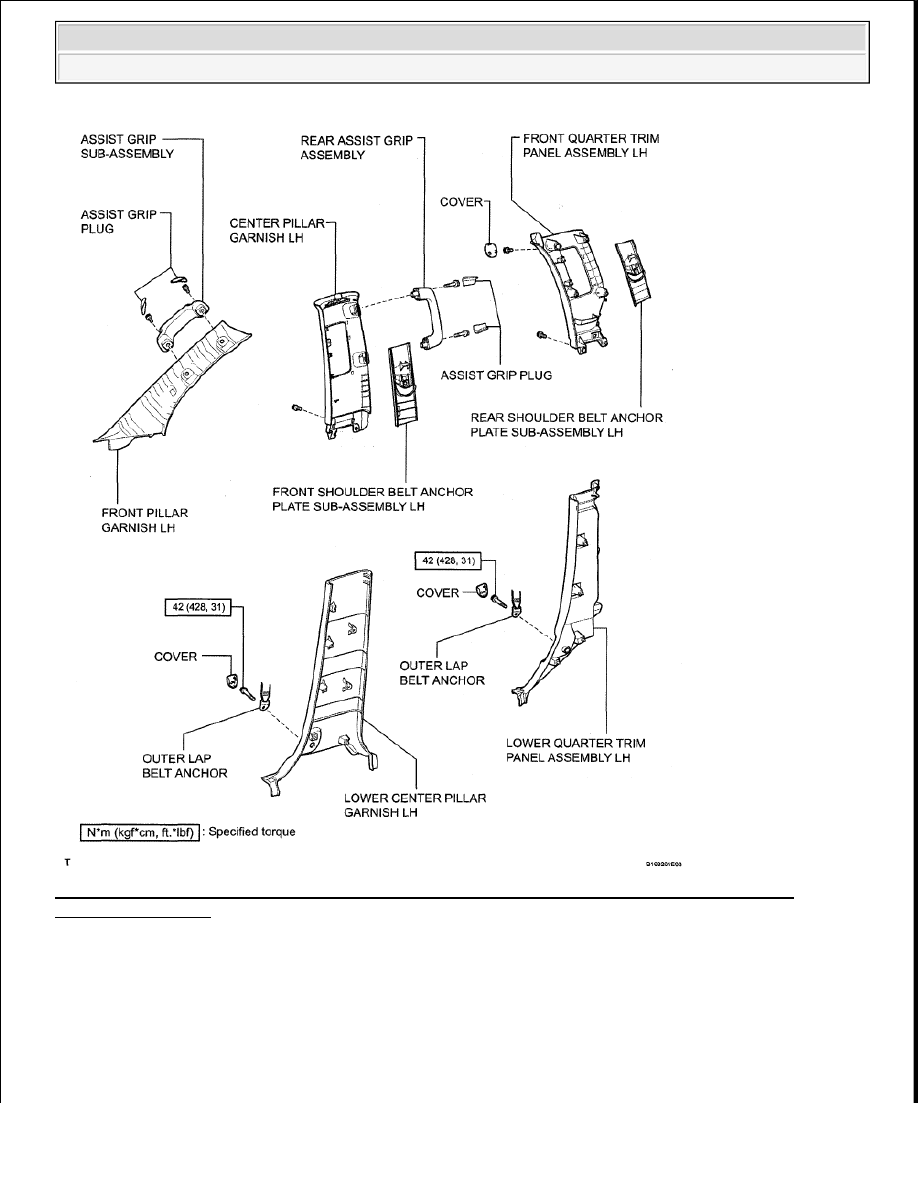

Fig. 66: Identifying Roof Headlining Replacement Components With Torque Specifications (For
CrewMax) (4 Of 12)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Interior - Tundra
