Toyota Tundra. Manual - part 752

2. REMOVE REAR ROOF DRIP SIDE FINISH MOULDING LH (See REMOVAL )

3. REMOVE REAR ROOF DRIP SIDE FINISH MOULDING RH

HINT:

Use the same procedures described for the LH side.

4. REMOVE REAR SEAT ASSEMBLY LH (See REMOVAL )

5. REMOVE REAR SEAT ASSEMBLY RH (See REMOVAL )

6. REMOVE REAR DOOR SCUFF PLATE LH (See REMOVAL )

7. REMOVE REAR DOOR SCUFF PLATE RH (See REMOVAL )

8. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

a. Partially remove the rear door opening trim weatherstrip LH so that the lower quarter trim panel

LH and front quarter trim panel LH can be removed (see REMOVAL ).

9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:

Use the same procedures described for the LH side.

10. REMOVE BACK PANEL TRIM RH (See REMOVAL )

11. REMOVE BACK PANEL TRIM LH (See REMOVAL )

12. REMOVE LOWER QUARTER TRIM PANEL ASSEMBLY LH (See REMOVAL )

13. REMOVE LOWER QUARTER TRIM PANEL ASSEMBLY RH (See REMOVAL )

14. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH (See REMOVAL )

15. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH (See REMOVAL )

16. REMOVE ASSIST GRIP SUB-ASSEMBLY (See REMOVAL )

17. REMOVE ASSIST GRIP PLUG (See REMOVAL )

18. TEMPORARILY REMOVE ROOF HEADLINING ASSEMBLY

a. It is not necessary to completely remove the roof headlining. Slightly lower the rear section of the

roof headlining (see REMOVAL ) so that the back window glass can be removed in a later step.

19. REMOVE BACK DOOR SERVICE HOLE COVER

a. Remove the back window regulator connector labeled A.

b. Remove the 12 bolts and nut.

NOTE:



Some systems need to be initialized after the cable is reconnected
(see INITIALIZATION ).



After the ignition switch is turned LOCK, the navigation system
requires approximately 90 seconds to record various types of
memory and settings. As a result, after turning the ignition switch
LOCK, wait 90 seconds or more before disconnecting the cable from
the negative (-) battery terminal.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Windshield/WindowGlass - Tundra

c. Lift the cover upwards to detach the claw labeled B. Then slide the cover to the left to disengage

the retainer labeled C and remove the cover.

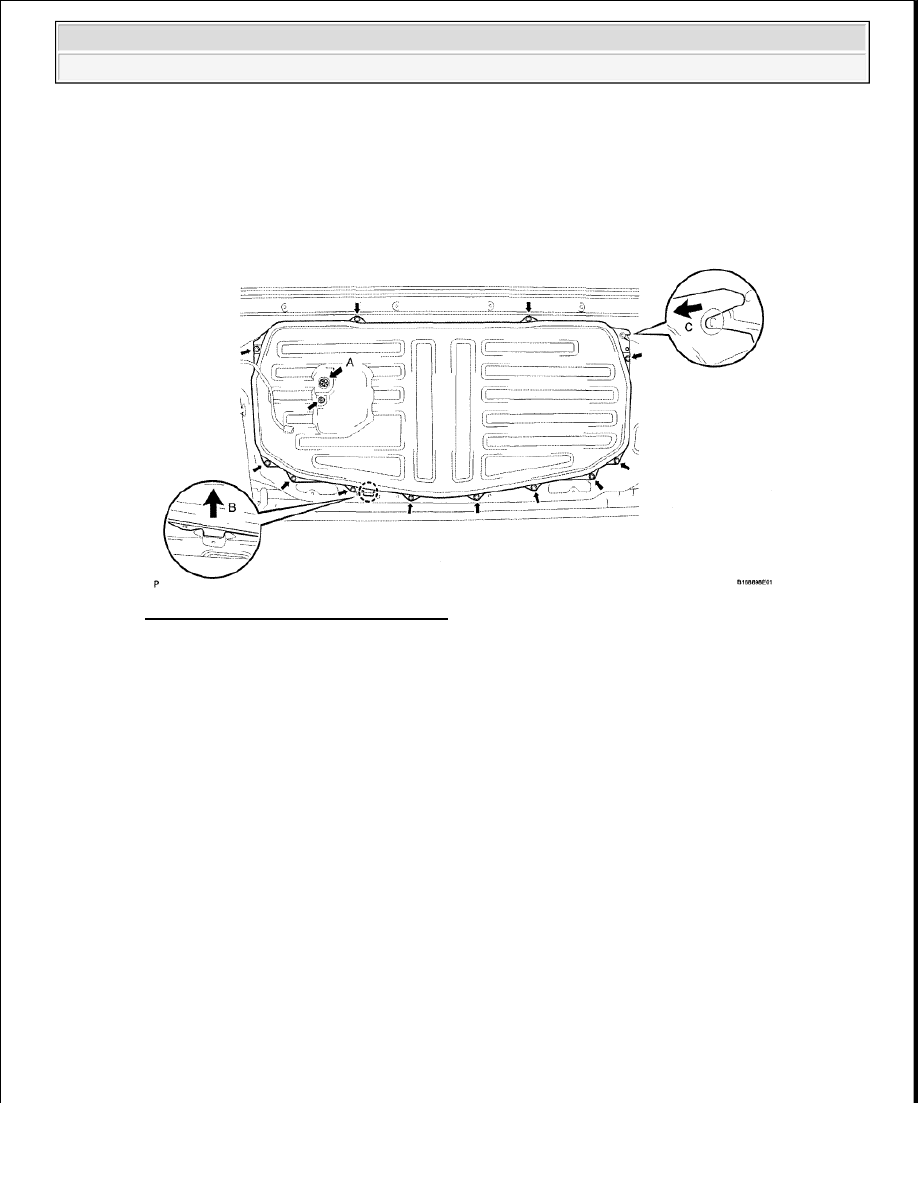

Fig. 150: Removing Service Hole Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

20. REMOVE OUTER BACK DOOR GLASS WEATHERSTRIP ASSEMBLY

a. Using a screwdriver, detach the 9 claws and remove the weatherstrip.

HINT:

Tape the screwdriver tip before use.

21. REMOVE INNER BACK DOOR GLASS WEATHERSTRIP

a. Using a screwdriver, remove the weatherstrip.

HINT:

Tape the screwdriver tip before use.

NOTE:

When the cover is removed, the cover may fall and become
deformed.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Windshield/WindowGlass - Tundra

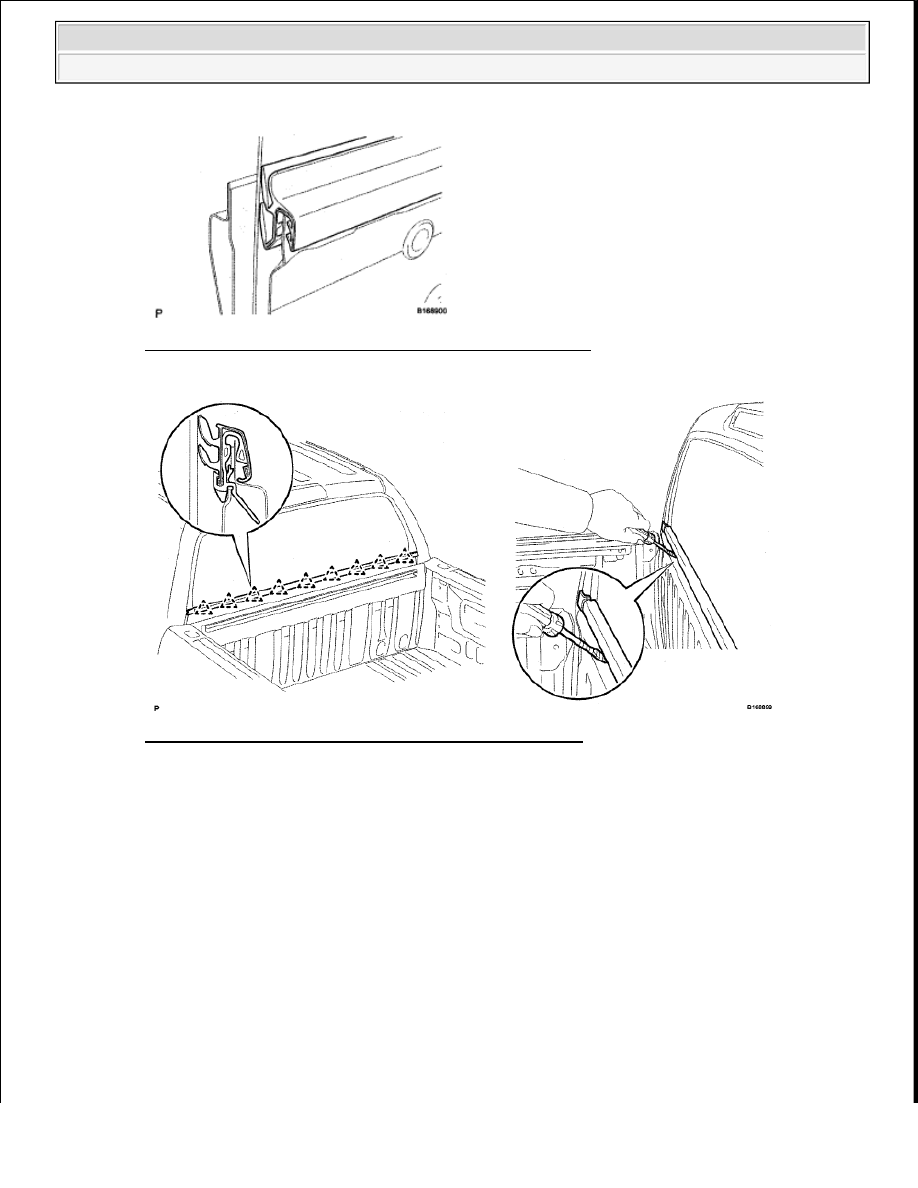

Fig. 151: Identifying Inner Back Door Glass Weatherstrip
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 152: Removing Inner Back Door Glass Weatherstrip
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

22. REMOVE BACK DOOR GLASS RUN

a. Remove the glass run.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Windshield/WindowGlass - Tundra

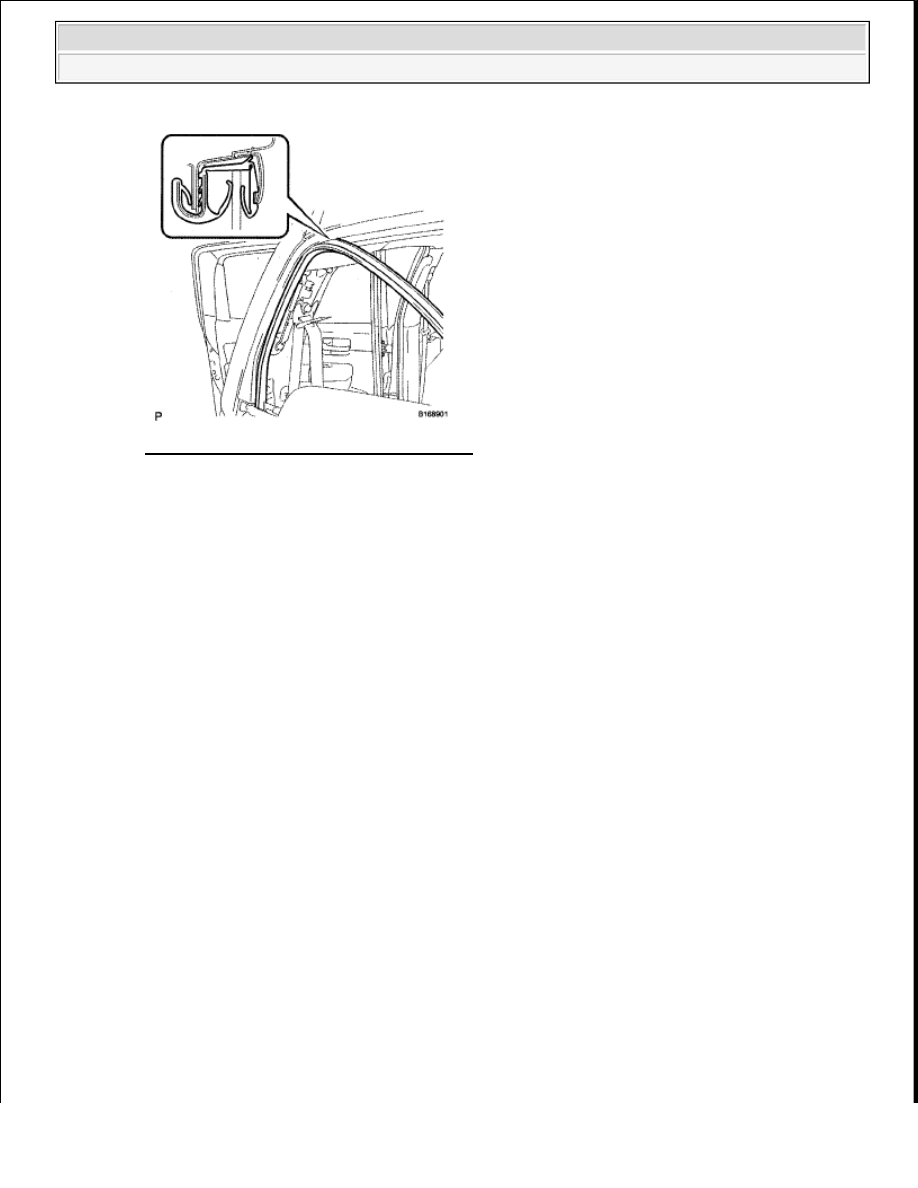

Fig. 153: Identifying Back Door Glass Run
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

23. REMOVE BACK WINDOW GLASS

a. Connect the cable to the negative (-) battery terminal.

b. Connect the back window regulator connector labeled A.

c. Move the back window glass until the bolts appear in the service holes.

d. Disconnect the back window regulator connector labeled A.

e. Disconnect the cable from the negative battery (-) terminal.

f. Disconnect the 2 defogger connectors labeled B.

g. Remove the 4 bolts.

h. Remove the back window glass.

HINT:

Remove the glass upward.

NOTE:

Be careful when removing the bolts as the glass may fall and become
damaged.

NOTE:

Be careful not to damage the glass.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Windshield/WindowGlass - Tundra
