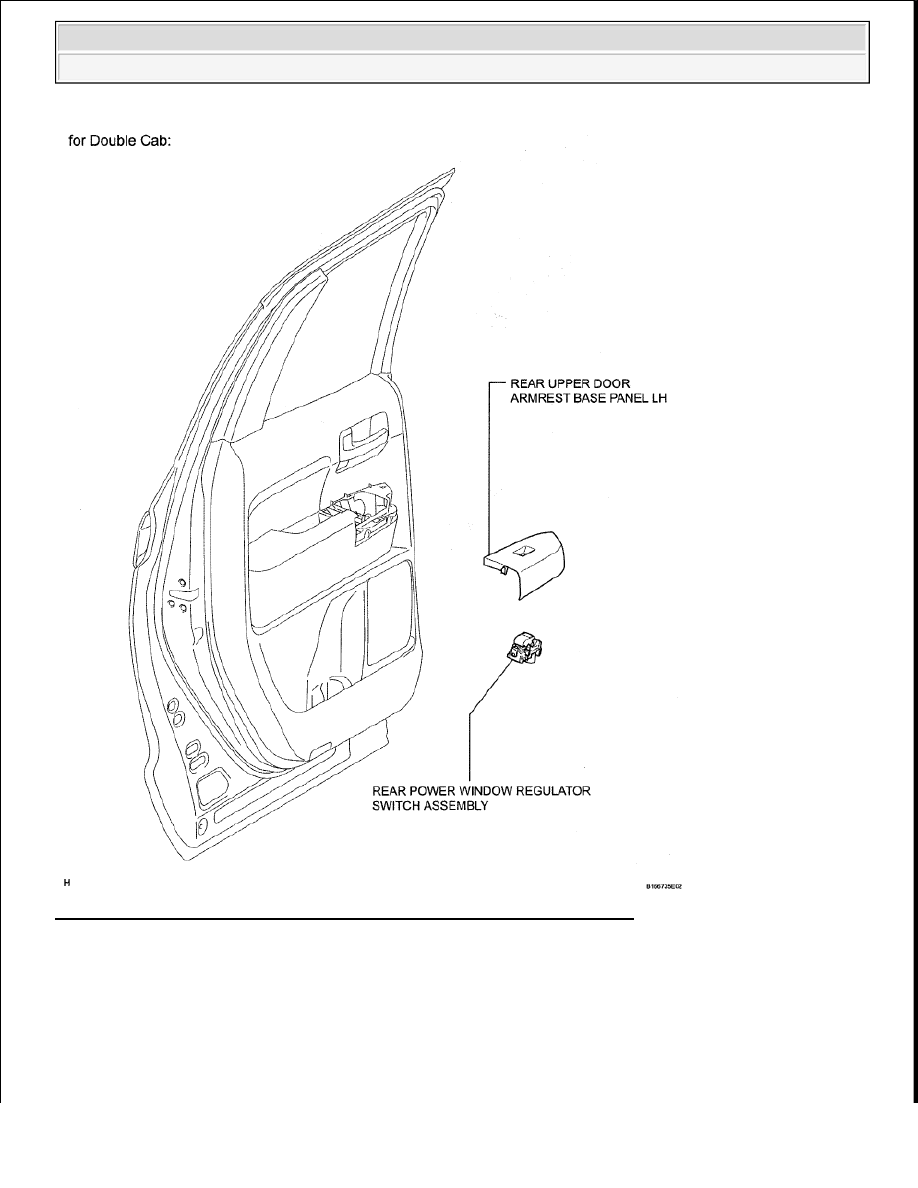

Fig. 57: Identifying Rear Power Window Switch Components (Double Cab)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Windshield/WindowGlass - Tundra

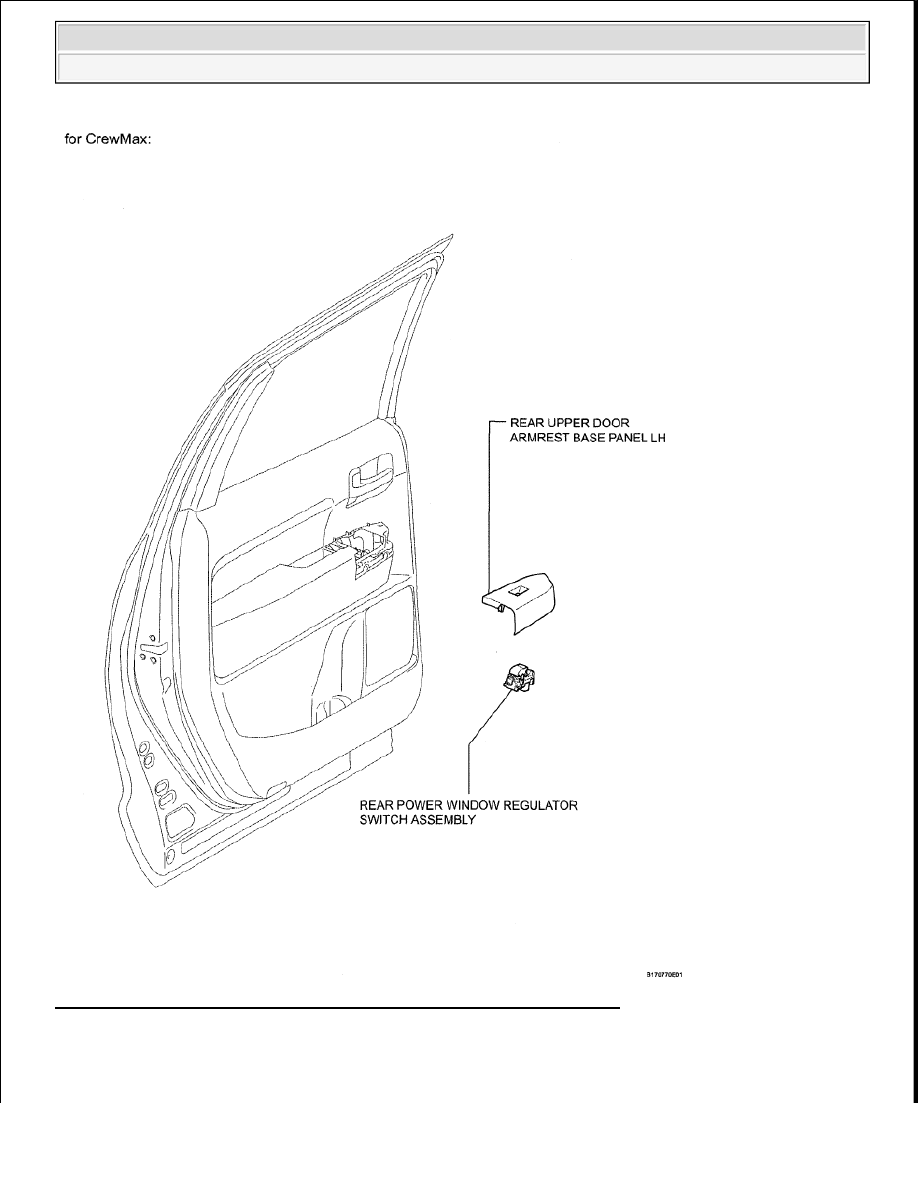

Fig. 58: Identifying Rear Power Window Switch Components (CrewMax)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Windshield/WindowGlass - Tundra

HINT:



Use the same procedures for the LH side and RH side.



The procedures listed below are for the LH side.

1. REMOVE REAR UPPER DOOR ARMREST BASE PANEL LH

a. Using a screwdriver, detach the 2 clips and 5 claws, and remove the rear upper door armrest base

panel.

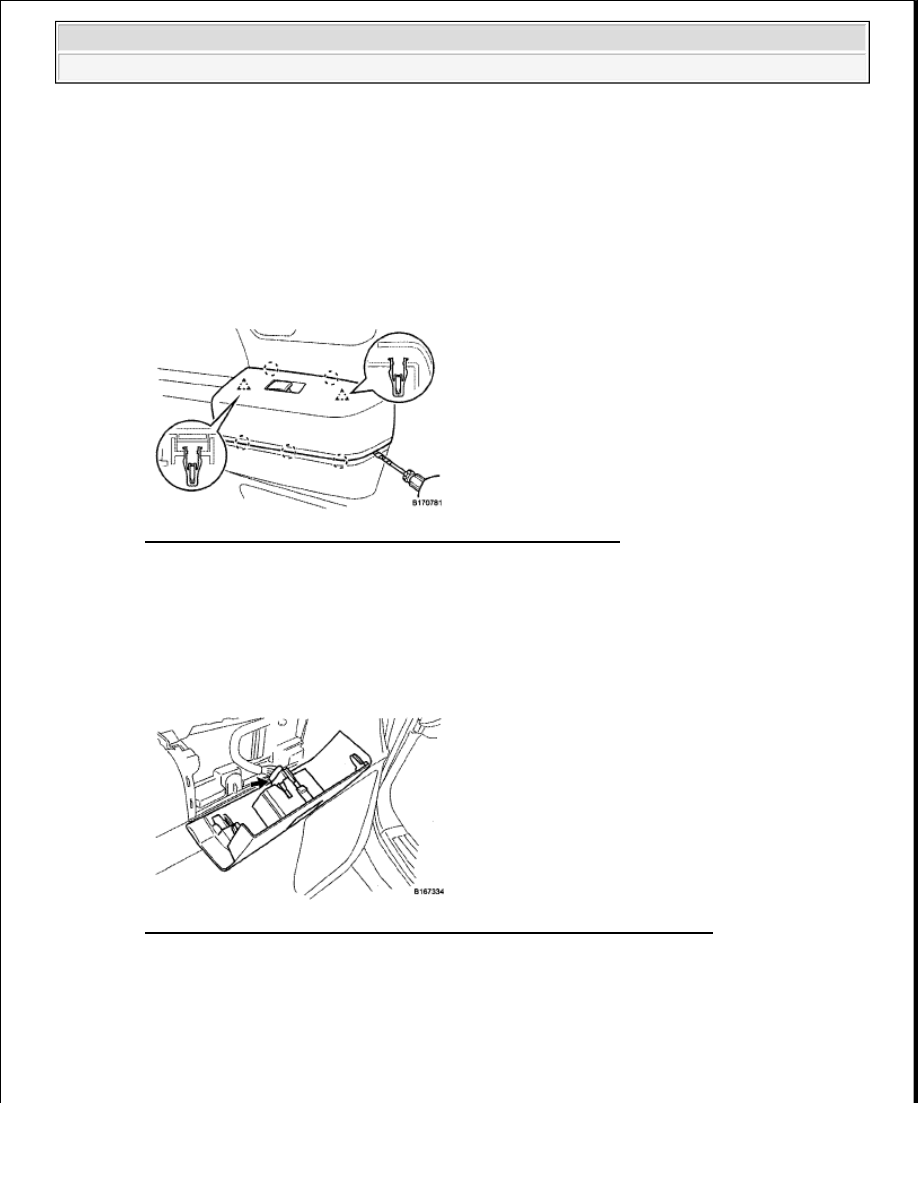

Fig. 59: Identifying Rear Upper Door Armrest Base Panel LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

HINT:

Tape the screwdriver tip before use.

b. Disconnect the connector.

Fig. 60: Identifying Rear Upper Door Armrest Base Panel LH Connectors
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

a. Detach the 2 claws and remove the regulator switch.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Windshield/WindowGlass - Tundra

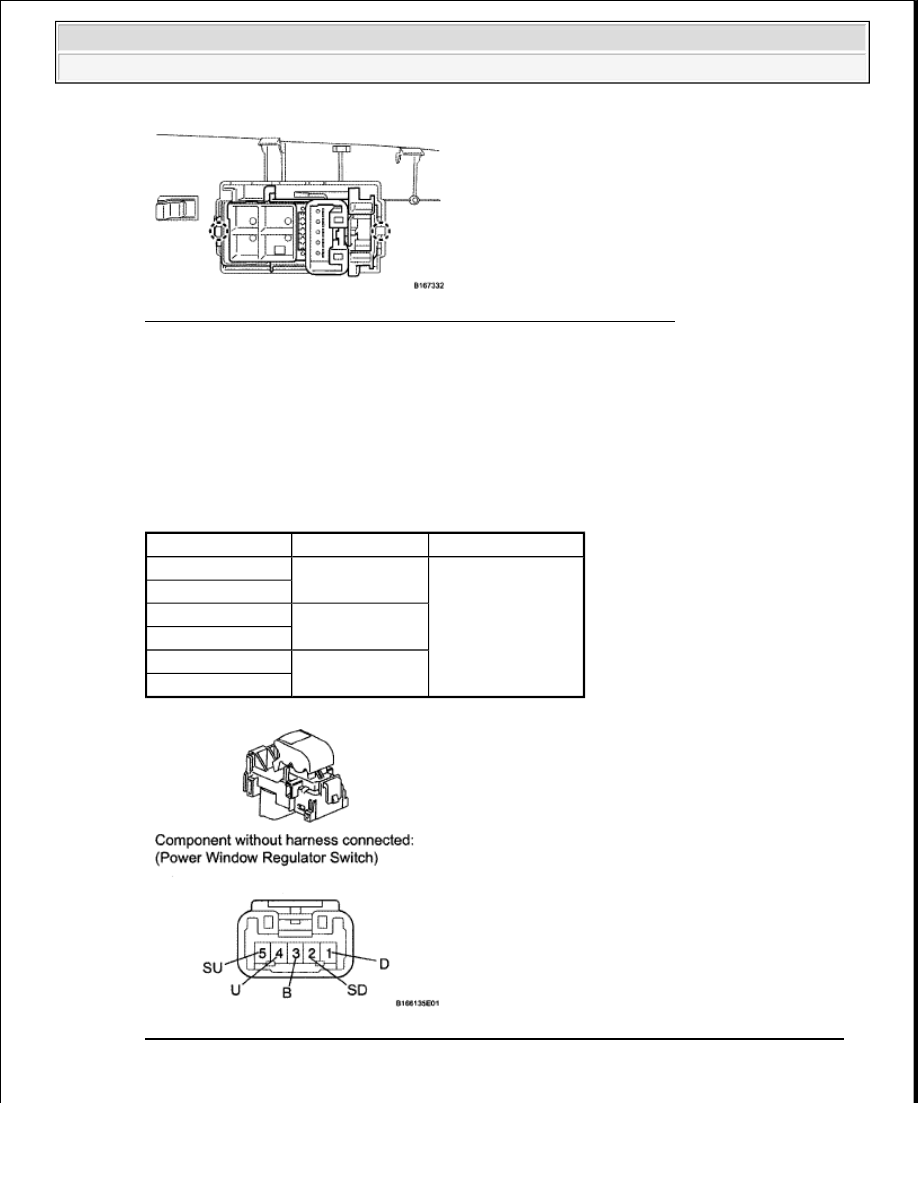

Fig. 61: Identifying Rear Power Window Regulator Switch Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSPECTION

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

a. Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE TESTER CONNECTION SPECIFIED CONDITION

Fig. 62: Identifying Rear Power Window Regulator Switch Assembly Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Tester Connection Switch Condition Specified Condition

4 (U) - 3 (B)

Below 1 ohms

1 (D) - 2 (SD)
4 (U) - 5 (SU)

OFF

1 (D) - 2 (SD)
4 (U) - 5 (SU)

DOWN

1 (D) - 3 (B)
