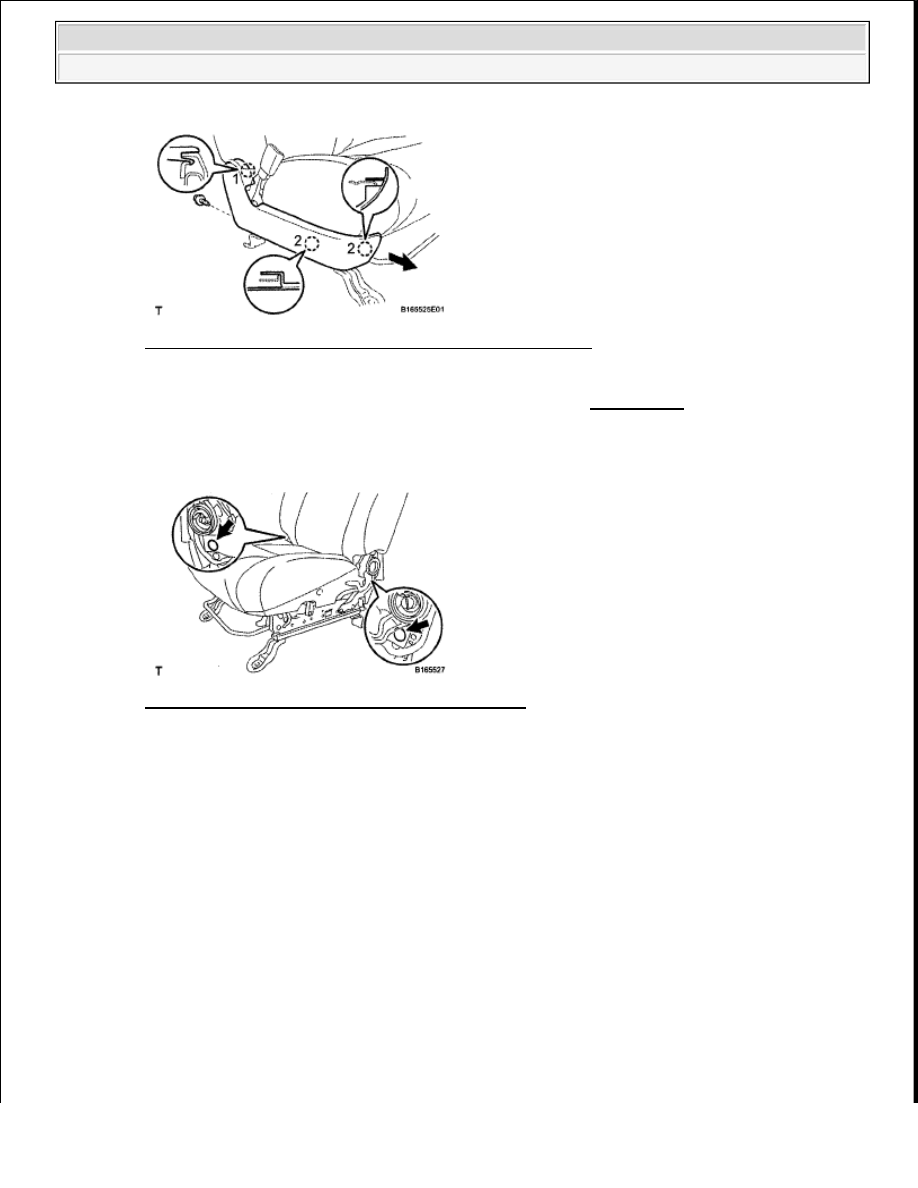

Fig. 48: Removing Inner Front Seat Cushion Shield Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

7. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (See REMOVAL )

8. REMOVE FRONT SEAT CUSHION COVER WITH PAD LH

a. Using a clip remover, remove the 2 clips.

Fig. 49: Locating Front Seat Cushion Cover Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Remove the hog rings.

c. Bend the 2 seat frame claws upward.

d. Detach the hooks and remove the seat cushion cover with pad.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Seat - Tundra

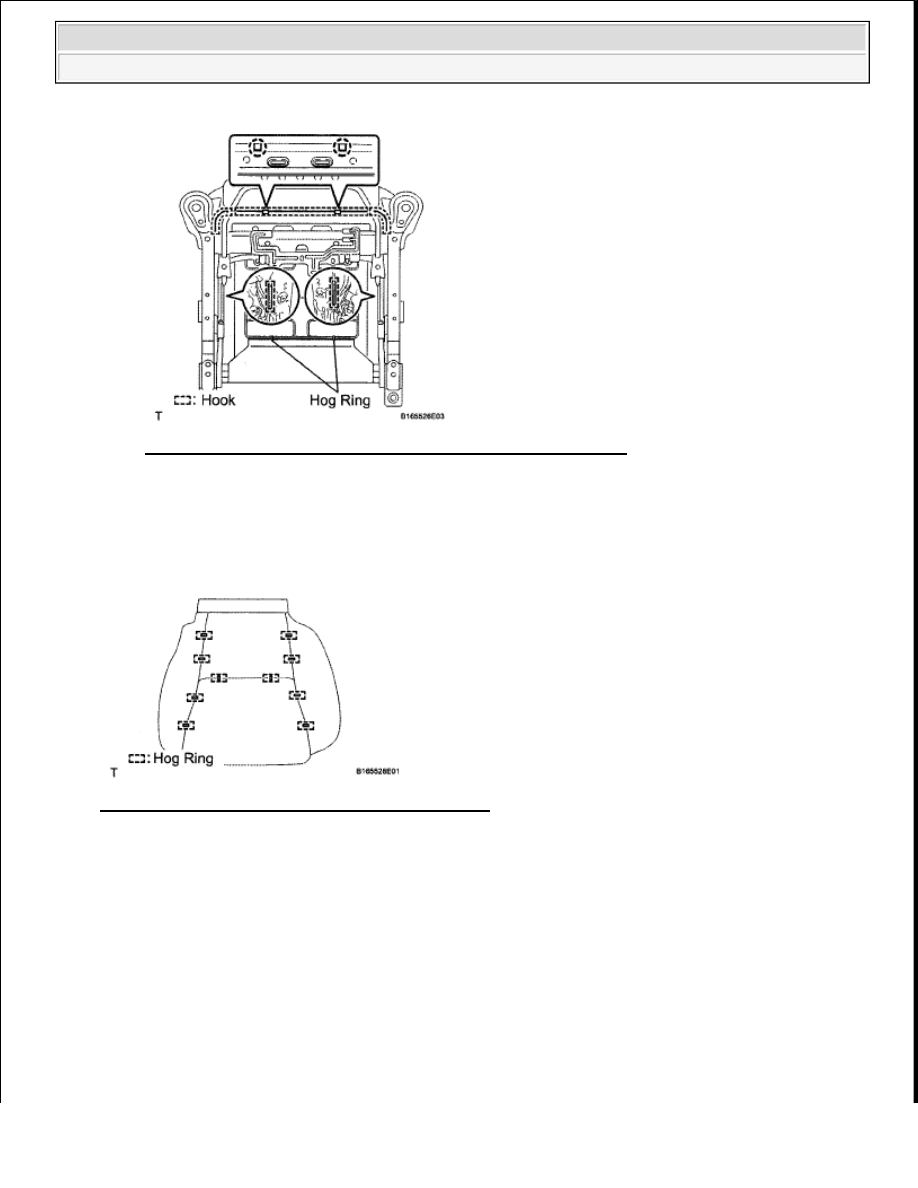

Fig. 50: Identifying Seat Cushion Cover Hooks And Hog Rings
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

9. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER LH

a. Remove the hog rings and seat cushion cover.

10. REMOVE FRONT SEAT HEADREST ASSEMBLY LH

Fig. 51: Identifying Seat Cushion Cover Hog Rings
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

11. REMOVE FRONT SEATBACK COVER WITH PAD LH

a. Detach the hook.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Seat - Tundra

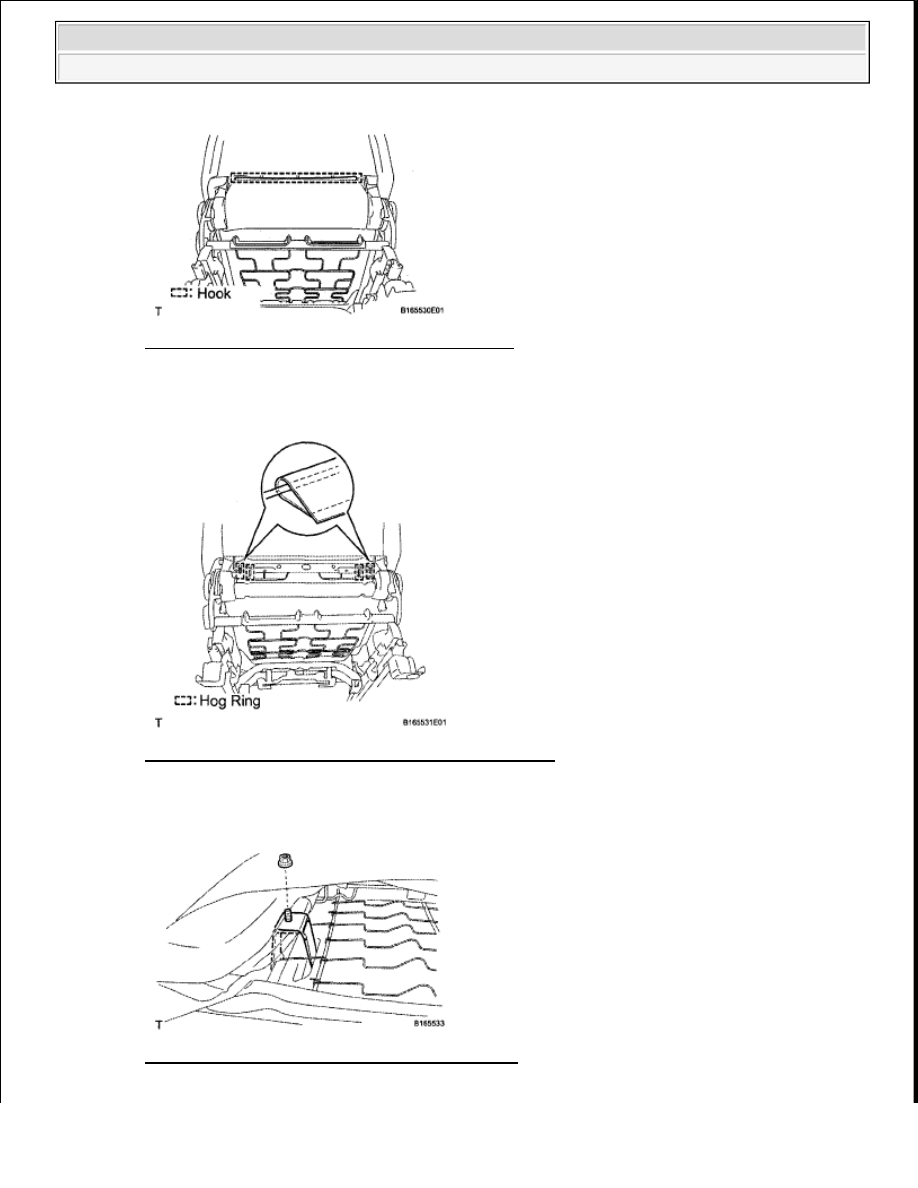

Fig. 52: Identifying Front Seatback Cover Hook
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Remove the hog rings and seatback cover wires.

Fig. 53: Identifying Seatback Cover Wires Hog Rings
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Remove the nut and seatback cover bracket from the seat frame.

Fig. 54: Identifying Seatback Cover Bracket Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Seat - Tundra

d. Detach the 4 claws and remove the 2 headrest supports.

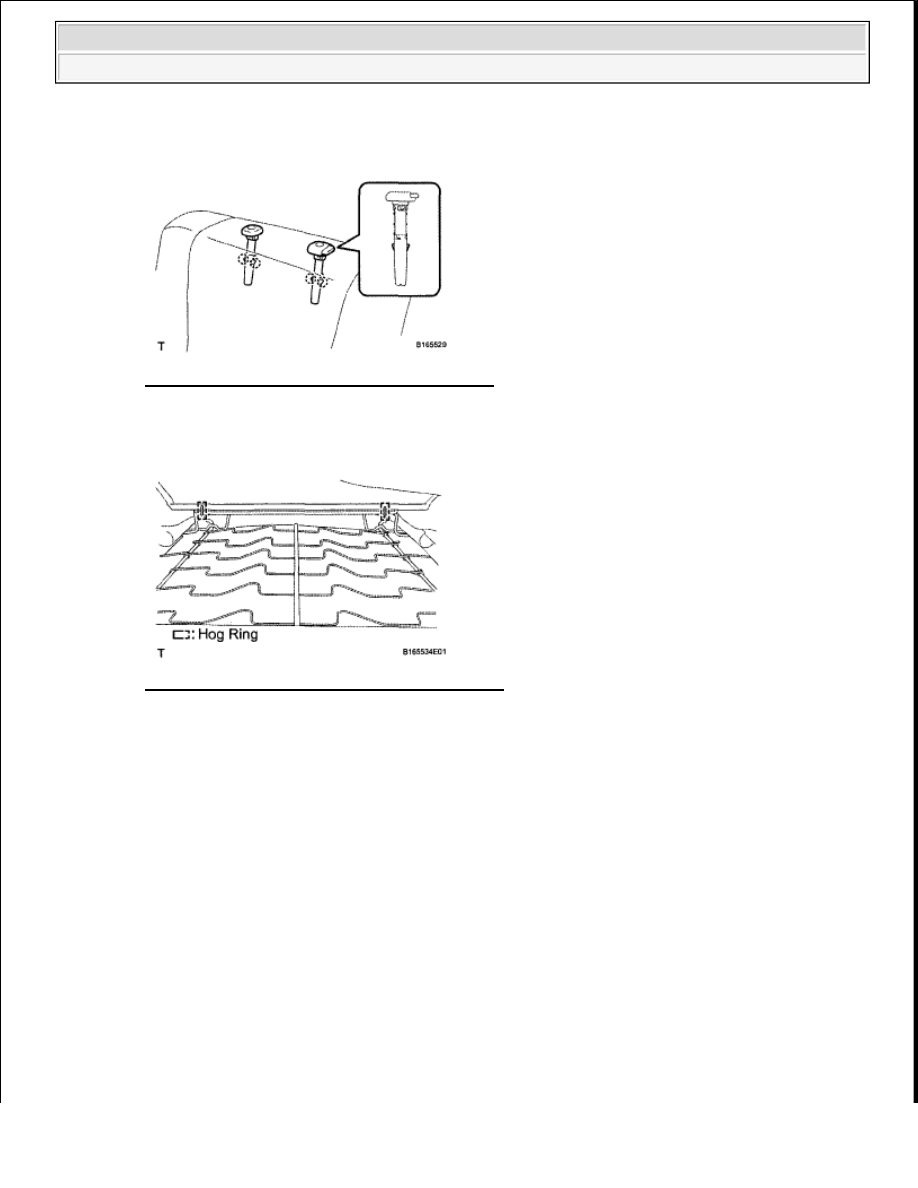

Fig. 55: Identifying Headrest Supports Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

e. Remove the hog rings and seatback cover with pad.

Fig. 56: Identifying Seatback Cover Hog Rings
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

12. REMOVE SEPARATE TYPE FRONT SEATBACK COVER LH

a. Remove the hog rings and seatback cover wires.
