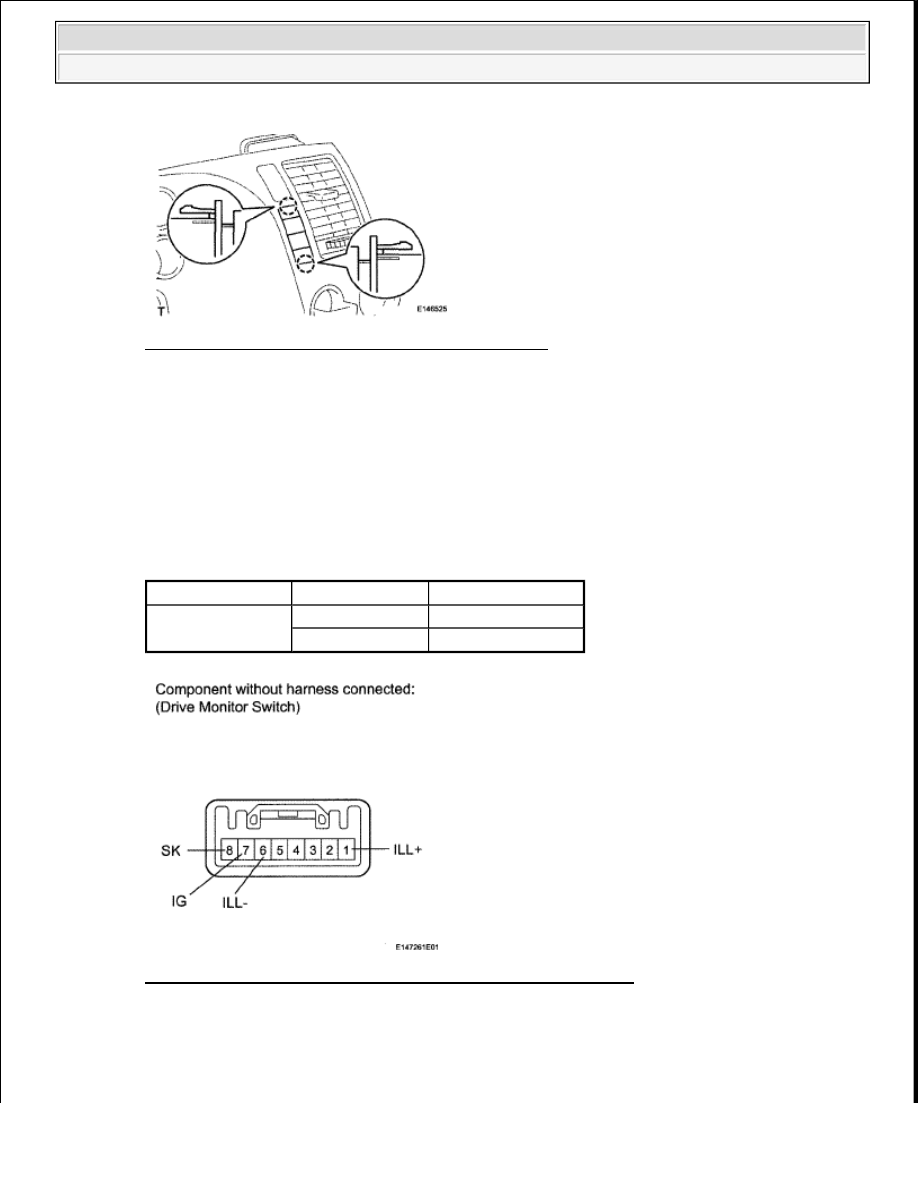

Fig. 89: Identifying Monitor Switch Assembly Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSPECTION

1. INSPECT DRIVE MONITOR SWITCH (CLEARANCE SONAR MAIN SWITCH)

a. Measure the resistance according to the value(s) in the table below.

Standard resistance

DRIVE MONITOR SWITCH (CLEARANCE SONAR MAIN SWITCH) RESISTANCE
SPECIFICATION

Fig. 90: Identifying Drive Monitor Switch Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

If the result is not as specified, replace the monitor switch.

b. Inspect the switch illumination.

Tester Connection Switch Condition Specified Condition

7 (IG) - 8 (SK)

Sonar switch off 10 kohms or higher

Sonar switch on

Below 1 ohms

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Parking Assist/Monitoring - Tundra

1. Connect the battery's positive (+) lead to terminal 1 (ILL+) and the negative (-) lead to

terminal 6 (ILL-).

2. Check that the light comes on.

OK: LED comes on.

If the result is not as specified, replace the monitor switch.

INSTALLATION

1. INSTALL DRIVE MONITOR SWITCH (CLEARANCE SONAR MAIN SWITCH)

a. Attach the 2 claws to install the monitor switch.

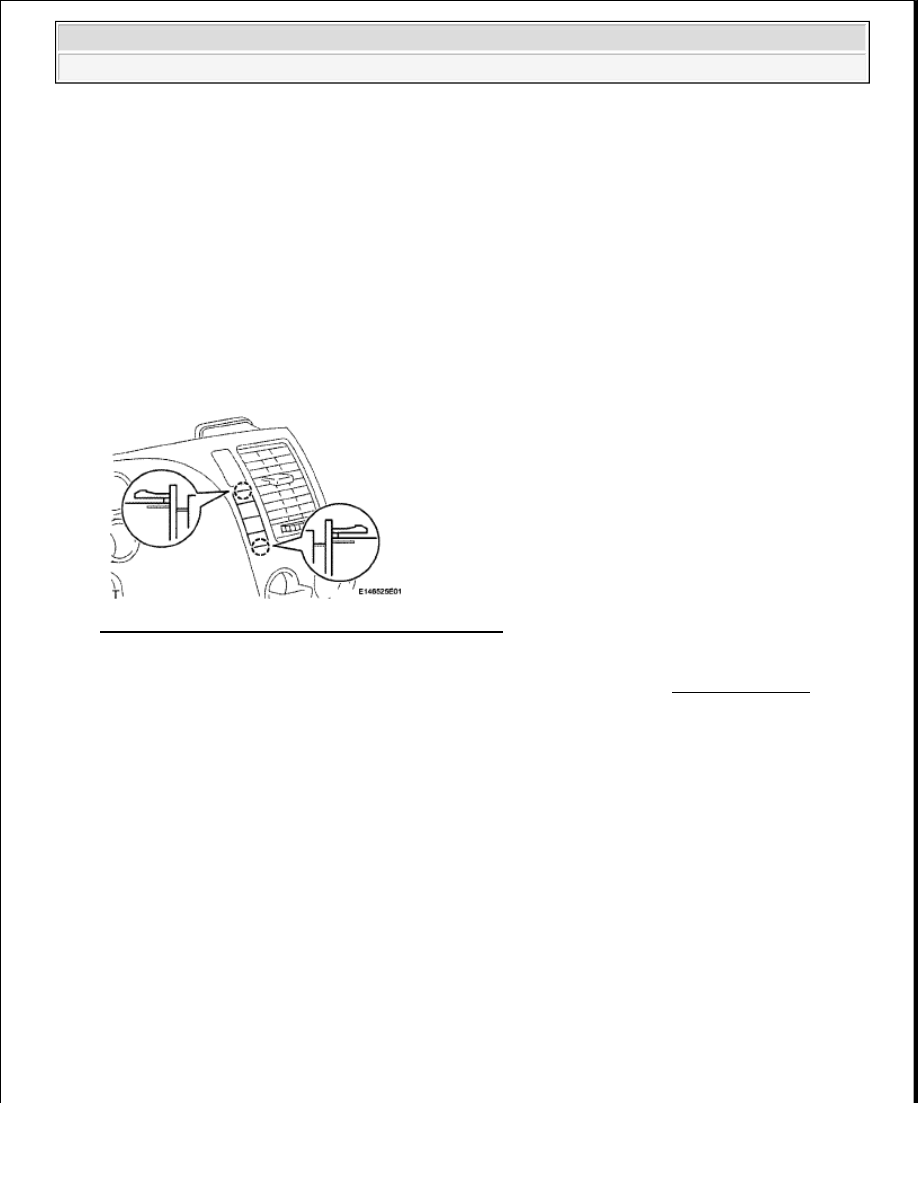

Fig. 91: Identifying Monitor Switch Assembly Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (See INSTALLATION )

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Parking Assist/Monitoring - Tundra

2009 ACCESSORIES AND EQUIPMENT

Seat - Tundra

FRONT POWER SEAT CONTROL SYSTEM (W/ MEMORY)

PARTS LOCATION

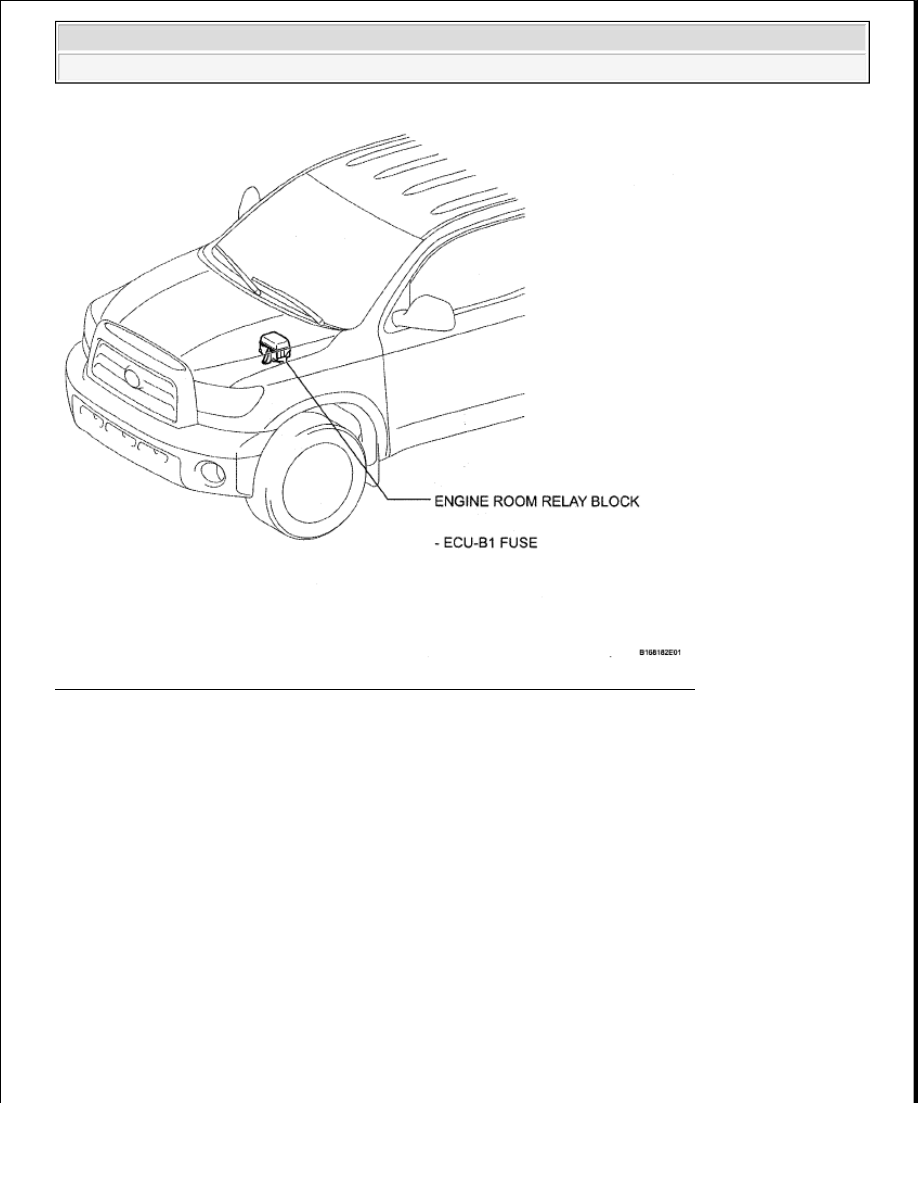

Fig. 1: Identifying Front Power Seat Control System Components Location (1 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Seat - Tundra

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Seat - Tundra

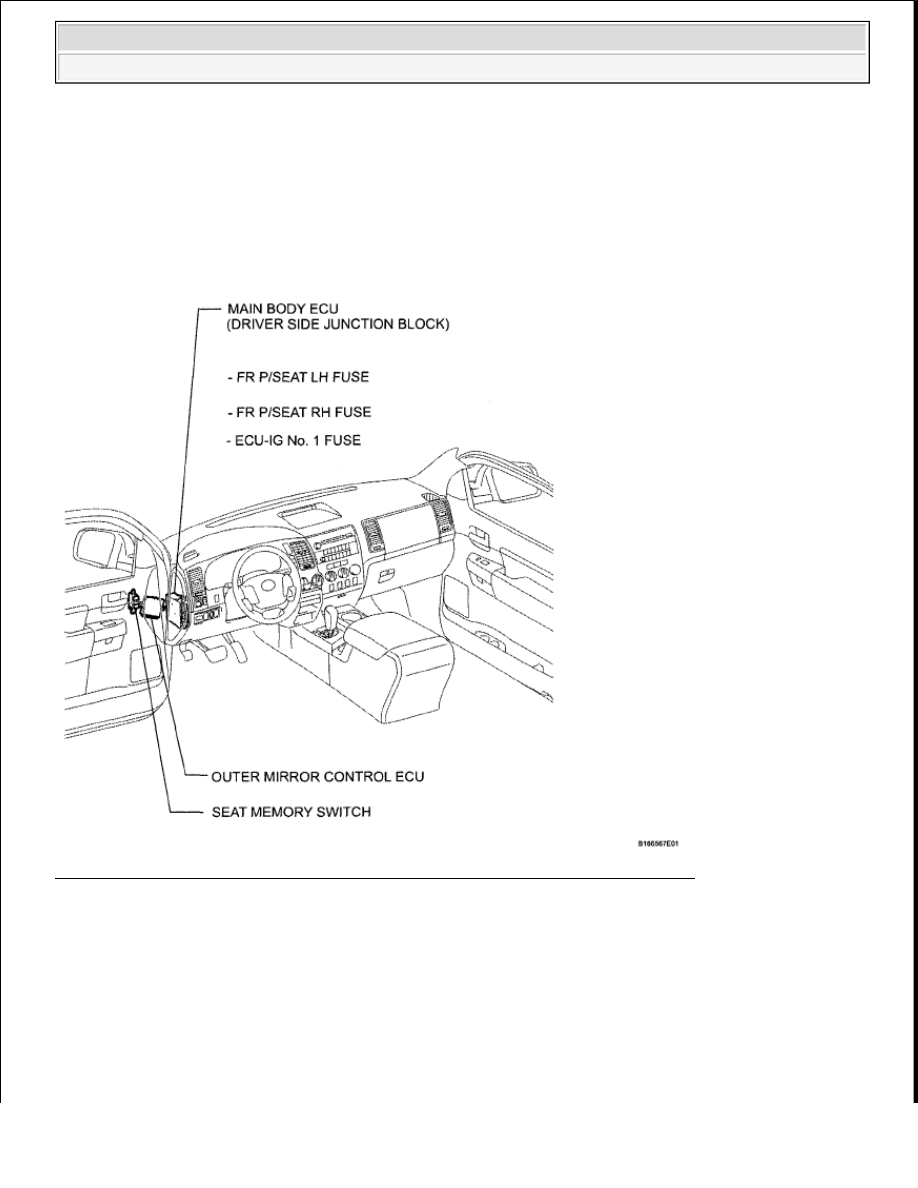

Fig. 2: Identifying Front Power Seat Control System Components Location (2 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
