Toyota Tundra. Manual - part 377

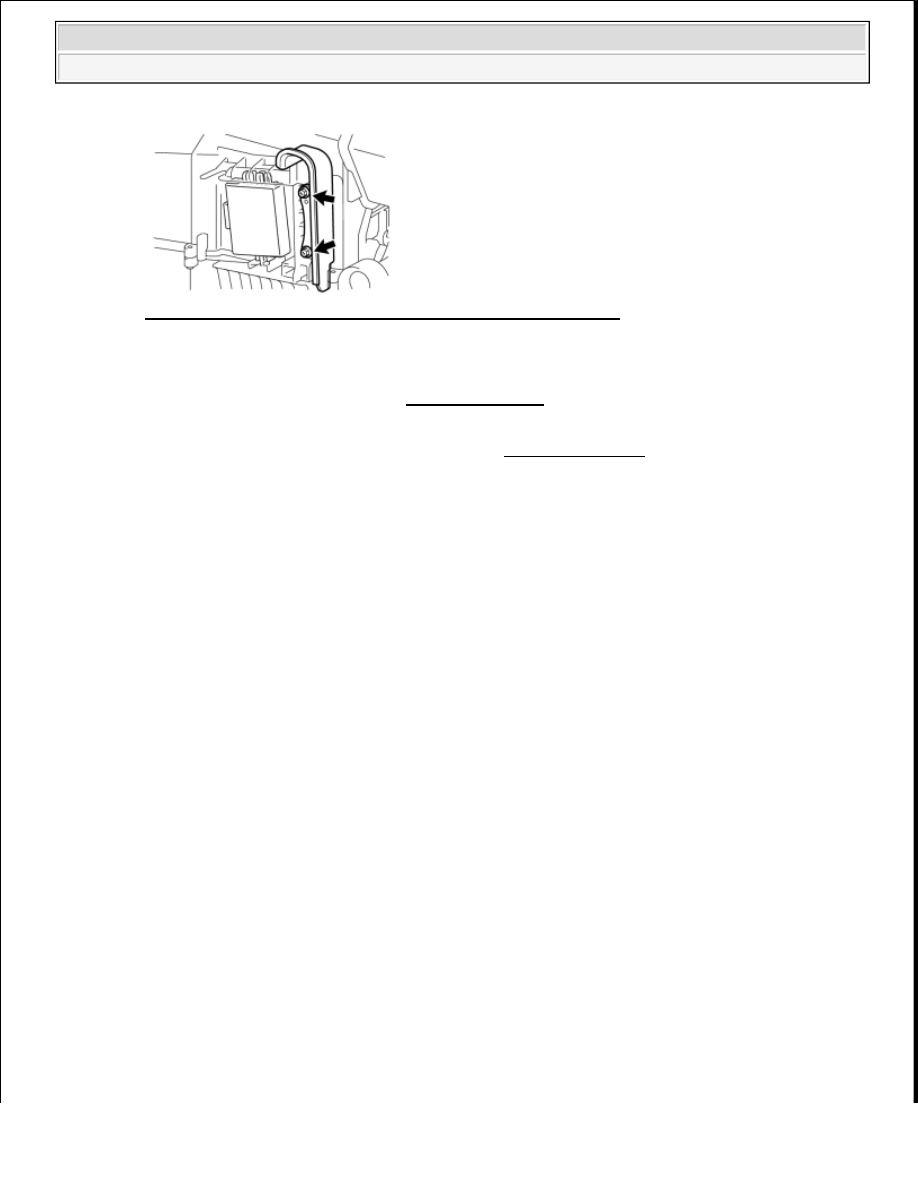

Fig. 44: Identifying Fasteners, Transponder Key And Bracket
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. INSTALL AIR CONDITIONING UNIT

a. Install the air conditioning unit (see INSTALLATION ).

4. REGISTER THE ECU - ECM COMMUNICATION ID

a. Register the ECU - ECM communication ID (see REGISTRATION ).

TRANSPONDER KEY AMPLIFIER

COMPONENTS

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Engine Immobilizer - Tundra

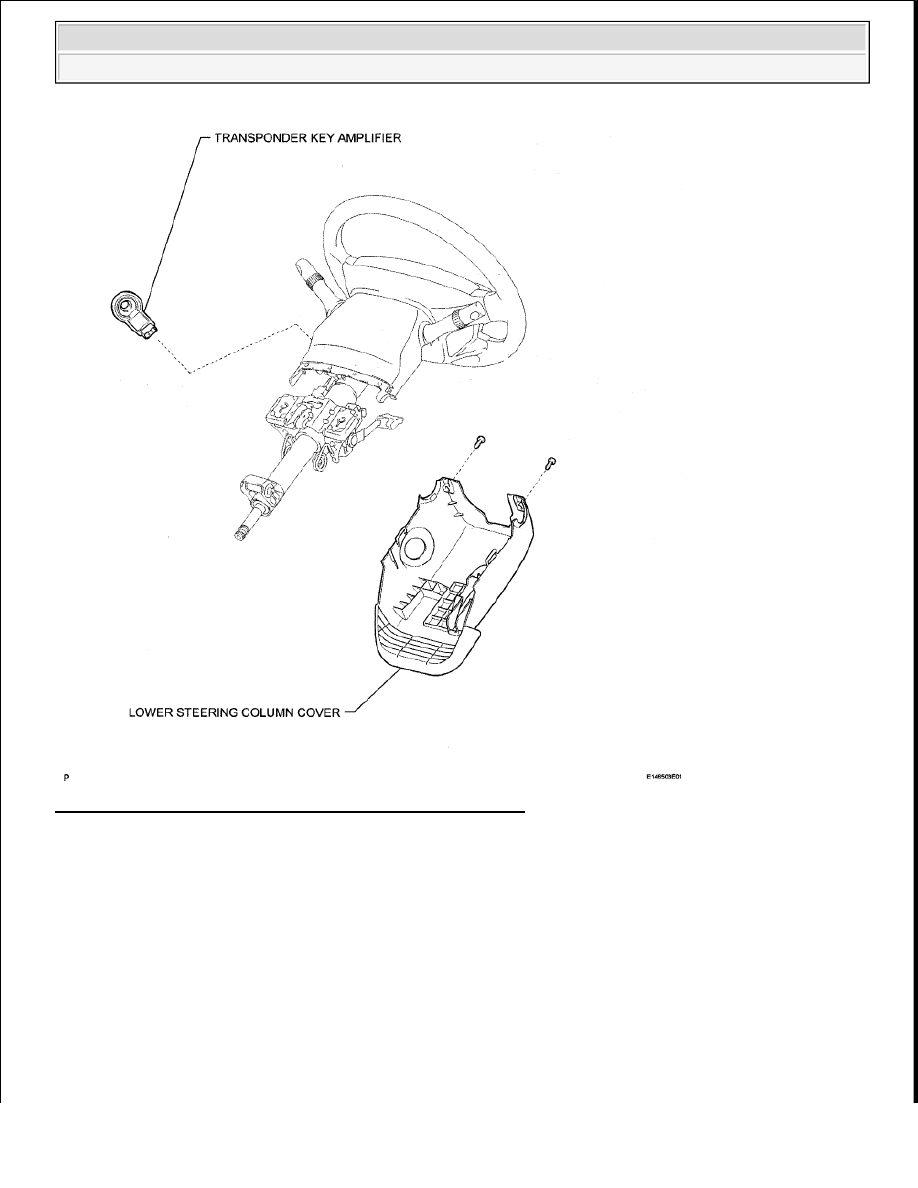

Fig. 45: Identifying Transponder Key Amplifier Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. REMOVE LOWER STEERING COLUMN COVER

a. While turning the steering wheel to the right and left, remove the 2 screws.

b. Detach the 2 claws and remove the lower steering column cover.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Engine Immobilizer - Tundra

Fig. 46: Identifying Lower Steering Column Cover Screws And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. REMOVE TRANSPONDER KEY AMPLIFIER

a. Using a screwdriver, widen the claws attached to the upper bracket by approximately 1 mm (0.0394

in.).

b. Pull out the transponder key amplifier with the claws open.

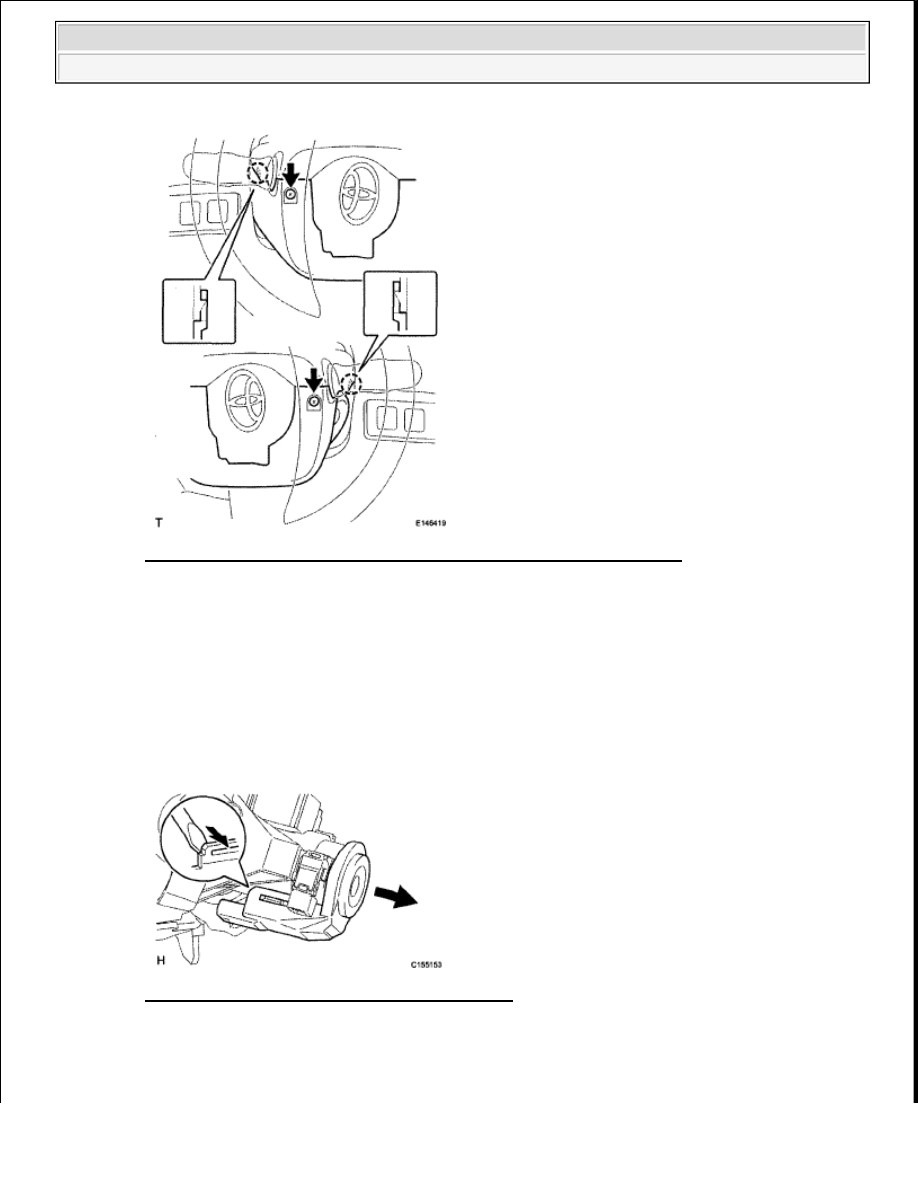

Fig. 47: Identifying Transponder Key Amplifier
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSTALLATION

NOTE:

Take care not to apply excessive force to prevent the case from being
damaged.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Engine Immobilizer - Tundra

1. INSTALL TRANSPONDER KEY AMPLIFIER

a. Align the transponder key amplifier with the installation position of the upper bracket with the

amplifier inclined.

b. Push the transponder key amplifier and install it to the upper bracket.

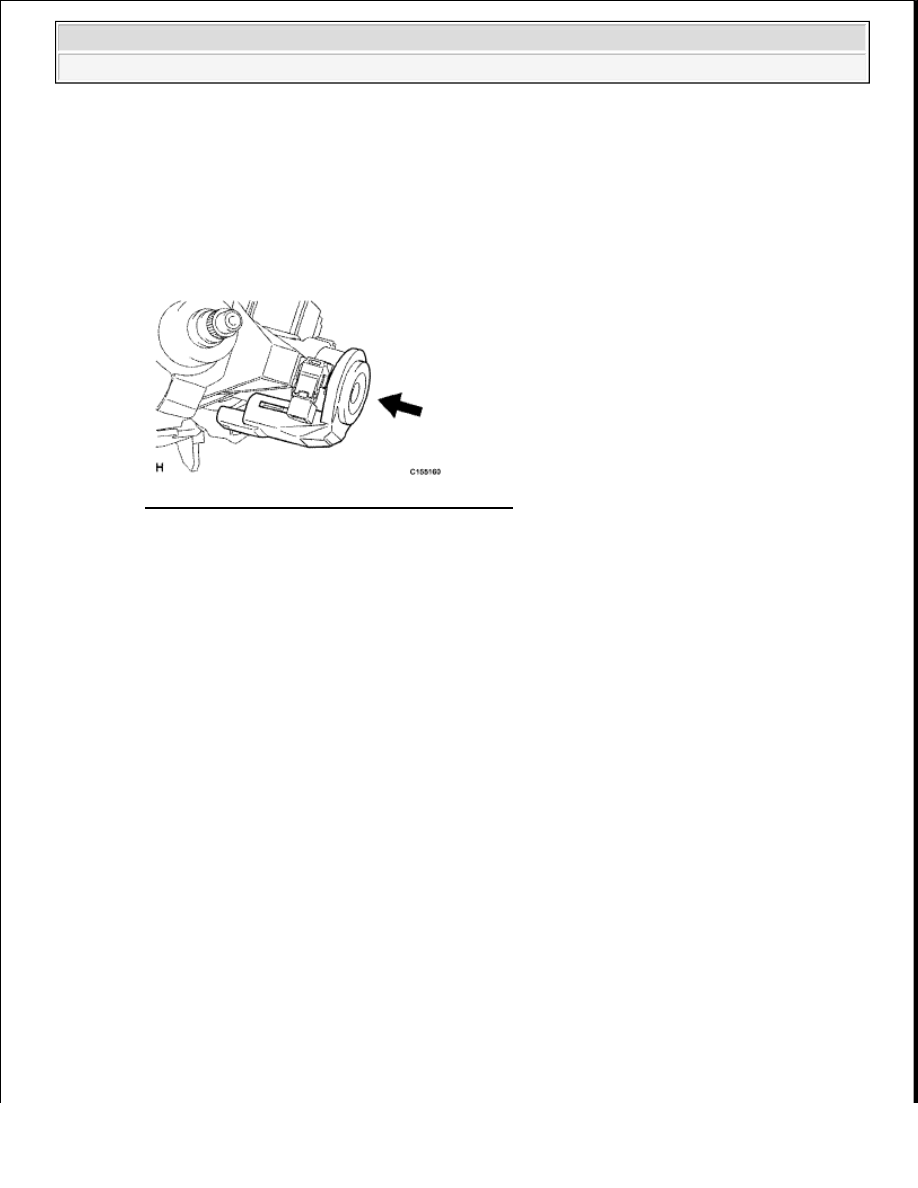

Fig. 48: Identifying Transponder Key Amplifier
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. INSTALL LOWER STEERING COLUMN COVER

a. Attach the 2 claws to install the lower steering column cover.

b. Install the 2 screws.

NOTE:

Do not push the amplifier upward with excessive force.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Engine Immobilizer - Tundra
