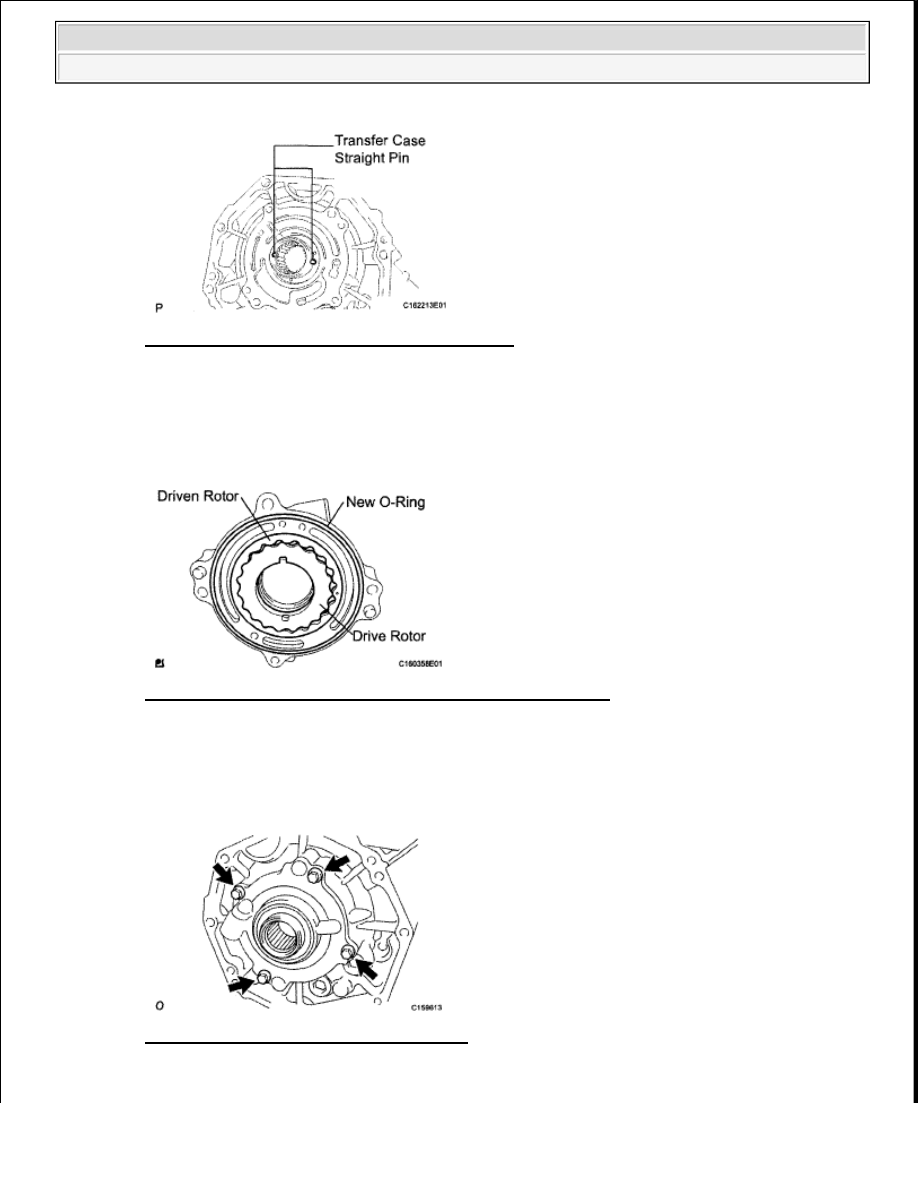

Fig. 121: Identifying Transfer Case Straight Pin
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

36. INSTALL TRANSFER OIL PUMP PLATE

a. Apply transfer oil to a new O-ring, drive rotor and driven rotor.

b. Install the O-ring, drive rotor and driven rotor to the oil pump plate.

Fig. 122: Identifying O-Ring, Drive Rotor And Driven Rotor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Install the oil pump plate with the 4 bolts.

Torque: 11 N*m (117 kgf*cm, 9 ft.*lbf)

Fig. 123: Identifying Oil Pump Plate Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 TRANSMISSION JF1A Transfer - Tundra

INSTALLATION

1. INSTALL TRANSFER ASSEMBLY

a. Install the transfer with the 8 bolts.

Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

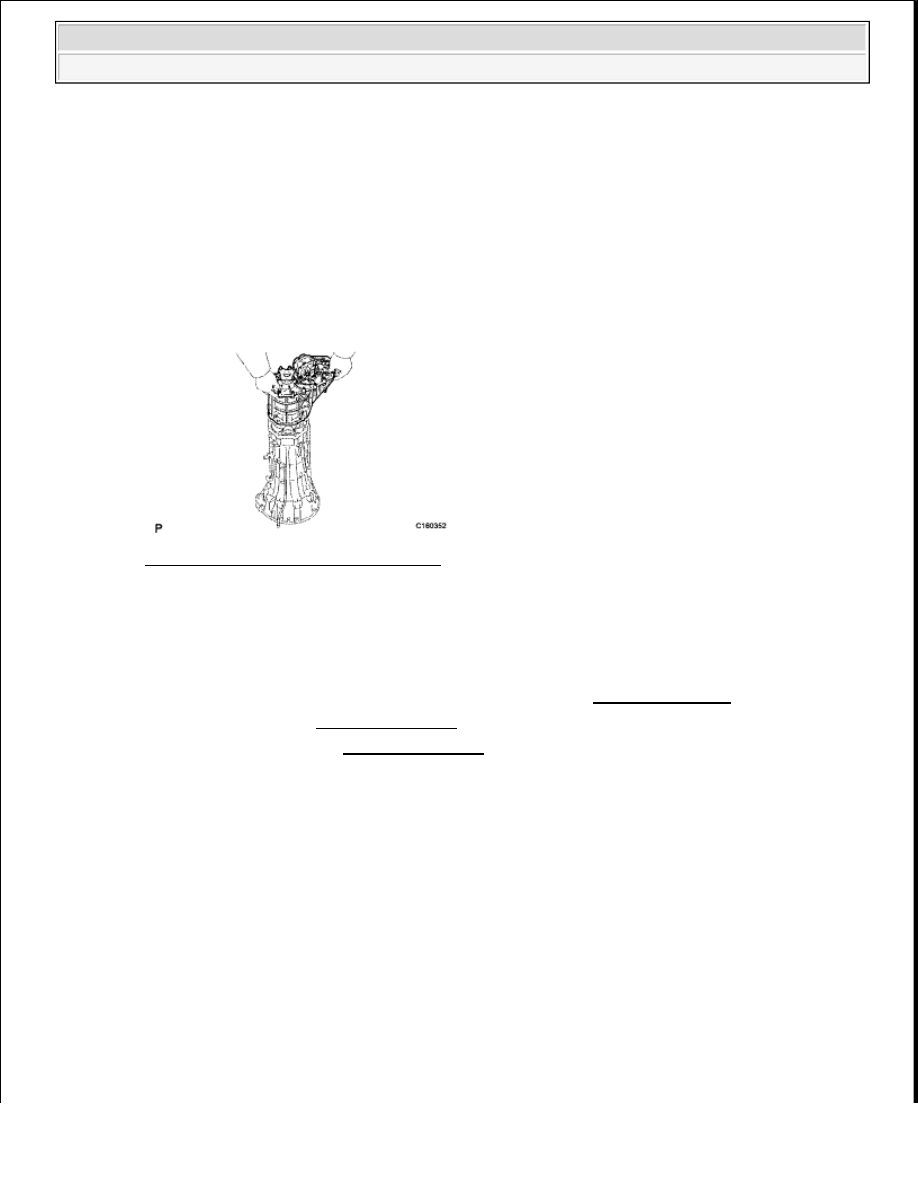

Fig. 124: Installing Transfer Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. INSTALL AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY (for A750F)

a. Install the automatic transmission with transfer assembly (see INSTALLATION ).

3. INSTALL AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY (for AB60F)

a. Install the automatic transmission with transfer assembly (see INSTALLATION ).

4. ADD TRANSFER OIL (see REPLACEMENT )

5. CHECK TRANSFER OIL (see REPLACEMENT )

6. CHECK FOR TRANSFER OIL LEAK

TOUCH SELECT 2-4 AND HIGH-LOW SYSTEM

PARTS LOCATION

NOTE:

Take care not to damage the rear adaptor oil seal with the transfer
input gear spline.

2009 Toyota Tundra

2009 TRANSMISSION JF1A Transfer - Tundra

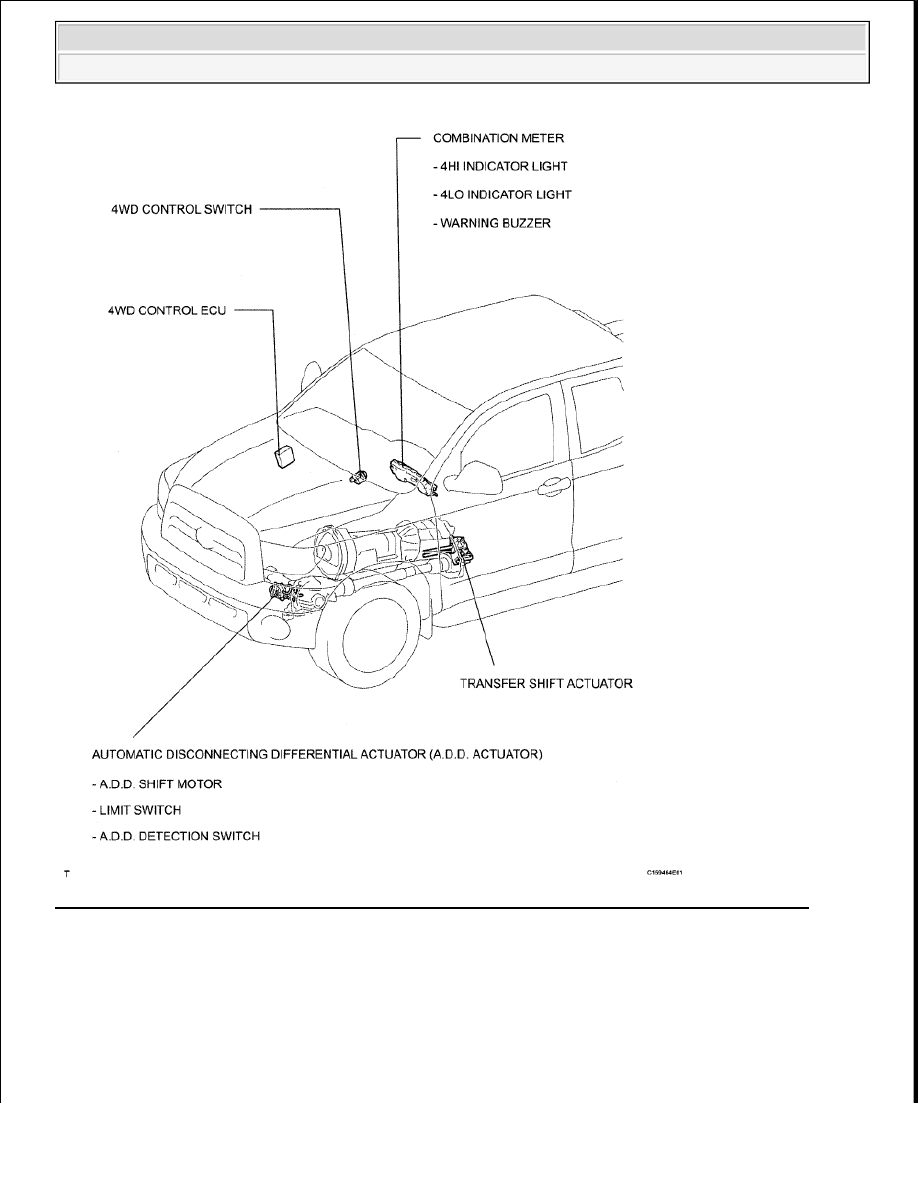

Fig. 125: Identifying Touch Select 2-4 And High-Low System Replacement Parts Location (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 TRANSMISSION JF1A Transfer - Tundra

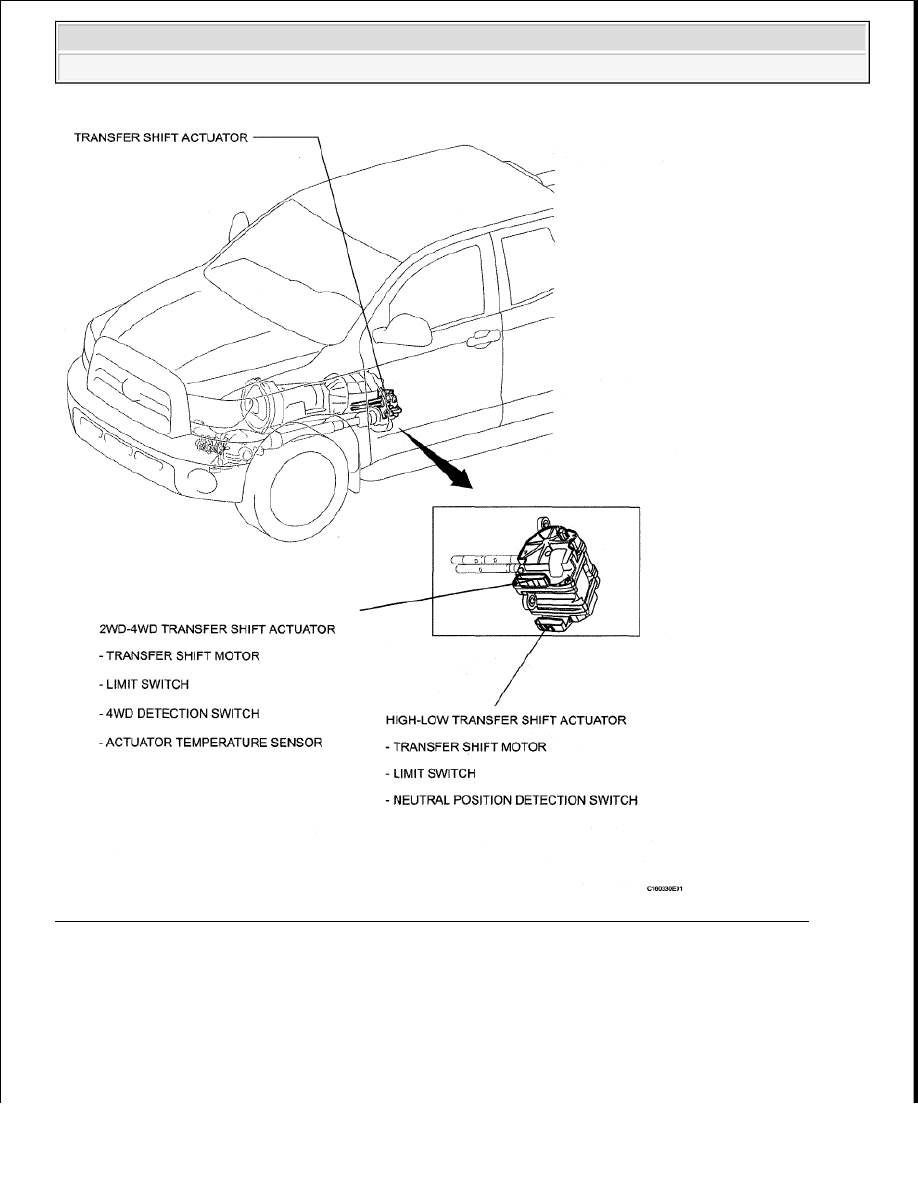

Fig. 126: Identifying Touch Select 2-4 And High-Low System Replacement Parts Location (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

SYSTEM DIAGRAM
