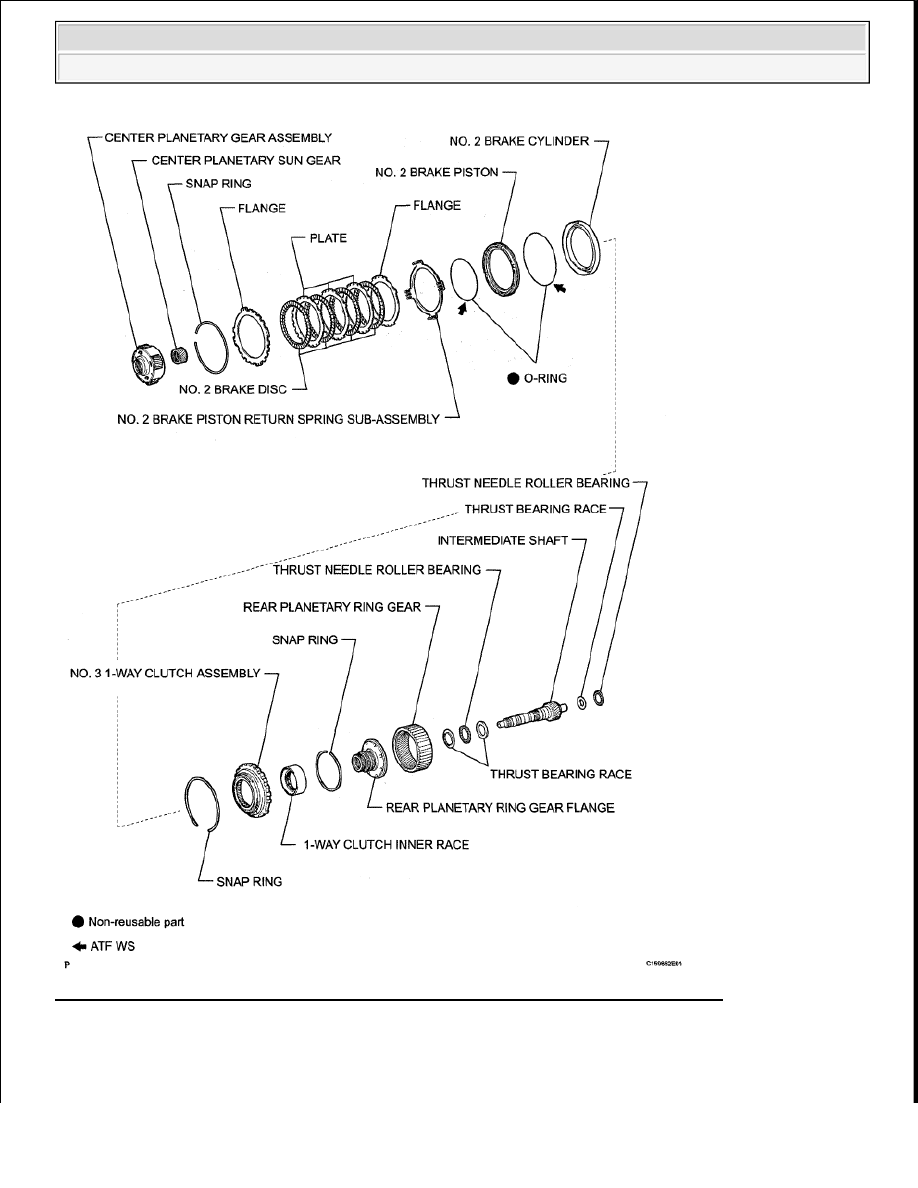

Fig. 375: Identifying Automatic Transmission Unit Replacement Components (9 Of 10)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 TRANSMISSION AB60F Automatic Transaxle - Tundra

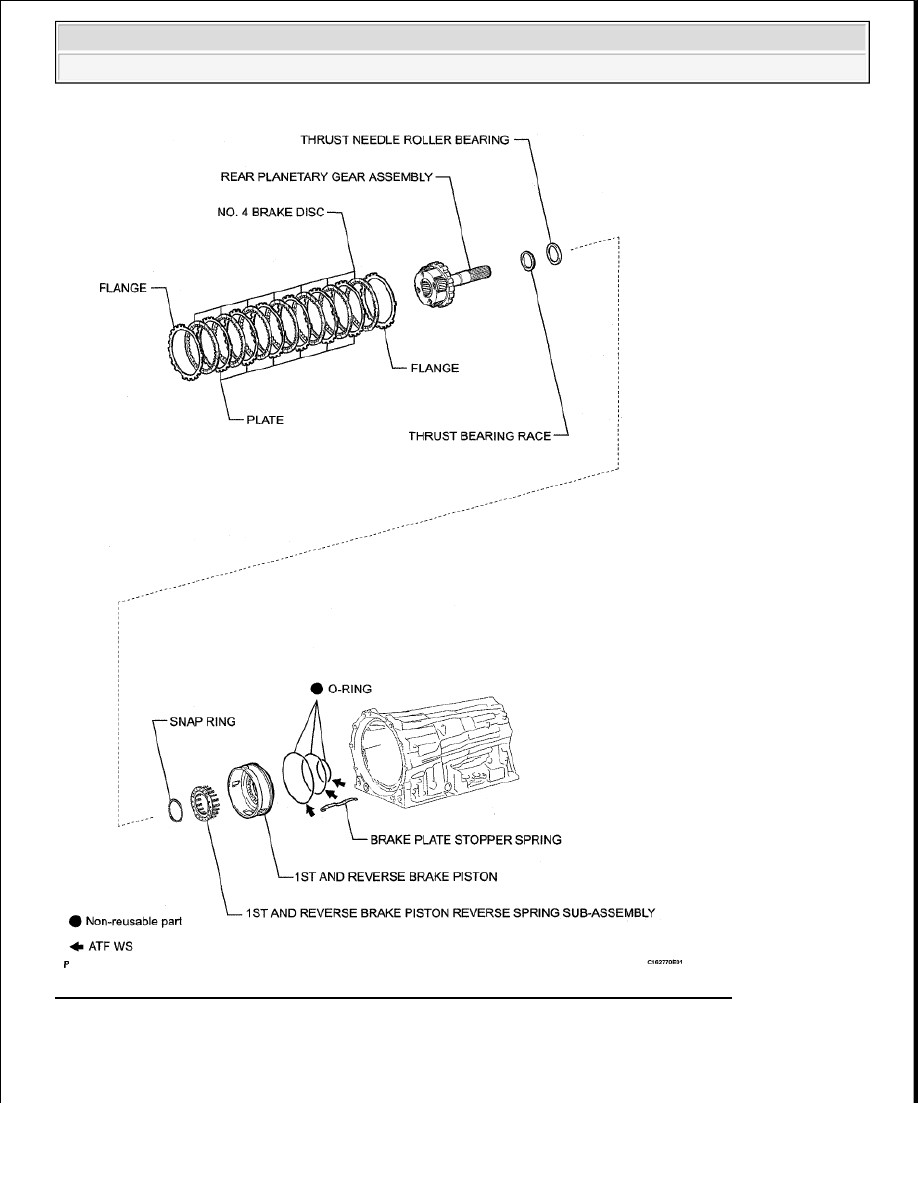

Fig. 376: Identifying Automatic Transmission Unit Replacement Components (10 Of 10)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

DISASSEMBLY

2009 Toyota Tundra

2009 TRANSMISSION AB60F Automatic Transaxle - Tundra

1. REMOVE TRANSMISSION CONTROL SHAFT LEVER RH

a. Remove the nut, spring washer and control shaft lever.

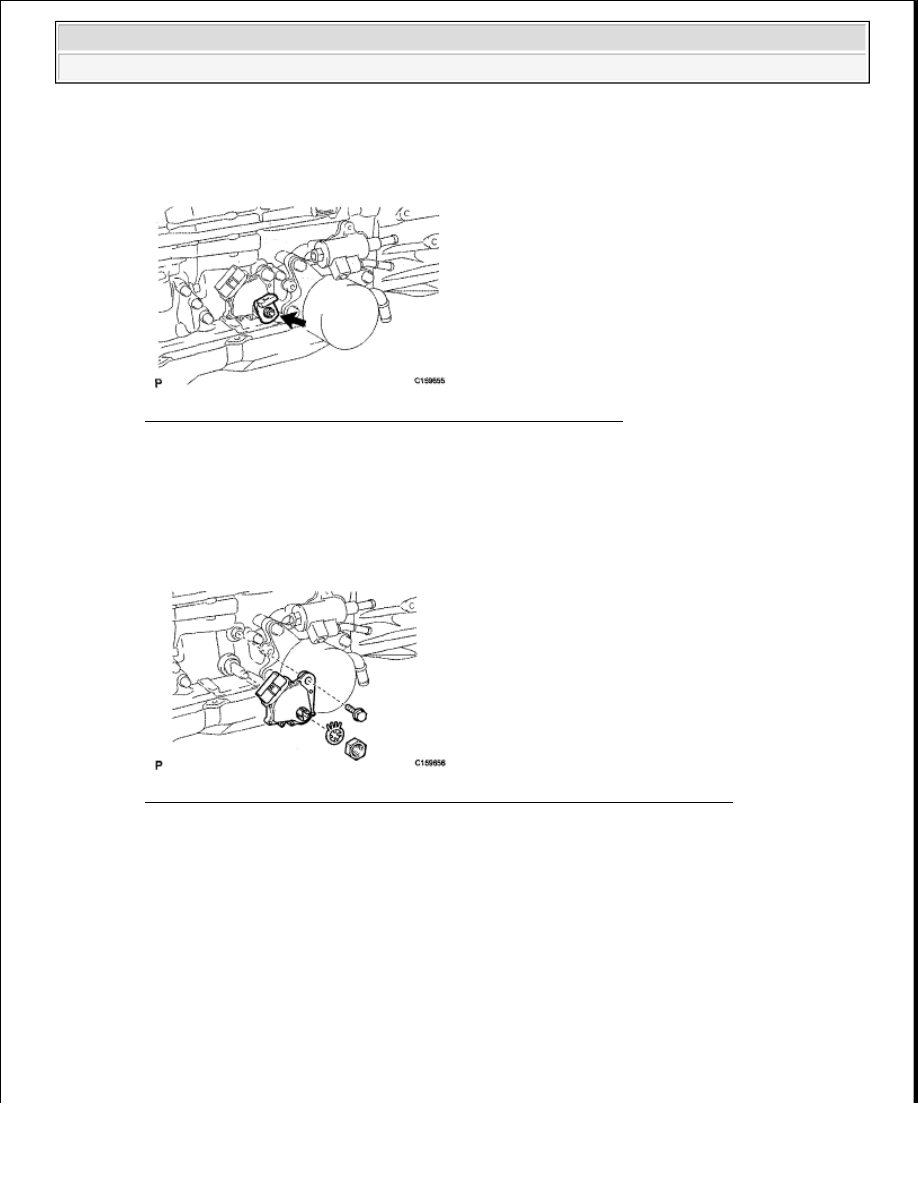

Fig. 377: Locating Nut, Spring Washer & Control Shaft Lever
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

a. Using a screwdriver, bend the tabs of the lock washer.

b. Remove the nut, lock washer and bolt.

c. Remove the park/neutral position switch.

Fig. 378: Identifying Park/Neutral Position Switch Nut, Lock Washer & Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. REMOVE SPEED SENSOR

a. Remove the 2 bolts and 2 speed sensors.

b. Remove the 2 O-rings from sensors.

2009 Toyota Tundra

2009 TRANSMISSION AB60F Automatic Transaxle - Tundra

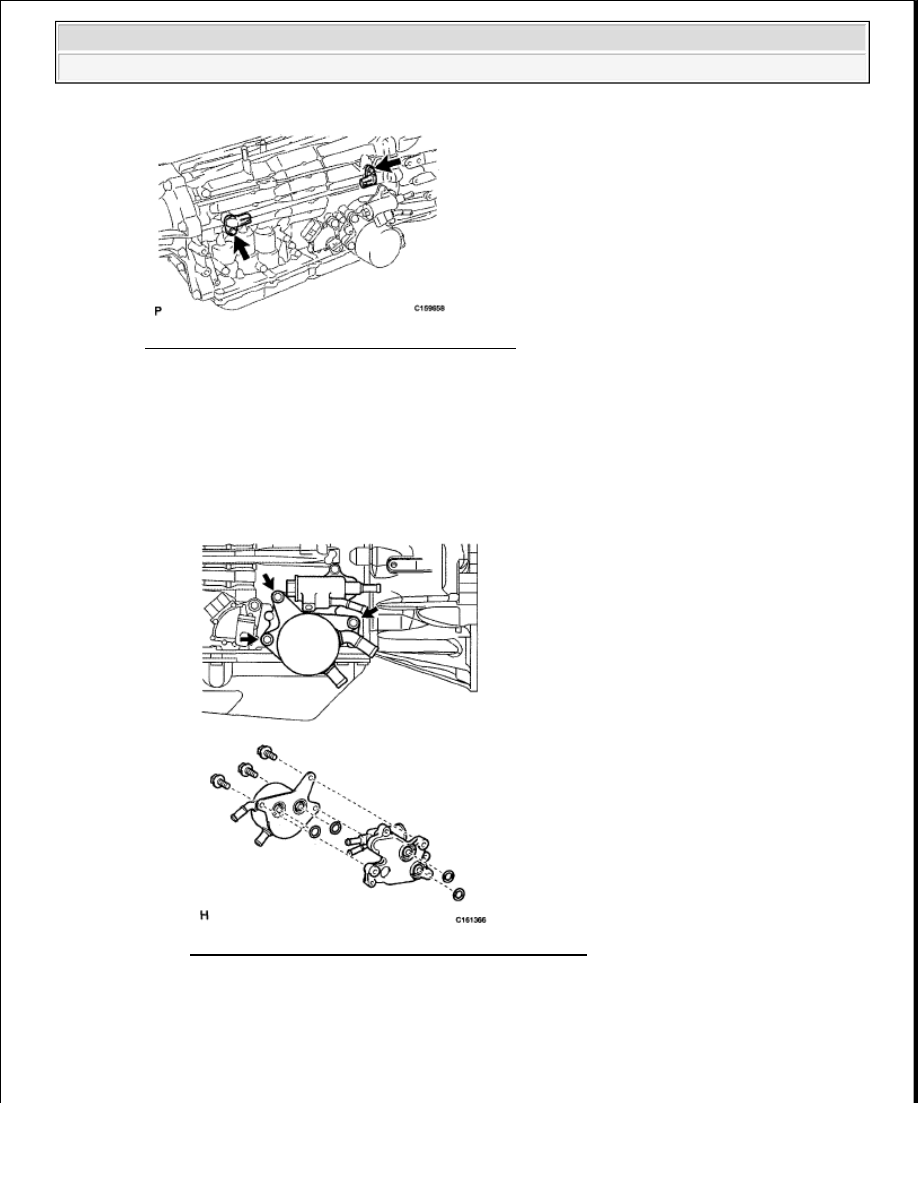

Fig. 379: Locating Speed Sensor Bolts & O-Ring
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. REMOVE TRANSMISSION OIL COOLER ASSEMBLY

a. w/ Trailer Towing System:

1. Remove the 3 bolts and transmission oil cooler with transmission oil thermostat.

2. Separate the transmission oil cooler from the transmission oil thermostat.

3. Remove the 4 O-rings.

Fig. 380: Locating Transmission Oil Cooler & Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. w/o Trailer Towing System:

1. Remove the 3 bolts and transmission oil cooler with transmission oil cooler spacer.

2. Separate the transmission oil cooler from the transmission oil cooler spacer.

3. Remove the 4 O-rings.
