Toyota Tundra. Manual - part 2729





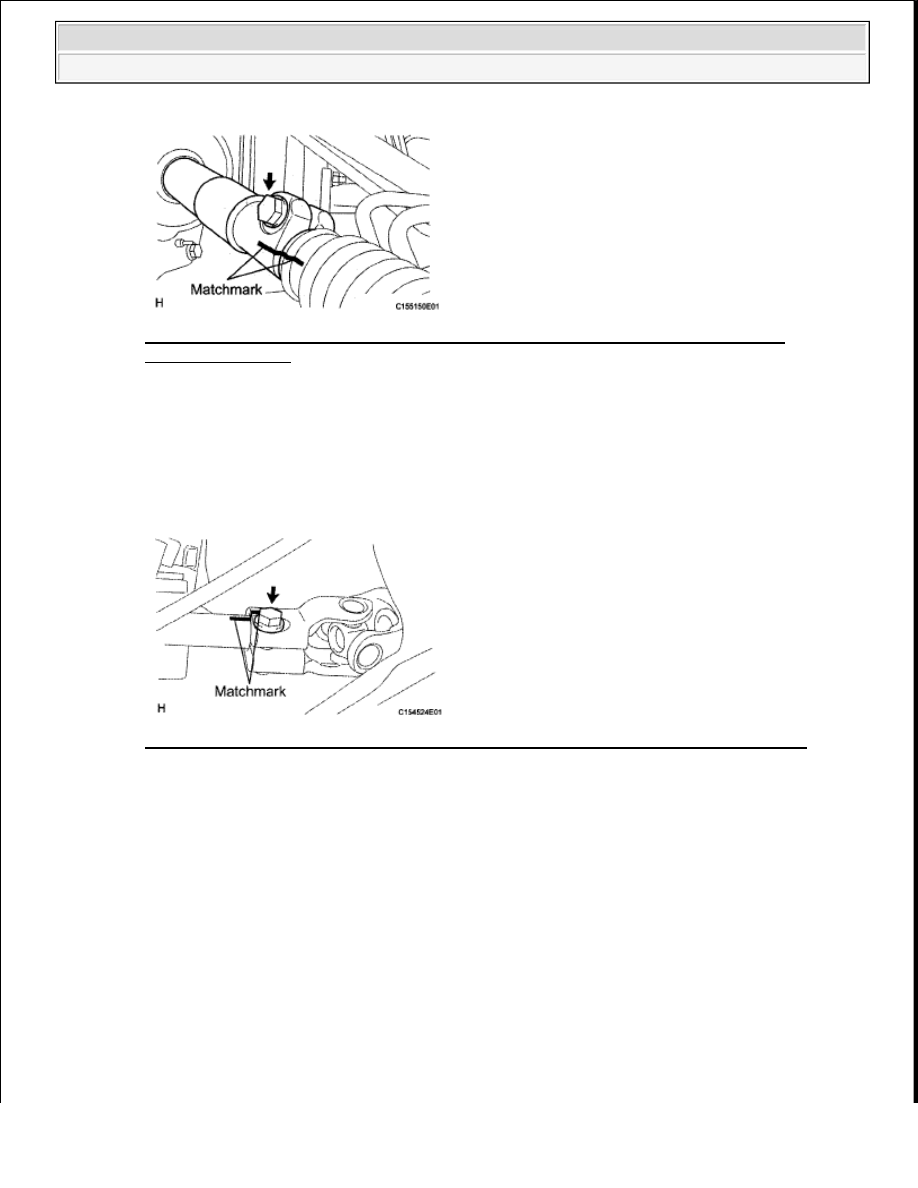

Fig. 127: Identifying Matchmarks On No. 2 Steering Intermediate Shaft & Steering
Intermediate Shaft

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Install the bolt.

Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

c. Align the matchmarks on the steering column and steering intermediate shaft.

Fig. 128: Identifying Matchmarks On Steering Intermediate Shaft & Steering Column
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

d. Install the bolt.

Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

e. Install the 3 bolts and nut.

Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)



2009 Toyota Tundra

2009 STEERING Steering Column - Tundra































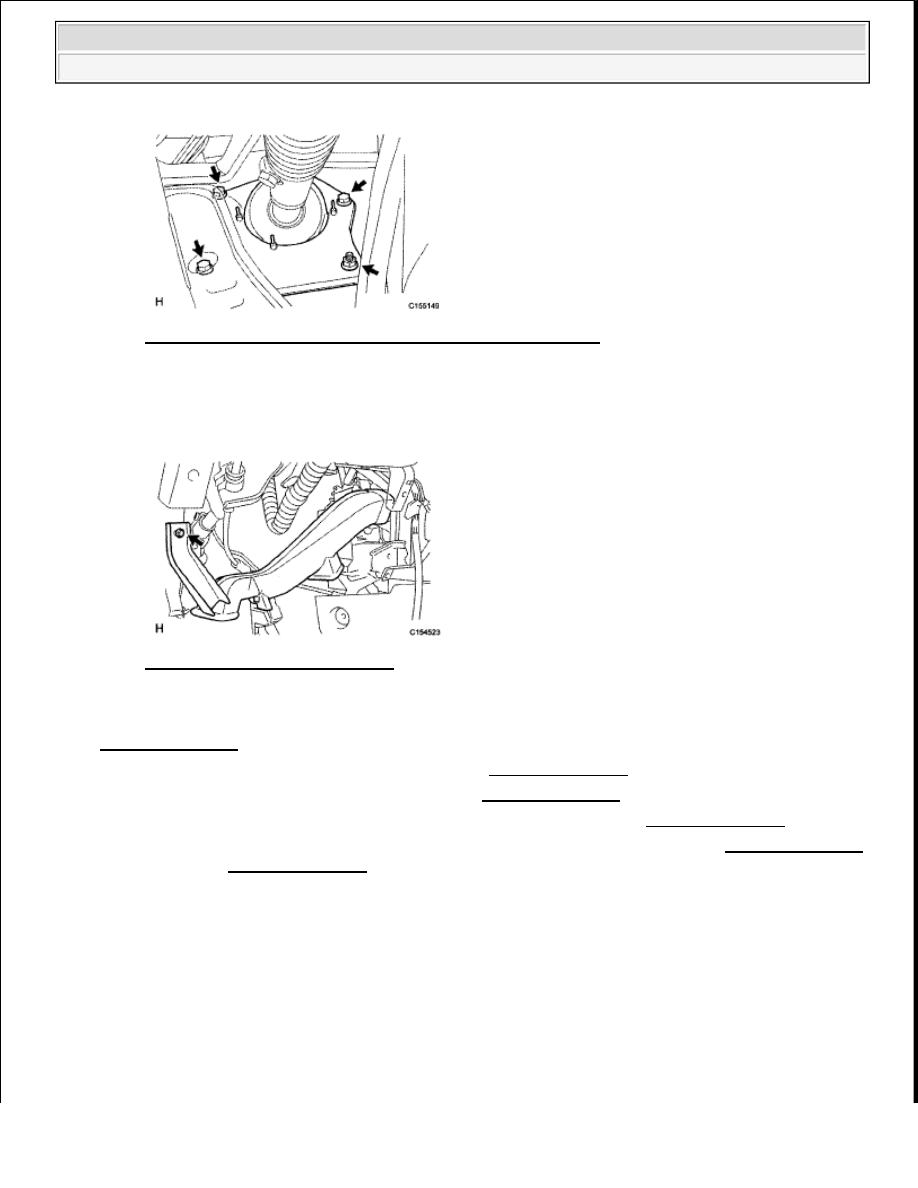

Fig. 129: Locating Steering Intermediate Shaft Nut & Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY

a. Install the air duct with the bolt.

Fig. 130: Locating Air Duct Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH (See

INSTALLATION )

6. INSTALL INSTRUMENT SIDE PANEL LH (See INSTALLATION )

7. INSTALL COWL SIDE TRIM BOARD LH (See INSTALLATION )

8. INSTALL FRONT DOOR SCUFF PLATE LH (for Regular Cab) (See INSTALLATION )

9. INSTALL FRONT DOOR SCUFF PLATE LH (for Double Cab, CrewMax) (See INSTALLATION

(for Double Cab),INSTALLATION (For CrewMax)

10. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

a. Install the turn signal switch with spiral cable to the steering column with the clamp.



2009 Toyota Tundra

2009 STEERING Steering Column - Tundra































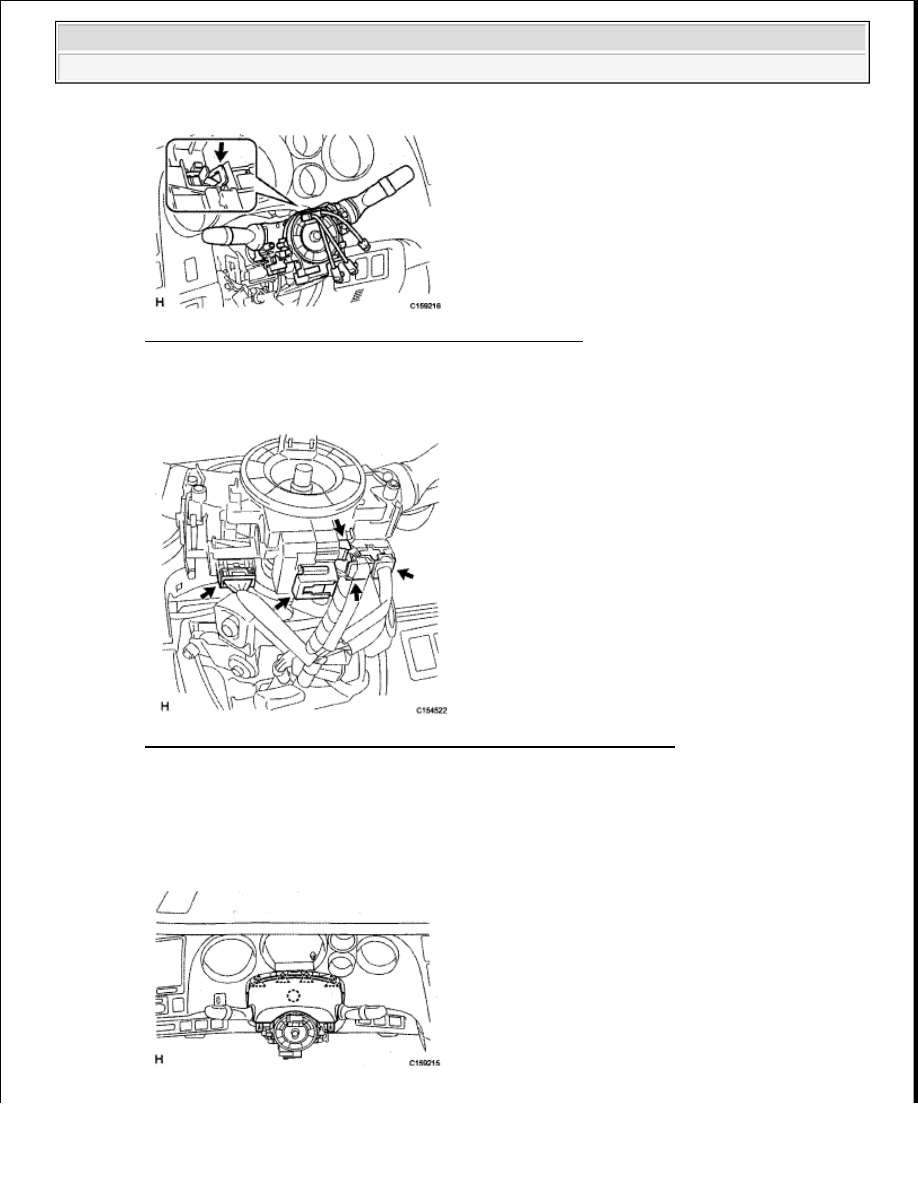

Fig. 131: Locating Turn Signal Switch With Spiral Cable
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Connect the 5 connectors to the turn signal switch with spiral cable.

Fig. 132: Locating Turn Signal Switch With Spiral Cable Connectors
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

11. INSTALL UPPER STEERING COLUMN COVER

a. Attach the claw to install the upper steering column cover.

b. Attach the 4 clips.



2009 Toyota Tundra

2009 STEERING Steering Column - Tundra































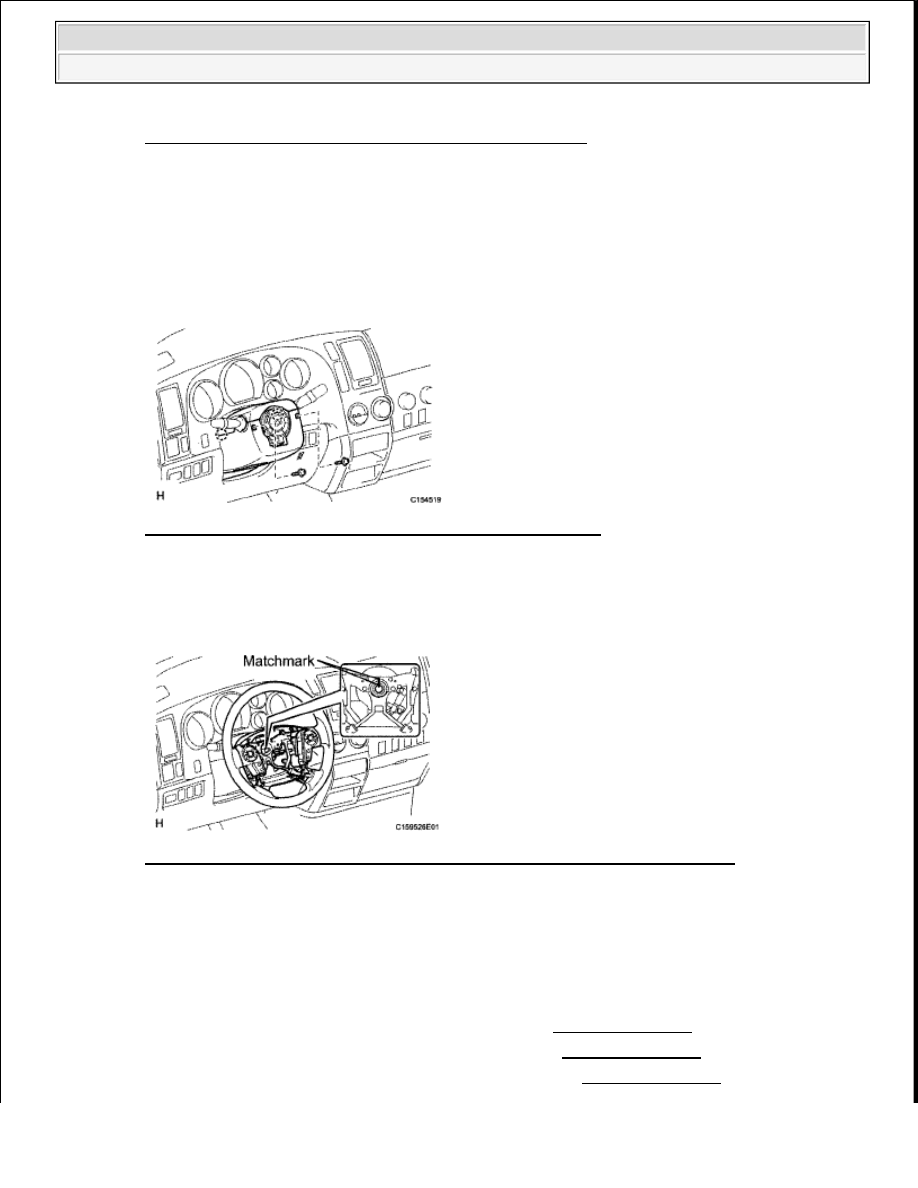

Fig. 133: Identifying Upper Steering Column Cover Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

12. INSTALL LOWER STEERING COLUMN COVER

a. Attach the 2 claws to install the lower steering column cover.

b. Install the 2 screws.

Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

Fig. 134: Identifying Lower Steering Column Cover Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

13. INSTALL STEERING WHEEL ASSEMBLY

a. Align the matchmarks on the steering wheel and steering main shaft.

Fig. 135: Identifying Matchmarks On Steering Wheel & Steering Main Shaft
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Install the steering wheel set nut.

Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

14. INSPECT STEERING WHEEL CENTER POINT

15. INSTALL STEERING PAD (w/ Steering Pad Switch) (See INSTALLATION )

16. INSTALL STEERING PAD (w/o Steering Pad Switch) (See INSTALLATION )

17. INSTALL LOWER NO. 3 STEERING WHEEL COVER (See INSTALLATION )



2009 Toyota Tundra

2009 STEERING Steering Column - Tundra
