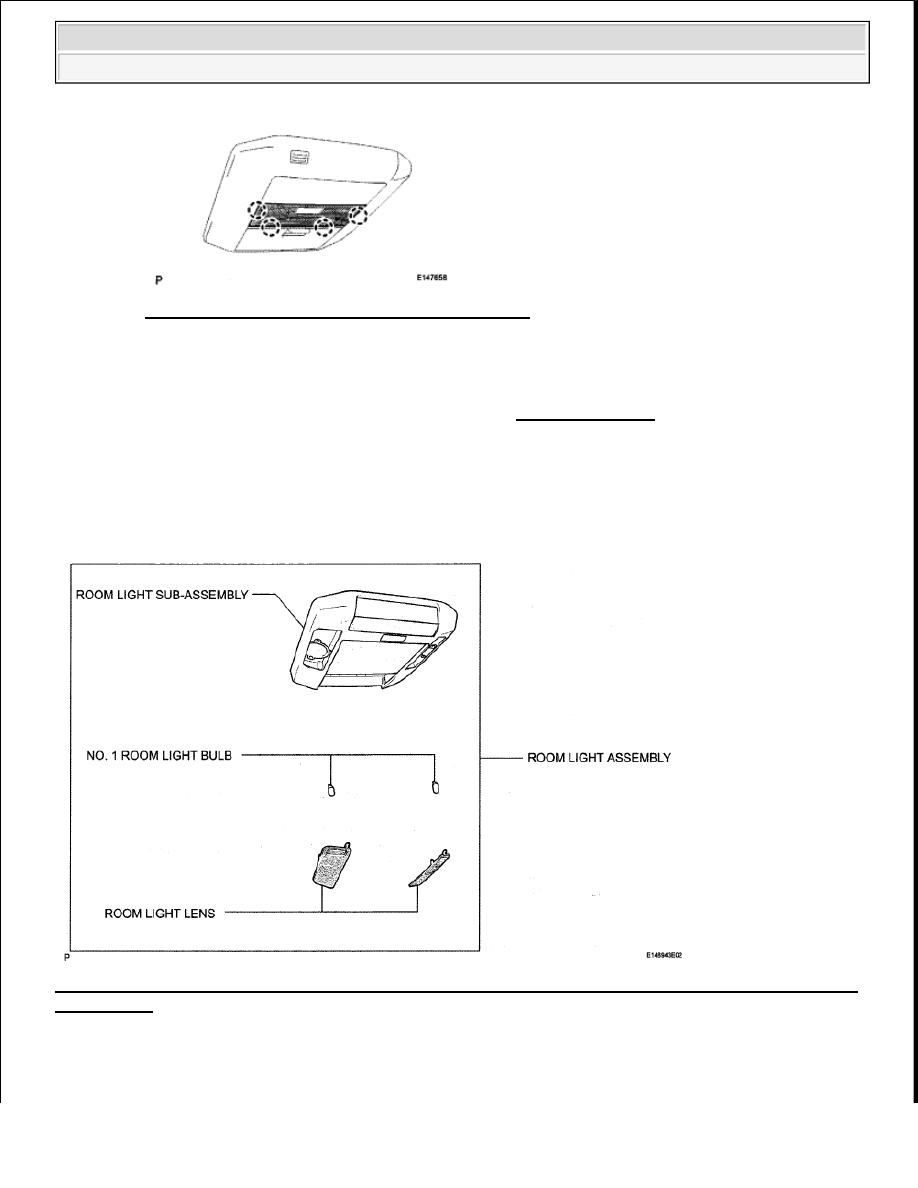

Fig. 155: Identifying Room Light Assembly Components (For Short Type Overhead Console Box) REMOVAL 1. REMOVE ROOF CONSOLE BOX ASSEMBLY (See REMOVAL ) DISASSEMBLY HINT: When only replacing the room light bulbs, use the following procedures. 1. REMOVE ROOM LIGHT BULB a. Using a screwdriver, detach the 4 claws. HINT: Tape the screwdriver tip before use. b. Remove the room light lens.
2009 Toyota Tundra 2009 ACCESSORIES AND EQUIPMENT Lighting - Tundra
|
