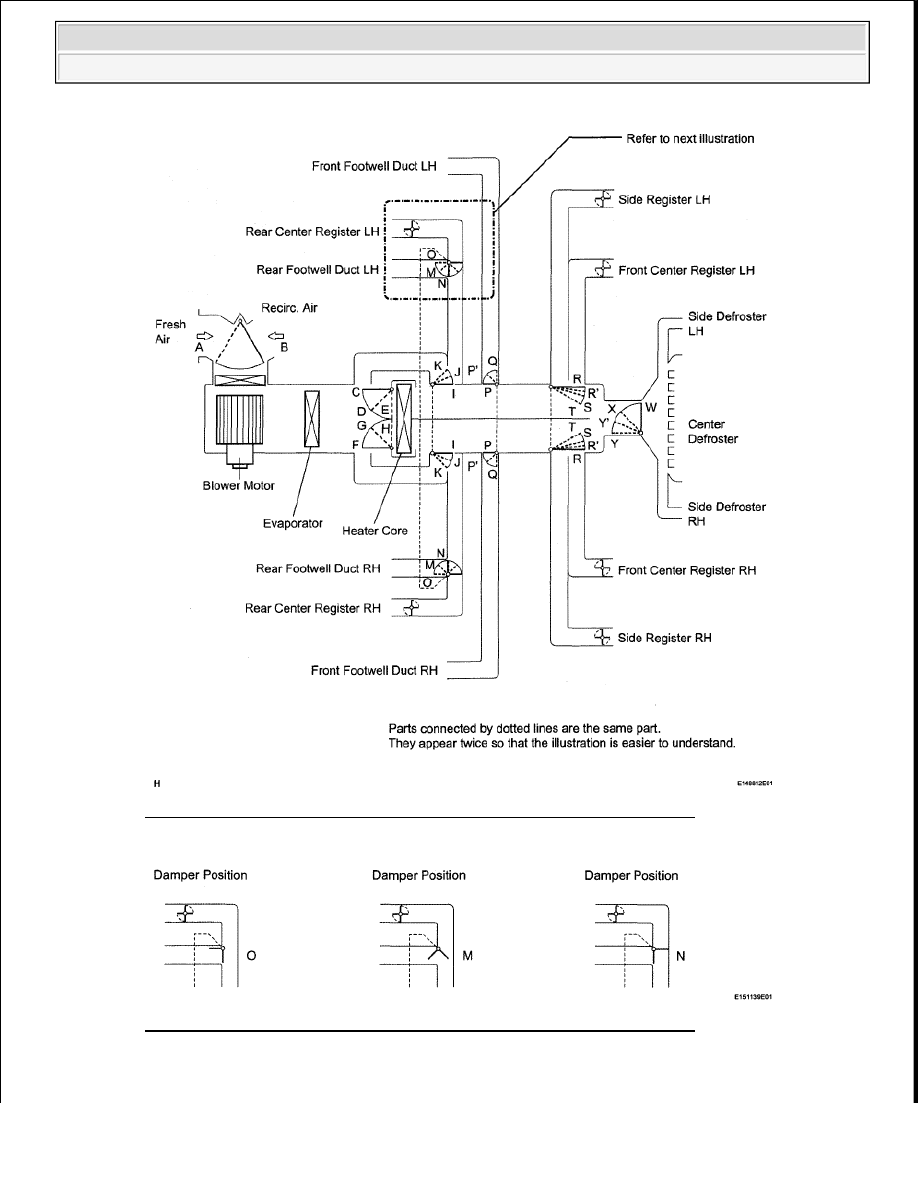

3. MODE POSITION AND DAMPER OPERATION (for CrewMax) a. Mode Position and Damper Operation Air Outlet Control Damper BI-LEVEL
M, P', S, W Air mainly blows out of the front center register, FOOT
M, Q, R', X Air mainly blows out of the front and rear footwell FOOT/DEF
M, P', R', Y' Air mainly blows out of the front and side DEF
O, P, R, Y Air blows out of the front and side defrosters and HINT:
2009 Toyota Tundra 2009 HVAC Air Conditioning - Tundra
|
