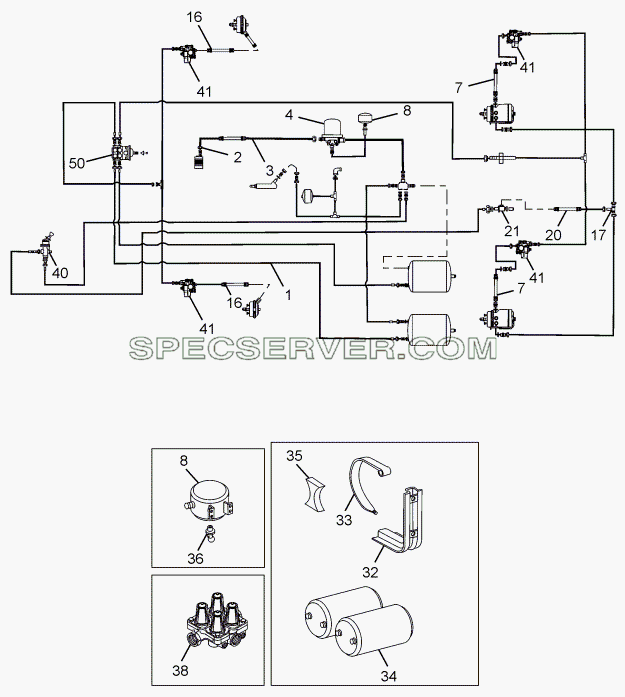

AIR LINES для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	257643206702	PIN
-	264143200118	ASSY. BRACKET RH (AIR DRIER)
-	264343900195	ASSY NYLON PIPE SET FOR ABS PROVISION
-	282143908201	BRACKET-MODULATOR VALVE MTG.-FRONT.
-	282143908202	BRACKET-MODULATOR VALVE MTG. REAR
1	263243900183	ASSY.NY.PIPE SET CAB COMPL-1613CAB/VOSS
1	264343900177	ASSY NYLON PIPE SET CHASS COMP LPT613
2	16442801502	COUPLING BODY M 20X22 (ON COMPRESSOR)
3	263243900165	ASSY.METAL PIPE WITH CRIMPED HOSE
4	264343700131	AIR DRYER-HI PR WT 24V HEATER_SILE VOSS KB
7	257342950176	"3/8"" HOSE 630 LG (MODULATOR VALVE TO REAR BRAKE CHAMBER)"
8	277043700113	PURGE TANK (SUITABLE FOR VOSS)
16	257342950177	ASSY. HOSE ( FRONT BRAKE CHAMBER LH/RH)
17	264342906804	TEE, SOCKET (REAR BRAKE)
20	257342900161	ASSY. HOSE 3/8 “ (REAR BRAKE)
21	264342906806	T-SOCKET
32	264143200113	ASSY. SUPPORT (AIR TANK)
33	257643200118	ASSY. STRAP
34	264343200109	ASSY. AIR TANK
35	257643208602	SPACER BLOCK
36	257643790159	WATER DRAIN VALVE
38	263243700155	4 CIR PROT VALV (AE4630-K003253) HI.PR.VOS
40	263243700152	HAND BRAKE VALVE(VOSS)KB-K002599
41	284143900133	MADULATOR VALVE 24V
41	284143900134	MADULATOR VALVE 24V
50	264143700147	DUAL BRAKE VAVLE VOSS (SCL)

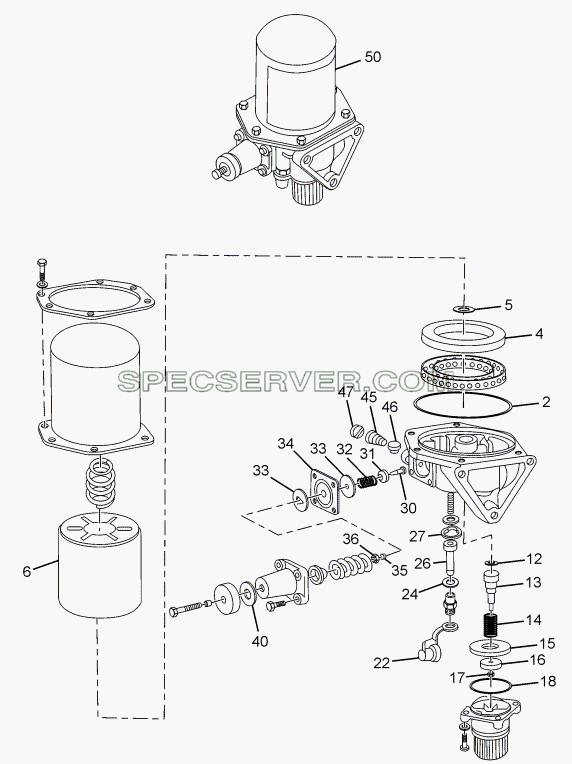

Запчасти: AIR DRIER WITH TYRE INFLATOR для LPT 613 Euro-III

AIR DRIER WITH TYRE INFLATOR для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264143700111	REPAIR KIT CONSISTING OF :
-	264143700112	PLUNGER ASSY. CONSISTING OF :
-	264143700113	ASSY. DIAPHRAGM CONSISTS OF :
-	SILICON GREASE SACHET
2	SEALING RING
4	FILTER
5	SEALING RING
6	DESICCANT CARTRIDGE
12	SEALING RING
13	UNLOADER PLUNGER
14	COMPRESSION SPRING
15	VALVE SEAT
16	VALVE
16	VALVE
17	HEXAGONAL NYLOC NUT
18	SEALING RING
22	DUST CAP
24	SEALING RING
26	VALVE
27	SEALING WASHER
30	GOVERNOR PLUNGER
31	VALVE
31	VALVE
32	SPRING
33	FOLLOWER
34	DIAPHRAGM
34	DIAPHRAGM
35	SPRING WASHER
36	HEX NUT
40	EXHAUST FLAP
45	CONICAL SPRING
46	NON RETURN VALVE
47	VALVE STOP & SPRING RETAINER
50	264343700131	AIR DRYER-HI PR WT 24V HEATER_SILE VOSS KB

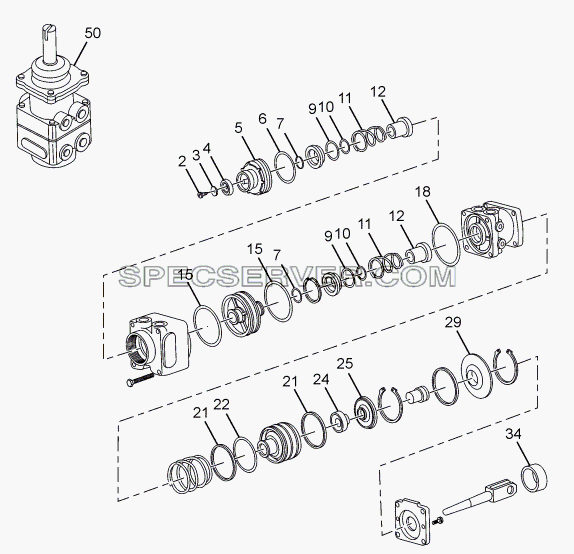

Запчасти: DUAL BRAKE VALVE для LPT 613 Euro-III

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	257643730134	VENTING GUIDE ASSY. CONSISTING OF :
-	264143700126	REPAIR KIT CONSISTING OF :
2	SELF TAPPING SCREW
3	CAP
4	WASHER
4	WASHER
5	VENTING GUIDE
6	'O' RING
7	'O' RING
9	'O' RING
10	'O' RING
11	SPRING
12	VALVE
15	'O' RING
18	'O' RING
21	GUIDE RING
22	'O' RING
24	RUBBER SPRING
25	SPRING SEAT
29	BOOT
34	BOOT
50	264143700147	DUAL BRAKE VAVLE VOSS (SCL)

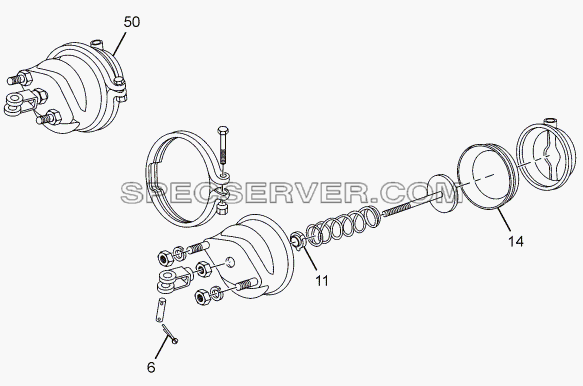

Запчасти: FRONT BRAKE CHAMBER для LPT 613 Euro-III

Таблица запасных частей

FRONT AND REAR SLACK ADJUSTER для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	277842300168	MAJOR KIT-AUTO. SLACK ADJ CONSISTING OF :
-	277842300172	MINOR KIT-AUTO.SLACK ADJUSTER CONSISTING OF :
-	ASSY.REGULATOR WHEEL-
-	BUSHING 12.7 MM
-	CLUTCH WHEEL-AUTO ADJUSTER
-	COIL SPRING-AUTO.ADJUSTER
-	CONTROL ARM BUSHING
-	FRONT COVER-AUTO.ADJUSTER
-	GASKET-AUTO ADJUSTER
-	GASKET-AUTO ADJUSTER
-	NEEDLE BEARING-AUTO.ADJ.
-	O'RING 12X3-AUTO.ADJUSTER
-	O'RING 12X3-AUTO.ADJUSTER
-	O'RING 44.2X3-AUTO ADJUSTER
-	O'RING 44.2X3-AUTO ADJUSTER
-	REAR COVER-AUTO.ADJUSTER
-	RIVET-AUTO ADJUSTER
-	RIVET-AUTO ADJUSTER
-	THRUST WASHER-AUTO.ADJ.
-	TORX SCREW-AUTO.ADJUSTER
-	WORM SHAFT-AUTO ADJUSTER
50	264142110164	SLACK ADJUSTER FRONT
51	264142310120	REAR SLACK ADJUSTER LH, 16MM OFFSET
51	264142310121	REAR SLACK ADJUSTER RH, 16MM OFFSET

REAR BRAKE ACTUATOR для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

GRADUATED HAND BRAKE VALVE для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	263243710101	SPARE KIT-HAND BRAKE VALVE
-	BUSHING
-	BUSHING
-	CIRCLIP
-	CLAMPING PIN
-	COMPRESSION SPRING
-	CYLINDRICAL SCREW
-	DRIVER
-	DUST PROTECTOR
-	FILTER
-	GAITER
-	GREASE
-	GREASE SACHET
-	HANDLE
-	HOSE CONNECTION
-	KNURLED PIN
-	O'RING
-	O'RING
-	O'RING
-	O'RING
-	PISTON
-	RELEASE LEVER HANDLE
-	RETAING CLIP
-	RETAING CLIP NG8
-	SEALING RING
-	SEALING RING
-	SEALING RING
-	SEALING RING NG-12
-	SEALING RING NG12
-	SEALING RING NG12
-	SEALING RING NG8
-	SEALING RING NG8
-	SEALING WASHER
-	SHIM
-	SHIM
-	SHIM
-	SPLIT PIN
-	SPRING
-	SPRING
-	SPRING ELEMENT NG8
-	SPRING ELEMENT NG8
-	STRAINER PLATE
-	SWITCH SHOE
-	TENSION PIN
-	VALVE
-	VALVE CAP
-	VALVE SEAT
-	WASHER
-	WASHER
-	WASHER
50	288443700105 263243910171	GRADUAT HAND CONTROL VALVE(VOSS&LP SWT) REPAIR KIT-GR HAND BR VALVE

QUADRUPLE SYSTEM PROTECTION VALVE для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

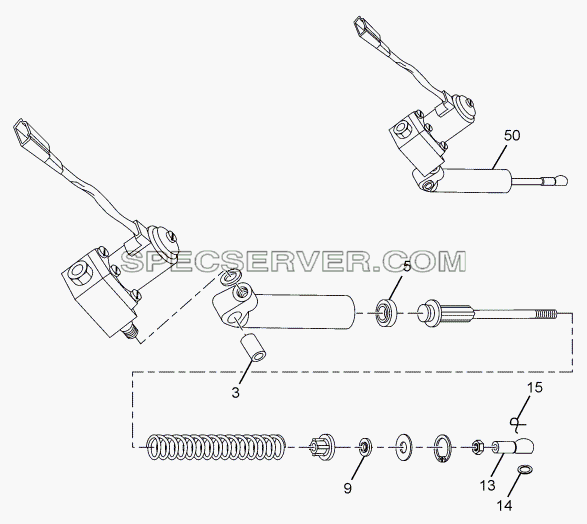

AIR CYLINDER WITH MAGNETIC VALVE для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	252340150123	REPAIR KIT FOR AIR CYLINDER CONSISTING OF:
-	252340150124	BALL SOCKET JOINT ASSY. CONSISTING OF:
-	GREASE SACHET
3	BUSH
5	PISTON SEAL
9	WIPER SEAL
13	BALL SOCKET
14	SPRING RING
14	SPRING RING
15	LOCKING RING
15	LOCKING RING
50	277054249904	ASSY. MAGNETIC VALVE 24 V (EXHAUST BRAKE)

STEERING LINKAGE CHASSIS TYPE: 381226 для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей
