3) Remove battery (4) from lower case (5).

CAUTION

!



Use care not to allow grease or dirt to be
attached on the printed circuit board and the
battery.



4) Replace the battery (lithium disc-type CR 2032 or

equivalent battery) so its (+) terminal faces on
remote controller lower case.

5) Install printed circuit board and rubber switch to

upper case and then fit lower case securely.

NOTE

• To prevent theft, be sure to break the

remote controller before discarding it.

• Dispose of the used battery properly

according to applicable rules or
regulations. Do not dispose of lithium
batteries with ordinary household trash.



Registration Procedure for Remote Controller
ID Code

S6JB0AA506009

NOTE

• It is possible to register up to 4 remote

controllers in keyless start control module.

• Setting keyless start control module to ID

code registration mode of remote
controller will erase all remote controller ID
codes that have been registered in keyless
start control module.
Therefore, when registering remote
controller ID codes in keyless start control
module, have all of those to be registered
ready and execute their registration at the
same time.

• When registration of more than four

remote controller ID codes is attempted,
the oldest remote controller ID code will be
erased and that inputted after the fourth
one will be registered.

• When keyless start control module which

was used in another vehicle has been
installed, register the ID code of the remote
controller to the keyless start control
module first and then the following code.
– For petrol engine model with

immobilizer control system, register the
ignition key transponder code for the
immobilizer control system in ECM. For
registration procedure of that, refer to
“Registration of the Ignition Key: For
Petrol Engine Model in Section 10C”.

– For petrol engine model without

immobilizer control system, register the
steering lock unit ID code in keyless
start control module. For registration
procedure of that, refer to “Keyless Start
Registration”.

– For diesel engine model, register the ID

code of the keyless start control module
in ECM. ID code of the keyless start
control module is registered
automatically by registering password
and SECRET KEY CODE to ECM. For the
registration procedure of that, refer to
“Procedure after ECM Replacement: For
Diesel Engine Model in Section 10C”.



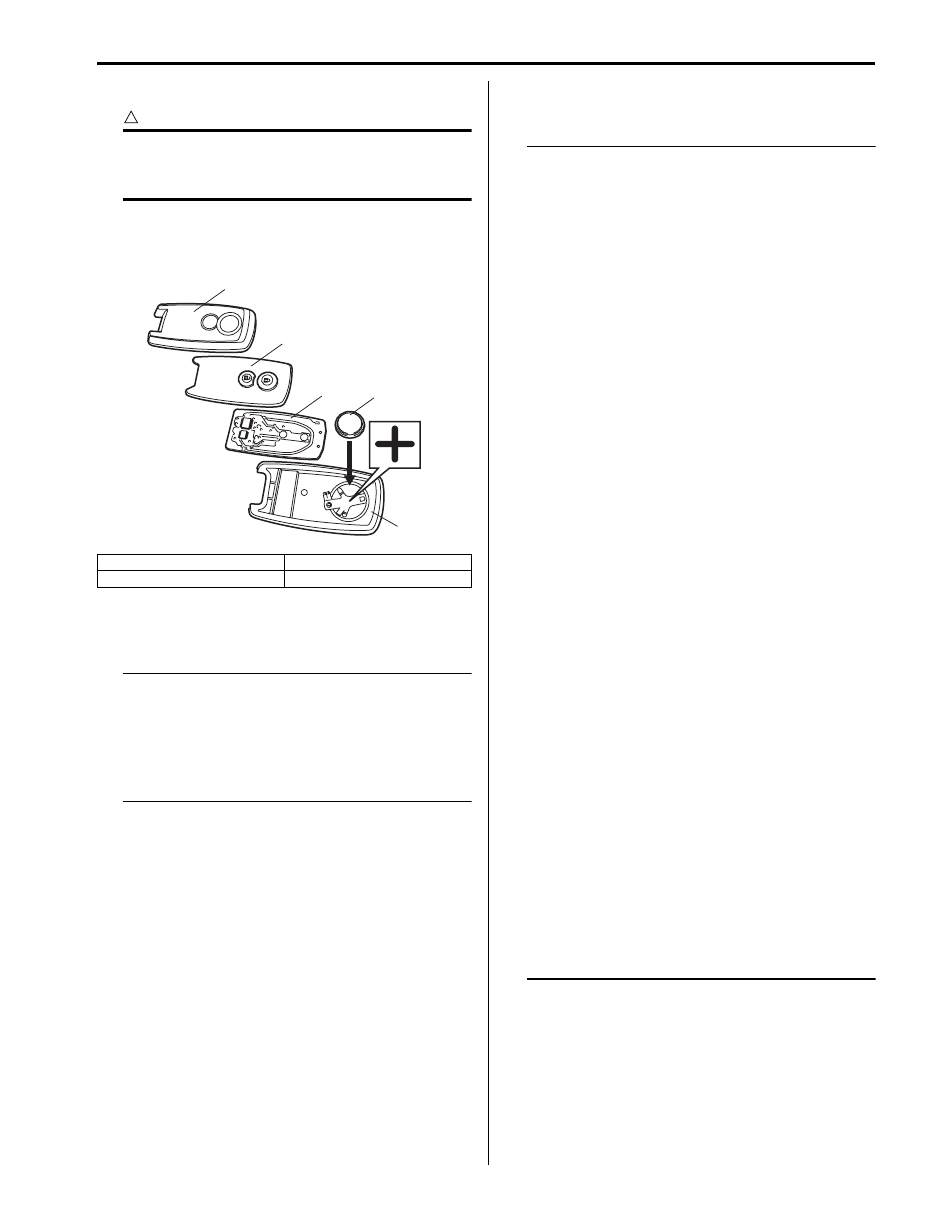

1. Upper case

3. Printed circuit board

2. Rubber switch

1

2

3

4

5
