10E-36 Keyless Start System:

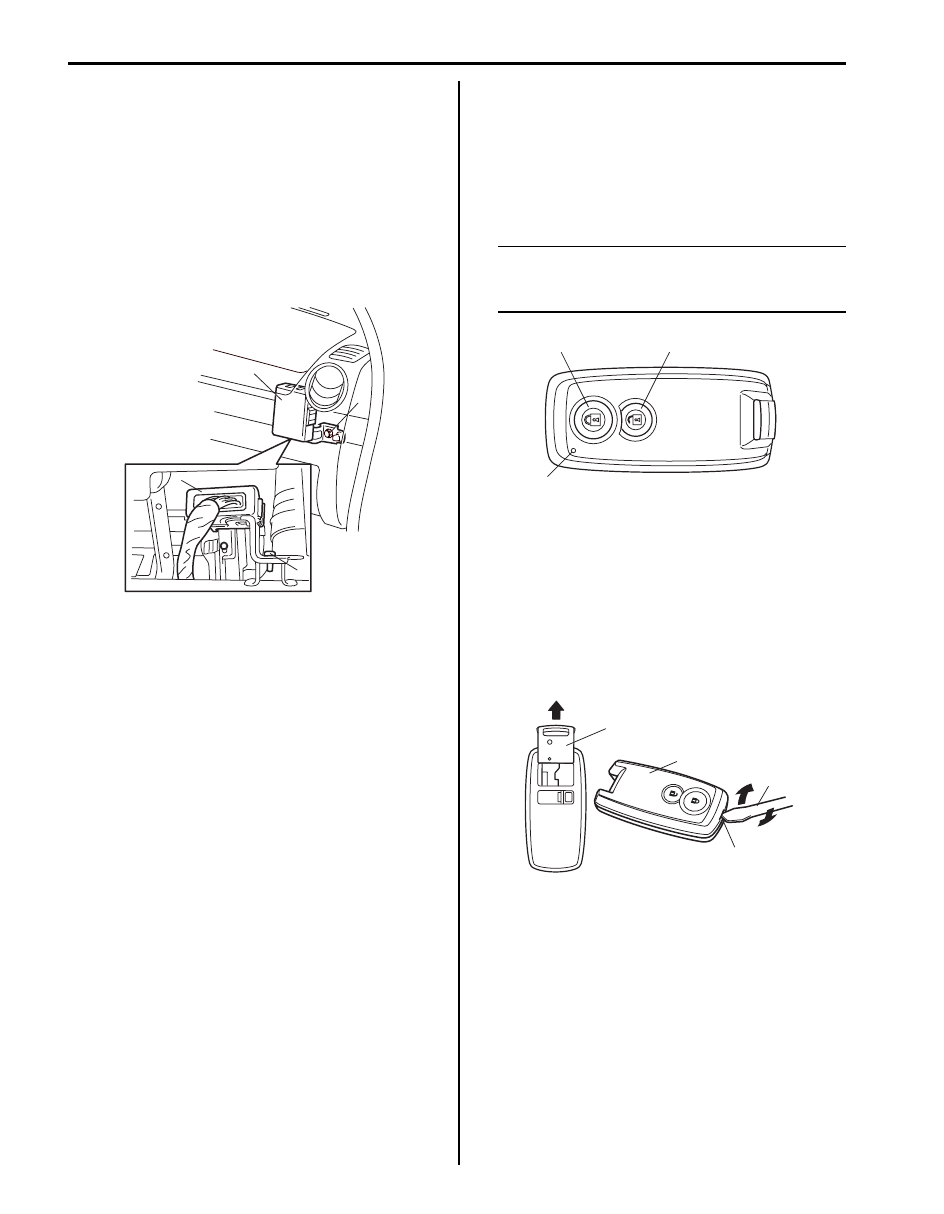

Keyless Start Control Module Removal and
Installation

S6JB0AA506006

Removal

1) Disconnect negative cable at battery.
2) Remove glove box from instrument panel.
3) Disconnect connector from keyless start control

module (1).

4) Remove keyless start control module mounting bolt

(2) and then remove keyless start control module
with its bracket from steering support member.

Installation
For installation, reverse removal procedure.
If keyless start control module is replaced, register ID
code of remote controller into keyless start control
module, referring to “Registration Procedure for Remote
Controller ID Code”.

Remote Controller Inspection

S6JB0AA506007

Check that remote controller operation indicator light (3)
lights up when lock (1) or unlock (2) button of remote
controller is pushed.
If it doesn’t light up in this check, replace battery and
then recheck. If it doesn’t light up even after battery
replacement, replace remote controller.

NOTE
When remote controller transmits lock or
unlock signal, it makes operation indicator
light light up.



Replacement of Remote Controller Battery

S6JB0AA506008

If remote controller operation indicator light fails to light
up when lock or unlock button of remote controller is
pushed, replace its battery as follows.

1) If ignition key (1) is inserted in remote controller,

remove it.

2) With tip of flat blade screwdriver (2) put in slot (3) of

remote controller (4), pry it open.

1

1

2

2

I5JB0AA50022-01

1

2

3

I4RS0BA50031-01

1

4

2

3

I4RS0BA50032-01
