10A-6 Cruise Control System:

Diagnostic Information and Procedures

Cruise Control System Symptom Diagnosis

S6JB0AA104001

NOTE

• ECM uses TCM, combination meter, ABS or ESP

® control module and CAN communication to

transmit and receive data for cruise control. Therefore, check that no DTC is detected from ECM,
TCM, ABS or ESP

® control module before performing this Cruise Control System Symptom

Diagnosis. If DTC is detected, correct trouble indicated by that DTC first.

• Check each part in the order from the top of the following list.



Condition

Possible cause

Correction / Reference Item

CRUISE or SET indicator
light does not turn ON or
OFF

MAIN (ON/OFF) switch faulty

Check MAIN (ON/OFF) switch for function
referring to “Cruise Control Switch Inspection”.

SET/COAST switch faulty

Check SET/COAST switch for function
referring to “Cruise Control Switch Inspection”.

Brake light switch faulty

Check brake light switch for function referring
to “Brake Light Switch Inspection”.

Wiring or grounding faulty

Repair.

Combination meter faulty

Replace.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Vehicle speed can not be
set

MAIN (ON/OFF) switch faulty

Check MAIN (ON/OFF) switch for function
referring to “Cruise Control Switch Inspection”.

SET/COAST switch faulty

Check SET/COAST switch for function
referring to “Cruise Control Switch Inspection”.

Brake light switch faulty

Check brake light switch for function referring
to “Brake Light Switch Inspection”.

CPP switch faulty (M/T model)

Check CPP switch for function referring to
“Clutch Pedal Position (CPP) Switch (for
Cruise Control) Inspection and Adjustment”.

Wiring or grounding faulty

Repair.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Acceleration or
deceleration is not
available by using RES/
ACC or SET/COAST
switch

RES/ACC or SET/COAST switch faulty Check RES/ACC or SET/COAST switch for

function referring to “Cruise Control Switch
Inspection”.

Wiring or grounding faulty

Repair.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Cruise control cannot be
cancelled

CANCEL switch faulty

Check CANCEL switch for function referring to
“Cruise Control Switch Inspection”.

Brake light switch faulty

Check brake light switch for function referring
to “Brake Light Switch Inspection”.

CPP switch faulty

Check CPP switch for function referring to
“Clutch Pedal Position (CPP) Switch (for
Cruise Control) Inspection and Adjustment”.

Wiring or grounding faulty

Repair.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Cruise control at vehicle
speed stored in memory
cannot be resumed after
cruise control was
cancelled by means other
than MAIN (ON/OFF)
switch

RES/ACC switch faulty

Check RES/ACC switch for function referring
to “Cruise Control Switch Inspection”.

Wiring or grounding faulty

Repair.

ECM faulty

Replace after making sure that none of above
parts is faulty.

Cruise Control System:  10A-7

Inspection of Cruise Control System Circuit

S6JB0AA104002

Cruise control system is controlled by ECM. Each switch and circuit can be checked by taking measurement of
terminal voltage and terminal to terminal resistance of ECM. When measuring these values, be sure to read
precautions for measurement described under “Inspection of ECM and Its Circuits: For Petrol Engine Model in Section
1A”.

Voltage Check

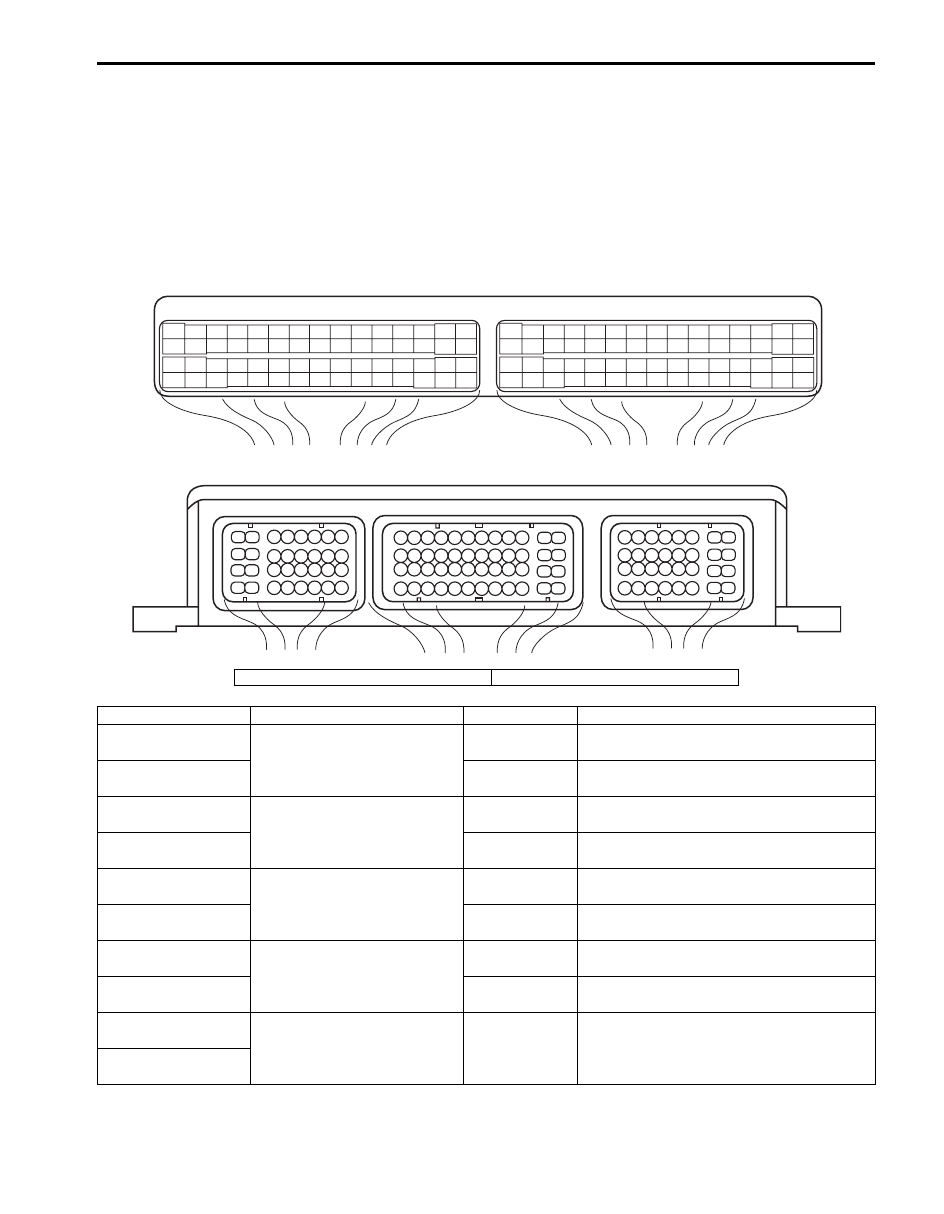

Check voltage between the following terminals with ECM connector connected.

Terminal arrangement of ECM connector viewed from harness side

E23

C37

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

33

34

39

40

41

42

43

44

35

36

37

38

45

46

47

48

9

10

11

12

13

14

1

3

5

7

2

4

6

8

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

1

3

7

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

2

4

6

8

9

10

11

12

13

14

5

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

C85

C86

E66

[A]

[B]

I6JB0AA10005-01

[A]: Petrol engine model

[B]: Diesel engine model

Terminals

Circuit

Normal Voltage

Condition

E23-6 – ground

(Petrol engine model) Cruise control main switch

circuit

0 – 1 V

Ignition switch is at ON position and cruise
control MAIN switch is not pushed.

E66-20 – ground

(Diesel engine model)

10 – 14 V

Ignition switch is at ON position and cruise
control MAIN switch is kept in push.

E23-7 – ground

(Petrol engine model)

CPP switch circuit

10 – 14 V

Ignition switch is at ON position and clutch
pedal is not depressed.

E66-30 – ground

(Diesel engine model)

0 V

Ignition switch is at ON position and clutch
pedal is depressed.

E23-8 – ground

(Petrol engine model) Brake pedal position switch

circuit

10 – 14 V

Ignition switch is at ON position and brake
pedal is not depressed.

C85-14 – ground

(Diesel engine model)

0 V

Ignition switch is at ON position and brake
pedal is depressed.

E23-20 – ground

(Petrol engine model)

Stop lamp switch circuit

0 V

Ignition switch is at ON position and brake
pedal is not depressed.

E66-28 – ground

(Diesel engine model)

10 – 14 V

Ignition switch is at ON position and brake
pedal is depressed.

E23-21 – ground

(Petrol engine model) Ground circuit for cruise control

command switch

Below 1.3 V

Ignition switch is at ON position.

E66-23 – ground

(Diesel engine model)

10A-8 Cruise Control System:

Repair Instructions

Cruise Control Switch Removal and Installation

S6JB0AA106001

For removal and installation, refer to “Remote Audio
Control Switch Removal and Installation (If Equipped) in
Section 9C”.

Cruise Control Switch Inspection

S6JB0AA106002

NOTE
Never disassemble cruise control switch.
Disassembly will spoil its original functions.



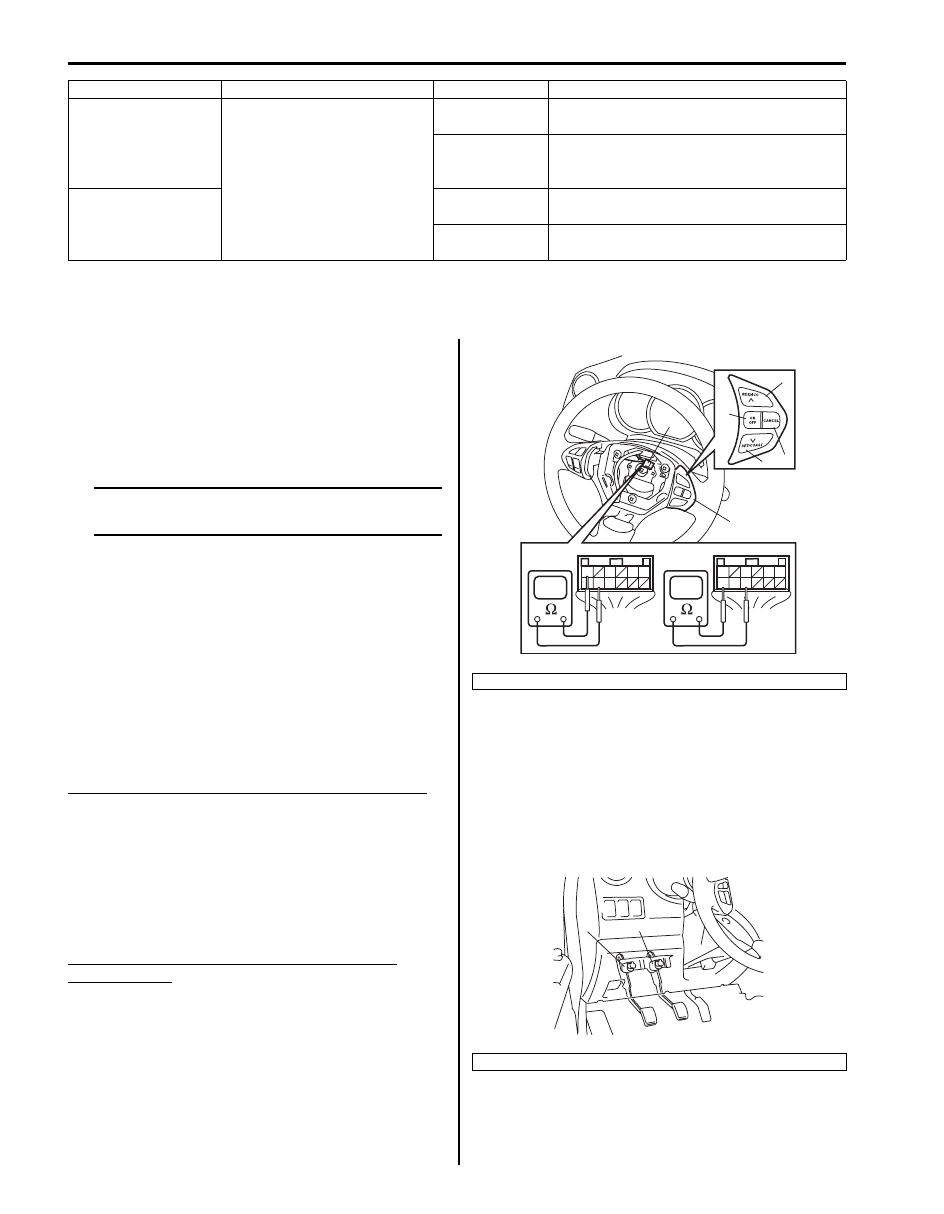

1) Remove driver air bag (inflator) module referring to

“Driver Air Bag (Inflator) Module Removal and
Installation in Section 8B”.

2) Disconnect cruise control switch connector (1) from

control coil.

3) Check cruise control switch as follow.

For MAIN (ON/OFF) Switch
Check for continuity between “1” and “8” terminals under
each condition below.
If check result is not satisfactory, replace cruise control
switch (2).

Cruise MAIN (ON/OFF) switch (3) specification: [B]
Switch button released: Infinity
Switch button pressed: Continuity

For SET/COAST, RES/ACC and CANCEL Switch
Check for resistance between “7” and “9” terminals
under each condition below.
If check result is not satisfactory, replace cruise control
switch (2).

SET/COAST, RES/ACC and CANCEL switches
resistance: [C]
All switches released (OFF): Infinity
CANCEL switch (4) pressed (ON): About 0

Ω

SET/COAST switch (5) pressed (ON): 209 – 231

Ω

RES/ACC switch (6) pressed (ON): 864 – 956

Ω

CPP Switch (for Cruise Control) Removal and
Installation

S6JB0AA106003

Removal

1) Disconnect connector of CPP switch (for cruise

control) (1) with ignition switch OFF.

2) Remove CPP switch (for cruise control) (1) from

pedal bracket.

E23-22 – ground

(Petrol engine model)

Cruise control command switch
(SET/COAST, ACC/RES and
CANCEL switch) circuit

0 – 0.1 V

Ignition switch is at ON position and cruise
control cancel switch is kept in push.

1.5 – 1.9 V

Ignition switch is at ON position and SET/
COAST switch of cruise control is kept in
push.

E66-17 – ground

(Diesel engine model)

3.2 – 3.7 V

Ignition switch is at ON position and ACC/
RES switch of cruise control is kept in push.

4.5 – 5.5 V

Ignition switch is at ON position and cruise
control command switches are not pushed.

Terminals

Circuit

Normal Voltage

Condition

[A]: Cruise control switch connector viewed from harness side

2. Brake light switch

1

5

3

6

7 8 9

1

5

3

6

7 8 9

[B]

[C]

[A]

6

1

4

5

2

3

I6JB0AA10006-01

1

2

I5JB0AA10007-01

Cruise Control System:  10A-9

Installation

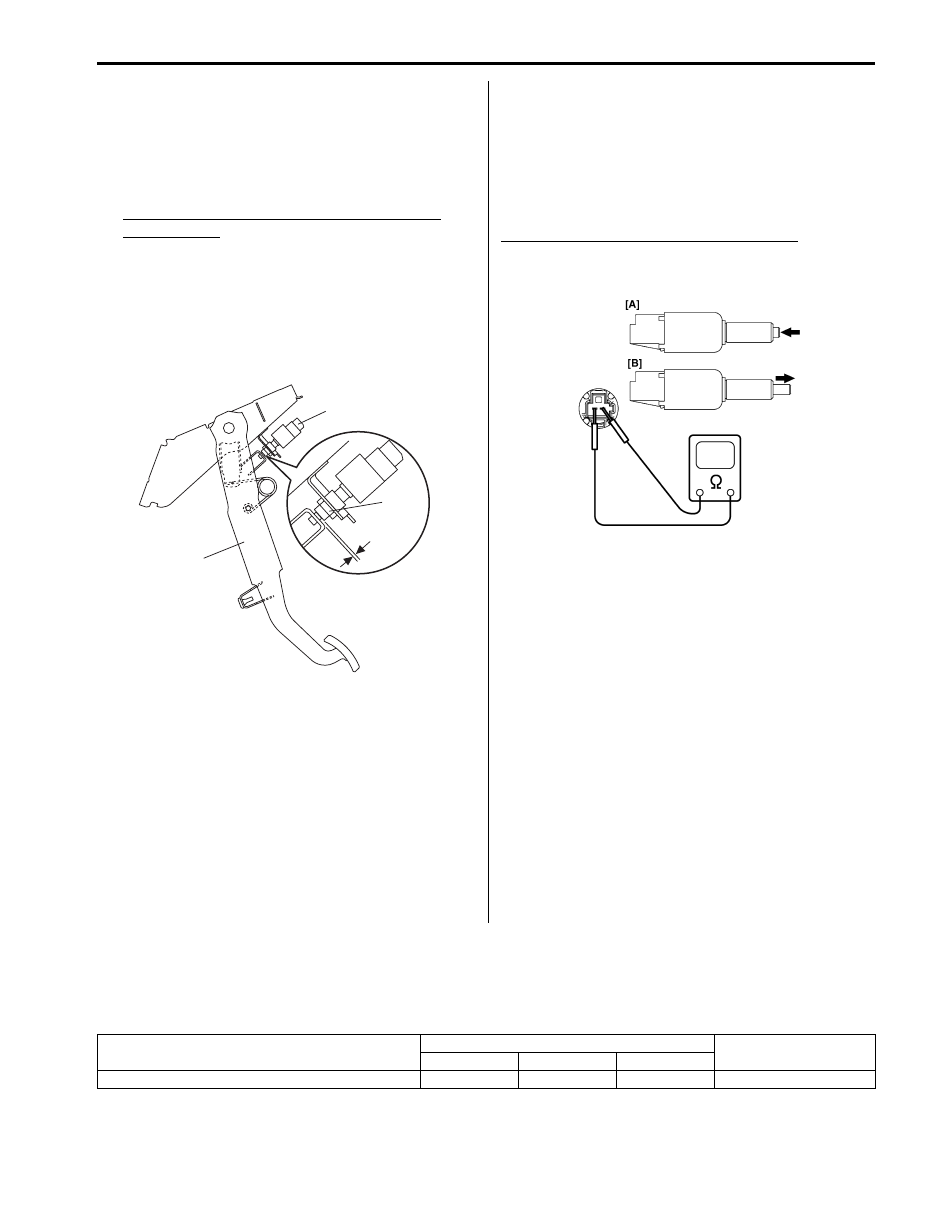

1) Install CPP switch (for cruise control) (2) to pedal

bracket.

2) With clutch pedal (1) released, adjust switch position

so that clearance between end of thread and clutch
pedal bracket is within specification.

Clearance between end of thread and clutch
pedal bracket
“a”: 0.5 – 1.5 mm (0.02 – 0.059 in.) (LHD)
“a”: 2.0 – 3.0 mm (0.079 – 0.118 in.) (RHD)

3) Tighten lock nut (3) to specified torque.

Tightening torque
CPP switch lock nut:  7.5 N·m (0.75 kgf-m, 5.5 lb-
ft)

4) Connect connector to CPP switch (for cruise control)

(2) securely.

Clutch Pedal Position (CPP) Switch (for Cruise
Control) Inspection and Adjustment

S6JB0AA106004

Inspection
Check for resistance between terminals under each
condition below. If check result is not satisfactory,
replace.

CPP switch (for cruise control) resistance
When switch shaft is pushed [A]: No continuity
When switch shaft is free [B]: Continuity

Adjustment
For adjustment, refer to “Installation” under “CPP Switch
(for Cruise Control) Removal and Installation”.

Brake Light Switch Removal and Installation

S6JB0AA106005

For removal and installation, refer to “Brake Light Switch
Adjustment in Section 4A”.

Brake Light Switch Inspection

S6JB0AA106006

Check for continuity between terminals referring to
“Brake Light Switch Inspection in Section 9B”.

ECM Removal and Installation

S6JB0AA106007

For removal and installation, refer to “Engine Control
Module (ECM) Removal and Installation: For Petrol
Engine Model in Section 1C” or “Engine Control Module
(ECM) Removal and Installation: For Diesel Engine
Model in Section 1C”.

Specifications

Tightening Torque Specifications

S6JB0AA107001

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

“a”

2

1

3

I5JB0AA10008-01

I5JB0AA10009-01

Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

CPP switch lock nut

7.5

0.75

5.5

)
