10A-2 Cruise Control System:

Components and Functions of Cruise Control System

S6JB0AA101002

Component

Function

ECM and electric throttle body
(petrol engine model) or fuel
injector (diesel engine model)

ECM executes centralized control over all functions including setting a constant speed,
resuming it, setting coast, cancelling cruise control limiting minimum speed.
ECM controls electric throttle valve opening (petrol engine model) or fuel injector
(diesel engine model) to keep actual vehicle speed at set (target) speed.

MAIN (ON/OFF) switch

This switch has a momentary contact type button to press cruise control
system ON and OFF.

SET/COAST switch

When this switch is pressed (ON) and then released (OFF) while vehicle is running at
a speed 40 km/h (25 mile/h) or higher, vehicle speed at that OFF moment is stored in
memory and it is maintained (constant cruising).
Pressing this switch (ON) continuously during constant cruising keeps slowing down
vehicle speed as long as it is ON. When it is released (OFF), vehicle speed at that
moment is stored in memory and vehicle starts constant cruising.

RES/ACC switch

When this switch is pressed (ON) during constant cruising, vehicle speed keeps
increasing as long as it is ON. When it is released (OFF), vehicle speed at that
moment is stored in memory and vehicle starts constant cruising. If vehicle speed is
higher than 40 km/h (25 mile/h) after cruise control is cancelled, pressing this switch
ON momentarily will resume the speed at which vehicle was running before
cancellation.

CANCEL switch

When this switch is pressed (ON), cruise control is cancelled.

Wheel speed sensor (vehicle
speed signal)

ECM receives speed sensor signal from ABS or ESP

® control module through CAN

communication and calculates vehicle speed using that signal.

Brake light switch

Brake light switch has 2 contact points. One contact point closes when brake pedal is
depressed to light brake light and provides a voltage signal to the ECM.
The other contact point (brake pedal position switch) opens when brake pedal is
depressed, to shut off power to cruise control of ECM, thereby cancelling cruise
control.
This switch is installed to cancel cruise control (constant cruising).

Clutch pedal position switch
(M/T model)

When clutch pedal is depressed, clutch pedal position switch closes and provides a
ground signal to ECM.
ECM cancels cruise control when this signal is inputted.

Transmission range switch (A/
T model)

When selector lever is placed in either “P”, “R” or “N” position, transmission range
switch closes and provides a ground signal to TCM. TCM transmits signal from
transmission range switch to ECM through CAN communication. When ECM receives
a signal indicating that selector lever position is “P”, “R” or “N”, it cancels cruise
control.

TCM

TCM receives the SET signal for the cruise control from ECM through CAN
communication. When TCM receives the SET signal from ECM, the gear shift control
is performed by using the gear shift map for the cruise control changed from the one
for normal gear shift. For details, refer to “Automatic Gear Shift Table in Section 5A”.

“CRUISE” indicator light

In the state with ignition switch ON and cruise control system OFF, pressing MAIN
(ON/OFF) switch once and releasing it will activate the cruise control system and ECM
will cause indicator light to light up.

“SET” indicator light

It lights up when cruise control is functioning.

Cruise Control System:  10A-3

Cancel Conditions of Cruise Control System

S6JB0AA101003

Constant cruising is cancelled under the following conditions.
• *Ignition switch is turned OFF.
• MAIN (ON/OFF) switch is turned OFF.
• Vehicle speed becomes lower than minimum operating speed (40 km/h (25 mile/h)).
• *Vehicle speed varies beyond cancel speed range (–10 km/h (–6 mile/h)) from preset speed.
• *Brake pedal is depressed. (Brake light switch is turned ON).
• *Clutch pedal is depressed (Clutch pedal position switch is turned ON) (M/T model).
• *Selector lever is shifted to “P”, “R” or “N” range (A/T model).
• *CANCEL switch is turned ON.
• *ESP

® is operating (if equipped).

NOTE
When constant cruising is cancelled under any condition with * (asterisk), vehicle speed before
cancellation can be resumed by operating RES/ACC switch, provided that vehicle speed is higher than
40 km/h (25 mile/h).



Schematic and Routing Diagram

Cruise Control System Input / Output Diagram

S6JB0AA102002

Input

Output

MAIN (ON/OFF) switch

Cruise control switch

RES/ACC switch
SET/COAST switch

CANCEL switch

CPP switch
(M/T model)

Brake light switch

Wheel speed sensor

ABS or ESP
control module

(vehicle speed signal)

ECM

Electric throttle body
(throttle v
(petrol engine model)

(diesel engine model)

alve control)

Combination meter
(indicator light control)

TCM (Shift control)
(A/T model)

(A/T model)

Transmission range switch
(            or      range signal)

“P”, “R”

“N”

Fuel injector

I6JB0AA10002-02

10A-4 Cruise Control System:

Cruise Control System Wiring Diagram

S6JB0AA102001

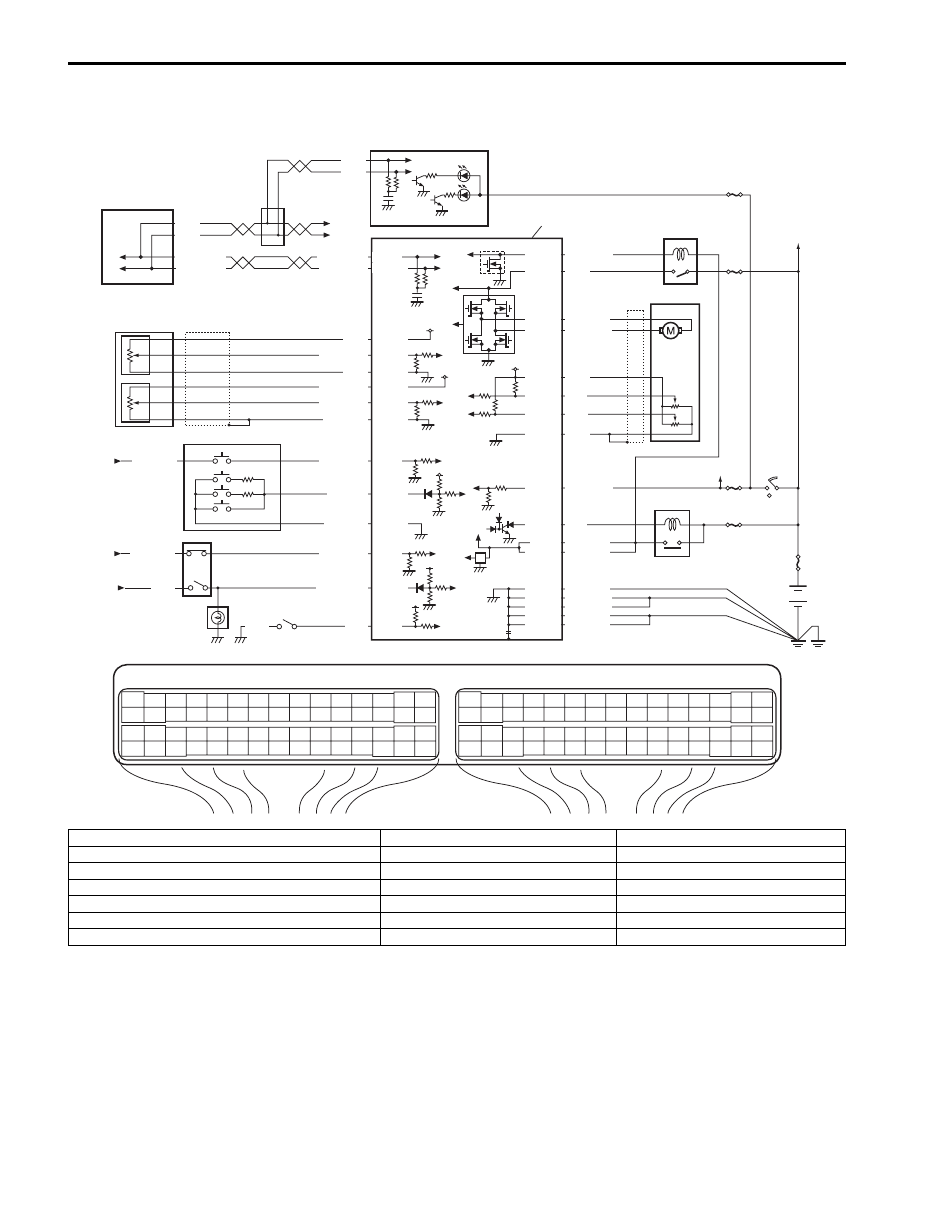

Petrol Engine Model

IG1

+BB

+BB

IG1

E23-56

5V

5V

5V

5V

12V

12V

WHT

ORN

IG1

E23-6

E23-8

E23-7

E23-22

E23-21

E23-20

C37-58

C37-15

C37-29

C37-41

C37-40

C37-54

C37-53

C37-44

C37-45

E23-16

E23-60

E23-29

E23-1

C37-48

E23-55

E23-54

E23-53

E23-52

E23-51

WHT/BLU

BLK/WHT

LT GRN

BLK/YEL

YEL/GRN

BLU/BLK

BLU/BLK

BLU

BLK

GRN/WHT

GRN

BLK/YEL

BLK/YEL

BLU/BLK

BLK/WHT

BLU/RED

BLU/YEL

BLU/ORN

GRN

GRN

RED

BLK

WHT

BLU

BLU/BLK

BLK/ORN

BLK/ORN

BLK/YEL

BLU/GRN

BLU/YEL

ORN/BLU

C37-30

E23-50

E23-17

E23

C37

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

[A]

2

16

1

3

4

5
6

7

8

10

9

14

12

11

18

19

15

17

WHT/BLU

WHT/RED

WHT/BLU

WHT/RED

E23-4
E23-19

WHT

RED

WHT

RED

I6JB0AA10003-01

[A]: ECM connector (viewed from harness side)

7. CANCEL switch

14. Ignition switch

1. ECM

8. Brake light switch

15. ABS or ESP

® control module

2. Accelerator pedal position sensor

9. CPP switch

16. Combination meter

3. Cruise control switch

10. Brake light

17. Other control modules

4. MAIN (ON/OFF) switch

11. Electric throttle valve relay

18. “CRUISE” indicator light

5. RES/ACC switch

12. Electric throttle body

19. “SET” indicator light

6. SET/COAST switch

13. Main relay

Cruise Control System:  10A-5

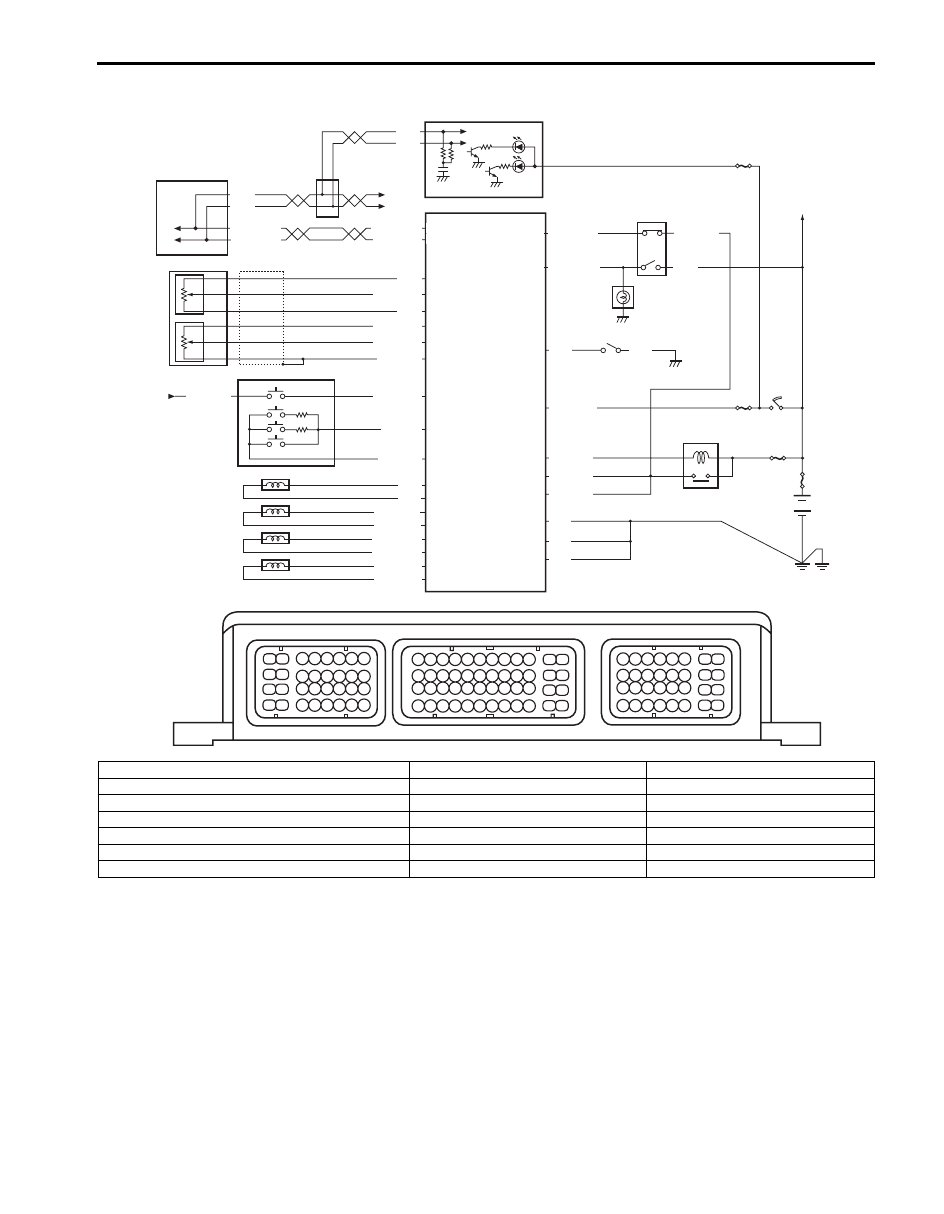

Diesel Engine Model

IG1

+BB

E66-4

WHT

ORN

E66-17

E66-23

C86-3

C86-14

E66-11

E66-2

E66-3

E66-5

E66-15

E66-21

E66-27

WHT/BLU

BLK/WHT

LT GRN

BLK/YEL

BLU/BLK

BLU/BLK

BLK/WHT

BLU/YEL

BLU/BLK

BLU/GRN

BLU/YEL

ORN/BLU

2

1

3

4

5
6

7

12

13

[A]

E66-20

E66-8

E66-7

E66-1

BLK

BLK

BLK

33

34

39

40

41

42

43

44

35

36

37

38

45

46

47

48

9

10

11

12

13

14

1

3

5

7

2

4

6

8

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

1

3

7

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

2

4

6

8

9

10

11

12

13

14

5

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

C85

C86

E66

BLU

BLK

9

E66-30

E66-28

YEL/GRN

BLU/BLK

GRN/WHT

GRN

8

10

C85-8

11

11

11

11

C85-32

PNK

C85-27

RED

C85-29

PNK/BLK

C85-25

RED/BLK

C85-30

PNK/GRN

C85-26

RED/GRN

C85-31

PNK/BLU

C85-28

RED/BLU

15

17

18

14

16

WHT/BLU

WHT/RED

WHT

RED

WHT

RED

WHT/BLU

WHT/RED E66-32

E66-26

I6JB0AA10004-01

[A]: ECM connector (viewed from harness side)

7. CANCEL switch

14. ABS or ESP

® control module

1. ECM

8. Brake light switch

15. Combination meter

2. Accelerator pedal position sensor

9. CPP switch

16. Other control modules

3. Cruise control switch

10. Brake light

17. “CRUISE” indicator light

4. MAIN (ON/OFF) switch

11. Fuel injector

18. “SET” indicator light

5. RES/ACC switch

12. Main relay

6. SET/COAST switch

13. Ignition switch
