9J-7 Hood / Fenders / Doors:

Specifications

Tightening Torque Specifications

S6JB0A9A07001

NOTE
The specified tightening torque is also described in the following.
“Front Door Assembly Components”
“Rear Door Assembly Components”
“Rear End Door Assembly Components”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Recommended Service Material

S6JB0A9A08001

NOTE
Required service material is also described in the following.
“Front Door Assembly Components”
“Rear Door Assembly Components”
“Rear End Door Assembly Components”



Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Hood latch bolt

10

1.0

7.5

)

Door hinge mounting bolt (body side)

27

2.7

19.5

)

Door hinge mounting bolt (door side)

23

2.3

17.0

)

Door open stopper bolt

27

2.7

19.5

)

Material

SUZUKI recommended product or Specification

Note

Grease

SUZUKI Super Grease A

P/No.: 99000–25010

)

 / )

Sealant

SUZUKI Bond No.1215

P/No.: 99000–31110

)

 / ) / )

Body Structure:  9K-1

Body, Cab and Accessories

Body Structure

Repair Instructions

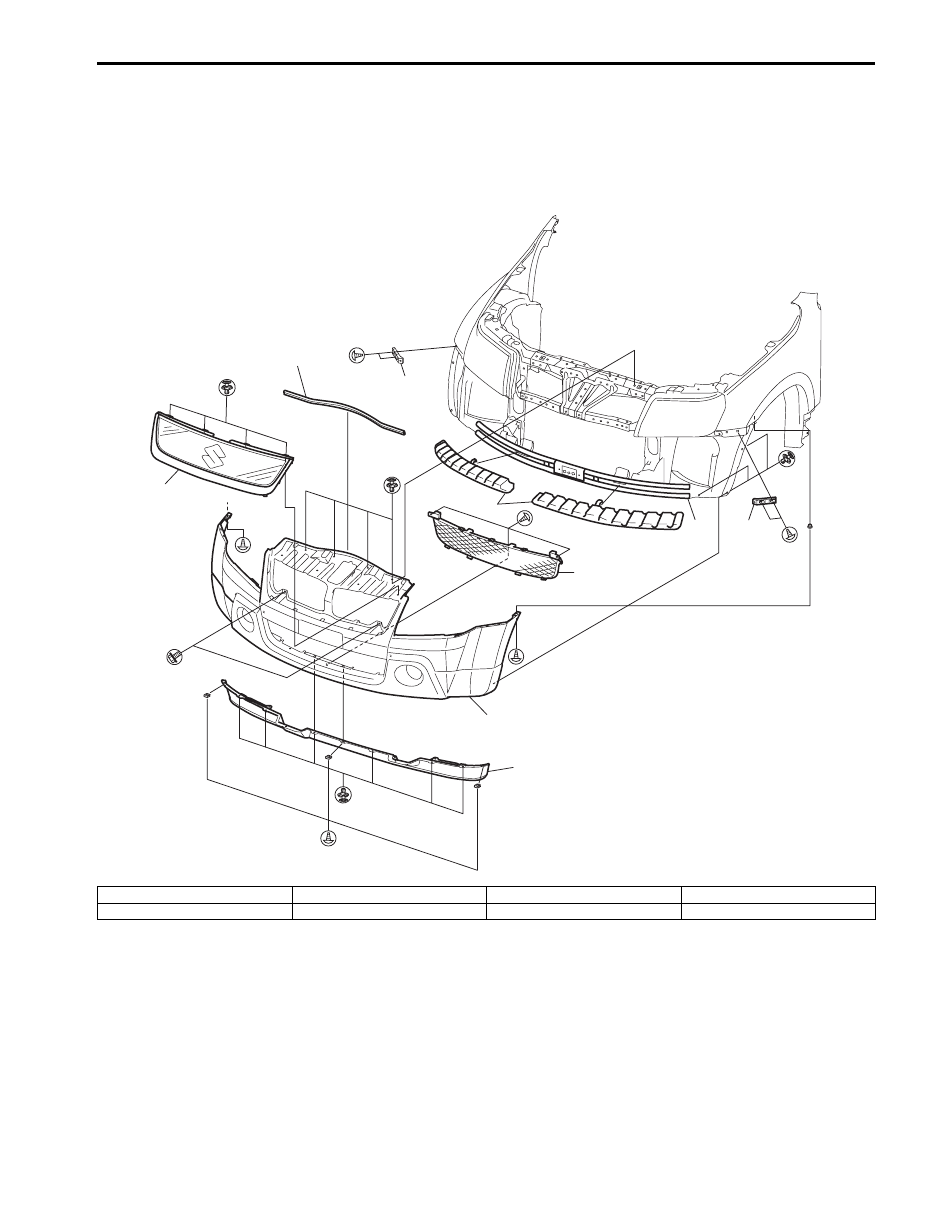

Front Bumper Components

S6JB0A9B06001

7

5

6

7

3

1

4

8

2

I5JB0A9B0001-02

1. Front bumper

3. Front bumper net

5. Front bumper absorber

7. Front bumper holder

2. Radiator grill

4. Front air dam skirt

6. Front bumper member

8. Seal

9K-2 Body Structure:

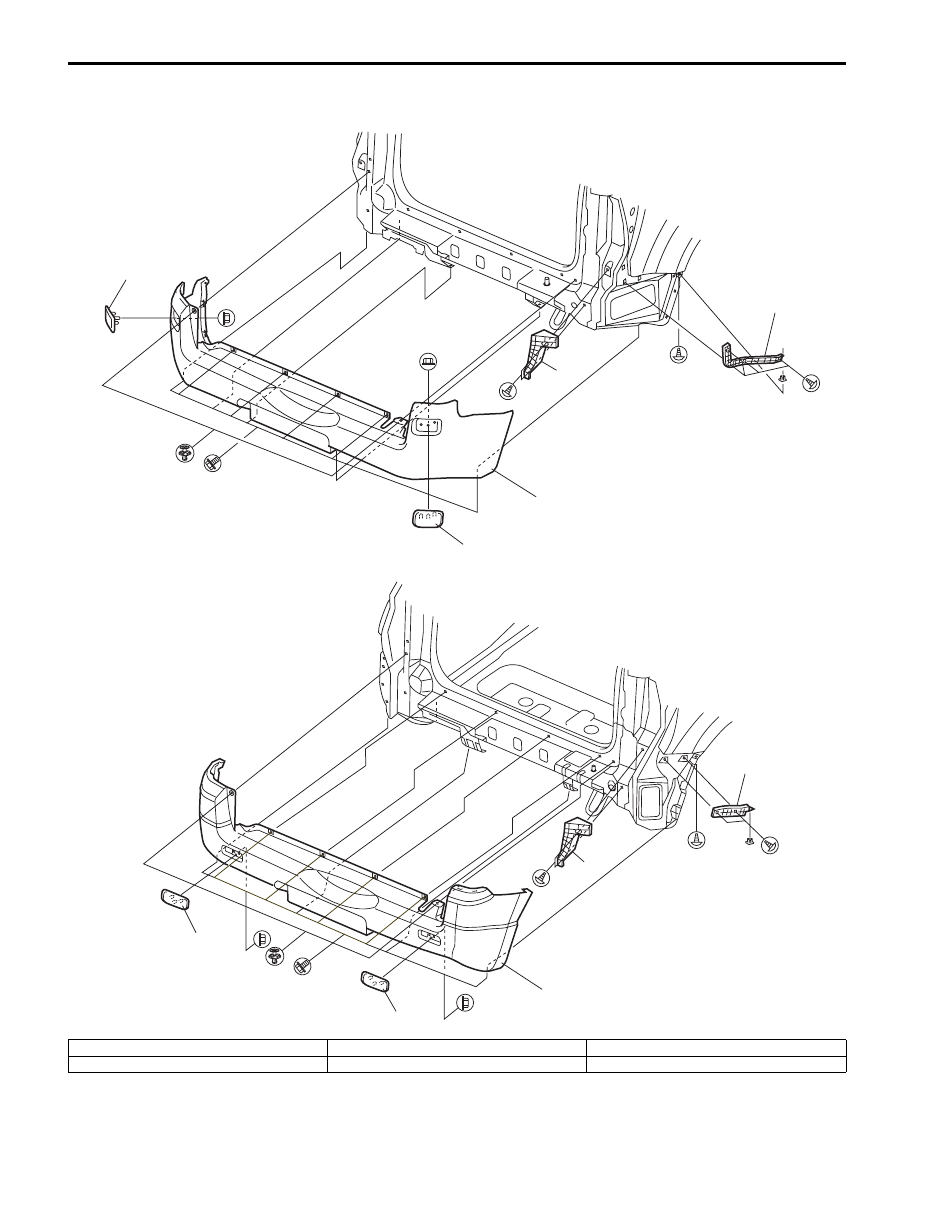

Rear Bumper Components

S6JB0A9B06002

[A]

[B]

4

4

1

2

3

4

4

1

3

2

I5JB0A9B0002-01

[A]: 5 door model

1. Rear bumper

3. Rear bumper No.2 holder

[B]: 3 door model

2. Rear bumper No.1 holder

4. Reflector

Body Structure:  9K-3

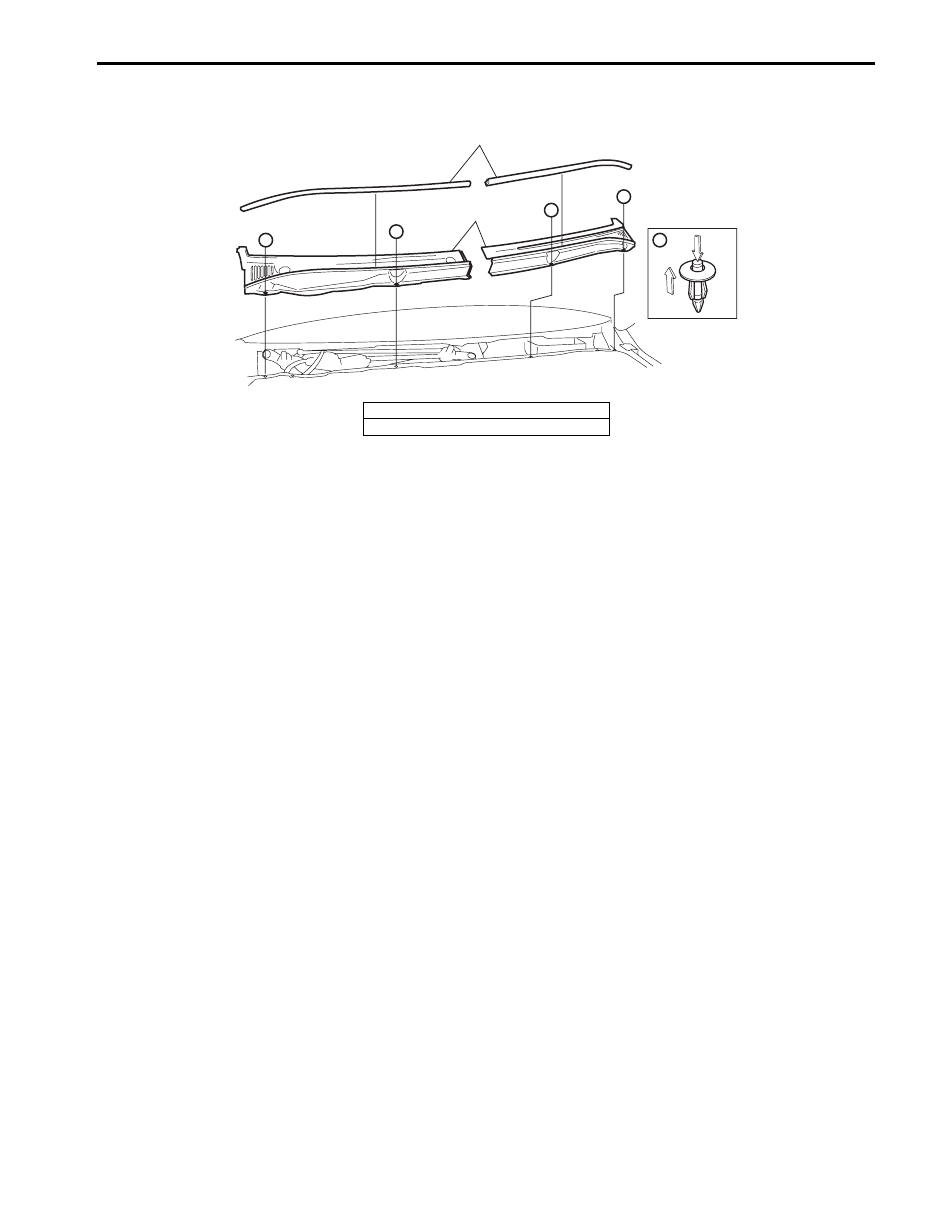

Cowl Top Components

S6JB0A9B06003

A

A

A

A

A

2

1

I5JB0A9B0003-01

1. Cowl top garnish
2. Hood rear seal
