9J-3 Hood / Fenders / Doors:

Front Door Assembly Components

S6JB0A9A06005

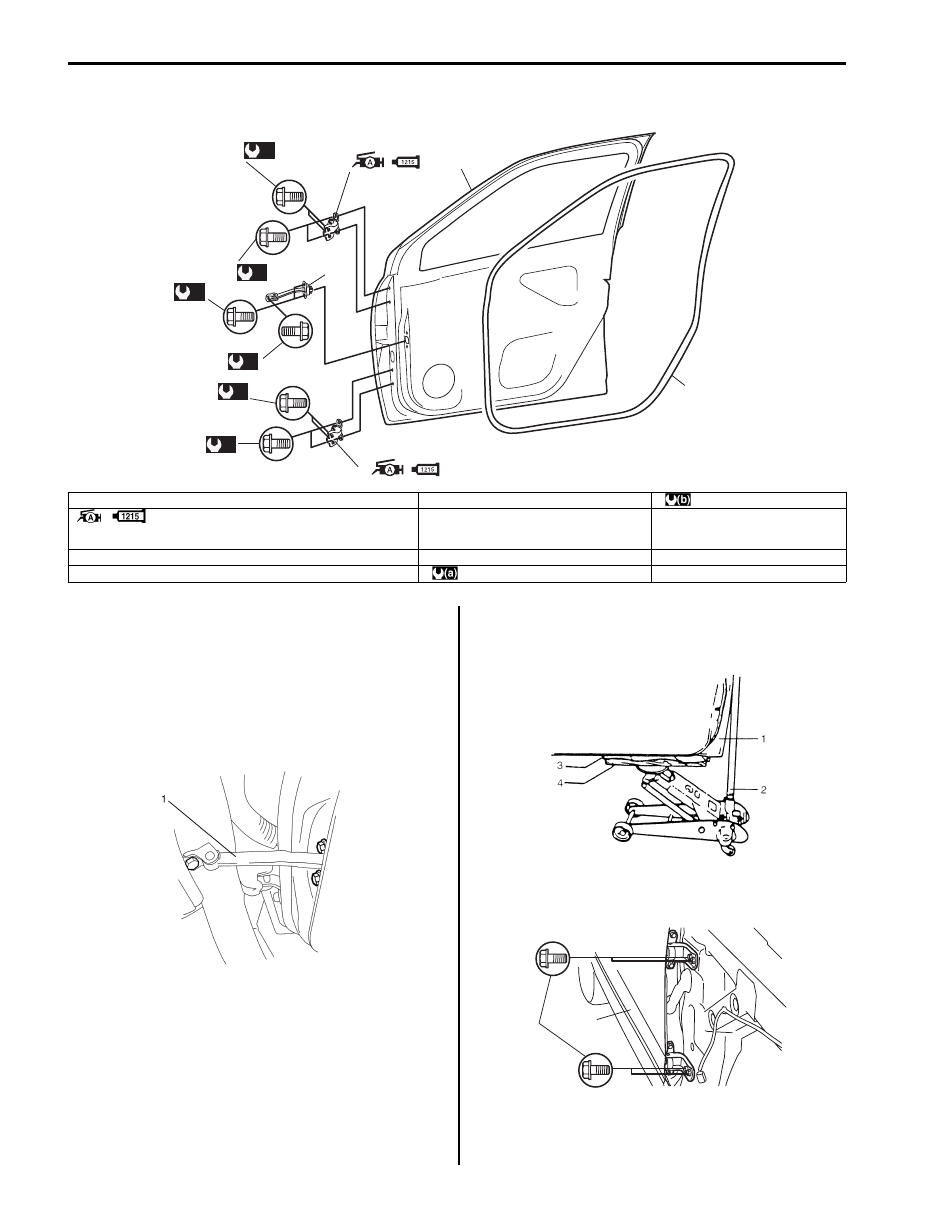

Front Door Assembly Removal and Installation

S6JB0A9A06006

Removal

1) Remove front fender referring to “Front Fender

Components”.

2) Disconnect door harness lead wires at each coupler.
3) Remove door open stopper (1).

4) Support door panel (1) using a jack (2) with rags (3)

and a piece of wood (4) placed between jack (2) and
panel (1) as shown.

5) Remove door assembly (1) by loosening hinge

mounting bolts (2).

2

2

1

(a)

4

(a)

4

(a)

5

3

(b)

7

(b)

(b)

7

6

I5JB0A9A0005-01

1. Door panel

5. Door open stopper bolt

: 23 N

⋅m (2.3 kgf-m, 17.0 lb-ft)



 2. Door hinge

: Apply lithium grease 99000-25010 to rotating part.
: Apply sealant 99000-31110 to contact face.

6. Front door opening weather-strip

3. Door open stopper

7. Front door hinge bolt (door side)

4. Front door hinge bolt (body side)

: 27 N

⋅m (2.7 kgf-m, 19.5 lb-ft)

I4RS0A9A0005-01

I2RH019A0003-01

2

1

I5JB0A9A0006-01

Hood / Fenders / Doors:  9J-4

Installation
Reverse removal procedure to install door assembly
noting the following instructions.
• When replacing door, coat replacement door inside

with wax for proper anti-corrosion treatment. Refer to
“Sealant Application Areas in Section 9L”.

• Apply sealant to contact face “A” of hinge (1) and

apply grease to rotating part “B” of hinge (1).

“A”:  Sealant 99000–31110 (SUZUKI Bond
No.1215)
“B”:  Grease 99000–25010 (SUZUKI Super Grease
A)

• Tighten hinge bolt to specified torque.

Tightening torque
Door hinge mounting bolt (body side) (a):  27 N·m
(2.7 kgf-m, 19.5 lb-ft)
Door hinge mounting bolt (door side) (b):  23 N·m
(2.3 kgf-m, 17.0 lb-ft)

• When door open stopper (1) is installed, make sure

punch mark (2) is upward.

Door open stopper installing direction
Left side door: L punch mark is upward
Right side door: R punch mark is upward

• Tighten door open stopper bolt (3) to specified torque.

Tightening torque
Door open stopper bolt (a):  27 N·m (2.7 kgf-m,
19.5 lb-ft)

• Adjust door latch striker position referring to “Front

Door Lock Assembly Removal and Installation in
Section 9F”.

• Adjust front door cushion so that door becomes flush

with side body.

• After installation, open and close the door to check

looseness.

Rear Door Assembly Components

S6JB0A9A06007

1

(a)

(b)

(b)

“A”

“A”

“B”

I5JB0A9A0007-01

I4RS0A9A0008-01

2

2

(a)

4

(a)

4

(a)

7

(a)

5

(a)

(a)

7

3

1

6

I5JB0A9A0008-01

1. Door panel

4. Rear door hinge bolt

7. Rear door hinge nut

9J-5 Hood / Fenders / Doors:

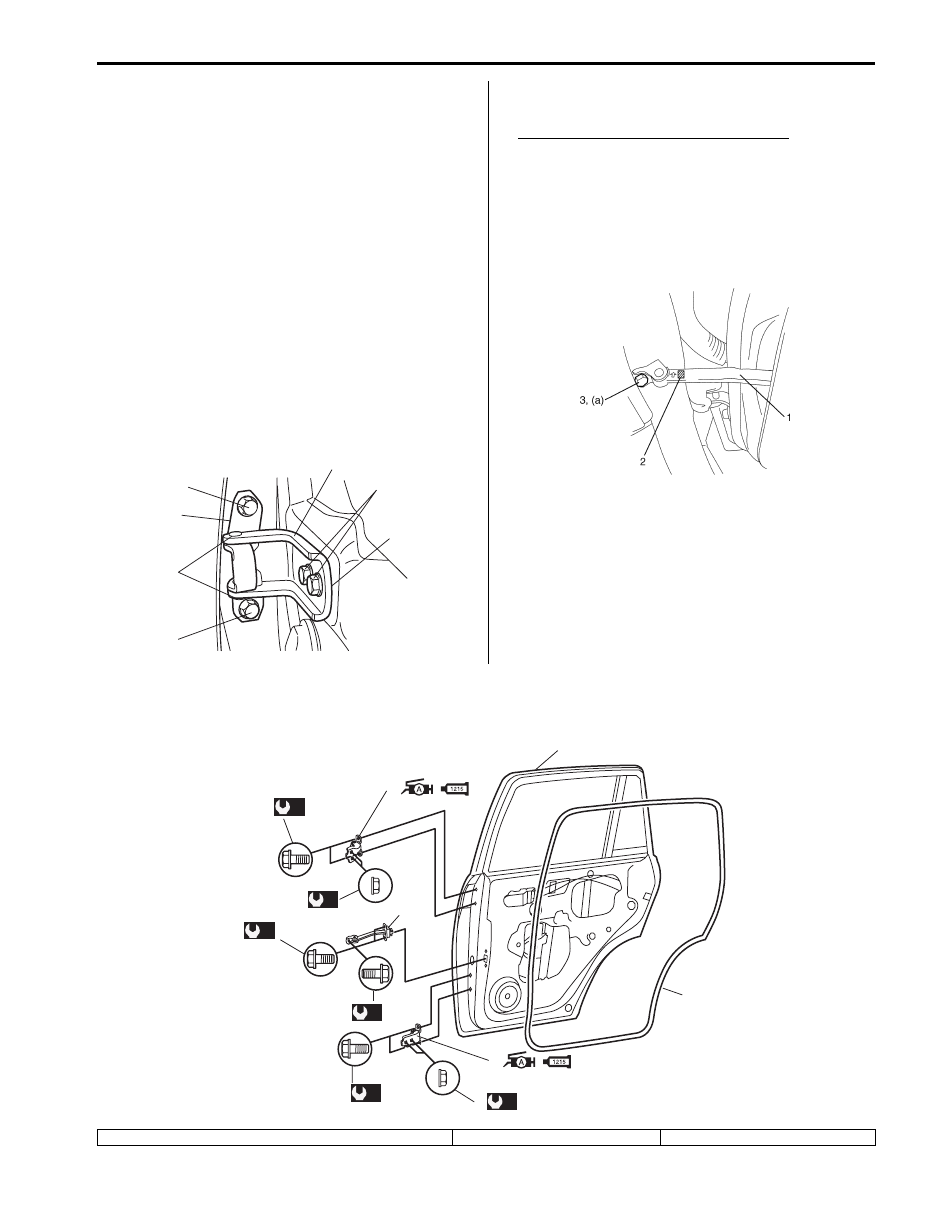

Rear Door Assembly Removal and Installation

S6JB0A9A06008

Refer to “Front Door Assembly Removal and Installation” as removal and installation procedures are basically the
same. However, note the following.
• Tighten rear door hinge bolts and nuts to specified torque referring to “Rear Door Assembly Components”.

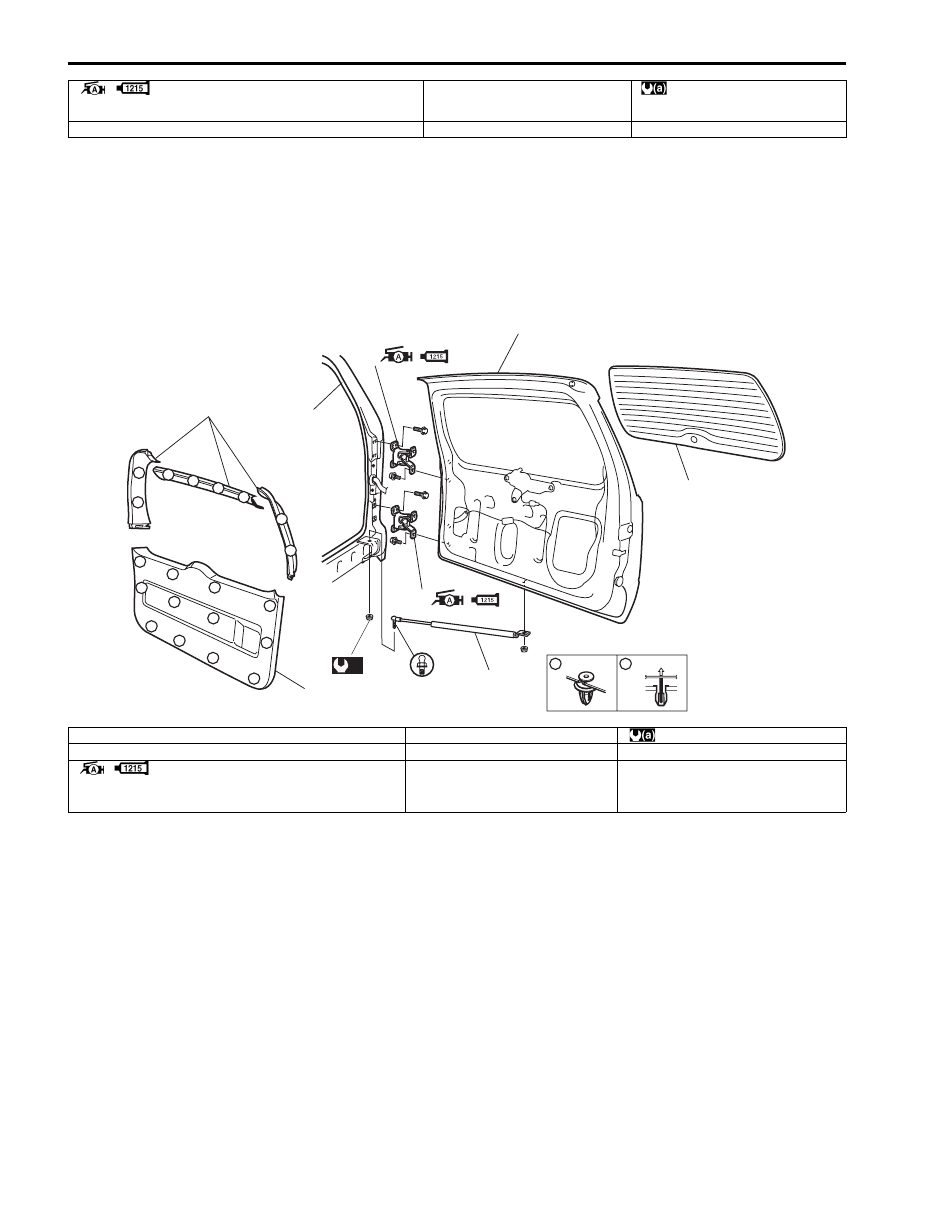

Rear End Door Assembly Components

S6JB0A9A06009



 2. Door hinge

: Apply lithium grease 99000-25010 to rotating part.
: Apply sealant 99000-31110 to contact face.

5. Door open stopper bolt

: 23 N

⋅m (2.3 kgf-m, 17.0 lb-ft)

3. Door open stopper

6. Rear door opening weather-strip

A

A

A

A

A

A

A

A

A

A

A

E

E

E

A

A

A

A

A

A

A

A

1

2

4

5

5

6

(a)

3

3

I5JB0A9A0009-01

1. Rear end door panel assembly

4. Rear end door balancer

: 23 N

⋅m (2.3 kgf-m, 17.0 lb-ft)

2. Rear end door window glass

5. Rear end door trim



 3. Rear end door hinge

: Apply lithium grease 99000-25010 to door hinge
moving section.
: Apply sealant 99000-31110 to contact face.

6. Rear end door opening wether-strip

Hood / Fenders / Doors:  9J-6

Rear End Door Assembly Removal and
Installation

S6JB0A9A06010

Removal

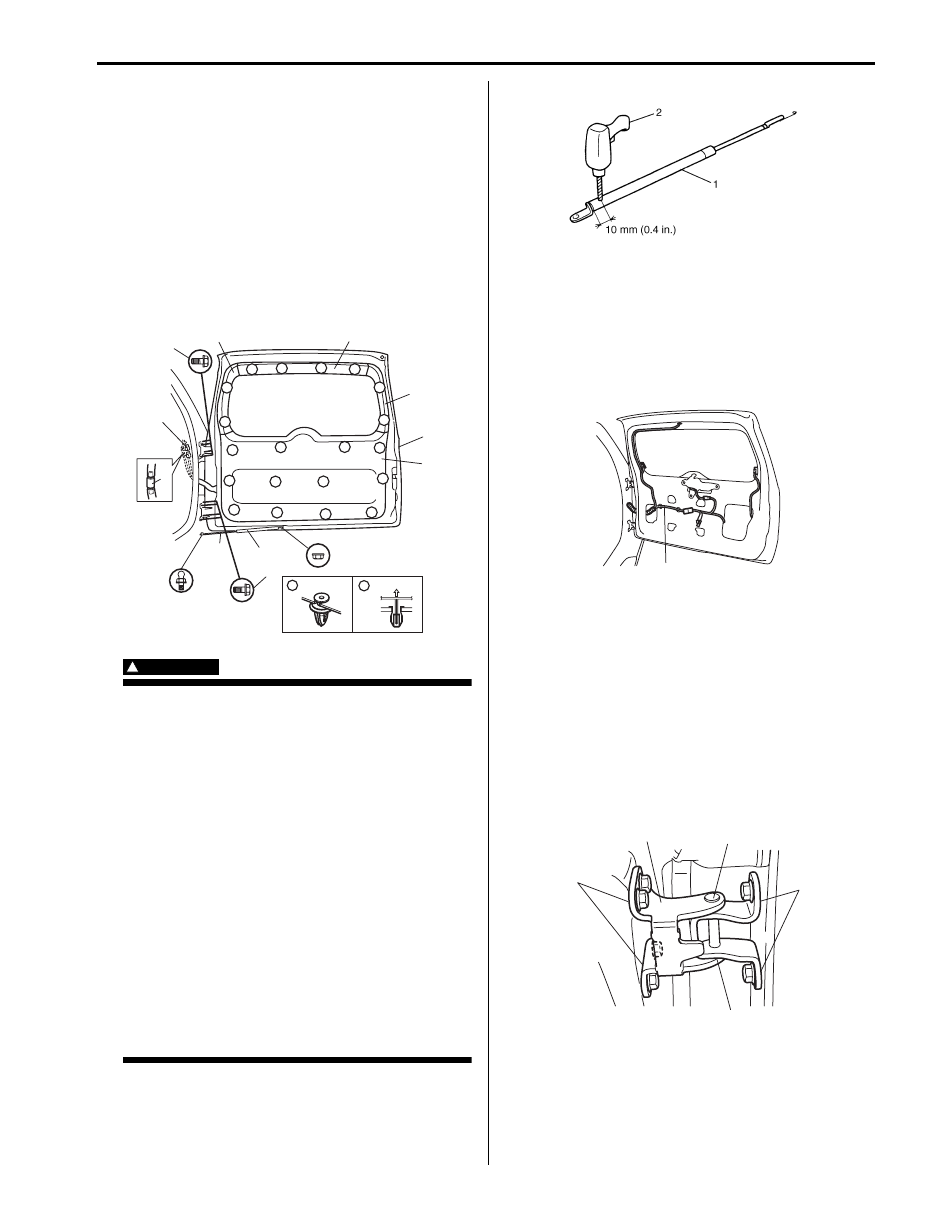

1) Remove rear end door trims (1).
2) Remove spare tire.
3) Disconnect rear end door harness coupler (2) and

washer hose (3).

4) Remove rear end door balancer (4).
5) Remove door hinge bolts (5) and remove rear end

door assembly (6).

WARNING

!



Handling of Rear End Door Balancer
(Damper)
• Handle balancer carefully. Do not scar or

scratch exposed surface of its piston rod,
and never allow any paint or oil to stick to
its surface.

• Do not turn piston rod with balancer fully

extended.

• Do not disassemble balancer (1) because

its cylinder is filled with gas.

Discarding of Rear End Door Balancer
(Damper)
• The gas itself in balancer is harmless but it

may issue out of the hole together with
chips generated by the drill (2). Therefore,
be sure to wear goggle when drilling.

• Using a 2 to 3 mm (0.08 to 0.12 in.) drill (2),

make a hole to remove gas inside as
shown before discarding.



Installation
Reverse removal procedure noting the following.
• Tighten rear end door hinge bolts and balancer nut to

specified torque referring to “Rear End Door
Assembly Components”

• Secure wiring harness (1).

• Adjust door latch striker position by referring to “Rear

End Door Lock Assembly Removal and Installation in
Section 9F”.

• Adjust door cushion so that door contacts body when

closed.

• Apply sealant to contact face “A” of door hinge (1) and

apply grease to rotating part “B” of hinge (1).

“A”:  Sealant 99000–31110 (SUZUKI Bond
No.1215)
“B”:  Grease 99000–25010 (SUZUKI Super Grease
A)
