Suzuki Grand Vitara JB416 / JB420 / JB419. Manual - part 507





9F-15 Security and Locks:

Specifications

Tightening Torque Specifications

S6JB0A9607001

NOTE
The specified tightening torque is also described in the following.
“Front Door Lock Assembly Components”
“Rear Door Lock Assembly Components”
“Rear End Door Lock Assembly Components”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Recommended Service Material

S6JB0A9608001

NOTE
Required service material is also described in the following.
“Front Door Lock Assembly Components”
“Rear Door Lock Assembly Components”



Fastening part

Tightening torque

Note

N

m

kgf-m

lb-ft

Door latch screw

5.0

0.5

4.0

)

 / )

Door latch striker screw

10

1.0

7.5

)

Rear end door latch bolt

5

0.5

4.0

)

Rear end door striker screw

24

2.4

17.5

)

Material

SUZUKI recommended product or Specification

Note

Grease

SUZUKI Super Grease A

P/No.: 99000–25011

)

Seats: 9G-1

Body, Cab and Accessories

Seats

Diagnostic Information and Procedures

Front Seat Heater Symptom Diagnosis (If Equipped)

S6JB0A9704001

Repair Instructions

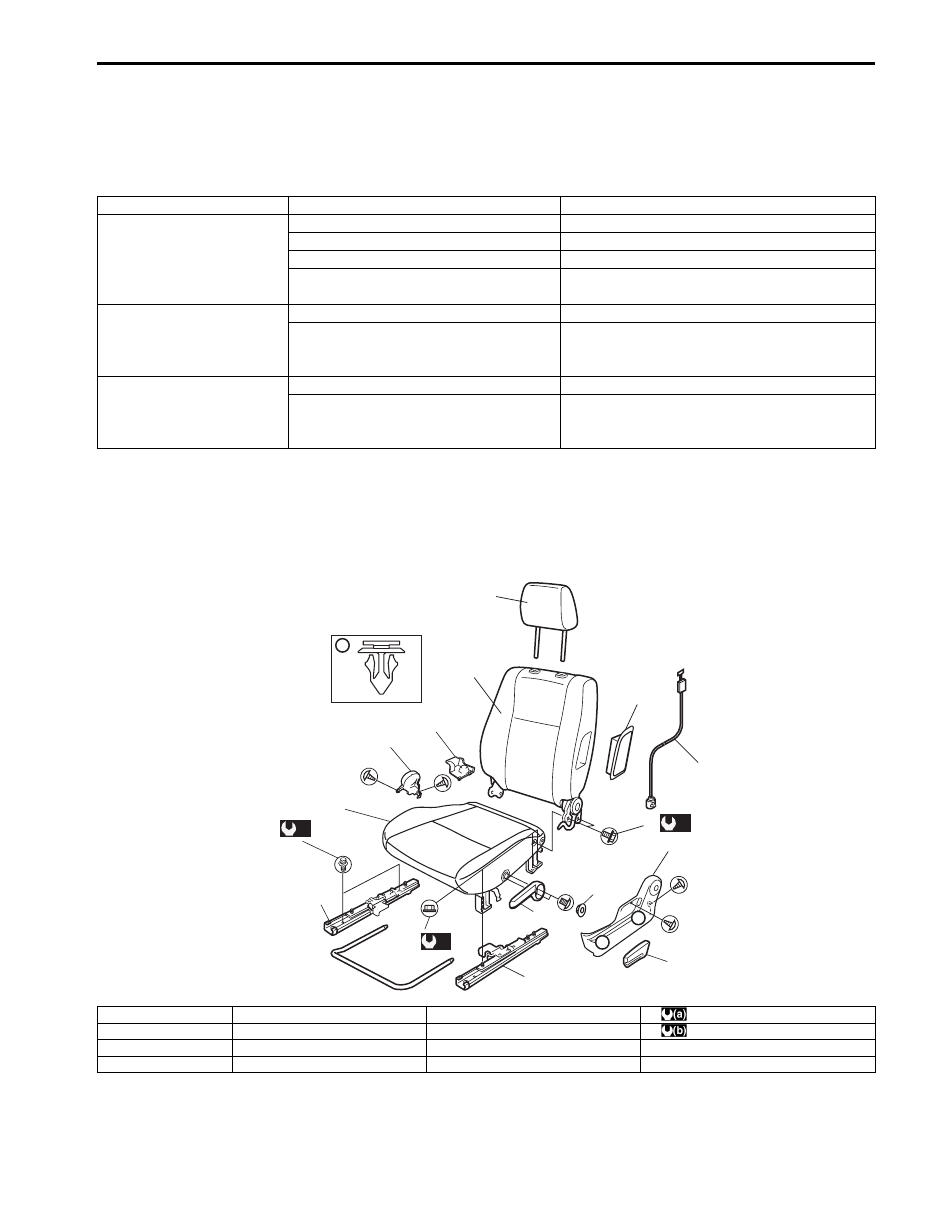

Front Seat Components

S6JB0A9706001

Condition

Possible cause

Correction / Reference Item

Both seat back and
cushion do not become
hot although seat heater
switch is ON position

Wiring or grounding faulty

Repair.

“IG2 SIG” fuse blown

Replace fuse to check for short.

Seat heater switch faulty

Replace switch.

Seat heater circuit in seat back and/or
seat cushion faulty

Replace heater front back and/or heater front
cushion.

Only seat back does not
become hot although seat
heater switch is ON
position

Wiring faulty

Repair.

Seat heater circuit in seat back and/or
seat cushion faulty

Replace heater front back and/or heater front
cushion.

Only seat cushion does
not become hot although
seat heater switch is ON
position

Wiring faulty

Repair.

Seat heater circuit in seat cushion

Replace heater front cushion.

A

A

A

3

2

4

4

1

9

5

11

5

12

4

4

10

8

7

6

(a)

(b)

(b)

I5JB0A970001-02

1. Seat cushion

5. Seat adjuster

9. Seat mounting bolt

: 23 N

⋅m (2.3 kgf-m, 17.0 lb-ft)

2. Seat back

6. Knob

10. Seat back bolt

: 35 N

⋅m (3.5 kgf-m, 25.5 lb-ft)

3. Headrestraint

7. Side air bag module (if equipped)

11. Seat cushion nut

4. Cover

8. Side air bag harness (if equipped)

12. Seat lifter lever (if equipped)

9G-2 Seats:

Front Seat Removal and Installation

S6JB0A9706002

Removal

1) Disable air bag system referring to “Disabling Air Bag System in Section 8B”.
2) Disconnect seat harness coupler, seat heater coupler and side air bag coupler, if equipped.
3) Remove 4 mounting bolts to remove seat assembly.
4) Disassemble and repair seat as necessary.

Installation
Reverse removal procedure to install front seat.
• Torque to specifications as shown in “Front Seat Components”.
• Enable air bag system referring to “Enabling Air Bag System in Section 8B”.

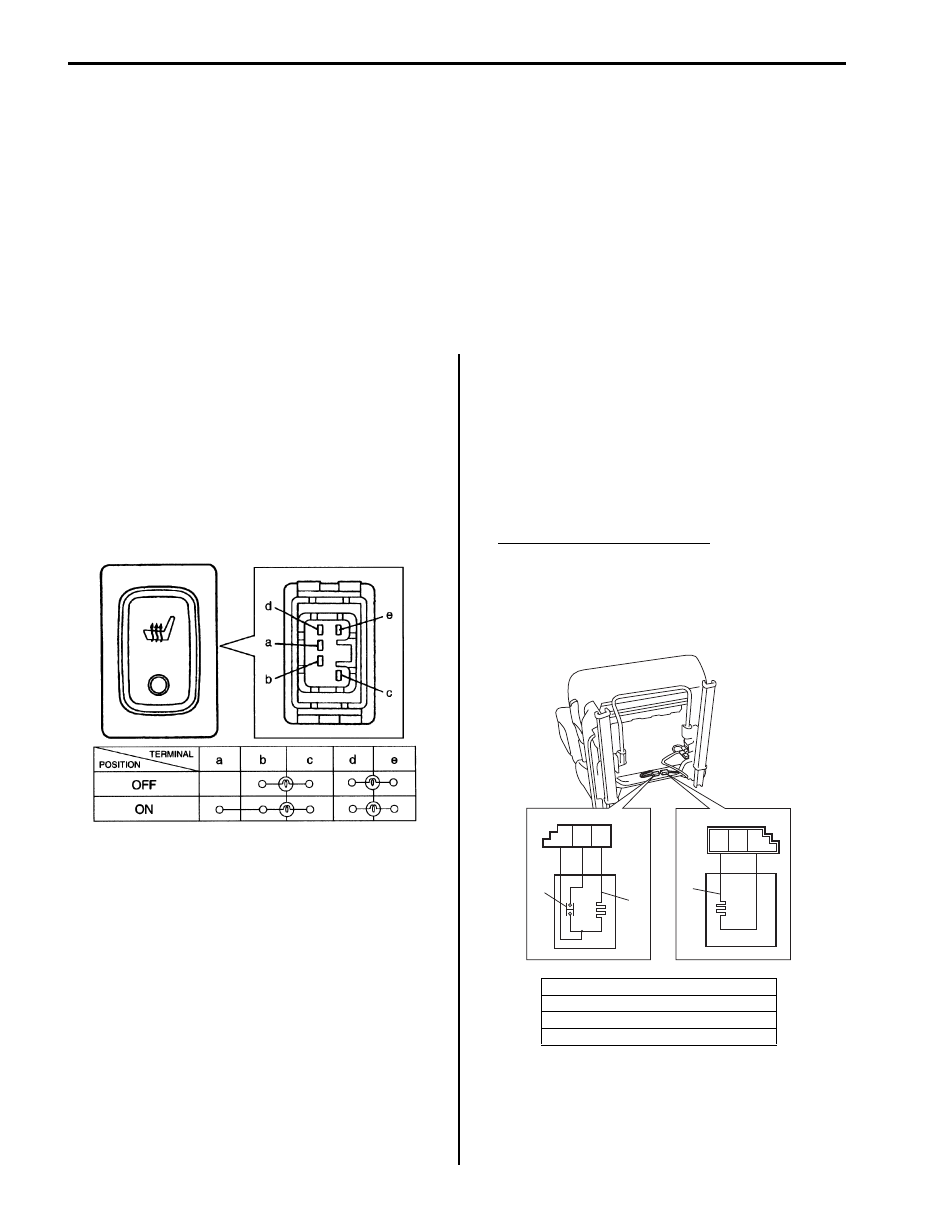

Front Seat Heater Switch (Driver and Passenger
Side) Inspection (If Equipped)

S6JB0A9706003

1) Confirm that ignition switch is OFF position.
2) Detach gear shift panel from front center console

box.

3) Disconnect seat heater switch coupler.
4) Check for continuity between terminals at each

switch position as shown below. If check result is not
as specified, replace.

Front Seat Heater Wire Inspection (If Equipped)

S6JB0A9706004

1) Confirm that seat heater switch is OFF position.
2) Disconnect coupler of seat heater under the seat

cushion.

3) Measure resistance between terminals as shown

below. If resistance is out of specification, replace
faulty seat cushion and/or seat back including seat
heater.

Seat heater circuit resistance
Seat cushion side [A] (between terminal “B” and
“C”, between terminal “A” and “C”): 4.7 – 5.7



(at 20

°C, 68 °F)

Seat back side [B] (between terminal “F” and
“D”: 10.7 – 13.1

 (at 20 °C, 68 °F)

I5JA01970001-01

1. Heater wire
2. Thermostat

[A]: Seat cushion side
[B]: Seat back side

A

B

C

D

E

F

[A]

[B]

1

1

2

I5JB0A970002-01

Seats: 9G-3

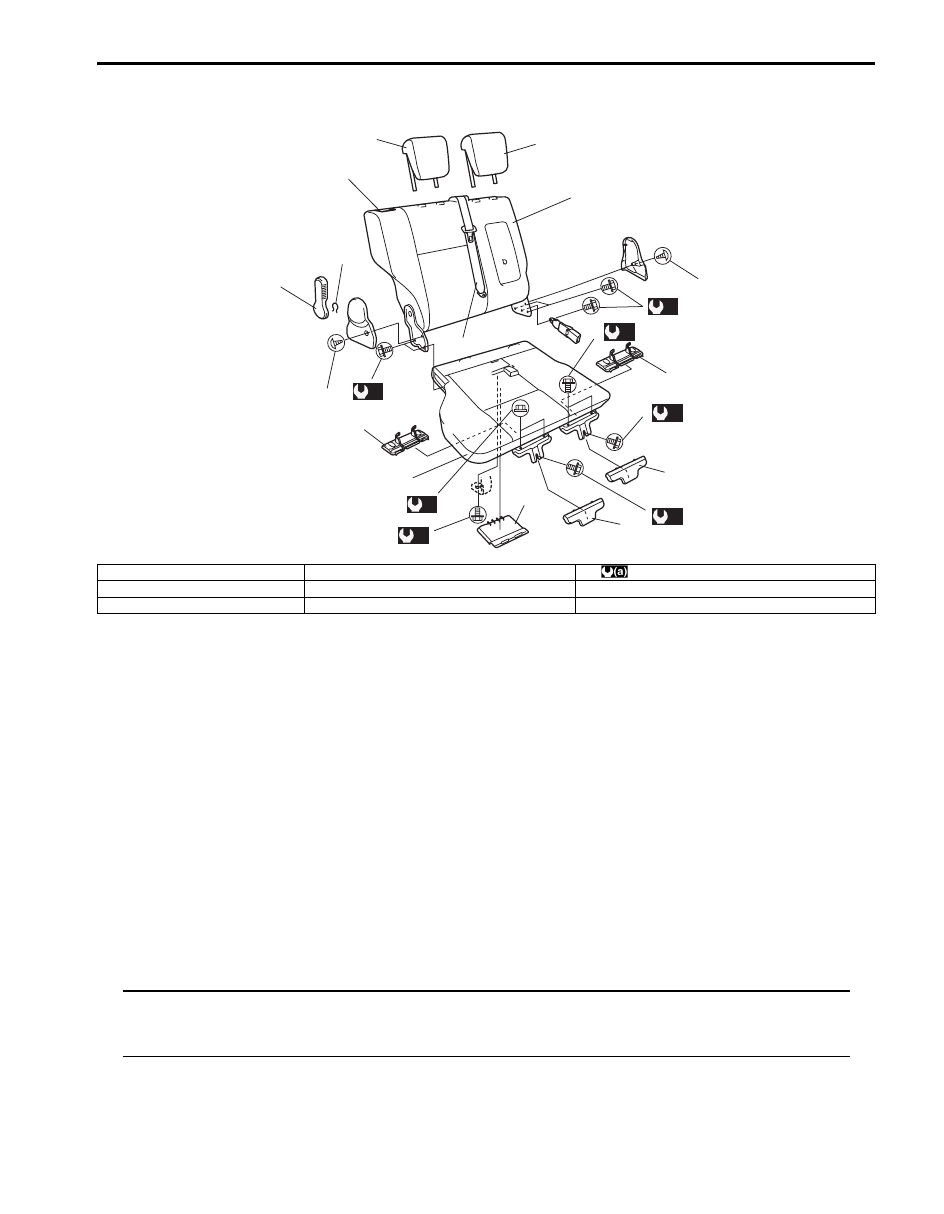

Rear Seat Components

S6JB0A9706005

Rear Seat Removal and Installation

S6JB0A9706006

Removal

1) Remove seat mounting bolt(s) in the bracket.
2) Fold rear seat back and unlock the seat cushion lock to pull forward the seat cushion.
3) Remove seat mounting nuts (bolts) to remove rear seat assembly.
4) Disassemble and repair seat as necessary.

Installation
Reverse removal procedure to install rear seat.
• Torque to specifications in “Rear Seat Components”.

Specifications

Tightening Torque Specifications

S6JB0A9707001

NOTE
The specified tightening torque is also described in the following.
“Front Seat Components”
“Rear Seat Components”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

*3

*6

**6

*

*

*4

*4

*5

1

2

3

4

4

*4

(a)

*

(a)

*

(a)

(a)

*

(a)

(a)

(a)

**

I5JB0A970003-01

1. Seat cushion

4. Cover

: 35 N

⋅m (3.5 kgf-m, 25.5 lb-ft)

2. Seat back

5. Rear center seat belt

*: 5 door model

3. Headrestraint

6. Reclining lever

**: 3 door model
